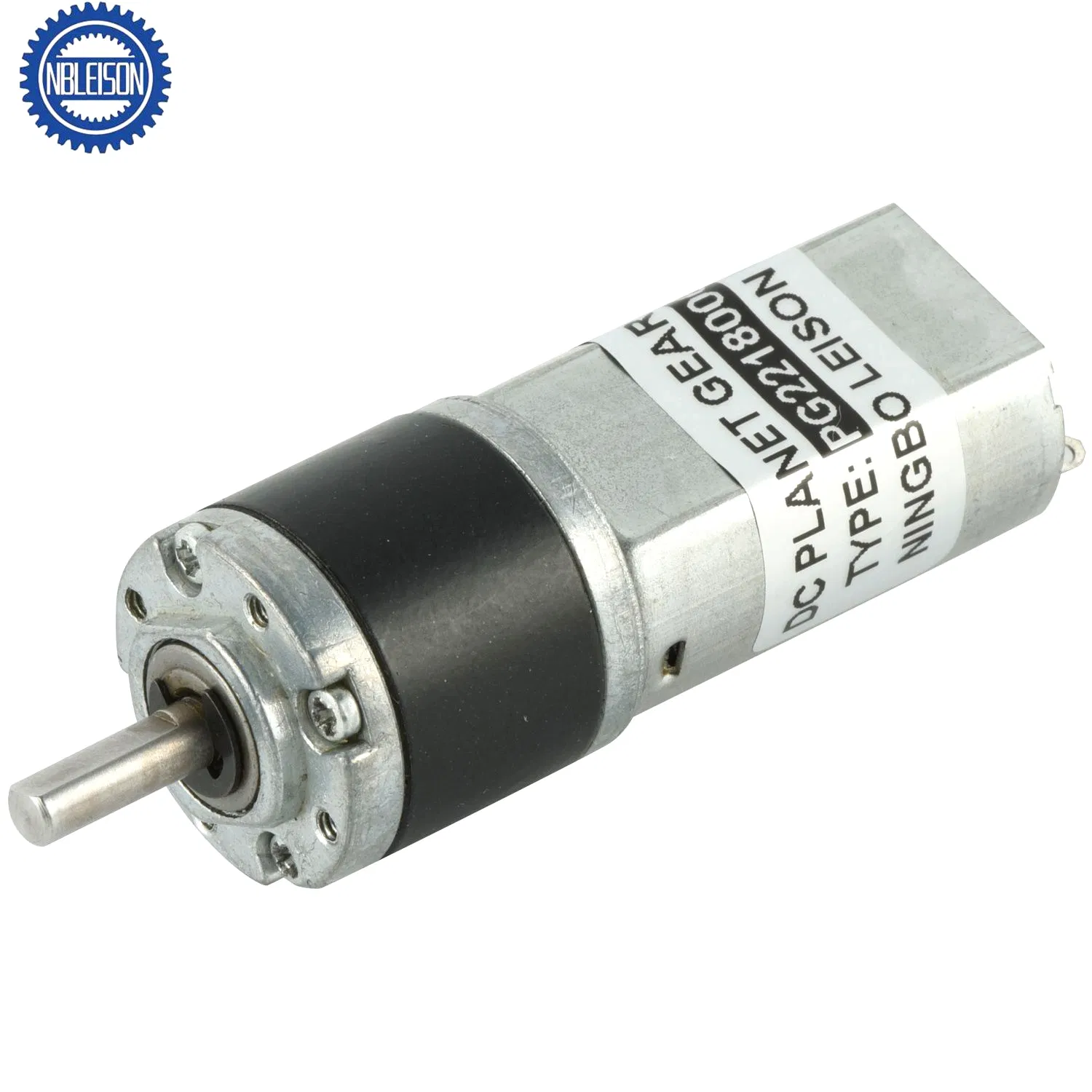

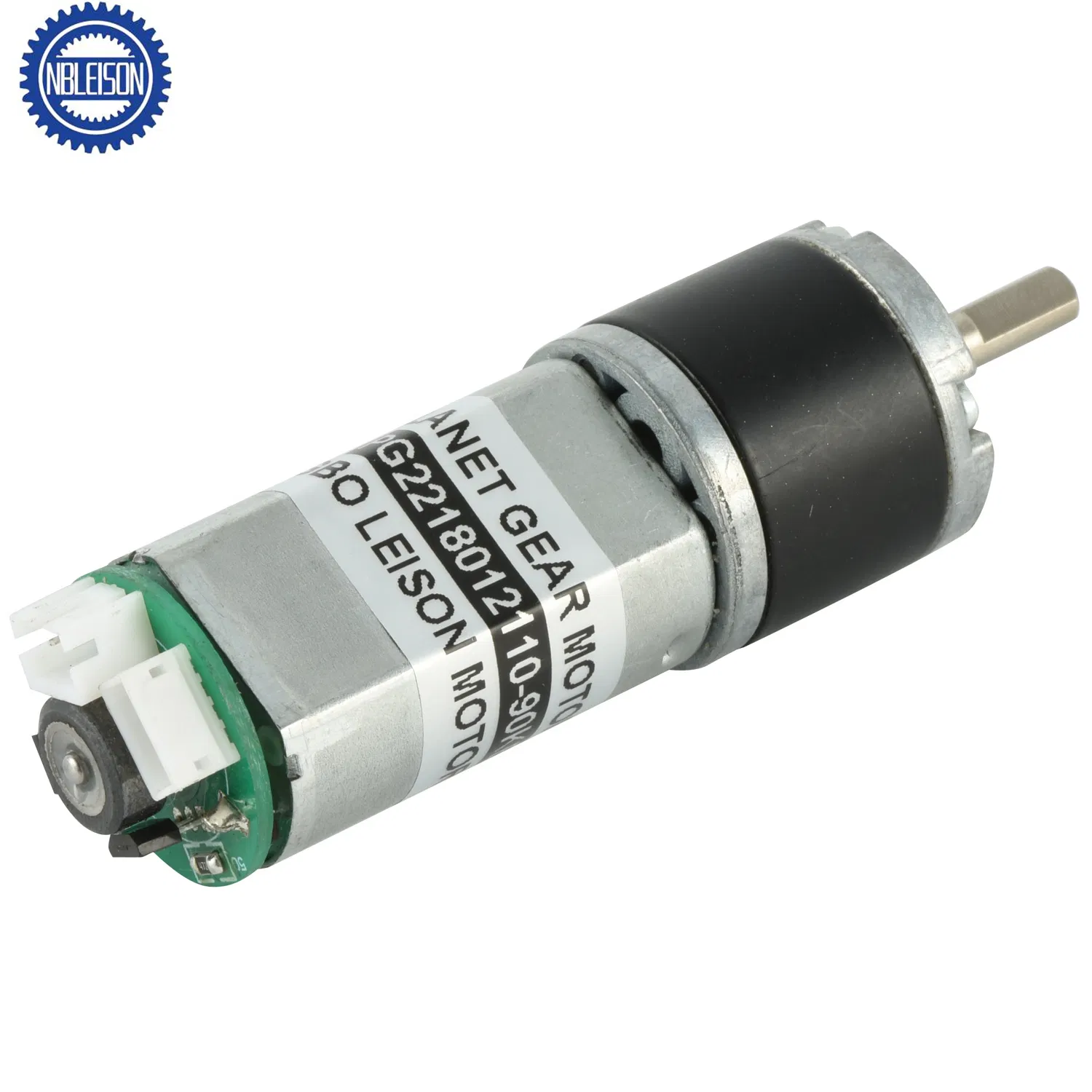

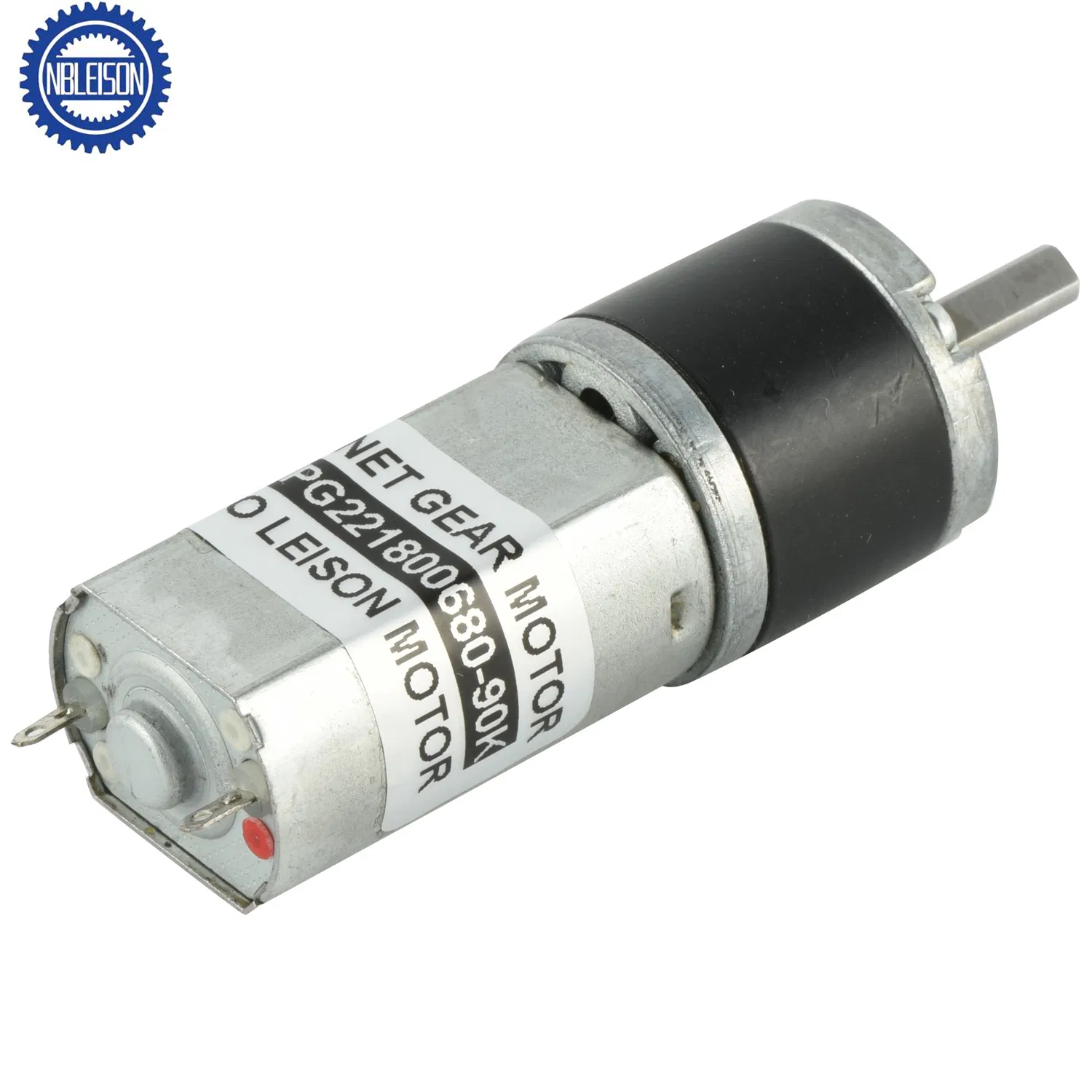

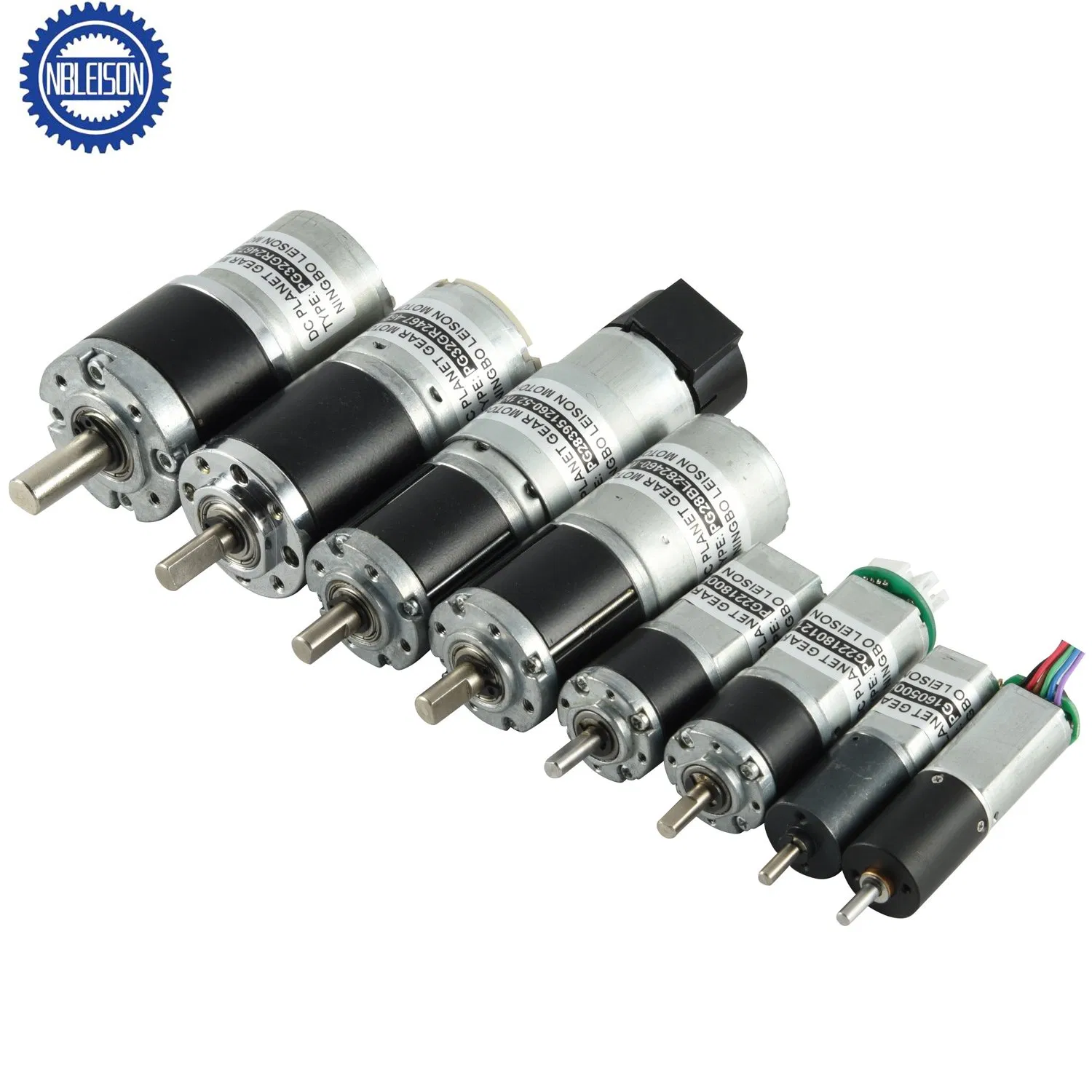

22mm 12V 24V Micro DC Planetary Gearbox Gear Motor for Roller Blind and Optical Equipment
22mm 12V 24V Micro DC Planetary Gearbox Gear Motor for Roller Blind and Optical Equipment
22mm 12V 24V Micro DC Planetary Gearbox Gear Motor for Roller Blind and Optical Equipment
22mm 12V 24V Micro DC Planetary Gearbox Gear Motor for Roller Blind and Optical Equipment
22mm 12V 24V Micro DC Planetary Gearbox Gear Motor for Roller Blind and Optical Equipment
1 / 5
22mm 12V 24V Micro DC Planetary Gearbox Gear Motor for Roller Blind and Optical Equipment
22mm 12V 24V Micro DC Planetary Gearbox Gear Motor for Roller Blind and Optical Equipment
22mm 12V 24V Micro DC Planetary Gearbox Gear Motor for Roller Blind and Optical Equipment
22mm 12V 24V Micro DC Planetary Gearbox Gear Motor for Roller Blind and Optical Equipment
22mm 12V 24V Micro DC Planetary Gearbox Gear Motor for Roller Blind and Optical Equipment

22mm 12V 24V Micro DC Planetary Gearbox Gear Motor for Roller Blind and Optical Equipment

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
LS-PG22M180
Function
Driving
Structure
Brush
Type
PMDC
Certification
CE, RoHS
Construction
Permanent Magnet
Efficiency
IE1
Protect Feature
Drip-Proof
Gear Type
Planetary Gear
Ratio
1:4 to 1:2418
Rated Torque
10 to 4000g.cm
HS Code
8501109990
Product Description

22mm 12V 24V Micro DC Planetary Gearbox Motor for Roller Blind

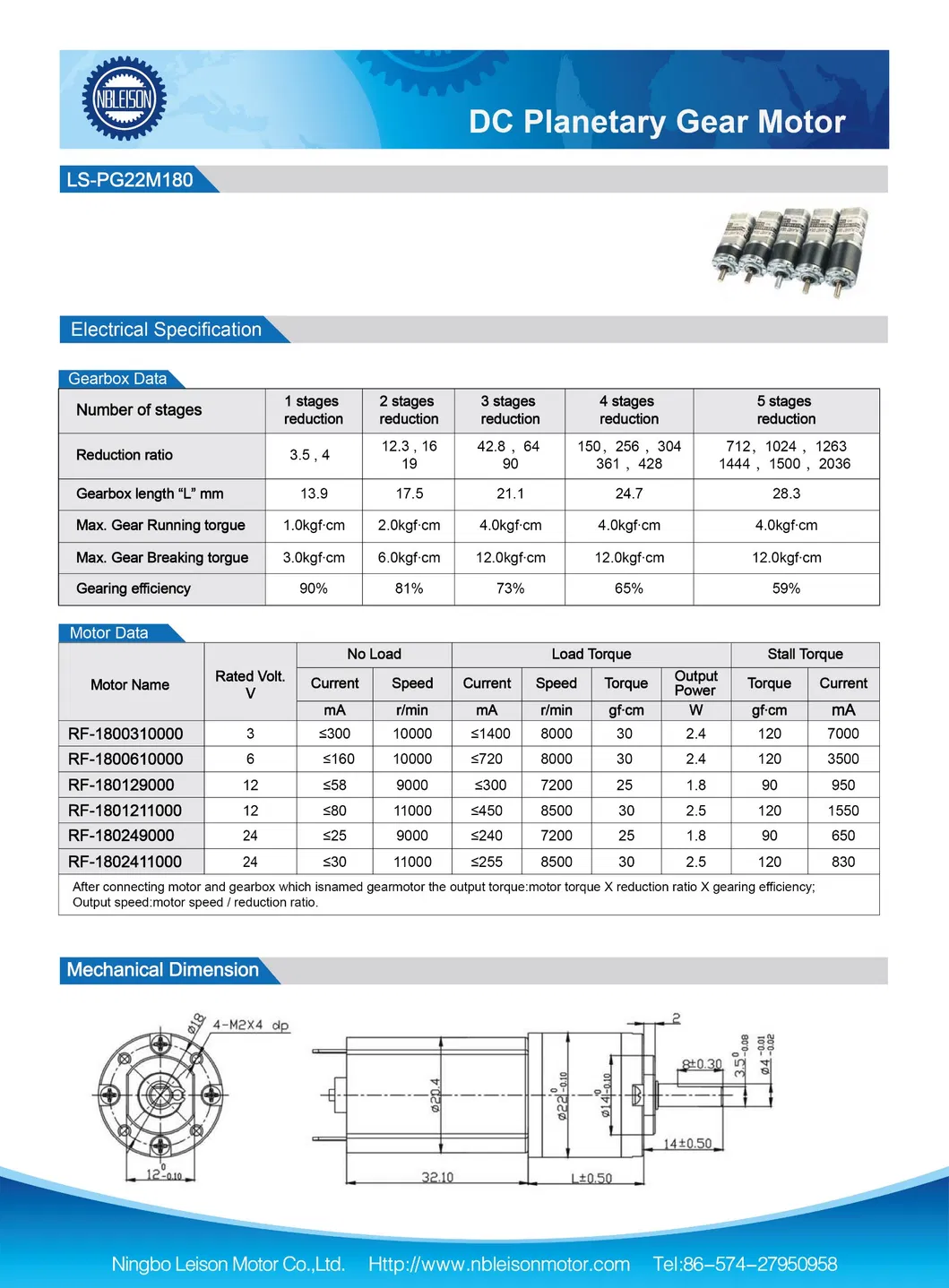

DC Planetary Gearbox Motor
⚡ Voltage Range
3V 6V 9V 12V 24V
⚙️ Speed Range
2-1800rpm
💪 Rated Torque
10-4000g.cm
📏 Compact Size
22mm Diameter

1. Shaft: 4mm Dia X 14mm Length
2. Motor's voltage, speed, torque, shaft can be customized requirement after evaluation.
3. The datasheet and price range are only typical data for reference. Gear motor's price is usually decided by the motor's reduction ratio and torque.

Production & Quality Control

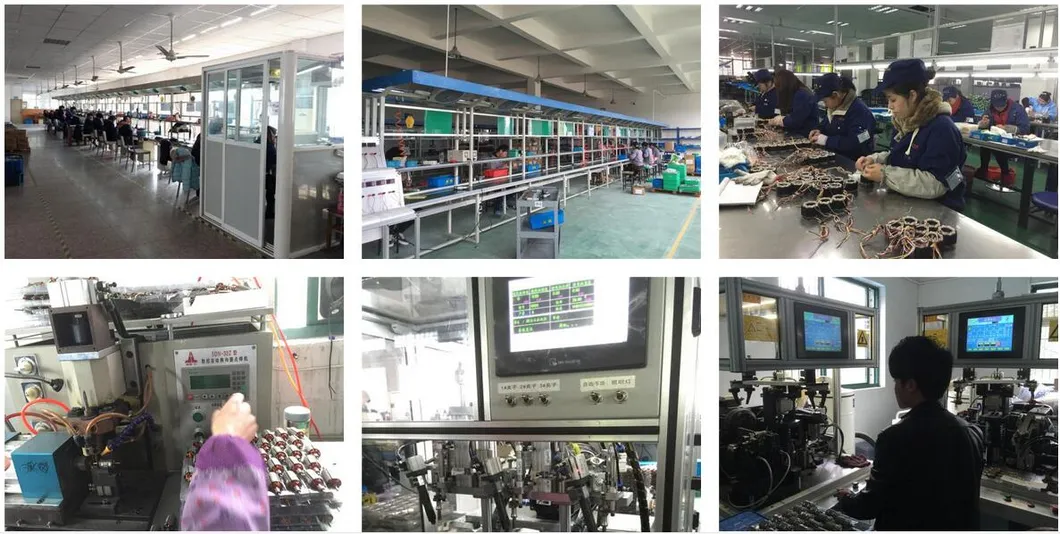

1. Production Line

Production Line

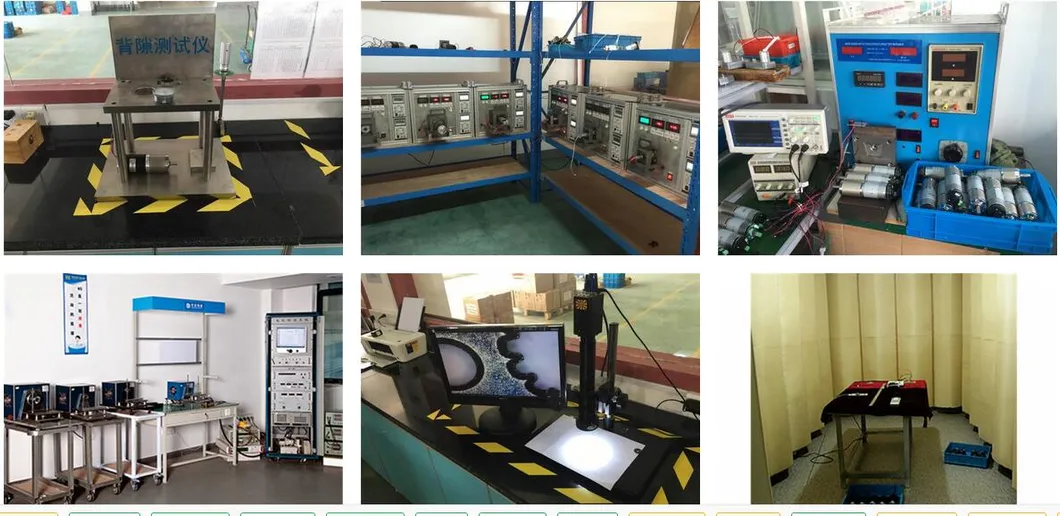

2. Test Equipment

Test Equipment
Certificates & Global Presence

Product Certificates

Certificates

Exhibitions & Customer Visits

Exhibitions
Frequently Asked Questions
What are your main products?
We currently produce Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper motors, and AC Motors etc.
How to select a suitable motor?
If you have detailed specs like voltage, speed, torque, motor size, working mode, and needed life time, we can recommend a suitable motor per your request accordingly.
Do you provide customized services?
Yes, we can customize voltage, speed, torque, and shaft size/shape. We can also add connectors, capacitors, or EMC components as needed.
How do you ensure motor quality?
We use inspection procedures for incoming materials and conduct tour inspections during production, along with a final inspection before shipping.
What is the typical lead time?
Regular standard products typically take 25-30 days, while customized products may take slightly longer depending on the order details.
What certifications do you hold?
We currently hold CE and RoHS certifications for our products.
