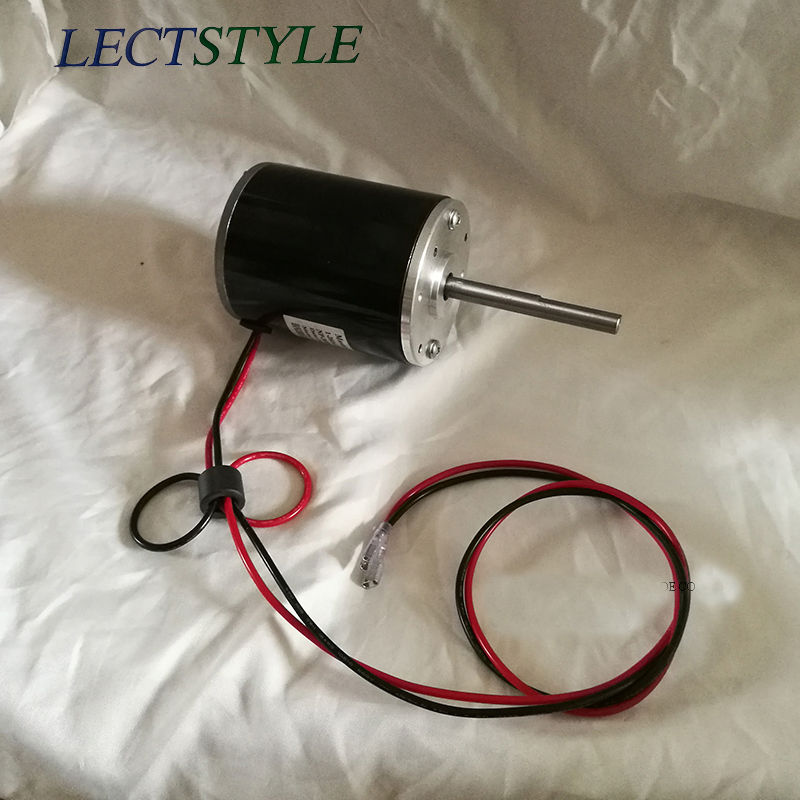

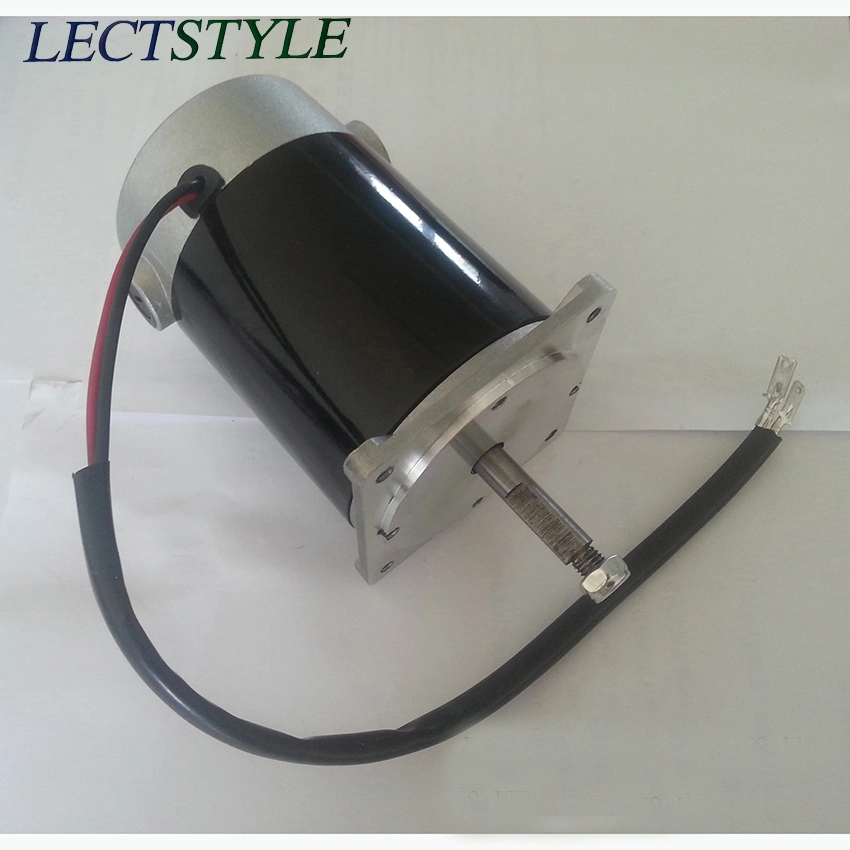

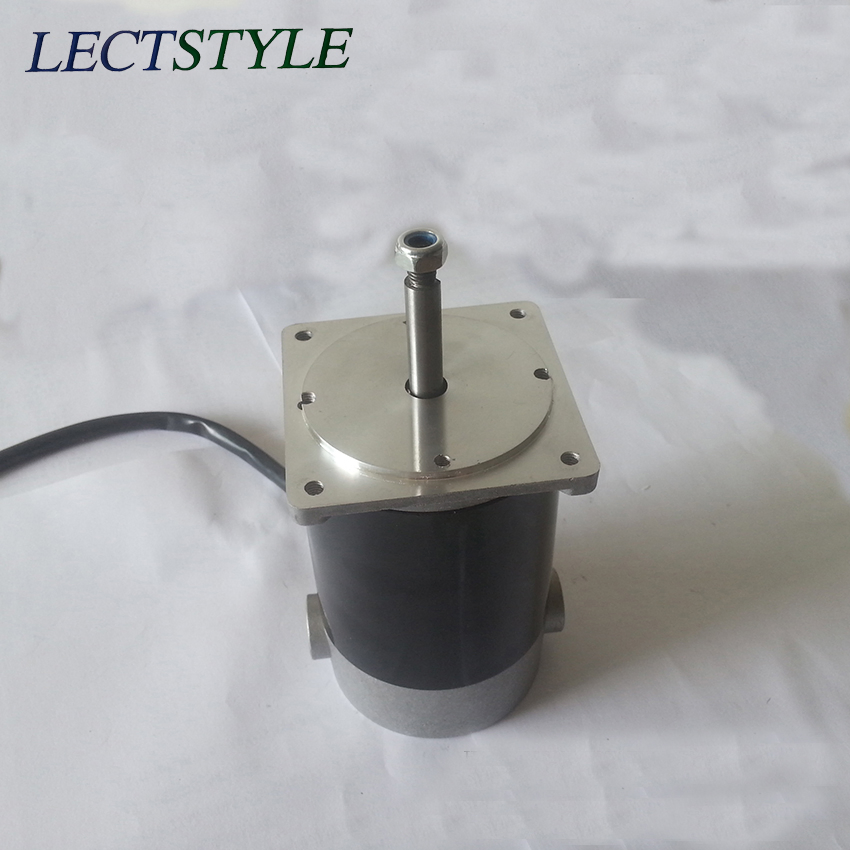

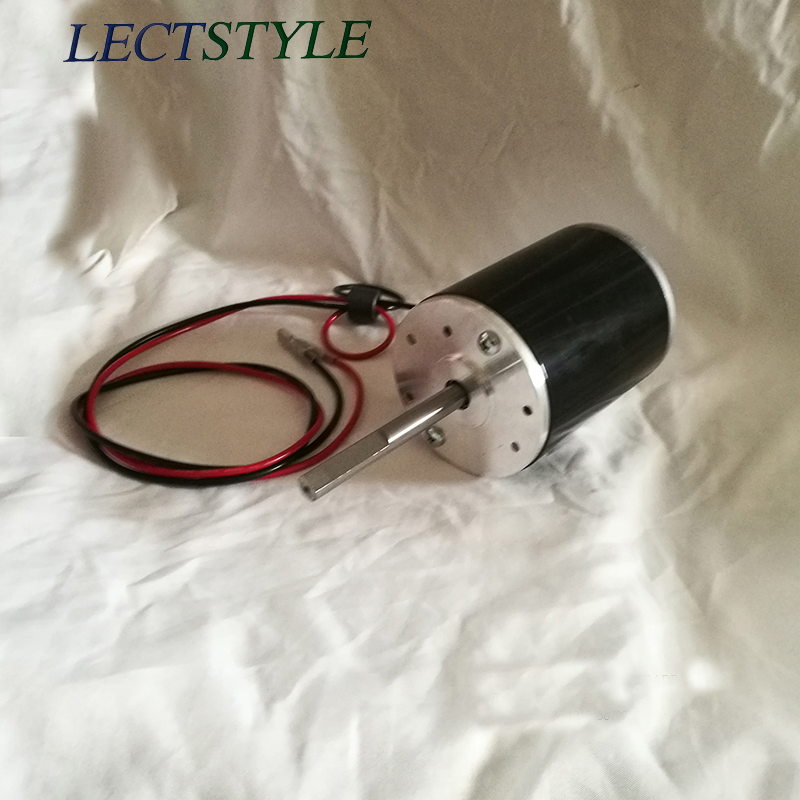

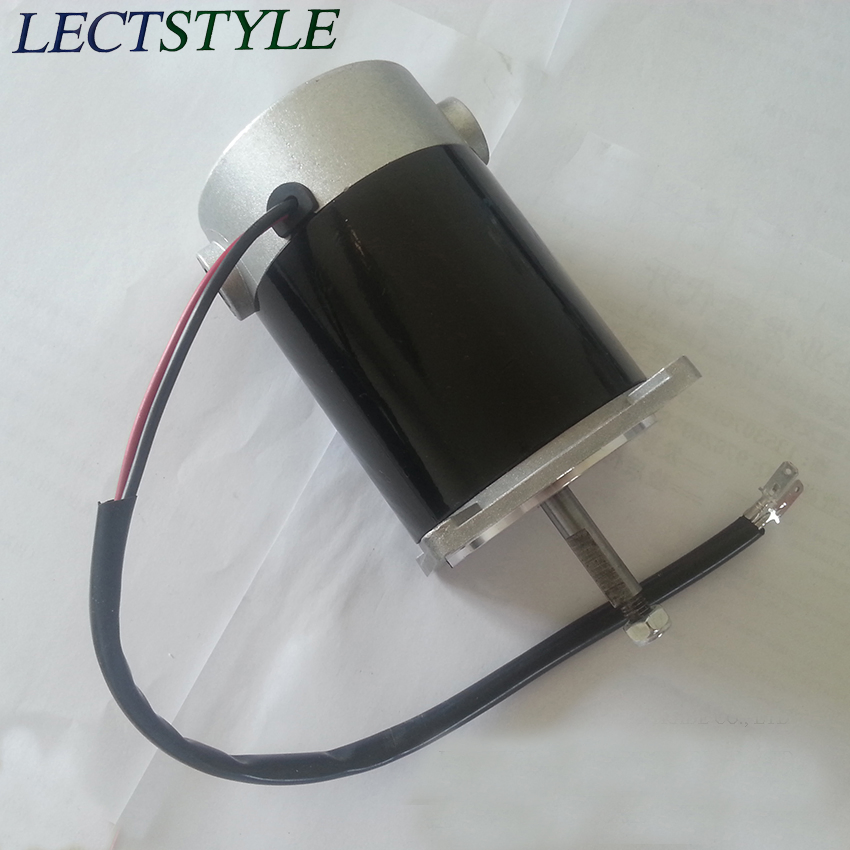

24 300W Electric DC Gear Motor for Electric Medical Device
24 300W Electric DC Gear Motor for Electric Medical Device
24 300W Electric DC Gear Motor for Electric Medical Device
24 300W Electric DC Gear Motor for Electric Medical Device
24 300W Electric DC Gear Motor for Electric Medical Device
1 / 5
24 300W Electric DC Gear Motor for Electric Medical Device
24 300W Electric DC Gear Motor for Electric Medical Device
24 300W Electric DC Gear Motor for Electric Medical Device
24 300W Electric DC Gear Motor for Electric Medical Device
24 300W Electric DC Gear Motor for Electric Medical Device

24 300W Electric DC Gear Motor for Electric Medical Device

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
100ZYT205-2434
Excitation Mode
Compound
Function
Control, Driving
Casing Protection
Protection Type
Number of Poles
4
Structure
Brush
Type
ZTP
Rated Voltage
24V, 12V
Rated Power
120W, 200W, 300W, 500W
Motor Material
Alloy Steel
Gearbox Material
Aluminum
No Load Speed
3400rpm
Motor Diameter
83mm
Motor Length
135mm
Specification
ISO, CE
HS Code
85013100

Product Description

Major Characteristics:
  • Insulation class F, resistance to high temperature 155 centigrade
  • High-quality bearing with low noise and longer life
  • Permanent Magnet DC Motors for versatile applications

These motors are mainly used for electric scooters, electric wheelchairs, agricultural seeders, electric medical devices, robotic transporters, golf carts, grass trimmers, etc.

Customization: Special motors can be customized per your requirements. Encoders and gearboxes can be fixed as needed.

Detailed Photos

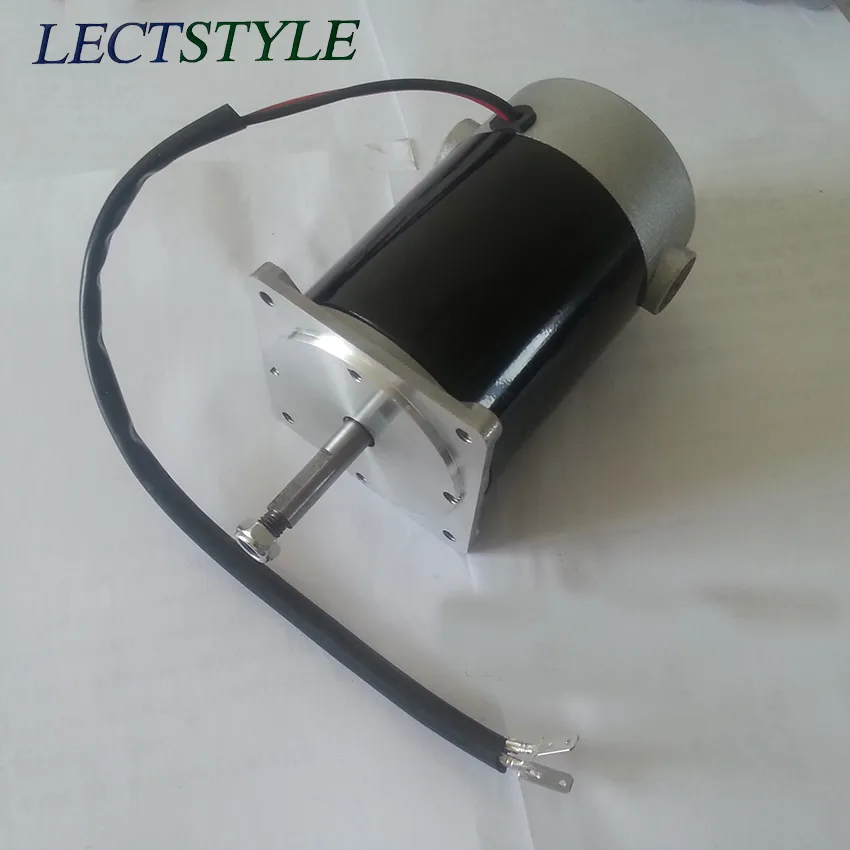

DC Gear Motor Detail

Product Parameters

Voltage
12V DC, 24V DC
Current
5 Amps - 24 Amps
Rated Speed
3650 - 4200rpm
Power Range
60W, 100W, 150W, 500W
Noise Level
65 dBA Max

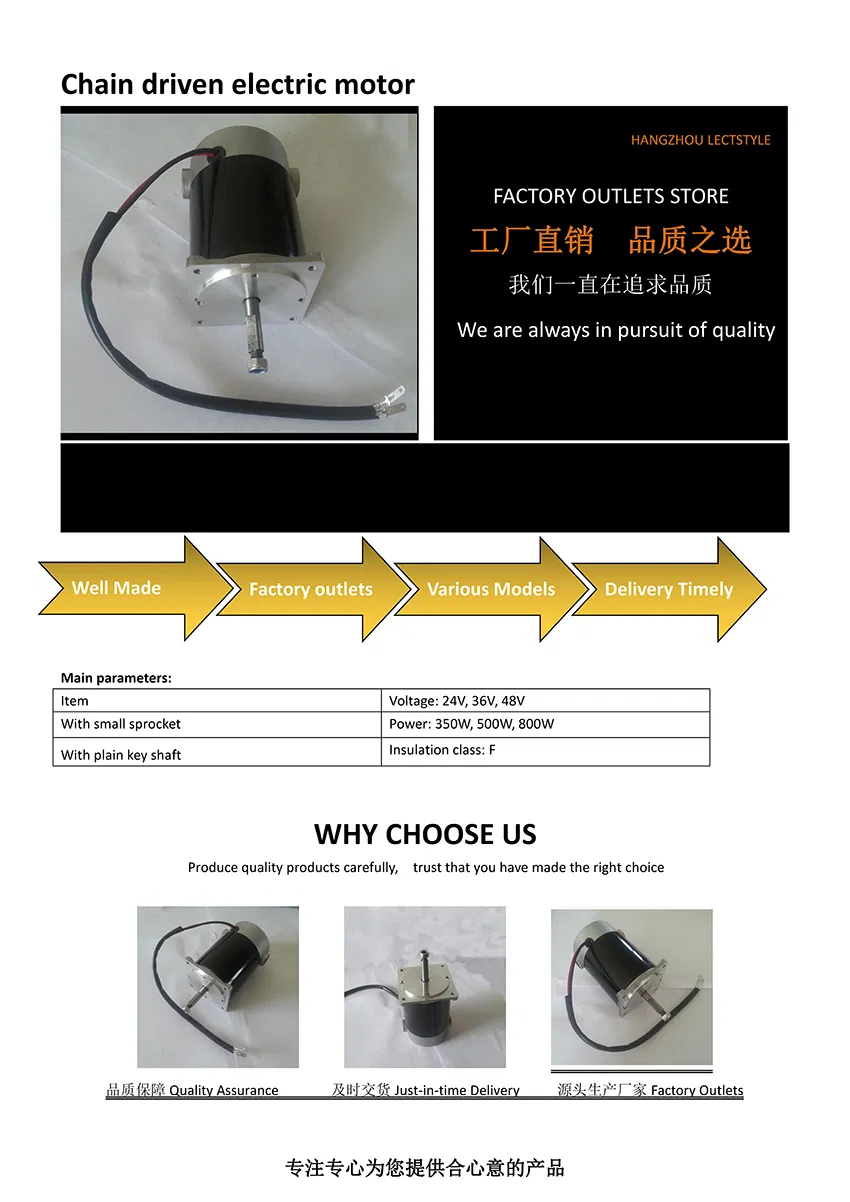

Parameter Chart 1

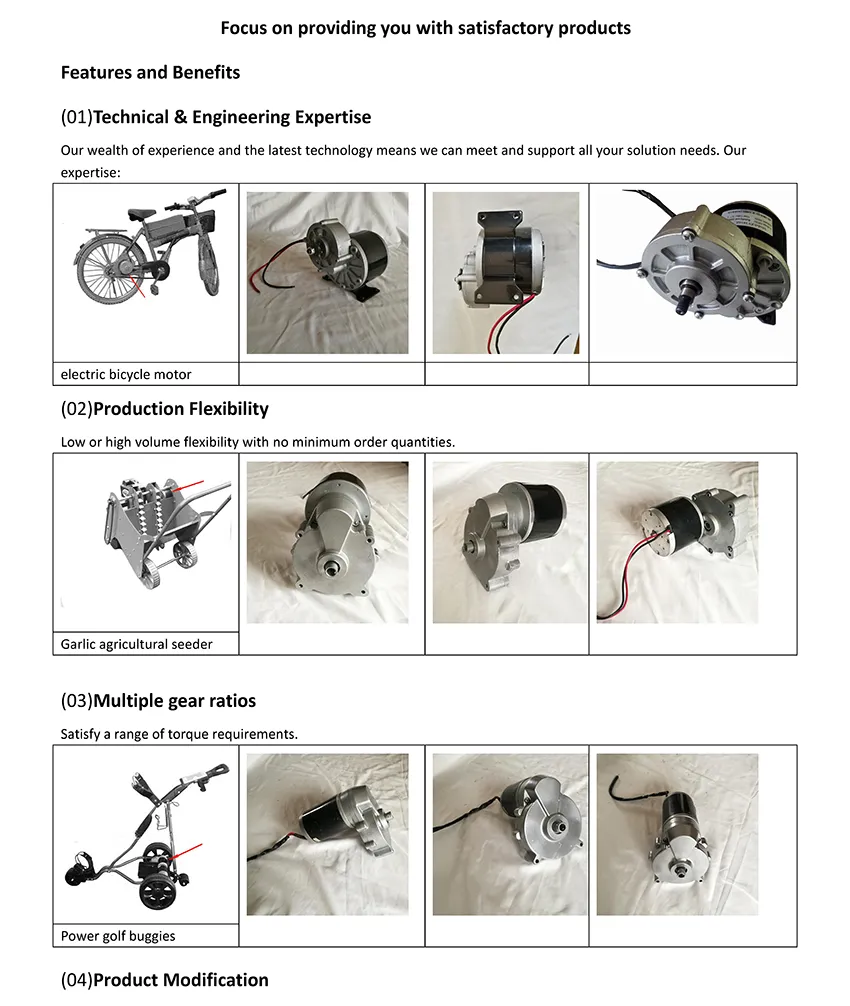

Parameter Chart 2

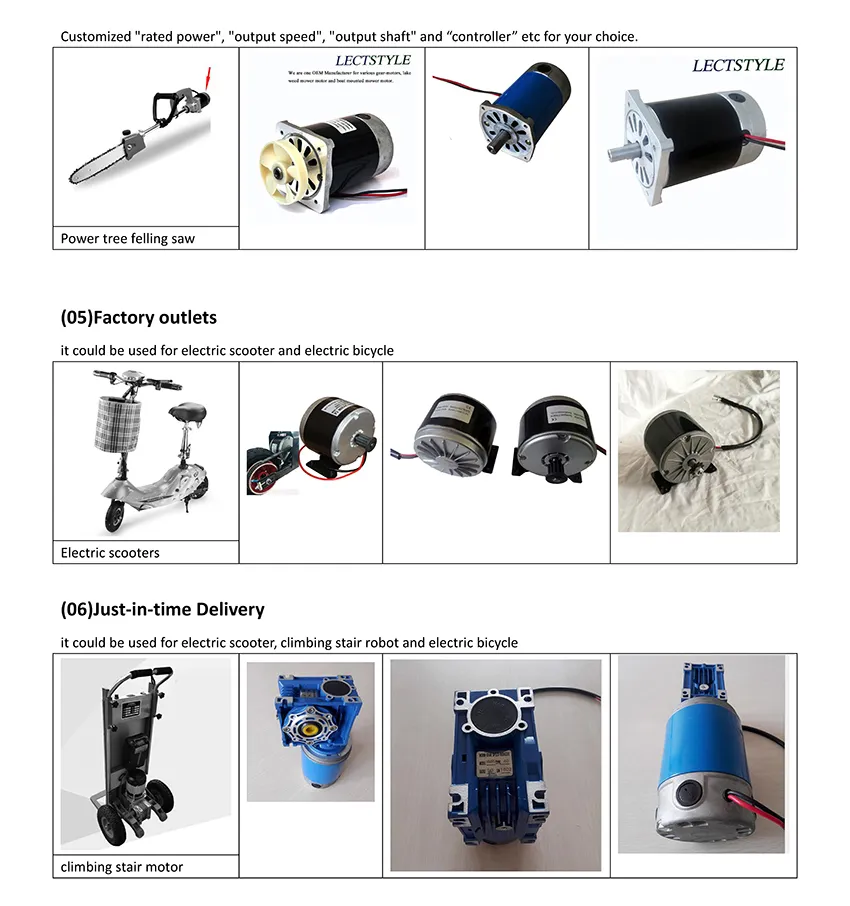

Technical Drawing

Packaging & Shipping

Packaging Process

Transport Package: Polybag + Carton + Fumigation-Free Wooden Cases.

After Sales Service

Our products can be repaired or replaced with new parts at free cost within three months.

Manufacturing Process

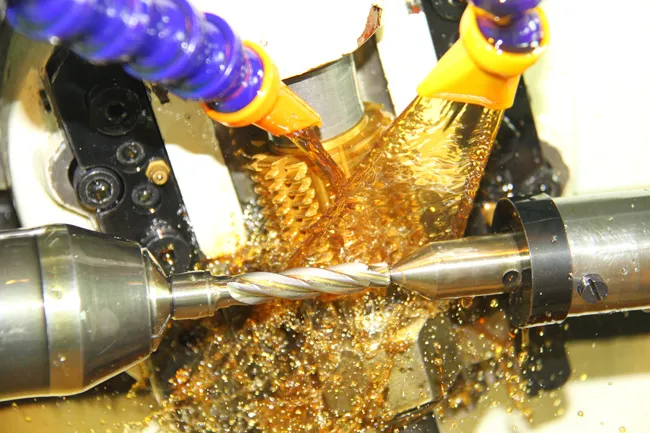

(1) Output Shaft Processing

Shaft processing

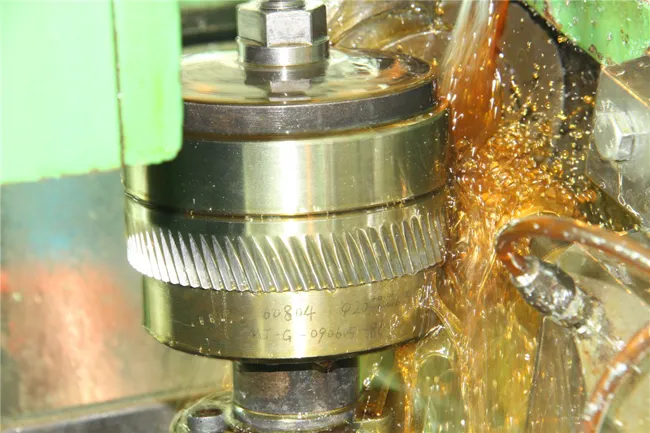

(2) Spur Gears and Sprockets Processing

Gear processing

(3) Turning Machining

Turning machining

(4) Assembly Preparation

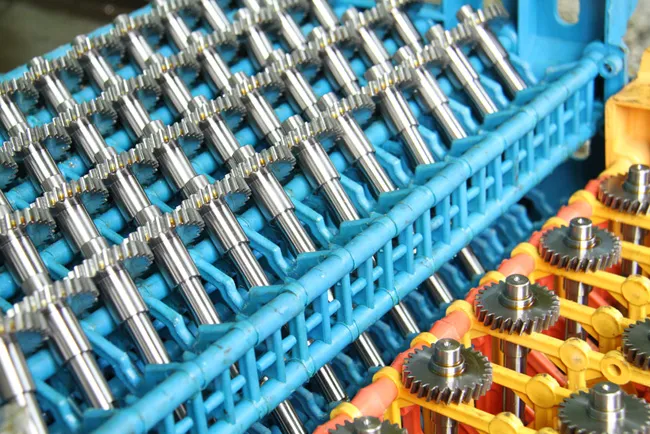

Assembly prep

(5) Assembly Workshop

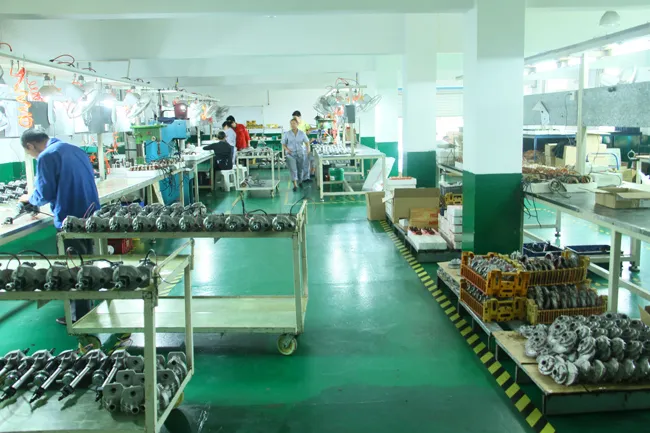

Assembly workshop

(6) Inspection Test Before Shipment

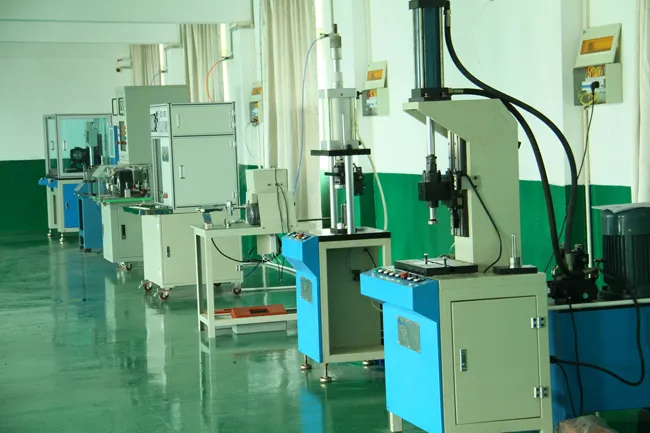

Quality inspection

Frequently Asked Questions

Q1: What are the primary applications for these DC gear motors?
These motors are widely used in electric scooters, wheelchairs, medical devices, agricultural equipment like seeders, and robotic transporters.
Q2: What is the insulation class of the motor?
The motors feature Class F insulation, which provides resistance to high temperatures up to 155 degrees Celsius.
Q3: Can the motor specifications be customized?
Yes, we offer customization for voltage, power, speed, and torque. Additionally, encoders and specific gearboxes can be integrated based on your requirements.
Q4: What materials are used in the construction?
The motor body is constructed from durable alloy steel, while the gearbox utilizes high-grade aluminum for optimal heat dissipation and weight.
Q5: What is the warranty policy for after-sales service?
We offer a three-month period during which products can be repaired or parts replaced free of charge for manufacturing defects.
Q6: Are these motors certified for international markets?
Yes, our motors comply with ISO and CE specifications, ensuring they meet international quality and safety standards.
