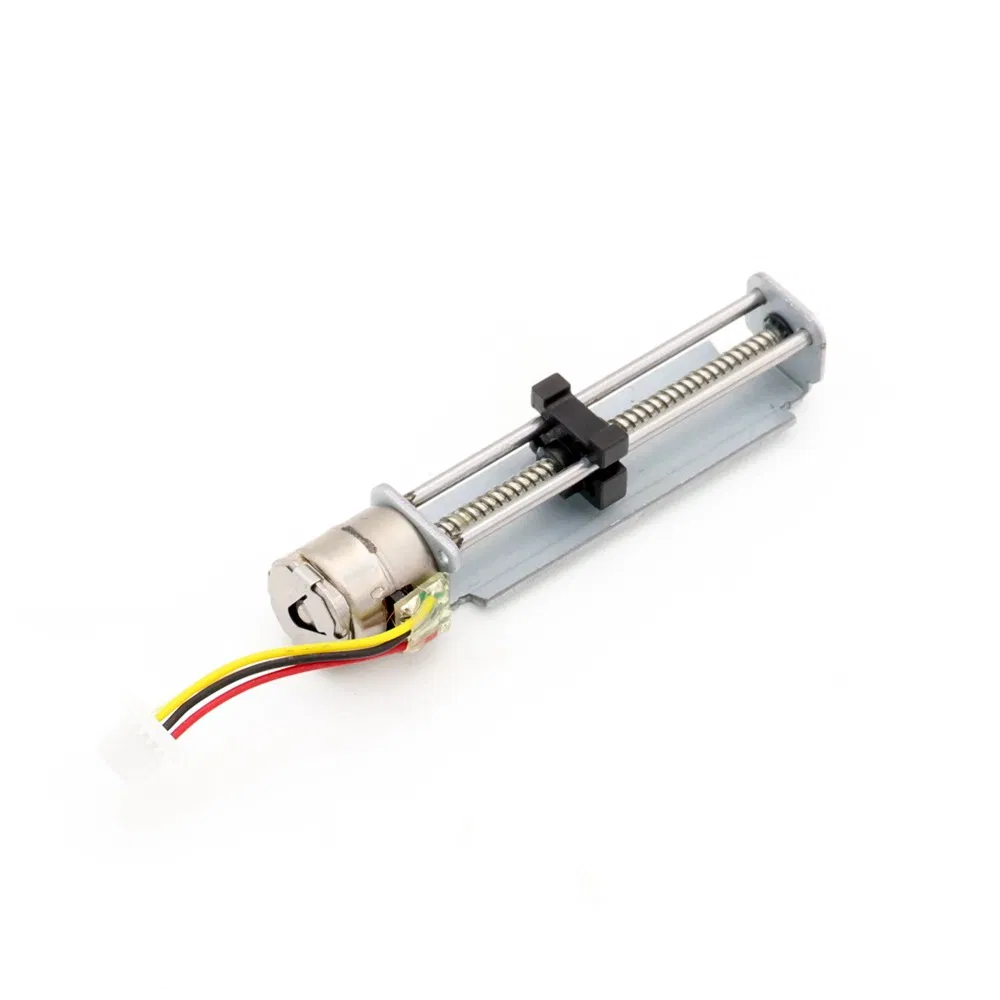

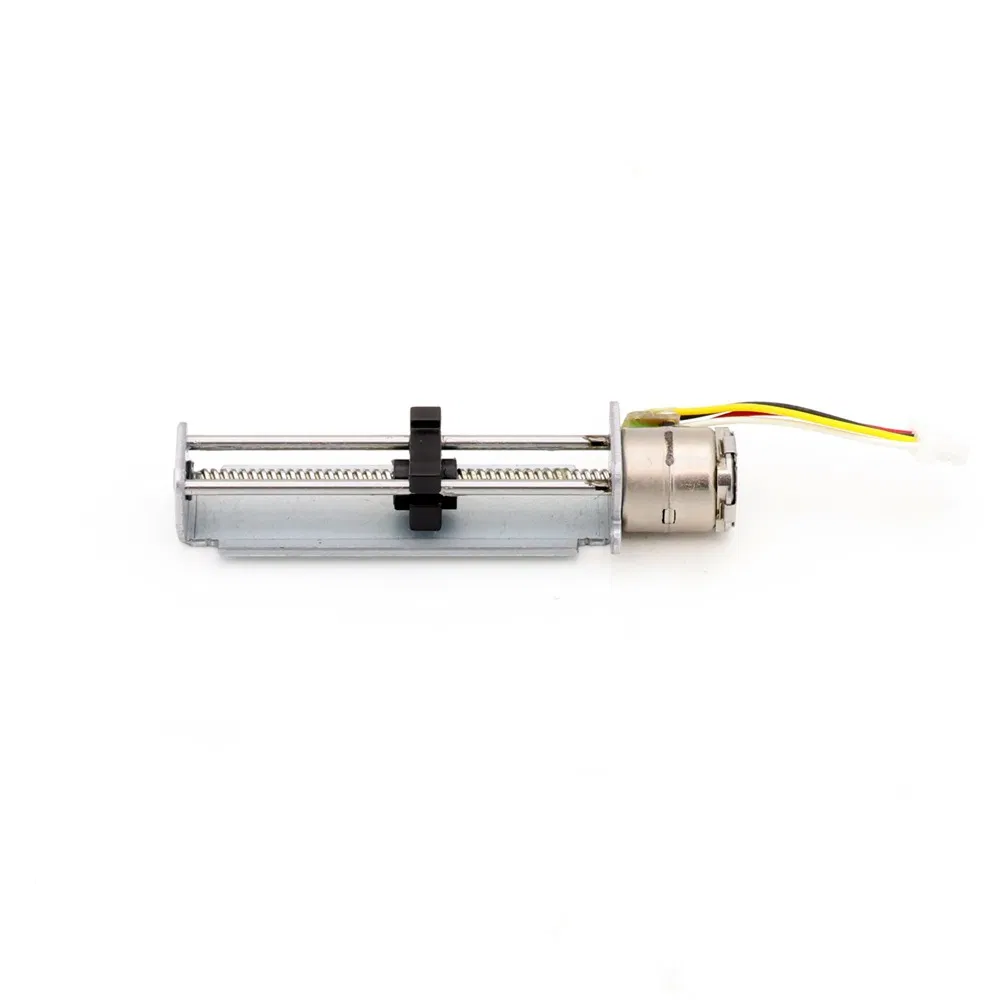

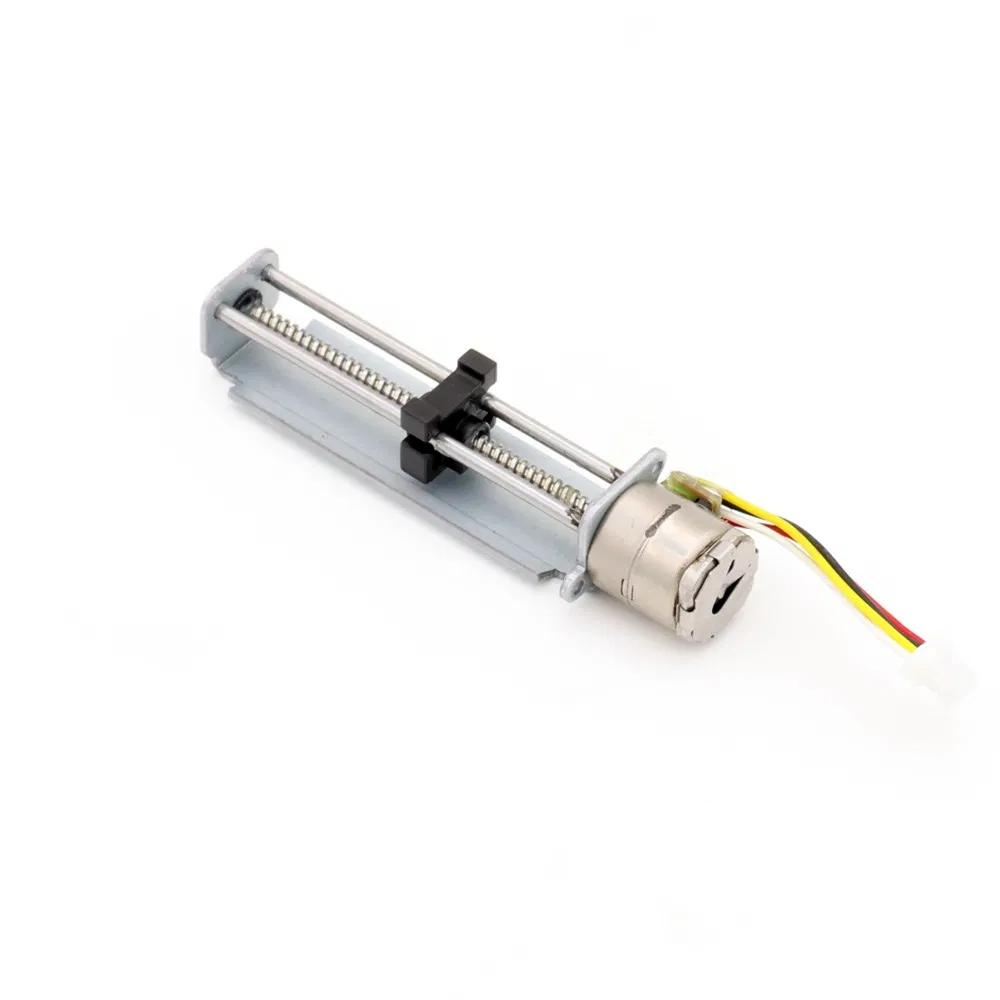

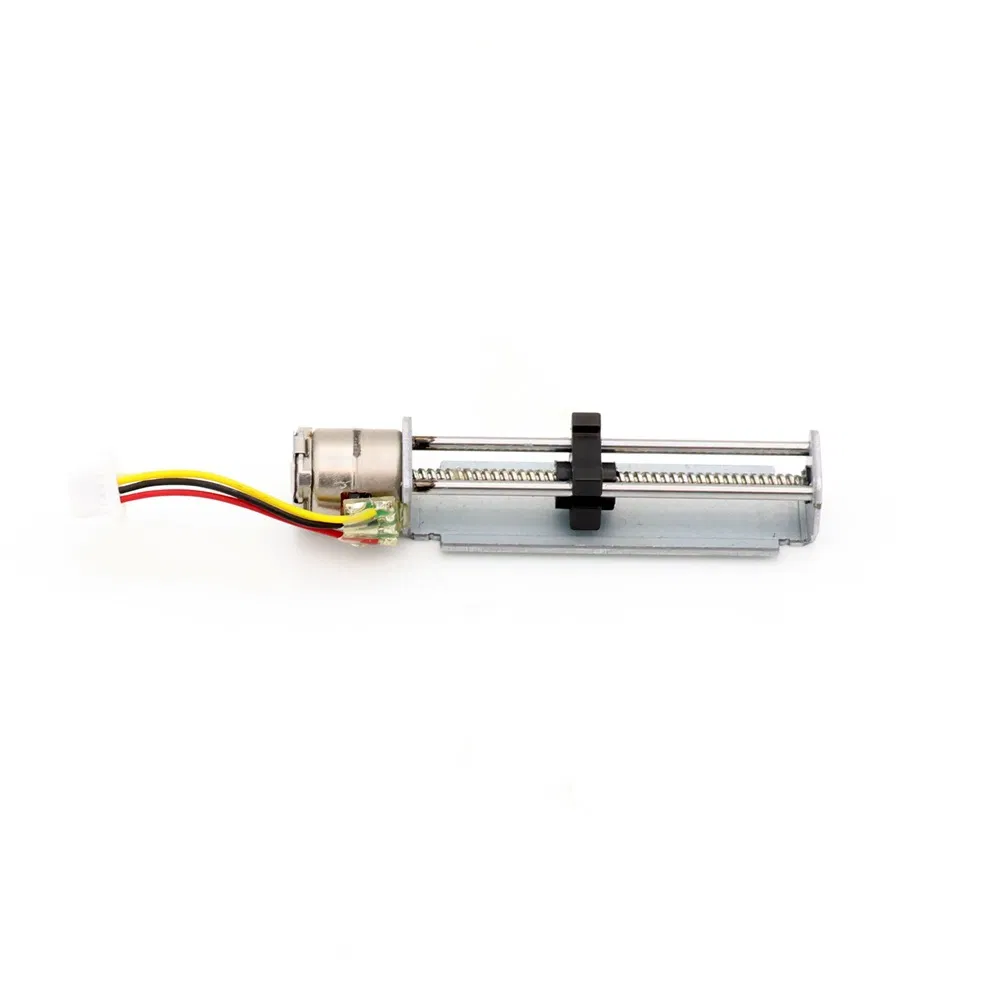

Compact 10mm 5V DC Micro Stepper Motor for Precision Control

1 / 5

Compact 10mm 5V DC Micro Stepper Motor for Precision Control

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

08-005-028

Number of Stator

Two-Phase

Excitation Mode

2-2 Phase Exciting

Function

Driving

Number of Poles

Operate Mode

Bi-Polar Drive

Type

Linear

Certification

ISO9001

Transport Package

Carton

Specification

Φ 10mm

HS Code

8501109990

Production Capacity

20000/Month

Product Presentation

Key Features: Precision linear movement, 2-2 Phase excitation, and high production capacity for industrial driving applications.

Technical Parameter of Micro Stepper Motor
No.	Model No.	Dimensions(mm)	Stroke(mm)	Slider material	Voltage(V)	Current(mA)	Resistance(Ω)	Output Torque(gf.cm)
1	07-005-002	Φ6x(5.9+3.95)	/	/	3.3	165	20	/
2	07-005-003	Φ6x(5.9+3.95)	/	/	3.3	165	17.5	/
3	07-005-004	Φ6x(5.9+3.95)	/	/	3.3	275	12	2.00
4	07-005-005	Φ6x(9.1+11.4)	6.8	Plastic	3.3	110	30	0.06
5	07-005-006	Φ6xL(8+4.8)	/	/	4.8	180	26.5	1.60
6	07-005-007	Φ6x(7.7+5.1)	/	/	4.8	180	26.5	1.60
7	07-005-011	Φ6x(4.3+2.9)	/	/	3.3	110	30	0.06
8	08-005-001	Φ6x(7.8+4.5)	10.7	/	5.0	300	15	1.00
9	07-005-027	Φ8x(8.82+23)	16	Plastic	3.3	160	20	80.00
10	07-005-032	Φ8x(8.5+4.2)	/	/	3.3	165	20	1.50
11	07-005-033	Φ8x(8.82+18.6)	17	/	3.3	160	20	0.25
12	07-005-034	Φ8x(8.82+15.75)	13.35	/	5.0	100	50	0.23
13	07-005-035	Φ8x(8.5+4.1)	/	/	3.3	165	20	1.50
14	08-005-011	Φ8.3x(10.1+22.5)	19.4	Copper	3.0	500	6	20.00
15	08-005-012	Φ8x(+)			3.0	500	6	20.00
16	08-005-013	Φ8.3x(9+5.7)	/	/	4.8	220	23	3.00
17	08-005-014	Φ8.3x(9+14)	11.5	/	5.0	300	16.3	30.00
18	08-005-015	Φ8.3x(9+4)	/	/	3.3	500	6	2.50
19	07-005-041	Φ10x(10.62+37.6)	36.6	/	5.0	90	55	0.30
20	07-005-042	Φ10x(10.62+37.6)	34.4	Copper	5.0	90	55	0.30
21	07-005-043	Φ10x(+)			5.0	160	31	5.00
22	07-005-044	Φ10x(+)			5.0	160	31	7.00
23	07-005-045	Φ10x(9.62+38.6)	33.8	Copper	5.0	300	15	6.50
24	07-005-046	Φ10x(9.3+19)	/	/	5.0	250	20	15.00
25	07-005-047	Φ10x(9.8+2.4)	/	/	3.3	66	15	4.00
26	07-005-048	Φ10x(8.8+5.1)	/	/	5.0	300	15	5.00
27	07-005-049	Φ10x(9.3+2.9)	/	/	3.3	66	15	4.00
28	08-005-021	Φ10x(10+56.5)	50.5	Copper	5.0	270	18	6.00
29	08-005-022	Φ10x(10+70)	65	Copper	5.0	270	18	6.00
30	08-005-024	Φ10x(9+14.5)	/	/	5.0	200	25	150.00
31	08-005-025	Φ10x(10.5+9)	/	/	5.0	128	20	500.00
32	08-005-026	Φ10x(10.8+31)	23.9	Plastic	5.0	330	15	5.00
33	08-005-031	Φ10.2x(10.75+11.4)	5.4	Plastic	5.0	330	15	9.00
34	08-005-032	Φ10.2x(10.75+11.4)	5.4	Plastic	5.0	330	15	9.00
35	08-005-033	Φ10x(10.6+38.6)	35.1	Copper	5.0	330	15	7.00
36	08-005-035	Φ10x(10.72+18.55)	15.5	Copper	5.0	128	39	4.00
37	08-005-036	Φ10x(10.75+18.6)	11.8	Plastic	5.0	330	15	9.00
38	08-005-037	Φ10x(10.75+14.7)	7	Plastic	5.0	400	15	9.00
39	08-005-038	Φ10x(10.75+18.6)	11.8	Plastic	5.0	330	15	9.00
40	08-005-039	Φ10x(10.75+12.6)	5.4	Plastic	5.0	330	15	9.00
41	07-005-060	Φ15x(10.8+59)	/	/	12.0	400	31	180.00
42	07-005-061	Φ15x(12.9+36.5)	26.7	Copper	6.0	300	15	200.00
43	07-005-062	Φ15x(12.9+46.5)	12.9	Copper	6.0	300	15	200.00
44	07-005-063	Φ15x(10.8+12)	/	/	12.0	760	31	720.00
45	07-005-064	Φ15x(12.9+46.5)	37.5	Copper	12.0	760	31	720.00
46	07-005-079	Φ15x(10.8+12)	/	/	12.0	760	31	720.00
47	08-005-041	Φ15x(11+16.5)	/	/	3.0	200	15	6.00
48	08-005-042	Φ15x(10.9+30)	19.7	Copper	6.0	400	15	200.00
49	08-005-043	Φ15x(10.9+30)	20	Plastic	6.0	400	15	200.00
50	08-005-046	Φ15x(21+13)	/	/	12.0	200	118	1700.00
51	08-005-047	Φ15x(10.9+25)	11.8	Copper	6.0	400	15	200.00
52	08-005-048	Φ15x(11.3+30)	17.5	Copper	12.0	200	31	700.00
53	07-005-082	Φ20x(21+46.1)	34.2	Copper	12.0	800	15	1800.00
54	07-005-083	Φ20x(21+66.9)	55.9	Copper	12.0	800	15	1800.00
55	07-005-084	Φ20x(18.4+4)	/	/	12.0	300	40	20.00
56	08-005-061	Φ20x(20.1+34.9)	22	Copper	12.0	770	15.6	1200.00
57	08-005-062	Φ20x(20.1+34.9)	22	Copper	12.0	770	15.6	1200.00
58	08-005-063	Φ20x(20.1+47.9)	35	Copper	12.0	600	20	1000.00
59	08-005-064	Φ20x(18.4+4.3)	/	/	12.0	600	20	32.00
60	08-005-065	Φ20x(37.4+10.5)	/	/	12.0	600	20	2000.00
61	08-005-066	Φ20x(35.9+10.5)	/	/	12.0	200	60	500.00
62	08-005-101	Φ20x(15.5+19)	/	/	12.0	200	60	1000.00

Frequently Asked Questions

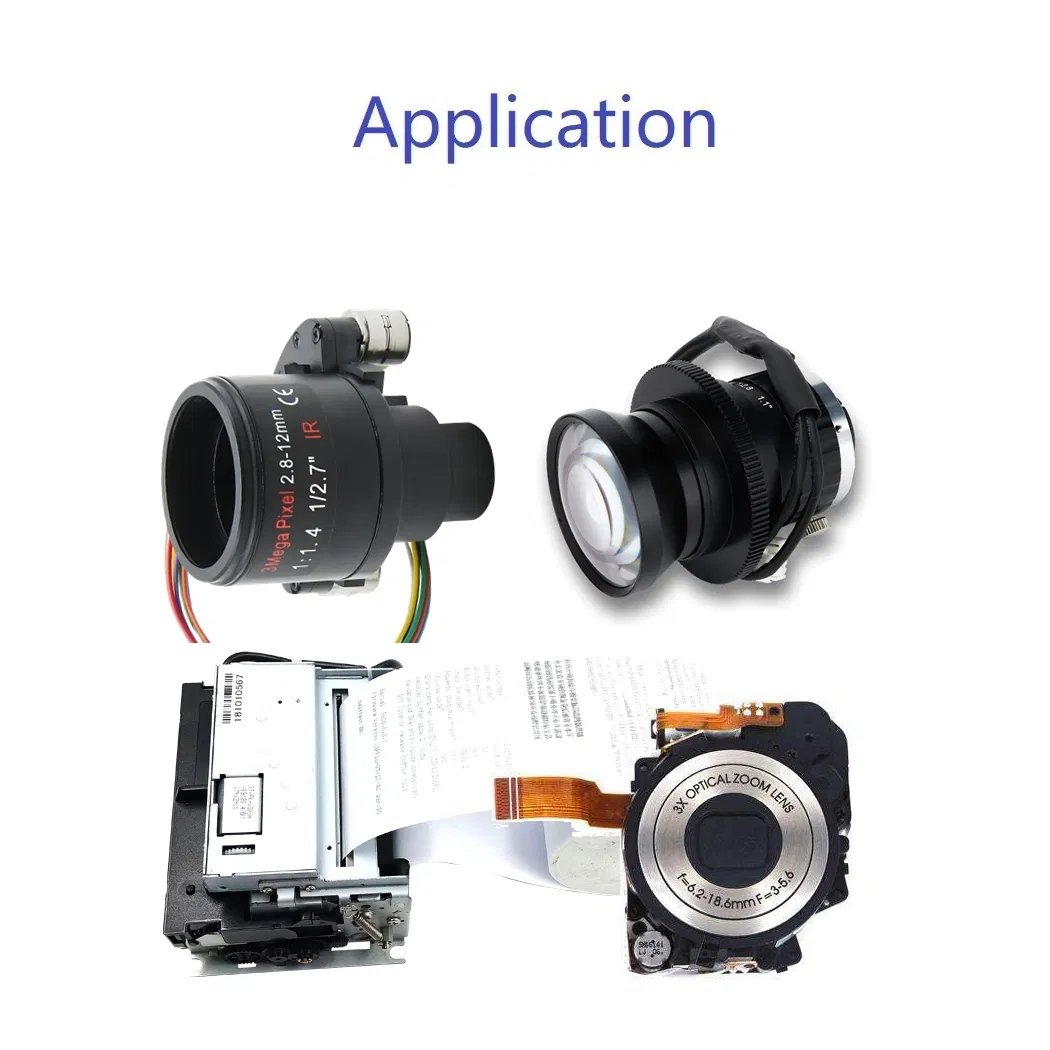

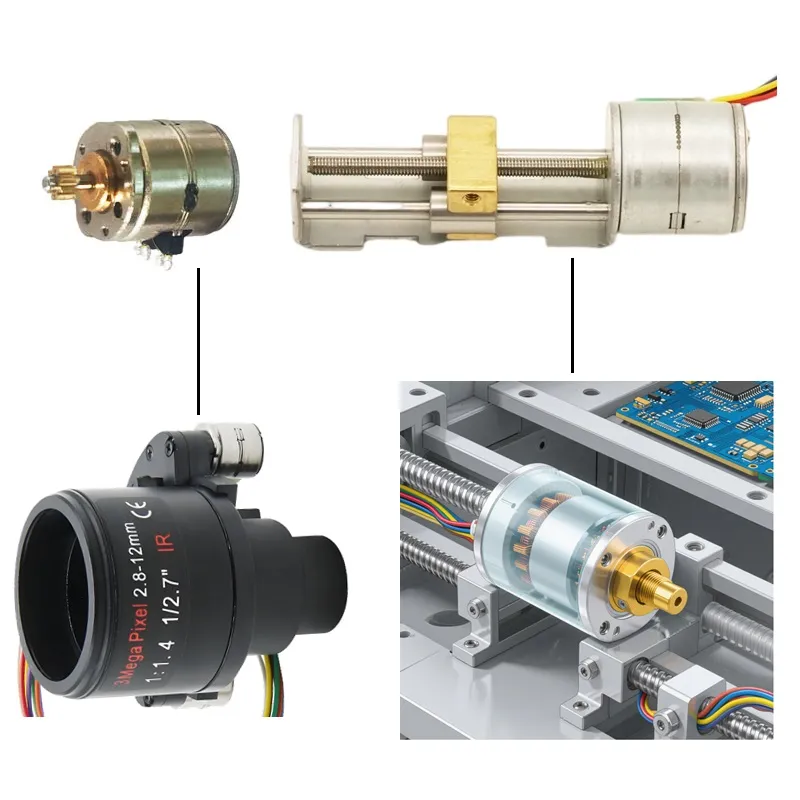

What are the primary applications for this 10mm micro stepper motor?

This motor is designed for high-precision driving applications, commonly used in micro-robotics, medical devices, and compact automated machinery.

Does this micro stepper motor support bi-polar drive?

Yes, the motor operates in bi-polar drive mode with a 2-2 phase exciting mode for reliable movement control.

What materials are used for the motor's slider?

Depending on the specific model selected, the sliders are made from either high-grade plastic or durable copper for various mechanical needs.

What is the monthly production capacity for these motors?

We maintain a stable production capacity of 20,000 units per month to ensure timely delivery for large-scale industrial orders.

Is the motor certified for quality standards?

Yes, our manufacturing processes are certified under ISO9001 standards, ensuring consistent performance and quality.

Can I use this motor with a 5V DC power supply?

Absolutely. Many models in this series are optimized for 5V DC operation, while others support ranges from 3V to 12V.
