🔹 Basic Information
Casing Protection
Closed Type
Product Name

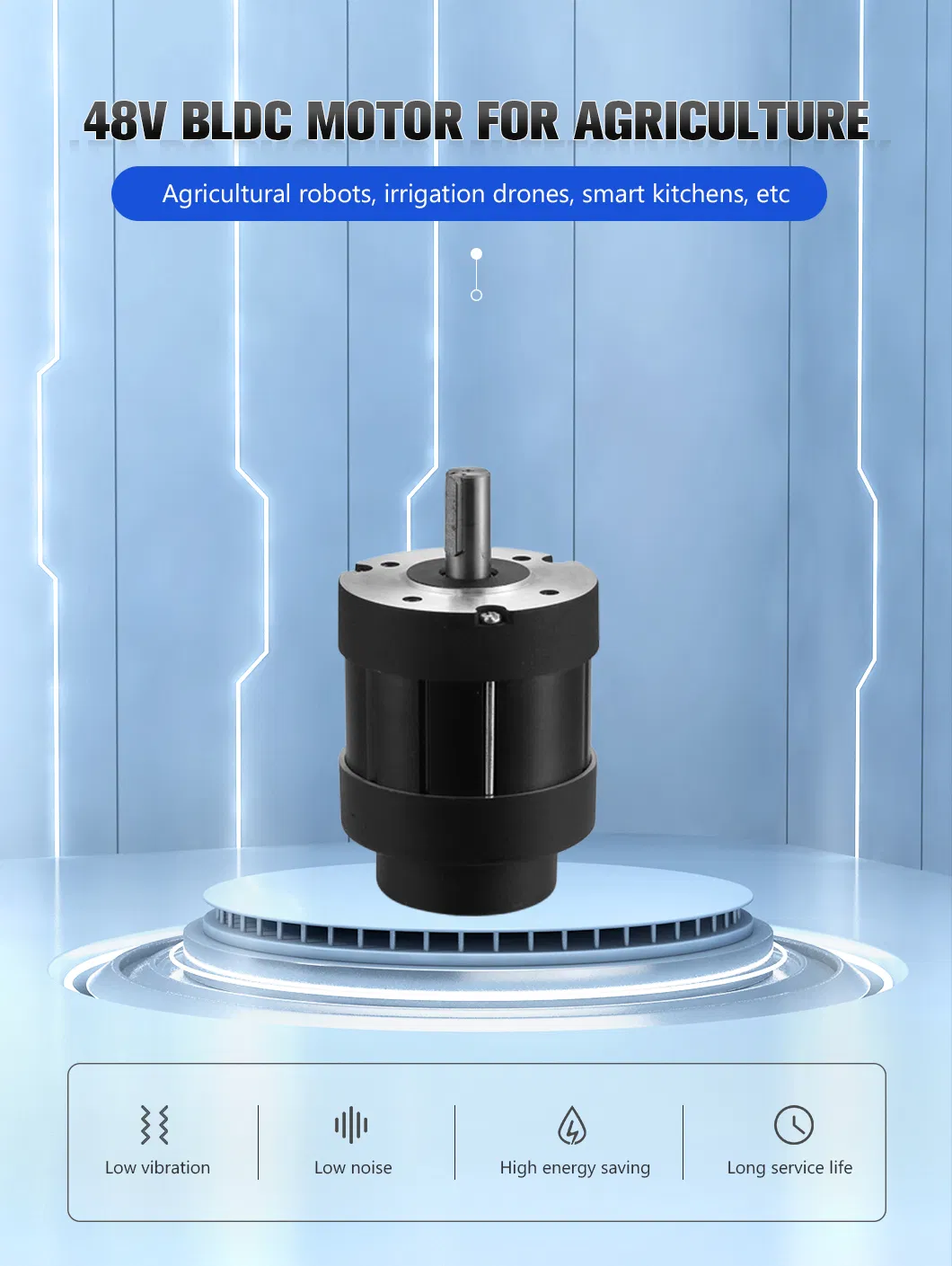

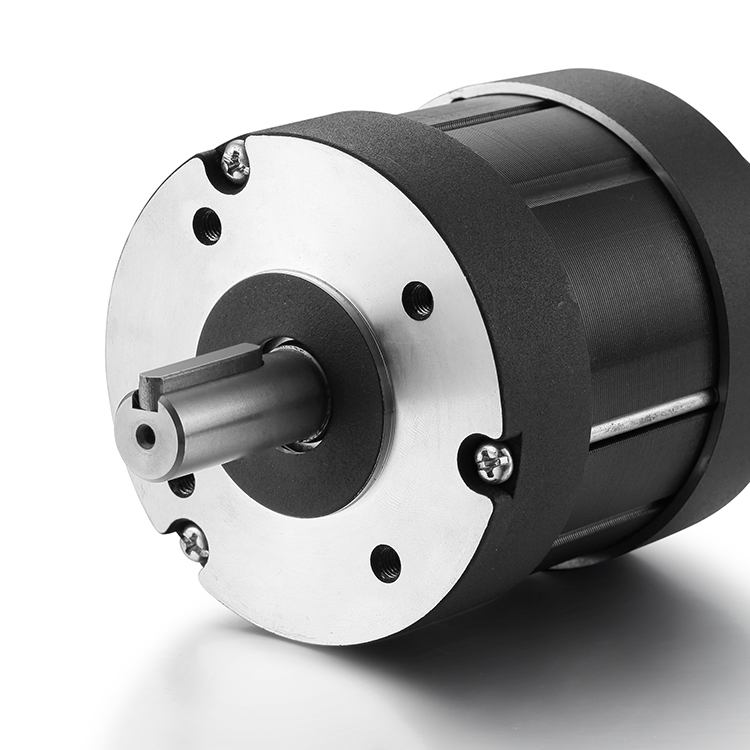

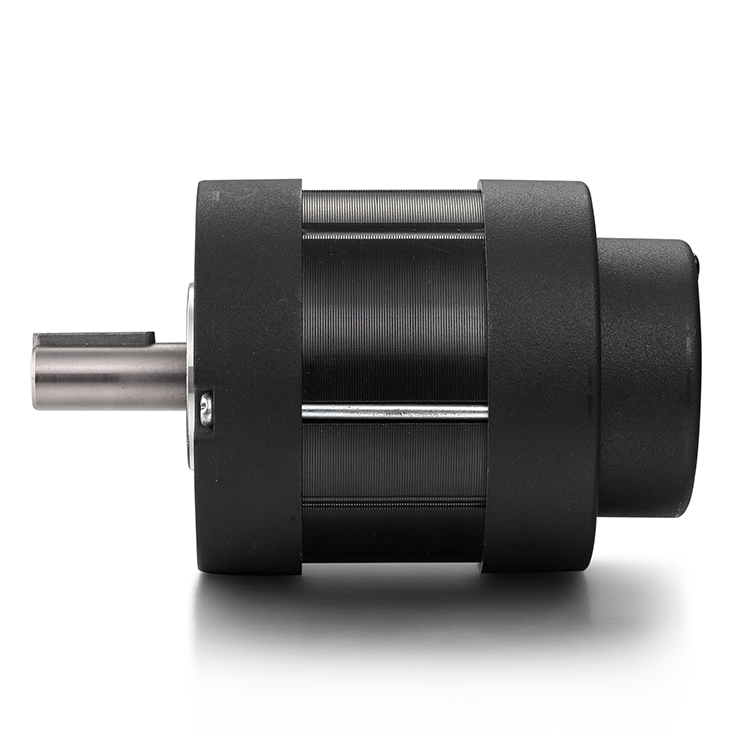

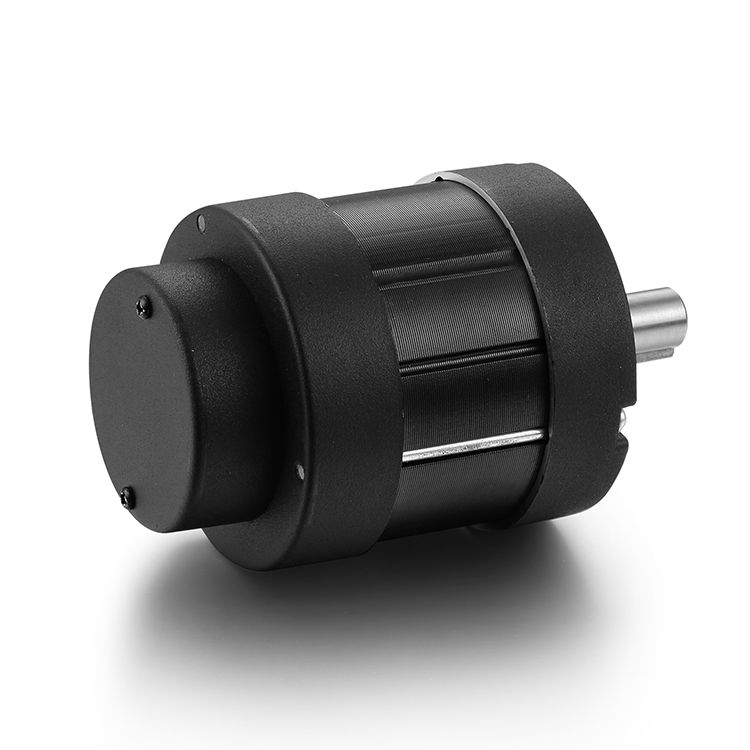

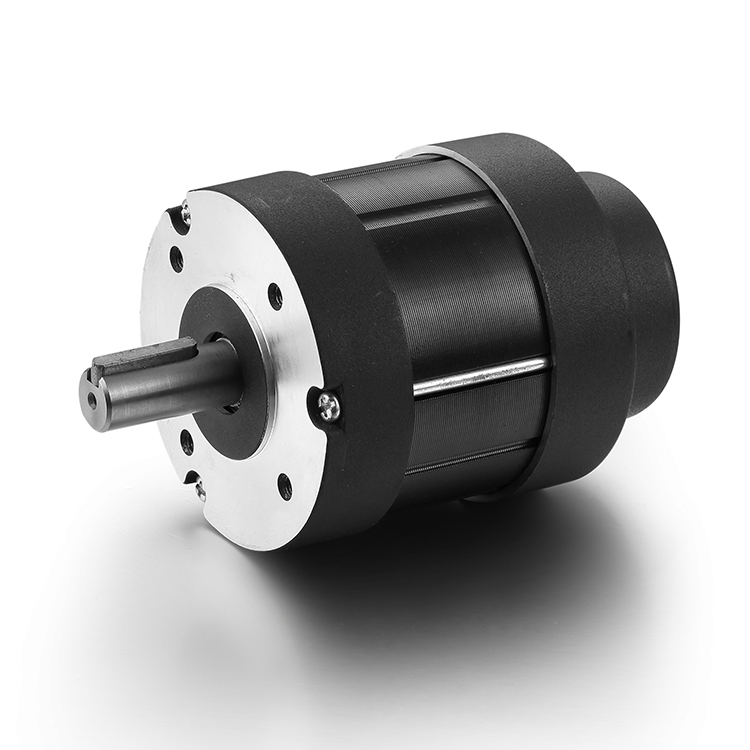

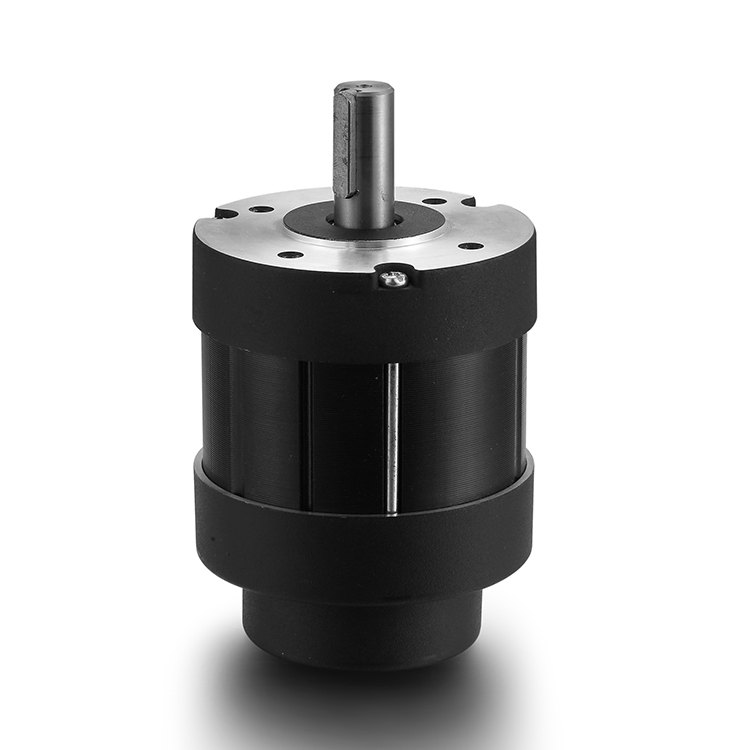

80mm Brushless DC Motor

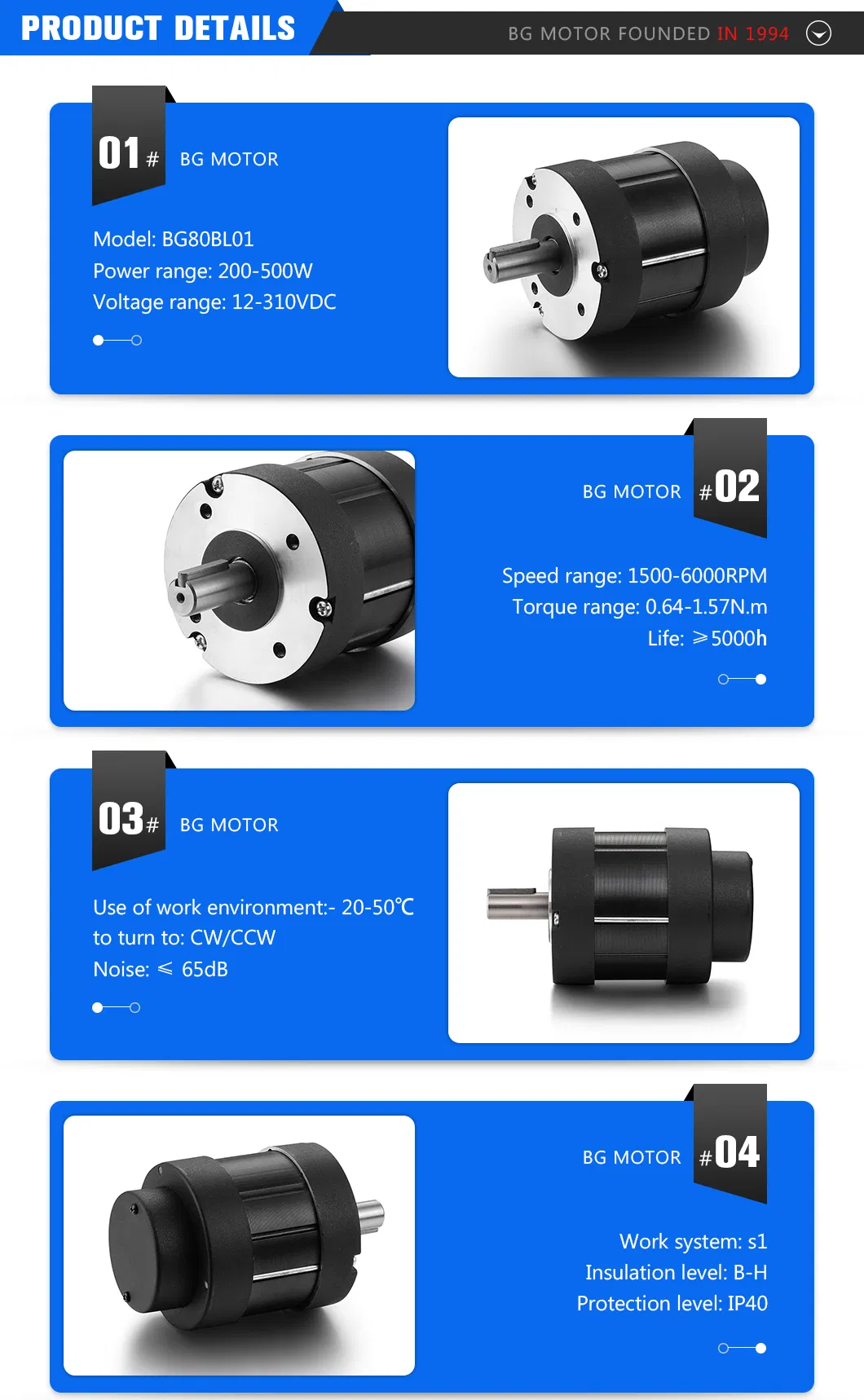

📊 Product Specifications
| BG 80BL DC Brushless Motor Details |
| Environmental Conditions | -20ºC ~ 50ºC |
| Insulation Class | B |
| Protection Class | IP40 |
| Noise Level | ≤65dB |
| Number of Poles/Phases | 8 / 3 |
| Lifespan | >5000h |
⚡ Electrical Specifications
| Model |
RATED LOAD |
NO LOAD |
STALL |
| Voltage(V) |
Power(W) |
Speed(rpm) |
Torque(N.m) |
Current(A) |
Speed(rpm) |
Current(A) |
Torque(N.m) |
Current(A) |
| BG 80BL90 |
48 |
300 |
6000 |
0.47 |
9 |
8000 |
1 |
1.4 |
27 |
| BG 80BL110 |
310 |
400 |
3000 |
1.27 |
1.84 |
4000 |
0.37 |
3.82 |
5.53 |
| BG 80BL130 |
48 |
350 |
3000 |
1.11 |
10.42 |
4000 |
2 |
3.34 |
31 |
💡 We can also customize products according to specific requirements.
❓ Frequently Asked Questions
What is the main advantage of this brushless DC motor?
It features high efficiency (IE2), a long lifespan of over 5000 hours, and low noise operation (≤65dB), making it ideal for precision driving applications.
Can the motor rotation direction be customized?
Yes, this motor supports both Clockwise (CW) and Counter-Clockwise (CCW) rotation directions.
What are the protection and insulation ratings?
The motor is designed with an IP40 protection class and Class B insulation, suitable for environments ranging from -20ºC to 50ºC.
Is it possible to customize the shaft and number of poles?
Absolutely. The shaft type and the number of poles can be chosen or customized to fit your specific mechanical requirements.
What applications is this motor best suited for?
Given its 48V rating and high torque-to-speed ratio, it is widely used in medical devices like centrifuges, driving mechanisms, and automation equipment.
What certifications does this motor carry?
This product has passed CCC and FCC certifications, ensuring it meets safety and electromagnetic compatibility standards.
