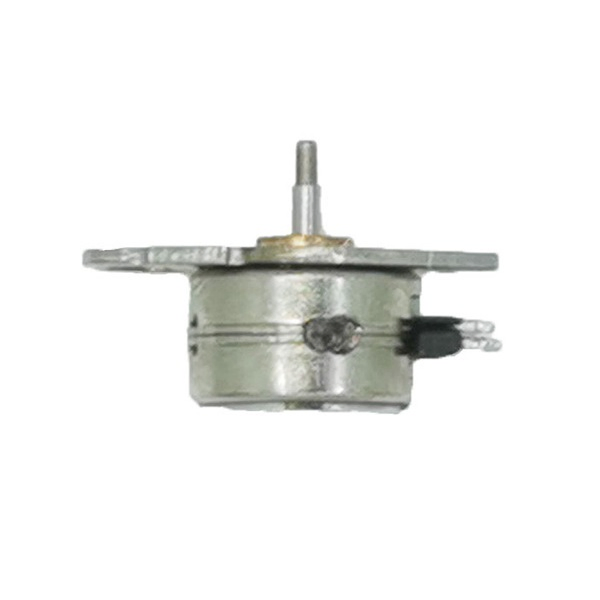

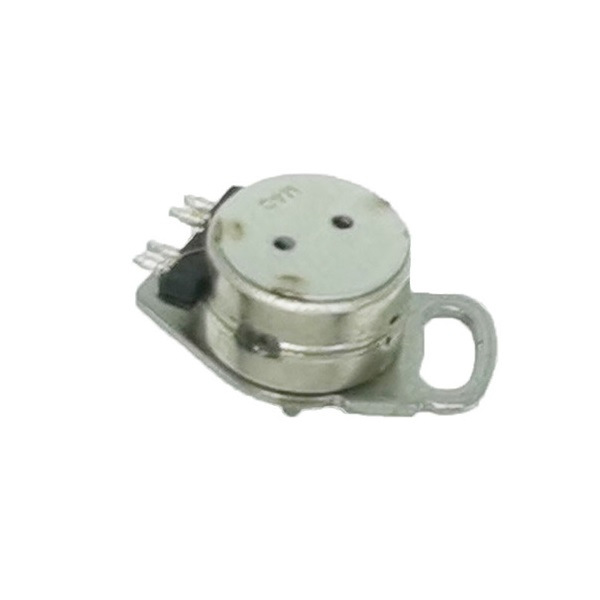

High Precision 6mm 3.3V DC Mini Micro Stepping Motor

1 / 5

High Precision 6mm 3.3V DC Mini Micro Stepping Motor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

07-005-011

Number of Stator

Two-Phase

Excitation Mode

2-2 Phase Exciting

Function

Driving

Number of Poles

Operate Mode

Bi-Polar Drive

Type

Linear

Certification

ISO9001

Transport Package

Carton

Specification

Φ 6mm

HS Code

8501109990

Production Capacity

20000/Month

🔍

Product Presentation

No.	Model No.	Dimensions(mm)	Stroke(mm)	Slider material	Voltage(V)	Current(mA)	Resistance(Ω)	Output Torque(gf.cm)
1	07-005-002	Φ6x(5.9+3.95)	/	/	3.3	165	20	/
2	07-005-003	Φ6x(5.9+3.95)	/	/	3.3	165	17.5	/
3	07-005-004	Φ6x(5.9+3.95)	/	/	3.3	275	12	2.00
4	07-005-005	Φ6x(9.1+11.4)	6.8	Plastic	3.3	110	30	0.06
5	07-005-006	Φ6xL(8+4.8)	/	/	4.8	180	26.5	1.60
6	07-005-007	Φ6x(7.7+5.1)	/	/	4.8	180	26.5	1.60
7	07-005-011	Φ6x(4.3+2.9)	/	/	3.3	110	30	0.06
8	08-005-001	Φ6x(7.8+4.5)	10.7	/	5.0	300	15	1.00
9	07-005-027	Φ8x(8.82+23)	16	Plastic	3.3	160	20	80.00
10	07-005-032	Φ8x(8.5+4.2)	/	/	3.3	165	20	1.50
11	07-005-033	Φ8x(8.82+18.6)	17	/	3.3	160	20	0.25
12	07-005-034	Φ8x(8.82+15.75)	13.35	/	5.0	100	50	0.23
13	07-005-035	Φ8x(8.5+4.1)	/	/	3.3	165	20	1.50
14	08-005-011	Φ8.3x(10.1+22.5)	19.4	Copper	3.0	500	6	20.00
15	08-005-012	Φ8x(+)			3.0	500	6	20.00
16	08-005-013	Φ8.3x(9+5.7)	/	/	4.8	220	23	3.00
17	08-005-014	Φ8.3x(9+14)	11.5	/	5.0	300	16.3	30.00
18	08-005-015	Φ8.3x(9+4)	/	/	3.3	500	6	2.50
19	07-005-041	Φ10x(10.62+37.6)	36.6	/	5.0	90	55	0.30
20	07-005-042	Φ10x(10.62+37.6)	34.4	Copper	5.0	90	55	0.30
21	07-005-043	Φ10x(+)			5.0	160	31	5.00
22	07-005-044	Φ10x(+)			5.0	160	31	7.00
23	07-005-045	Φ10x(9.62+38.6)	33.8	Copper	5.0	300	15	6.50
24	07-005-046	Φ10x(9.3+19)	/	/	5.0	250	20	15.00
25	07-005-047	Φ10x(9.8+2.4)	/	/	3.3	66	15	4.00
26	07-005-048	Φ10x(8.8+5.1)	/	/	5.0	300	15	5.00
27	07-005-049	Φ10x(9.3+2.9)	/	/	3.3	66	15	4.00
28	08-005-021	Φ10x(10+56.5)	50.5	Copper	5.0	270	18	6.00
29	08-005-022	Φ10x(10+70)	65	Copper	5.0	270	18	6.00
30	08-005-024	Φ10x(9+14.5)	/	/	5.0	200	25	150.00
31	08-005-025	Φ10x(10.5+9)	/	/	5.0	128	20	500.00
32	08-005-026	Φ10x(10.8+31)	23.9	Plastic	5.0	330	15	5.00
33	08-005-031	Φ10.2x(10.75+11.4)	5.4	Plastic	5.0	330	15	9.00
34	08-005-032	Φ10.2x(10.75+11.4)	5.4	Plastic	5.0	330	15	9.00
35	08-005-033	Φ10x(10.6+38.6)	35.1	Copper	5.0	330	15	7.00
36	08-005-035	Φ10x(10.72+18.55)	15.5	Copper	5.0	128	39	4.00
37	08-005-036	Φ10x(10.75+18.6)	11.8	Plastic	5.0	330	15	9.00
38	08-005-037	Φ10x(10.75+14.7)	7	Plastic	5.0	400	15	9.00
39	08-005-038	Φ10x(10.75+18.6)	11.8	Plastic	5.0	330	15	9.00
40	08-005-039	Φ10x(10.75+12.6)	5.4	Plastic	5.0	330	15	9.00
41	07-005-060	Φ15x(10.8+59)	/	/	12.0	400	31	180.00
42	07-005-061	Φ15x(12.9+36.5)	26.7	Copper	6.0	300	15	200.00
43	07-005-062	Φ15x(12.9+46.5)	12.9	Copper	6.0	300	15	200.00
44	07-005-063	Φ15x(10.8+12)	/	/	12.0	760	31	720.00
45	07-005-064	Φ15x(12.9+46.5)	37.5	Copper	12.0	760	31	720.00
46	07-005-079	Φ15x(10.8+12)	/	/	12.0	760	31	720.00
47	08-005-041	Φ15x(11+16.5)	/	/	3.0	200	15	6.00
48	08-005-042	Φ15x(10.9+30)	19.7	Copper	6.0	400	15	200.00
49	08-005-043	Φ15x(10.9+30)	20	Plastic	6.0	400	15	200.00
50	08-005-046	Φ15x(21+13)	/	/	12.0	200	118	1700.00
51	08-005-047	Φ15x(10.9+25)	11.8	Copper	6.0	400	15	200.00
52	08-005-048	Φ15x(11.3+30)	17.5	Copper	12.0	200	31	700.00
53	07-005-082	Φ20x(21+46.1)	34.2	Copper	12.0	800	15	1800.00
54	07-005-083	Φ20x(21+66.9)	55.9	Copper	12.0	800	15	1800.00
55	07-005-084	Φ20x(18.4+4)	/	/	12.0	300	40	20.00
56	08-005-061	Φ20x(20.1+34.9)	22	Copper	12.0	770	15.6	1200.00
57	08-005-062	Φ20x(20.1+34.9)	22	Copper	12.0	770	15.6	1200.00
58	08-005-063	Φ20x(20.1+47.9)	35	Copper	12.0	600	20	1000.00
59	08-005-064	Φ20x(18.4+4.3)	/	/	12.0	600	20	32.00
60	08-005-065	Φ20x(37.4+10.5)	/	/	12.0	600	20	2000.00
61	08-005-066	Φ20x(35.9+10.5)	/	/	12.0	200	60	500.00
62	08-005-101	Φ20x(15.5+19)	/	/	12.0	200	60	1000.00

Frequently Asked Questions

What is the primary application for these micro stepping motors?

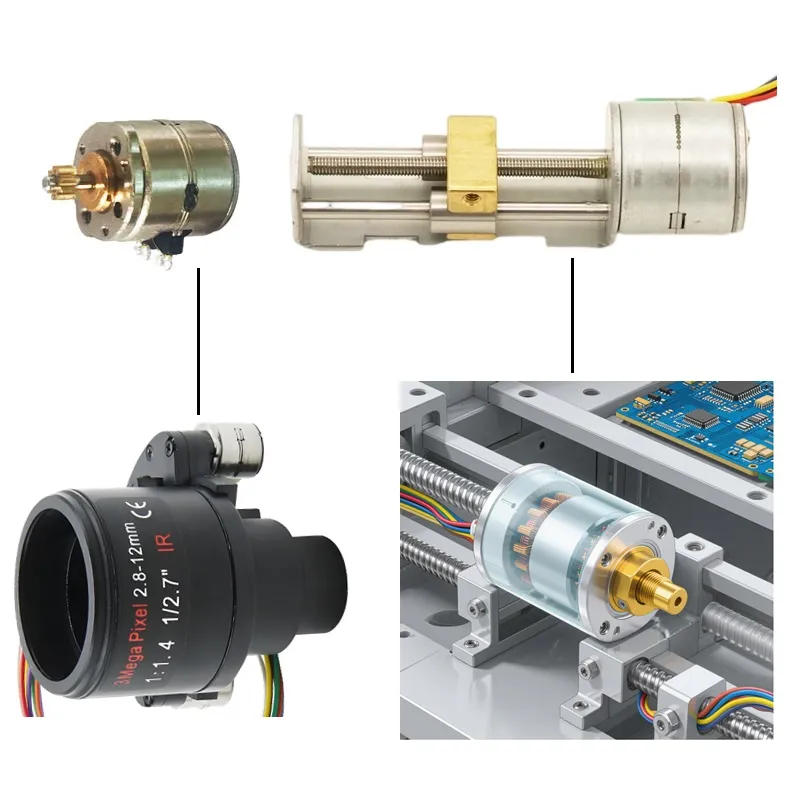

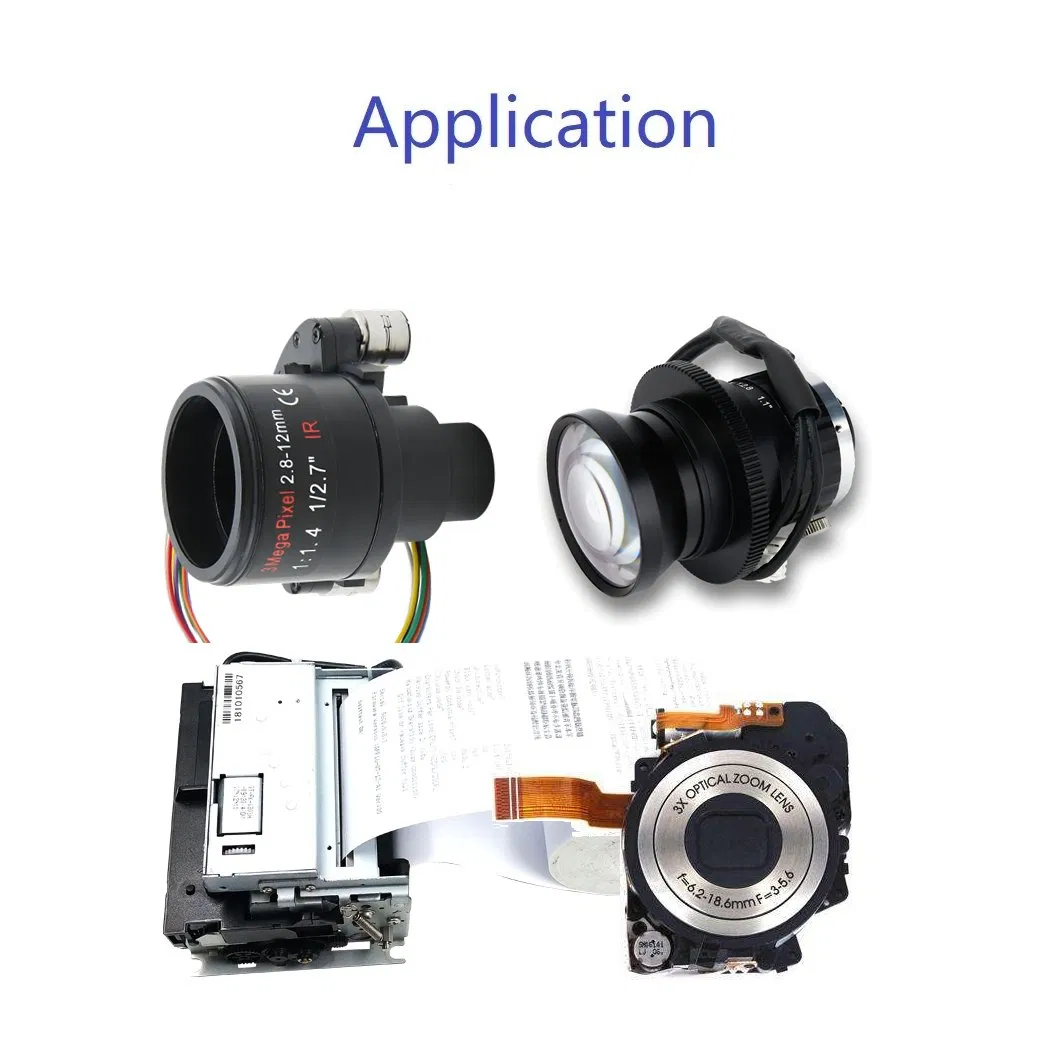

These micro stepper motors are designed for high-precision driving functions, commonly used in medical devices, precision instruments, and compact automated machinery.

What voltage ranges are available for the 6mm to 20mm series?

The series supports a versatile voltage range including 3.0V, 3.3V, 4.8V, 5.0V, 6.0V, and 12.0V to suit various power supply requirements.

Are the slider materials customizable?

Yes, depending on the model, sliders are available in both plastic and copper materials to balance durability and cost-effectiveness.

Can these motors handle bi-polar drive operations?

Absolutely. Most models in this technical list are designed for Bi-Polar Drive operating modes with a 2-2 Phase Exciting system.

What is the maximum output torque achievable in the 20mm series?

The Φ20mm series can achieve a high output torque of up to 2000.00 gf.cm, specifically in model 08-005-065.

Is the production quality certified?

Yes, the production process and the products are certified under ISO9001 standards, ensuring consistent quality and reliability.
