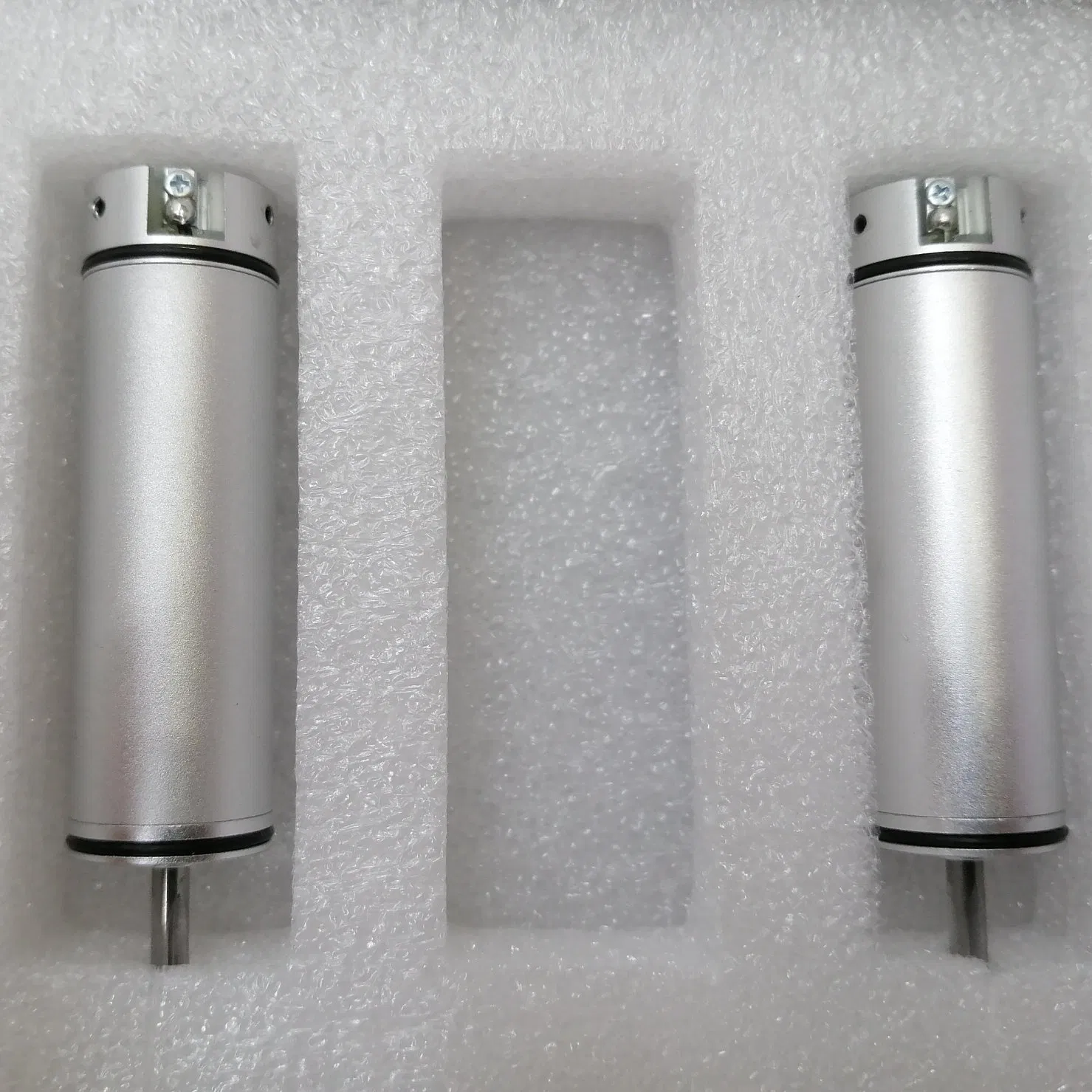

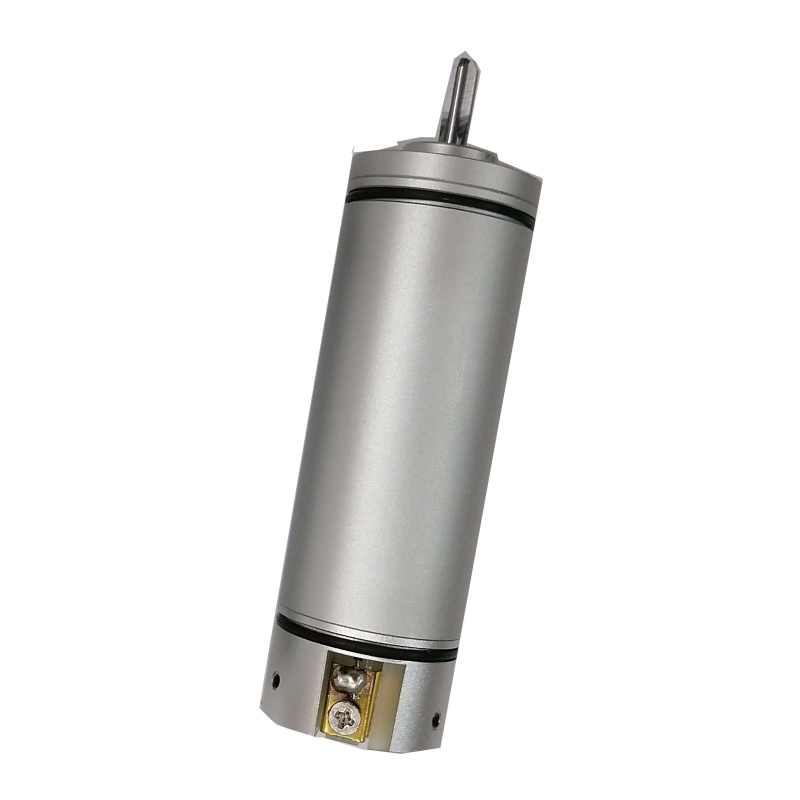

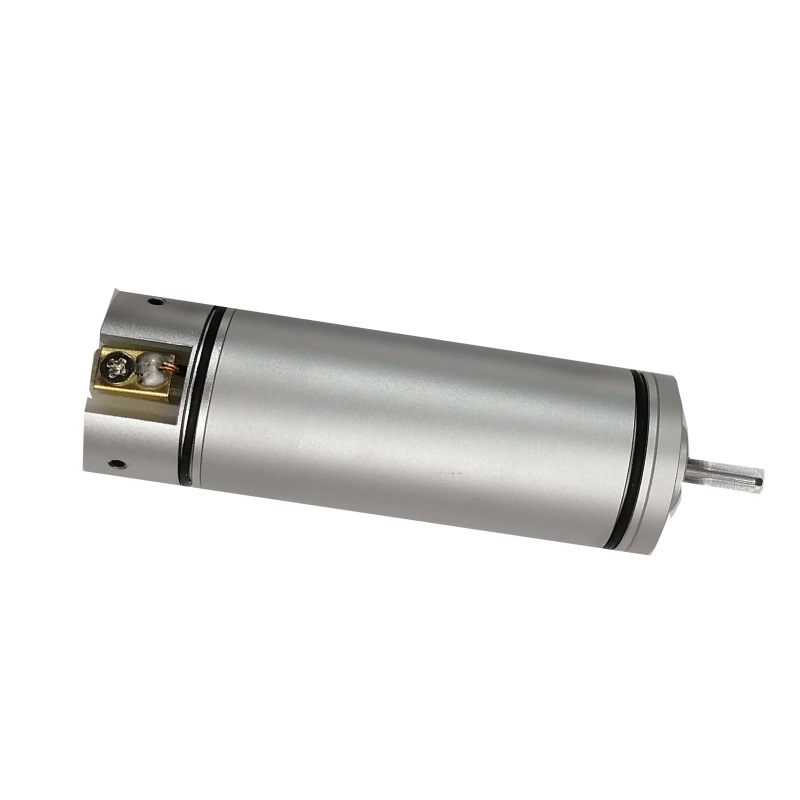

12V-36V High Speed 2060rb Coreless BLDC Motor for Robotics
12V-36V High Speed 2060rb Coreless BLDC Motor for Robotics
12V-36V High Speed 2060rb Coreless BLDC Motor for Robotics
12V-36V High Speed 2060rb Coreless BLDC Motor for Robotics
12V-36V High Speed 2060rb Coreless BLDC Motor for Robotics
1 / 5
12V-36V High Speed 2060rb Coreless BLDC Motor for Robotics
12V-36V High Speed 2060rb Coreless BLDC Motor for Robotics
12V-36V High Speed 2060rb Coreless BLDC Motor for Robotics
12V-36V High Speed 2060rb Coreless BLDC Motor for Robotics
12V-36V High Speed 2060rb Coreless BLDC Motor for Robotics

12V-36V High Speed 2060rb Coreless BLDC Motor for Robotics

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Product Overview
Model NO.
2060RB
Voltage
12-36V
Excitation Mode
Excited
Function
Control, Driving
Number of Poles
8
Structure
Brushless Coreless
Rated Speed
28000rpm
Max Efficiency
86%
Certification
ISO9001, CCC, TUV, UL, VDE
Weight
69.6g
Product Description

12V-36V High Speed 2060RB Coreless BLDC Motor for Robotics

Coreless Motor (also called Ironless BLDC Motor or Slotless Motor) is a high-efficiency BLDC motor that eliminates the traditional iron-core rotor, reducing inertia and energy loss. Its unique hollow-cup design enables faster response, higher efficiency, and smoother operation compared to conventional motors.

⚡
No Iron Core: Eliminates eddy current loss and cogging torque, significantly improving efficiency.
📏
Lightweight & Compact: Ideal for applications requiring miniaturization like drones and medical devices.
💪
High Power Density: Delivers strong torque in a small size.
🔇
Low Electrical Noise: Suitable for sensitive electronic devices.
🚀
Quick Acceleration: Perfect for high-precision servo systems and robotics.
Technical Parameters

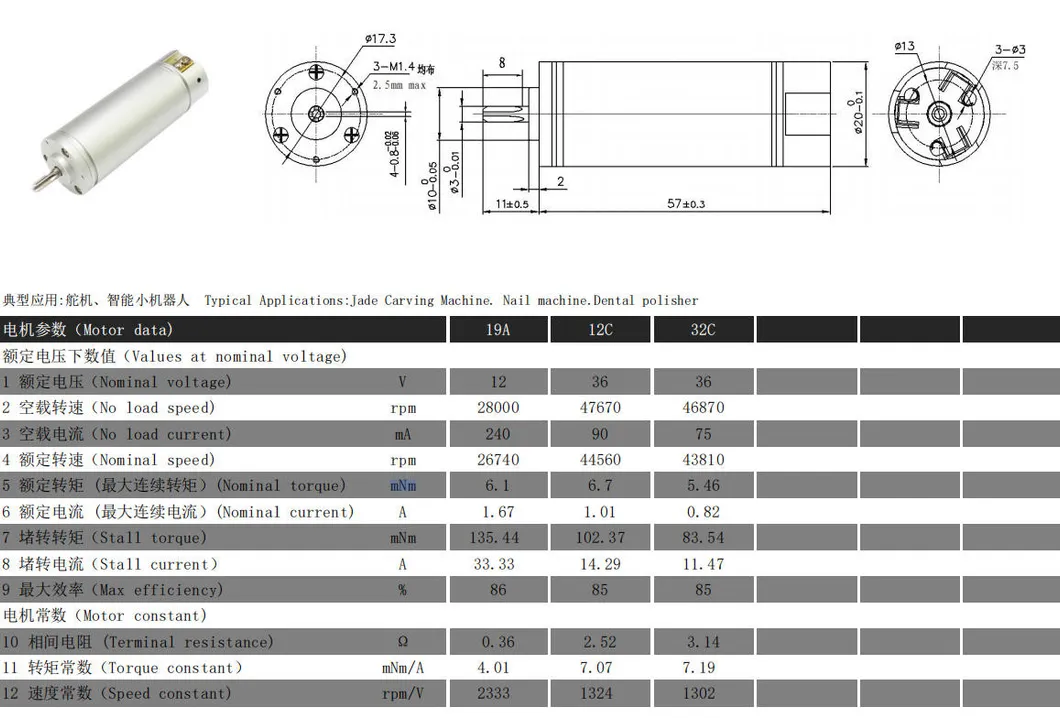

Mechanical dimensions
Specifications 19A (12V) 12C (36V) 32C (36V)
No Load Speed28000rpm47670rpm46870rpm
No Load Current240mA90mA75mA
Nominal Torque6.1mNm6.7mNm5.46mNm
Nominal Current1.67A1.01A0.82A
Stall Torque135.44mNm102.37mNm83.54mNm
Terminal Resistance0.36Ω2.52Ω3.14Ω
Max Efficiency86%85%85%
Product Display

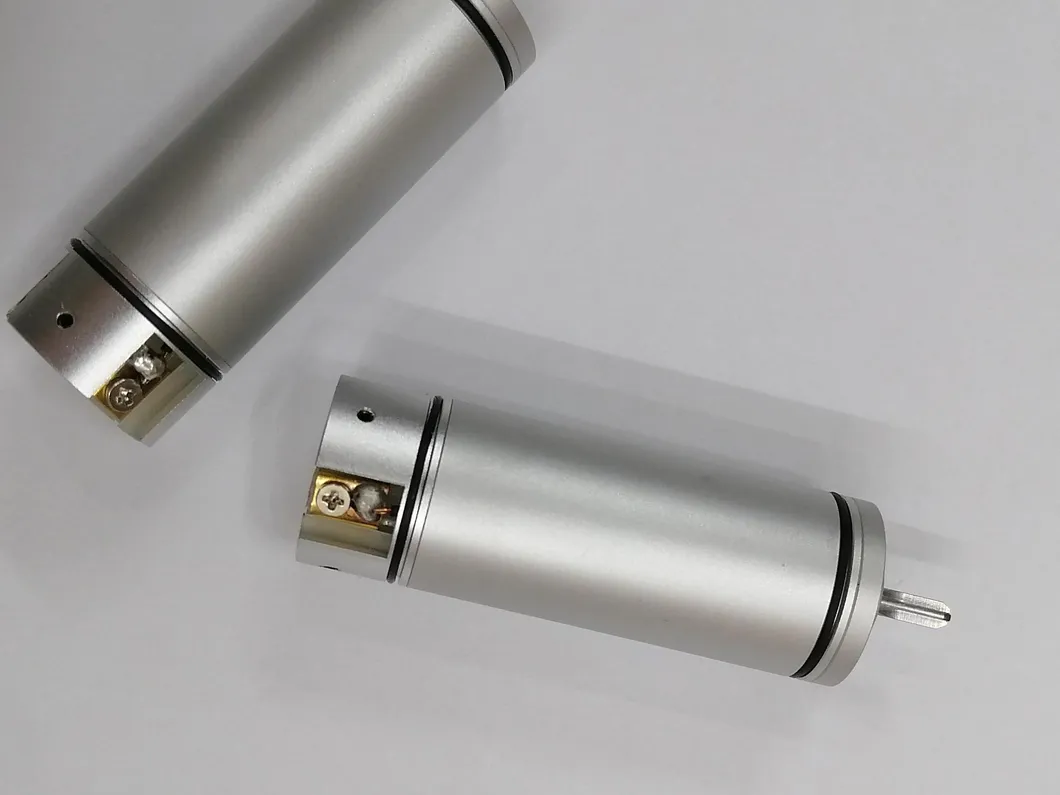

BLDC Motor View 1

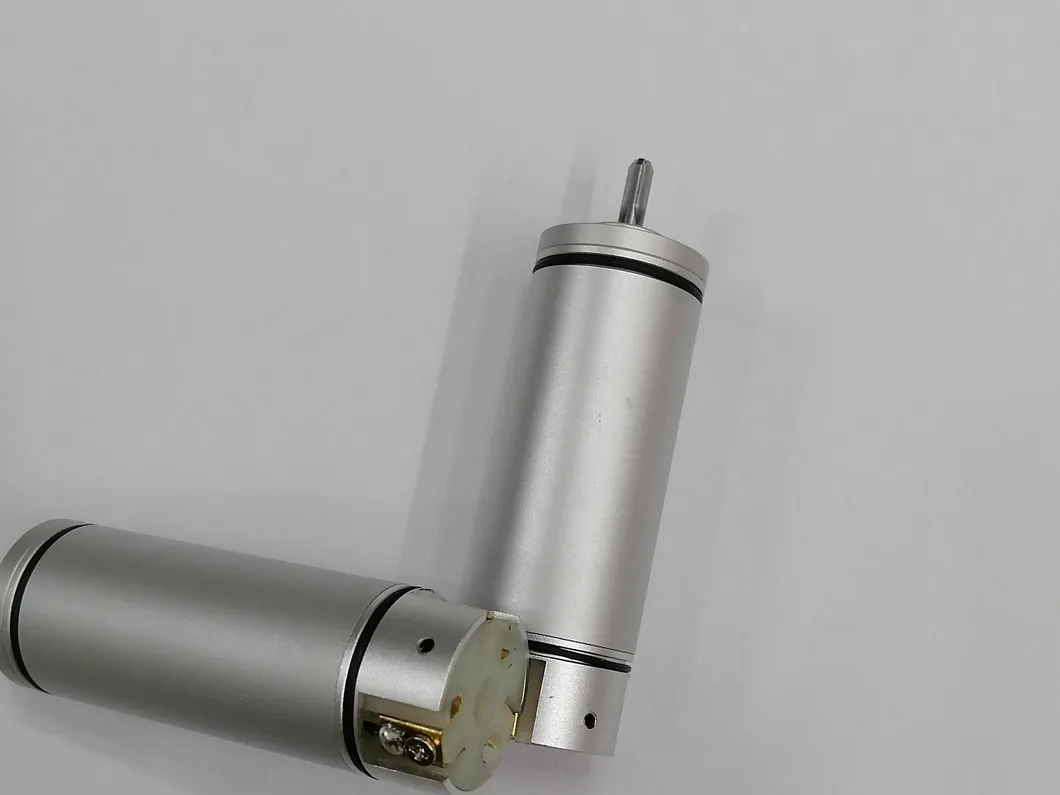

BLDC Motor View 2

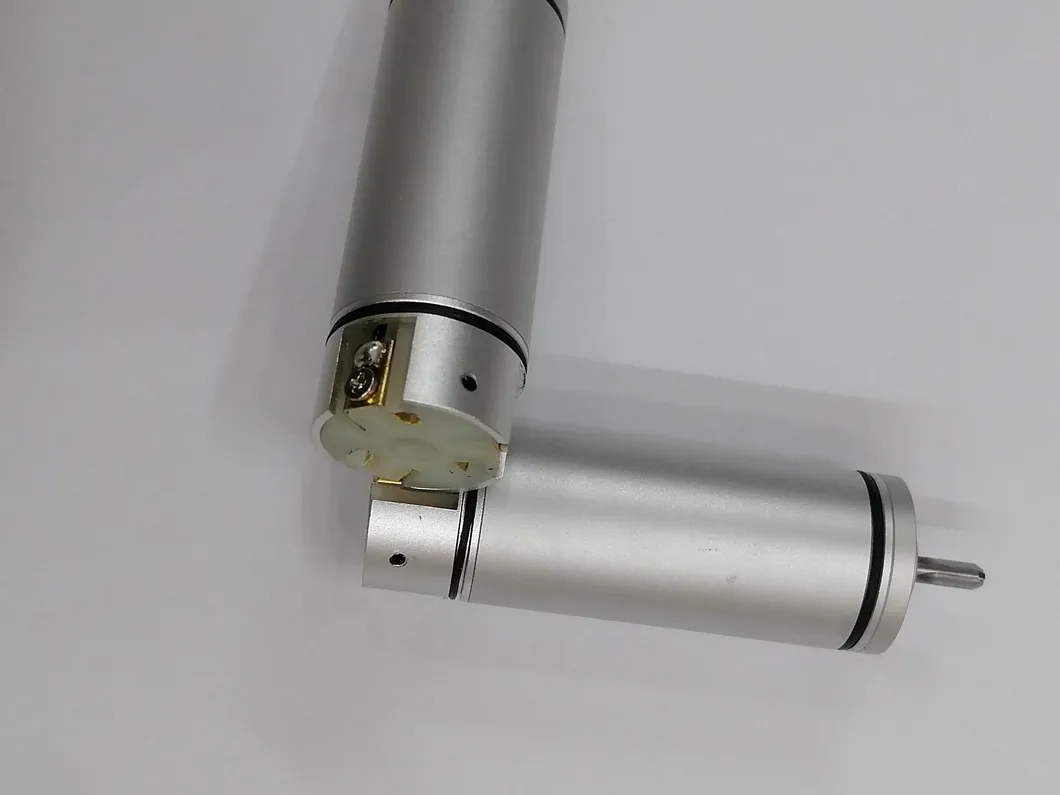

BLDC Motor View 3
Our Production Advantages

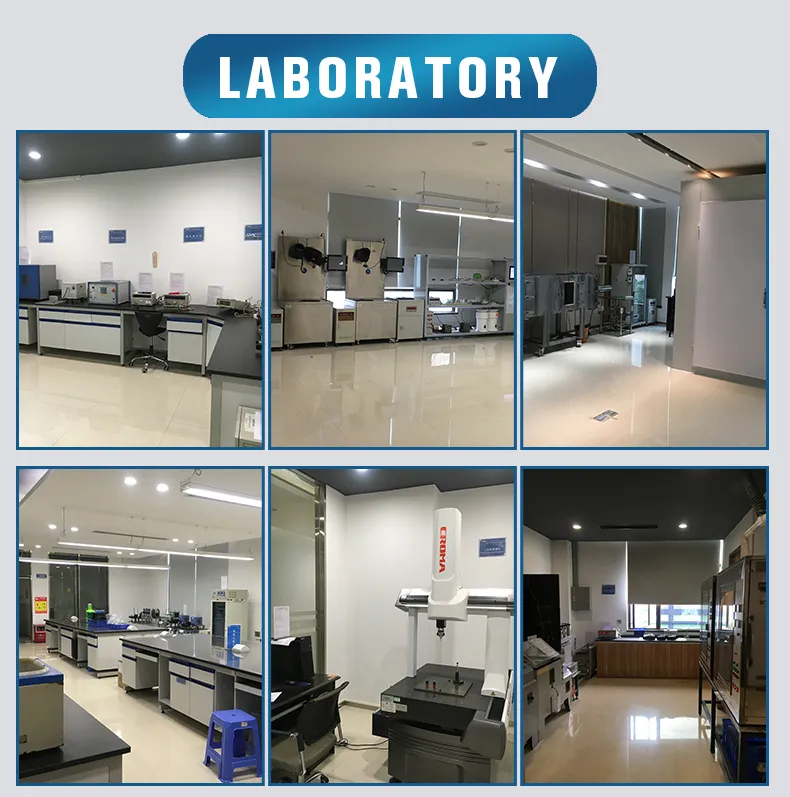

Advantage 1

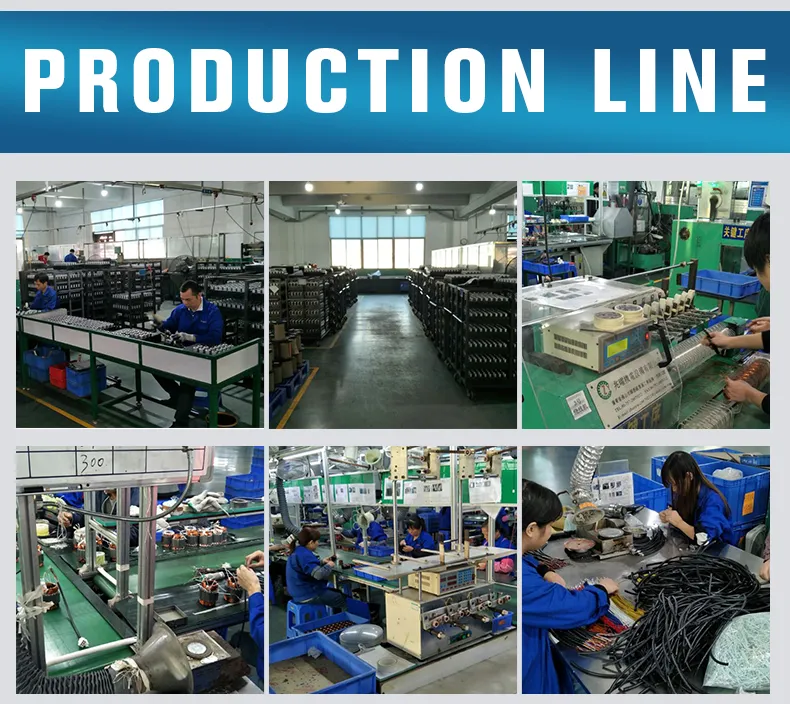

Advantage 2
Advantage 3
Advantage 4
Advantage 5
Advantage 6
Frequently Asked Questions
What types of motors are available?
We provide a wide range of motors including BLDC motors, coreless motors, DC gear motors, shaded pole motors, and synchronous motors suitable for household and industrial appliances.
Can I request samples for testing?
Yes, we provide samples for testing before official orders. While custom motors usually have no stock, we support sample production if the price and MOQ terms are acceptable.
What is the typical MOQ for orders?
The MOQ usually ranges between 1,000 to 10,000 pieces depending on the model. However, for initial orders after sample approval, we can accept smaller batches.
What are the main applications for coreless motors?
Due to their high speed and precision, they are perfect for robotics, medical devices, dental polishers, drones, and high-end handheld tools.
Do you support OEM/Customization?
Yes, most of our motors are custom-made to meet specific voltage, speed, and torque requirements for our clients' unique applications.
What quality certifications do you hold?
Our production facilities are ISO9001 certified, and products carry major international certifications including CCC, TUV, UL, and VDE.
