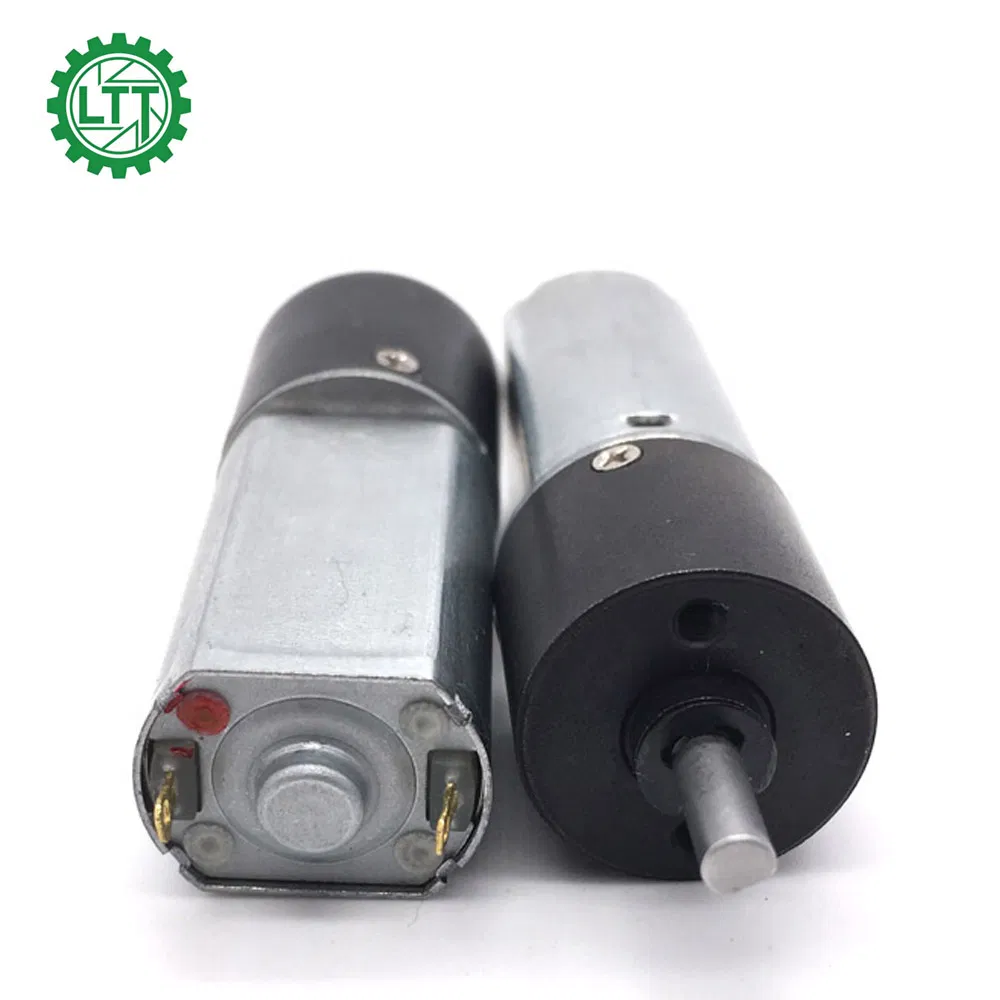

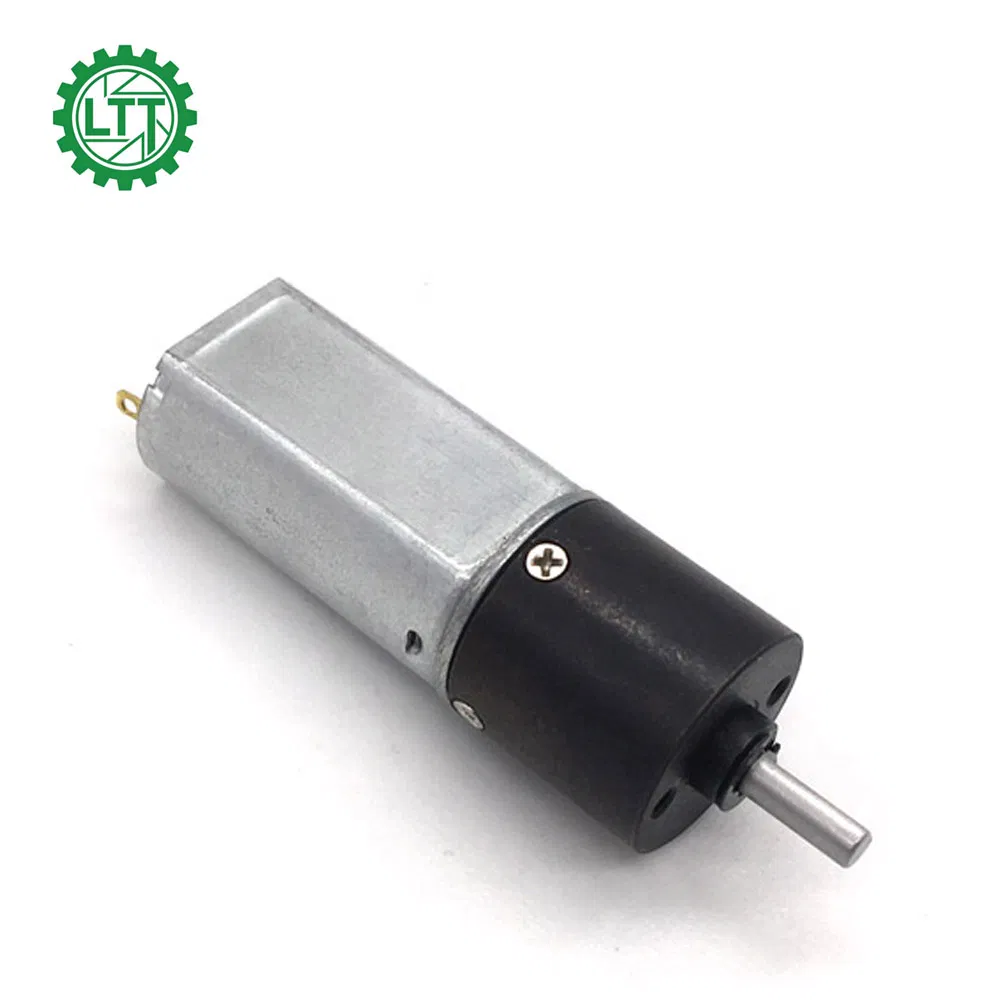

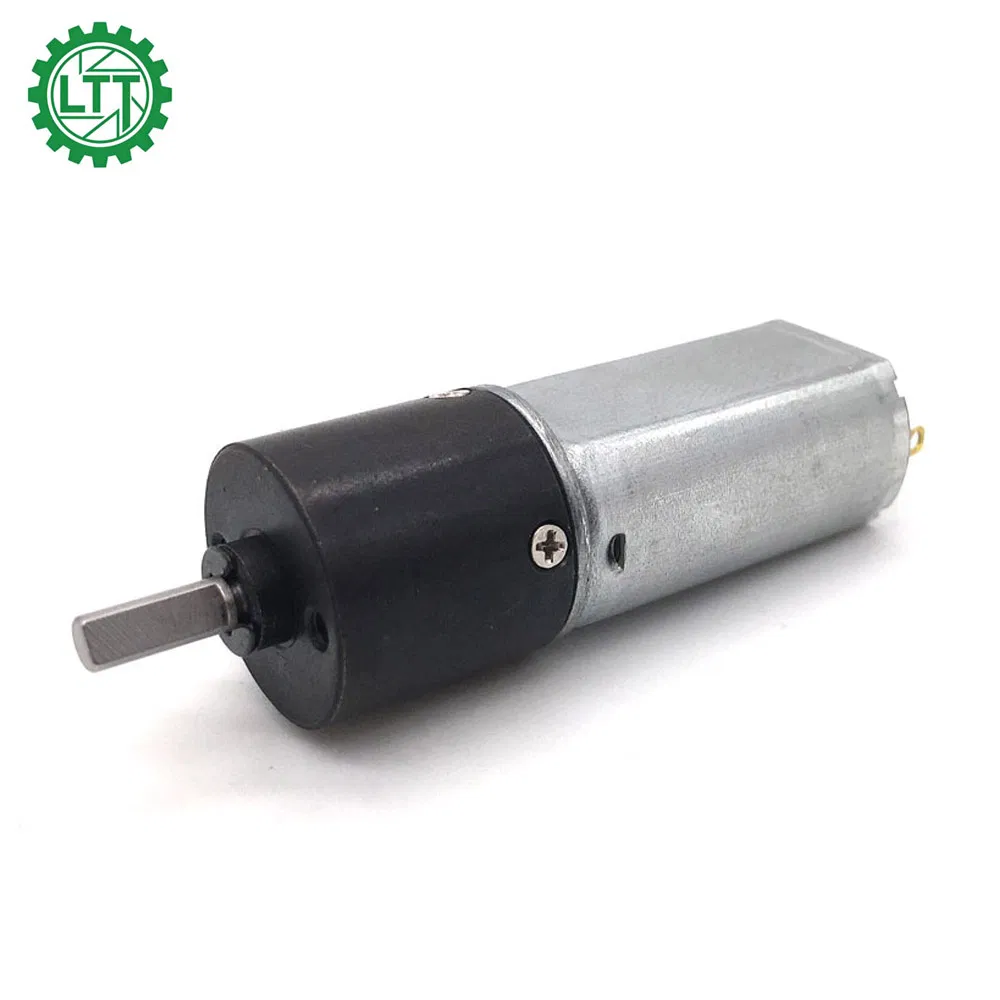

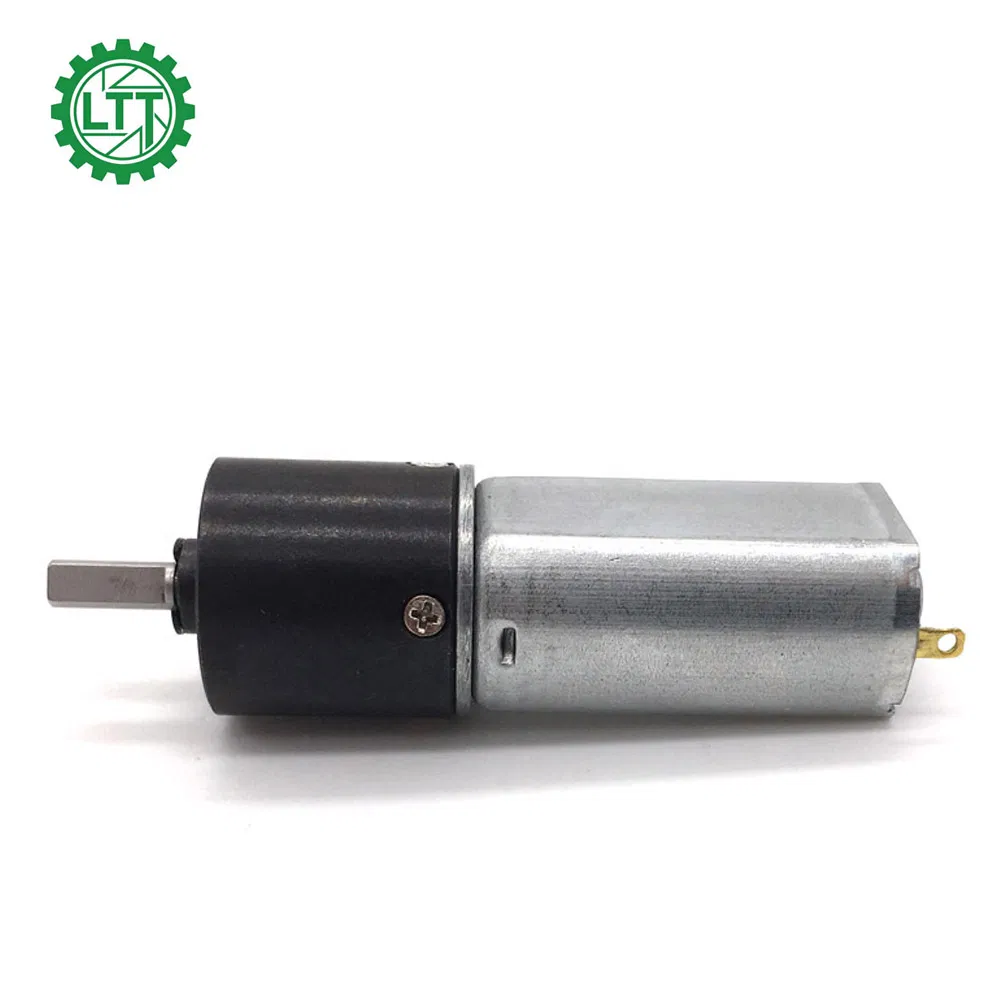

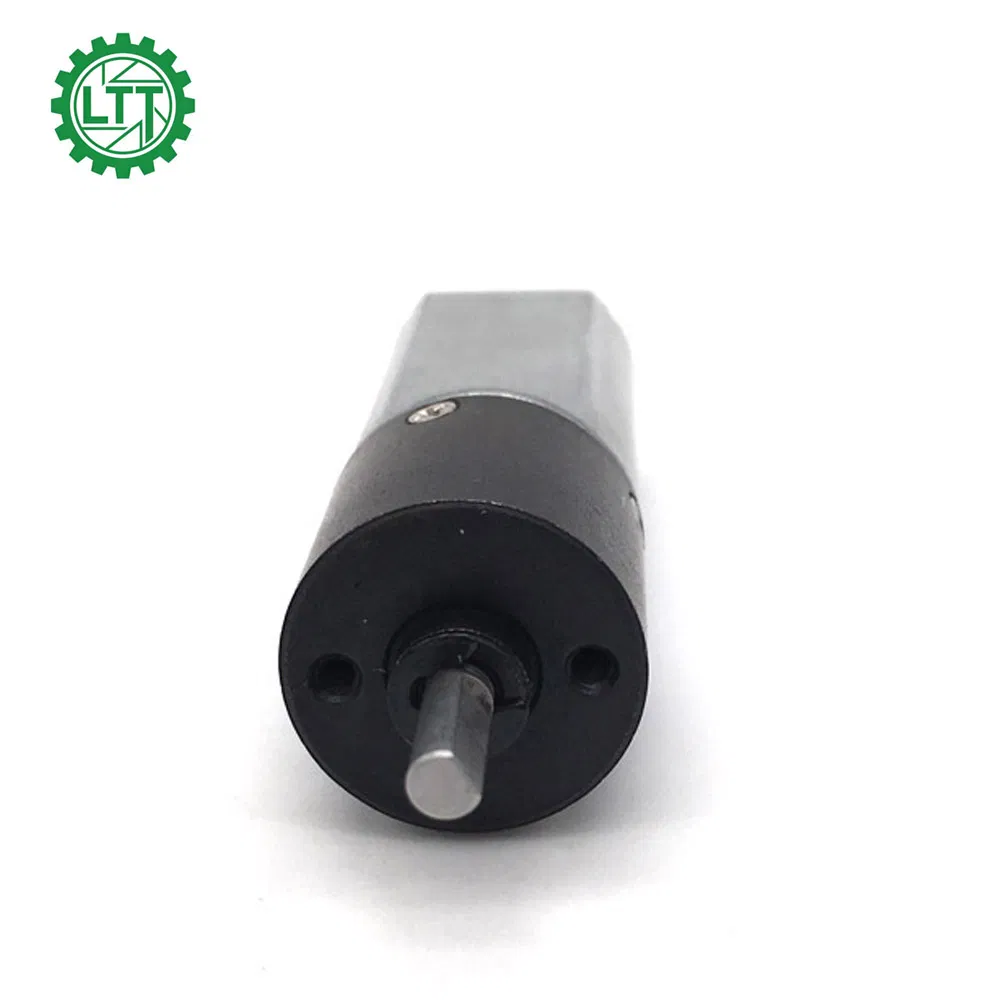

High Torque Low Noise Micro DC Motor 16mm Lpm16-050 6V 12V 24V DC Planetary Gear Motor

Still deciding? Get samples of $ !
Request Sample

Product Description

⚙️ Basic Information
Model NO.
LPM16-050
Type
PMDC Motor
Motor Type
DC Planetary Gear Motor
Excitation Mode
Shunt
Rated Voltage
3V 6V 12V 24VDC
Number of Poles
2
Structure
Brush
Certification
ISO9001, CE, RoHS
Motor Size
φ15.5*12*26.9mm
Material
Steel
📋 Product Description
16mm Diameter Micro DC Planetary Gear Motor
Model LPM16-050 Type DC Planetary Gear Motor
Voltage 3v-24v Speed 1rpm-5000rpm
Continuous Current ≤5.8A Stall Torque ≤9kg.cm
Typical Application Smart Locks, Household Appliances, Financial Medical Equipment, Industrial Equipment, Intelligent Robot, etc.
Gearbox Material Steel, Brass, Plastic, Powder Metallurgy, Zinc Alloy
Bearing Type Ball Bearing, Oil bearing

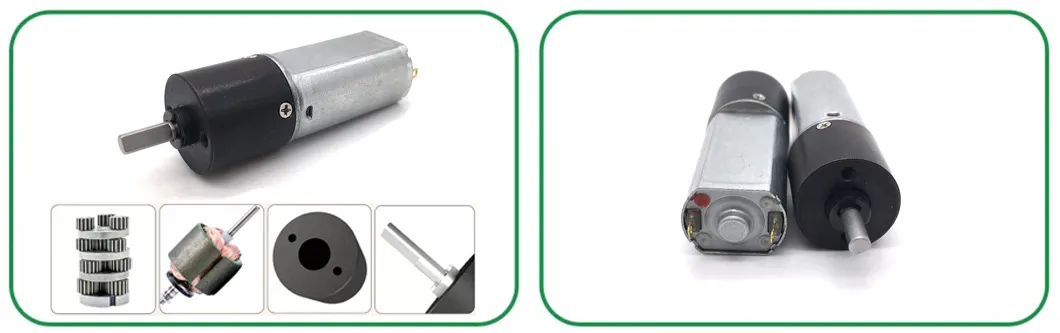

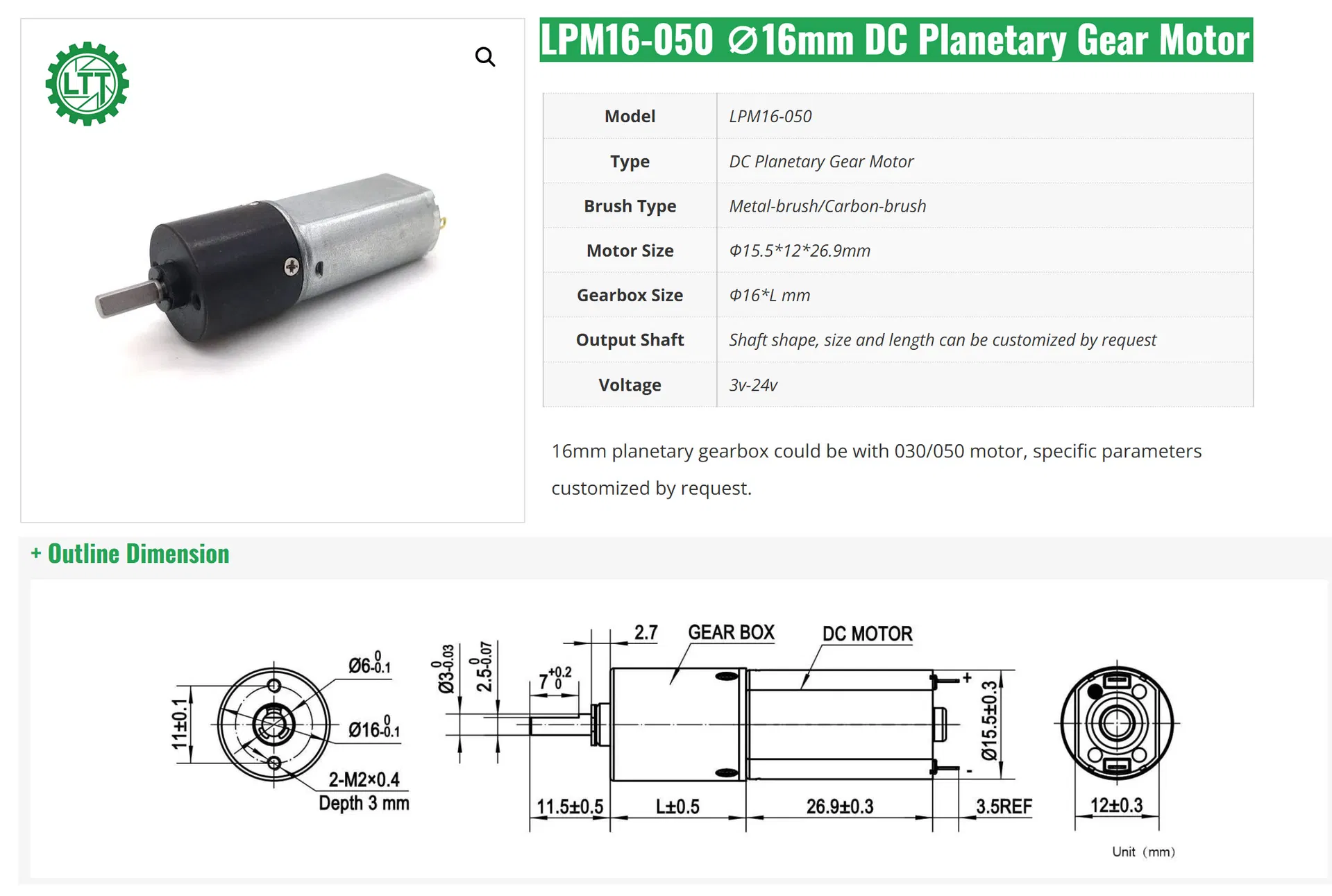

DC Planetary Gear Motor View 1 DC Planetary Gear Motor View 2

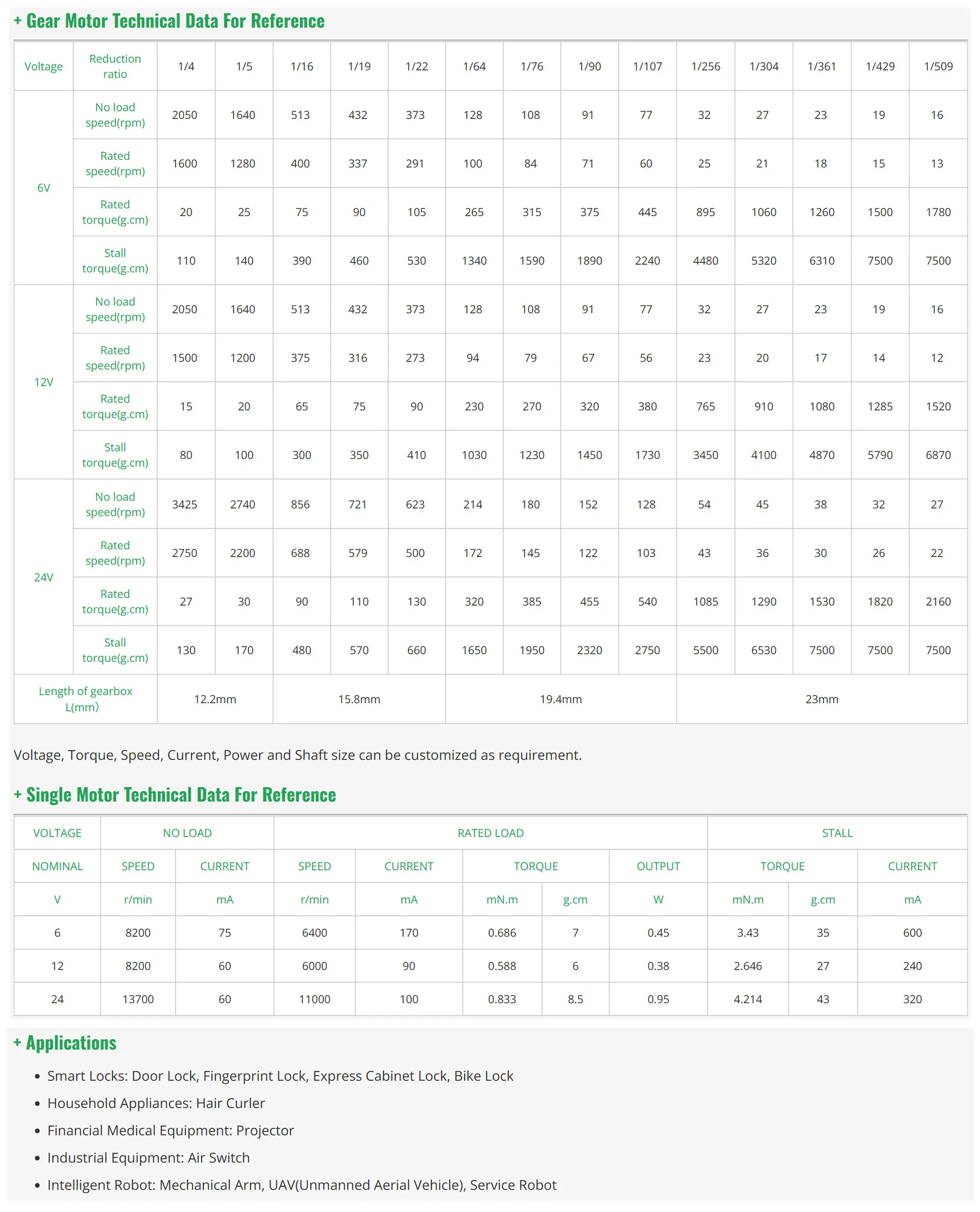

Specification Drawing Technical Parameters
🚀 Main Products Range

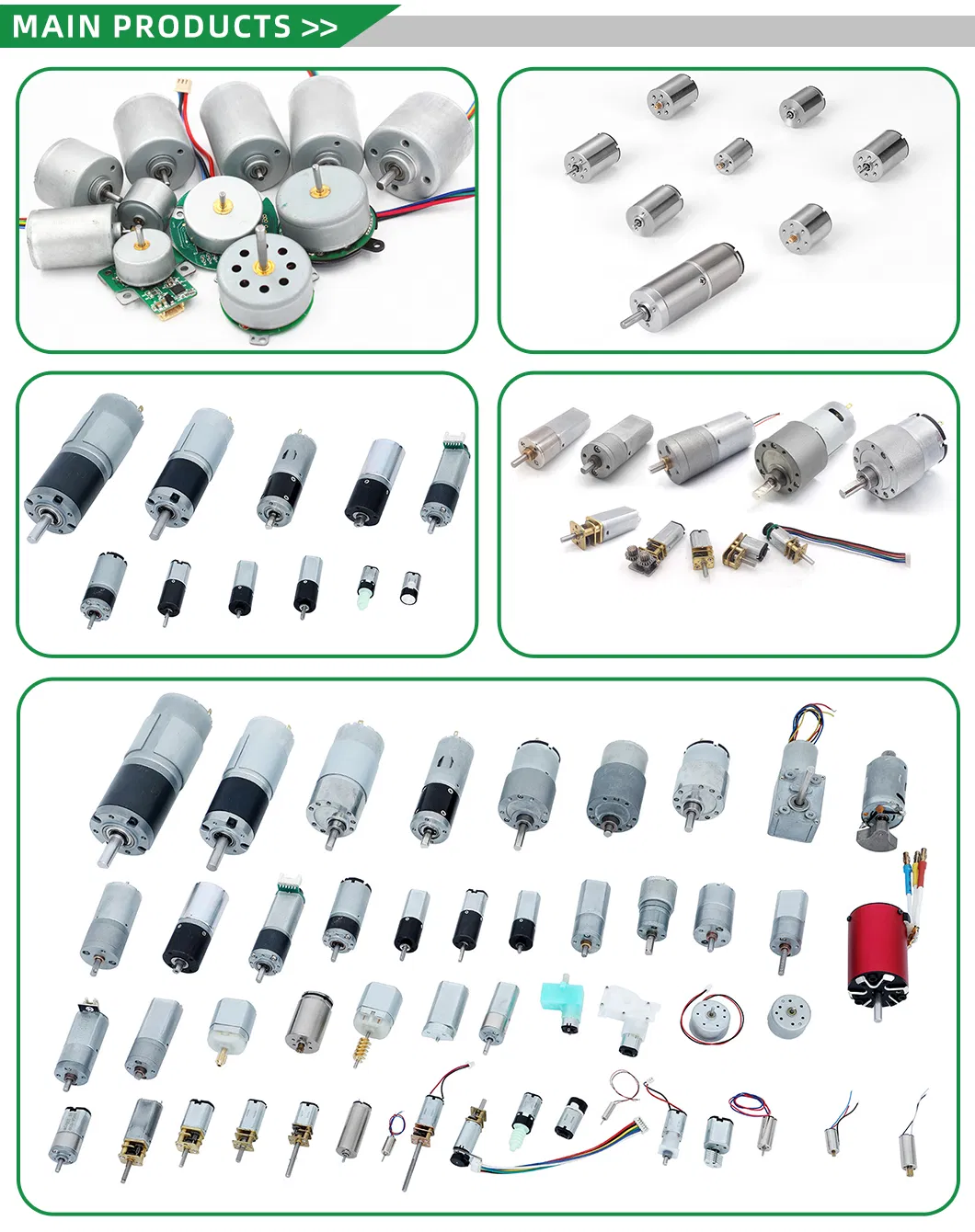

Product Range 1 Product Range 2
💎 Our Advantages
1. Focus on Micro DC Motor
Modern high-tech enterprise integrating R&D, manufacturing and sales with over 10 years of manufacturing experience.
2. Quick Customization
Providing tailored solutions with an efficient 7-day sample production cycle based on specific customer requirements.
3. Certified Quality
Adheres to ISO9001 quality control systems and holds international safety certifications including CE, RoHS, and UL.
4. High-End Materials
Motor components are sourced from high-quality materials and processed with precision for optimal performance.
5. Long Service Life
Designed for durability, offering a lifespan of 3-20 years under standard operating conditions.
🏭 Factory & Certifications
Factory Environment
ISO Certification Product Certification
📦 Packaging & Shipping
Packaging Standard
Shipping Method: Packing by crate, carton or pallet; Shipping by air, by sea or express.
Frequently Asked Questions
Q1: Do you provide samples for testing? A: Yes, we provide samples for clients to test before proceeding with mass production. The typical lead time for samples is 7-15 days.
Q2: Can the DC Gear Motor be customized? A: Absolutely. We can customize the voltage, speed, torque, and shaft size/shape to meet your requirements. We can also add specific connectors, cables, or EMC components.
Q3: How do I select the right motor for my application? A: Please provide your detailed specifications such as voltage, speed, torque, motor size, and working environment. Providing a drawing or photo of your current setup also helps us recommend the best fit.
Q4: What is the typical lifespan of these motors? A: Under standard use conditions, our motors are designed to last between 3 to 20 years, depending on the specific model and application intensity.
Q5: What are your shipping and payment terms? A: We ship via air (DHL, FedEx, UPS, TNT) or sea. For payments, we accept T/T in advance, as well as PayPal and major credit cards.
Q6: Do you offer technical support? A: Yes, we have a strong R&D team capable of providing full technical support and engineering solutions for your drive system needs.
