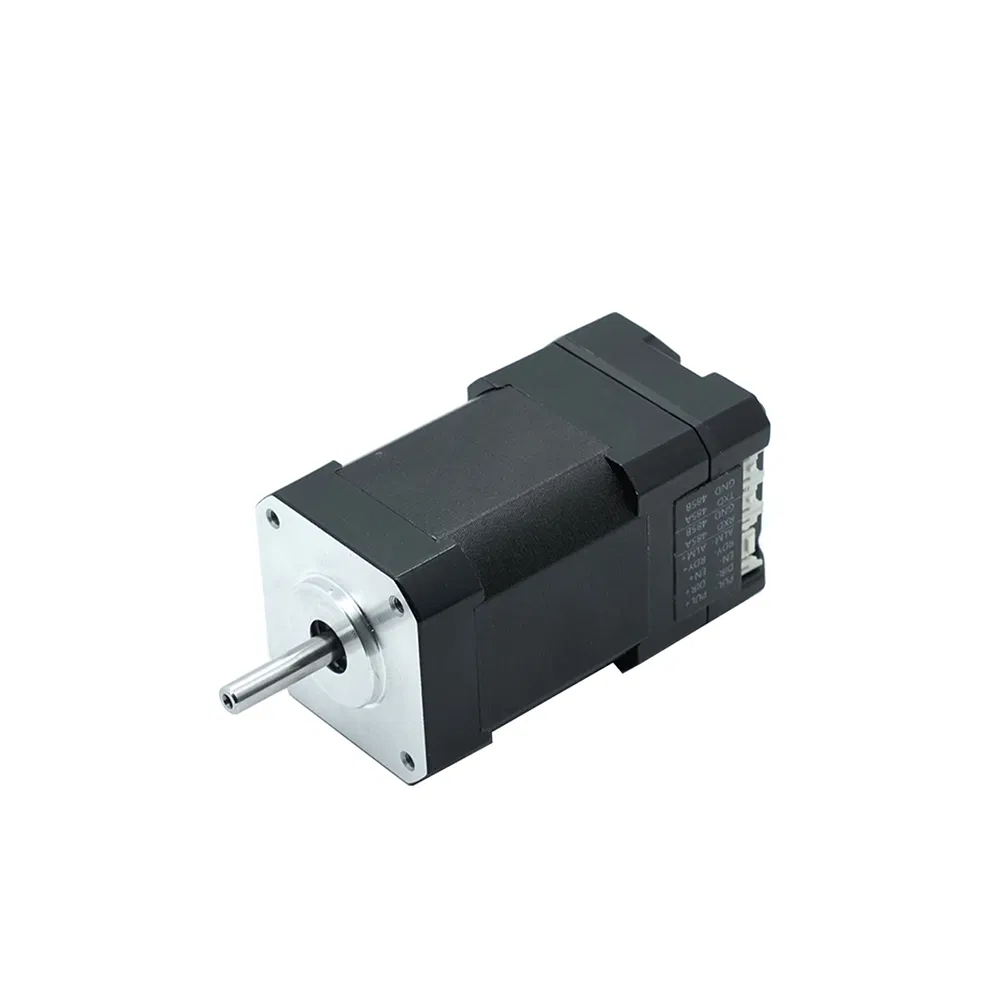

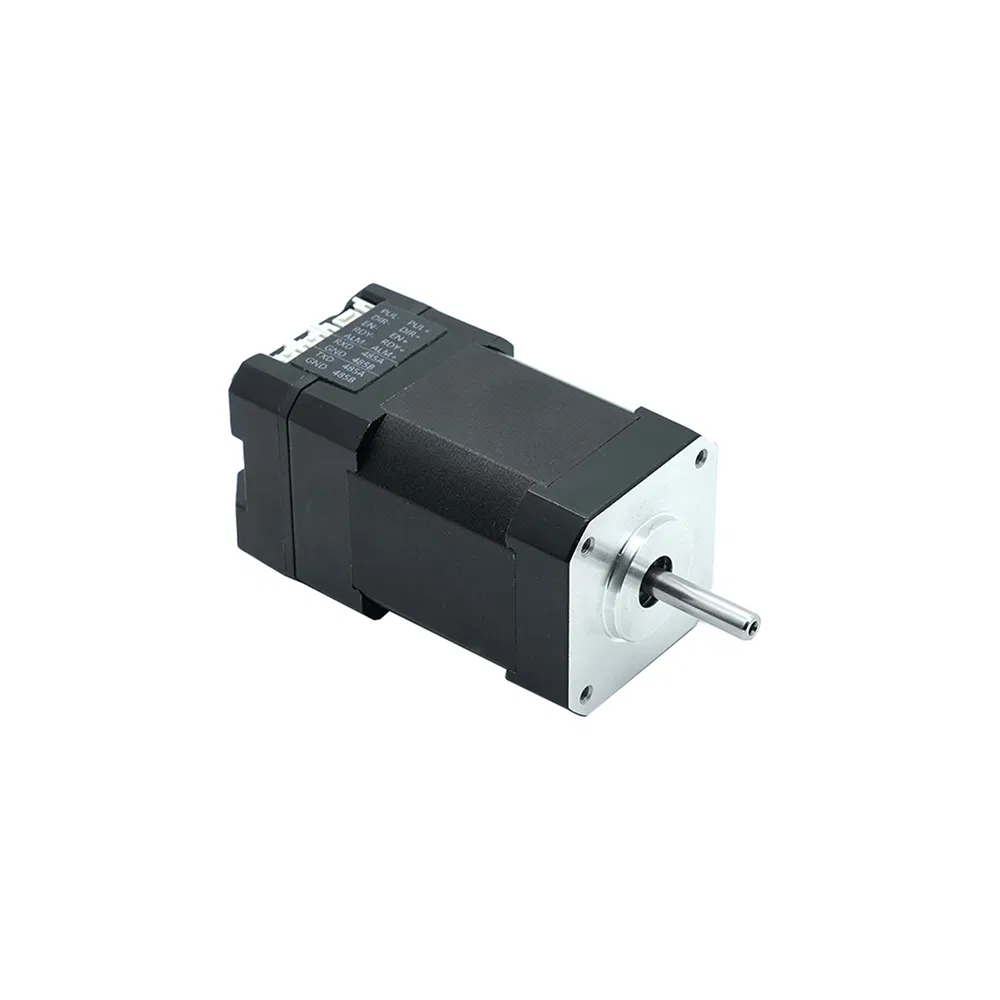

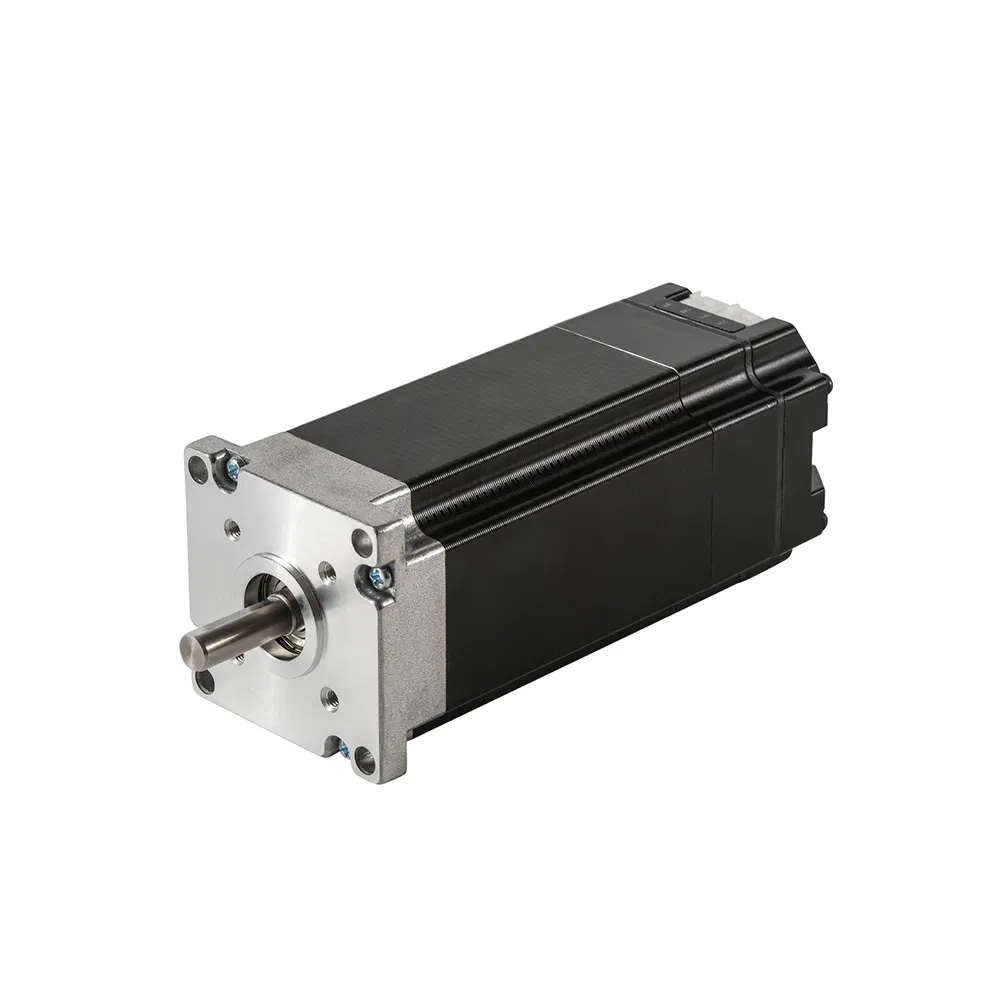

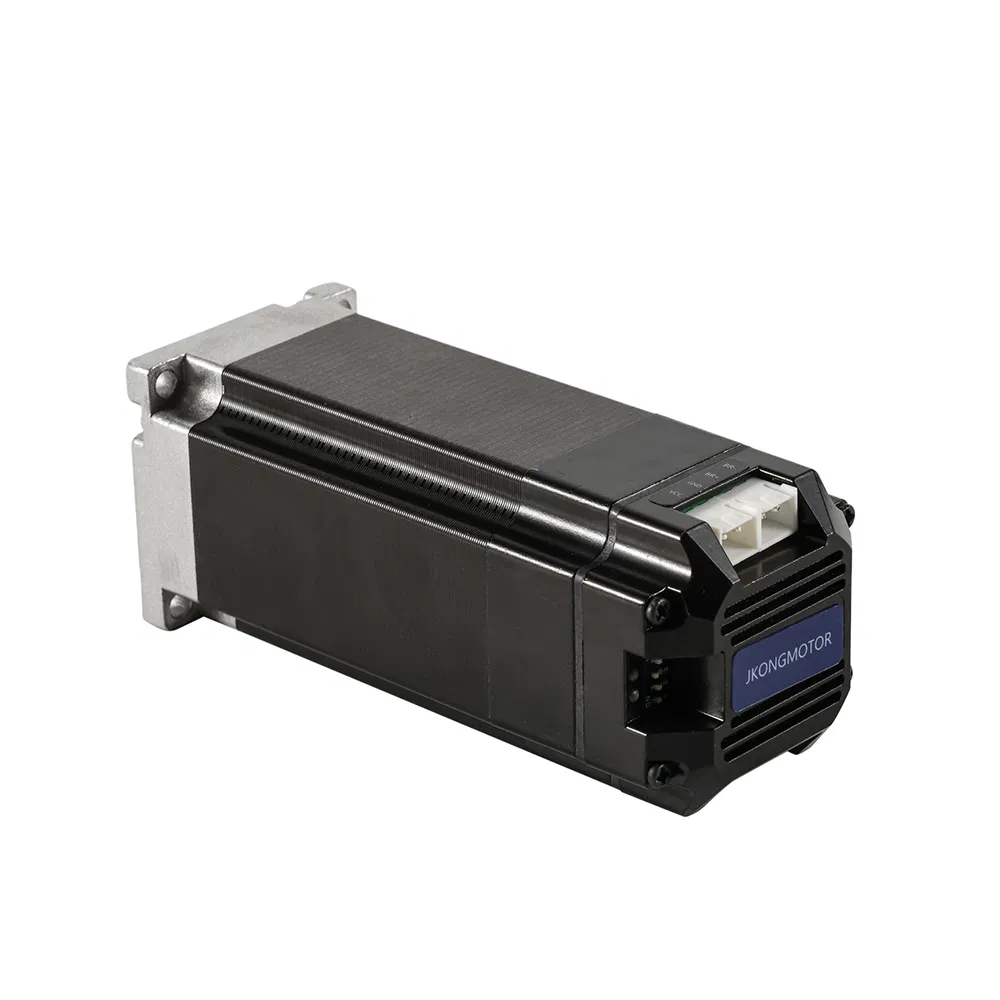

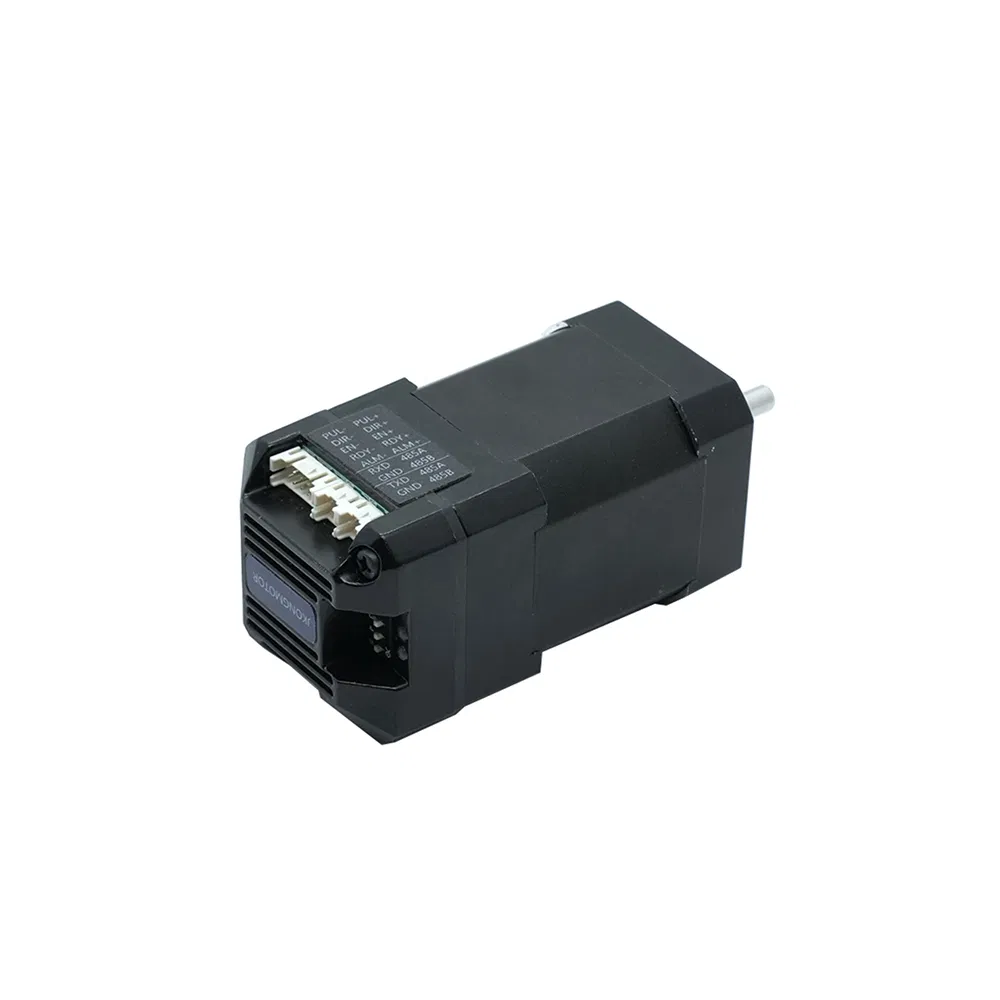

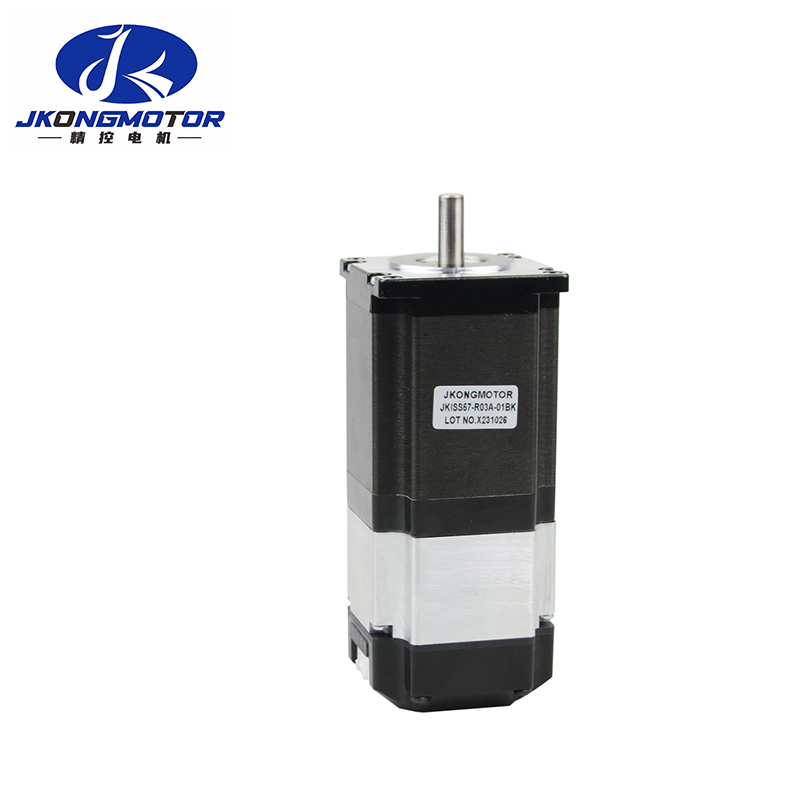

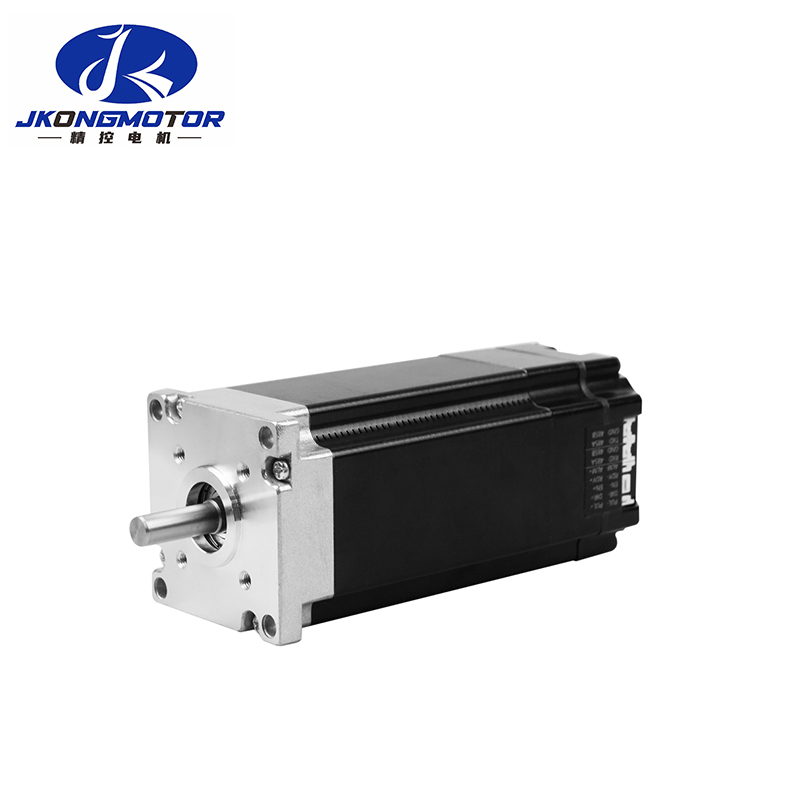

Jkongmotor Jkids57-R02A 140W 5.4A 3000rpm 24V 36V 0.45nm RS485 Low Noise DC Servo Motor with Gearbox Brake for Medical Automation Devices

1 / 5

Jkongmotor Jkids57-R02A 140W 5.4A 3000rpm 24V 36V 0.45nm RS485 Low Noise DC Servo Motor with Gearbox Brake for Medical Automation Devices

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📦 Overview - Basic Info.

Model NO.

JKIDS57-R02A

Function

Control, Integrated Servo Motor

Poles

Structure

Brushless

Voltage

24V / 36V

Rated Current

5.4A

Holding Torque

0.45nm

Control Method

Pulse / RS485 / CANopen

Encoder Type

17bit / 1000PPR / 15bit

Protection

IP30, IP54, IP65 Optional

Certification

ISO9001, RoHS, CE, ISO14001

Origin

China

📝 Product Description

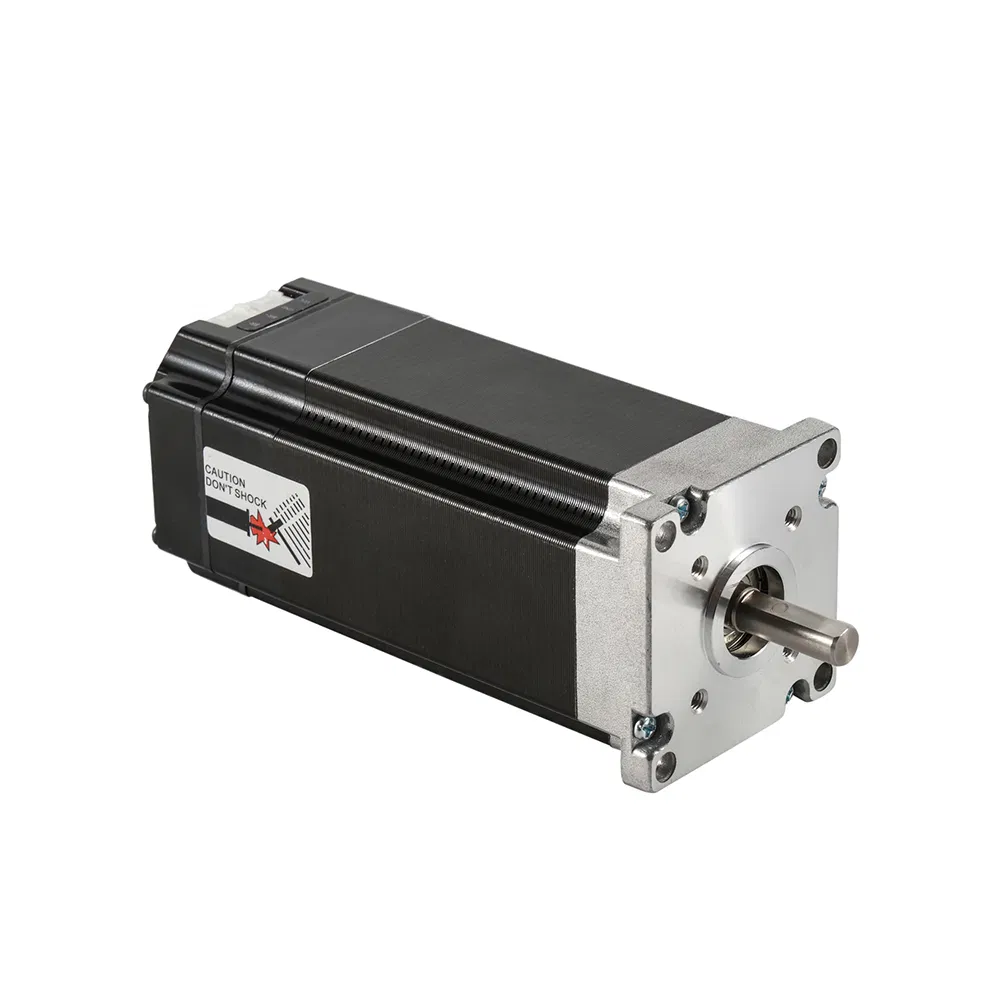

Integrated servo motors combine the motor, encoder, and drive/controller into a single, compact unit, eliminating external cabling between the driver and motor. They reduce installation time, save space in control panels, and improve noise immunity. Ideal for automation, robotics, and CNC machines, they offer precise control over speed, torque, and position.

Model Naming Rules

1. Name: Professional Series

2. Motor Series: IDP (Waterproof Type); IDC (Plug Type); IBP (BLDC Waterproof); IBC (BLDC Plug)

3. Motor Frame: 42mm, 57mm, 60mm, 80mm, 86mm

4. Control Type: P (Pulse); R (RS485); C (CANopen)

5. Power: Varies by frame (e.g., 57 series: 91W to 200W)

6. Voltage: 24V, 36V, 48V, 72V

7. Encoder: 17bit/15bit Single or Multi-turn absolute encoder

8. Brake: Optional 24V/48V Brake

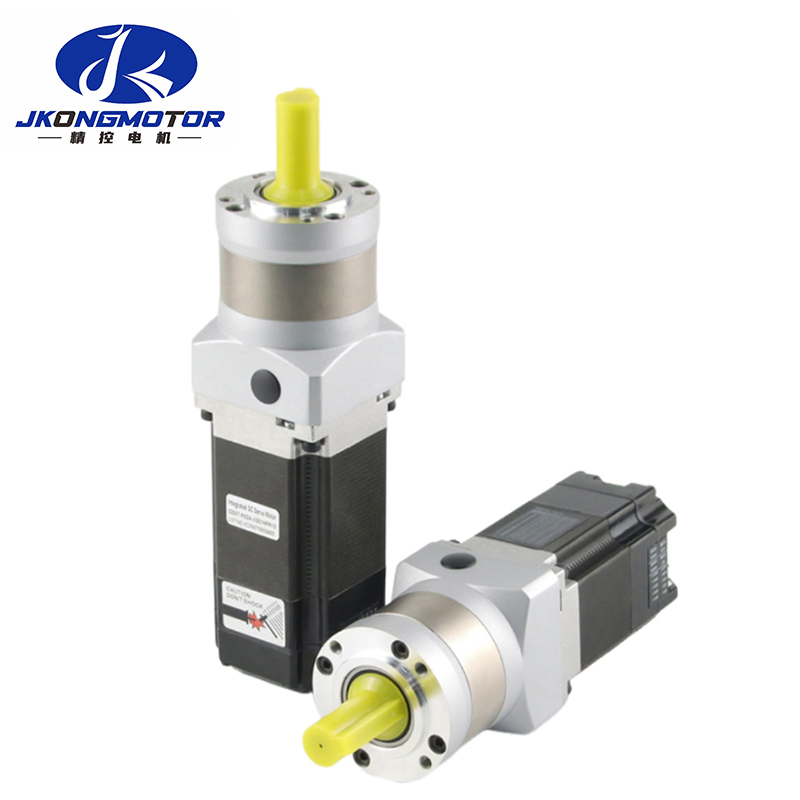

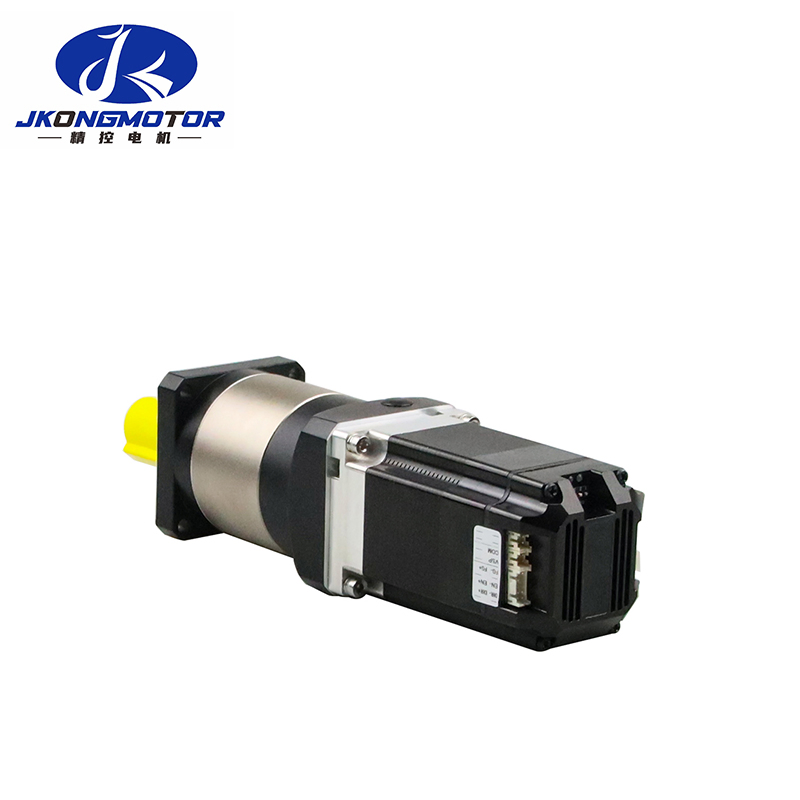

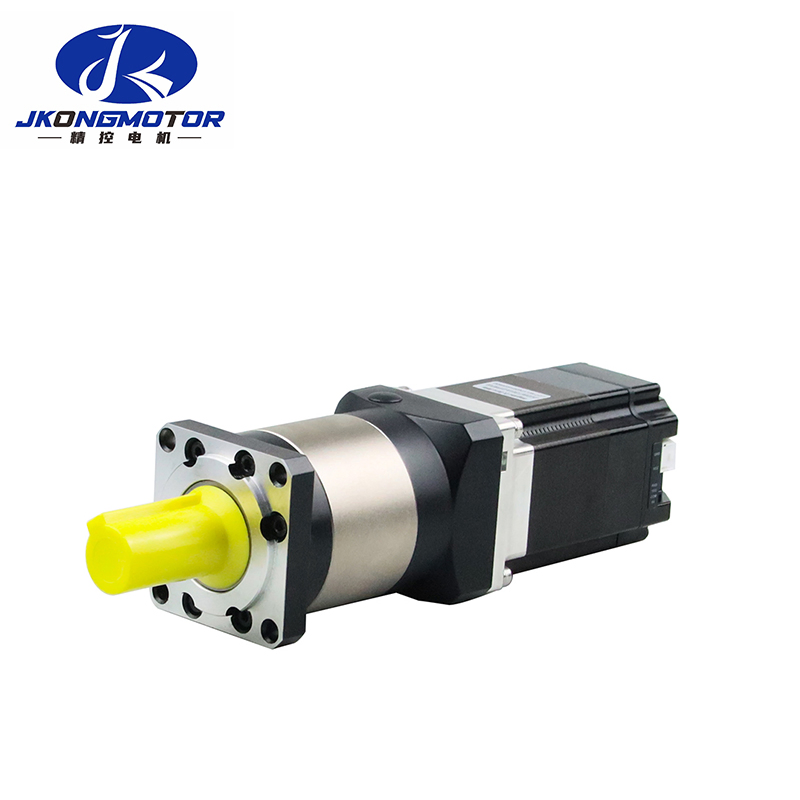

9. Gearbox: Planetary, Right-angle, or Worm Gearbox options

⭐ Key Characteristics & Features

🚀 Compact Design Integrated drive and motor saves space, simplifies wiring, and facilitates easy installation.

🕹️ Advanced Control Supports CiA402 protocol: Relative/Absolute position, Speed, Torque, and Origin regression modes.

📉 Efficient Performance Low internal resistance MOS reduces power consumption and heat, extending motor service life.

🛡️ Safe & Reliable Built-in protection for over-current, over-voltage, under-voltage, and over-temperature with alarm outputs.

⚙️ High Precision Equipped with 17-bit absolute encoders for superior accuracy and stability across speed ranges.

🌐 Versatile Connectivity Supports Pulse type, RS485 Modbus RTU, and CANopen network architectures.

📊 Technical Parameters

42mm IDS42 Series

Model	Control	Power (W)	Voltage (V)	Current (A)	Speed (Rpm)	Torque (N.m)	Length (mm)
JKIDS42-P01A	Pulse	26	24	1.8	4000	0.0625	61
JKIDS42-R02A	RS485	53	24	3.3	4000	0.125	81
JKIDS42-C03A	CANopen	78	24	4.5	4000	0.185	101

57mm IDS57 Series

Model	Control	Power (W)	Voltage (V)	Current (A)	Speed (Rpm)	Torque (N.m)	Length (mm)
JKIDS57-R01A	RS485	91	24/36	3.5	3000	0.29	101
JKIDS57-R02A	RS485	140	24/36	5.4	3000	0.45	121
JKIDS57-C03A	CANopen	200	24/36	7.5	3000	0.64	141

60mm & 80mm Series

Model	Power (W)	Voltage (V)	Current (A)	Speed (Rpm)	Torque (N.m)	Protection
IDC60-0.63Nm	200	24	11.5	3000	0.63	IP54/65
IDC60-1.27Nm	400	48	11.5	3000	1.27	IP54/65
IDC80-2.4Nm	750	48	20.0	3000	2.40	IP54/65

🛠️ Applications

These professional integrated DC servo motors are widely used in:

Medical Equipment & Laboratory Automation
Logistics Transportation & Sortation Systems
Industrial Automation & Robotics
Textile Machinery & Precision CNC
Laser Cutting & Electronic Assembly

📜 Quality & Certification

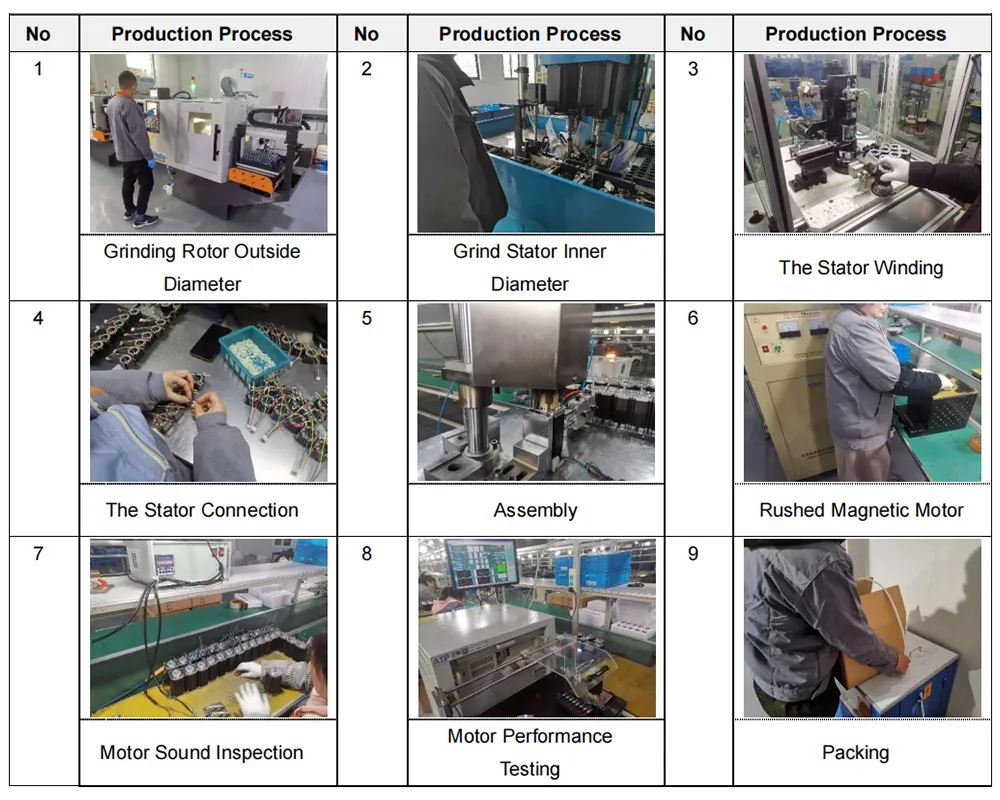

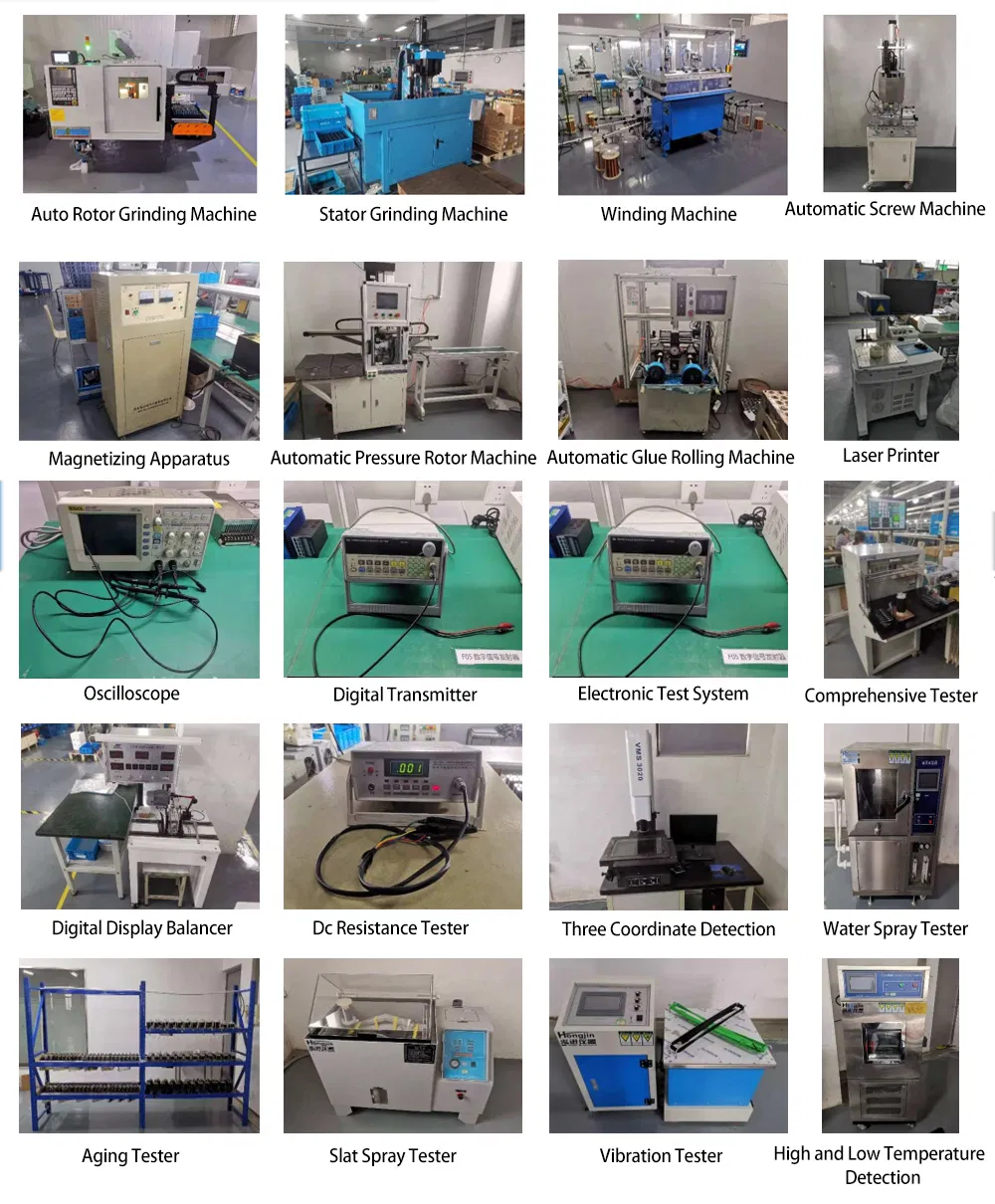

Our products are manufactured under strict quality control standards. We utilize advanced production flow and testing equipment to ensure every motor meets high-performance requirements.

Frequently Asked Questions

Q1: What are the main advantages of an integrated servo motor?

The integrated design combines the drive and motor into one unit, which significantly reduces wiring complexity, saves space in the control cabinet, and reduces electromagnetic interference.

Q2: Which communication protocols are supported?

Depending on the model, these motors support Pulse/Direction control, RS485 Modbus RTU, and CANopen (CiA402) protocols for seamless integration into various automation systems.

Q3: Are these motors suitable for harsh environments?

Yes, we offer multiple protection levels including IP30, IP54, and IP65. The waterproof series is specifically designed for environments where dust or moisture may be present.

Q4: Can I add a brake or gearbox to the motor?

Yes, we provide optional 24V/48V electromagnetic brakes and a variety of gearboxes, including planetary, right-angle, and worm gearboxes, to meet specific torque and space requirements.

Q5: What kind of encoders are integrated?

The motors are typically equipped with high-resolution 17-bit single-turn or multi-turn absolute encoders, ensuring high precision and position retention even after power cycles.

Q6: What built-in protections does the driver have?

The integrated driver includes comprehensive protection features such as over-current, over-voltage, under-voltage, over-temperature, and tracking error protection to ensure the safety of the equipment.
