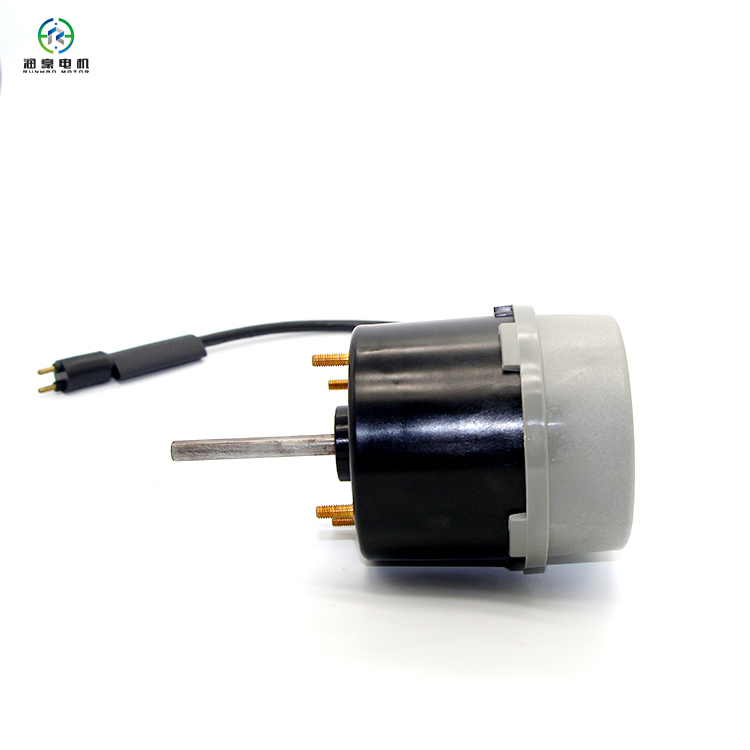

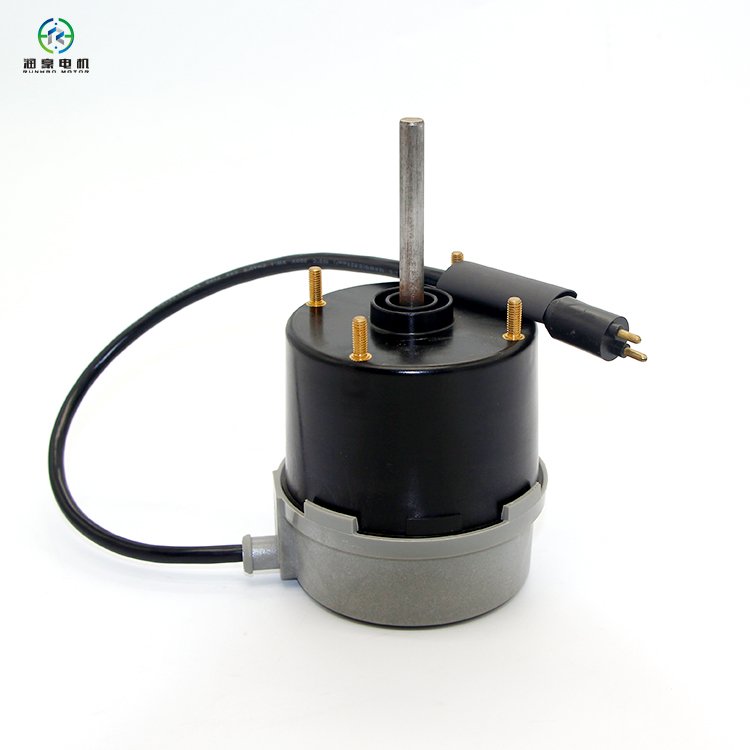

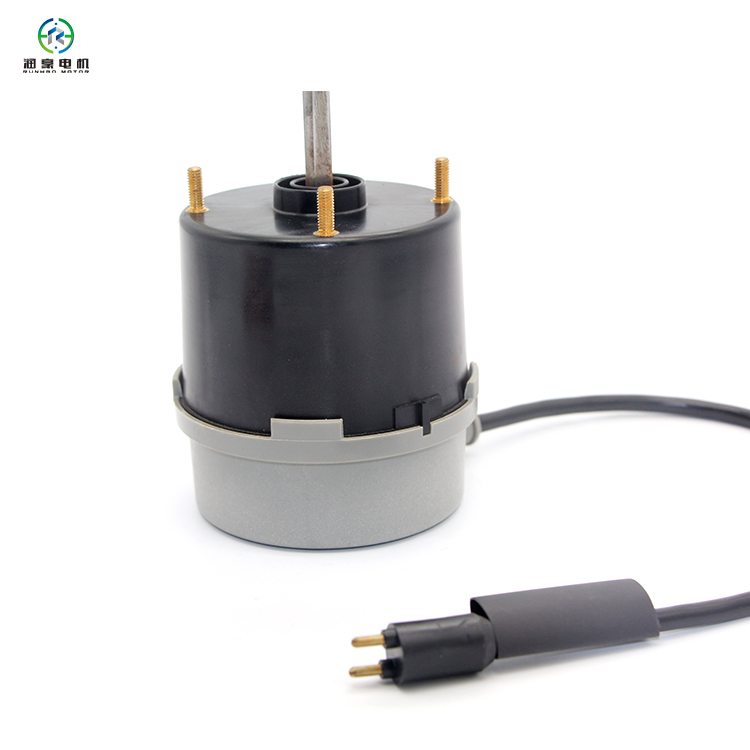

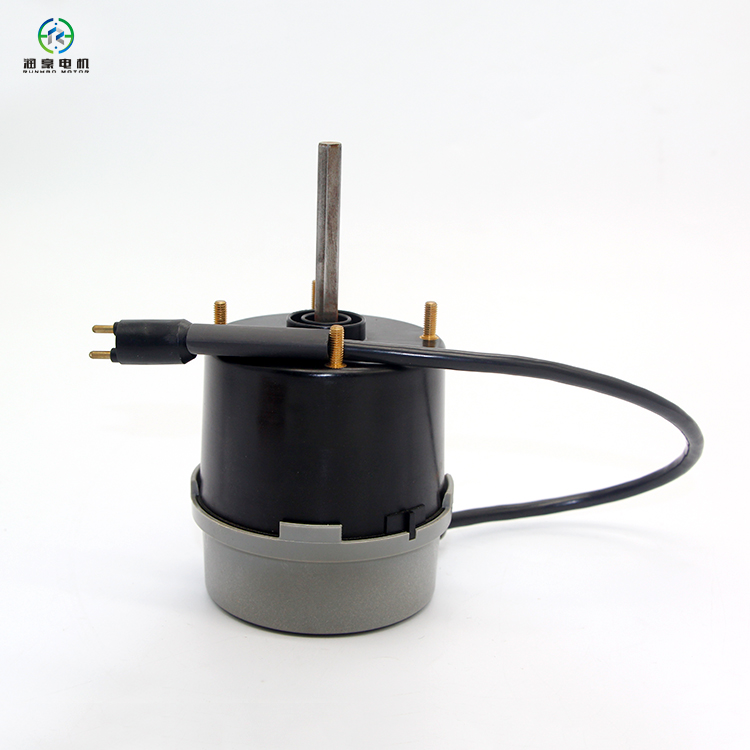

Low Price Small Electric BLDC Fan Motor 230v 50hz
Low Price Small Electric BLDC Fan Motor 230v 50hz
Low Price Small Electric BLDC Fan Motor 230v 50hz
Low Price Small Electric BLDC Fan Motor 230v 50hz
Low Price Small Electric BLDC Fan Motor 230v 50hz
1 / 5
Low Price Small Electric BLDC Fan Motor 230v 50hz
Low Price Small Electric BLDC Fan Motor 230v 50hz
Low Price Small Electric BLDC Fan Motor 230v 50hz
Low Price Small Electric BLDC Fan Motor 230v 50hz
Low Price Small Electric BLDC Fan Motor 230v 50hz

Low Price Small Electric BLDC Fan Motor 230v 50hz

Send Inquiry

Product Description

⚡ Low Price Small Electric BLDC Fan Motor 230V 50Hz
Electric BLDC Fan Motor
📋 Detailed Specifications
ModelQSM50-2A-CC
Customer Model30077-00
Voltage230V
Voltage Range207-253V
Running Current0.29 Amps
Locked Rotor Current1.5 Amps
Horse Power1/15 HP
Power Watts50W
RPM1800
Frequency60 Hz
RotationCCW (opposite end of shaft)
Phase1
Operating Temperature-40 to +55 C
ProtectionThermally Protected
UL File NumberE465664
Insulation ClassClass A (105 C)
Motor TypeContinuous Air Over
Plug Type2 Pin Lyall M-2-24
Cable Length16 Inches
Shaft Diameter8mm / .3149 in
Moisture ProtectionIP65
Efficiency @50W80%
Power Factor0.92
📸 Product Showcase

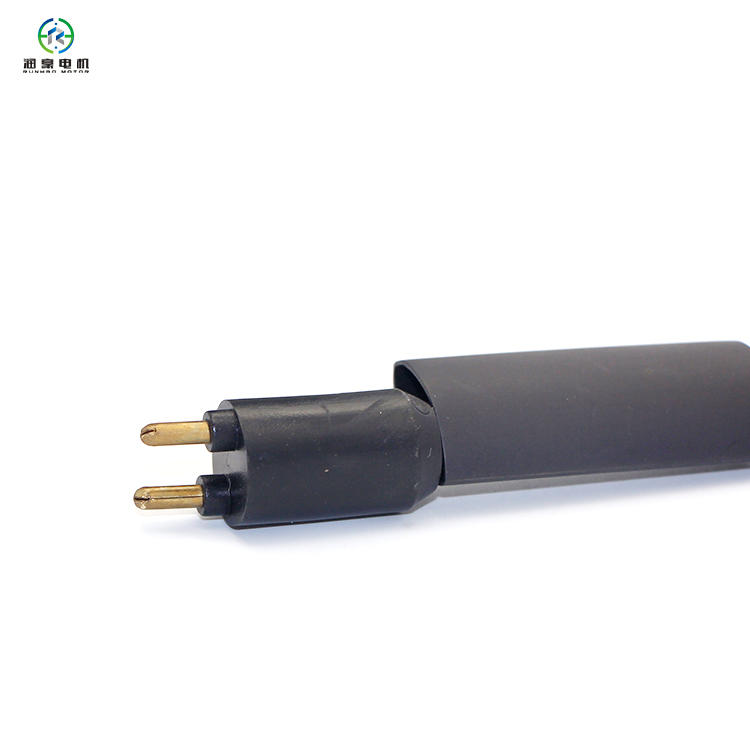

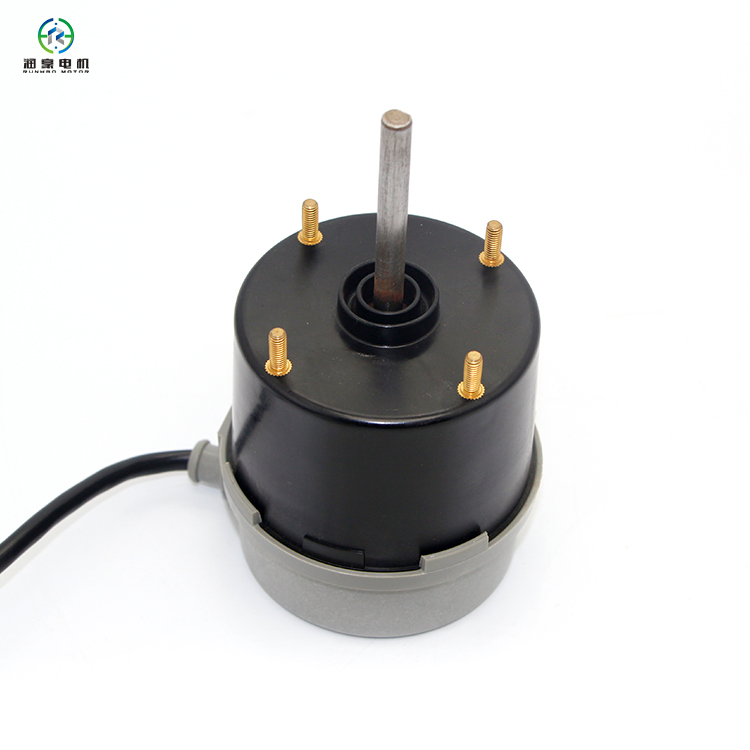

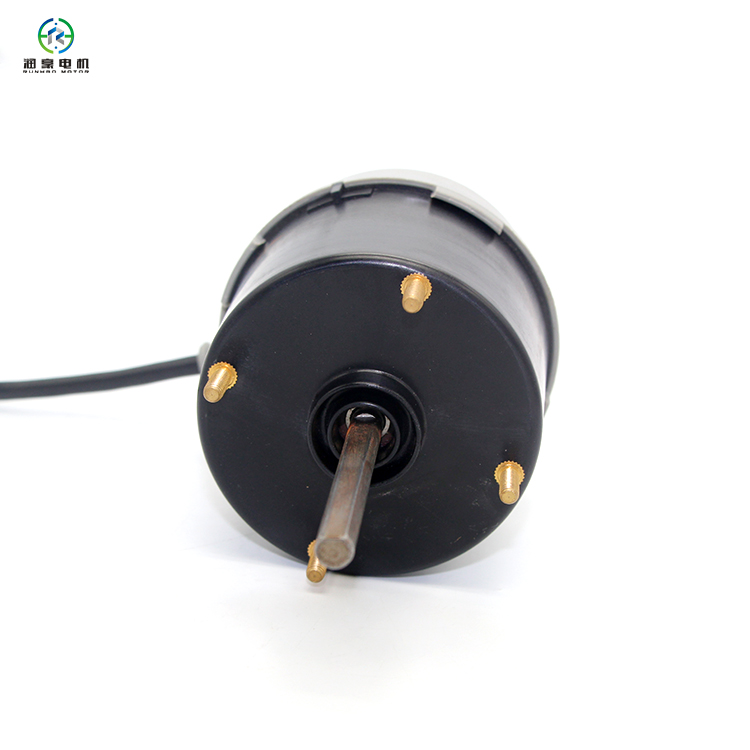

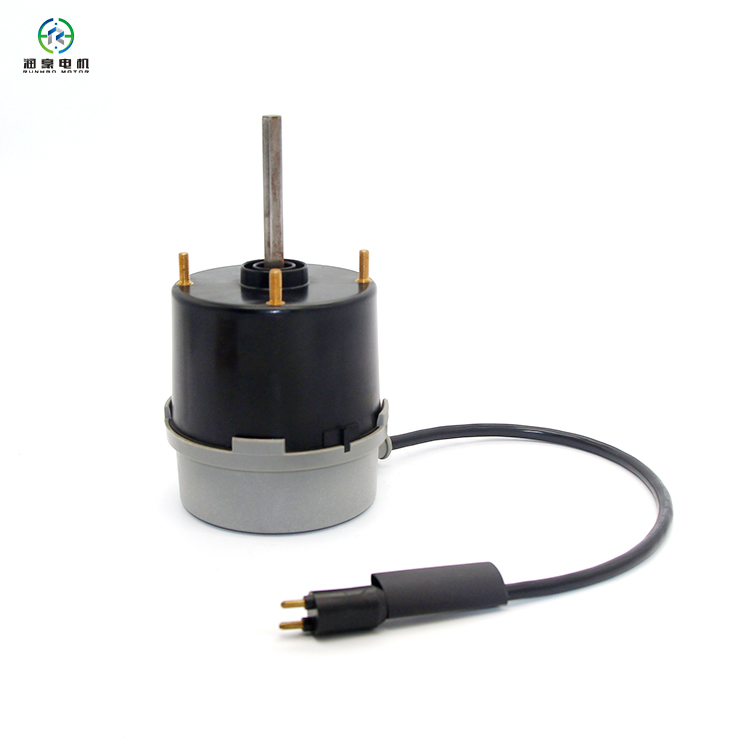

BLDC Motor View 1 BLDC Motor View 2 BLDC Motor View 3 BLDC Motor View 4
Dimensional Drawing
⚙️ Main Products Range

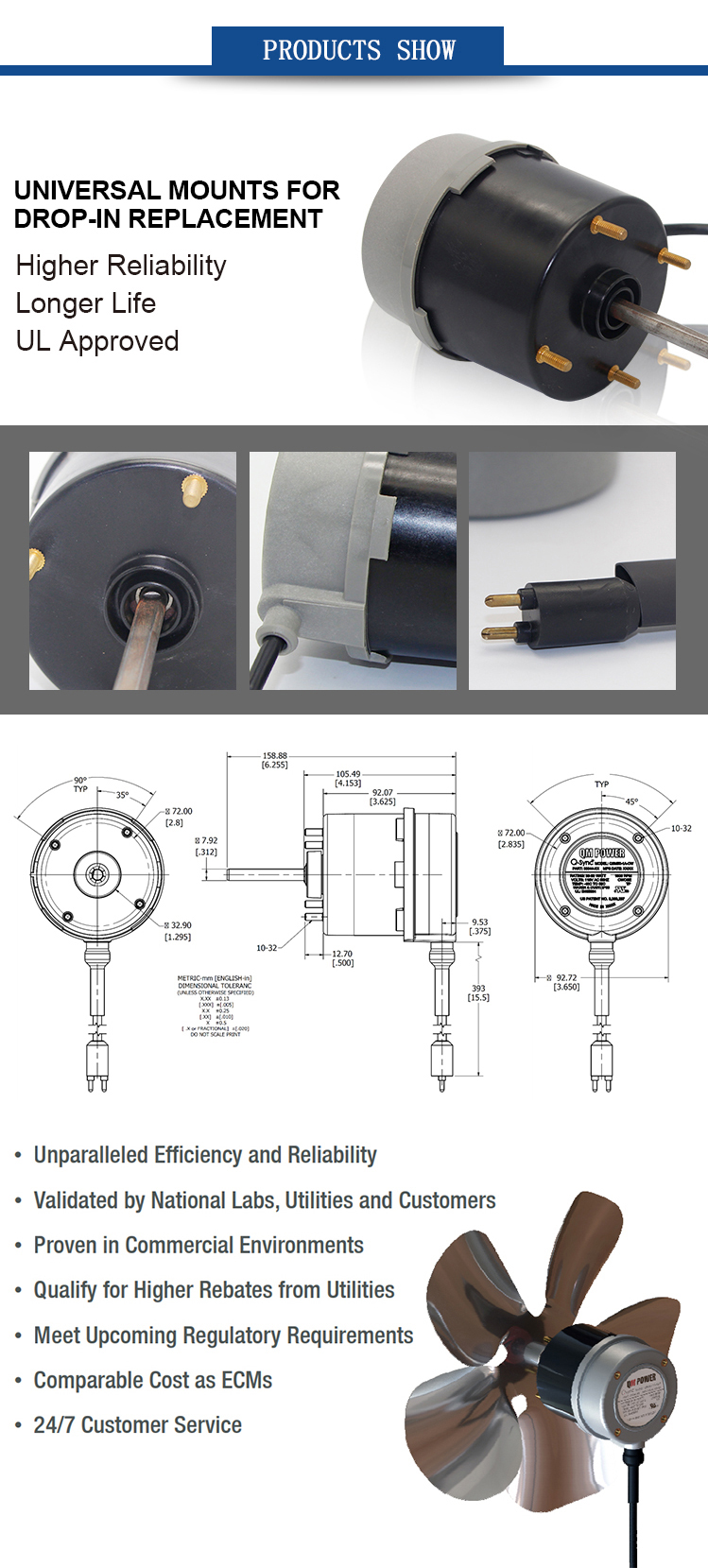

Main Products Products Show
💡 Applications
Motor Application
🏭 Production Process & Packaging
Process 1 Process 2 Factory Overview Packaging Details
❓ Frequently Asked Questions
What are the advantages of this BLDC fan motor?
This motor offers high efficiency (up to 80%), low noise levels, and a compact design. The brushless technology ensures a longer lifespan and lower maintenance compared to traditional brushed motors.
Does this motor support outdoor use?
Yes, the motor is rated IP65 for moisture protection and has an operating temperature range of -40 to +55°C, making it suitable for various environmental conditions.
Is the motor thermally protected?
Absolutely. The motor is built with thermal protection to prevent overheating, ensuring safe operation during continuous air-over applications.
What certifications does this motor hold?
The motor is CSA and UL recognized with file number E465664, meeting international safety and quality standards for electrical equipment.
Can the shaft or rotation be customized?
The standard model features an 8mm shaft and CCW rotation. For specific project requirements regarding shaft dimensions or rotation directions, please provide your technical drawings for review.
What is the power factor of this BLDC motor?
The motor maintains a high power factor of approximately 0.92 to 0.96 at rated power, contributing to energy efficiency in your overall system.
