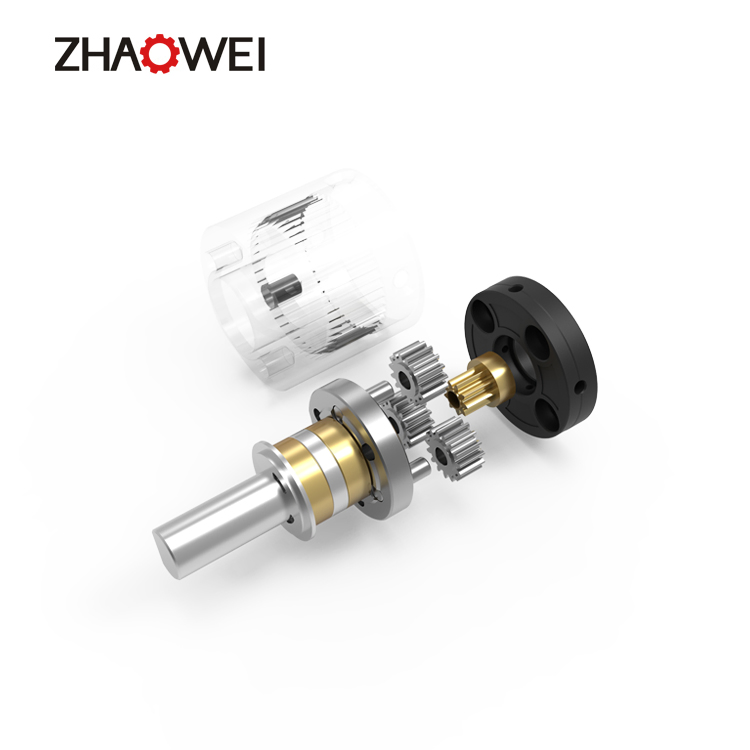

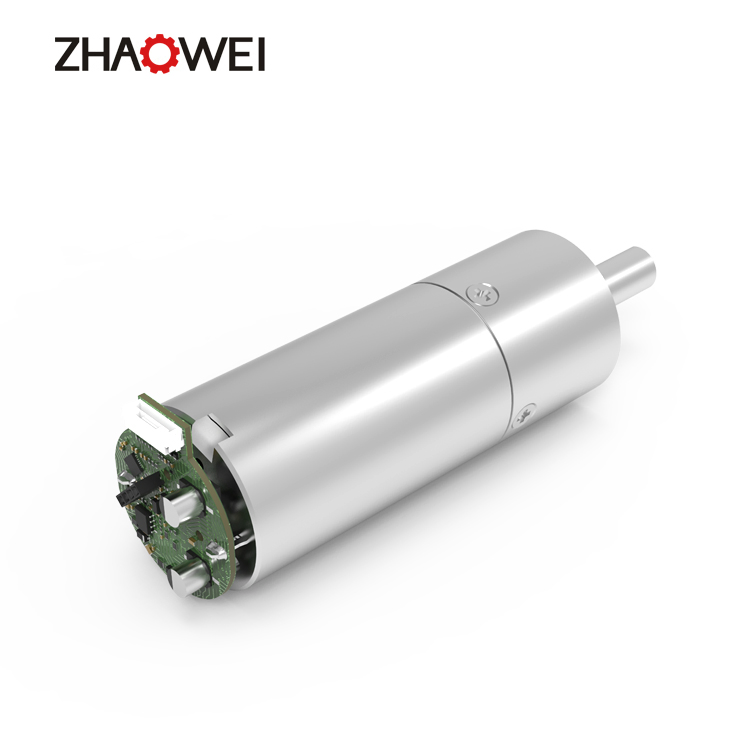

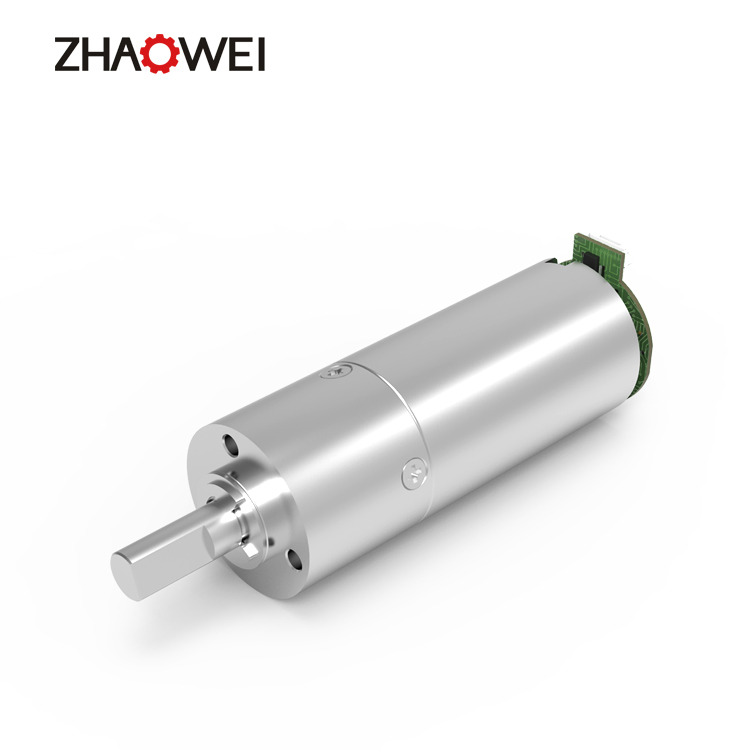

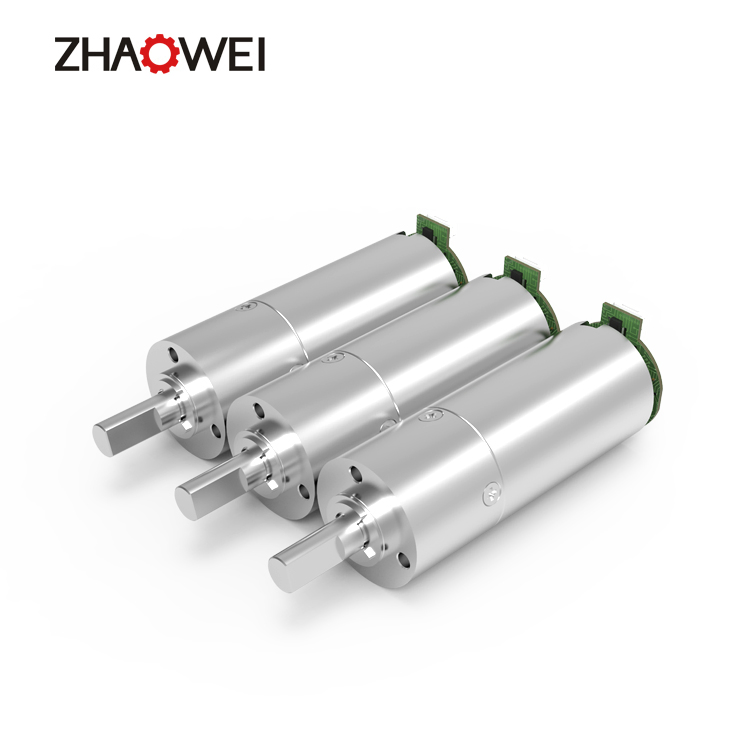

Zhaowei MD022022-256 29rpm 15kg. Cm 22mm Metal Planetary Gearbox High Torque 12V 24V Brushless DC Gear Motor for Medical Device

Customization:	Available
Application:	Universal, Industrial, Household Appliances, Car, Power Tools
Operating Speed:	High Speed

Basic Information

Model NO.

MD022022-256

Excitation Mode

Permanent Magnet

Function

Control, Driving

Casing Protection

Drip-Proof

Number of Poles

4

Type

Planetary Gearbox

Certification

ISO9001, CCC, RoHS

Rated Voltage

3V 5V 6V 12V 24V (3-24V)

Reduction Ratio

256:1

Rated Speed

29rpm

Motor Type

Stepper Motor, Coreless Motor, Brushless DC Motor

Max Rated Torque

15kgf.cm

Product Description

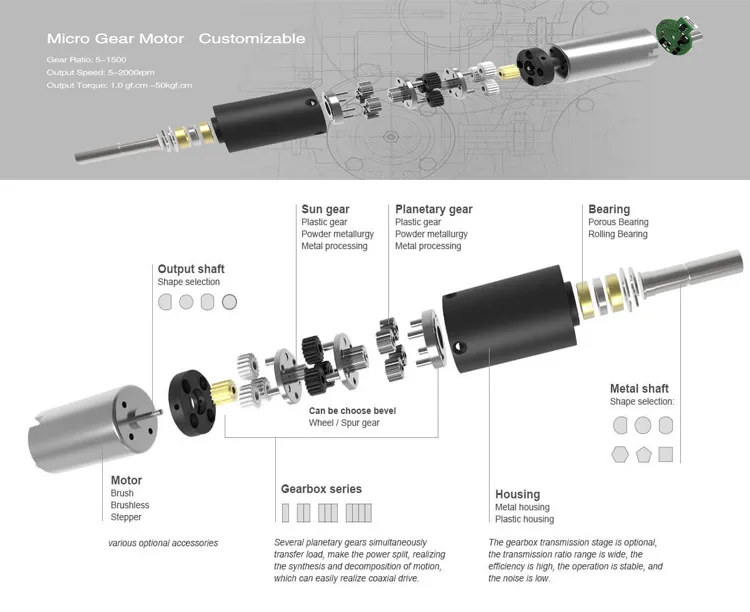

22MM DC Planetary metal gearbox brushless dc Gear Motor. These specifications are customizable according to specific project requirements.

Motor Specifications: 22mm Brushless / Coreless / Stepper Motor
Motors (Optional)	Brushless DC motor, Stepper motor, Coreless motor
Voltage (Optional)	3-24V
Input Speed	<=15000rpm
Current	300mA max

Performance Data

Model	Rated Speed (rpm)	Max Rated Torque (gf.cm)	Max Instant Torque (gf.cm)	Reduction Ratio	Gearbox Length (mm)
MD022022-4	1875	15000	36000	4	19.1
MD022022-16	469	15000	36000	16	26.4
MD022022-64	117	15000	36000	64	33.7
MD022022-144	52	15000	36000	144	33.7
MD022022-256	29	15000	36000	256	41
MD022022-1296	6	15000	36000	1296	41

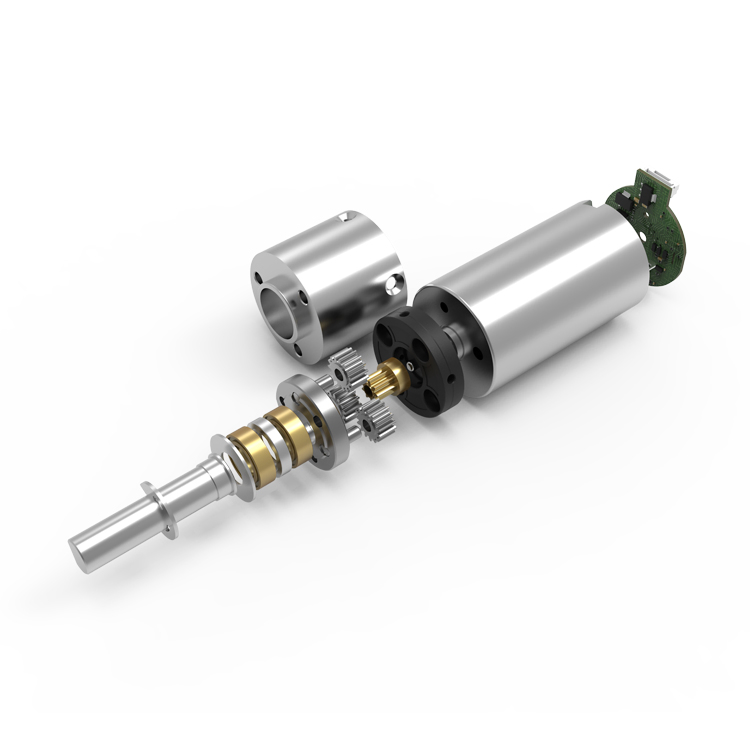

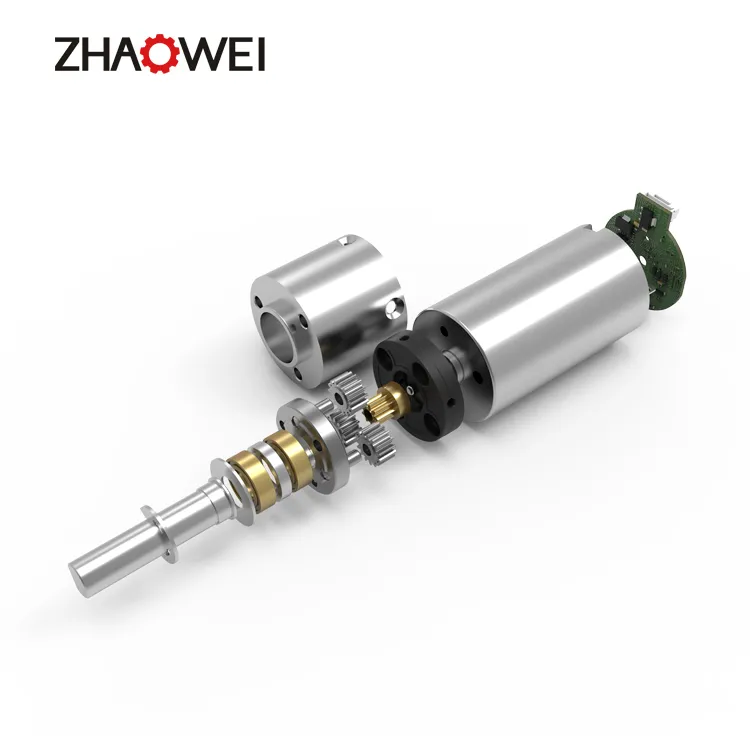

Product Details

Applications

Smart Wearables: Watch, VR, AR, XR.

Household: Kitchen appliances, vacuum cleaners, window curtains, sweeping robots, smart locks, coffee machines.

Automotive: Car DVD, door lock actuators, rearview mirrors, EPB, vehicle sunroof, charging stations.

Medical Equipment: Blood pressure meters, ventilators, surgical staplers, infusion pumps, dental instruments.

Consumer Electronics: Cameras, camcorders, UAVs, surveillance cameras, smart speakers.

Industrial & Tools: Flow control valves, seismic testing, electric drills, garden tools.

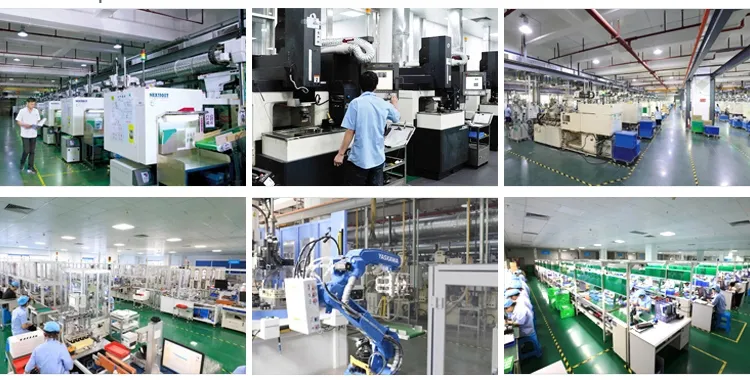

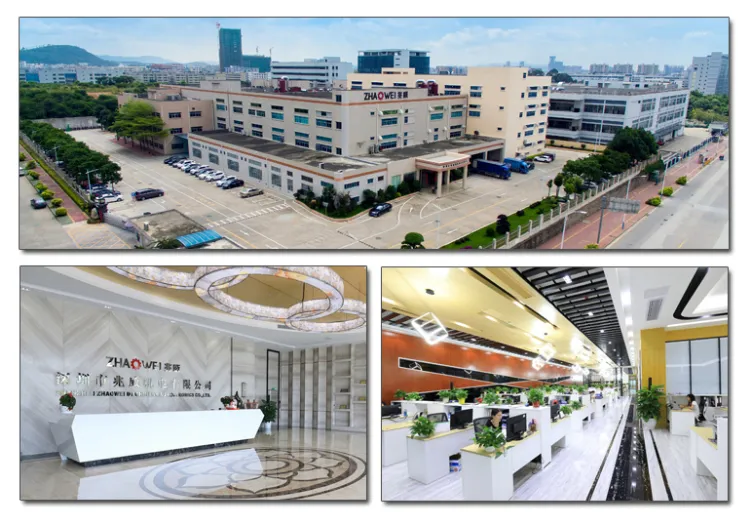

Manufacturing Capabilities

Providing total drive solutions from design and tooling fabrication to component manufacturing and assembly.

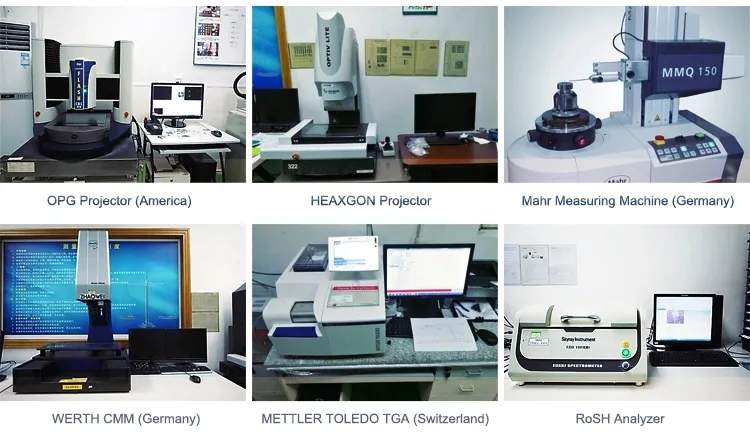

Testing Equipment

Competitive Advantages

19+ years experience in motor gearbox manufacturing.
Full technical support: R&D, prototype, testing, and serial production.
Product Performance: Low noise, high efficiency, and long lifespan.
Small orders accepted with prompt delivery.

Our Services

ODM & OEM manufacturing.
Custom gearbox design and development.
Professional technical support and micro-drive solutions.
Nylon and reinforced wooden case packaging for safe shipping.

Certifications

Our quality management systems meet the following international standards:

ISO9001:2015
ISO14001:2004
ISO13485:2016
IATF16949:2016

Frequently Asked Questions

Can you make gearboxes with custom specifications?

YES. We have a dedicated design and development team with experienced engineers to handle customization based on your needs.

Do you provide samples?

YES. Samples are available with a delivery time of approximately 5-15 days depending on the gearbox specifications.

What is your Minimum Order Quantity (MOQ)?

Our standard MOQ is 2000pcs, but we accept small trial orders at the beginning of a business relationship.

Do you provide technical support?

YES. Our R&D team can provide full technical support throughout your product development phase.

How do you ship the goods?

We typically ship via international couriers such as DHL, UPS, or FEDEX using your provided account.

How can I confirm if a product is suitable for my application?

Provide us with your detailed requirements, and we will recommend the best specifications. We can also provide samples for testing after confirmation.
