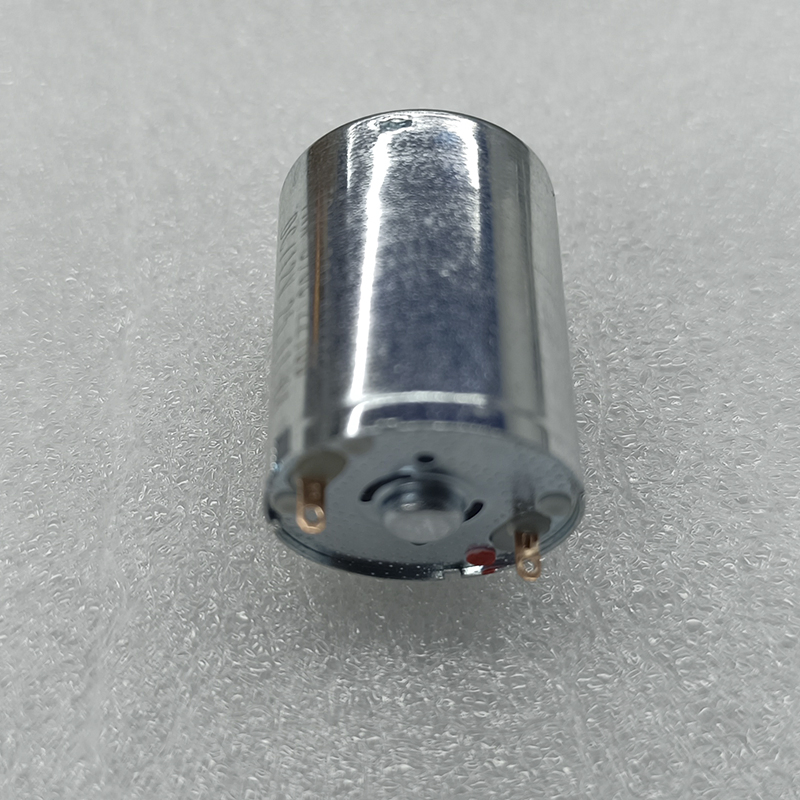

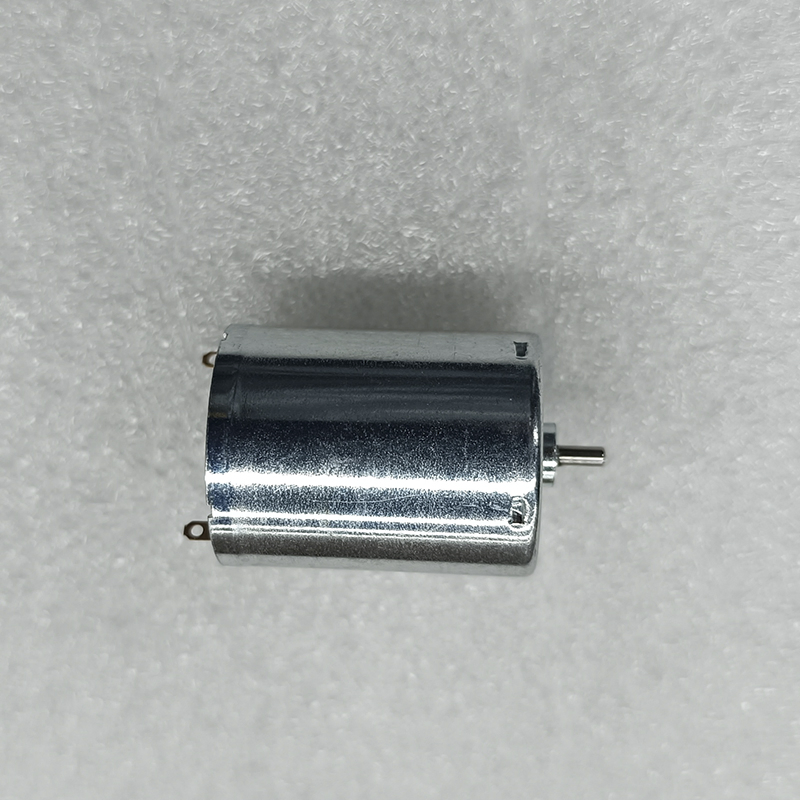

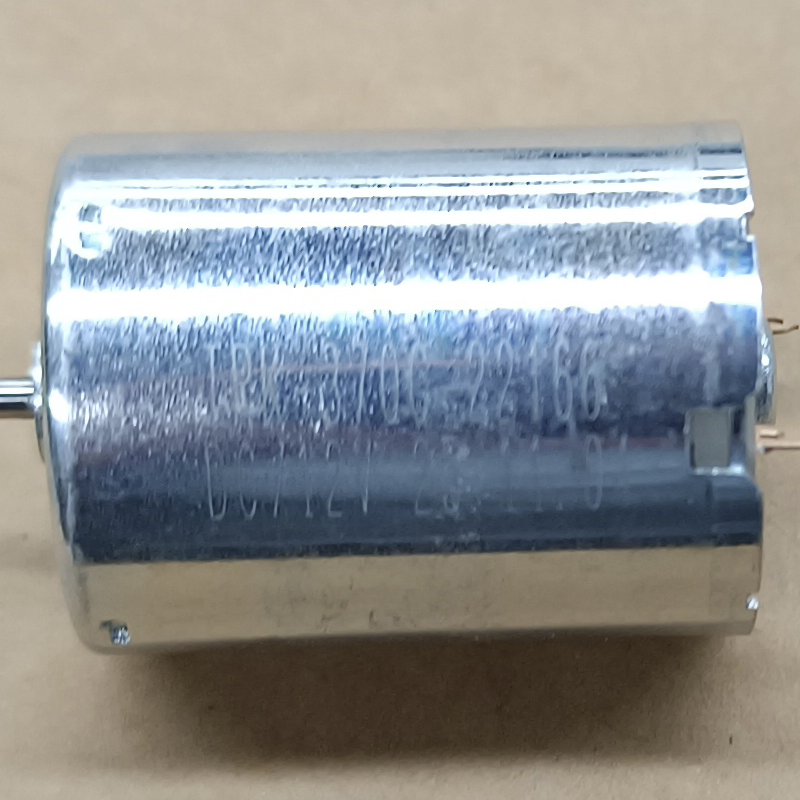

RF-370c-11535 DC Micro Motors Model-370 Compatible for Medical Device Robot

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Specifications

Model NO.
RF-370C-11535
Power Source
DC Motor
Type
Synchronous Motor
Voltage
12VDC
Rate Current
120mA
Structure
Electromagnetic
Certification
ISO9001, CCC
Number of Poles
12
M

Product Overview

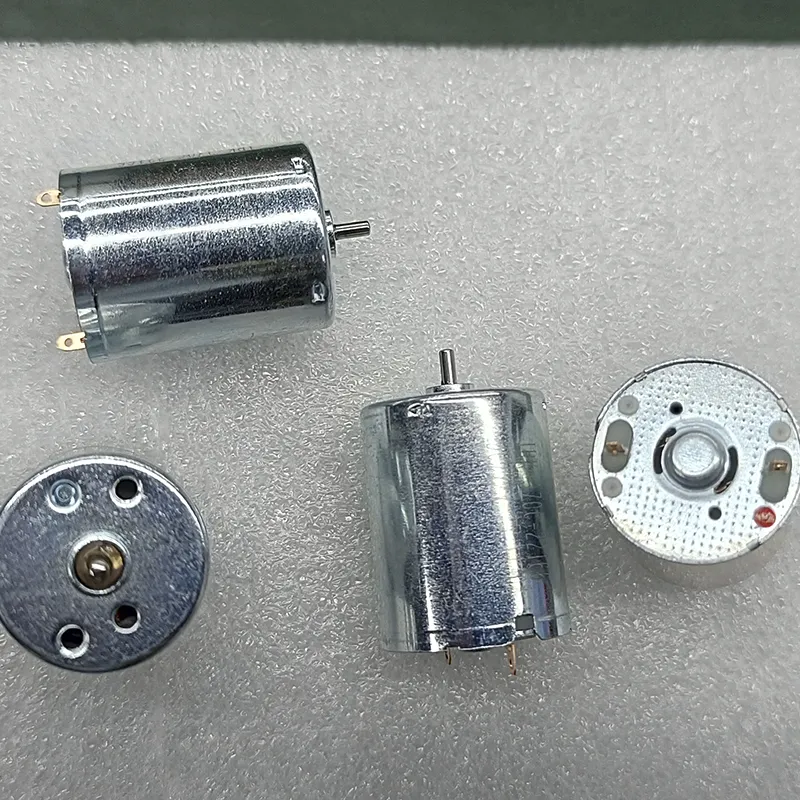

DC Micro Motor

The 370 series DC micro motor integrates cutting-edge electromagnetic design and high-precision manufacturing technology. It is specifically created for modern industrial and consumer electronic devices with extreme requirements for space, performance, and reliability.

Based on the core concept of "compact size, strong output," this series utilizes innovative magnetic circuit optimization and high-performance materials to achieve a breakthrough balance between torque density, silent operation, and service life. The series supports flexible adaptation of voltage, speed, output torque, and gearbox configuration to ensure seamless integration with your system.

T

Technical Parameters

Parameter Item Specification Value Remarks / Tolerance
No-load Speed3500±10% r/min-
No-load Current20mA (max)-
Rated Load25g·cmMoment Disk Load
Rated Speed2600±10% r/minAt Rated Torque
Rated Current2600±10% r/minAt Rated Torque
Rated Voltage12 V DCOptional 3.7V, 6V, 24V
Starting Torque80g·cm (min)Minimum Value
G

Visual Display

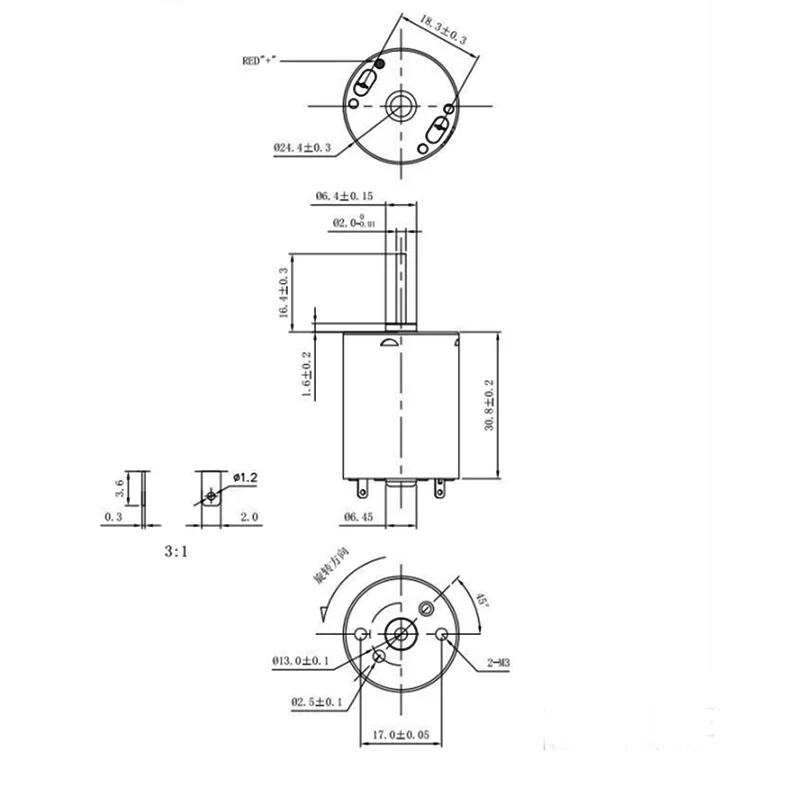

Motor Dimensional Drawing
P

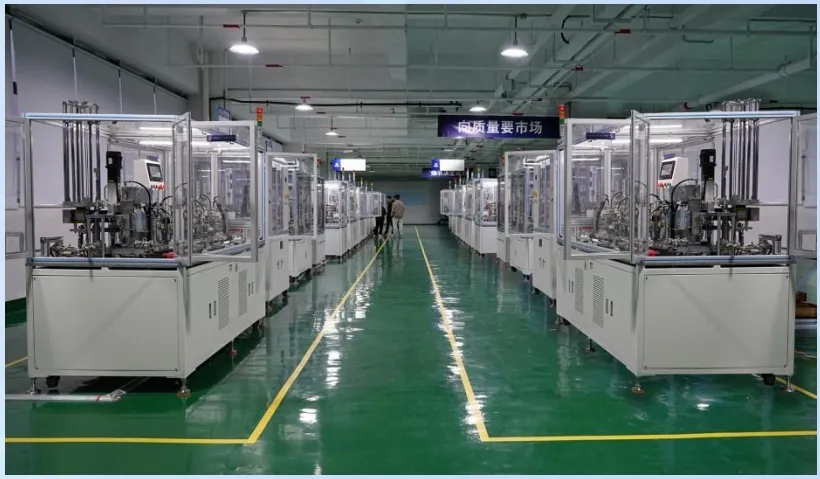

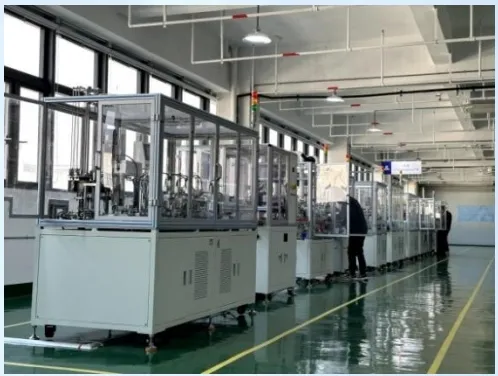

Production & Capability

Production Video Cover

Our professional manufacturing team has been established since 2009. We focus on manufacturing, sales, and service of high-quality precision motor parts. Our products are widely used in Southeast Asia, South Asia, North America, Europe, and Africa. We specialize in providing reliable core drivers for automation, smart homes, precision industrial control, medical equipment, and high-end automotive electronics.

F

Frequently Asked Questions

What are the primary applications for the 370 series DC motor?
The 370 series is ideal for medical devices, robotic systems, office automation, smart home appliances, and high-end automotive electronics requiring compact and stable power.
Does the motor support voltage customization?
Yes, while the standard rated voltage is 12V DC, we offer optional configurations for 3.7V, 6V, 24V, and other specific requirements.
What is the typical lead time for orders?
Standard products typically have a delivery time within 7 days. For customized specifications, the timeline may vary based on complexity.
Can the output shaft and interface be customized?
Absolutely. We offer deep customization capabilities for mechanical interfaces, gearbox configurations, speed, and output torque to ensure a perfect fit for your system.
How is the noise level of the motor managed?
Through magnetic circuit optimization and high-precision manufacturing, the 370 series is designed for silent operation, making it suitable for noise-sensitive environments like offices and hospitals.
What certifications do these motors hold?
Our products are manufactured under strict quality control and hold ISO9001 and CCC certifications to ensure international quality standards.
