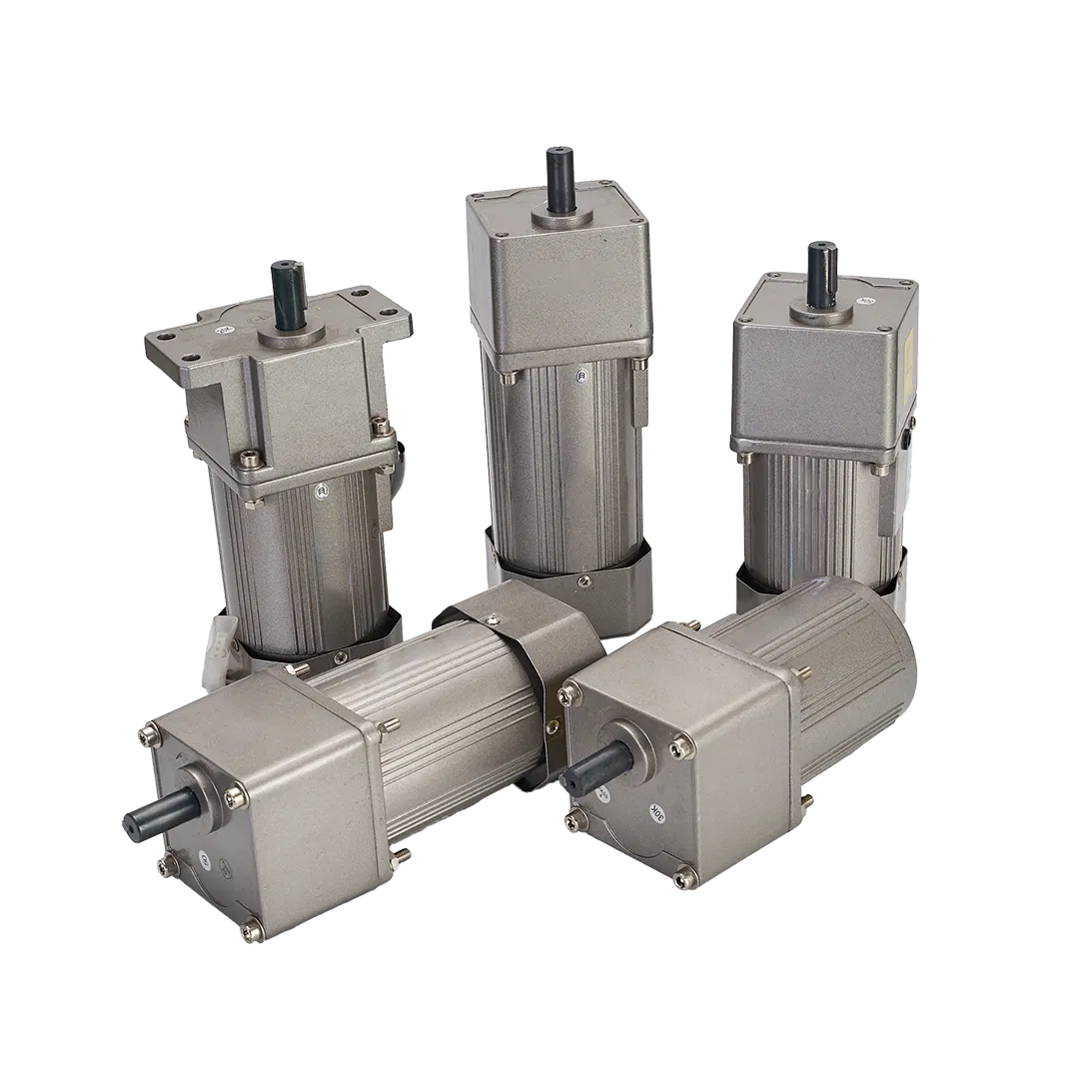

Three Phase AC Reversible Micro Gear Speed Reduction Motor for Automation Industry Textile Machinery

1 / 5

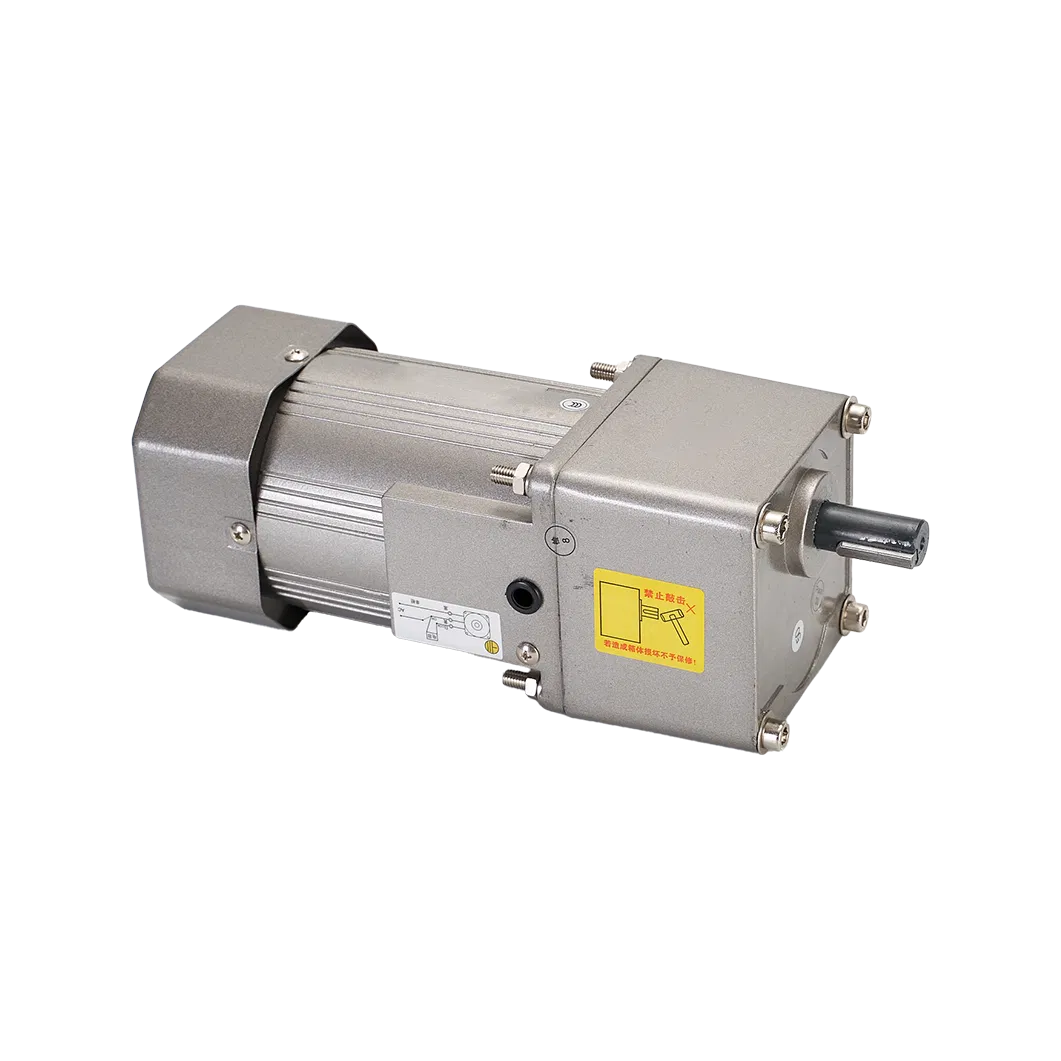

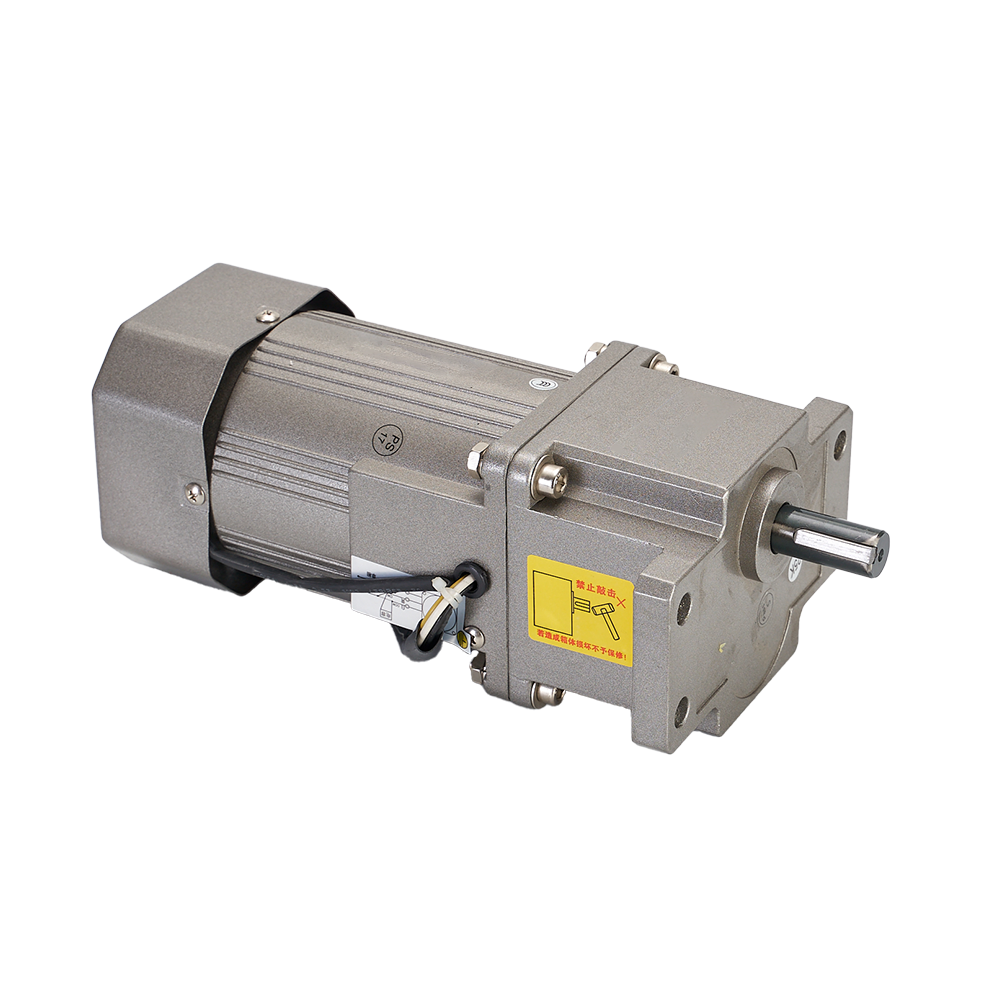

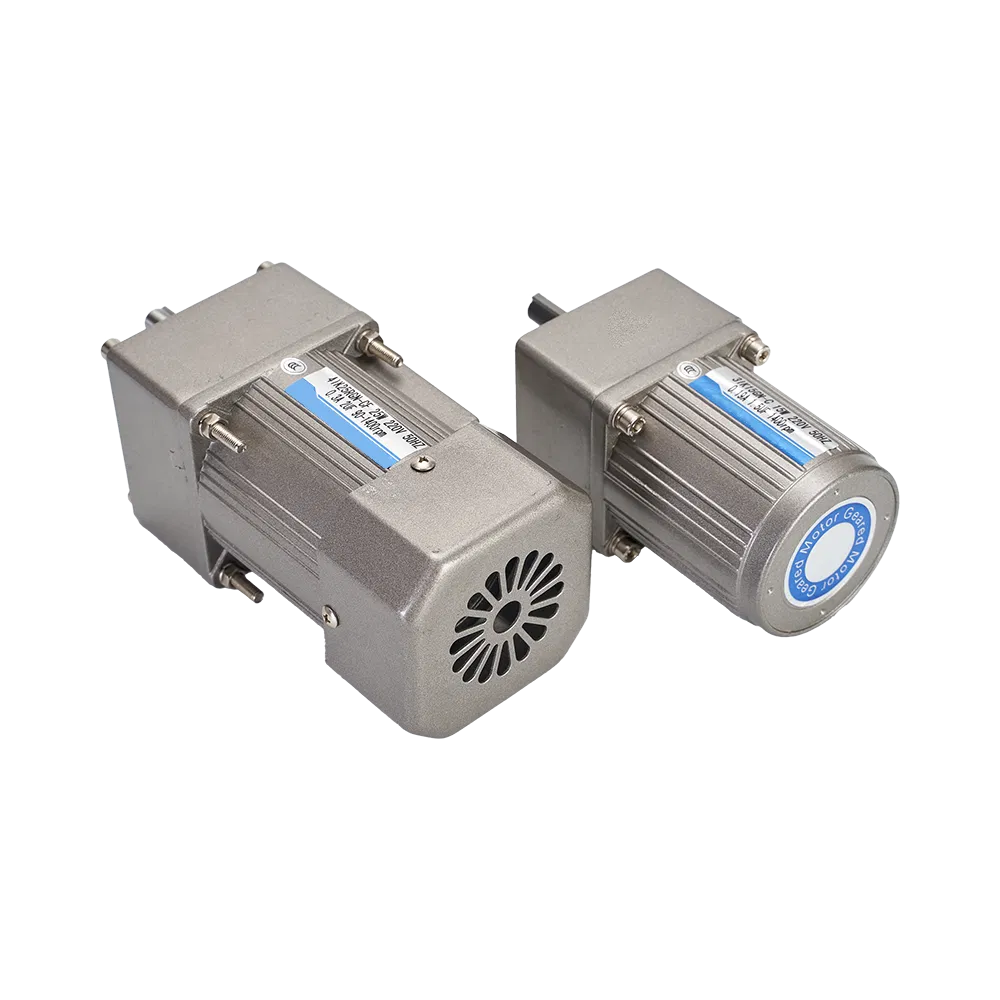

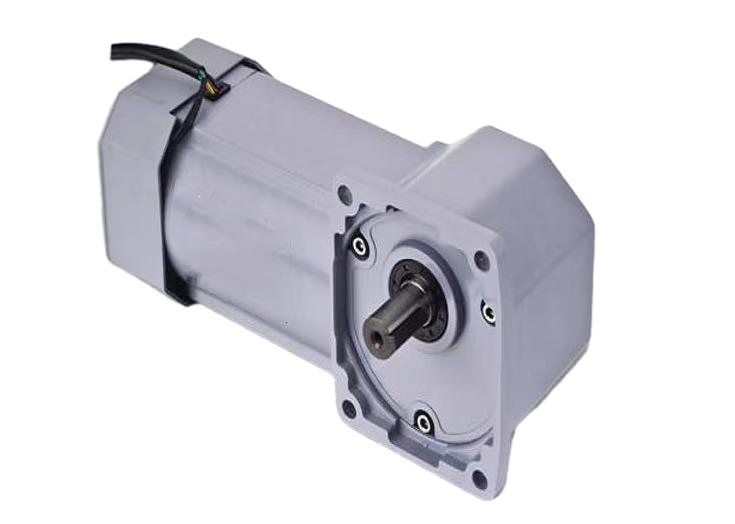

Three Phase AC Reversible Micro Gear Speed Reduction Motor for Automation Industry Textile Machinery

Send Inquiry

Product Description

Micro AC Motor Specifications

Code	Size	Power	Single Phase					Three Phase 3 Wires			Three Phase 6 Wires			Terminal Box
			Constant Speed		Speed Regulation		Thermal	Brake	Damping	Thermal	Brake	Damping	Thermal
			Brake	Damping	Brake	Damping	Thermal	Brake	Damping	Thermal	Brake	Damping	Thermal
2	60mm	6w	×	×	×	×	×	×	×	×	×	×	×	√
3	70mm	15w	√	√	√	√	√	√	√	√	√	√	×	√
4	80mm	25w-40w	√	√	√	√	√	√	√	√	√	√	×	√
5	90mm	40w-180w	√	√	√	√	√	√	√	√	√	√	×	√
6	104mm	180w-370w	√	√	√	√	√	√	√	√	√	√	×	√
7	120mm	400w-750w	√	√	√	√	√	√	√	√	√	√	×	√

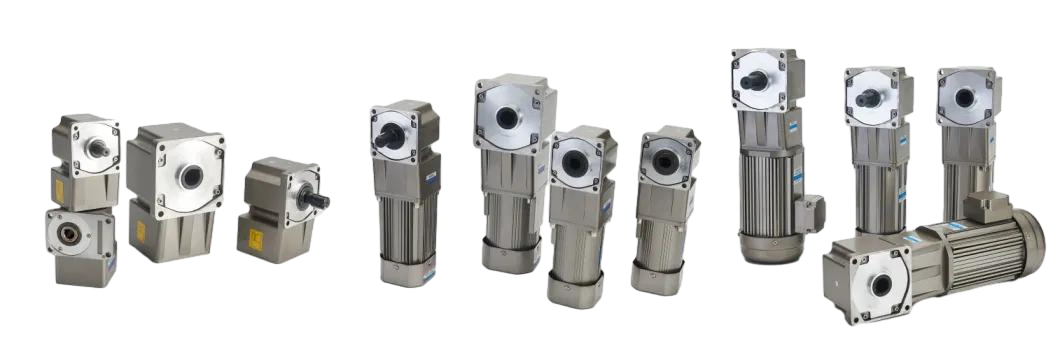

Gearbox Overview

⚙️

Gearbox Types: GK, GS, 90mm five-stage reduction.

📏

Available Sizes: 60mm, 70mm, 80mm, 90mm, 104mm, 120mm.

🔄

Reduction Ratios: Wide range from 2K to 750K.

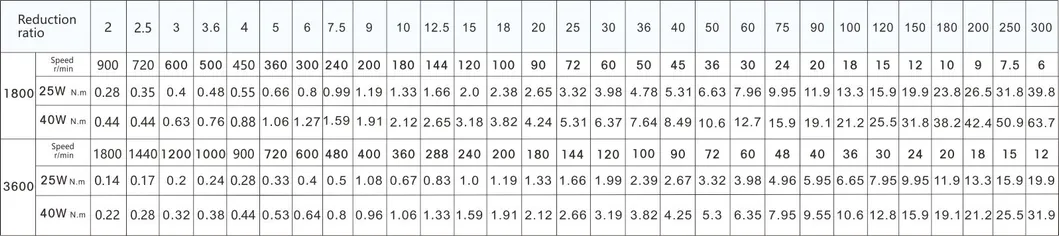

Output Speed & Allowed Torque Data

Output Speed (RPM)			500	300	200	150	120	100	75	60	50	30	20	15	10	7.5	6	5	3
Speed Ratio	50Hz	Ratio	3	5	7.5	10	12.5	15	20	25	30	50	75	100	150	200	250	300	500
Speed Ratio	60Hz	Ratio	3.6	6	9	-	15	18	-	30	36	60	90	120	180	-	300	360	600
Torque	40W	kg.cm	6.7	11	16	21.3	28	33	42	54	65	108	150	150	150	150	150	150	150
Torque	60W	kg.cm	10	16	24	32	40	48	64	77	93	150	150	150	150	150	150	150	150

*Note: Actual output speed under rated torque is typically 10-20% less than synchronous speed.

Professional Transmission Solutions

We provide a comprehensive range of micro motor production lines, including DC Motors, AC Motors, Brush and Brushless options, Planetary Gear Motors, RV Reducers, and Helical-hypoid Gearboxes. Our mission is to realize enhanced industrial automation through smart manufacturing and high-quality transmission products.

✅

Expert Model Selection: Our technical team assists in choosing the optimal model based on your specific application parameters.

📐

Technical Support: Full access to product catalogues, CAD, and 3D drawings is available upon request.

🛠️

Customization: Standard products can be modified or fully customized to meet unique engineering requirements.

Product Gallery

Frequently Asked Questions (FAQ)

Q1: What types of AC motors are available in this series?

We offer Single-phase and Three-phase micro AC motors, including constant speed, speed regulation, electromagnetic brake, and damping types.

Q2: Can the gearbox ratio be customized for specific speed requirements?

Yes, our gearboxes support a wide range of reduction ratios from 2K up to 750K, allowing for precise output speed control.

Q3: Do these motors support speed regulation?

Yes, we provide specific speed regulation models that can be paired with speed controllers for variable output needs.

Q4: Are 3D drawings or CAD files available for integration?

Absolutely. We provide CAD and 3D drawings to help engineers integrate our motors into their machinery designs seamlessly.

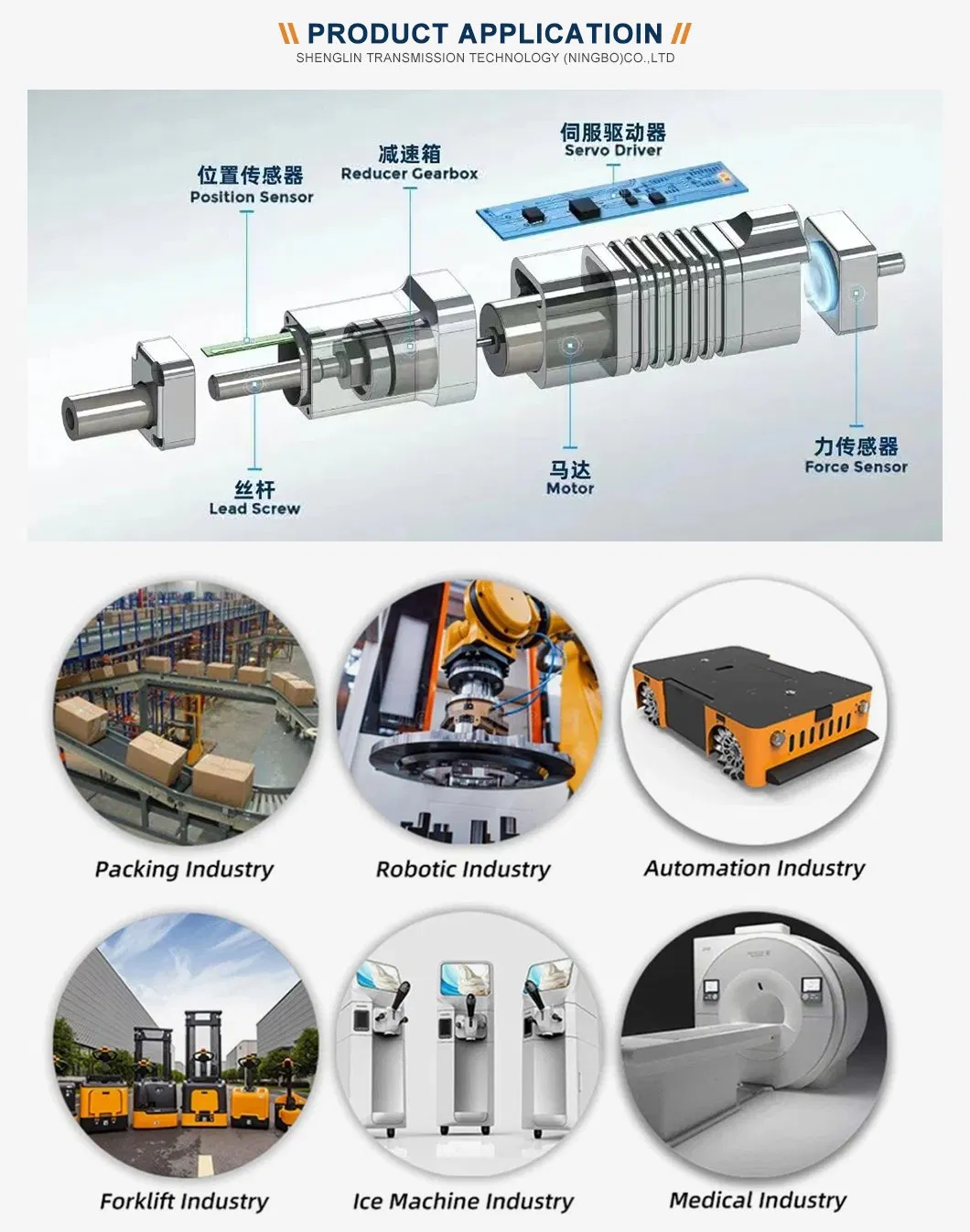

Q5: In which industries are these gear motors commonly used?

These motors are widely used in the automation industry, textile machinery, medical equipment, food processing, and packaging systems.

Q6: Can standard motor products be modified?

Yes, we can customize shaft dimensions, lead wire lengths, and other technical specifications to meet your specific application needs.
