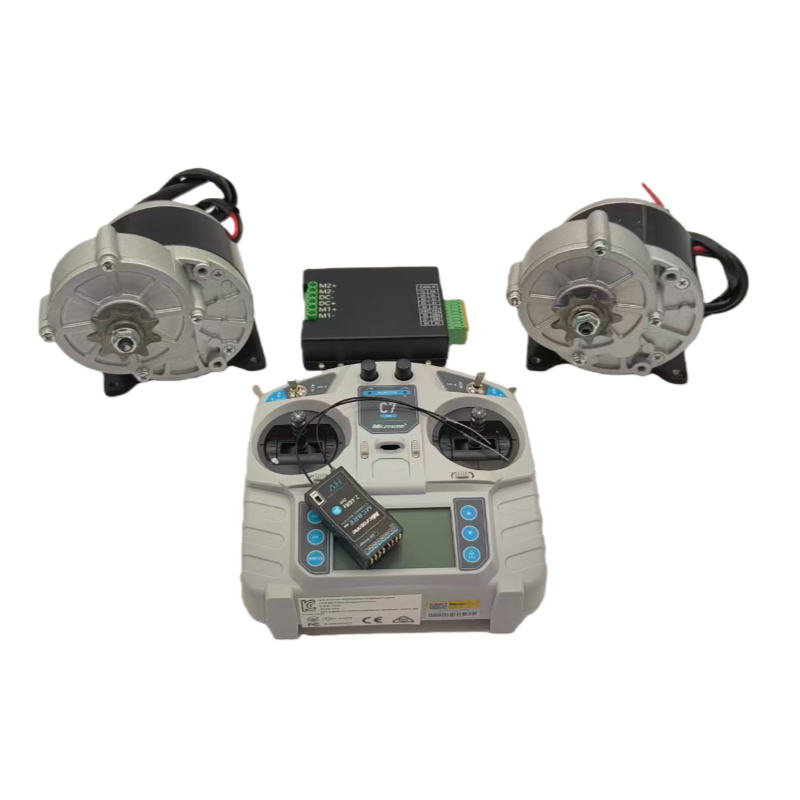

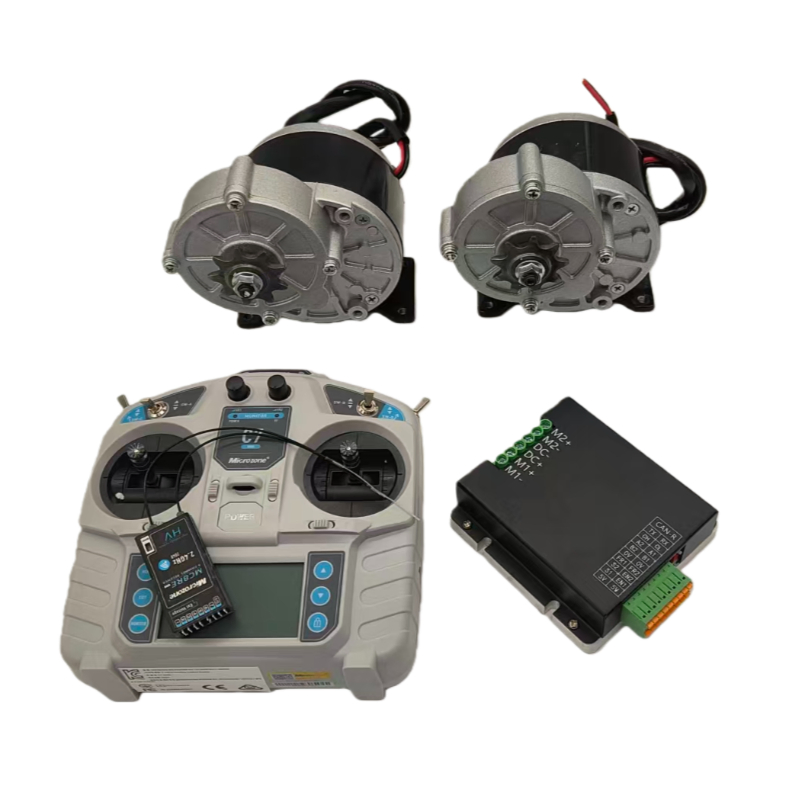

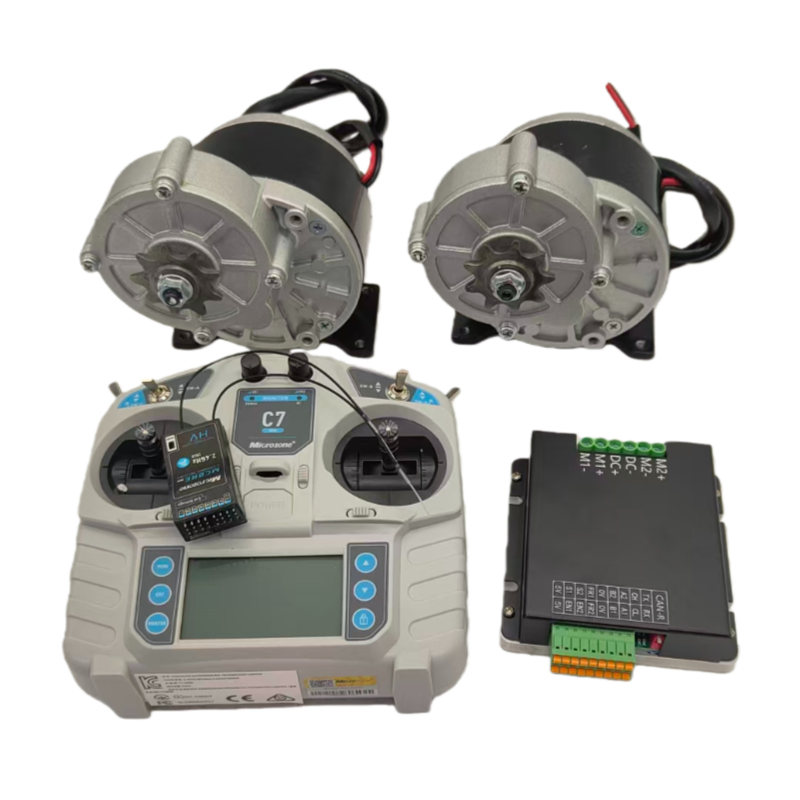

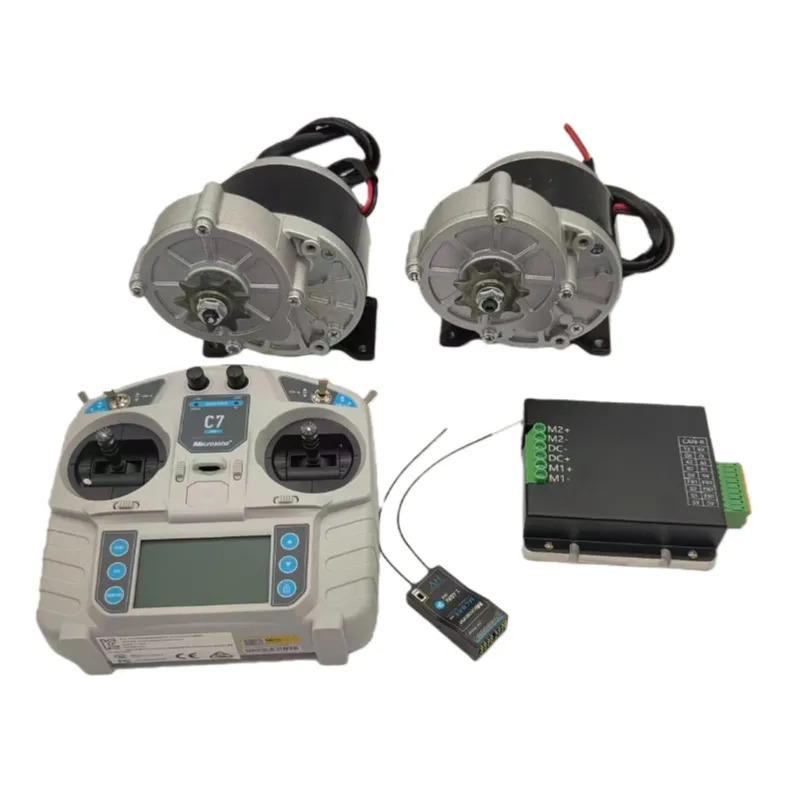

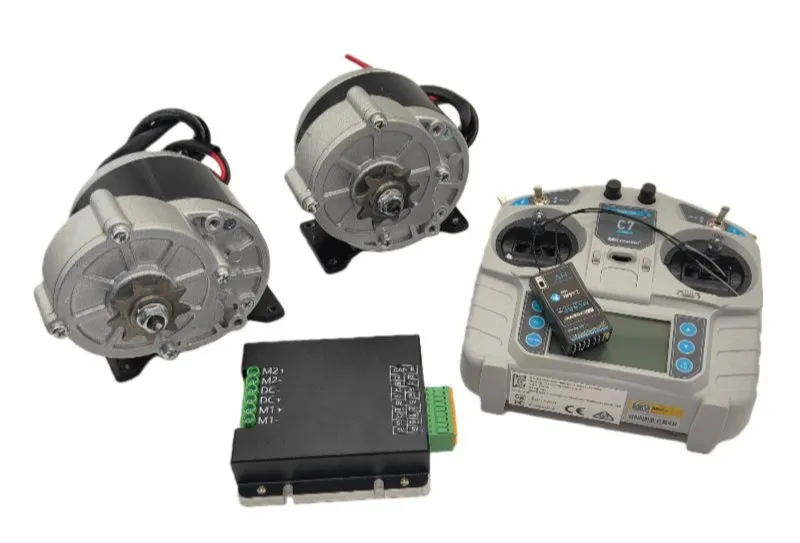

24V 250W Brushed DC Motor with Dual Drive Controller - Compact & Easy Installation

1 / 5

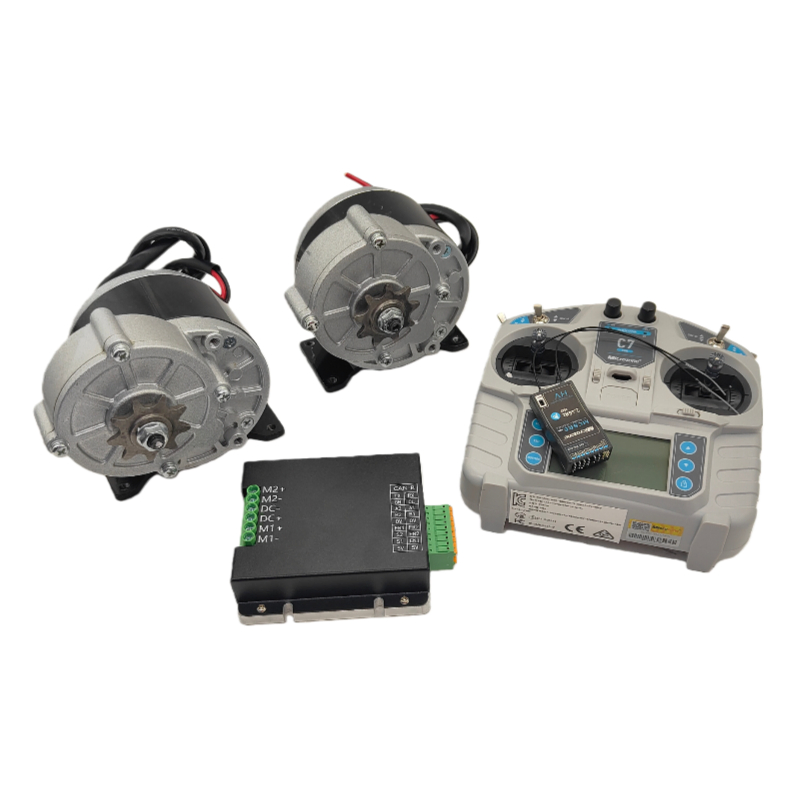

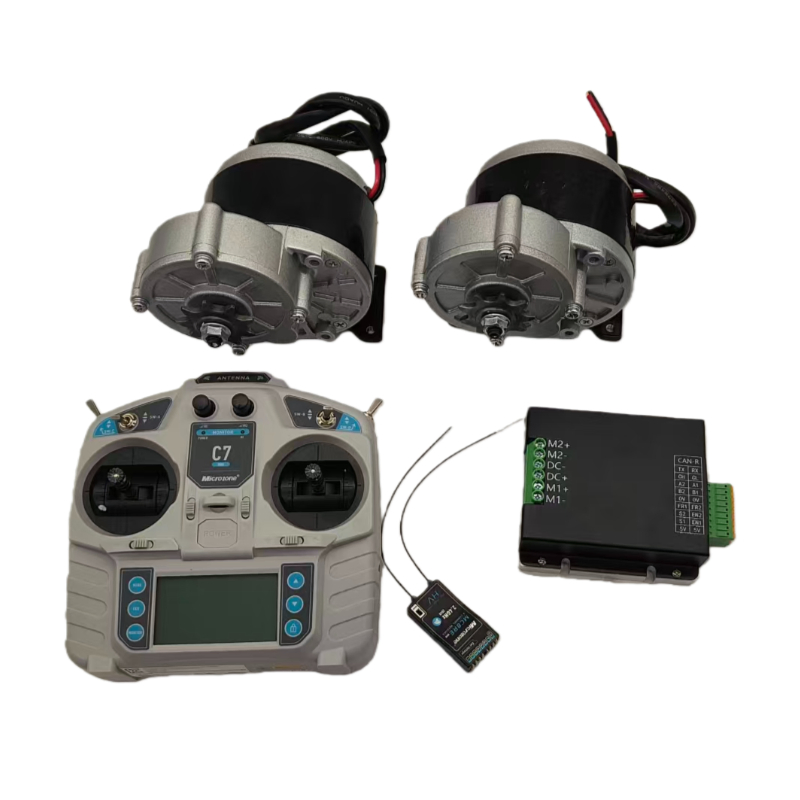

24V 250W Brushed DC Motor with Dual Drive Controller - Compact & Easy Installation

Customization:	Available
Application:	Universal, Industrial, Household Appliances, Car, Power Tools
Operating Speed:	Low Speed

Send Inquiry

Product Description

Product Overview

Model NO.

LK1016+LKDS48302

Function

Control, Driving

Casing Protection

Open Type

Number of Poles

Structure

Brush

Certification

Product Name

24V 250W Brushed DC Motor with Dual Drive Controller

Motor Speed

3000 Rpm / 2800rpm

Output Current

2*15A Continuous, 2*30A Peak

Reducer Ratio

1:9.78

Net Weight

8KG

Origin

China

Product Description

24V 250W Brushed DC Motor with Dual Drive Controller - Compact & Easy Installation

A brushed DC motor features fixed main poles and brushes on the stator, with an armature winding and commutator on the rotor. Electrical energy enters the armature through the brushes and commutator to generate current, which interacts with the magnetic field to produce electromagnetic torque, driving the load.

Advantages: Quick start, timely braking, smooth speed regulation, simple control, and structure. It offers large starting current and high torque at low speeds, making it ideal for heavy loads and strong overload requirements.

Technical Performance

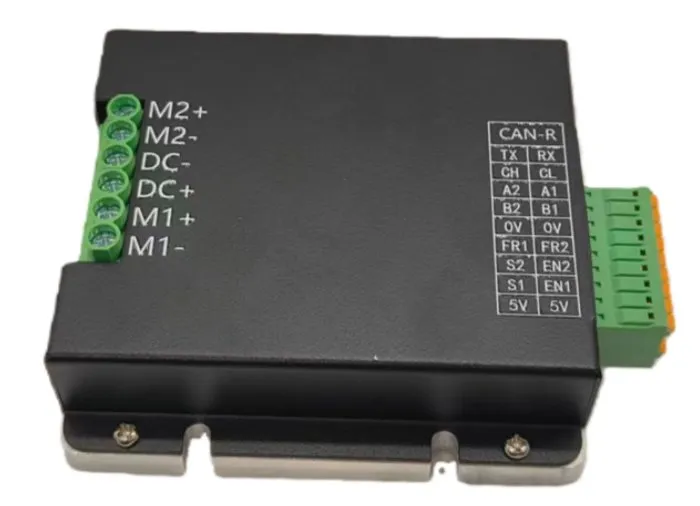

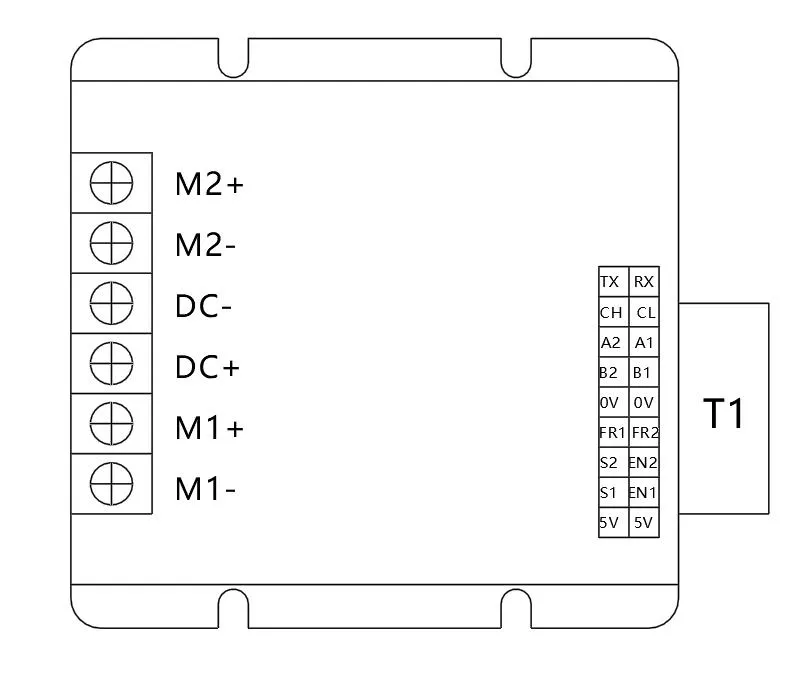

Brush Motor Driver-LKDS48302 Specifications

Input Voltage: 12-48VDC (Over voltage 60V, Under voltage 10V)
Output Voltage: (0-95%) * Input voltage
Output Current: 2*15A continuous, 2*30A peak (10S)
Working Modes: Independent mode, Hybrid mode
Operation Mode: Speed open-loop and speed closed-loop (for motors with encoders)
Control Methods: Analog (0-5V / 0-2.5-5V), Analog joystick (2.5V midpoint), Aircraft model signal (1000-2000us), PWM signal
Communication: RS232, CAN
Protection: Over current, over voltage, under voltage, overheating, short circuit

Product Application

This motor system is widely used in: Automatic Guided Vehicles (AGV), Intelligent robots, crawler vehicles, fire fighting robots, explosion-clearing robots, shopping guide robots, medical and rescue robots, theme park robots, sweepers, precision automation machines, and industrial equipment.

Packaging & Shipping

Package Size

20.00cm * 18.00cm * 10.00cm

Gross Weight

8.000kg

Package Type

Heavy-duty Carton

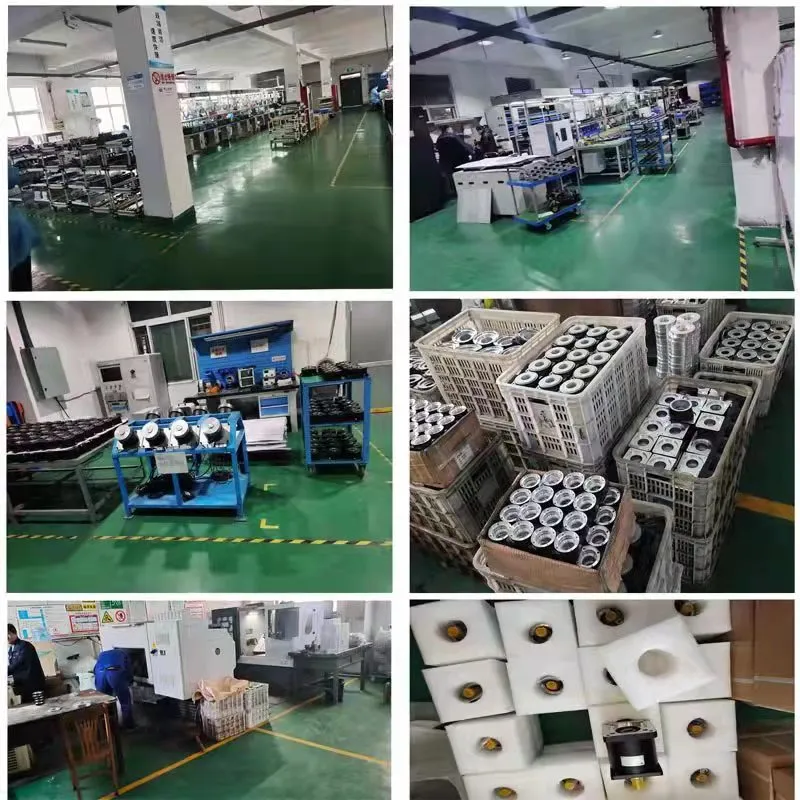

Professional Capability

We focus on high and low voltage permanent magnet DC motors, BLDC motors, DC servo motors, and their supporting drivers. Our products are designed for high-quality performance in diverse industrial fields, providing reliable motion control solutions.

Frequently Asked Questions

What is the standard lead time for orders?

For regular orders, the standard lead time is 3-5 days. This duration may vary based on the specific model, production period, and order quantity.

Can I request a customized motor or price list?

Our motors are customized based on requirements like lifetime, noise, voltage, and shaft specifications. Because prices vary with annual quantity and specs, we provide tailored quotes rather than a standard price list.

Is it possible to develop new motors for specific projects?

Yes, we can develop new motors if performance requirements, size, and target annual quantities are provided. Tooling costs may apply depending on the evaluation.

Are samples available for testing?

We provide samples for testing before official orders if our MOQ, price, and terms are acceptable. Please note we usually do not keep stock for individual personal use.

What communication protocols does the driver support?

The LKDS48302 dual drive controller supports both RS232 and CAN communication methods for easy integration into various control systems.

What protection features are included in the controller?

The system includes comprehensive protection against over-current, over-voltage, under-voltage, overheating, and short circuits to ensure long-term reliability.
