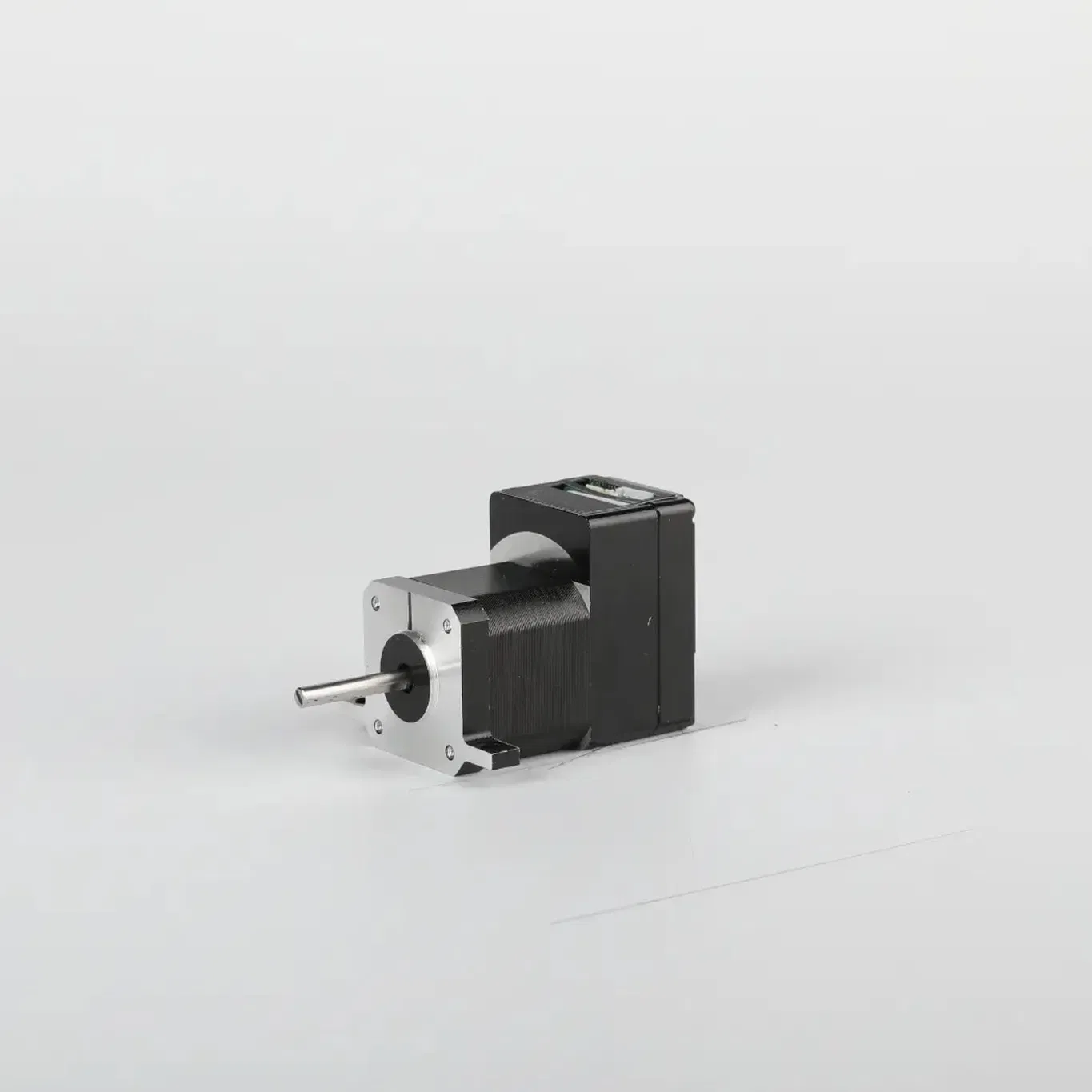

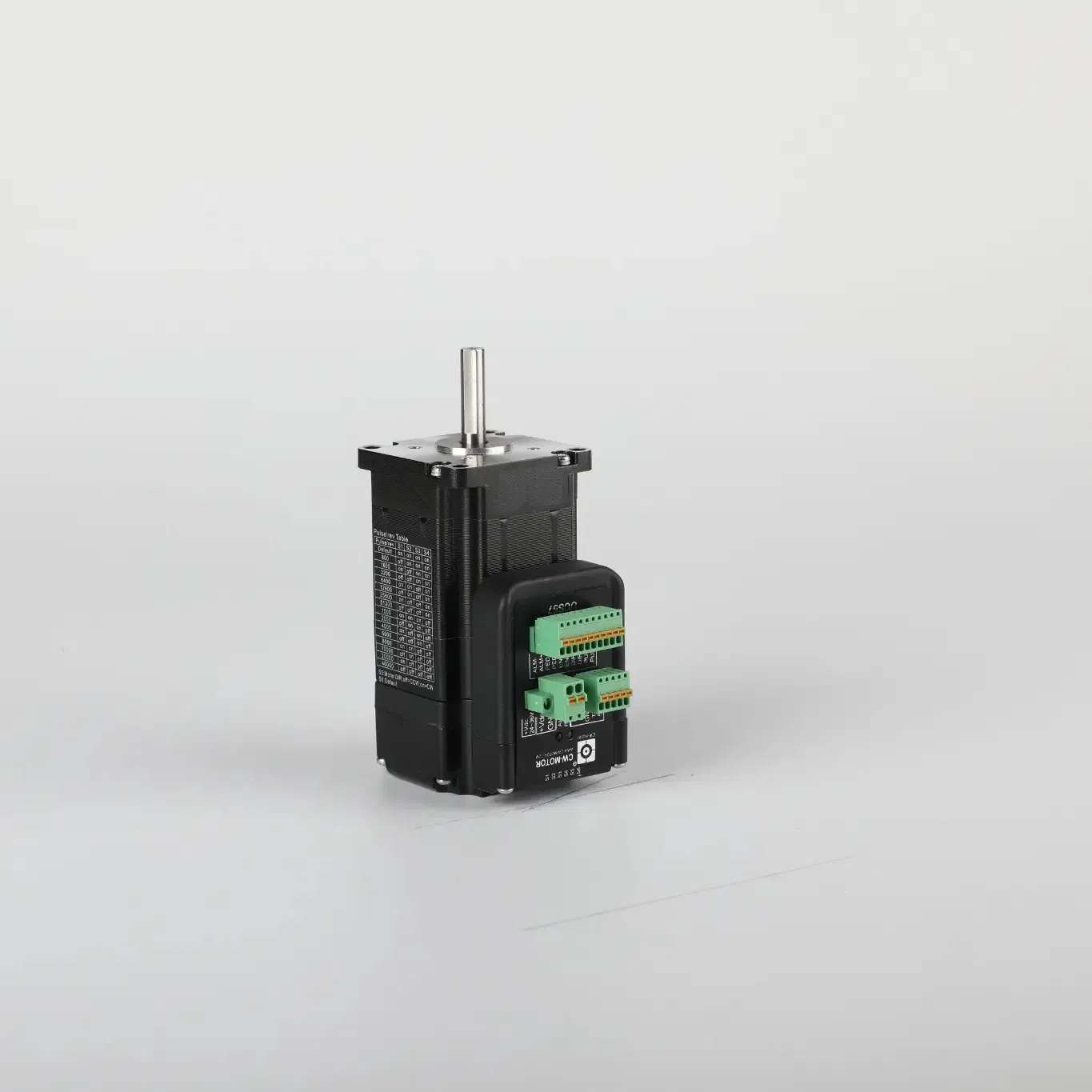

Compact Constant-Torque Density Integrated Drive DC Servo Drive Motor for Printing Presses
Compact Constant-Torque Density Integrated Drive DC Servo Drive Motor for Printing Presses
Compact Constant-Torque Density Integrated Drive DC Servo Drive Motor for Printing Presses
Compact Constant-Torque Density Integrated Drive DC Servo Drive Motor for Printing Presses
Compact Constant-Torque Density Integrated Drive DC Servo Drive Motor for Printing Presses
1 / 5
Compact Constant-Torque Density Integrated Drive DC Servo Drive Motor for Printing Presses
Compact Constant-Torque Density Integrated Drive DC Servo Drive Motor for Printing Presses
Compact Constant-Torque Density Integrated Drive DC Servo Drive Motor for Printing Presses
Compact Constant-Torque Density Integrated Drive DC Servo Drive Motor for Printing Presses
Compact Constant-Torque Density Integrated Drive DC Servo Drive Motor for Printing Presses

Compact Constant-Torque Density Integrated Drive DC Servo Drive Motor for Printing Presses

Customization: Available
Application: Industrial
Function: Control, Driving
Send Inquiry

Product Description

Basic Information
Model NO.
UCS57-130W
Protection Type
Casing Protection
Certification
ISO9001, CE, RoHS
Usage
CNC Machine, Engraving Machine, 3D Printing
Built-in Encoder
1000-Line Encoder
Controller
Integrated DSP with Vector Control
Origin
China
HS Code
85013100
Product Description
Integrated Drive DC Servo Motor

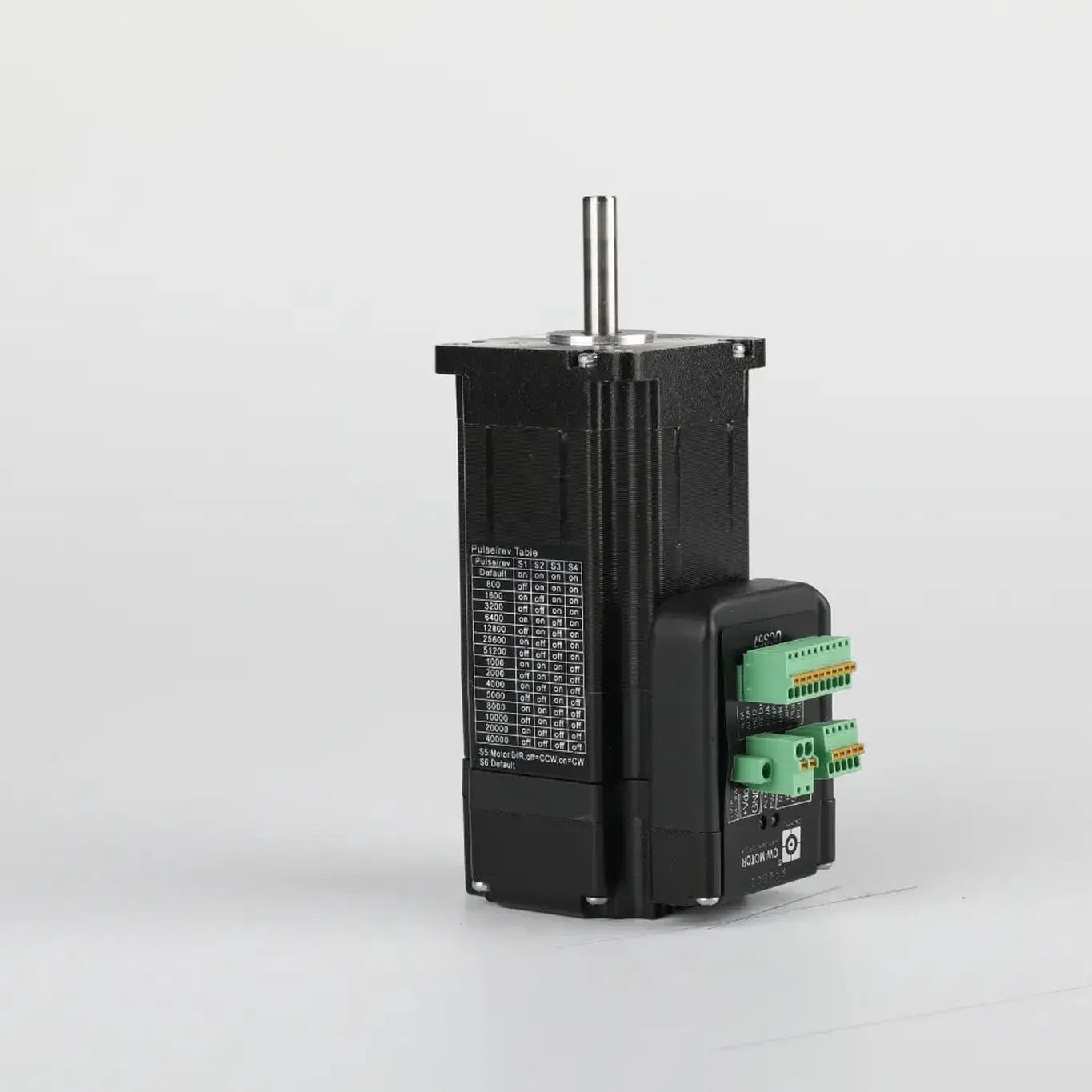

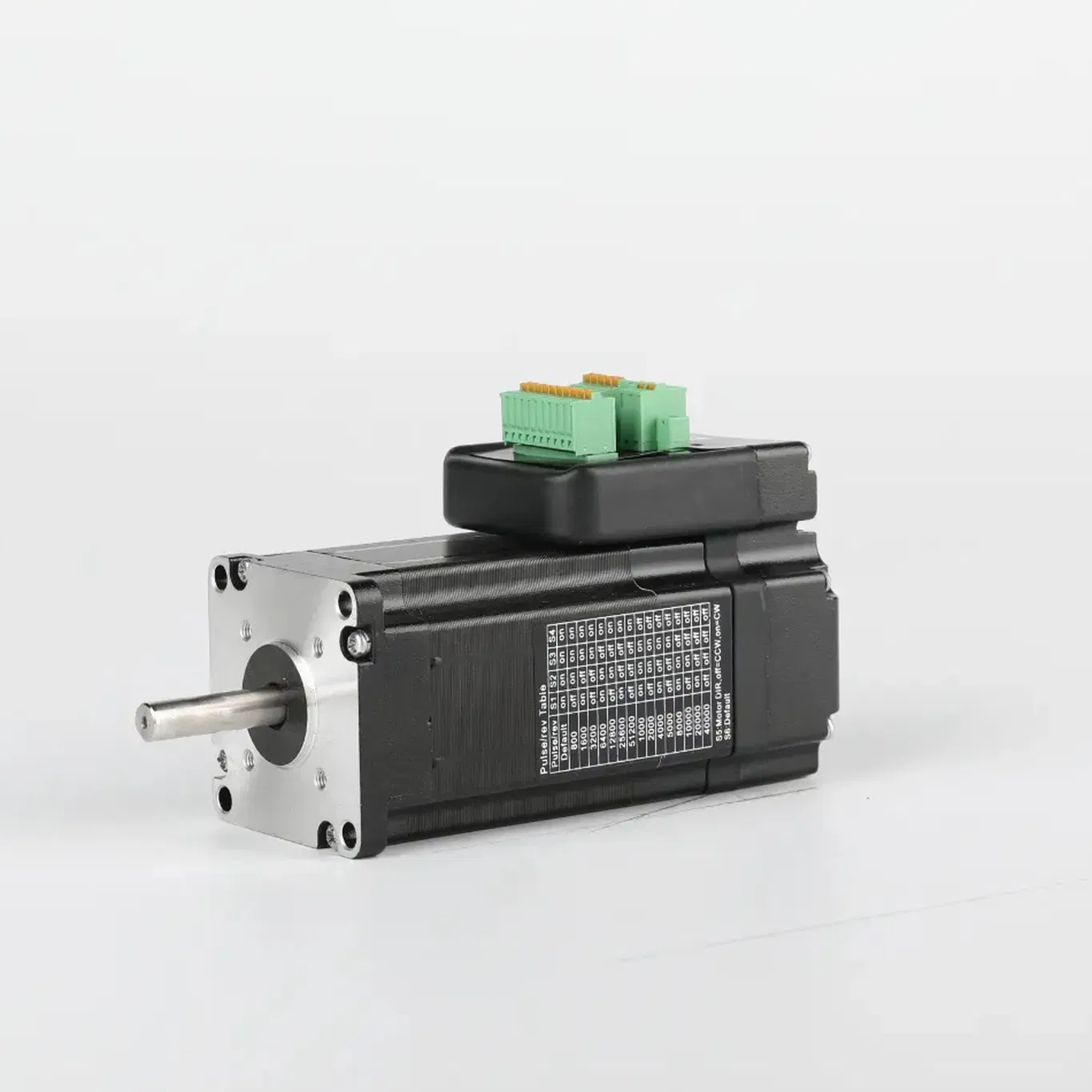

57mm Integrated Low Voltage DC Servo Motor UCS57-130W

130W | 36VDC | 3000RPM

The UCS57-130W is a 57mm integrated low voltage DC servo motor delivering 130W at 3000 RPM with 0.42 N·m rated torque. It integrates motor, encoder, vector control driver, and network communication module in one compact unit.

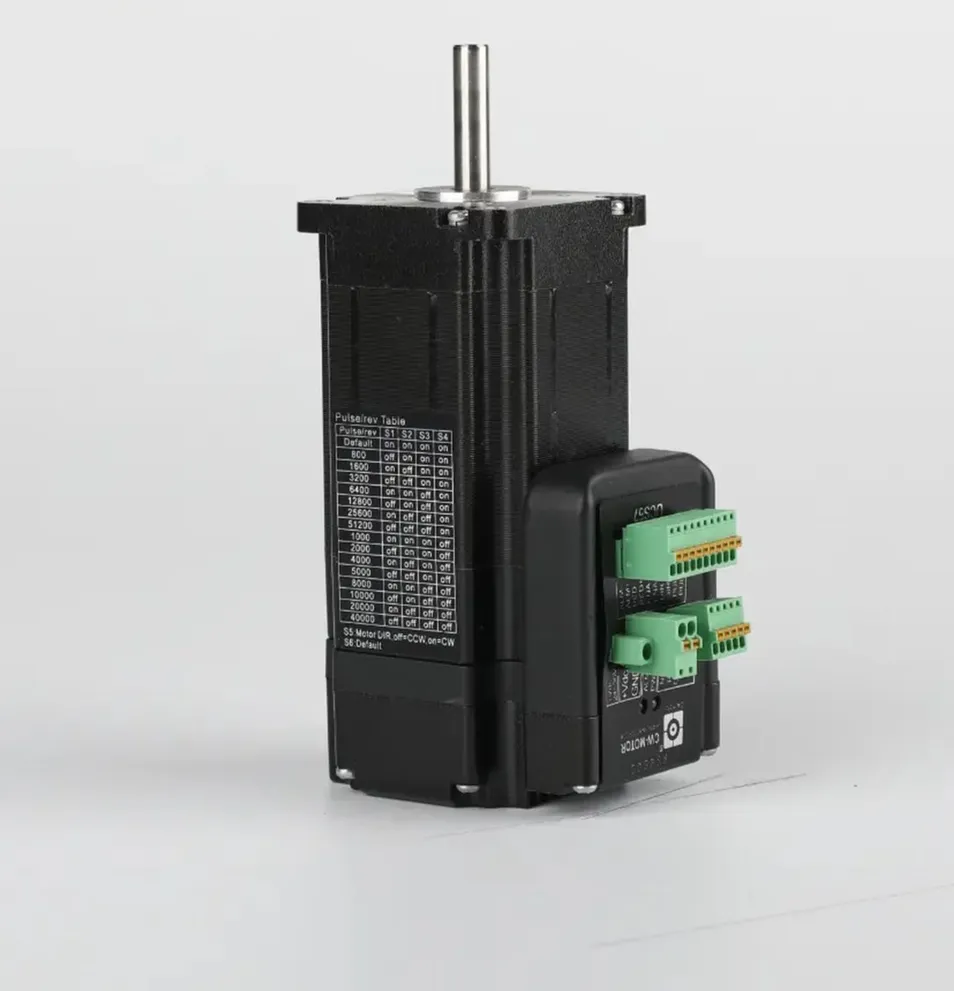

Servo Motor Detail

KEY HIGHLIGHTS

  • 130W rated power at 3000 RPM
  • Integrated DSP controller with vector control algorithm
  • Built-in 1000 PPR encoder
  • Network communication module included
  • Compact 57×57×127.5mm body
Full Specification
PARAMETER VALUE
Rated Voltage36V DC
Rated Power130 W
Rated Speed3000 RPM
Rated Torque0.42 N·m
Peak Torque1.1 N·m
Rated Current5.3 A
Back-EMF Constant65 V/kRPM
Torque Constant0.08 N·m/A
Rotor Inertia0.35 kg·cm²
Encoder Resolution1000 PPR
Insulation ClassB (130°C)
Frame Size57mm (NEMA 23)
Body Length127.5 mm
Weight1.32 kg
Design Detail 1

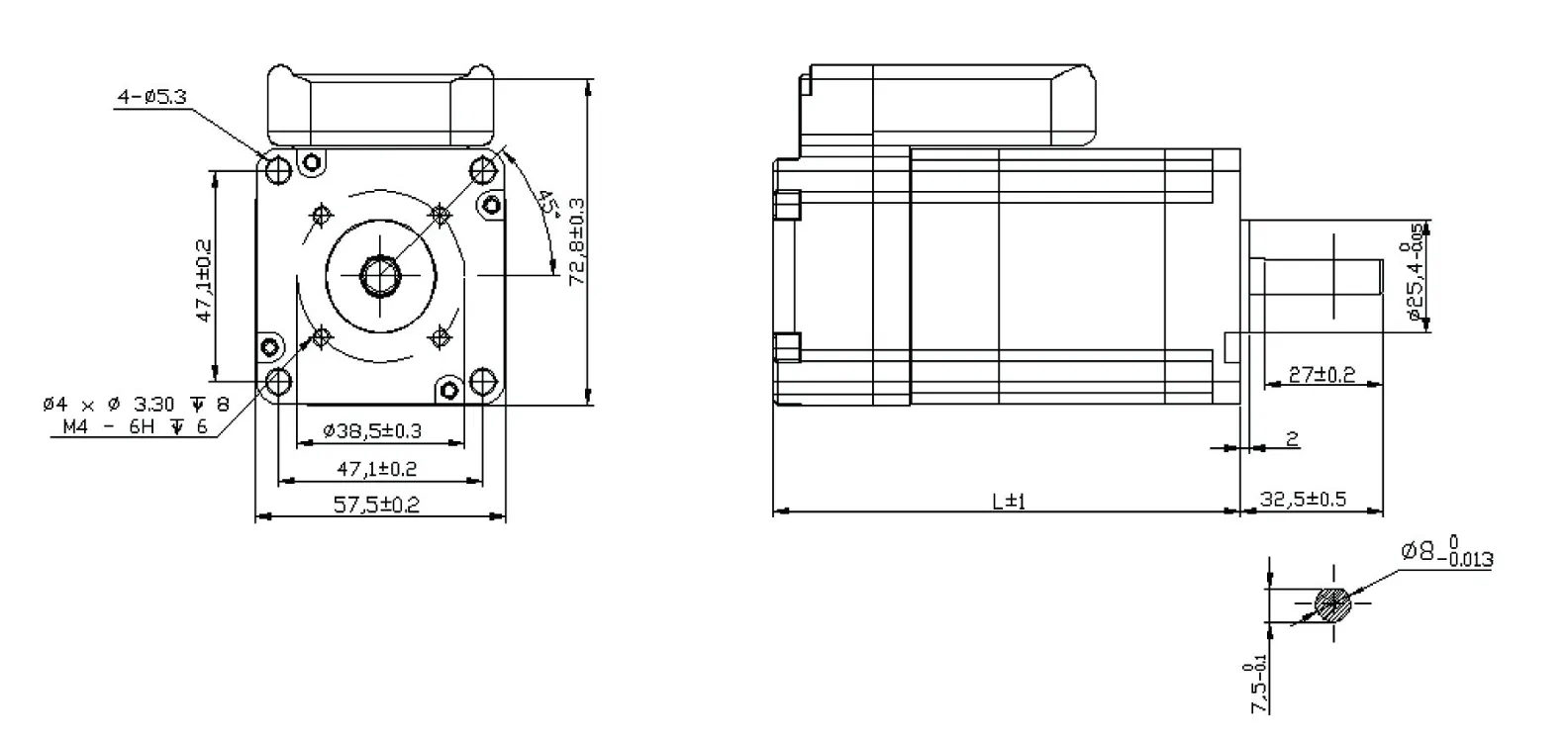

Design Detail 2
Production View 1
Production View 2
Quality Assurance
Industrial Motor Expertise
Motor Expertise

With over 30 years of production experience in the industrial motor field, we serve 1800+ industrial clients worldwide. Our core strength is OEM customization for equipment manufacturers and system integrators.

  • Custom shaft dimensions and winding specs
  • Tailored encoder and connector configurations
  • Single-unit prototypes to high-volume production
  • Comprehensive in-house manufacturing
  • 24-hour inquiry response

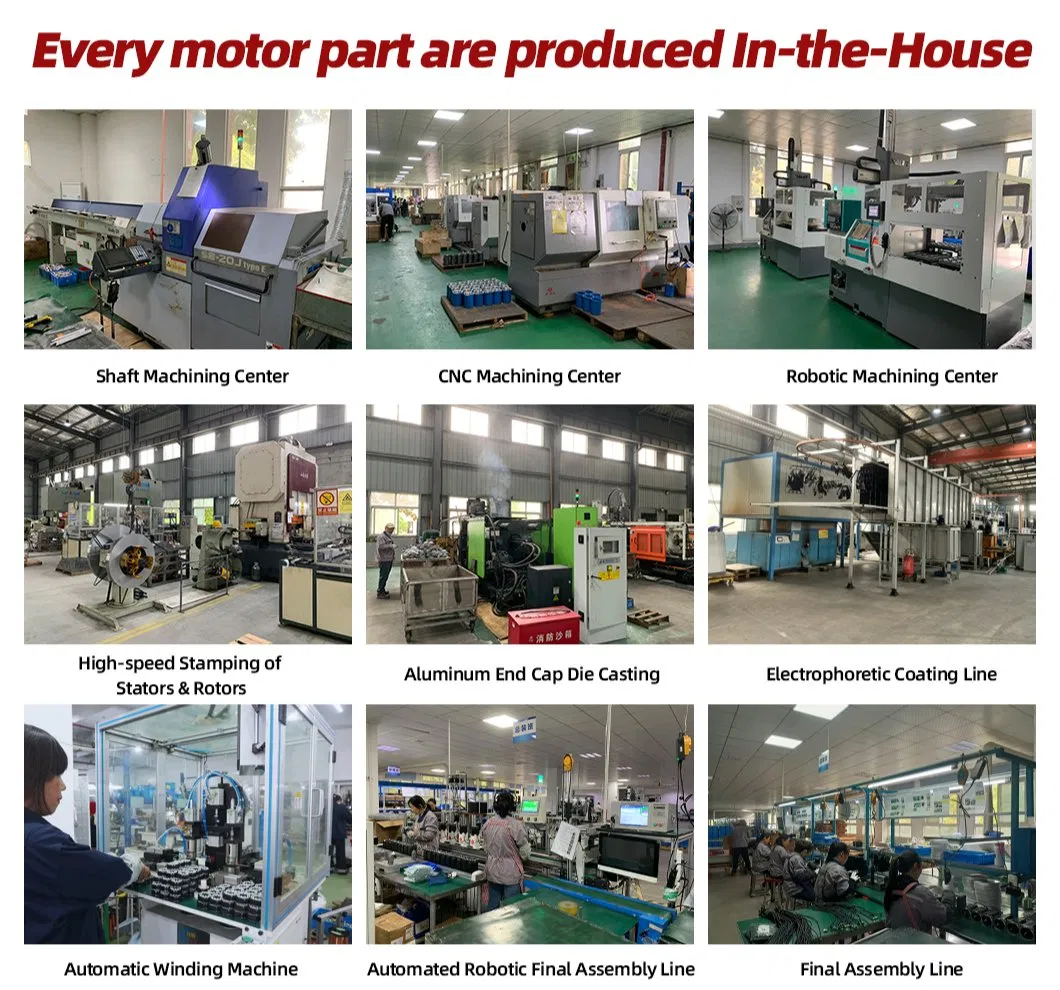

Factory Overview
Workshop 1
Workshop 2
Workshop 3
Quality Control 1
Quality Control 2
Frequently Asked Questions
1. What are the advantages of an integrated servo motor?
Integrated motors combine the motor, encoder, and driver into one unit, reducing wiring complexity, saving space, and minimizing electromagnetic interference.
2. Can I customize the motor shaft or winding?
Yes, we specialize in OEM customization. We can modify shaft dimensions, winding specifications, and connector types to meet your specific application requirements.
3. What is the lead time for prototypes?
We support single-unit prototypes with fast turnaround times. Standard inquiries are typically processed within 24 hours.
4. Does the motor include a communication interface?
Yes, the UCS57 series includes a network communication module suitable for various industrial automated control systems.
5. What is the resolution of the built-in encoder?
The motor features a built-in 1000-line (1000 PPR) encoder, providing high-precision feedback for vector control algorithms.
6. Are your motors compliant with international standards?
Yes, our production facility is ISO9001 certified, and our motors meet CE and RoHS standards for global distribution.
