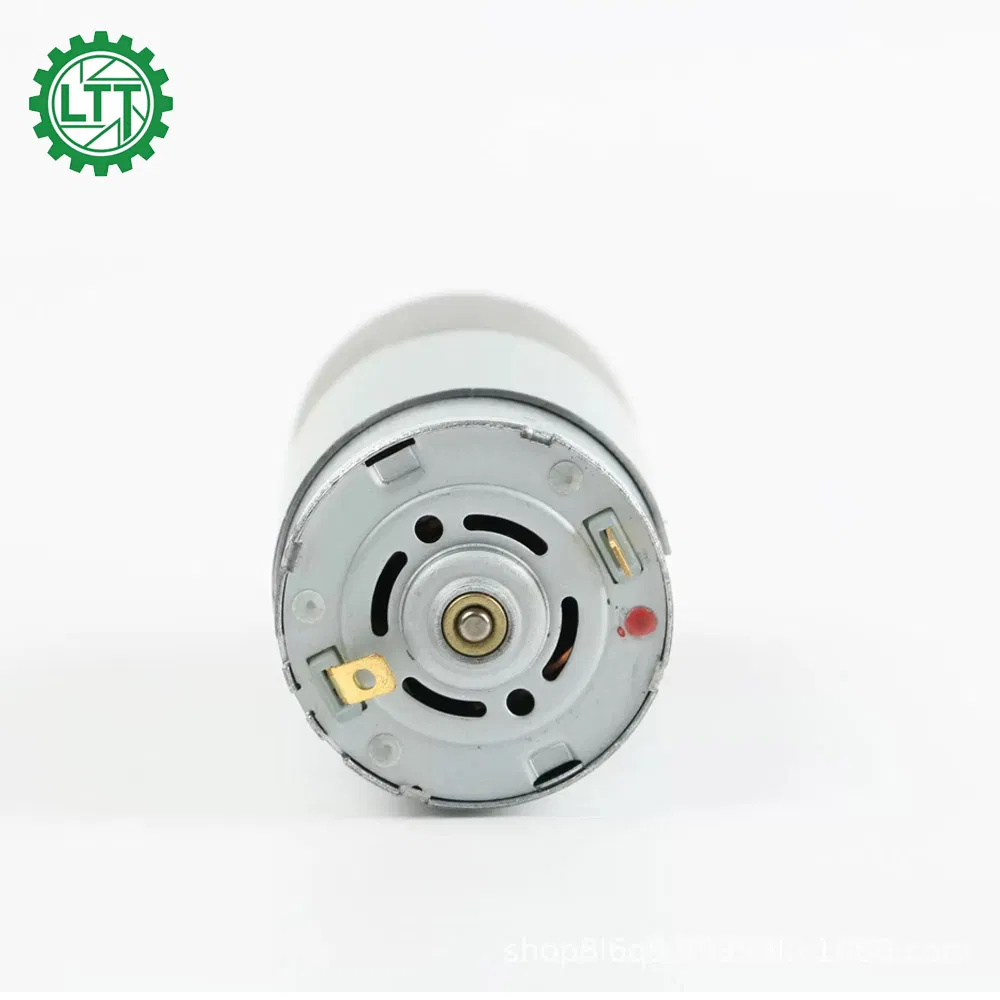

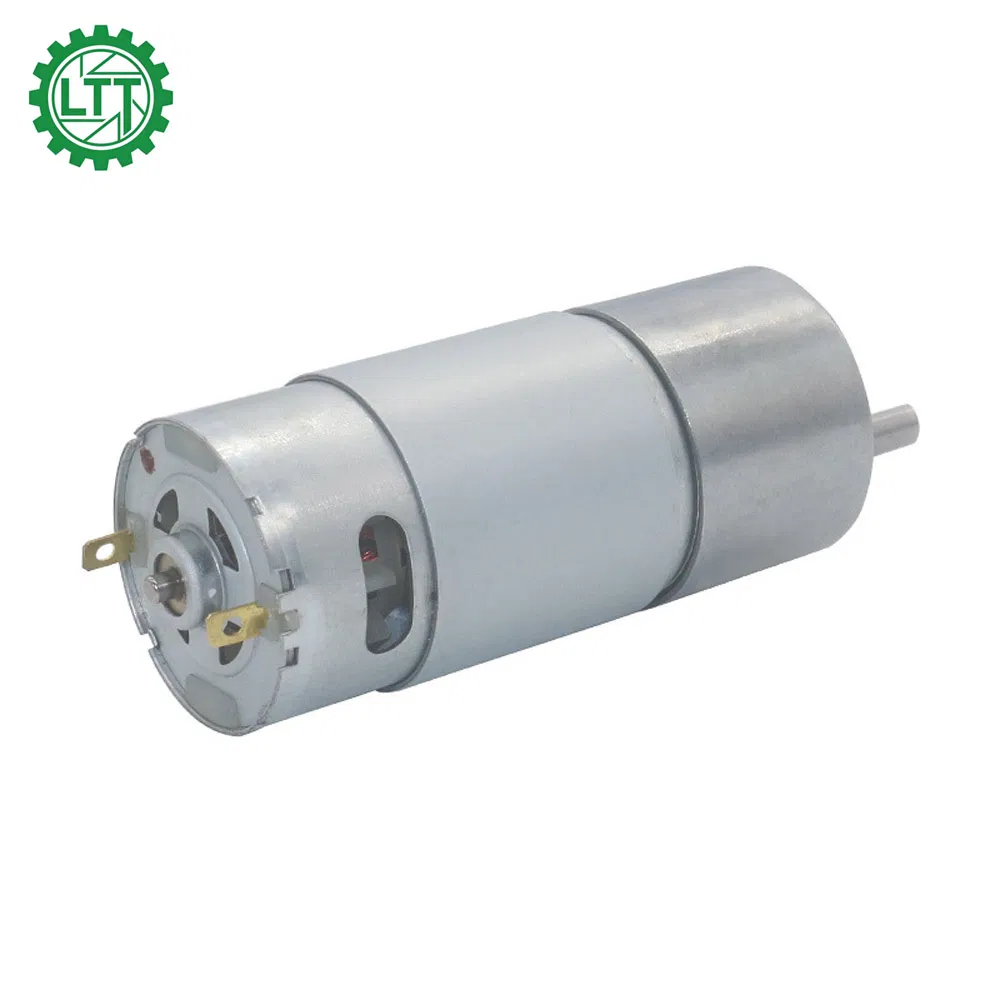

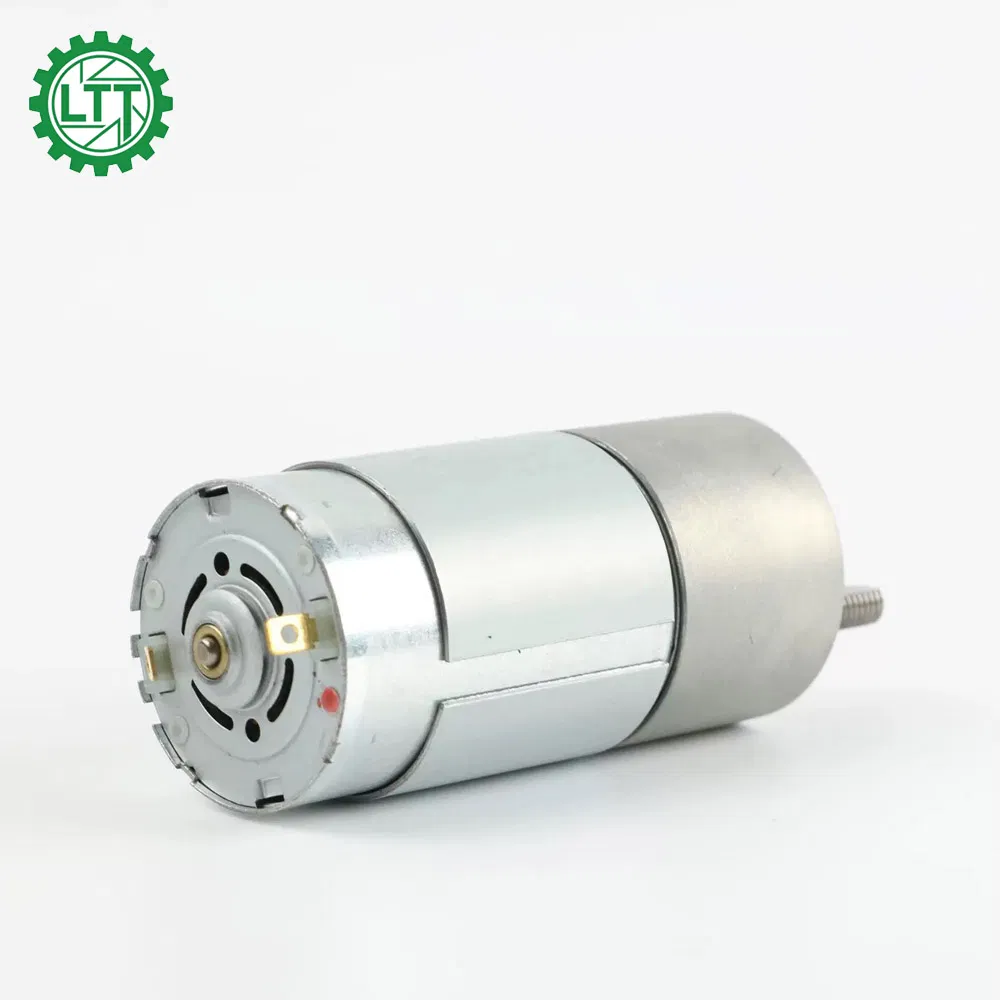

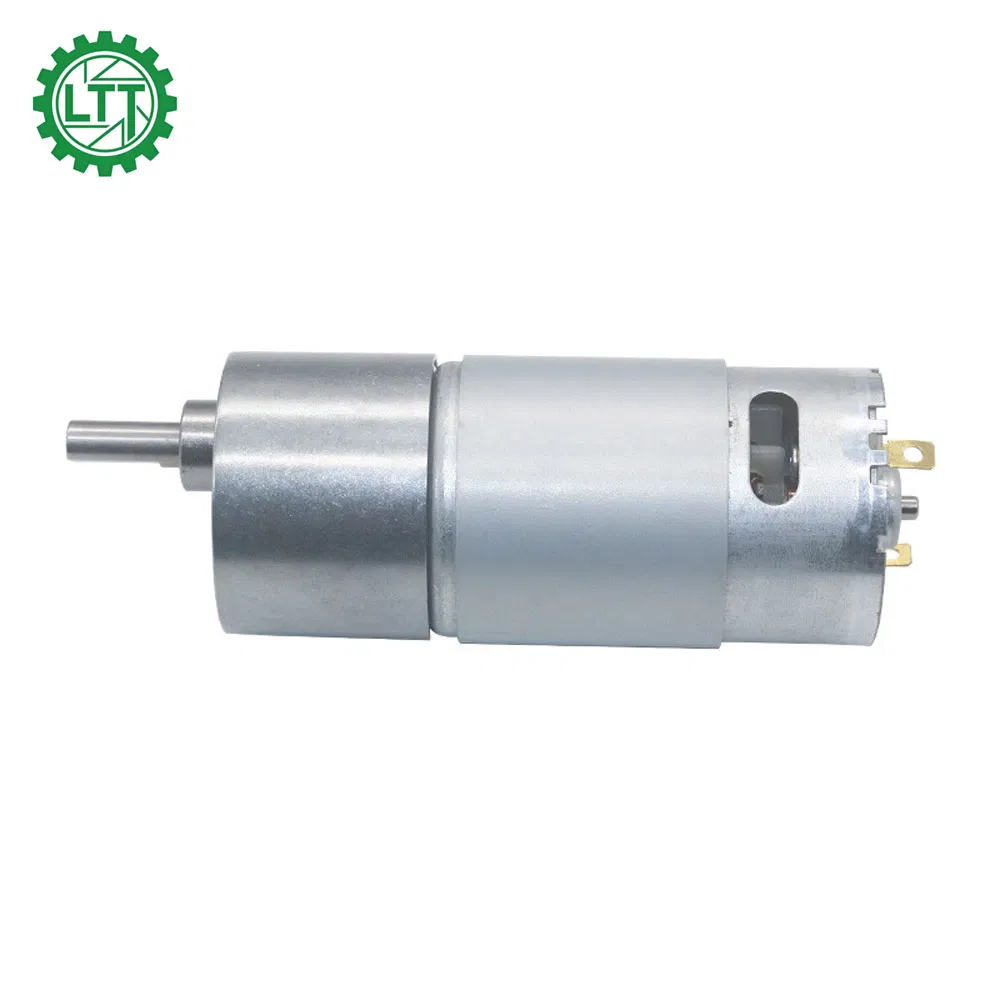

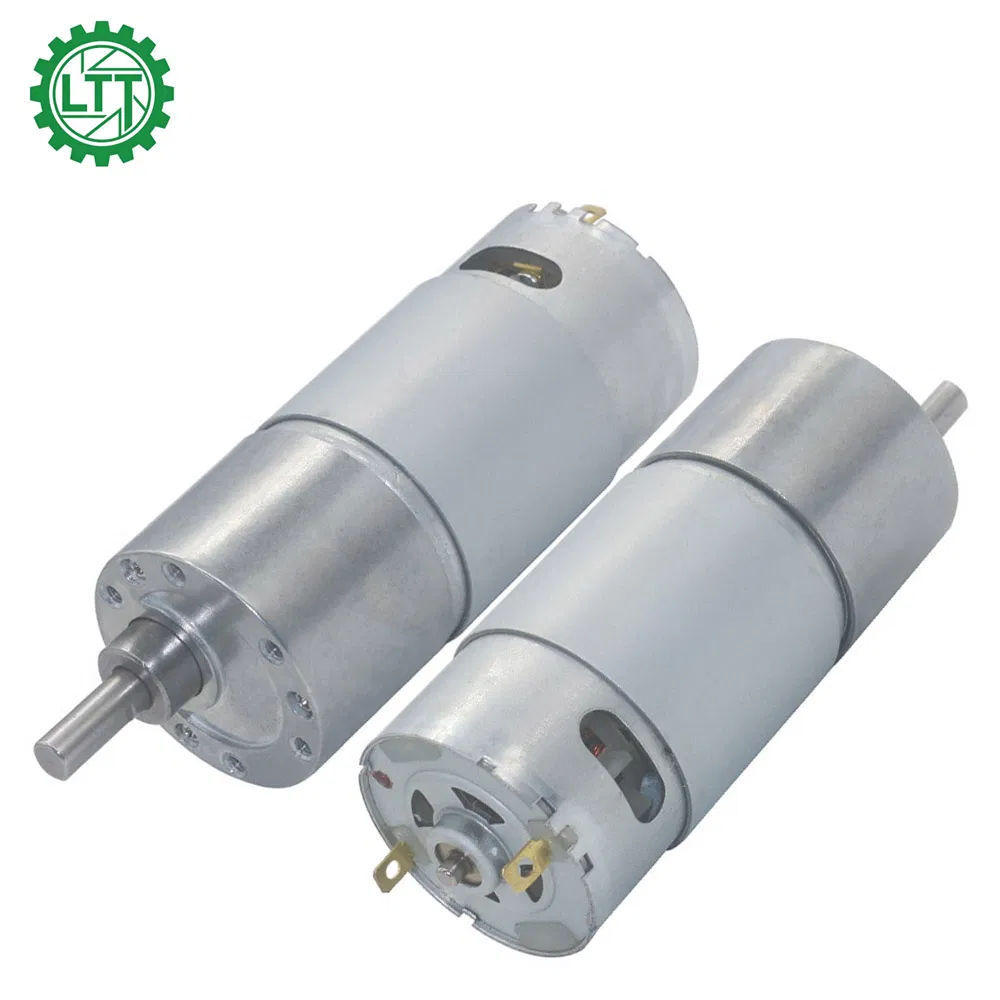

37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
1 / 5
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox
37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox

37mm Diameter 6V 12V 24V Brush DC Gear Motor 550 DC Motor with Spur Gearbox

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
LGM37-550
Excitation Mode
Shunt
Function
Control, Driving
Casing Protection
Protection Type
Number of Poles
2
Structure
Brush
Type
DC Gear Motor
Certification
ISO9001, CE, RoHS
Gearbox Size
φ37*L mm
Motor Size
φ35.8*57mm
Rated Voltage
6V 12V 24V
Construction
Permanent Magnet

Product Description

37mm Diameter Micro DC Gear Motor
ModelLGM37-550 TypeDC Geared Motor
Voltage3v-24v Speed3rpm-2500rpm
Continuous Current≤3A Stall Torque≤20kg.cm
Typical Application Automotive Parts, Blender machine, Camera, Children toy car, Commercial Products, Handheld robot mower, Home Appliances, Vehicle TV Lifter, etc.
Gearbox Material Steel, brass, plastic, powder metallurgy, zinc alloy
Shaft Shape Circular, D shaft, Slotted, Knurled, Square, Hexagon, Threaded, Shaft with hole

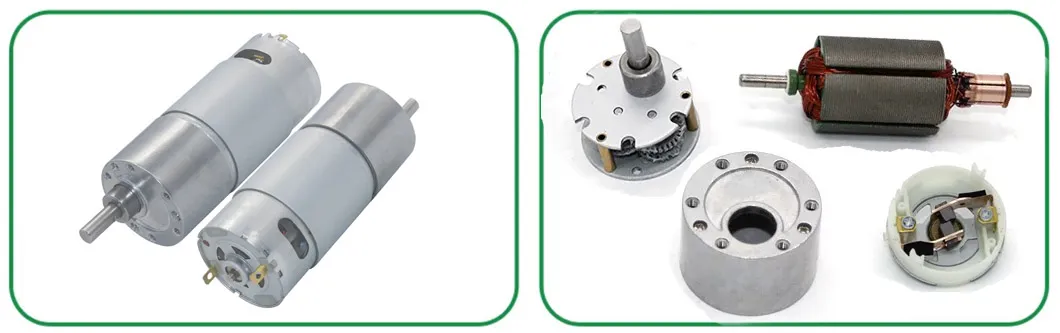

Micro DC Gear Motor Overview

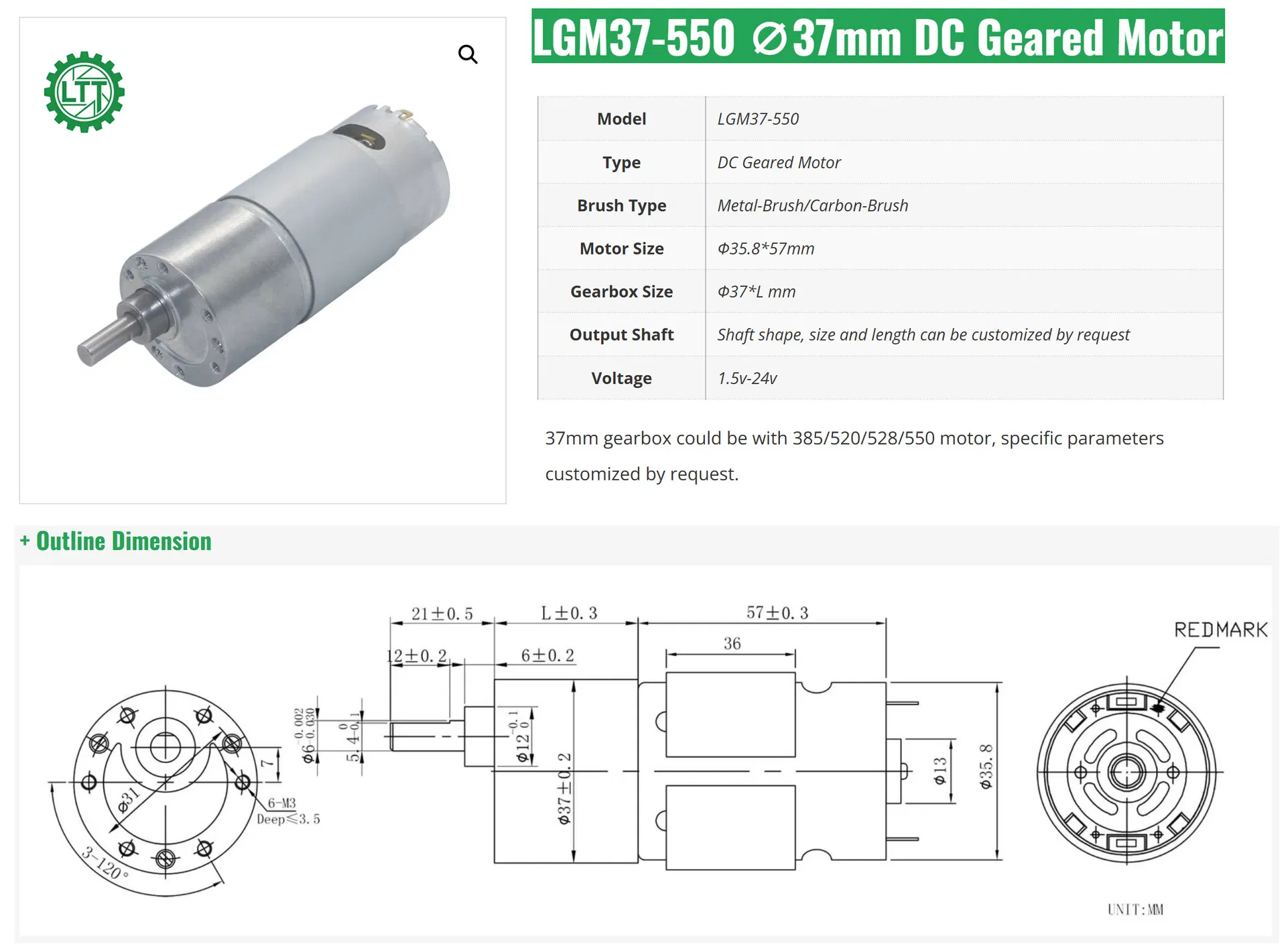

37mm DC Motor Details

Specifications & Dimensions

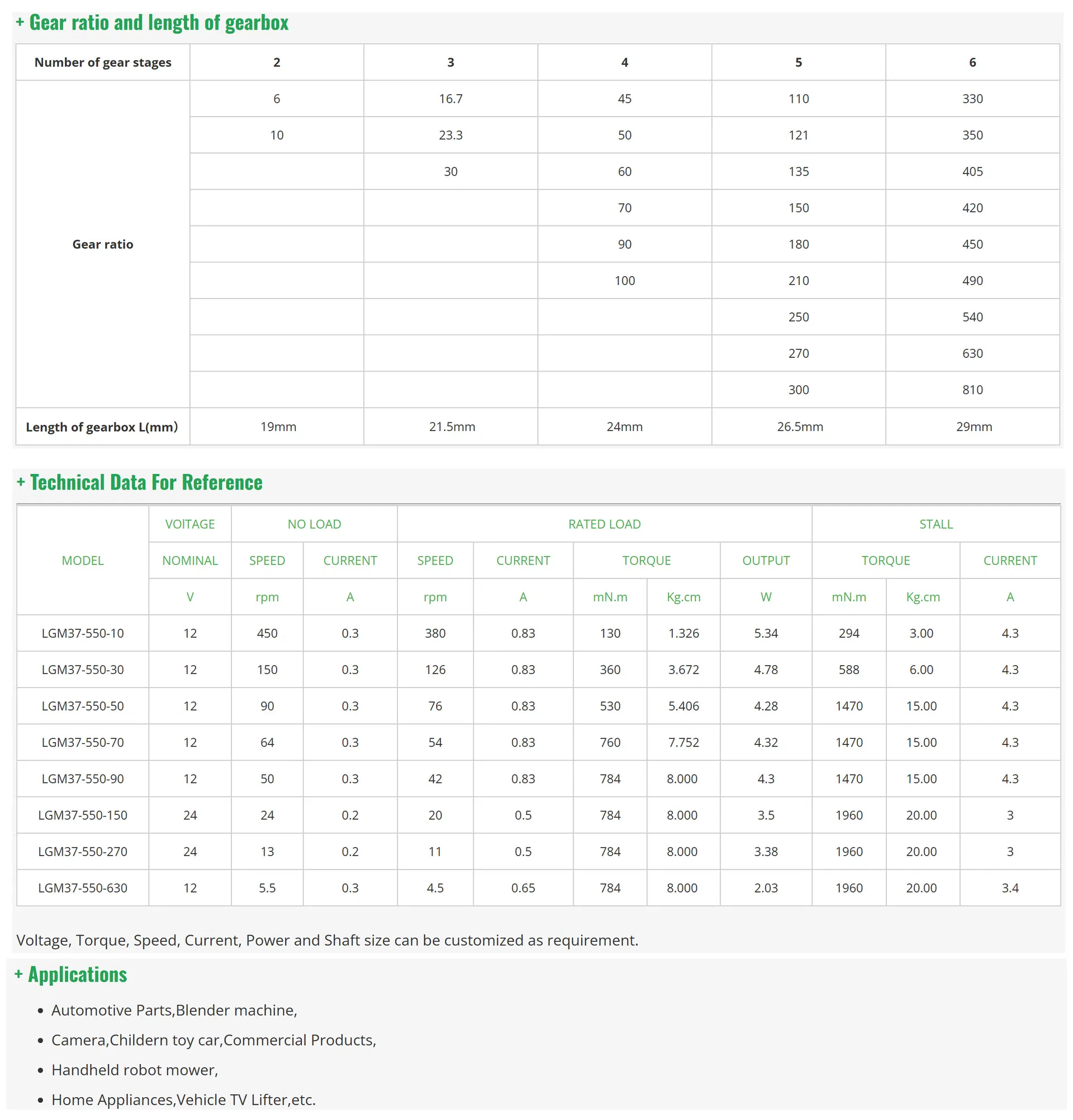

Dimensional Drawing
Performance Chart

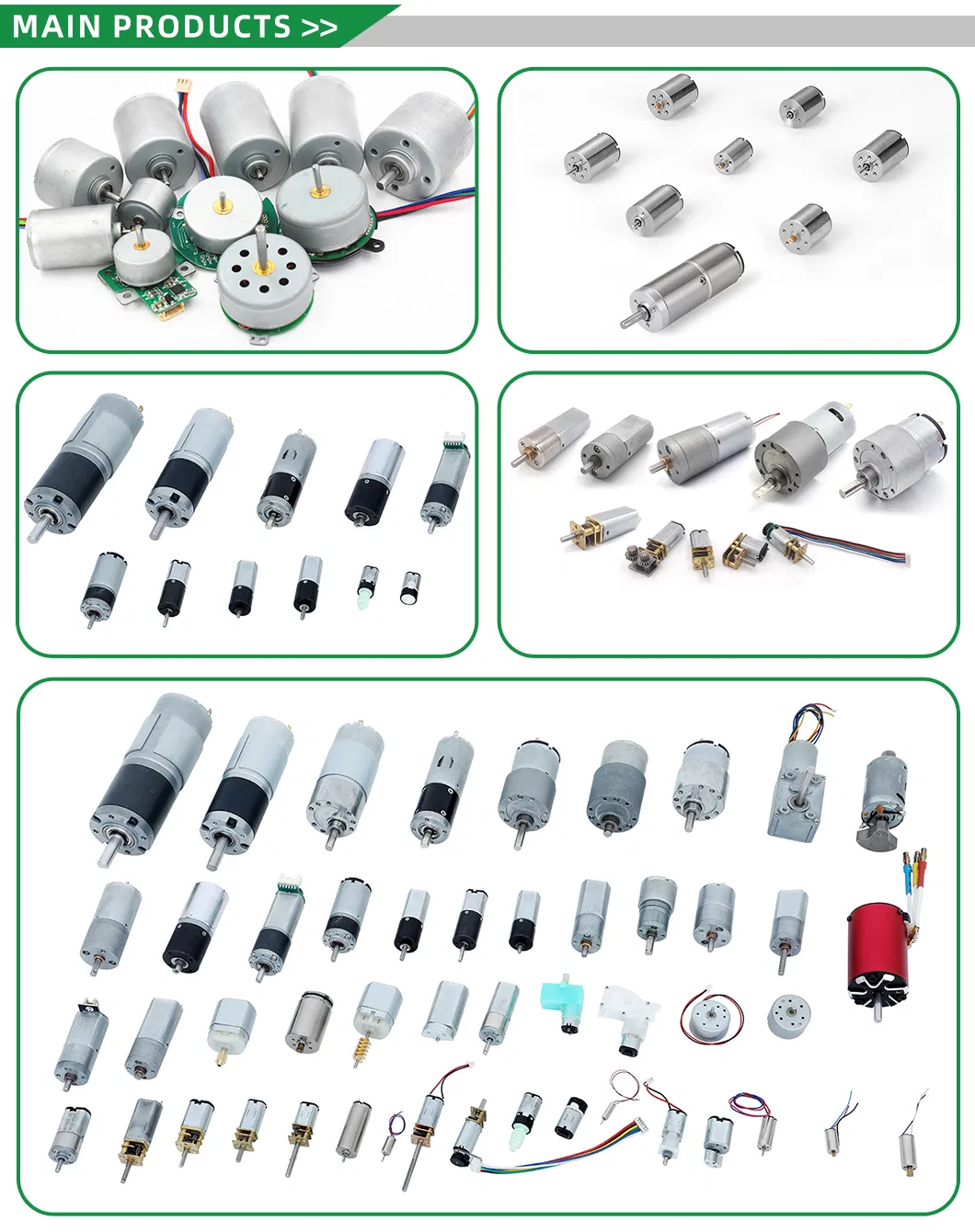

Main Products Range

Product Series 1
Product Series 2

Company Overview

Manufacturing Facility
It has been deeply involved in the hardware module, small gear module industry, and the miniature precision planetary gearbox industry for many years. We provide overall drive system solutions for Industrial tools, personal care, security and locks, automotive Parts, home appliances, valves and meters, commercial Products, and health care devices.
We adhere to the business philosophy of manufacturing products with heart and serving customers sincerely, continuously improving R&D and production capabilities.

Our Advantages

1. Professional Focus
Integrates R&D, manufacturing, and sales with over 10 years of professional manufacturing experience in micro motors.
2. Quick Customization
Provides customized solutions with efficient 7-day sample production based on customer requirements.
3. Certified Quality
Passed ISO9001:2008 quality control and more than 20 international safety certifications including CE, RoHS, and UL.
4. Premium Materials
Motor components are made of imported materials with high-precision processing for superior reliability.
5. Long Service Life
Durable construction ensuring 3-20 years of operation under standard use conditions.
6. Reliable Support
Independent production stages with a 7x24 hours online quick response after-sales team.

Certifications

Certificate 1
Certificate 2

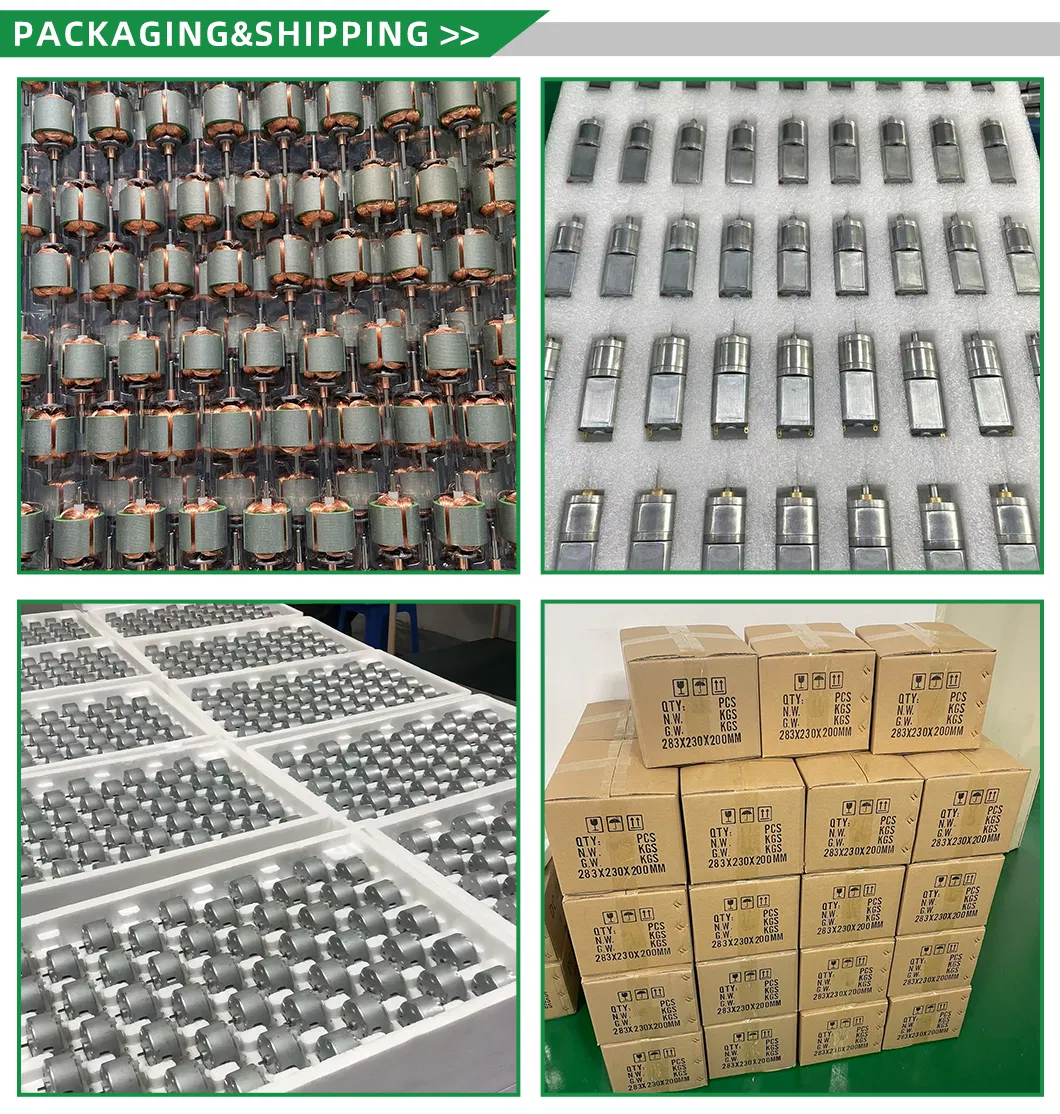

Packaging & Shipping

Packaging Process
Shipping Methods: Packing by crate, carton, or pallet. Shipping options include air freight (DHL, FedEx, UPS, TNT), sea freight, or express delivery depending on your requirements.

Frequently Asked Questions

Q: Do you provide samples for testing?
A: Yes, we provide samples for all clients to test before mass production. The lead time for samples is usually 7-15 days.
Q: Can you provide technology support for motor selection?
A: Yes, our company has strong R&D capabilities. We can provide technical support and recommend suitable geared motors based on your specific requirements for voltage, speed, torque, and size.
Q: Is customized service available for motor specifications?
A: Yes, we can customize voltage, speed, torque, and shaft size/shape. We can also add specific wires, connectors, capacitors, or EMC components.
Q: Do you maintain any products in stock?
A: We do not keep items in stock. All products are manufactured based on specific orders to ensure quality and customization.
Q: What are the available payment methods?
A: We accept T/T in advance, PayPal, and credit card payments.
Q: How do you handle shipping?
A: We ship goods via air express (DHL, FedEx, UPS, TNT) or by sea, depending on your preferred mode of transportation and order volume.
