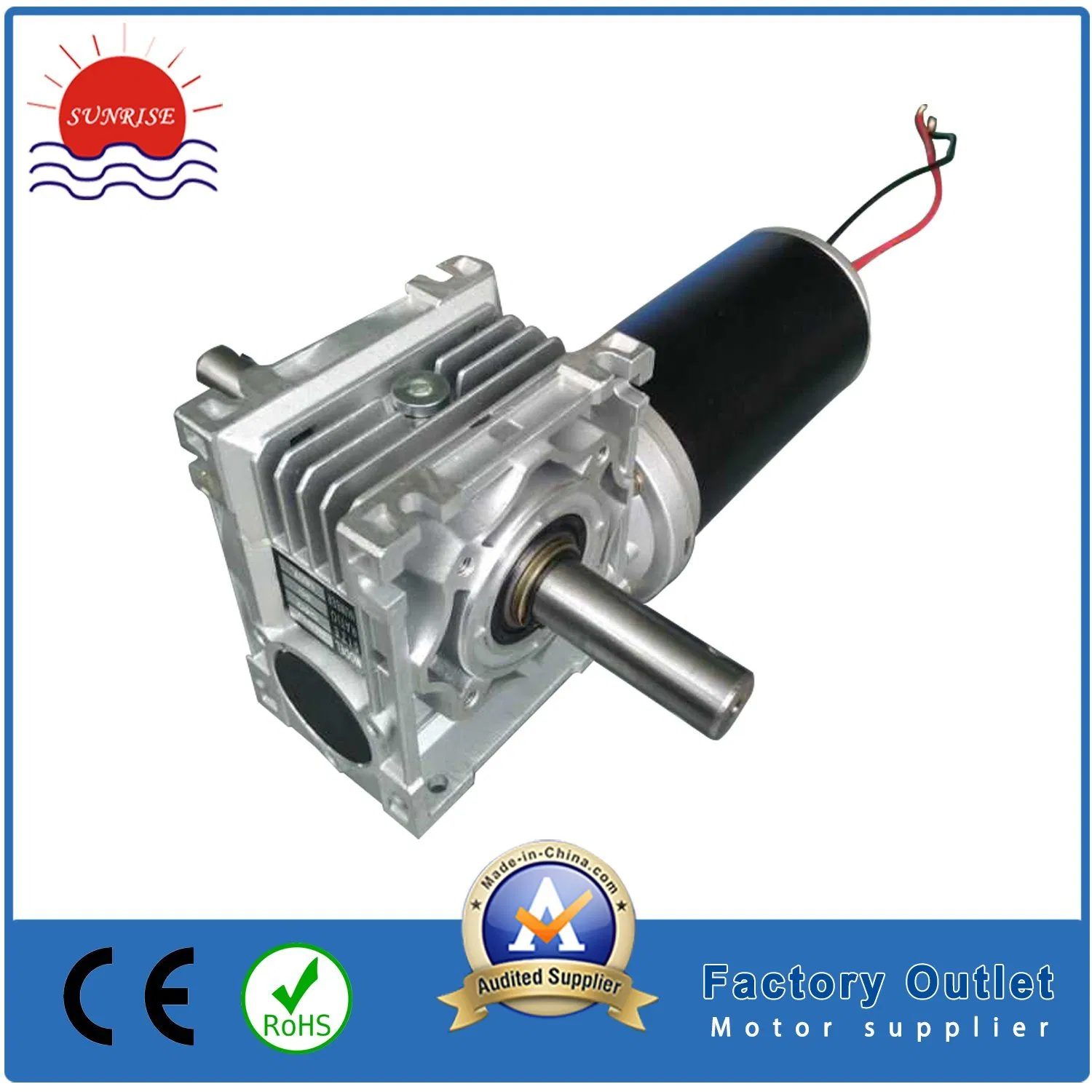

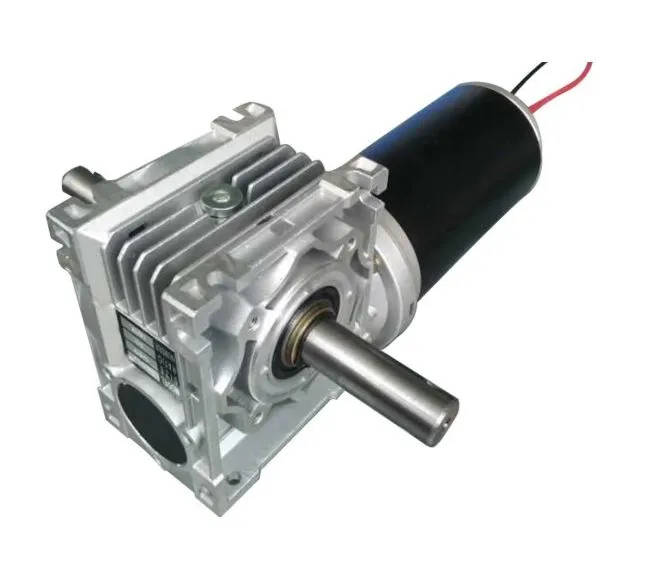

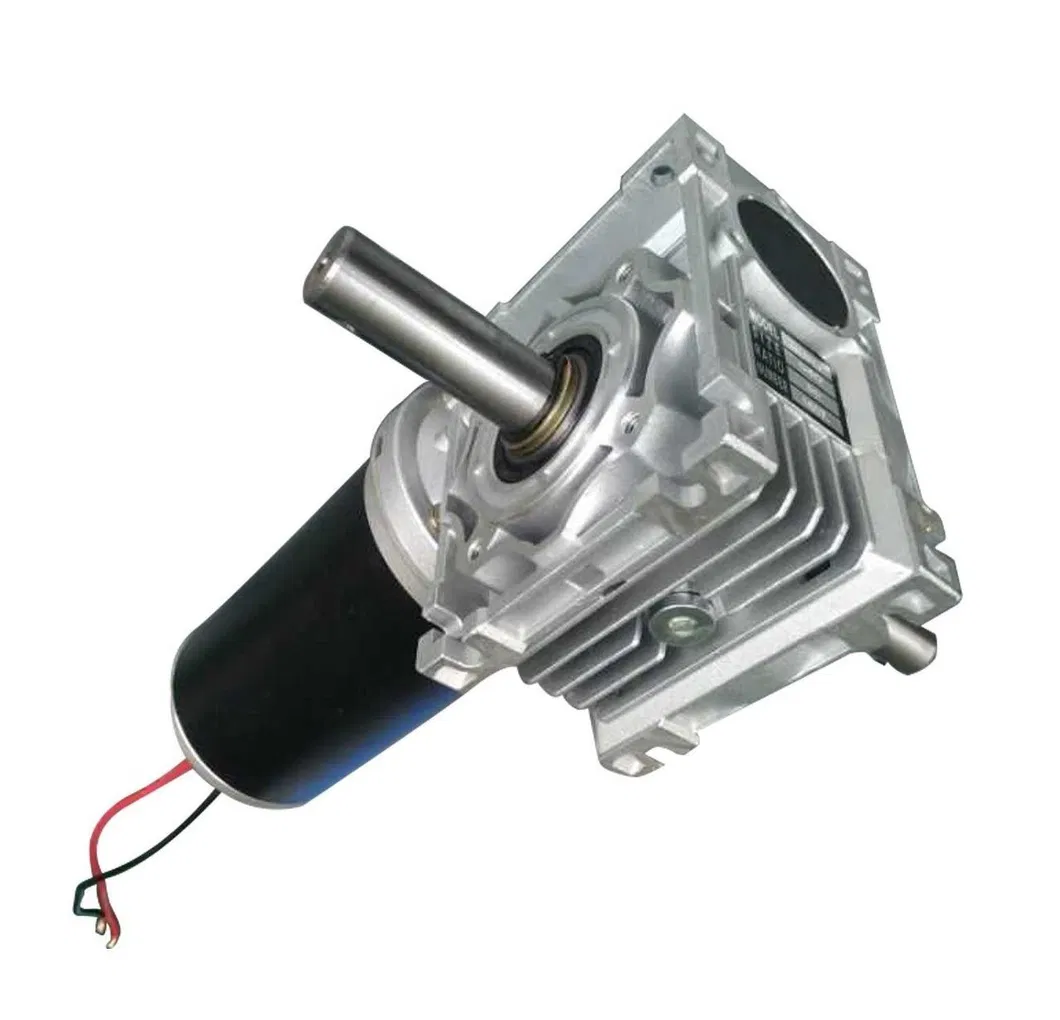

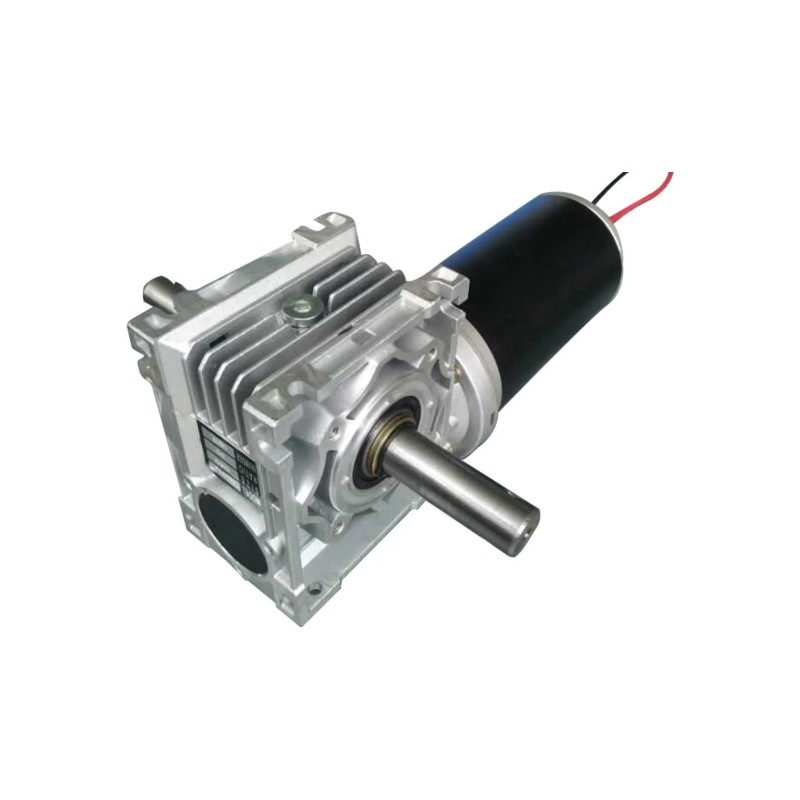

80ZYT165-2438-RV040-63B14 Gear Brushless Motor Electric Brush Brushed Permanent DC PMDC Motor for Reducer Motion Simulator 80mm 24V 3000rpm 400W
1 / 5

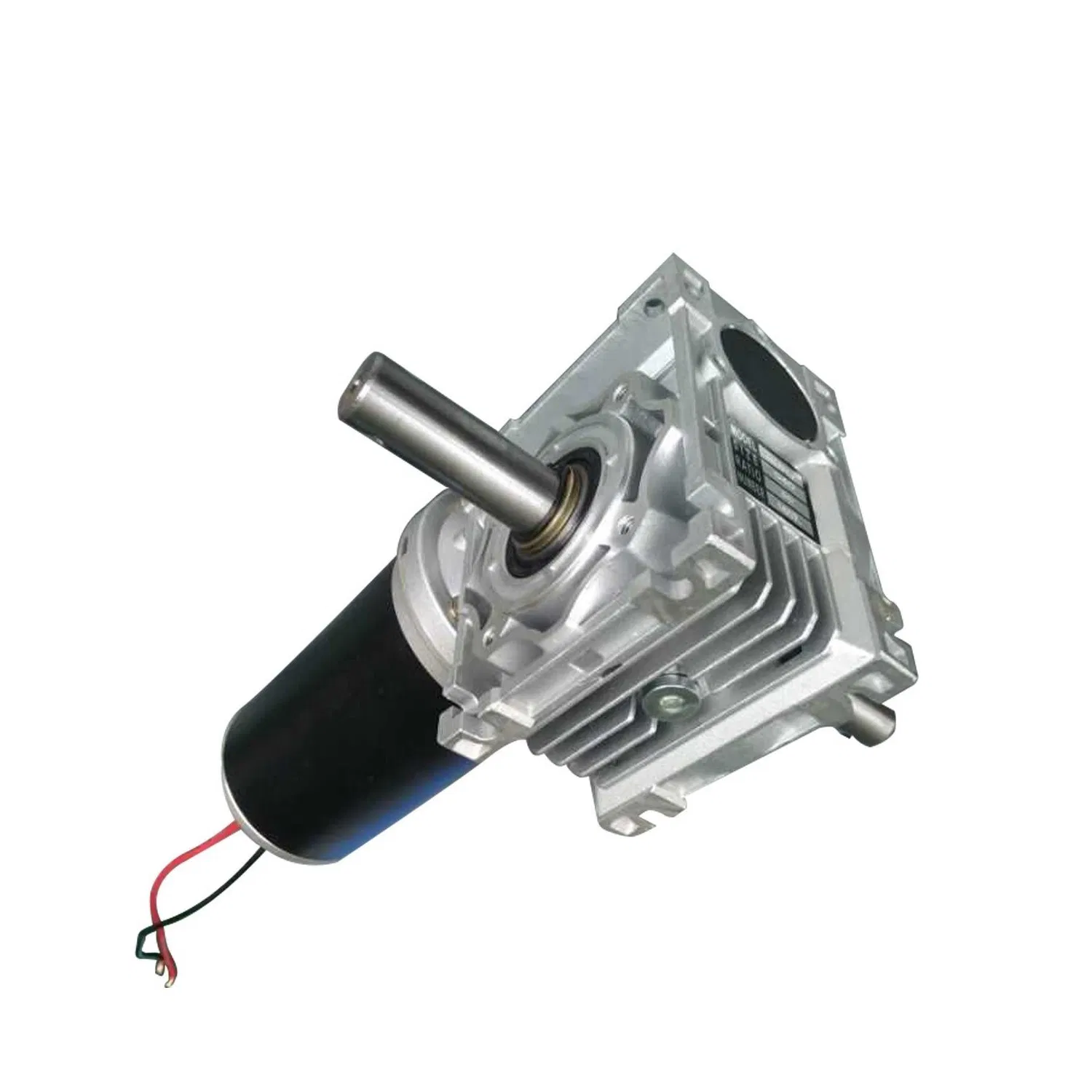

80ZYT165-2438-RV040-63B14 Gear Brushless Motor Electric Brush Brushed Permanent DC PMDC Motor for Reducer Motion Simulator 80mm 24V 3000rpm 400W
80ZYT165-2420-30RV25 Permanent Magnet DC PMDC Brushed Motor
In a Permanent Magnet DC (PMDC) motor, permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings. PMDC motors are generally smaller but still offer an impressive output performance, making them an excellent choice for use in mobility, patient care, industrial and leisure products.
What is a PMDC motor?
In PMDC motors (Permanent Magnet Direct Current), permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings.
Advantages of PMDC motors
Cost-effective and with a high starting torque, PMDC motors are generally smaller but still offer an impressive output performance, which makes them a popular choice for use in many applications.
We manufacture an extensive range of PMDC motors trusted by global manufacturers for more than 30 years. They are most often combined with one of our gearboxes to reduce speed and increase torque for the ultimate geared motor solution. Our PMDC motors are suitable for a wide range of applications in different industries such as mobility, patient care, industrial automation and leisure products.
Custom PMDC geared motors
Our standard permanent magnet DC motor-only products covers the following performance range:
Speed: 1000 - 5000 RPM
Power: Up to 2030 Watts
Torque: 0.1 - 4.9 Nm
Our standard right-angle and inline PMDC geared motor combinations are available in the following performance ranges:
Speed: 0.2 - 1390 RPM
Power: 23 - 750 Watts
Torque: 0.1 - 150 Nm

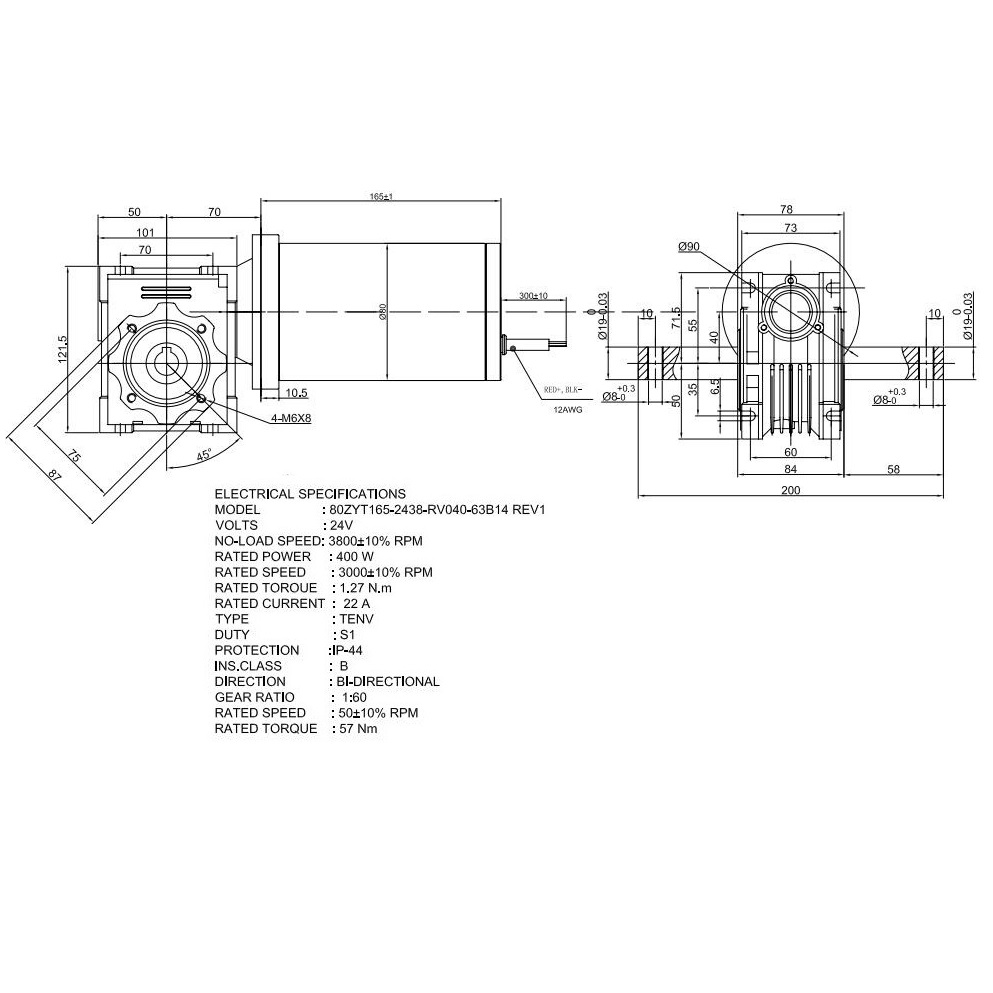

Specifications
MODEL
80ZYT165-2438-RV040-63B14 REV1
VOLTS
24V
NO-LOAD SPEED
3800±10%RPM
RATED POWER
400W
RATED SPEED
3000±10%RPM
RATED TORQUE
1.27 N.m
RATED CURRENT
22A
TYPE
TENV
DUTY
S1
PROTECTION
IP-44
INS.CLASS
B
DIRECTION
BI-DIRECTIONAL
RATED SPEED
50±10%RPM
RATED TORQUE
57 Nm
Product Parameters
PMDC MOTOR 80ZYT
MODEL
VOLTAGE (VDC)
No load Speed (r/min)
Rated Torque (N.M)
Rated Current (A)
Output Power (W)
Rated Speed (r/min)
Gear Ratio
Duty
Protection

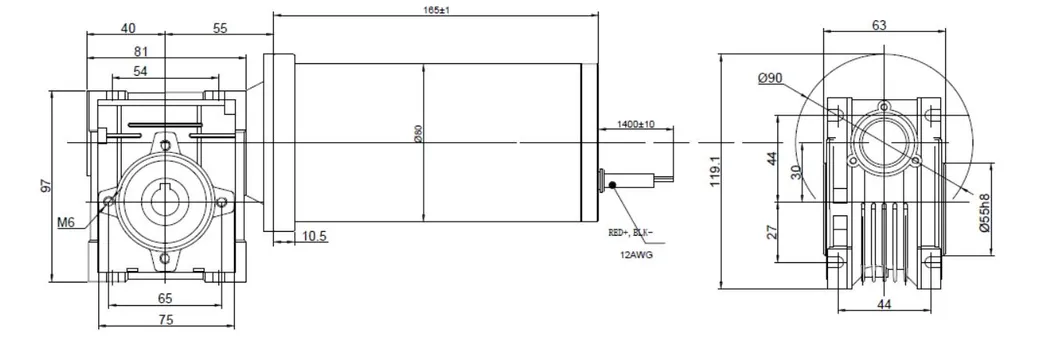

80ZYT165-2420-30RV25
24
2000
1.4
11.5
220
1500
25:01:00
S1
IP44
Special motors can be customized per your requirements
We offer several levels of PMDC motor customization, including shaft variations, output flange options, various cable lengths, brakes, encoders, paint finishes, and terminal boxes.
If you have a particular specification in mind, we recommend a fully customized solution which includes the ability to incorporate other components of your drive system. Our engineering teams have extensive application specific knowledge, enabling us to produce a PMDC motor that is completely tailored to your individual needs.
Recommended Products

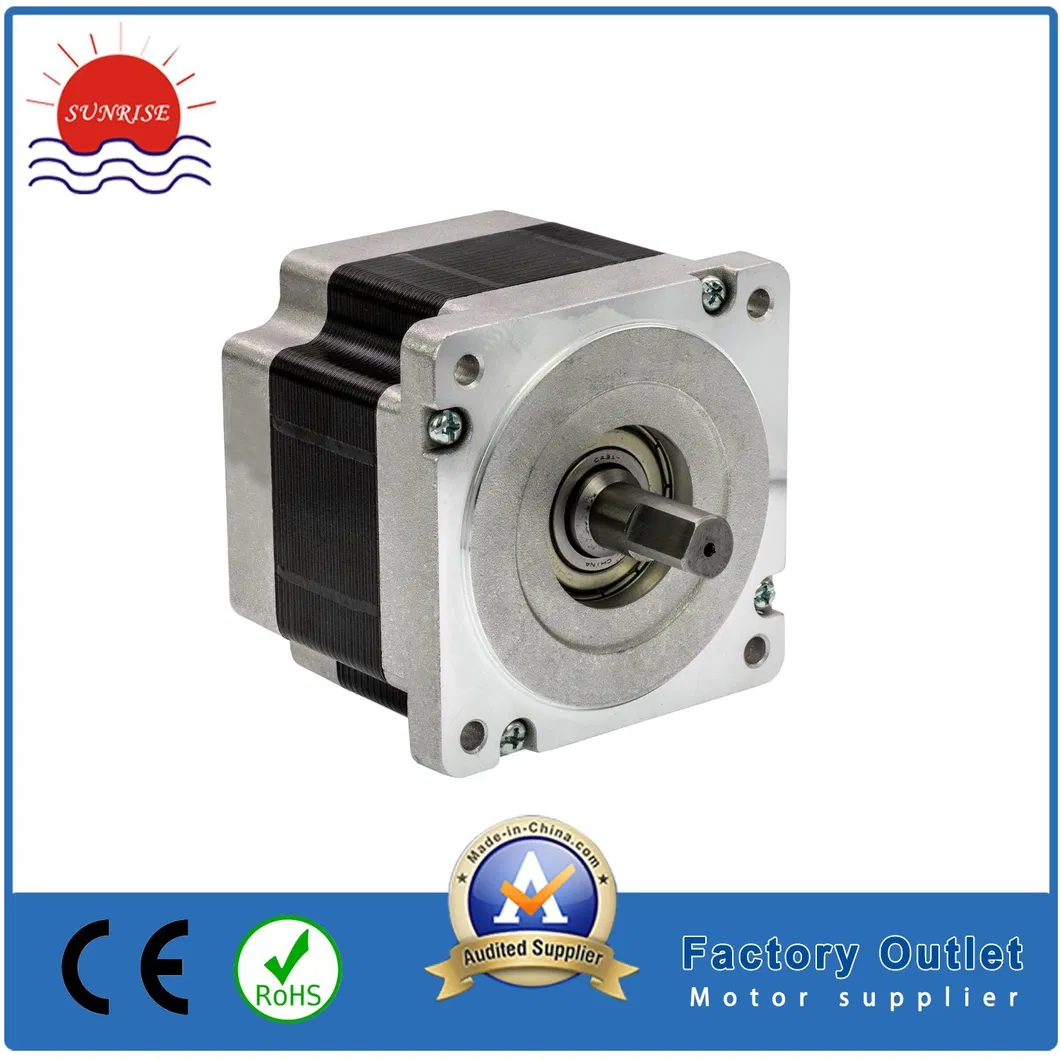

86bls3a125 Brushless Servo Motor

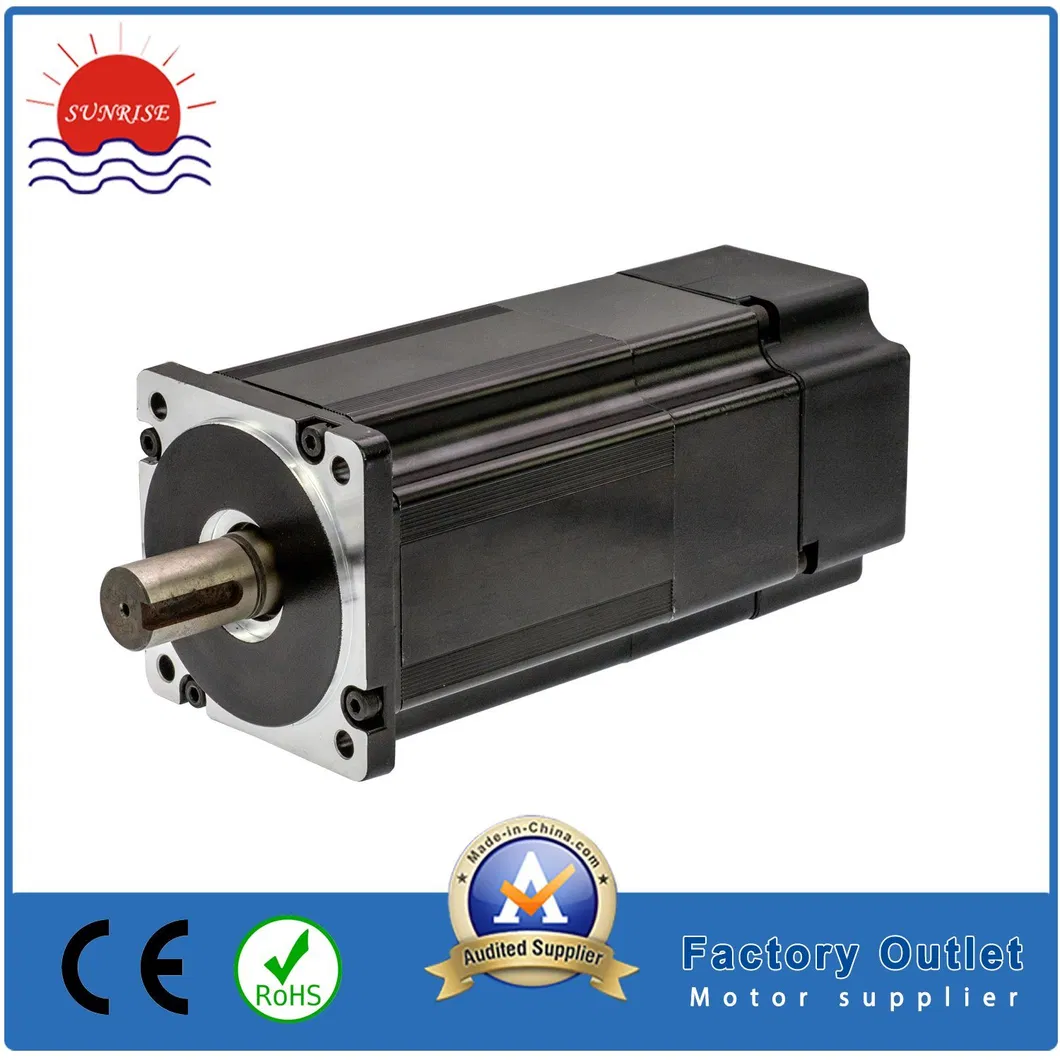

Es6004A-40d30A1 Brushless Servo Motor

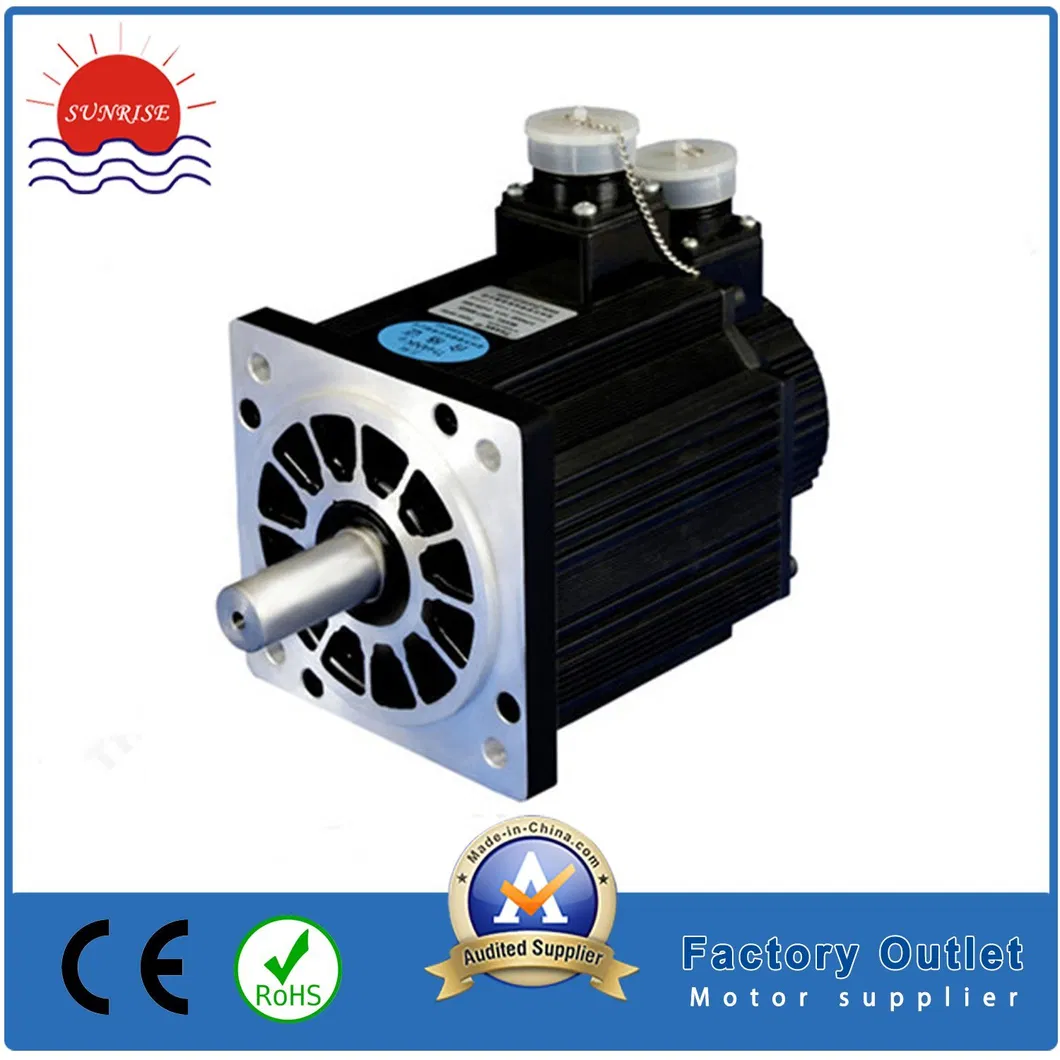

130st-M5025 1300W 5A Brushless AC Motor
Company Profile
Our Advantages

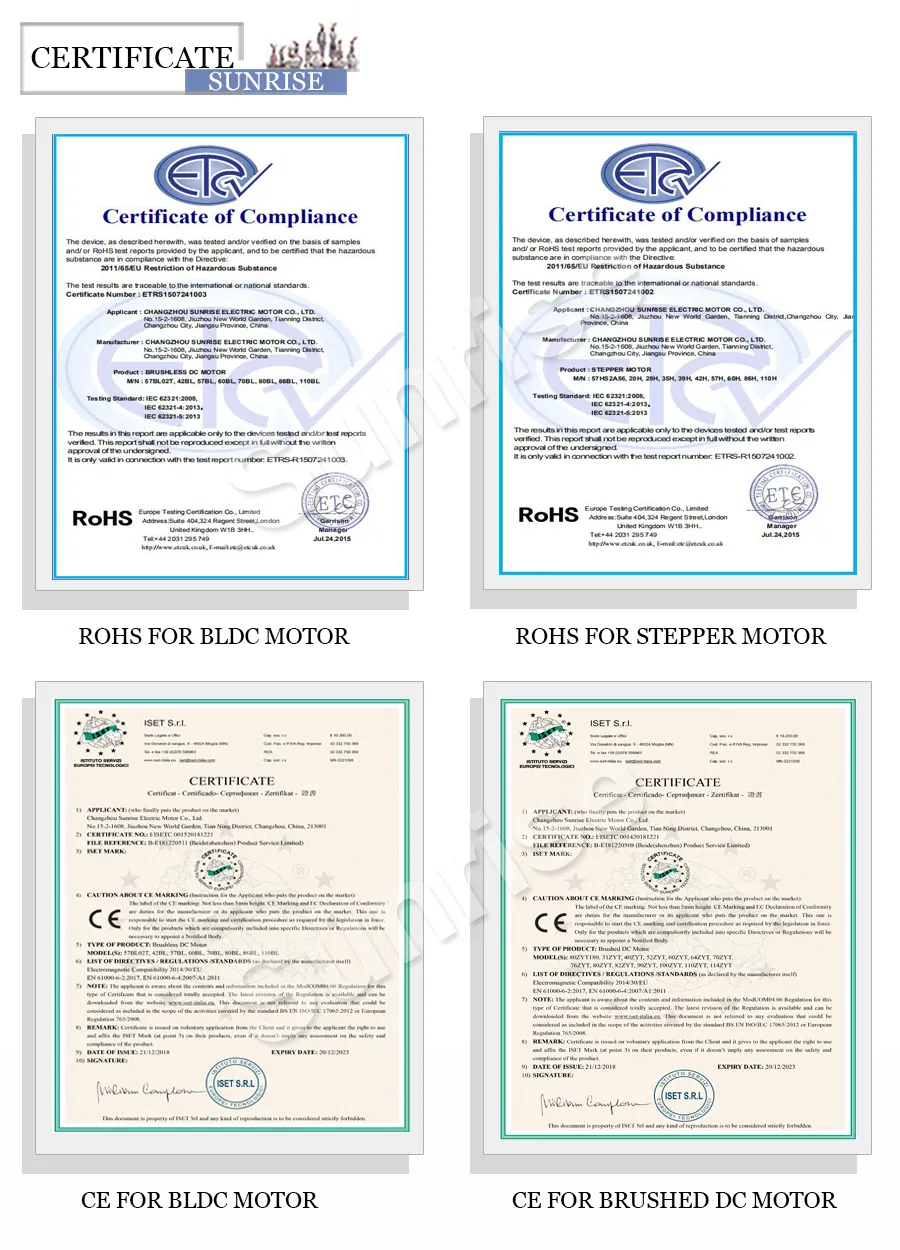

Certifications
