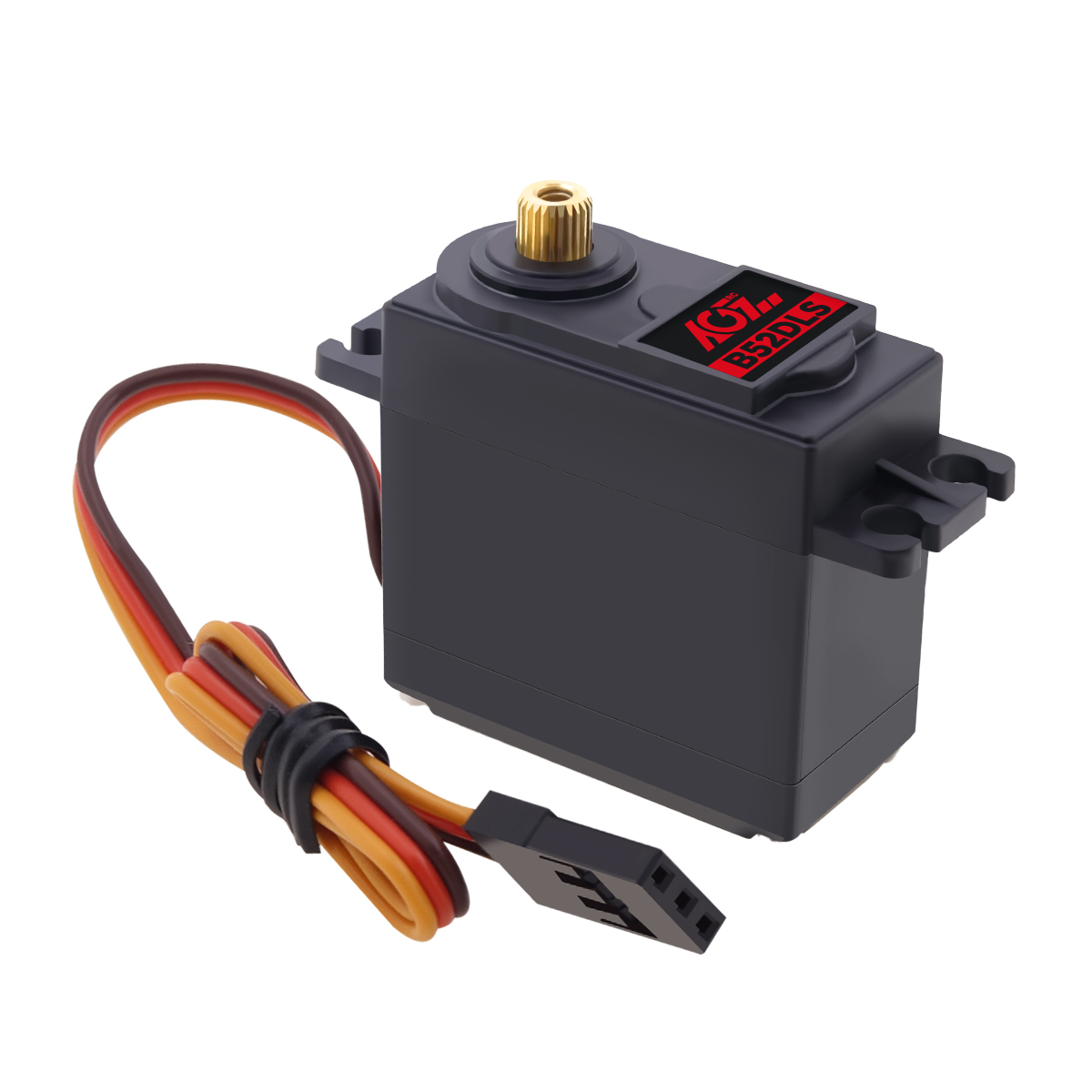

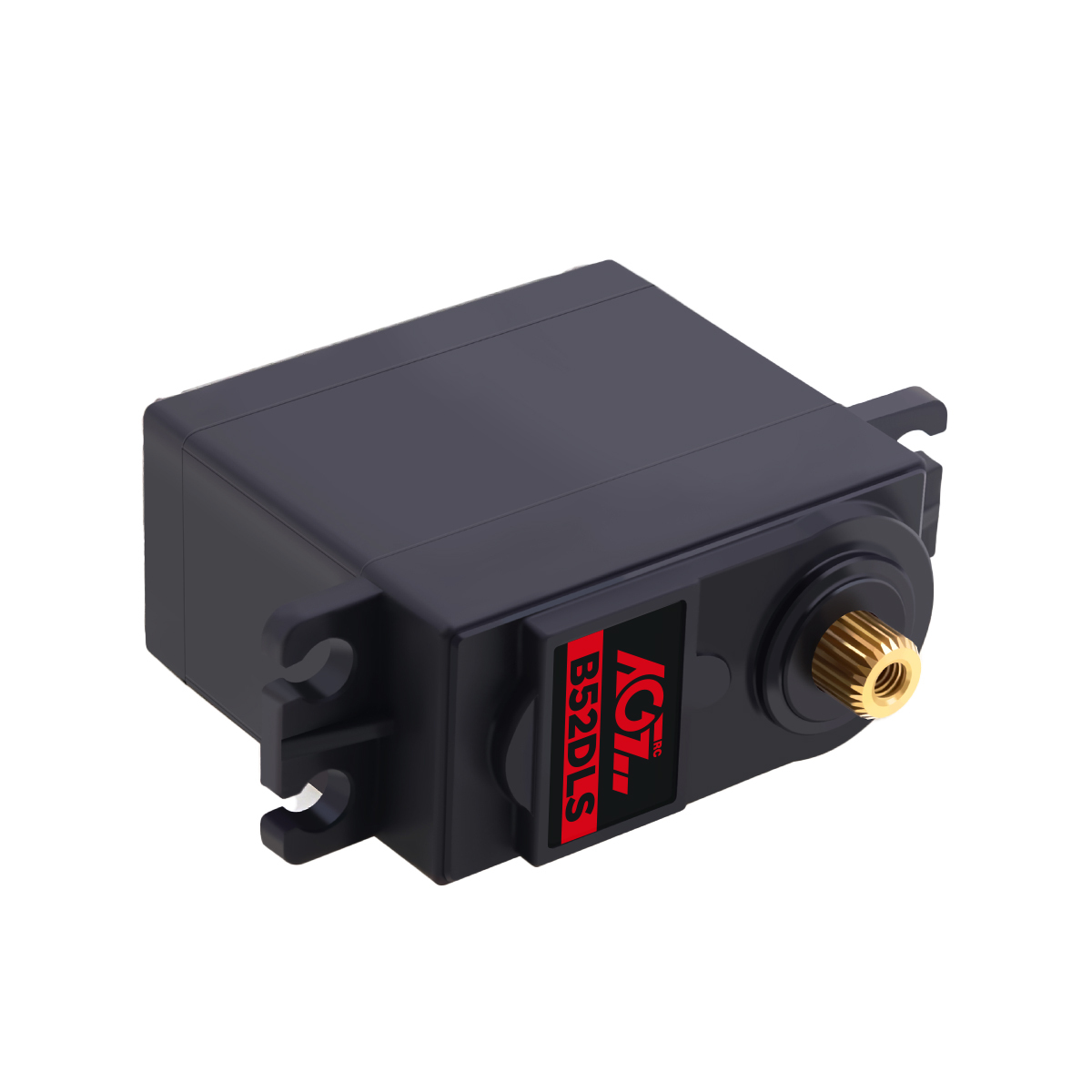

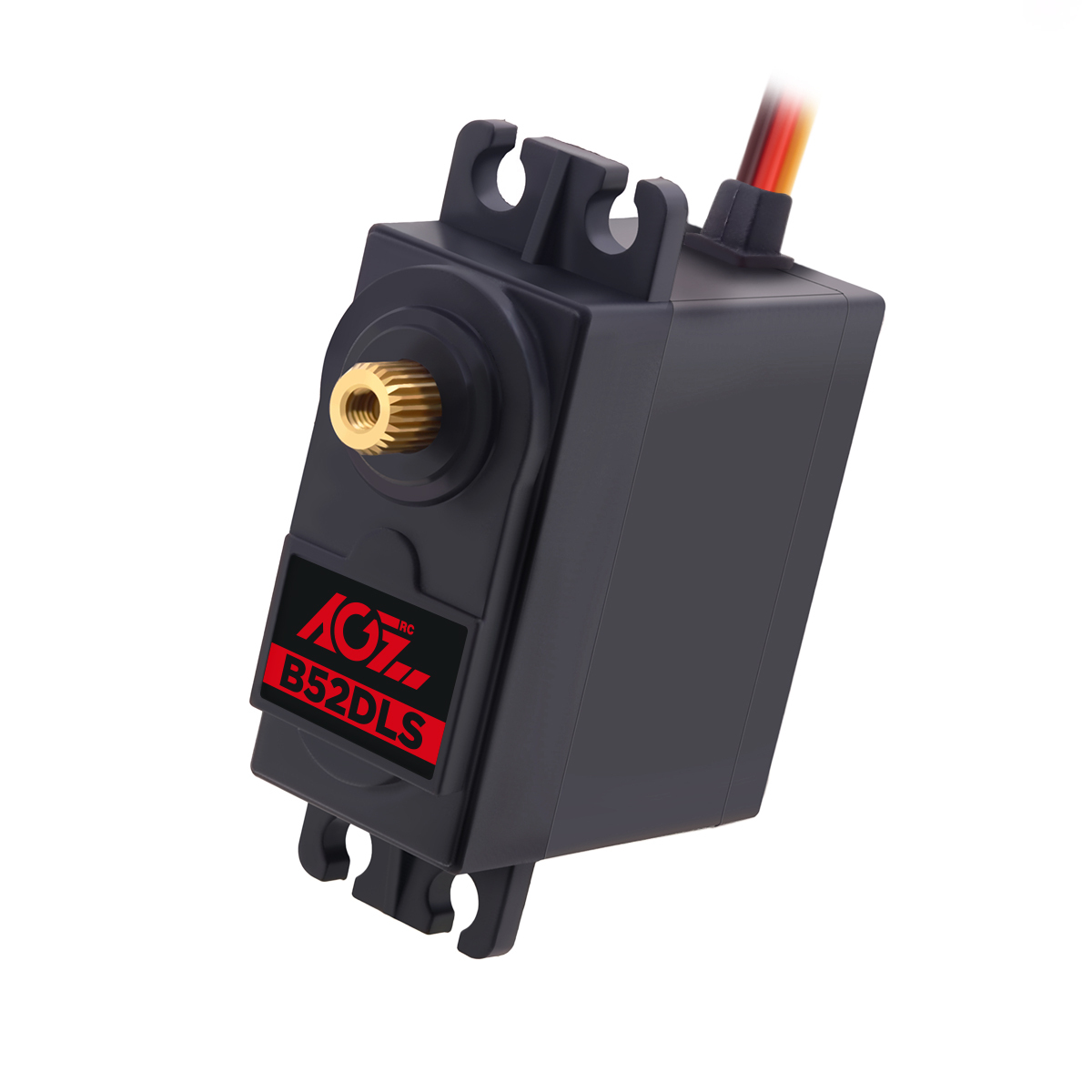

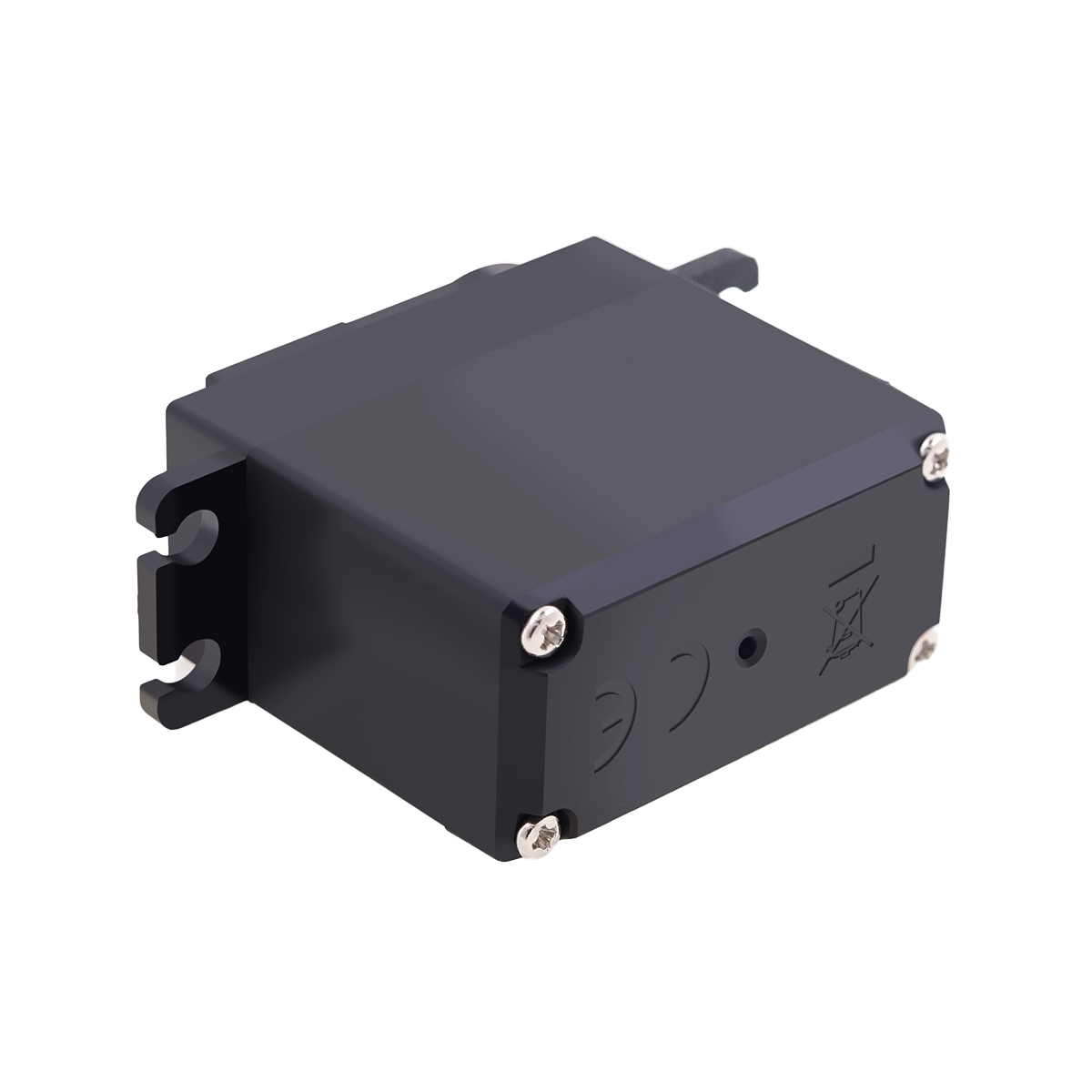

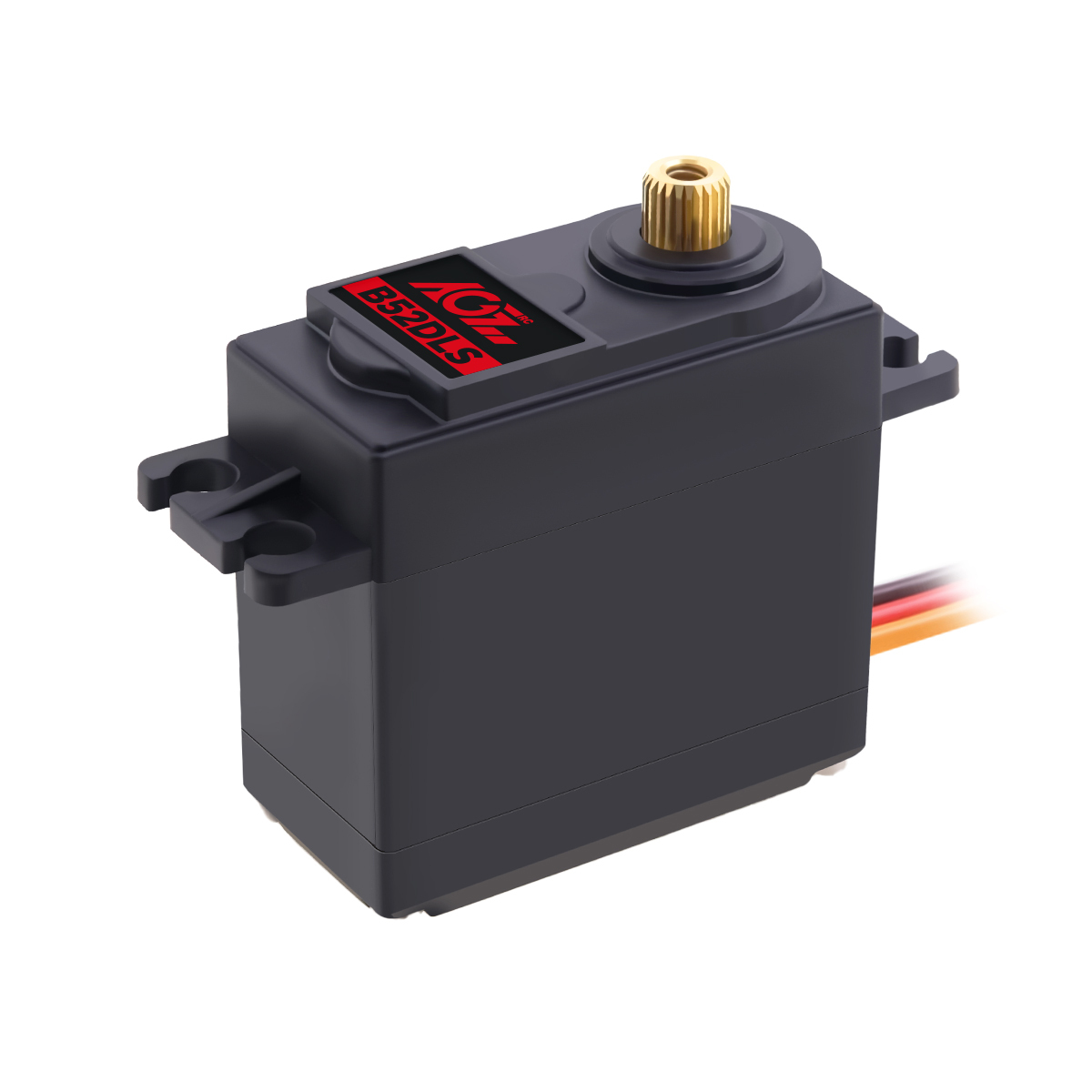

AGFRC B52DLS 52g 6.5-7.5KG.CM DC Motor 40mm Low Voltage Standard Digital Brushed Servo for RC Airplane & Helicopter
AGFRC B52DLS 52g 6.5-7.5KG.CM DC Motor 40mm Low Voltage Standard Digital Brushed Servo for RC Airplane & Helicopter
AGFRC B52DLS 52g 6.5-7.5KG.CM DC Motor 40mm Low Voltage Standard Digital Brushed Servo for RC Airplane & Helicopter
AGFRC B52DLS 52g 6.5-7.5KG.CM DC Motor 40mm Low Voltage Standard Digital Brushed Servo for RC Airplane & Helicopter
AGFRC B52DLS 52g 6.5-7.5KG.CM DC Motor 40mm Low Voltage Standard Digital Brushed Servo for RC Airplane & Helicopter
1 / 5
AGFRC B52DLS 52g 6.5-7.5KG.CM DC Motor 40mm Low Voltage Standard Digital Brushed Servo for RC Airplane & Helicopter
AGFRC B52DLS 52g 6.5-7.5KG.CM DC Motor 40mm Low Voltage Standard Digital Brushed Servo for RC Airplane & Helicopter
AGFRC B52DLS 52g 6.5-7.5KG.CM DC Motor 40mm Low Voltage Standard Digital Brushed Servo for RC Airplane & Helicopter
AGFRC B52DLS 52g 6.5-7.5KG.CM DC Motor 40mm Low Voltage Standard Digital Brushed Servo for RC Airplane & Helicopter
AGFRC B52DLS 52g 6.5-7.5KG.CM DC Motor 40mm Low Voltage Standard Digital Brushed Servo for RC Airplane & Helicopter

AGFRC B52DLS 52g 6.5-7.5KG.CM DC Motor 40mm Low Voltage Standard Digital Brushed Servo for RC Airplane & Helicopter

Send Inquiry

Product Description

Product Overview

B52DLS is an affordable standard digital servo designed for RC cars and aircraft. It features a high-powered DC motor, sturdy metal gears, and dual ball bearings. It operates efficiently up to a maximum voltage of 6.0V, making it a high-value choice for applications requiring multiple servos without compromising performance.

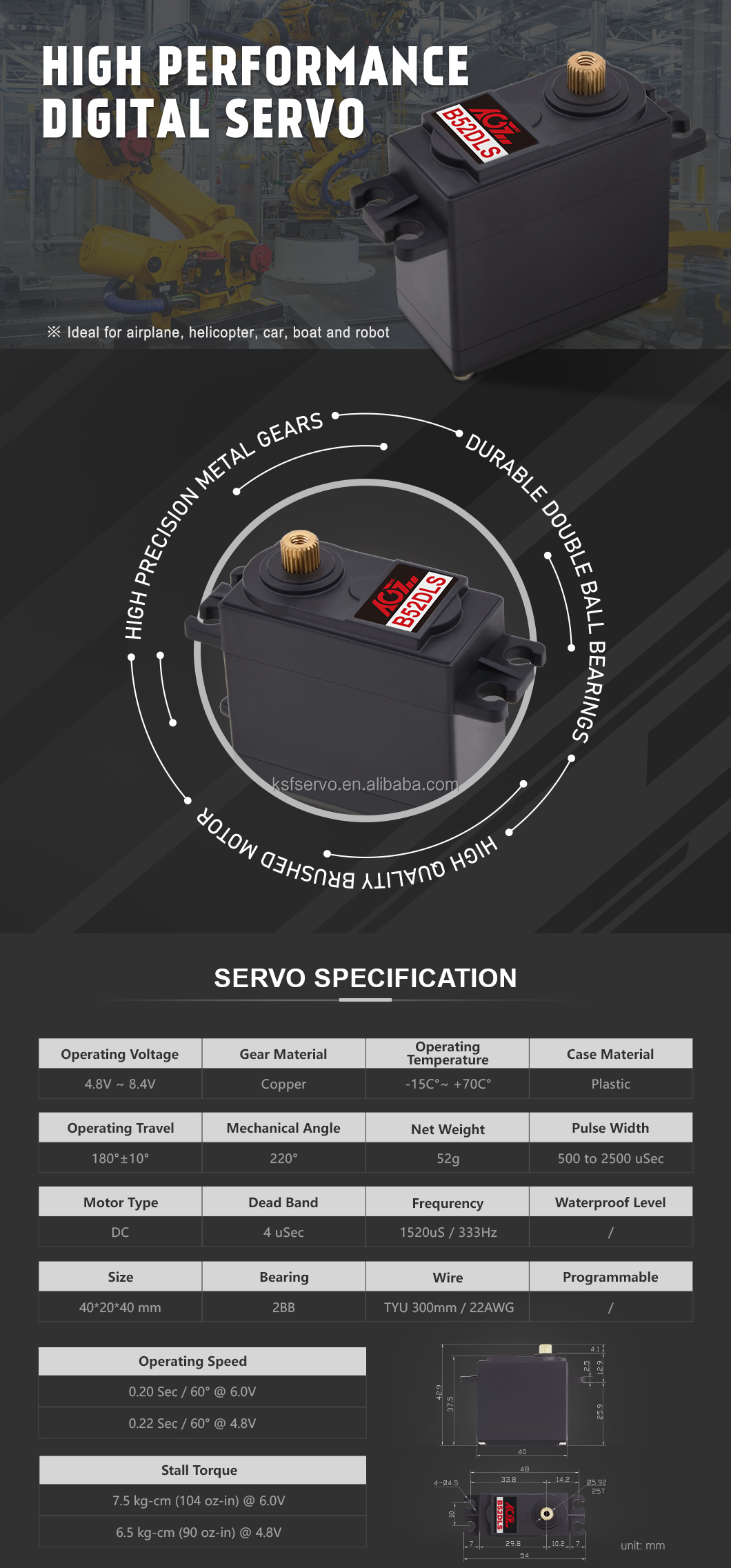

B52DLS Servo

Key Features

  • High Performance Digital Servo System
  • High Precision Metal Gears for maximum durability
  • High Quality Brushed Motor
  • Durable Double Ball Bearings
  • Ideal for airplanes, helicopters, cars, boats, and robotics

Specifications

Model NameB52DLS
Operating Voltage4.8 - 6.0 V
Operating Speed (4.8V)0.17 sec/60°
Operating Speed (6.0V)0.14 sec/60°
Stall Torque (4.8V)7.0 kg-cm (97 oz-in)
Stall Torque (6.0V)8.0 kg-cm (111 oz-in)
Gear MaterialCopper / Metal
Motor TypeDC Brushed
Dimensions40 * 20 * 40 mm (1.57 x 0.78 x 1.57 in)
Weight52g
Connector WireJR 300 mm / 26AWG

Dimensions & Package

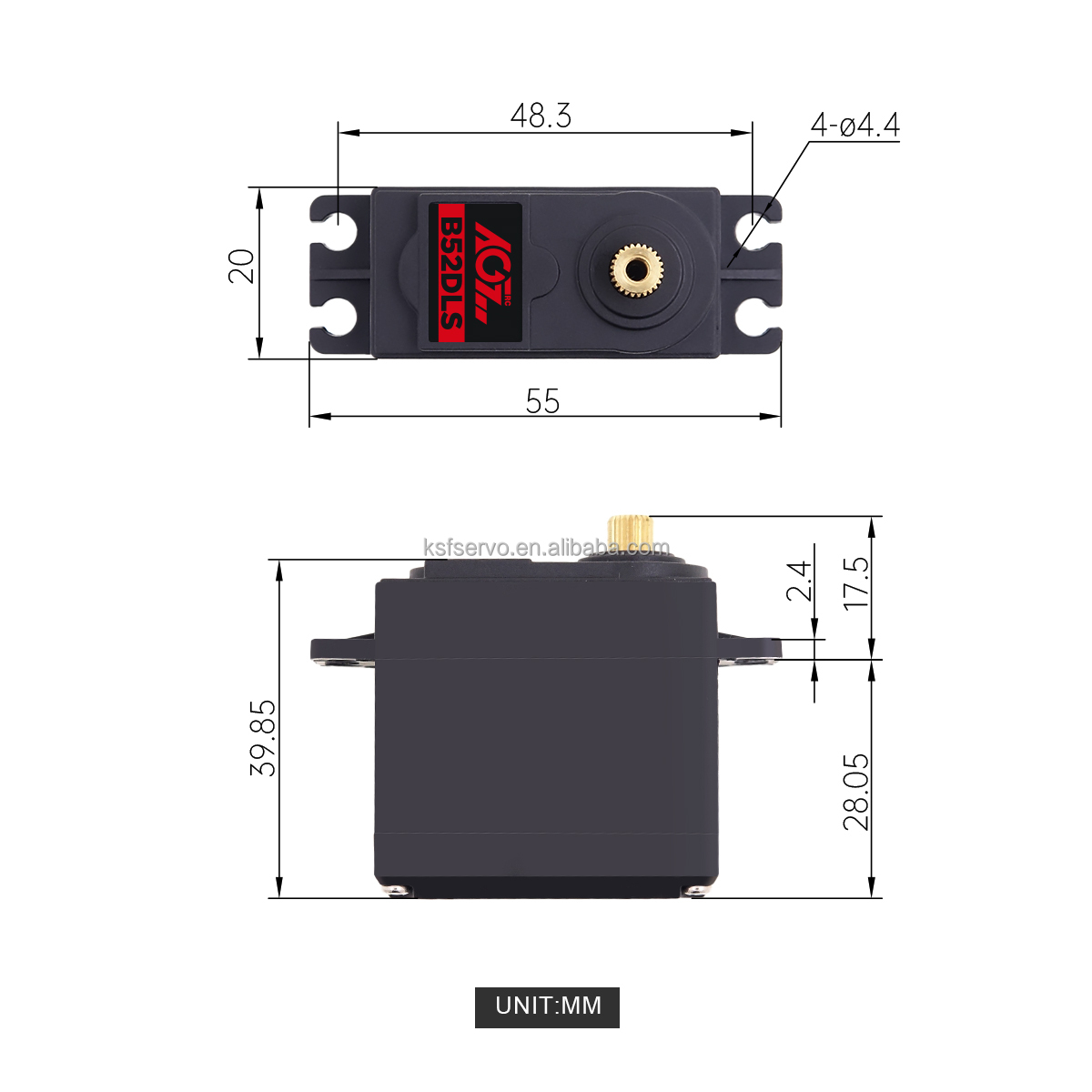

Size Chart

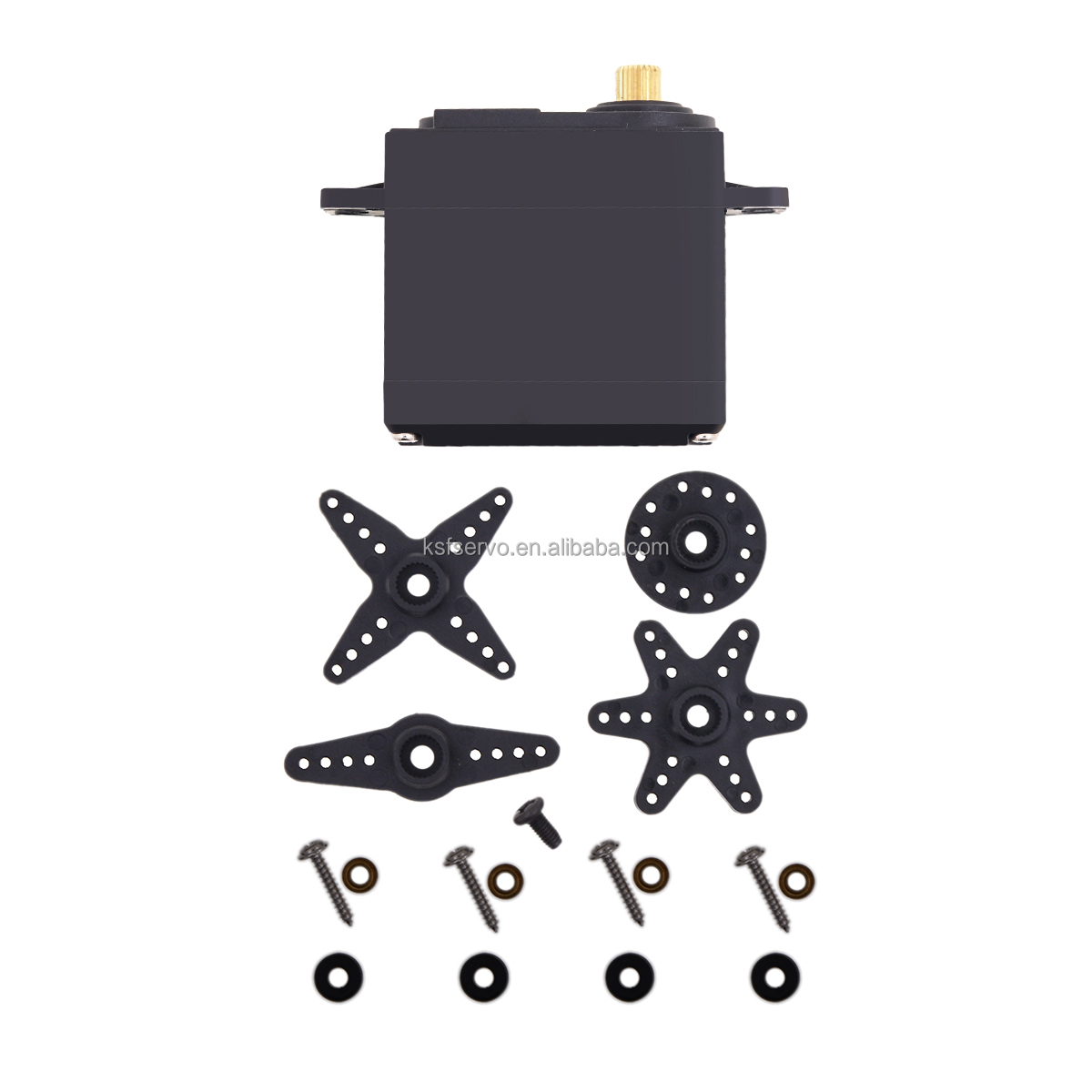

Package Content 1
Package Content 2

Frequently Asked Questions

What types of servos do you offer?
We provide a full range of servos, including analog, digital, micro mini, high-torque, metal gear, and waterproof servos, specially designed for RC vehicles, robotics, and industrial control.
What is the difference between analog and digital servos?
Analog servos are cost-effective for basic needs. Digital servos offer faster response, higher precision, stronger holding torque, and better stability for high-performance models.
Are your servos metal gear or plastic gear?
We offer both. Most high-torque models use full metal gears (aluminum/steel) for durability, while micro servos may use high-strength plastic for weight reduction.
What voltage do your servos support?
Most support 4.8V-6.0V. High-performance models can support wide voltage ranges up to 7.4V or 8.4V for increased speed and torque.
How to choose the right servo for my project?
Consider Torque (load requirements), Speed (response time), Size (installation space), and Voltage (battery power supply) to match your specific application.
Do you offer customized servos?
Yes, we support OEM/ODM customization including torque, speed, wire length, connector types, and logo printing depending on order volume.
