Number of Stator
Three-Phase
Casing Protection
Closed Type
Starting Mode
Variable Frequency Starting
Transport Package
Wooden Box
Specification
670*260*425mm
Production Capacity
30000pieces/Year
Package Size
67.00cm * 26.00cm * 43.00cm
Package Gross Weight
10.000kg

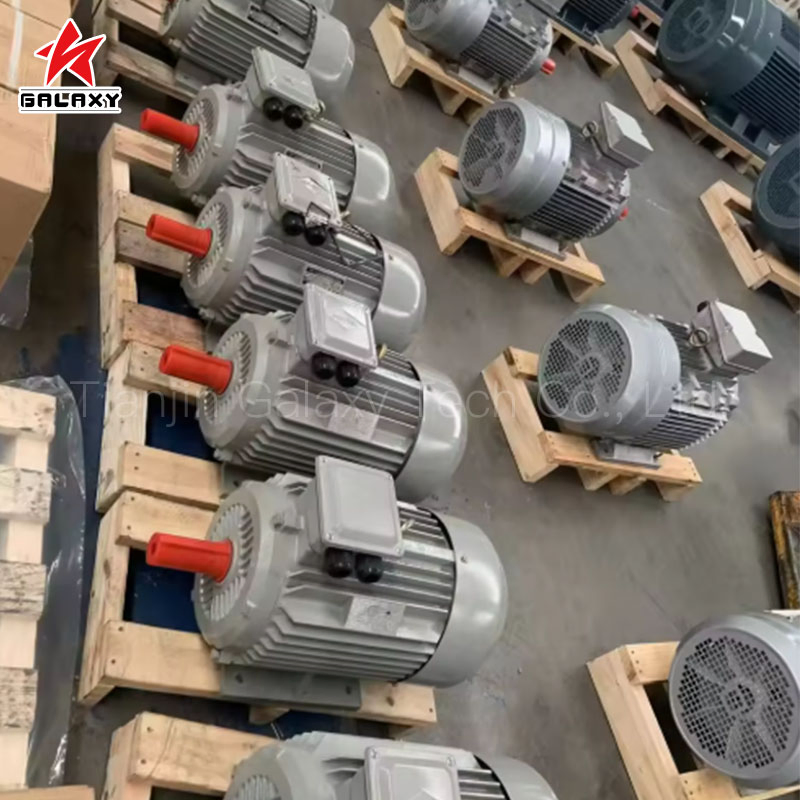

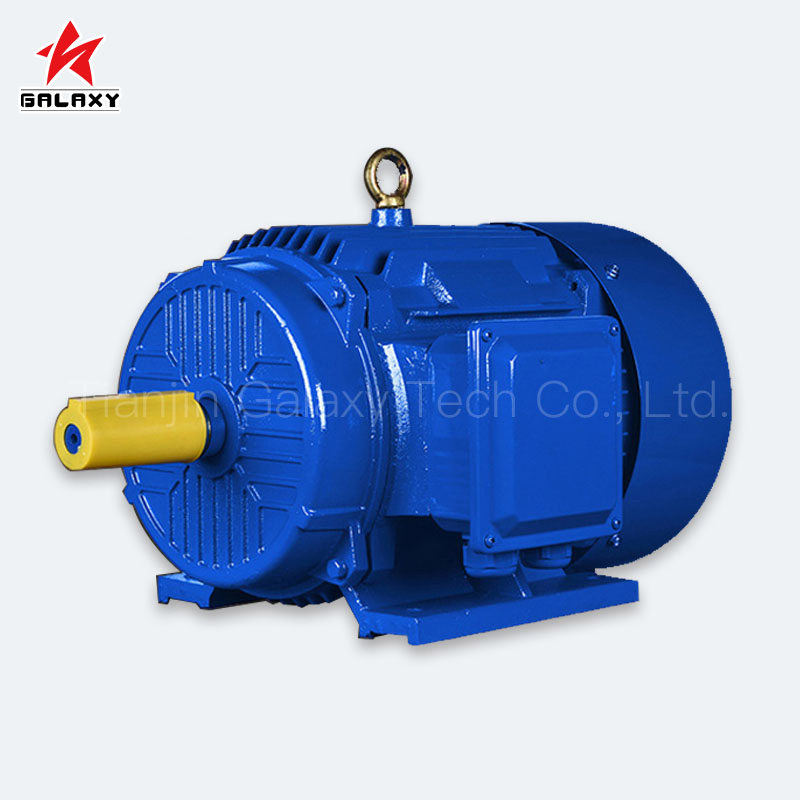

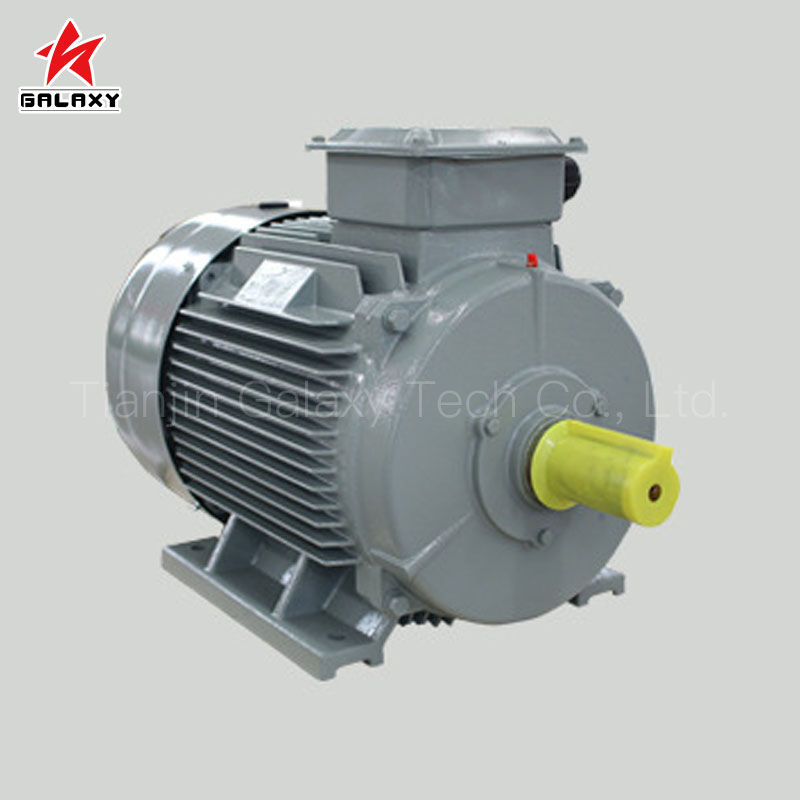

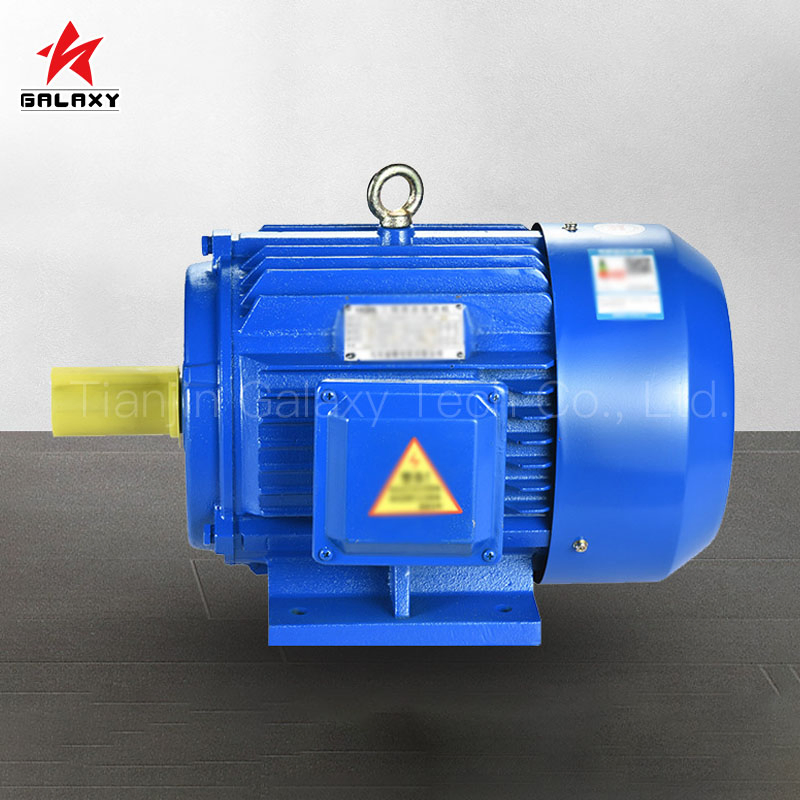

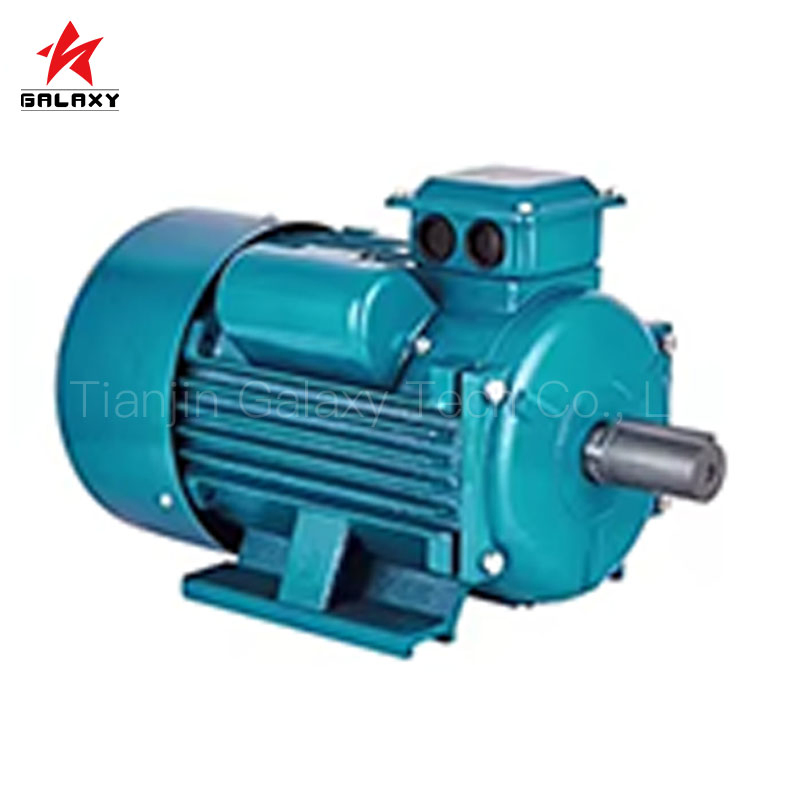

Our permanent magnet motor is a fully enclosed rare-earth permanent magnet synchronous motor featuring high overload capacity, high efficiency, high power factor, smooth operation, simple maintenance, and strong interchangeability. It combines the advantages of both asynchronous and conventional synchronous motors. The cooling methods are IC416/IC411, with a duty type of S1. The installation method complies with IEC and DIN standards, ensuring international compatibility.
Product Advantages:
1. By using rare-earth materials, the permanent magnet motor offers higher overload capacity, greater efficiency, and more stable operating performance.
2. Features an optimized structural design to ensure low inertia, a wide operating frequency range, and smooth torque output at low speeds.
3. Adopts a standard enclosed structure to maintain stable operation under various extreme working conditions.
4. Prevents rotor heating and power loss, achieving higher energy efficiency and lower operating costs.
5. Widely used in industries such as mining, power plants, steel mills, and water treatment.
6. Low temperature rise during full-load operation.
| Base Number | JPM160M30-15 |
| Rated Power | 15kW |
| Rated Rotate Speed | 3000RPM |
| Rated Voltage | 380Vac |
| Rated Current | 25.14A |
| Frequency | 150Hz |
| Poles | 6 |
| Efficiency | 95.30% |
| Wending Method | Y |
| Protection Level | IP55 |
| Rated Torque | 47.8Nm |
| Installation Method | B3/B5/(B35 needs to be ordered separately) |
| Magnet Type | NdFeB |
| Working Temperature | -15ºC-40ºC |
| Housing Material | Cast Iron |
| Shaft Material | 45 Steel |
| Cooling Method | IC411 |

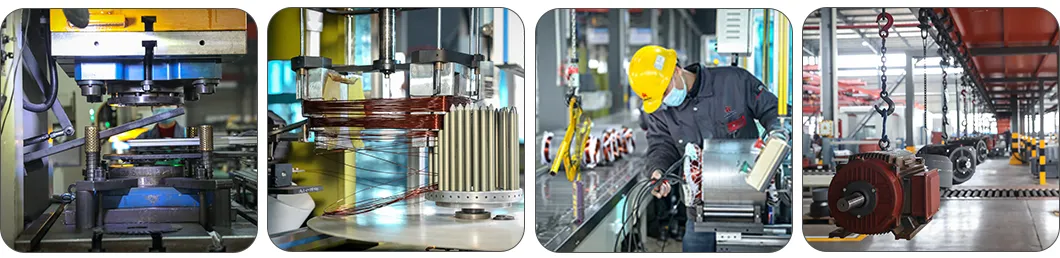

Manufacturing & Application
Performance Highlights
High Efficiency: Above 90% from 25% to 120% load, equivalent to IE5 level.
High Power Density: Compact size with high output power.

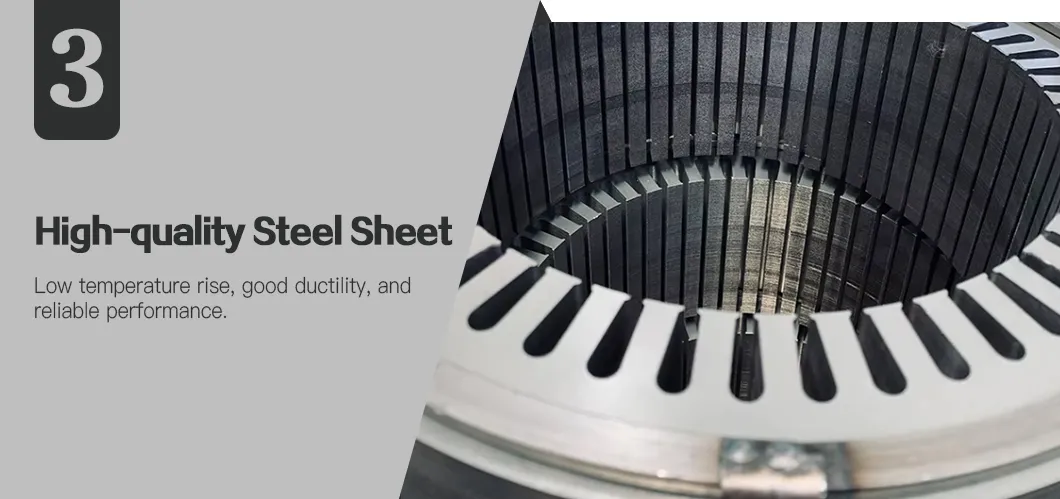

Low Temperature Rise: Reliable operation under full-load.
Versatility: Suitable for compressors, elevators, fans, and more.

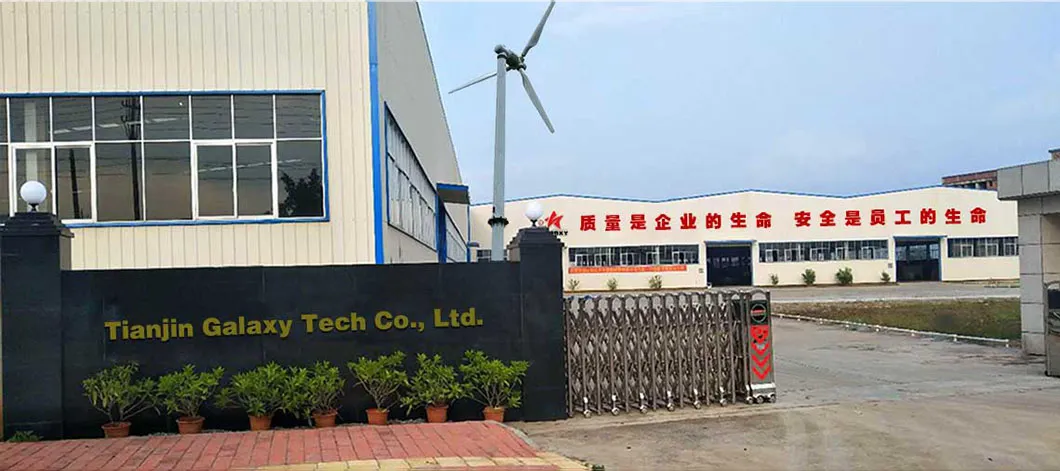

One of China's leading manufacturers and exporters of permanent magnet motors, permanent magnet generators (including coreless generators), and small-to-medium wind turbines. With over a decade of experience in the design, R&D, manufacturing, and marketing, most products hold patent certificates. The team is capable of providing specialized green energy solutions tailored to customer requirements.
Main products include 600W-250KW horizontal-axis and vertical-axis wind turbines, residential wind power systems, and energy-efficient permanent magnet motors used in compressors, water pumps, and mining machinery. Products are exported to Europe, America, South Korea, Thailand, and the Middle East.
Service Commitment:
1. Strict quality inspection before shipment.
2. Rapid response and technical support during the warranty period.
3. Lifetime free technical support for all customers.
4. Detailed guidance for any purchase or installation queries.
Precautions:
- Ensure appropriate operating environment to maximize service life.
- Follow the product manual to avoid misuse failures.
- Regularly inspect product conditions.
Frequently Asked Questions
Q1: What are the main benefits of using rare-earth permanent magnets in motors?
A: Rare-earth materials provide higher overload capacity, superior energy efficiency (IE5), and more stable torque output compared to standard asynchronous motors.
Q2: Does this motor comply with international installation standards?
A: Yes, all our permanent magnet synchronous motors are designed to comply with European IEC and DIN standards for easy global integration.
Q3: What is the protection rating and suitability for harsh environments?
A: The motor features an IP55 protection level and a fully enclosed structure, making it highly reliable for mining, petroleum, and chemical industries.
Q4: How does the motor maintain efficiency at different loads?
A: It maintains a high efficiency of over 90% across a wide range of 25% to 120% load, significantly reducing long-term operating costs.
Q5: What cooling methods are utilized?
A: We primarily use IC411 and IC416 cooling methods, which ensure low temperature rise even during full-load operations.
Q6: What kind of maintenance is required?
A: These motors are designed for maintenance-free operation under standard conditions, though regular status checks are recommended per the manual.
