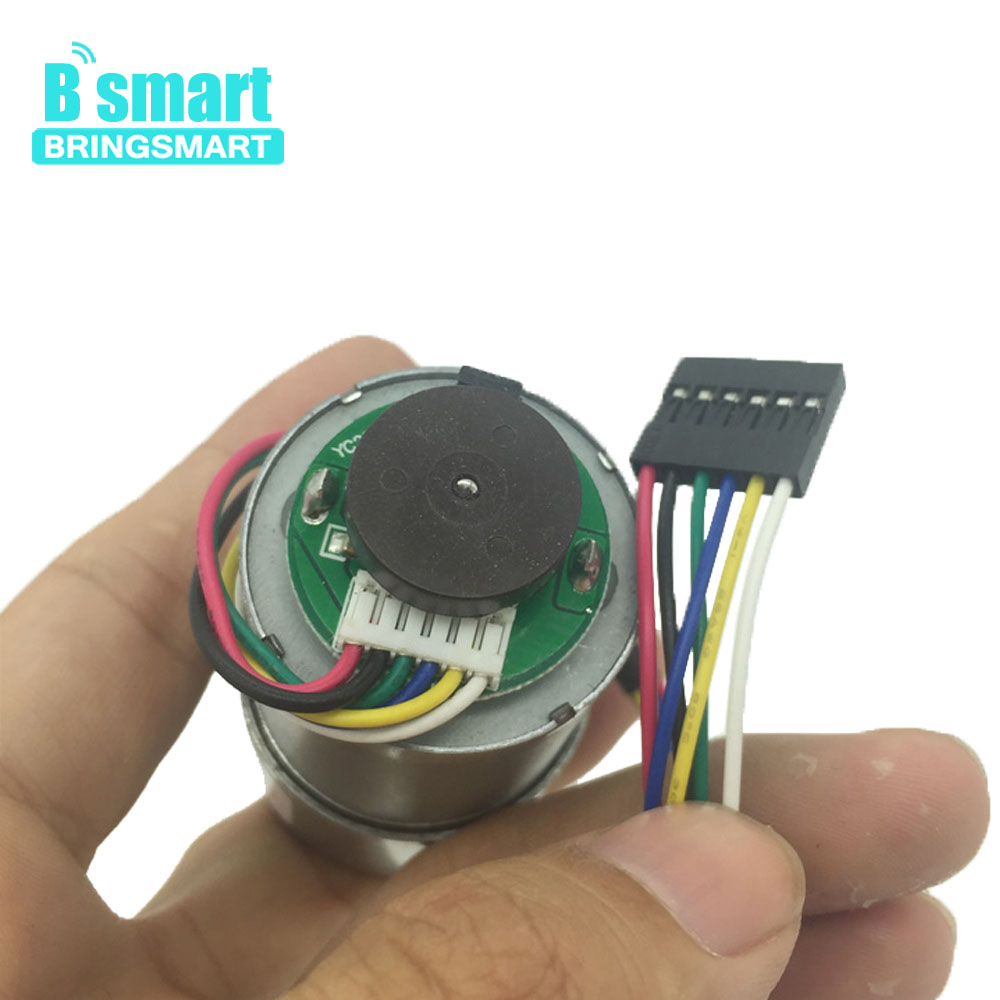

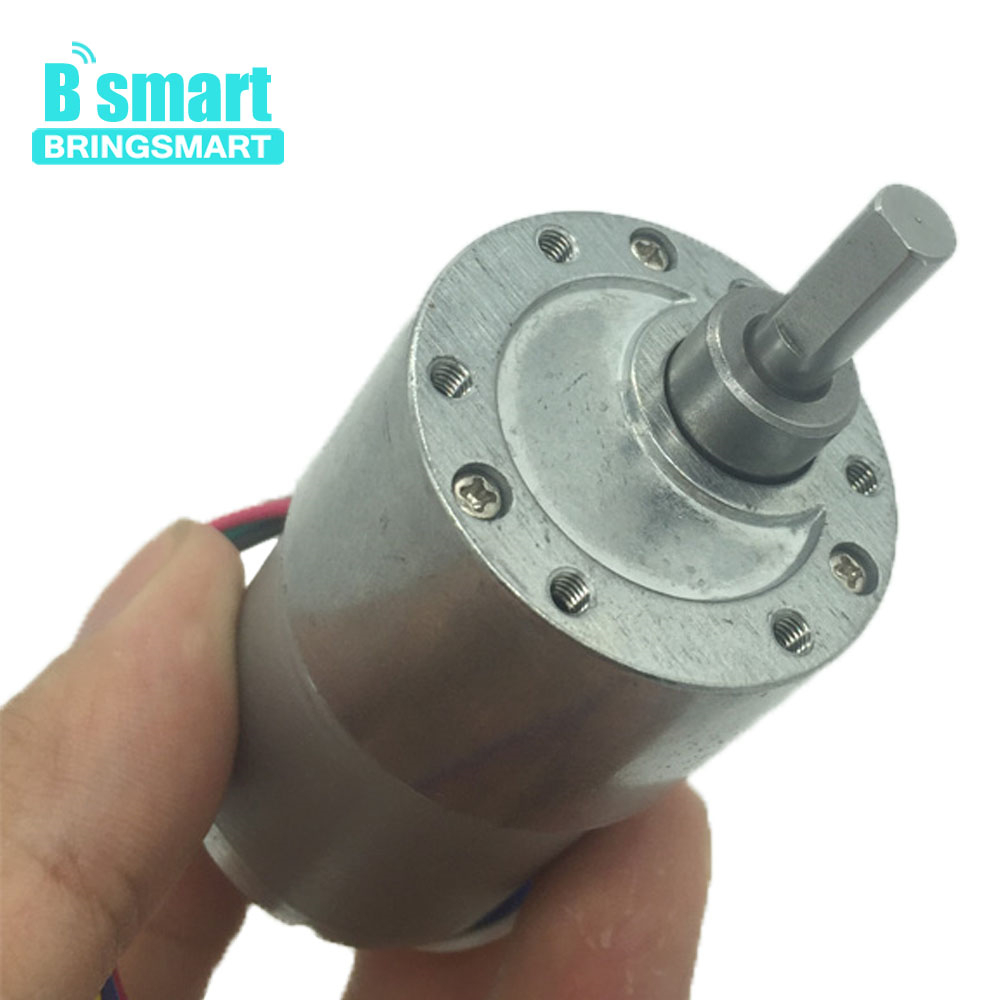

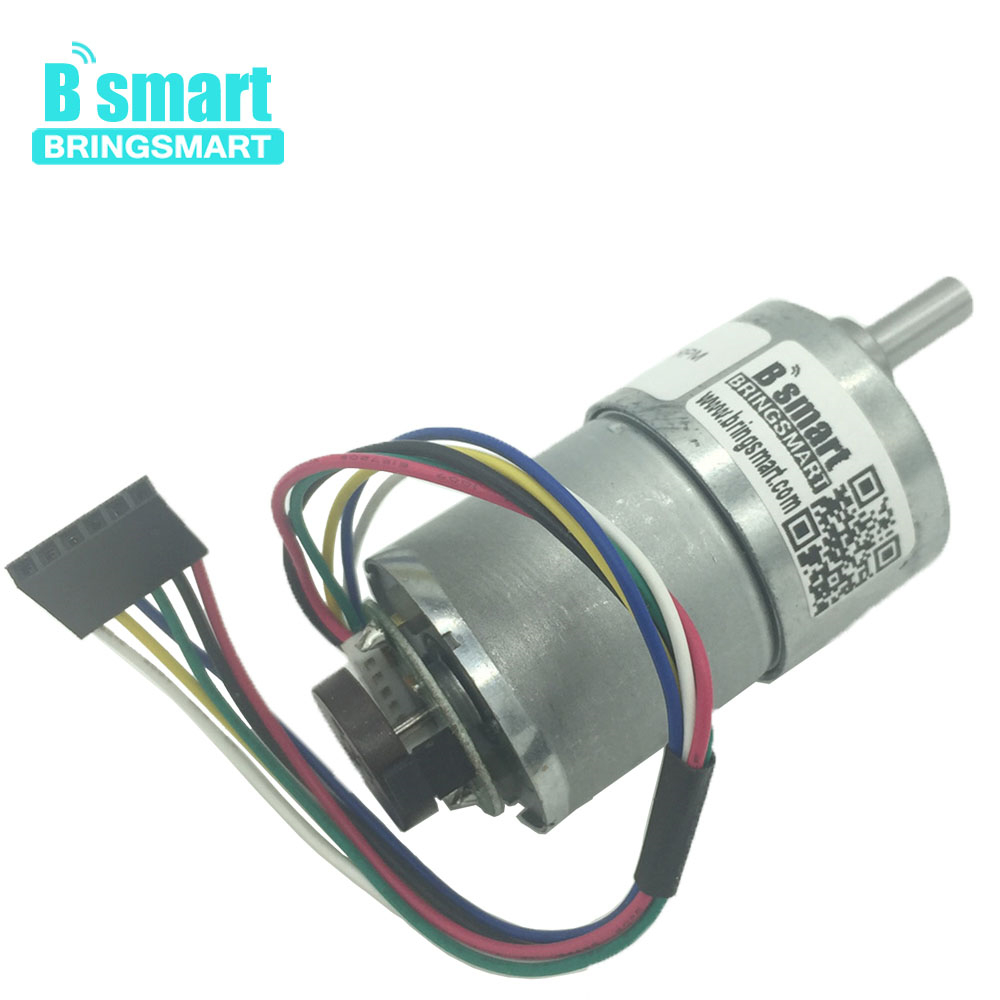

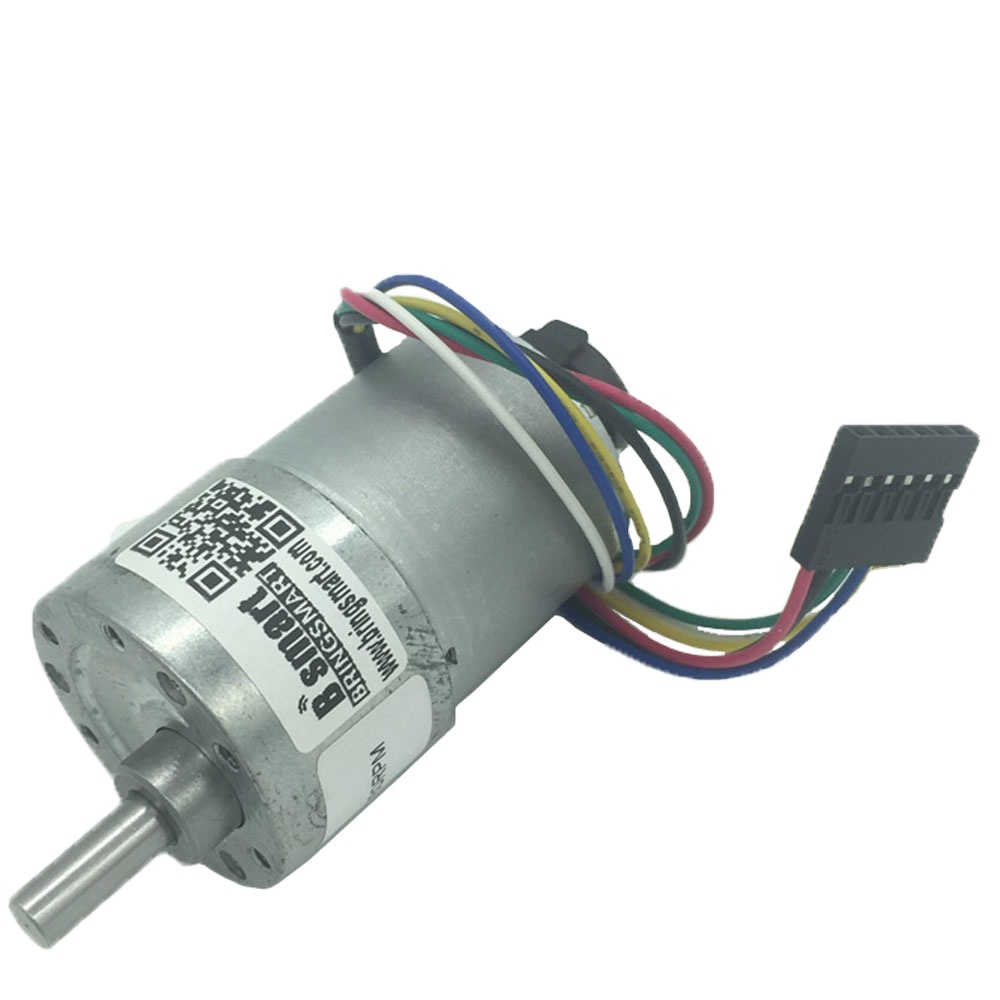

BringSmart JGB37-3530B 24V Dc Motor 12volt Encoder Gear Motor High Torque Micro Dc Gear Motor with Encoder
BringSmart JGB37-3530B 24V Dc Motor 12volt Encoder Gear Motor High Torque Micro Dc Gear Motor with Encoder
BringSmart JGB37-3530B 24V Dc Motor 12volt Encoder Gear Motor High Torque Micro Dc Gear Motor with Encoder
BringSmart JGB37-3530B 24V Dc Motor 12volt Encoder Gear Motor High Torque Micro Dc Gear Motor with Encoder
BringSmart JGB37-3530B 24V Dc Motor 12volt Encoder Gear Motor High Torque Micro Dc Gear Motor with Encoder
1 / 5
BringSmart JGB37-3530B 24V Dc Motor 12volt Encoder Gear Motor High Torque Micro Dc Gear Motor with Encoder
BringSmart JGB37-3530B 24V Dc Motor 12volt Encoder Gear Motor High Torque Micro Dc Gear Motor with Encoder
BringSmart JGB37-3530B 24V Dc Motor 12volt Encoder Gear Motor High Torque Micro Dc Gear Motor with Encoder
BringSmart JGB37-3530B 24V Dc Motor 12volt Encoder Gear Motor High Torque Micro Dc Gear Motor with Encoder
BringSmart JGB37-3530B 24V Dc Motor 12volt Encoder Gear Motor High Torque Micro Dc Gear Motor with Encoder

BringSmart JGB37-3530B 24V Dc Motor 12volt Encoder Gear Motor High Torque Micro Dc Gear Motor with Encoder

Send Inquiry

Product Description

Main Product DC Motor, AC Motor, DC Linear Actuator
OEM/ODM Accepted
Delivery Time Within 15 days

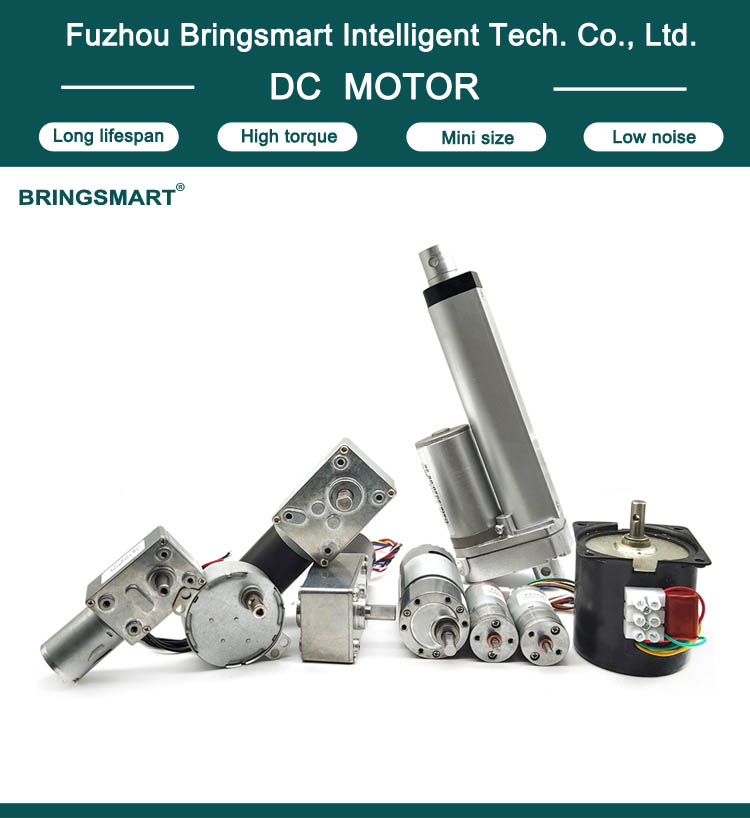

Product Display

The motor types are various. Please send us your technical requirements, and we will recommend the suitable model according to your request.

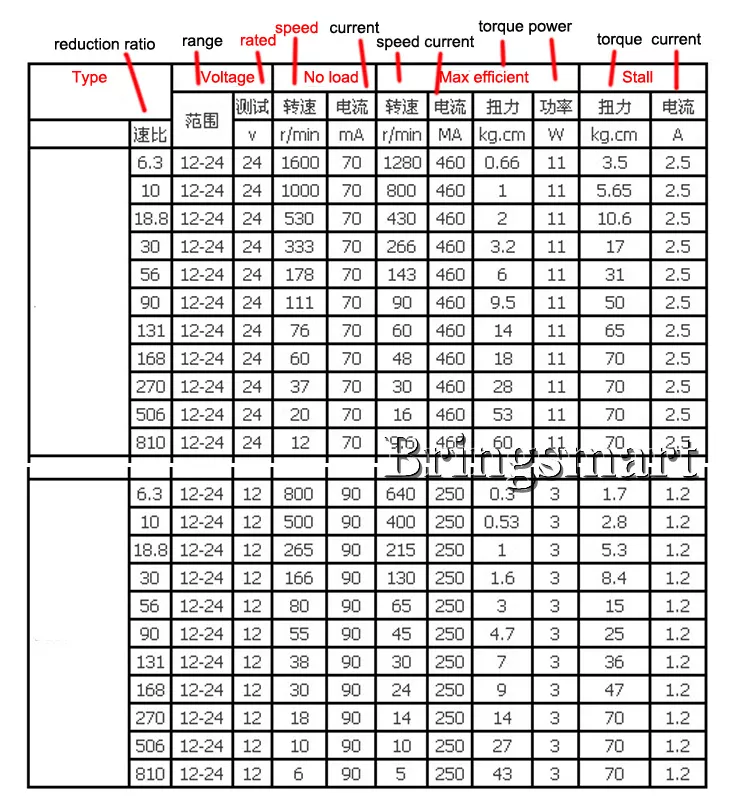

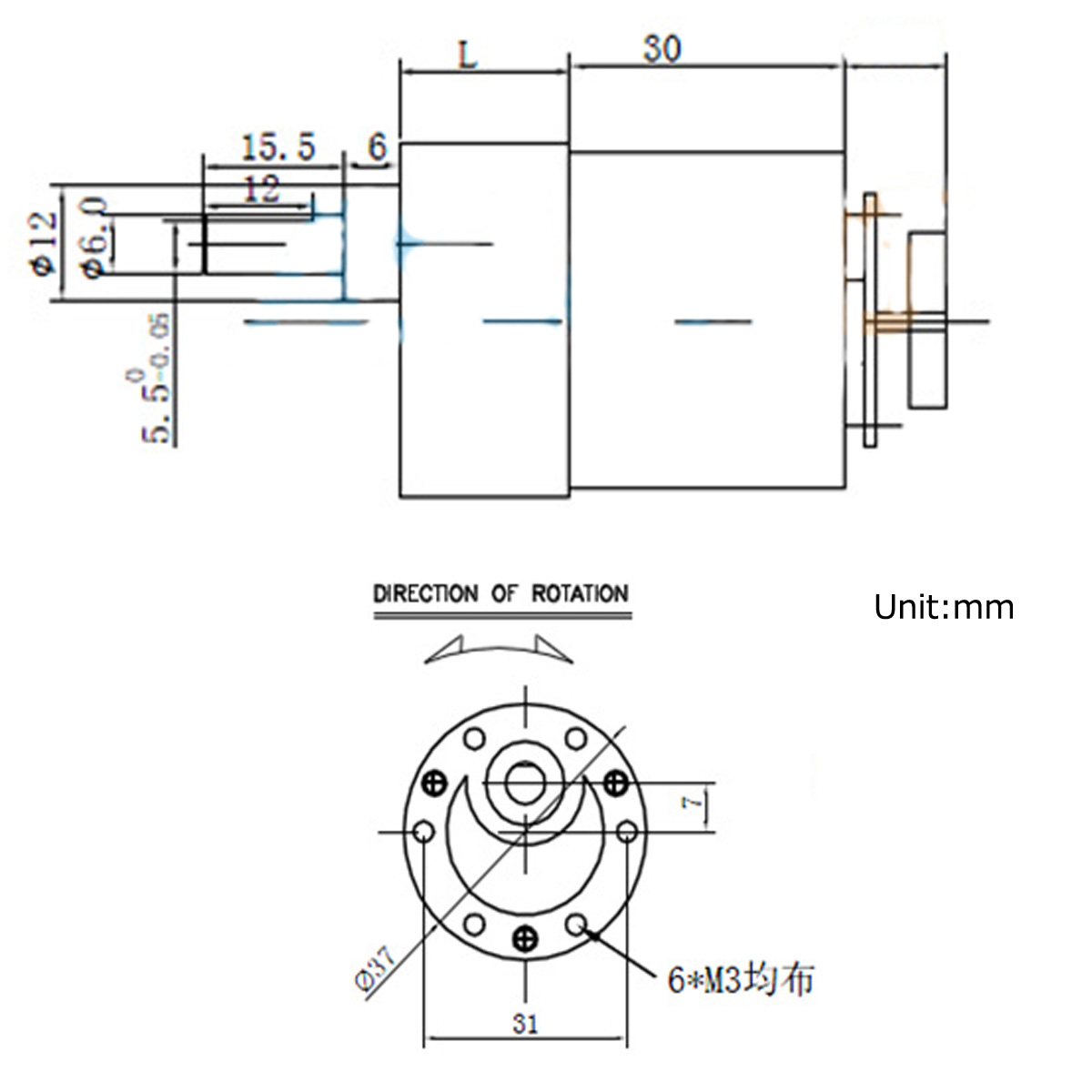

Products Description

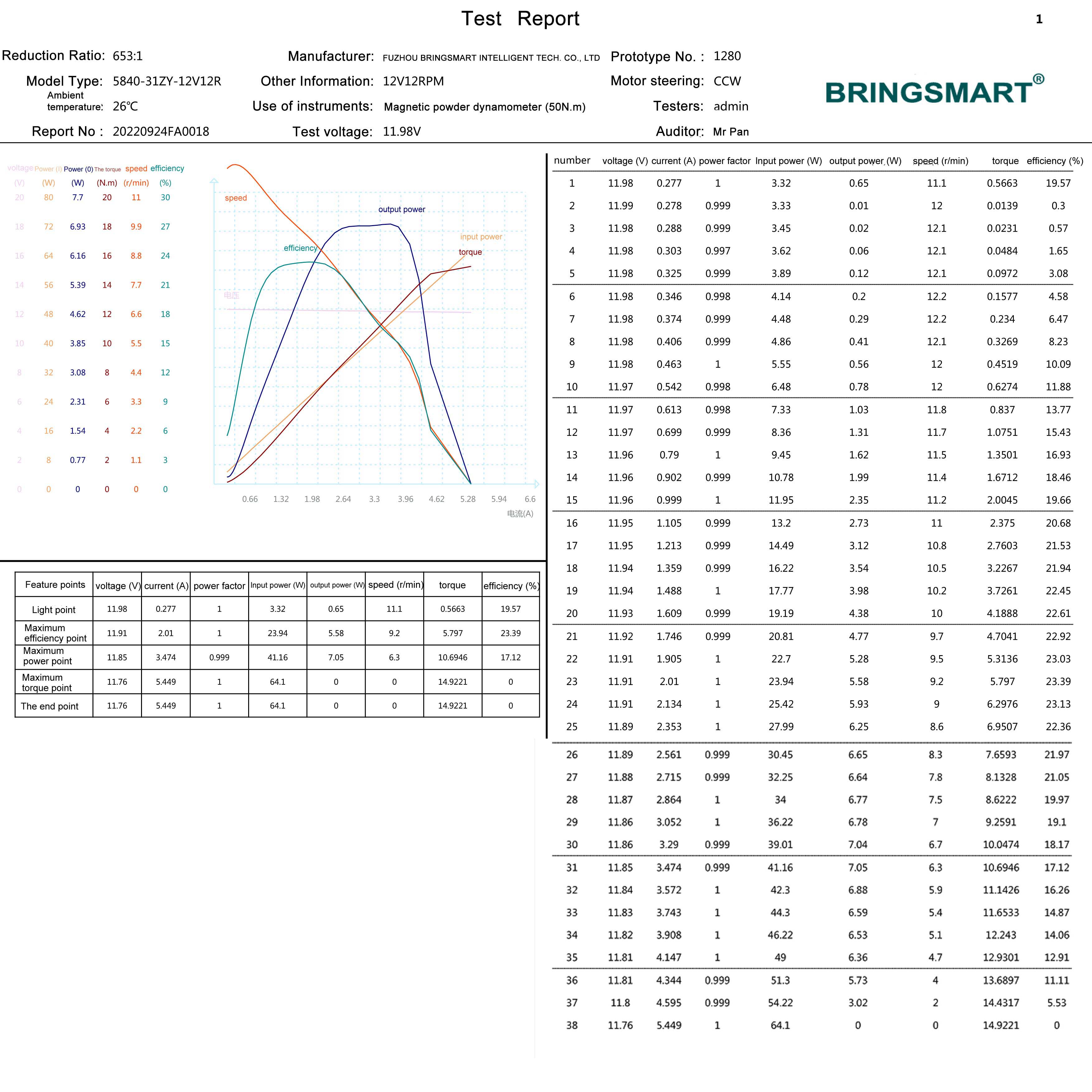

Performance Curves

Professional detailed performance curve files are available upon request for technical verification.

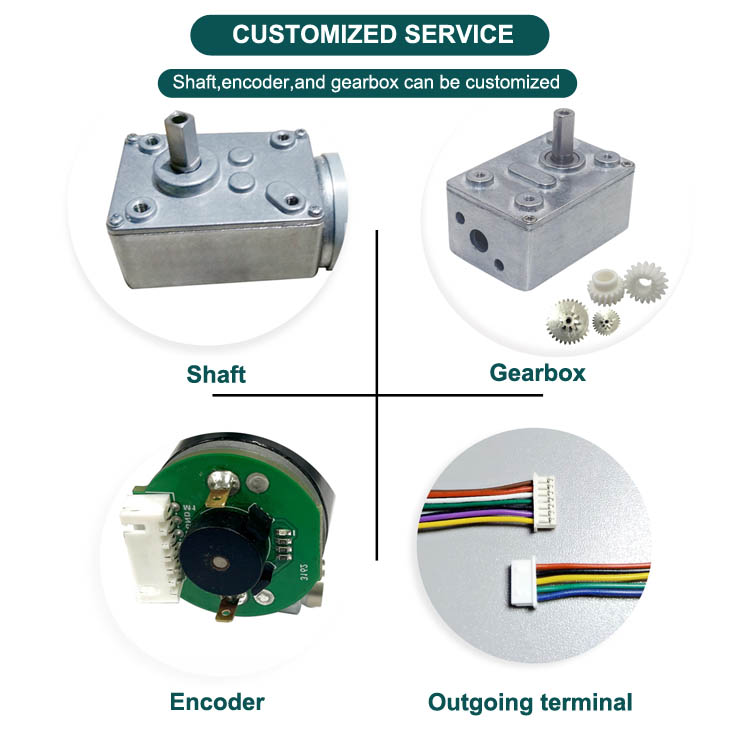

Customized Service

We can customize various shafts, terminals, gearboxes, and code discs according to your specific industrial requirements. Send us an inquiry to discuss your needs.

Application

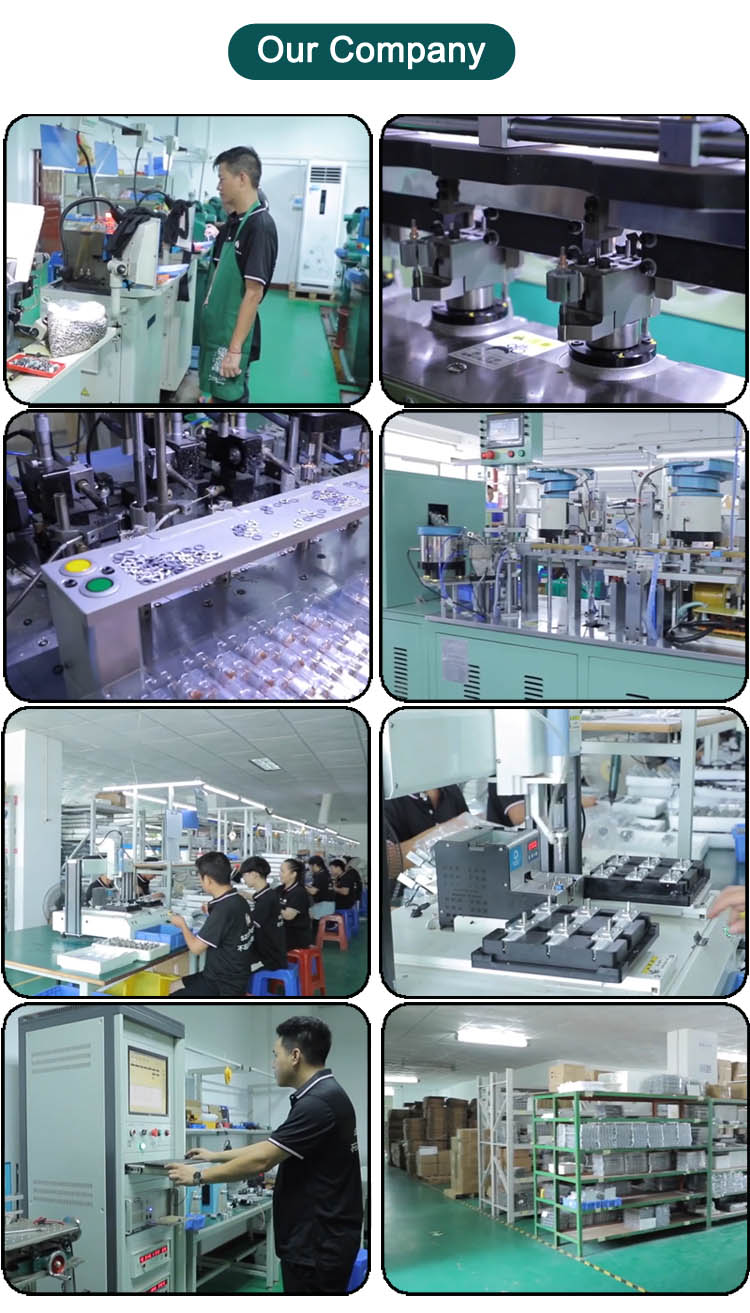

Company Profile & Quality Control

We are one of the leading manufacturers and exporters in the motor and linear actuator industry with 11 years of experience. Our commitment to product innovation and knowledgeable staff are key elements of our success. We have established a complete state-of-the-art working system for CNC, R&D, and Q.C. to ensure each product meets the highest quality standards before shipping.

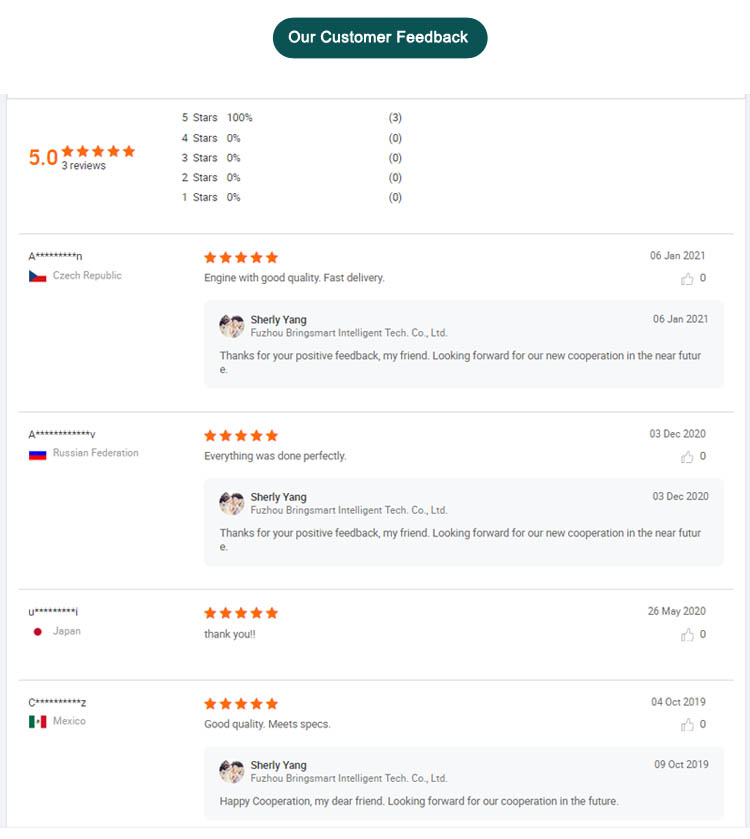

Certifications & Feedback

Customer Feedback: Excellent quality, competitive price, professional service, and on-time delivery.

FAQ
What is the material used for the gears?
The motor gears are made of high-quality metal. Other materials are available upon request based on your specific application needs.
What does the rated torque mean in practical use?
Torque represents the load capacity. For example, a 12V 12rpm motor with 70kg.cm torque can load 70kg at 1cm diameter. If the load diameter is 10cm, the capacity becomes 7kg. Do not exceed the rated load to avoid gear wear.
How can I change the rotation direction or speed?
To change direction, simply reverse the wiring polarity. To adjust speed from 0-100%, you can use a compatible speed controller.
What is the "Self-locking" feature?
Self-locking means that when the power is off, the motor maintains a locking torque and cannot be easily moved by external forces. This is ideal for security applications like anti-theft sliding doors.
What happens if I connect the wrong voltage?
Connecting a 12V motor to an 18V source will damage the motor. Connecting a 24V motor to 18V will result in significantly reduced speed and torque, and it may not run at all.
What should I do if my order is delayed?
Occasionally, logistics may experience slight delays. Please contact us immediately if you haven't received your order, and we will provide an efficient solution.
