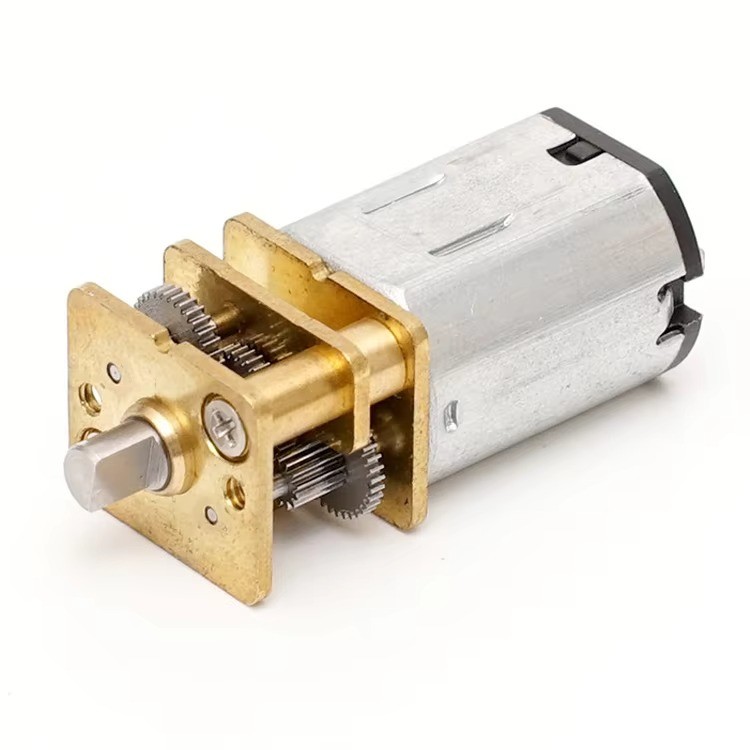

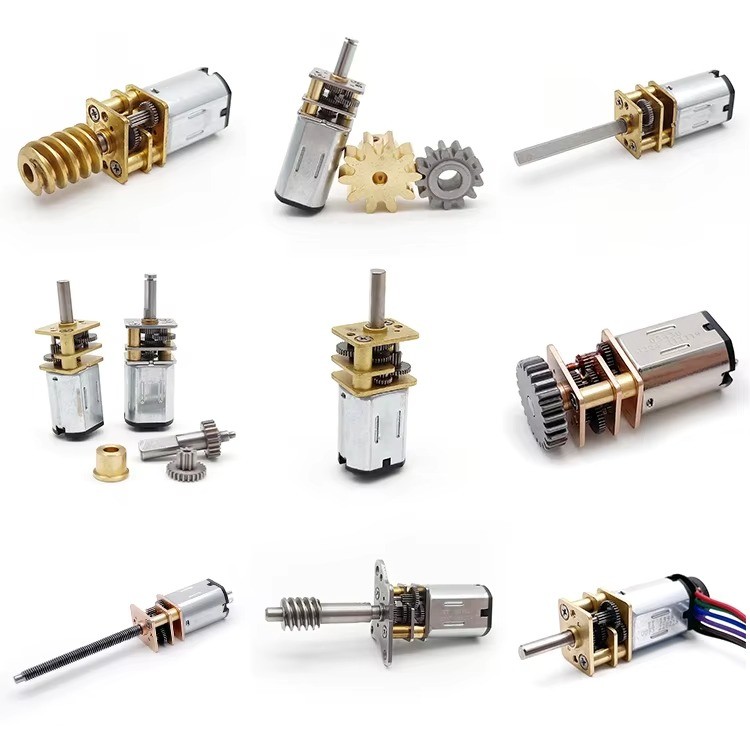

N10 N20 N30 Micro DC Motor Low Noise 3V Micro DC Gear Motor High Torque 12V Micro Gear Motor for Robotics

Send Inquiry

Product Description

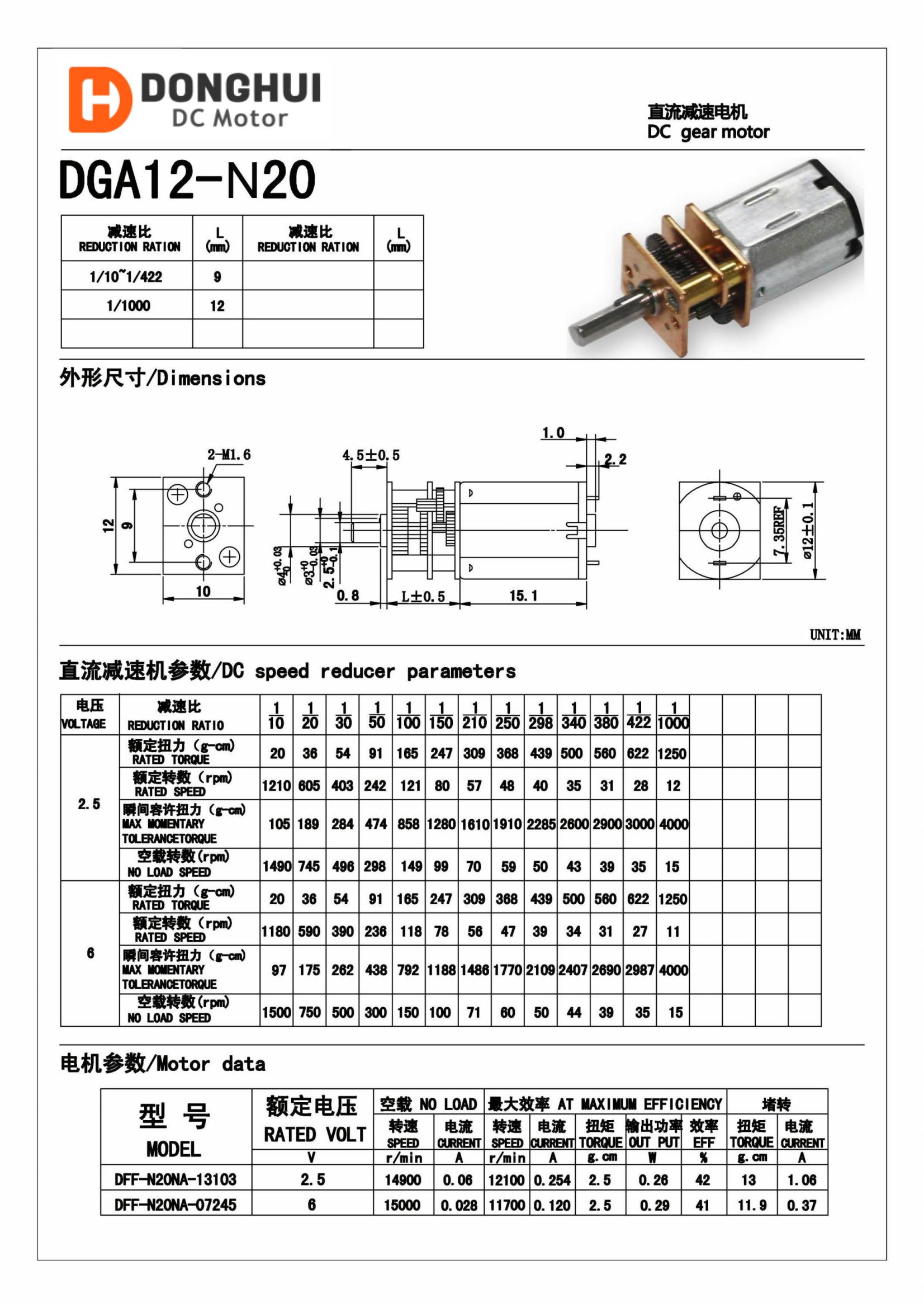

KEY SPECIFICATION OF THE MOTOR

Product Name	12v dc gear motor
Motor Type	brush gear motor
Motor Model No	DGA12-N20
Size(Dimensions)	D12*W10mm
Operating Voltage	3V~24V DC
No Load Speed	10~2000 r/min
Load Torque	0.5kg.cm~5kg.cm
Typical Application	Electric Massager, Home Appliance, Smart Home
Shaft Length	Customized
Shaft Shape	D-Cut
Typical Application	New Energy Charging Pile, Shared transportation, Electronic Lock, Smart Home, RC Car Toy, etc.

Frequently Asked Questions (FAQ)

1. What is the standard voltage range for the DGA12-N20 motor?

The motor operates within a wide DC voltage range from 3V to 24V, making it versatile for various electronic applications.

2. Can the motor shaft be customized for specific needs?

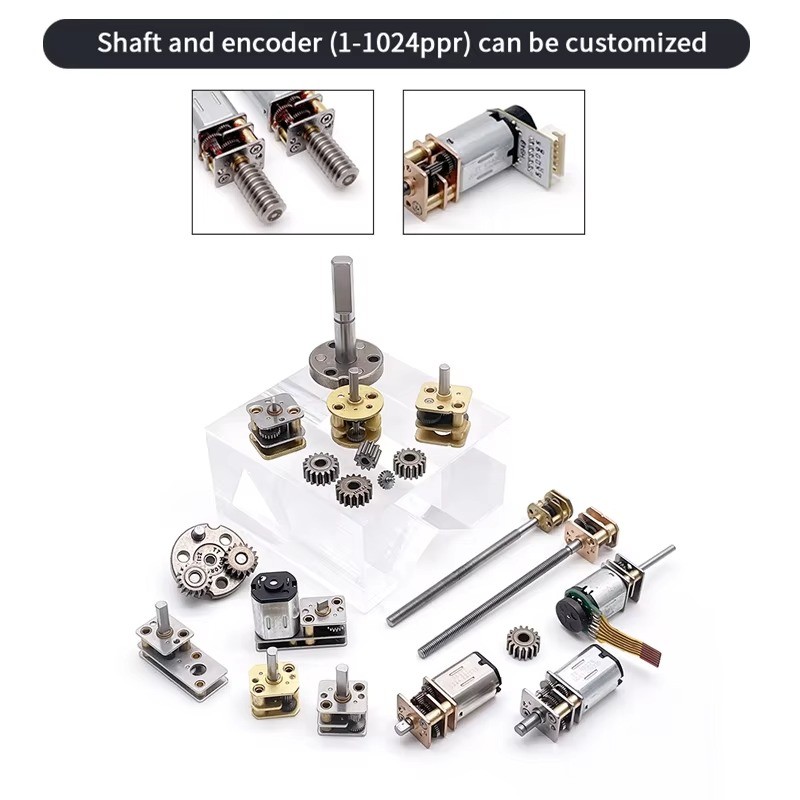

Yes, the shaft length is fully customizable. The standard shape provided is a D-cut shaft for secure gear or wheel mounting.

3. What are the common applications for this 12V DC gear motor?

Typical applications include electric massagers, smart home devices, electronic locks, RC toy cars, and shared transportation equipment.

4. What is the speed and torque performance of this model?

The motor offers a no-load speed between 10 to 2000 r/min and can handle a load torque ranging from 0.5kg.cm to 5kg.cm.

5. Is the DGA12-N20 a brushless or brushed motor?

The DGA12-N20 is a high-quality brush gear motor designed for reliable performance in compact spaces.

6. Are there other motor types available besides gear motors?

Yes, our technical specifications cover various types including standard DC motors, brushless DC motors, and coreless DC motors.
