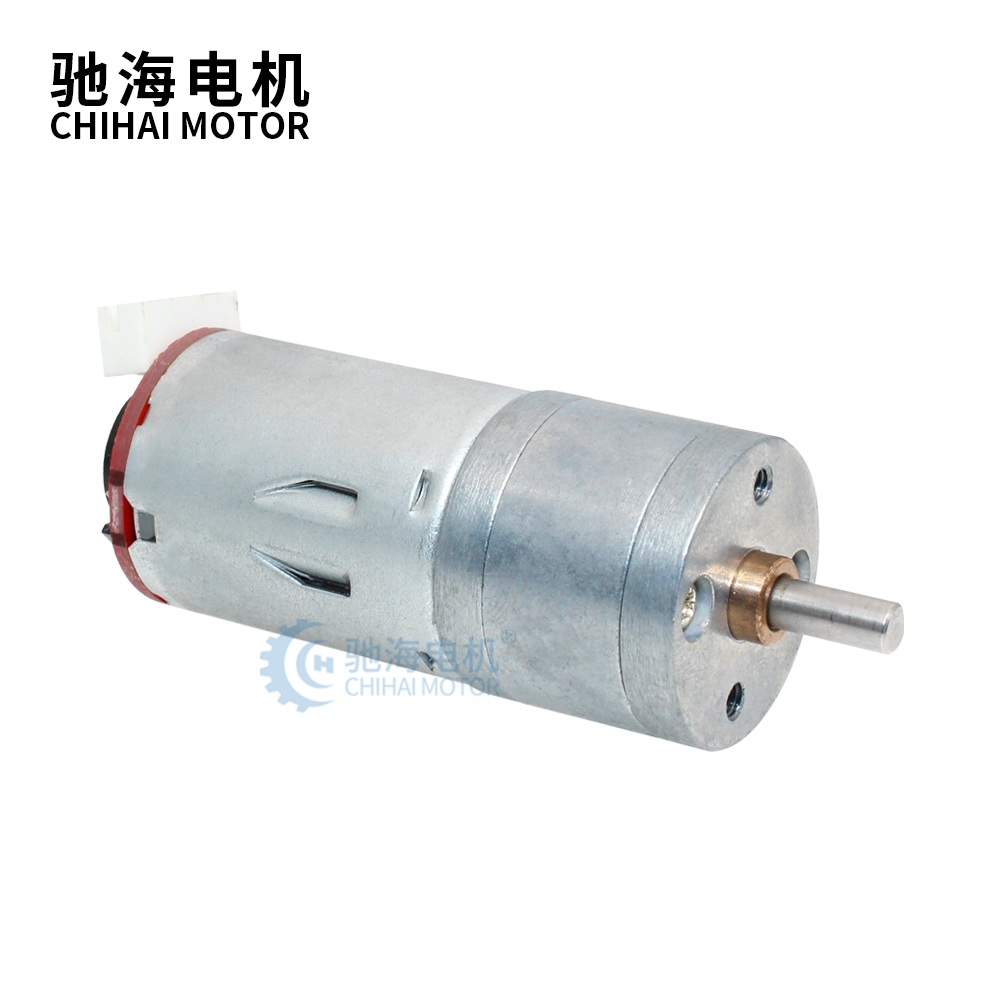

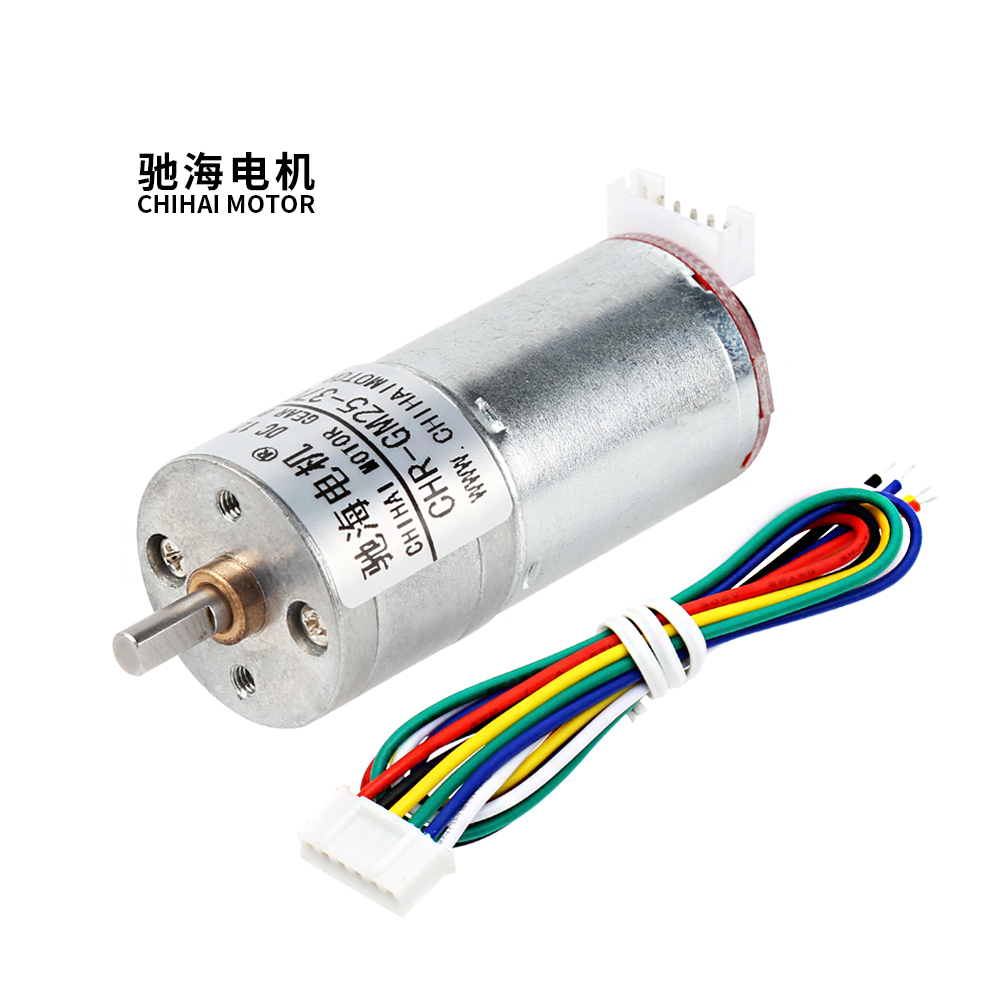

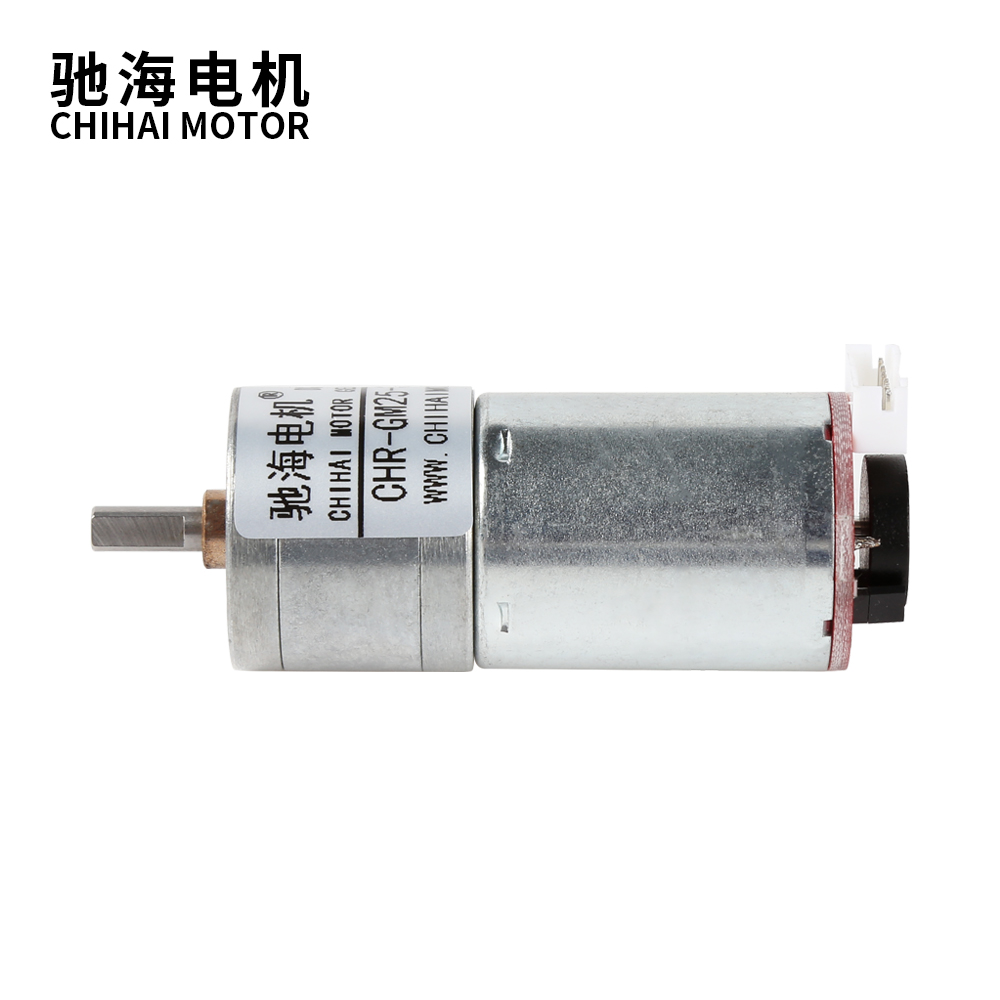

ChiHai Motor CHR-GM25-370ABHL the Low Voltage 6V 12V 24V Dc Mini Encoder Motor for Intelligent Electric Control Toy Car

1 / 5

ChiHai Motor CHR-GM25-370ABHL the Low Voltage 6V 12V 24V Dc Mini Encoder Motor for Intelligent Electric Control Toy Car

Send Inquiry

Product Description

Product Type	CHR-GM25-370 permanent magnet dc gear reducer encoder motor
Features	All metal spur gear structure, strong magnetic torque, 370 motor matching

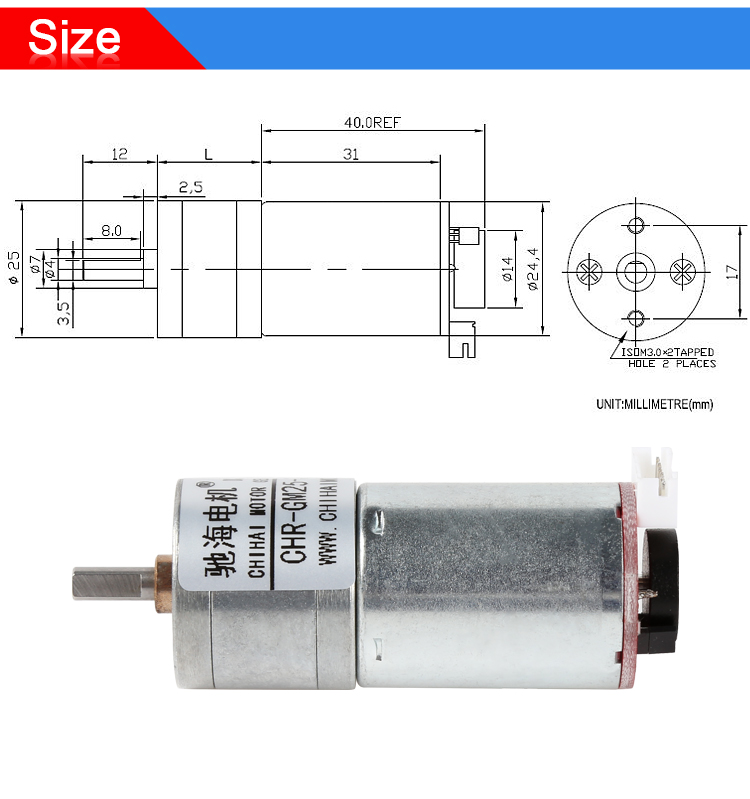

Output Shaft Length	Diameter 25mm * Lmm (varies by reduction ratio)
Axle Diameter	Out axis diameter 4mm D-type, thickness 3.5mm (customizable)
Axis Length	Length 12mm, D-shaped section 8mm (customizable)
Weight	Approximately 110 grams
Application Case	Intelligent robot, electric curtain, intelligent balance car, intelligent manipulator, etc.

Key Product Details

⚙️

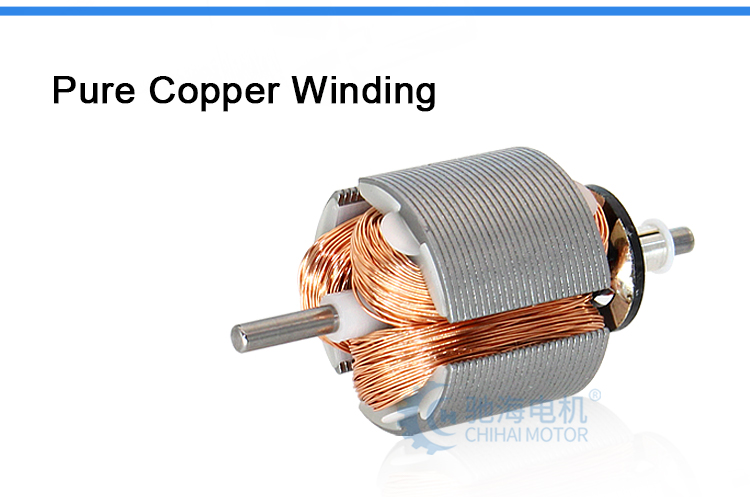

Pure Copper Wire Winding: The rotor part adopts pure copper group with small resistance and strong conductivity, significantly increasing motor torque.

🔩

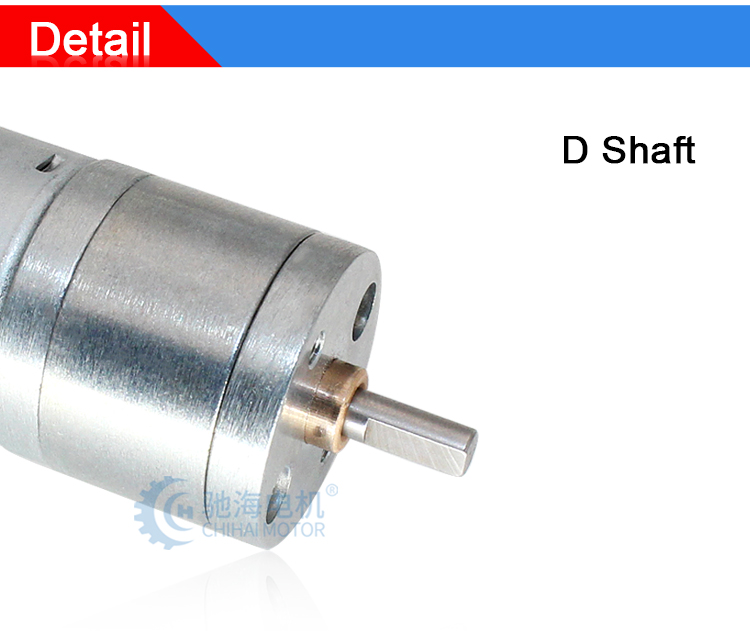

D-Shaped Axis: D-type shaft design for convenient installation, ensuring it is not easy to slip and saves installation time.

🛠️

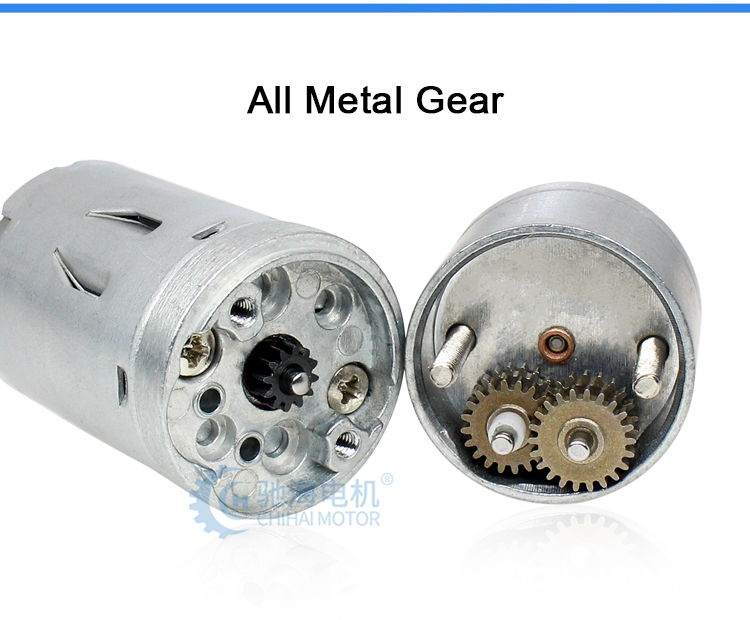

All-Metal Gear Structure: Features wear resistance, torsion resistance, long life, quick heat dissipation, high accuracy, and strong composite ability.

🧲

Wet-Pressed Magnet: The magnetic material provides greater torsion force than traditional rubber strips, ensuring smoother operation.

🔋

Carbon Brush Structure: Increased carbon brush durability, with a service life exceeding 1000H within rated torque ranges, maintenance-free.

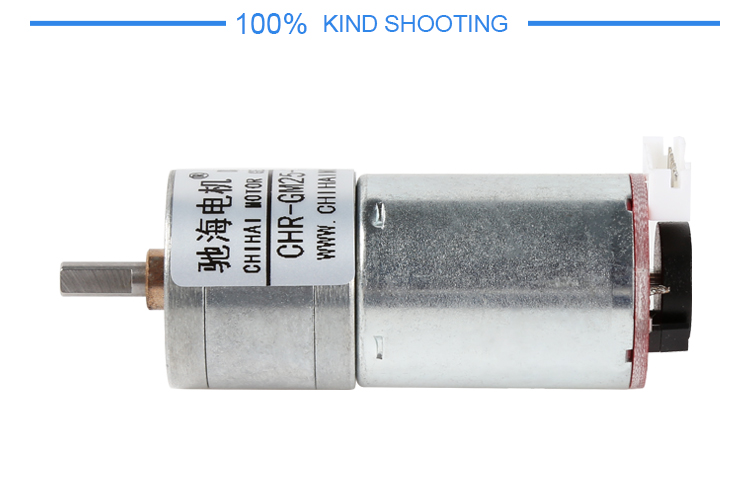

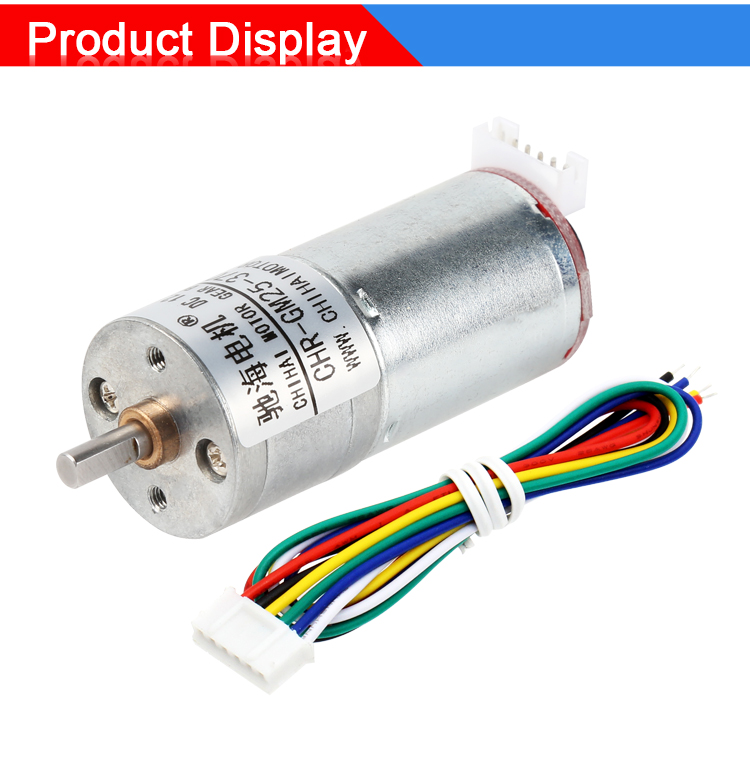

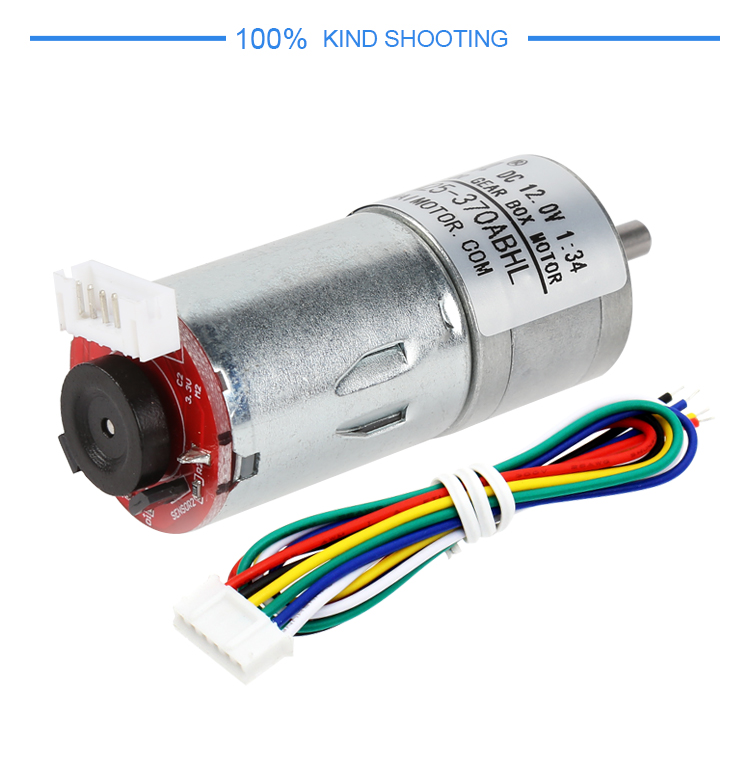

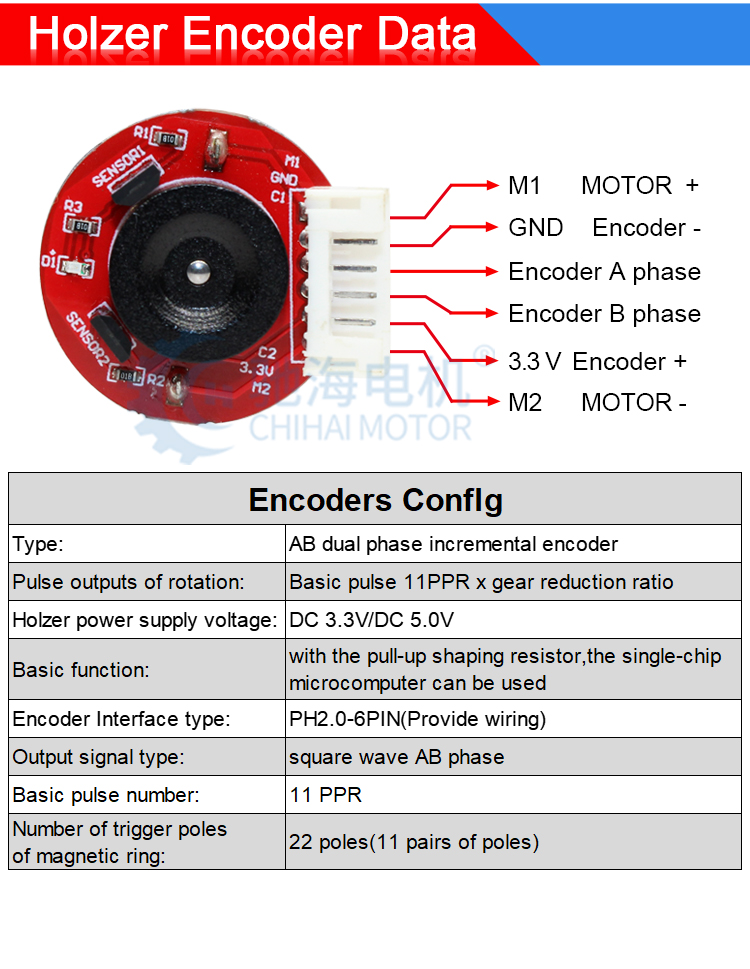

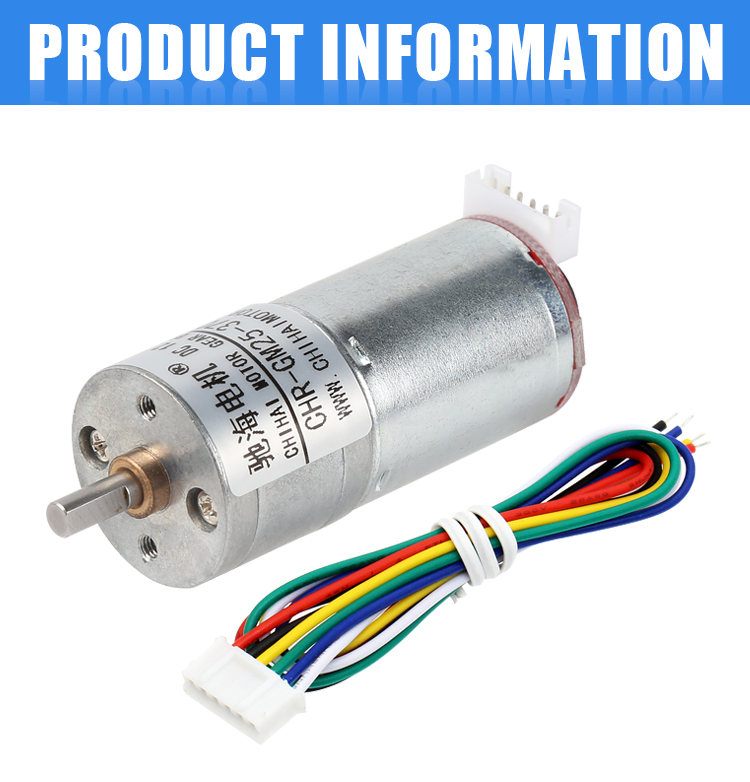

Detailed Images

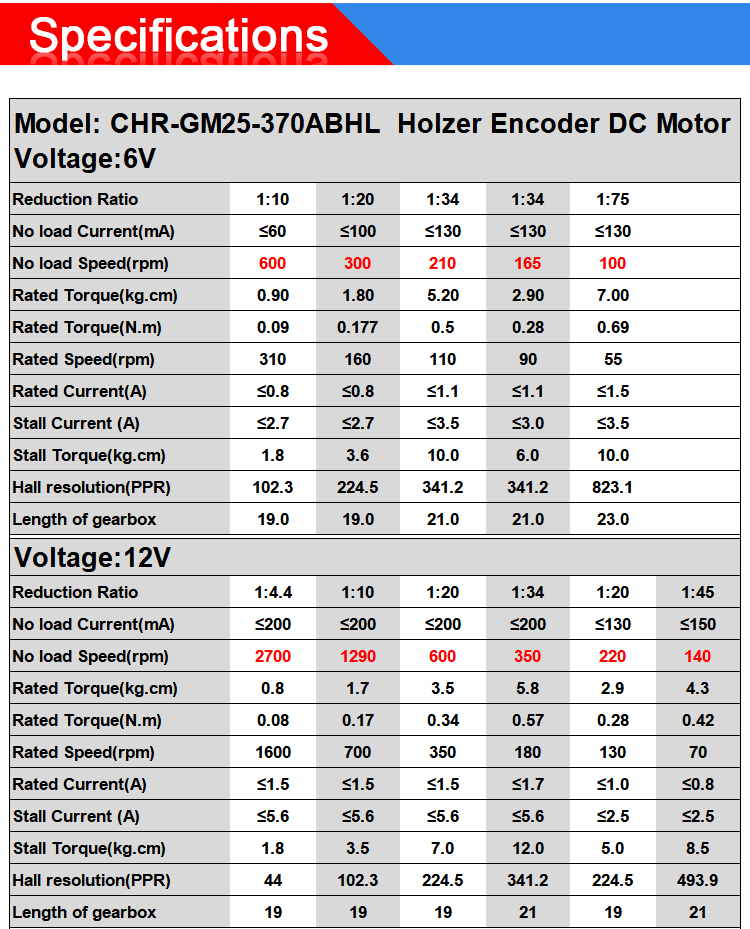

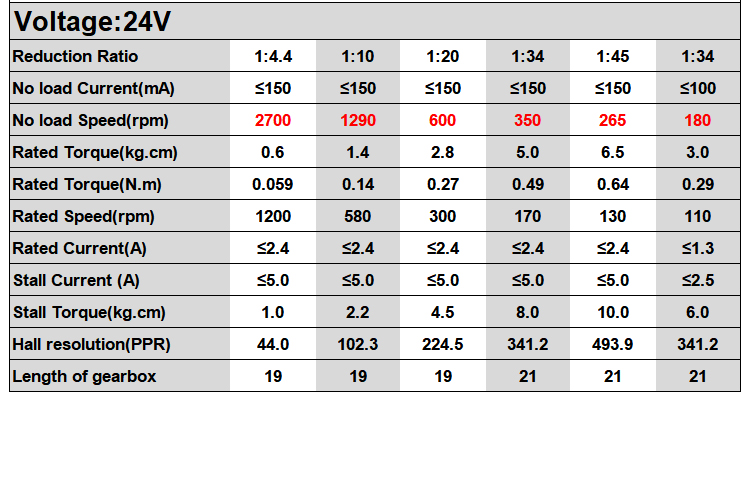

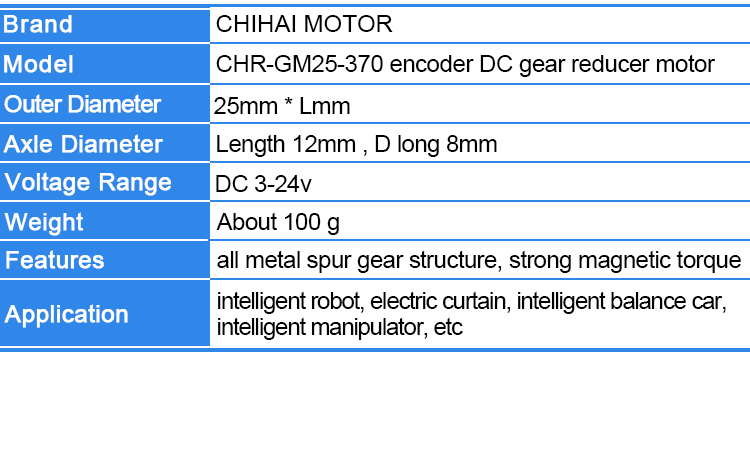

Product Parameters

Application

Certifications

Packing & Delivery

PACKAGE: Standard export carton packing.

DELIVERY TIME: 3-20 days after confirming order. The detailed delivery date depends on the production season and order quantity.

ATTENTION: If special customs clearance documents are required, please contact us in advance for confirmation.

Frequently Asked Questions

What kind of motors can be provided?

We mainly provide micro motors and a series of DC deceleration motors, including straight tooth, planetary, and worm deceleration motors. Voltage range is 1VDC to 30VDC with diameters between 8 and 51mm.

Can I get a price list?

Our motors are customized based on requirements like lifetime, noise, voltage, and shaft specs. Since the price also varies by annual quantity, we provide specific offers based on your detailed requirements.

What is the lead time for regular orders?

The standard lead time is 3-25 days. This can vary depending on the specific model, production period, and order quantity.

Is it possible to develop new motors?

Yes. If tooling costs are covered and detailed requirements (performance, size, target price, etc.) are provided, we can evaluate and arrange development.

Are free samples available?

Yes, we can provide samples, and we can also return the sample fees when a formal order is placed.

Do you support custom shaft dimensions?

Yes, shaft length, diameter, and shape (like D-type or round) can be customized for batch orders to meet specific mechanical requirements.
