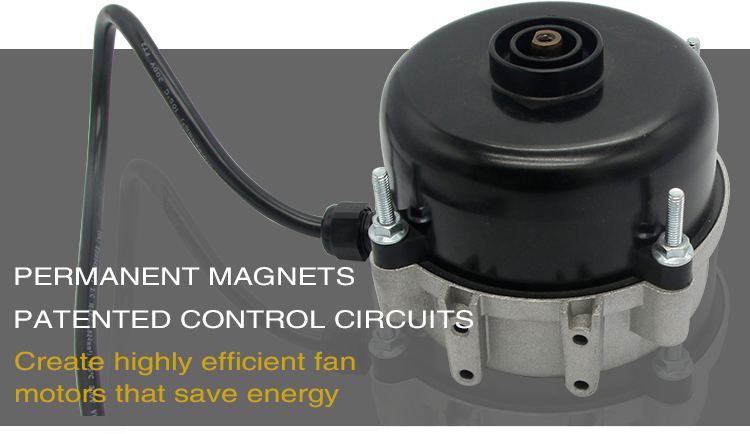

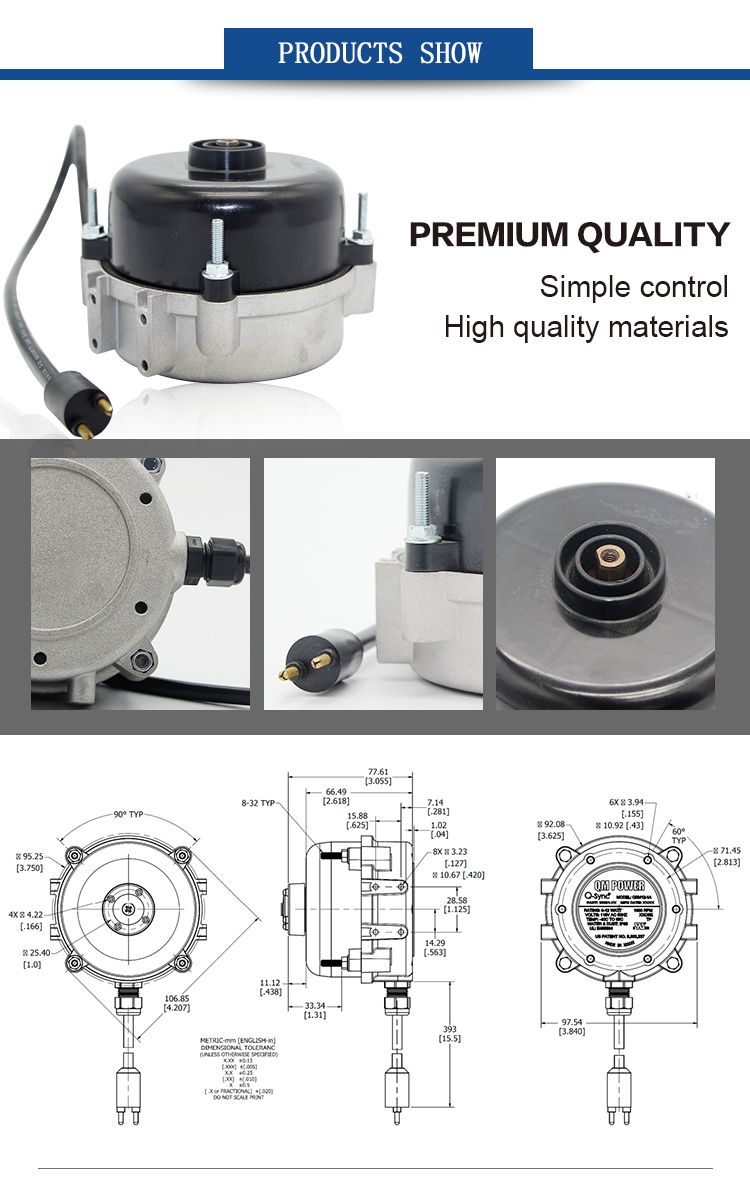

| Q-SYNC SYNCHRONOUS MOTOR WITH ELECTRONIC START | |
|---|---|
| APPROVALS | UL APPROVED (UL #E465664) |

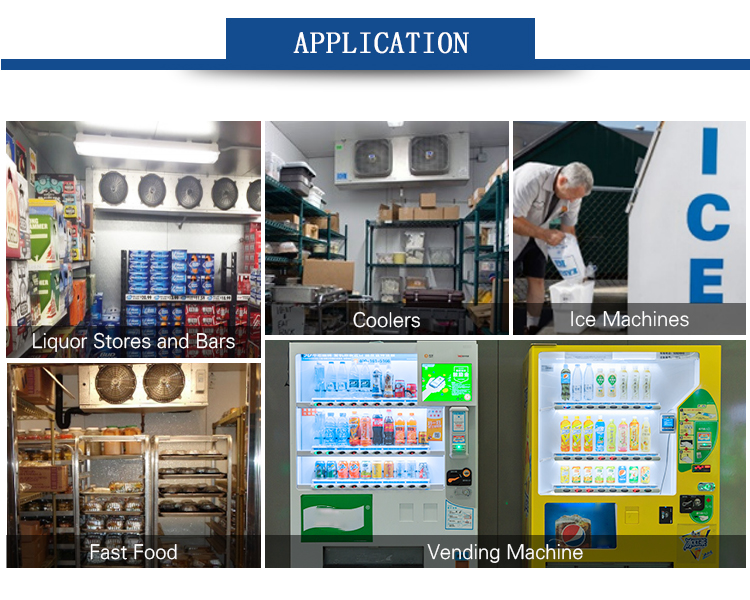

| RECOMMENDED USE | 9-12 WATT APPLICATIONS |
| OUTPUT RATING | 12W OUT |
| INPUT VOLTAGE RATING | 120V (95-132V)/60HZ |
| FAN SPEED | 1800 RPM, CLOCKWISE |
| OPERATING TEMPERATURES | -40 DEG C TO 55 DEG C (-40 DEG F TO 131 DEG F) |
| AMP RATING | 0.19A MAXIMUM |
| CORD TYPES | STR PLUG, EYELET, BARE WIRE, 90 DEGREE PLUG (LOW TEMP RATED) |
| AVAILABLE CORD LENGTHS | 355.6MM [14 INCH] STANDARD (OTHER LENGTHS AVAILABLE) |
| MOISTURE & DUST PROTECTION | IP65 |
| WEIGHT | 2 lbs (MOTOR ONLY) |

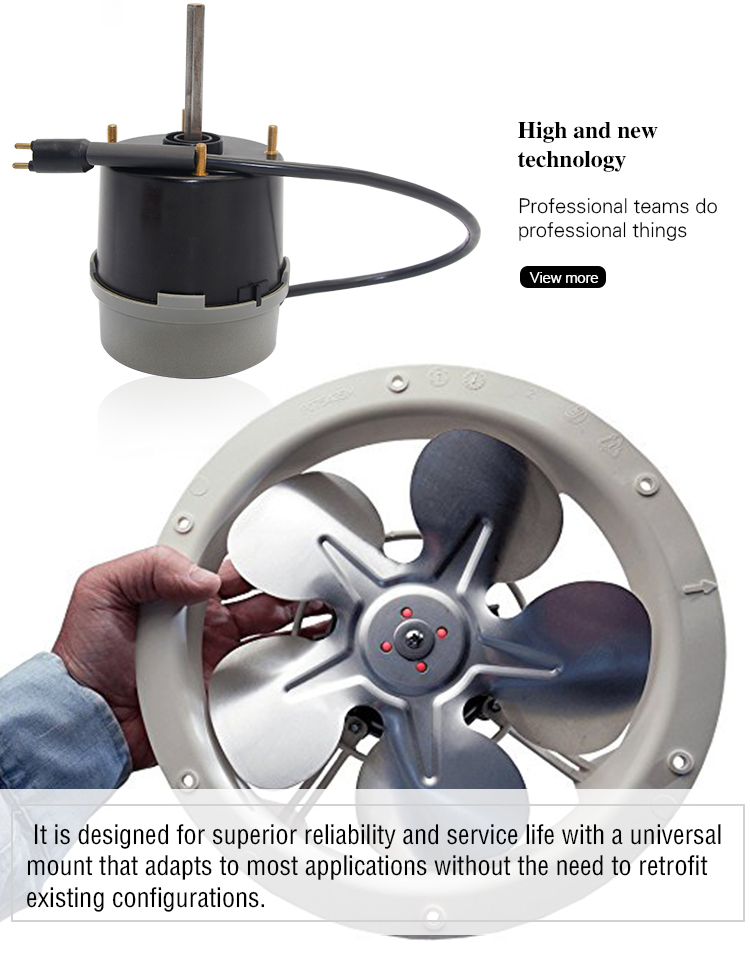

| MOUNTING | UNIVERSAL FOOT, REAR & FRONT MOUNTING (EURO STYLE) |
| OTHER | FAN MOUNT AND HARDWARE INCLUDED, NOT INSTALLED |
