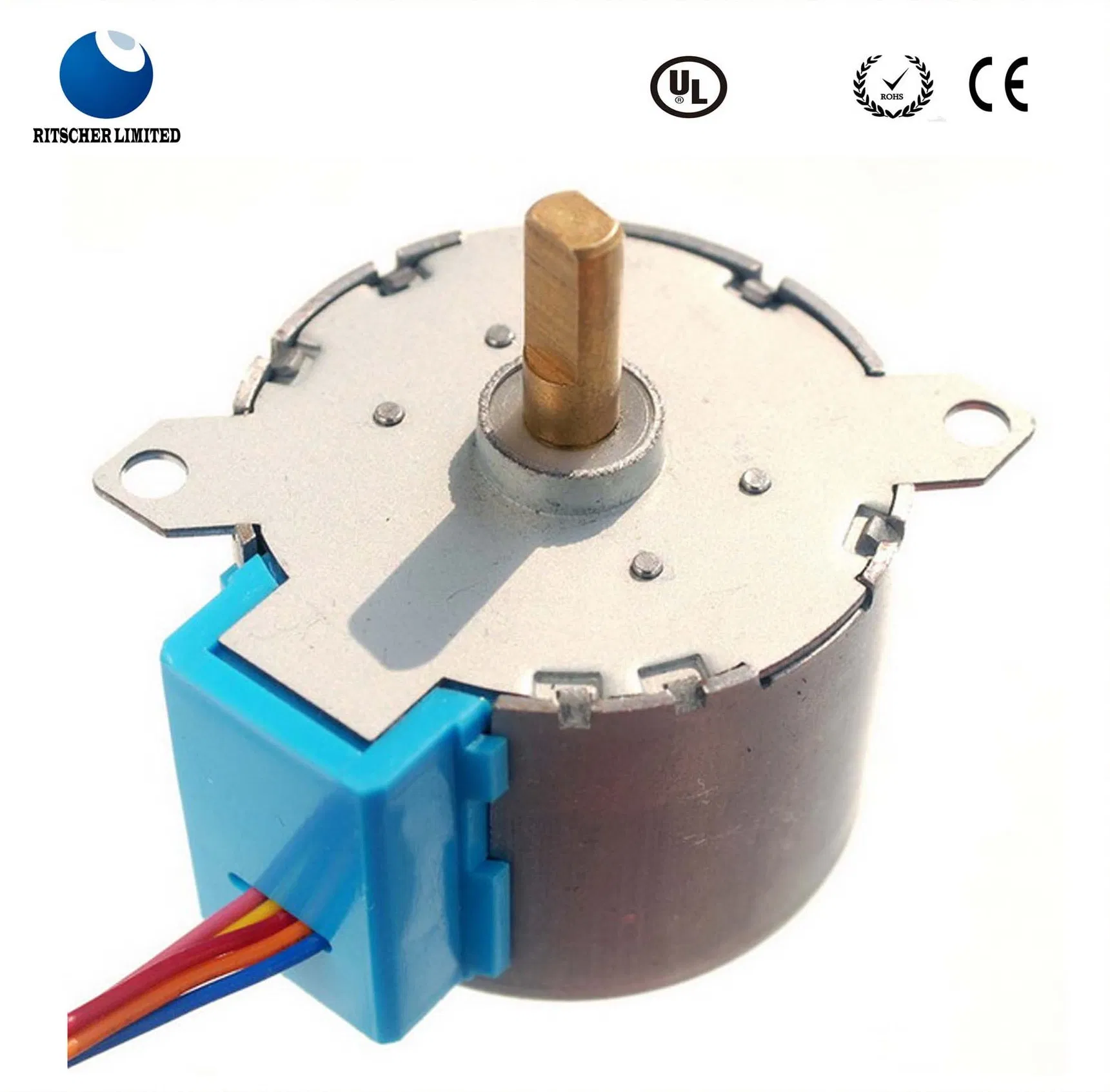

High Torque Electric Stepper DC Mini Motor for Power Tool

Still deciding? Get samples of $ !
Request Sample

Product Description

Technical Specifications
Model NO.
30BYJ46
Number of Stator
Three-Phase
Excitation Mode
PM-Permanent Magnet
Function
Control, Driving
Number of Poles
10
Operate Mode
The Three Single Phase
Type
Magnetic-Electric
Certification
ISO9001, CCC, CE
Rated Voltage
12V
Resistance
100 ohm
Torque
147n.Cm
Step Angle
7.5 Degree/85.25
Frequency
100PPS
Production Capacity
200,000 Pcs / Month
Product Characteristics
  • Weight: 50g
  • Rated Voltage: 12DCV
  • Operation Frequency: 100pps
  • Step Angle: 7.5/85.25
  • Typical Appliances: Refrigerator, Intelligent Sanitary, Automatic Door Lock
Typical Applications

Our micro-motors are engineered for precision and reliability in various home appliances:

  • Air-conditioning Units
  • Refrigerators & Freezers
  • Intelligent Sanitary Equipment
  • Automatic Door Locks
  • CCTV Monitors
  • Electronic Instruments

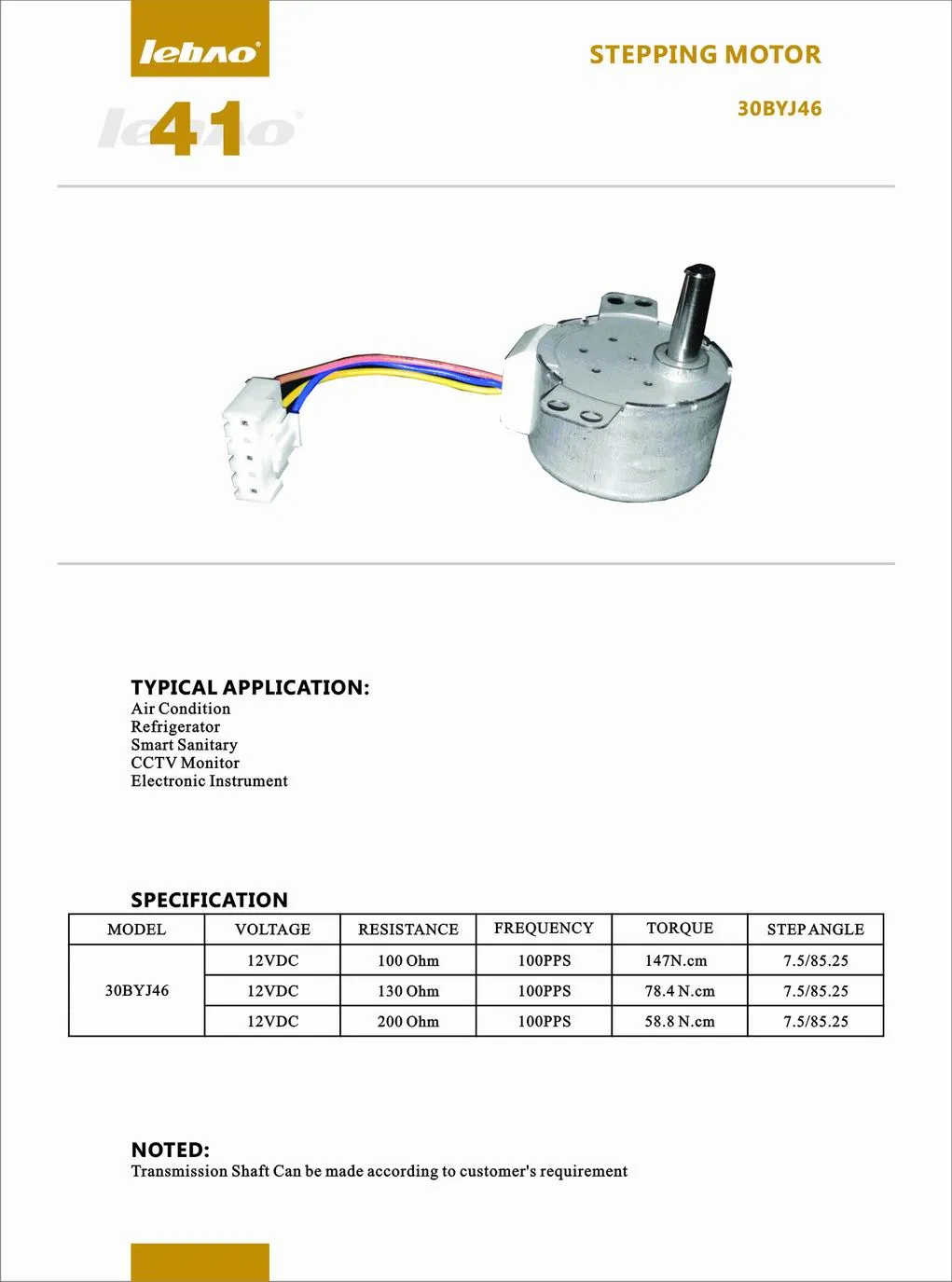

MODEL VOLTAGE RESISTANCE FREQUENCY TORQUE STEP ANGLE
30BYJ46 12VDC 110 Ohm 100PPS 147N.cm 7.5º/85.25
12VDC 130 Ohm 100PPS 78.4N.cm 7.5º/85.25
12VDC 200 Ohm 100PPS 58.8N.cm 7.5º/85.25
Product Gallery
Frequently Asked Questions
What kind of motors can you provide?

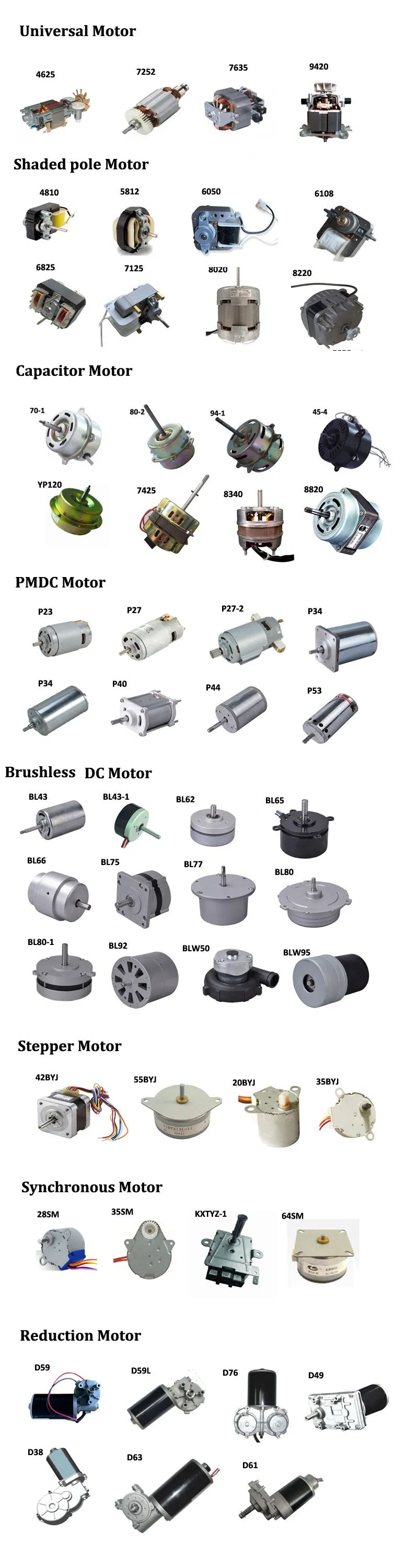

We mainly provide Kitchen Hood Motors, DC Motors, Gear Motors, Fan Motors, Refrigerator Motors, Hair Dryer Motors, Blender/Mixer Motors, Shaded Pole Motors, Capacitor Motors, BLDC/PMDC Motors, Synchronous Motors, and Stepping Motors.

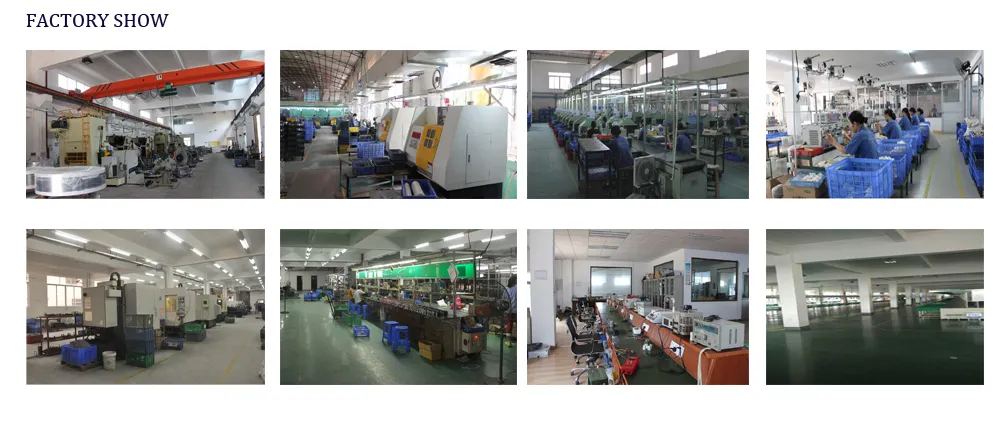

Is it possible to visit the production facility?
Sure. Please kindly keep us posted a few days in advance. We need to check our schedule to see if we are available for a visit.
Can I request samples for testing?
If it is for sample testing before an official order and our MOQ/price terms are acceptable, we'd love to provide samples. For personal use or one-off replacements, it is difficult as all motors are custom-made.
What is the Minimum Order Quantity (MOQ)?
The MOQ is generally between 1,000 to 10,000pcs depending on the model. However, we can accept smaller lots for the initial three orders following sample approval.
What are the primary applications for the 30BYJ46 motor?
This motor is ideal for precision control in home appliances such as refrigerators, intelligent sanitary systems, automatic door locks, and CCTV monitoring equipment.
What certifications do your motors hold?
Our motors are manufactured under strict quality standards and hold certifications including ISO9001, CCC, CE, ROHS, UL, and VDE.
