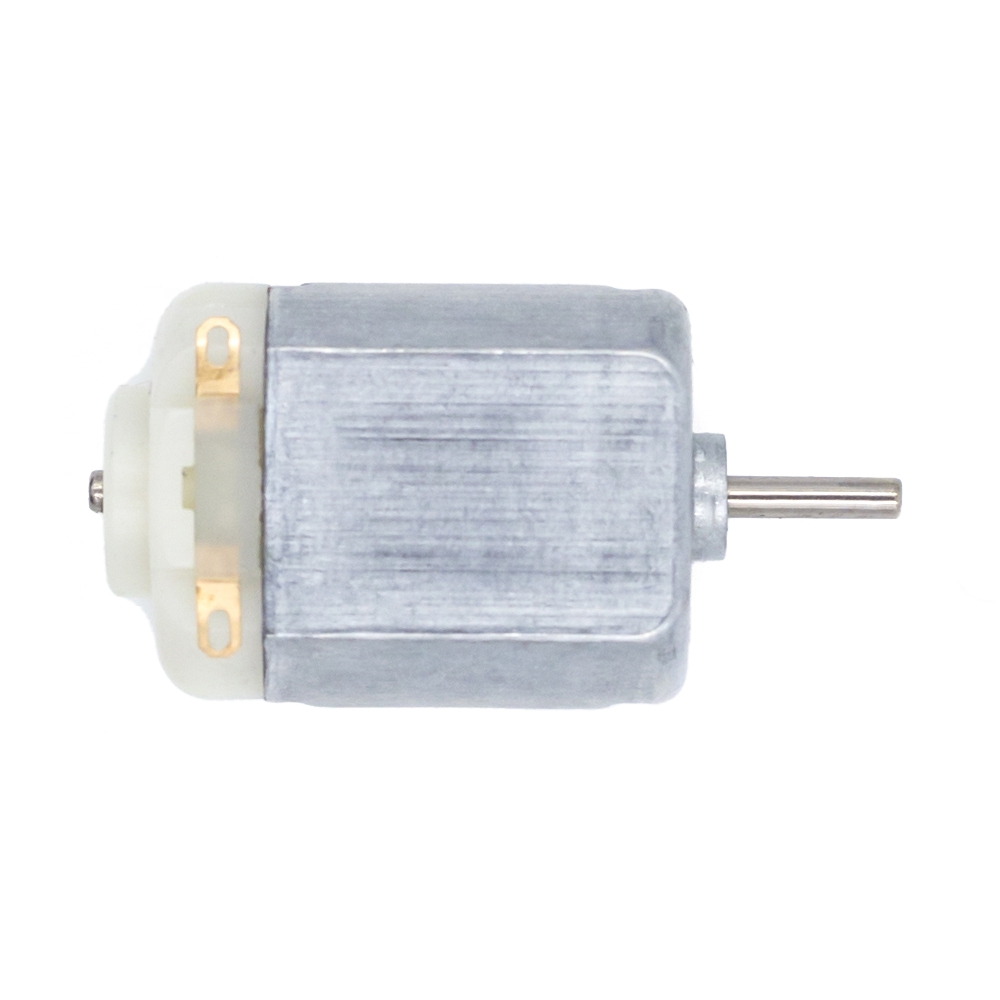

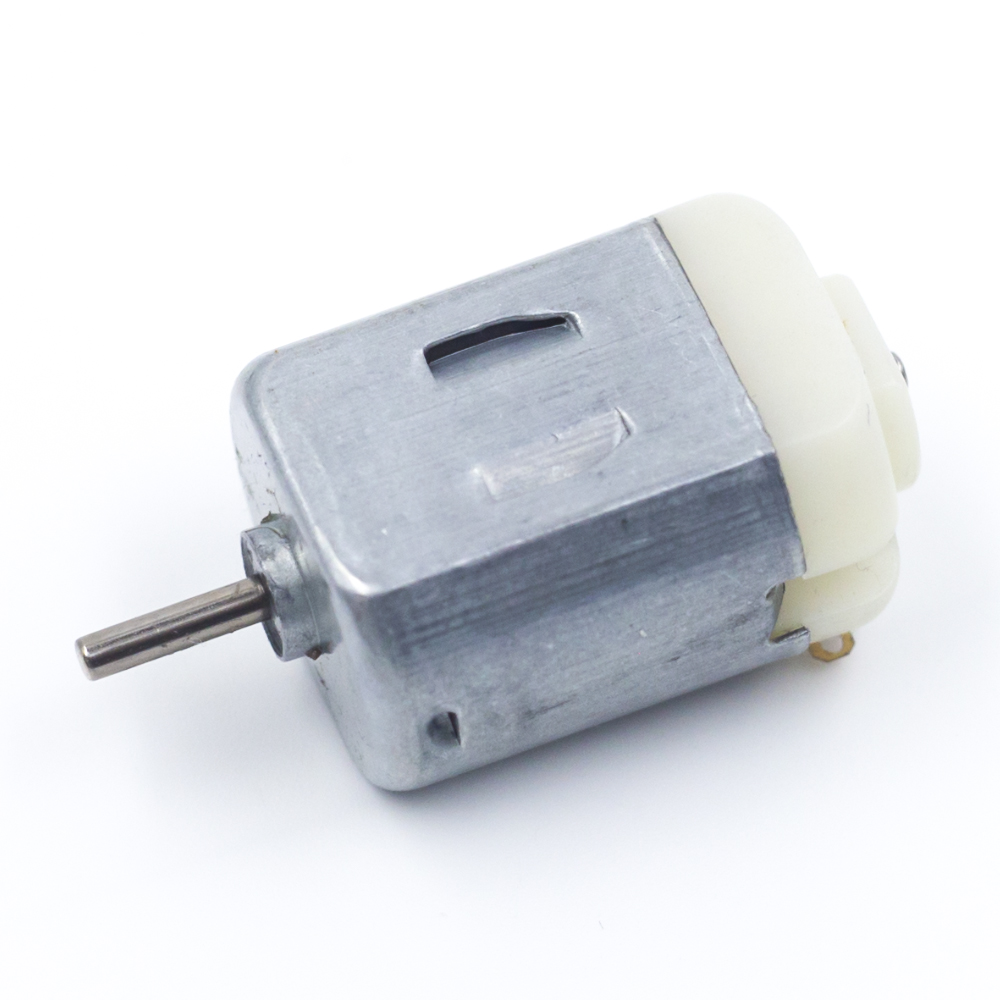

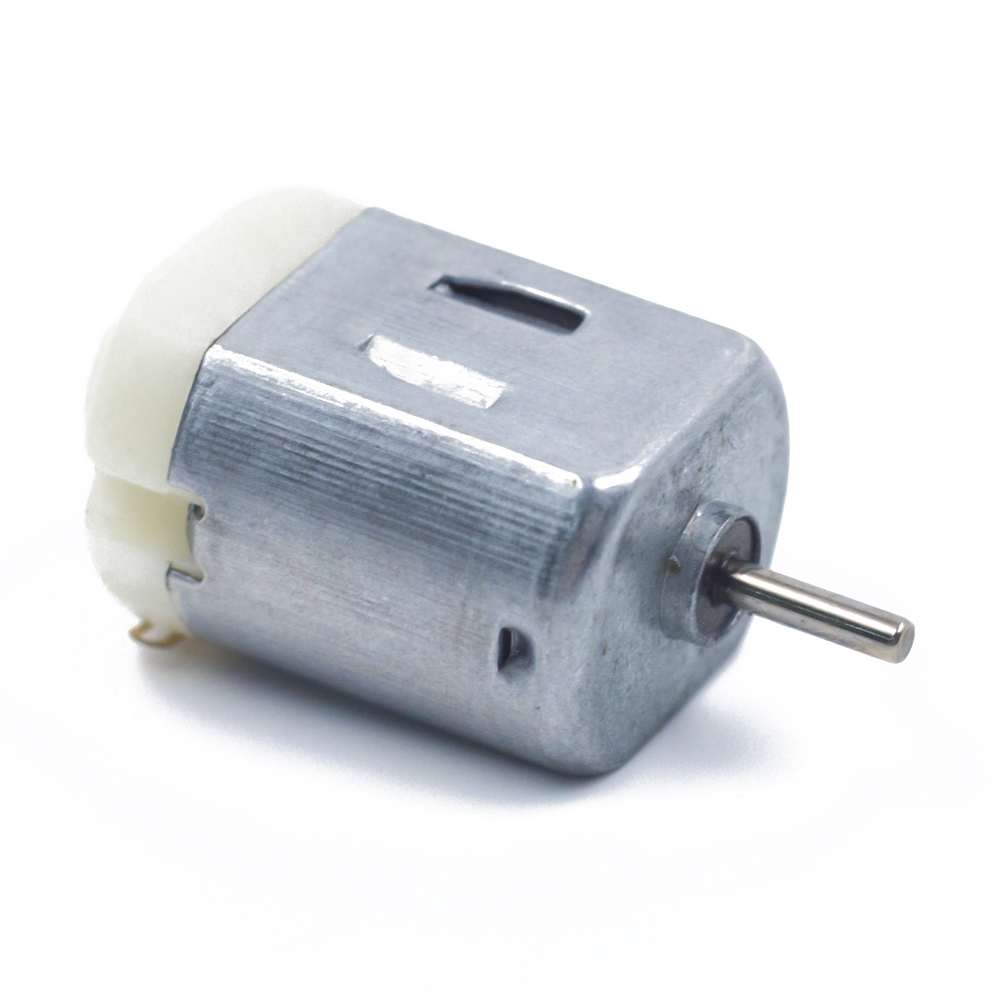

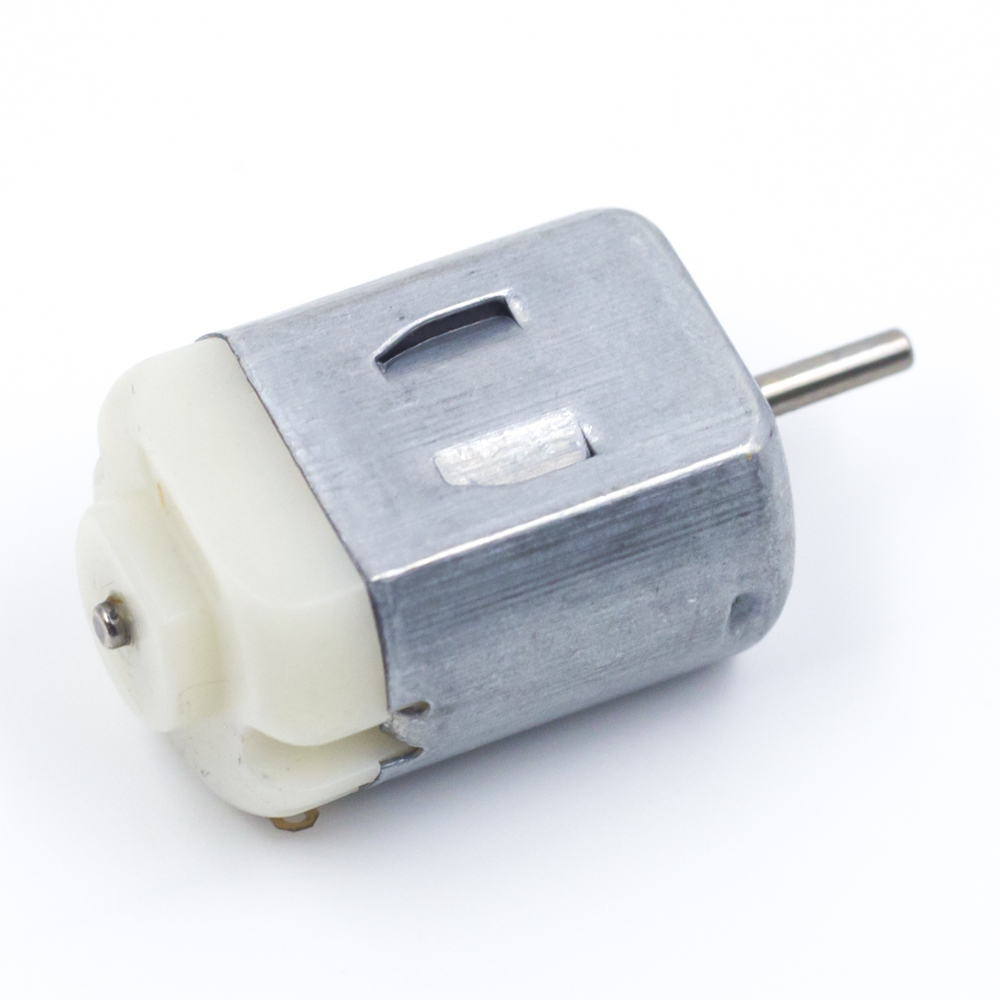

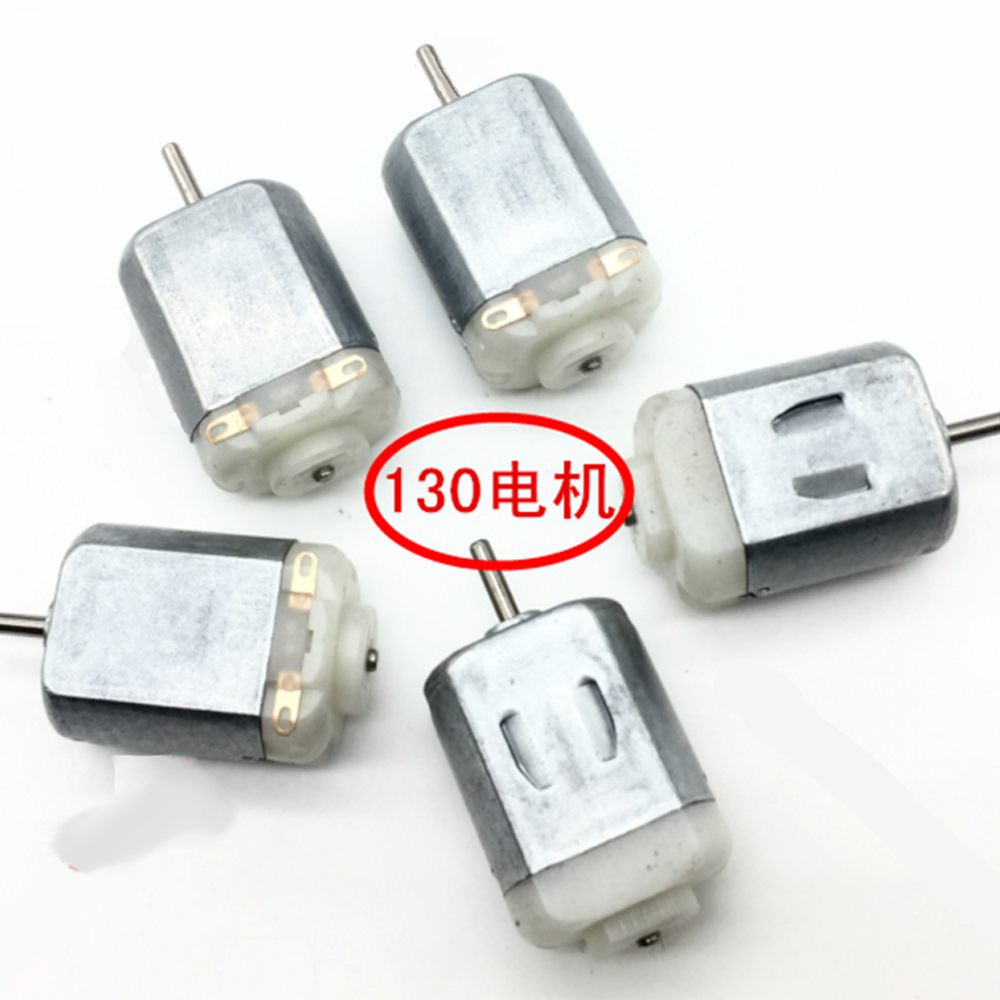

Product Name: DC3-6V 130 Motor DIY
🌡️
Temperature: 20℃ - 35℃
💧
Humidity: 65% ± 5% RH
⚡
Rated Test Voltage: 3.0VDC
🔌
No-load Current: 0.4A (max)
🔄
No-load Speed: 21000 ± 10% rpm
🛠️
Locked-rotor Torque: ≥ 60g.cm (at 3.0V)
🔋
Locked-rotor Current: ≥ 3.0A (at 3.0V)
🔃
Rotation Direction: CW (Clockwise)
🔊
Sound Status: No abnormal sound
📏
Axial Bending: ≤ 0.02mm
📏
Axial Extension: 10.0 ± 0.5 mm
📍
Virtual Position: 0.05 - 0.50mm
Frequently Asked Questions
What is the optimal operating voltage for this 130 motor?
The motor is designed to operate within a DC 3-6V range, with a rated test voltage of 3.0VDC for standard performance.
How fast does the motor rotate under no-load conditions?
Under no-load conditions at 3.0V, the motor achieves a speed of 21,000 ± 10% rpm.
What are the shaft dimensions for DIY projects?
The axial extension (protrusion) size is 10.0 ± 0.5 mm, making it suitable for various small-scale DIY applications.
Does this motor support bi-directional rotation?
The specified standard rotation is CW (Clockwise) relative to the output shaft, but DC motors can generally change direction by reversing the polarity.
What is the maximum current draw when the motor is stalled?
The locked-rotor current is ≥ 3.0A when tested at a terminal voltage of 3.0V.
Is the motor operation noisy during use?
No, the motor is designed for smooth operation and exhibits no abnormal sounds when running at no-load.
