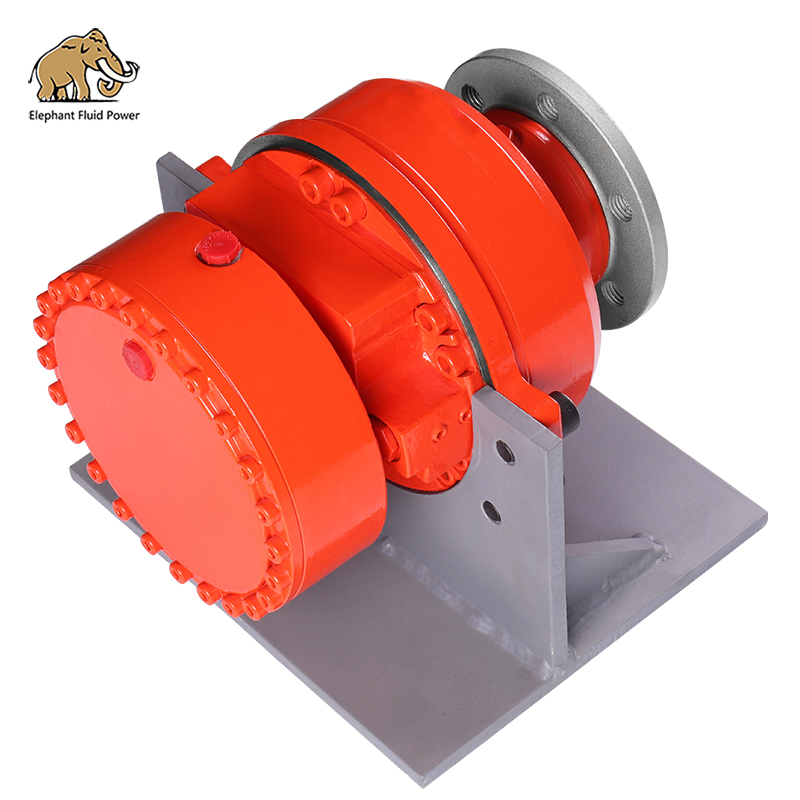

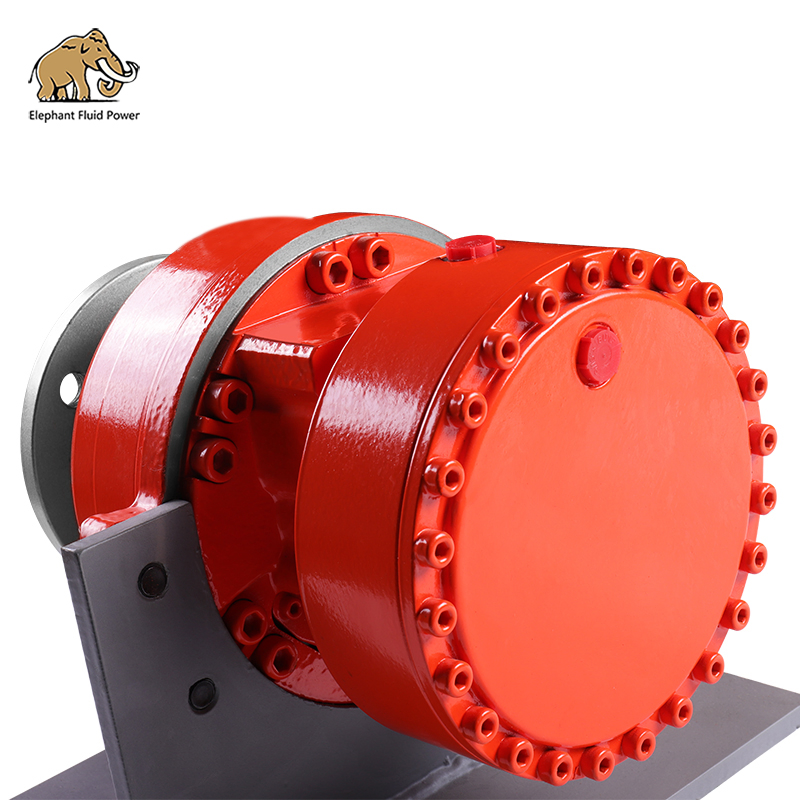

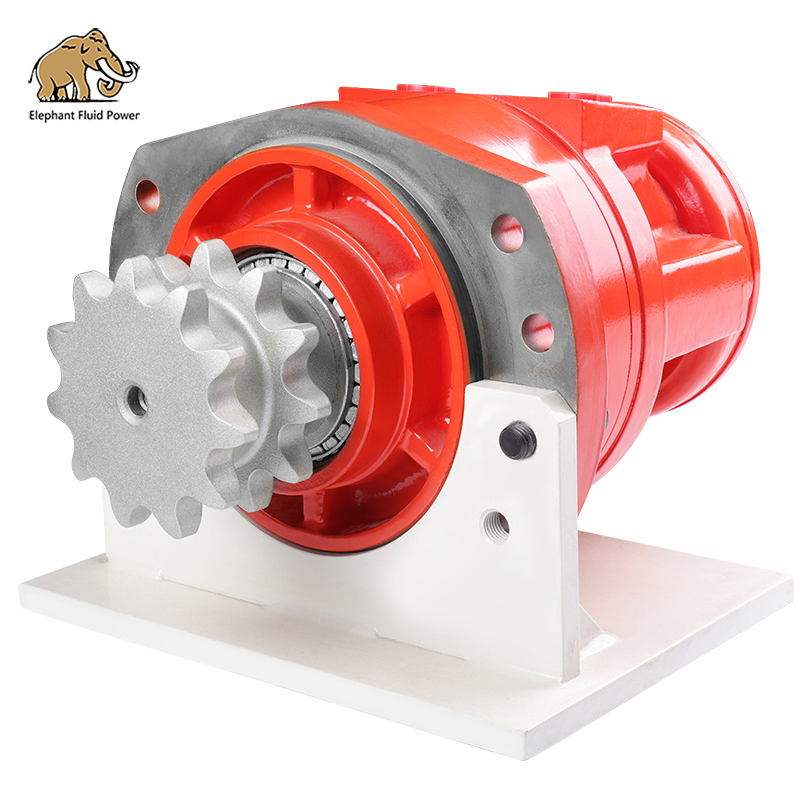

Mc R05c820f Final Drive Motor for Bobca Compact Track Loader

1 / 5

Mc R05c820f Final Drive Motor for Bobca Compact Track Loader

Send Inquiry

Product Description

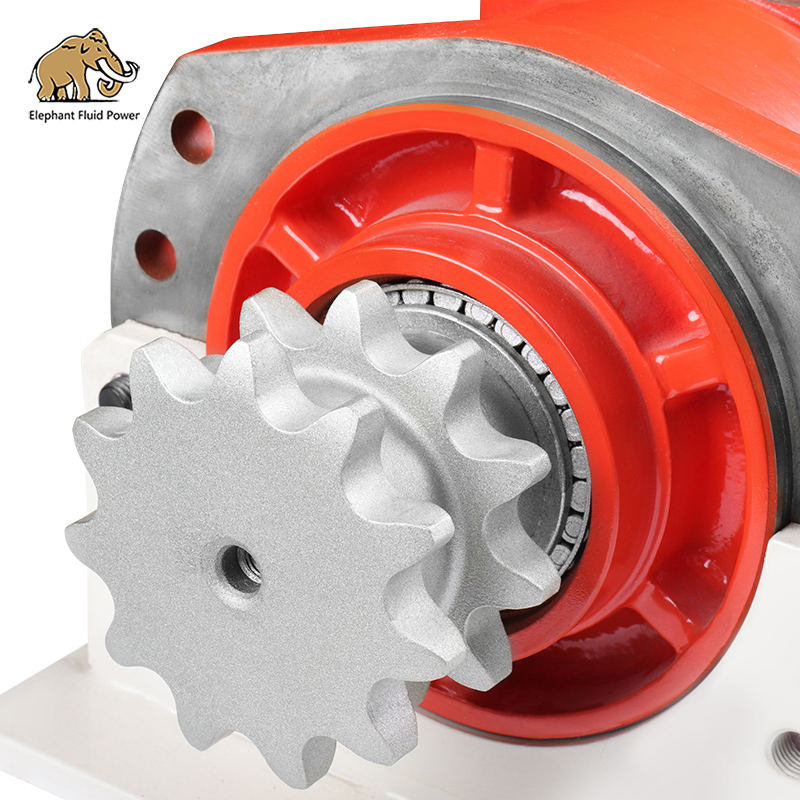

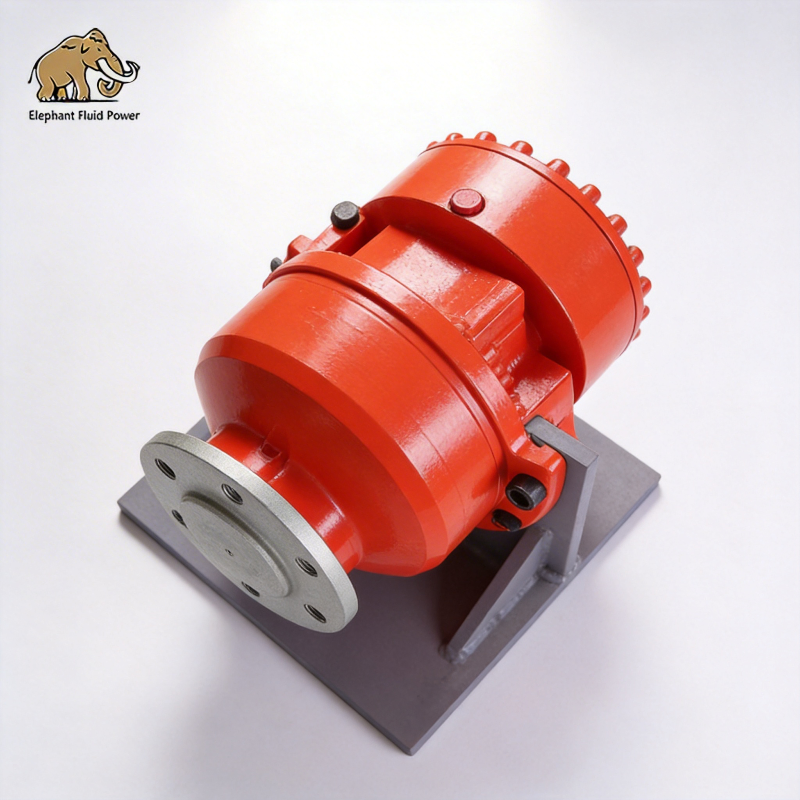

MC R05C820F Final Drive Motor For Bobca Compact Track Loader

Quick Review

Model: MC R05C820F180Z32
5 ports Final Drive for Bobca T140, T180, T190 Compact Track Loader.
Hydraulic Drive Motor for Compact Track Loader.
Radial piston structure for frame integrated drive.
Displacement from 820 cc/r.
With flushing valve for closed loop system.
Widely used for Skid steer loaders, Mining machines, Mini Excavators, etc.

Product Description

Brand new replacement of Rexroth Hydraulic Motor MC R05C820F180Z32B4V on the Bobca T190 Compact Track Loader.

5 ports version. The 5th port is on the back plate. We also make the 4 port version Motor. It is a replacement of the Bobca T140, T180, T190 Skid Steer Loaders.

Specifications

Type	MC R05-380	MC R05-470	MC R05-520	MC R05-565	MC R05-680	MC R05-750
Displacement(ml/r)	380	470	520	565	680	750
Continuous output power(kw)	29	29	29	29	35	35
Diff. pressure 10Mpa torque(Nm)	604	748	827	899	1082	1194
Rated torque(Nm)	1419	1756	1942	2111	2540	2802
Pressure rating(Mpa)	25	25	25	25	25	25
Max. pressure(Mpa)	40	40	40	40	40	40
Max. speed(rpm)	220	220	220	220	220	170

★

Our Advantages

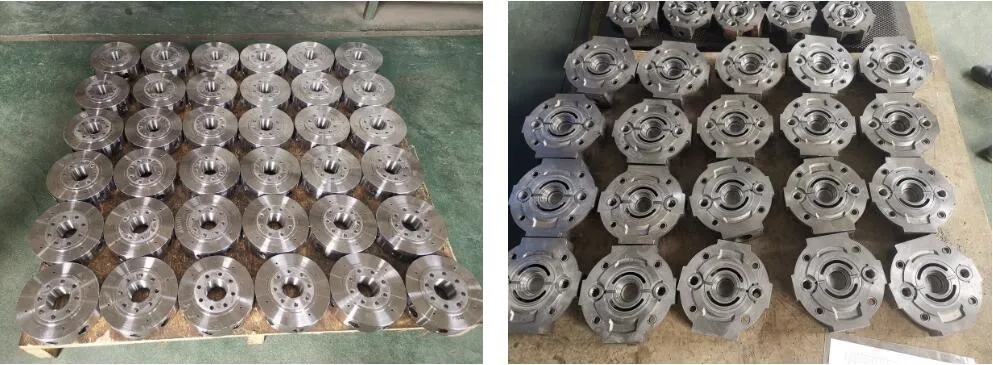

In order to ensure the quality of our Hydraulic Motor, we adopt Full Automatic CNC Machining Centers to make our Hydraulic Motor Parts. The accuracy and uniformity of our Piston group, Stator, Rotor and other key parts are the same as Rexroth parts.

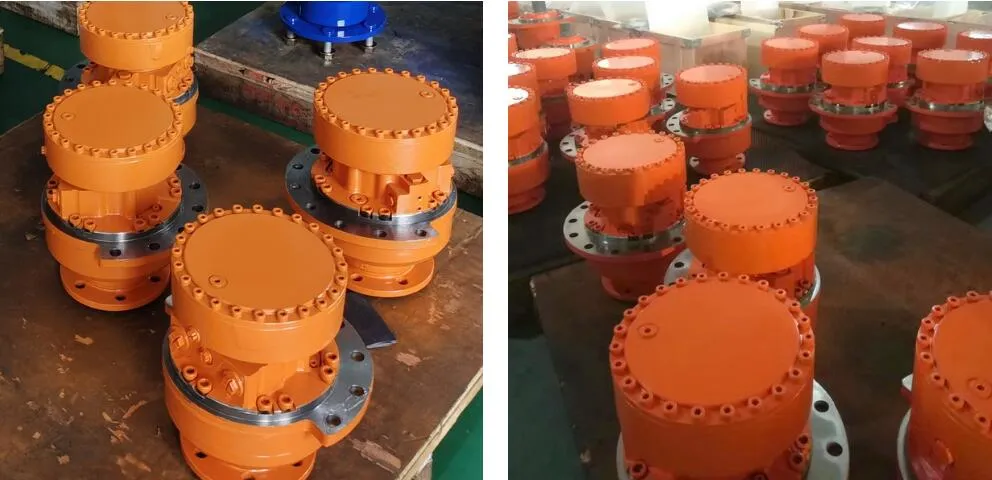

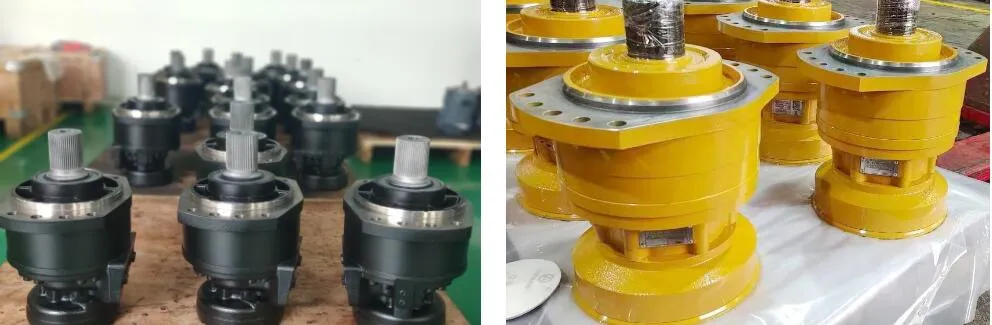

All our Hydraulic Motors are 100% inspected and tested after assembly. We also test the specifications, torque and efficiency of each motor before delivery.

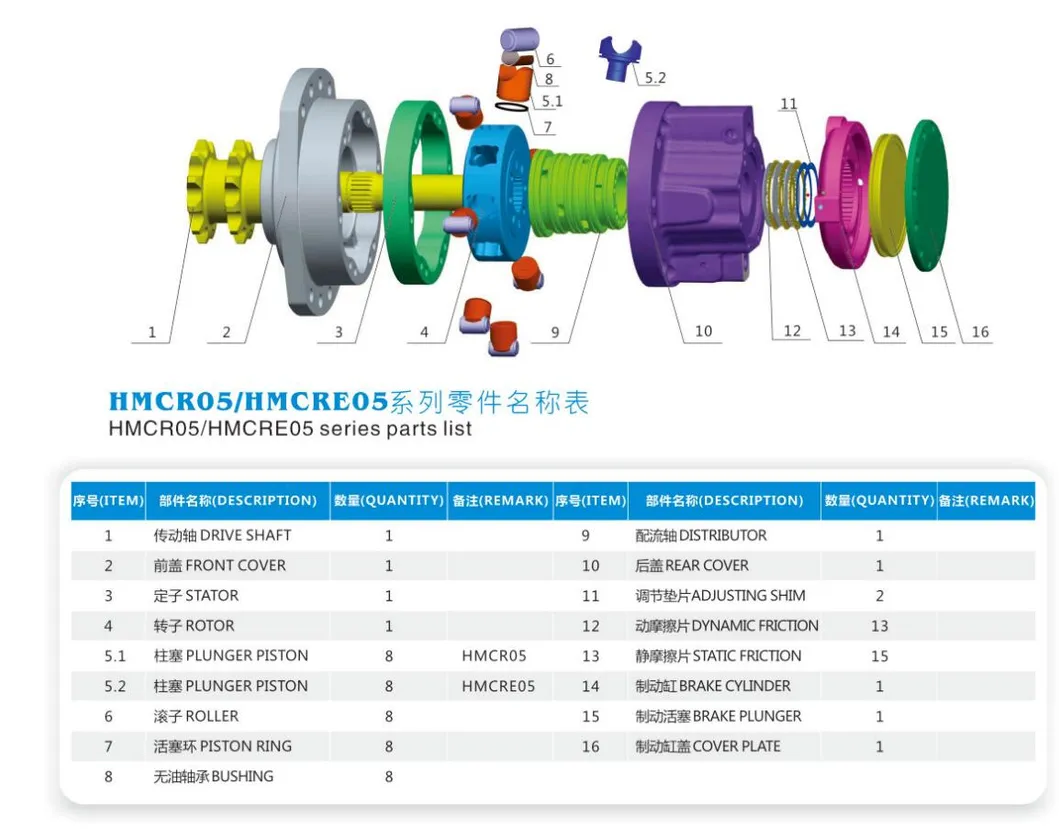

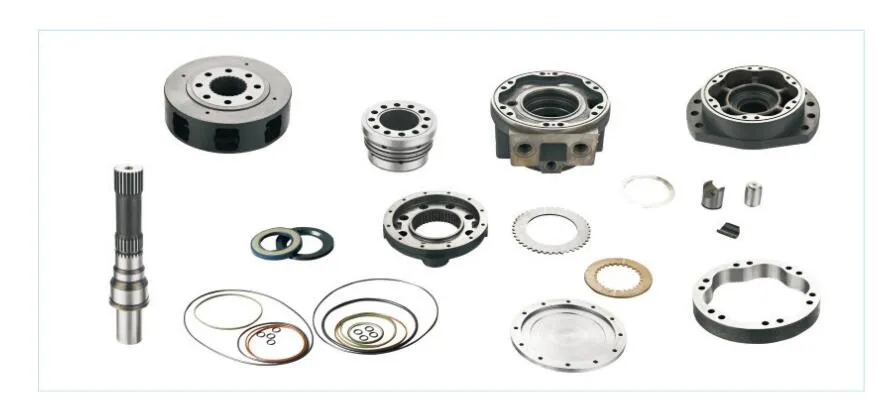

We can also supply the inner parts of Rexroth MC R Motors and Poc lain MS Motors. All our parts are completely interchangeable with your original Hydraulic Motors.

📋

Technical Support & Range

What we can assist and offer more:

MS Series: MS(E)02, MS(E)05, MS(E)08, MS(E)11, MS(E)18, MS25, MS35, MS50, MS83, MS125
MK Series: MK04, MK(E)18, MK(E)23, MK35, MK47, etc.
MHP Series: MHP13, MHP20
MC R Series: MC R3, MC R5, MC R10 series
HDC(E) Series: HDC(E)02 to HDC125
HTC(E) Series: HTC(E)02 to HTC125

We specialize in Radial Piston Motors and their spare parts. Our products are 100% replacements for major brands, and the performance of motor assembly is close to original standards. Our products are widely used in ships, mining machinery, construction machinery, agricultural machinery, forest machinery, etc.

Frequently Asked Questions

Q1: Which Bobca models is this final drive motor compatible with? A1: The MC R05C820F is specifically designed for Bobca T140, T180, and T190 Compact Track Loaders.

Q2: What is the difference between the 4-port and 5-port versions? A2: The 5-port version includes an additional port on the back plate. Both versions are available to match your specific machine requirements.

Q3: Are these motors brand new or refurbished? A3: These are brand new replacement motors manufactured using full automatic CNC machining to ensure high precision and durability.

Q4: Are the internal parts interchangeable with Rexroth components? A4: Yes, all internal parts like the Piston group, Stator, and Rotor are completely interchangeable with original Rexroth and Poc lain hydraulic motor parts.

Q5: How do you guarantee the quality of each motor? A5: Every motor undergoes a 100% inspection and testing process after assembly, where we verify the torque, efficiency, and technical specifications before delivery.

Q6: What applications are suitable for this radial piston motor? A6: These motors are ideal for heavy-duty applications including skid steer loaders, mining machinery, mini excavators, and agricultural or forest machinery.
