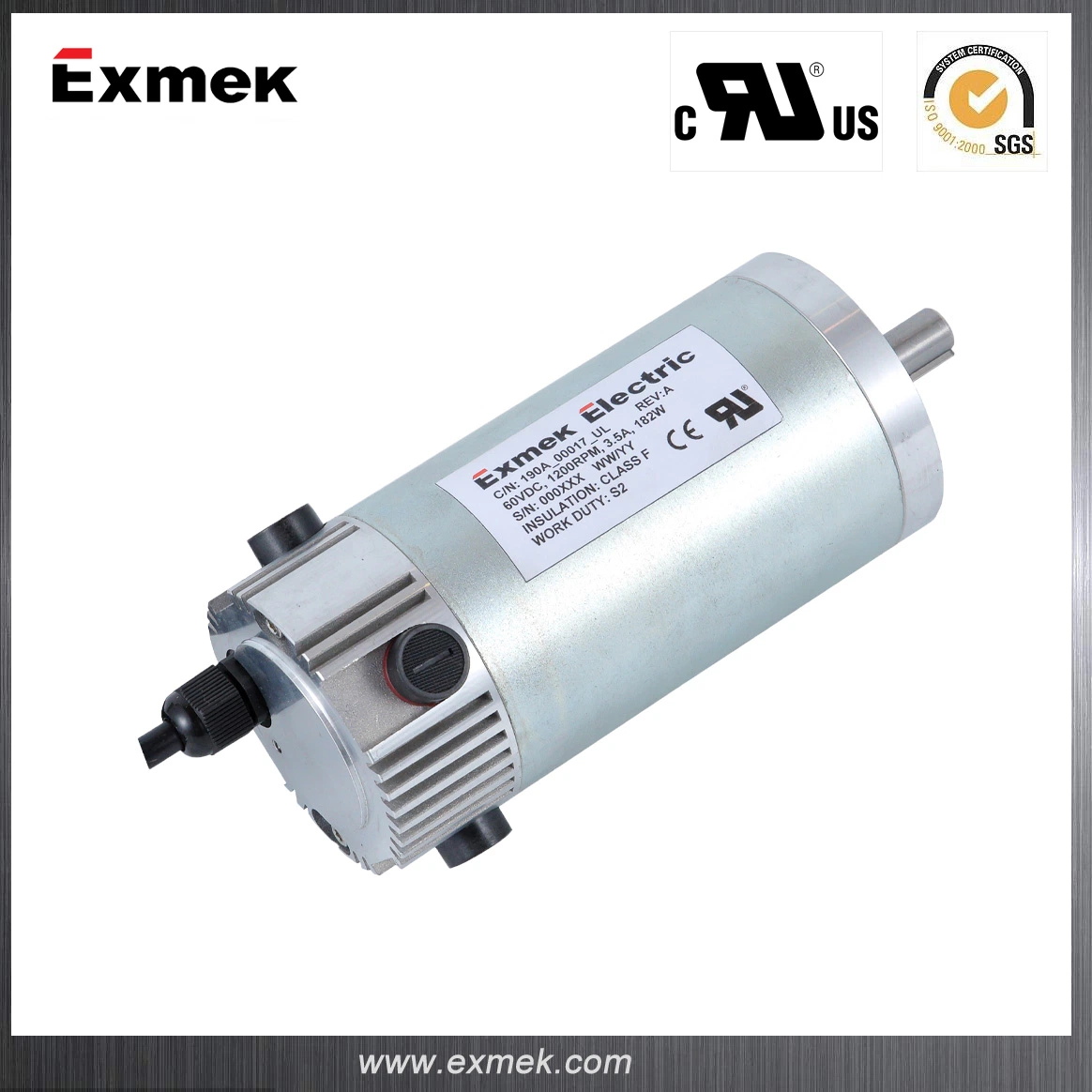

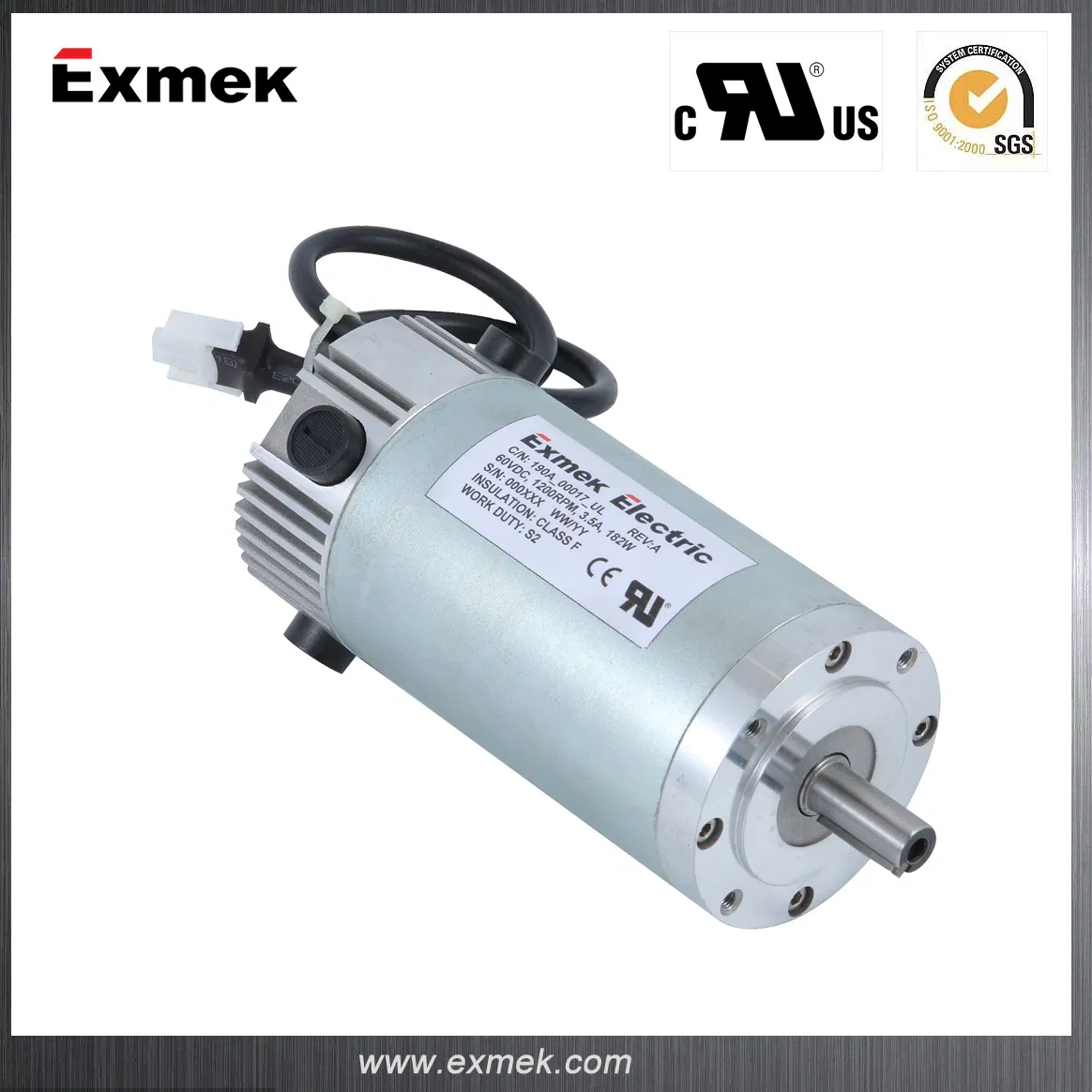

UL Certified DC Brush Electric Motor
UL Certified DC Brush Electric Motor
UL Certified DC Brush Electric Motor
1 / 3
UL Certified DC Brush Electric Motor
UL Certified DC Brush Electric Motor
UL Certified DC Brush Electric Motor

UL Certified DC Brush Electric Motor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.MB076HG400
Excitation ModeMagnetic
FunctionControl
Casing ProtectionProtection Type
Number of Poles4
Working PrincipleBrush
CertificationISO9001, UL, RoHS
Transport PackageCarton and Pallet
HS Code8501310000
Production Capacity10,000PCS/Year

General Product Information

  • Stator with permanent rare earth magnet stator which are glued and protected by a stainless steel sleeve.
  • Motor insulation and winding in class F.
  • High quality front-locked life-lubricated bearings.
  • Protection grade IP44.
DC Brush Electric Motor

Technical Parameters

Rated Voltage48 (Vdc)
Rated Current9.5 (A)
Rated Torque1.39 (Nm)
Rated Power408 (W)
Rated Speed2800 (rpm)
Peak Current37.8 (A)
Peak Torque5.7 (Nm)
Torque Constant0.15 (Nm/Amps)
Back-EMF16.65 (Vrms/kRPM)
Resistance0.39 (Ω)
Inductance0.34 (mH)
Rotor Inertia3.3E-04 (kg-m²)
Weight3.6 (kg)
Motor Length154 (mm)

Mechanical Dimensions & Performance

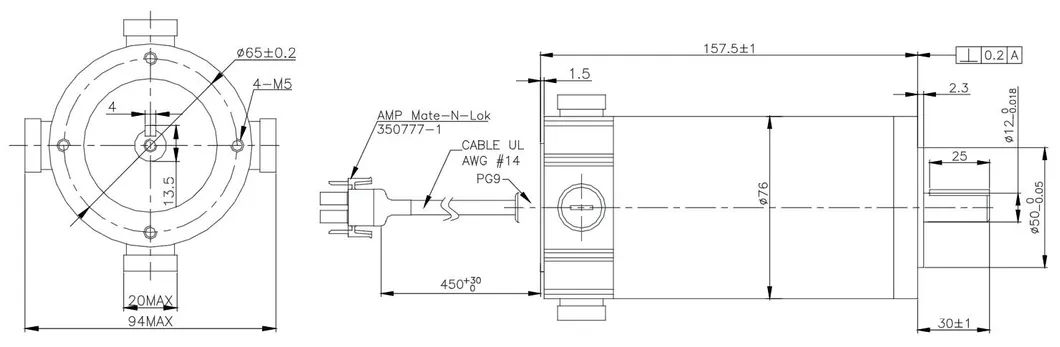

Mechanical Drawing

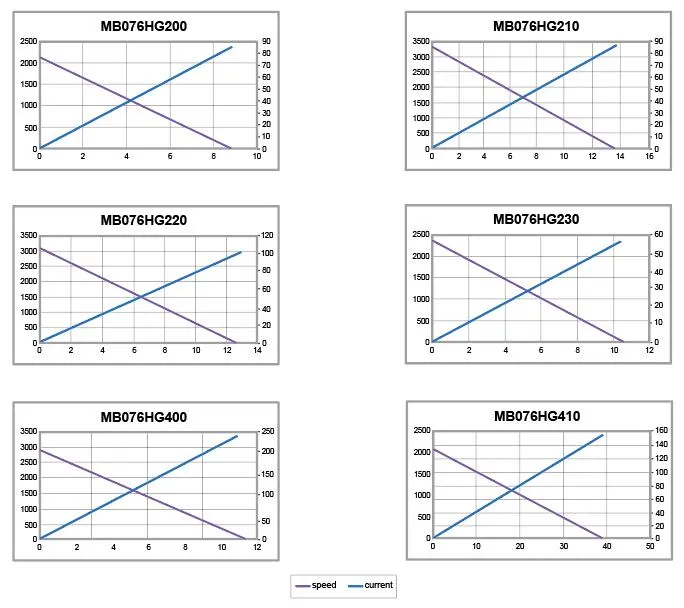

Characteristic Diagram

Customization & Capabilities

Various Customization Optional on mechanical and electric performances!

Customization Options

Design and Manufacturing Strengths

  • Modern Motor Design and Manufacture
  • Part Set Design and Manufacture
  • Magnetic Design Software-Motorsolver
  • In-house Molding capabilities
  • Global Shipping reach
  • UL, CE, RoHS, ISO 9001, ISO 14000 certifications
Certifications

Why Choose Our Solutions

  • Talented team of engineers providing innovative technical solutions
  • One stop supplier for complete sub-systems
  • Quality products provided at competitive low cost
  • On time delivery and fast service on return/repair
  • Substantial reduction in time to market

Applications

Specifically designed for high-performance use in:

  • Swimming pools & Automotive systems
  • Semiconductor & Chemical/Medical industries
  • Industrial automation & Power tools
  • Measuring equipment & Office automation
  • Various OEM applications
Applications Grid

Frequently Asked Questions (FAQ)

Q1: What is the rated power and voltage of the MB076HG400? A: The motor operates at a rated voltage of 48Vdc and provides a rated power of 408W.
Q2: What kind of magnets are used in this motor? A: The stator utilizes permanent rare earth magnets, which are glued and protected by a stainless steel sleeve for durability.
Q3: What are the protection and insulation ratings? A: The motor features Class F insulation and a protection grade of IP44.
Q4: Can the mechanical performance be customized? A: Yes, we offer various customization options for both mechanical and electrical performance to meet specific OEM requirements.
Q5: Which certifications does this motor comply with? A: This product is certified under UL, CE, and RoHS standards, and the manufacturing processes follow ISO 9001 and ISO 14000.
Q6: What is the peak torque capacity? A: The motor can reach a peak torque of 5.7 Nm with a peak current of 37.8 A.
