| Model NO. | ZH/ZV 1100-1500W |
| Power Source | AC Motor |
| Casing Protection | Closed Type |
| Number of Poles | 4 |
| Certification | ISO9001, CCC |
| Power Range | 100W~3.7kw |
| Reduction Ratio | 3~1800K |
| Phase | Single Phase, Three Phase |
| Voltage | 220V, 380V |
| Transport Package | CTN |
| Specification | CCC, CE, UL, RoHS |
| HS Code | 8501510090 |
| Production Capacity | 30000PCS/Month |
Our brand has a wide range of micro motor production lines in the industry, including DC Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Drum Motor, Planetary Gearbox, RV Reducer and Harmonic Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.
Our professional sales representative and technical team will choose the right model and transmission solutions for your usage depend on your specific parameters.

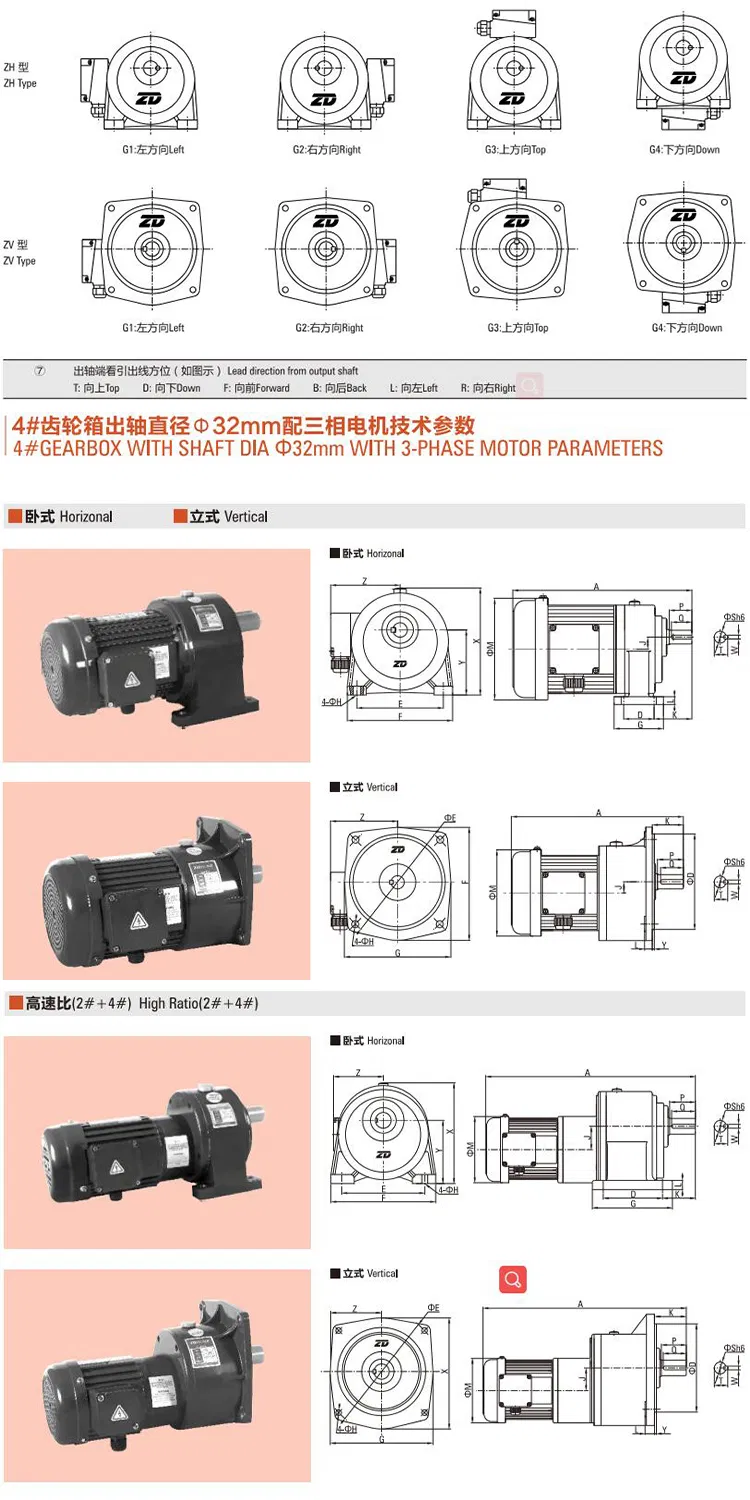

If you need more product parameters, catalogues, CAD or 3D drawings, please contact us.
We can modify standard products or customize them to meet your specific needs.
| Item | 3-phase motor | 1-phase motor |
|---|---|---|
| Protection | IP54 with alum alloy terminal box, others IP20 | |
| Frame material | Alum alloy for 100-2200W Frame; Cast iron options available | |
| Duty | Continuous running | |
| Insulation Class | B/F | |
| Environment | Temp: -10 to +40 centigrade; Humidity: <90% | |
| Starting | Direct start | Capacitor start |
| Parts Name | Technical Notes |

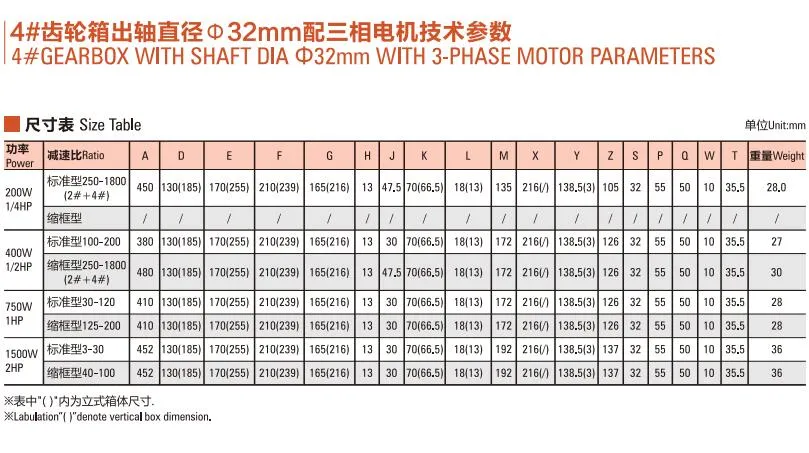

| Gearbox | Output shaft diameters 18, 22, 28, 32, 40, 50mm. Alum alloy or Cast iron options. |
| Gear Shaft | Material 20CrMnTi, HRC60 through cementite quencher processing. Precision class 6. |
| Motor Shaft | Material 40Cr, HB280 with high frequency quencher HRC54. Precision class 5-6. |
| Oil Seal | High temperature resistant to avoid oil infiltration. |
