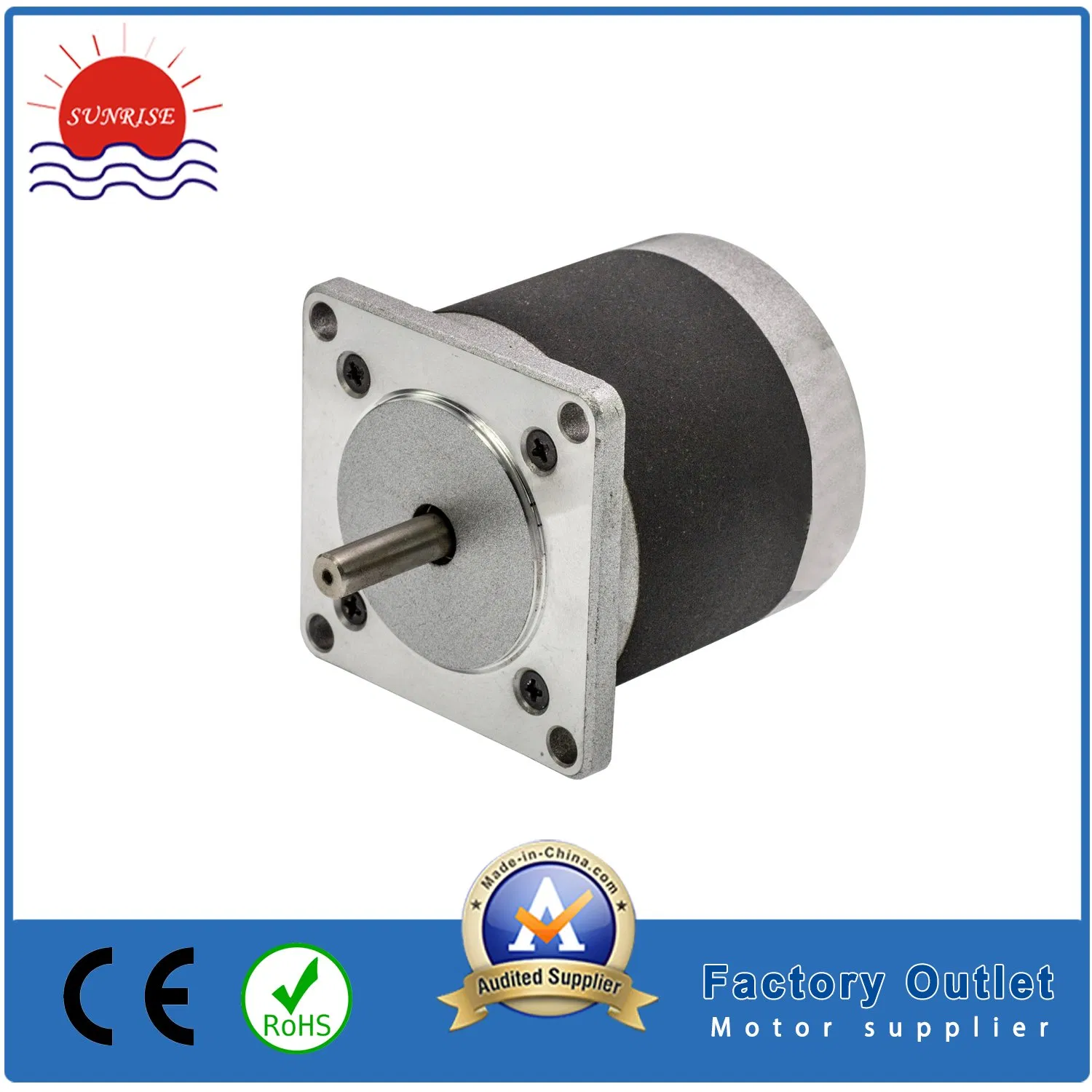

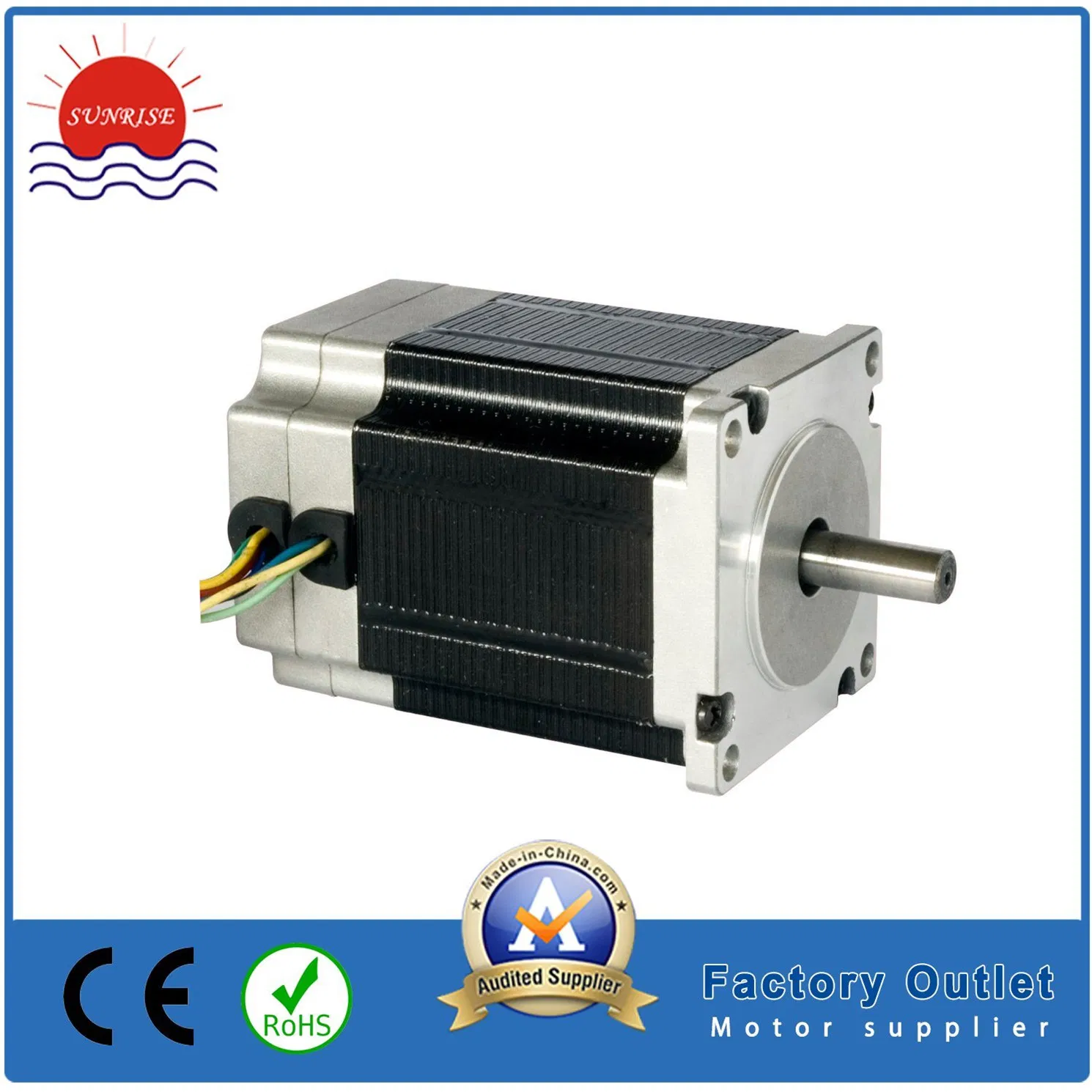

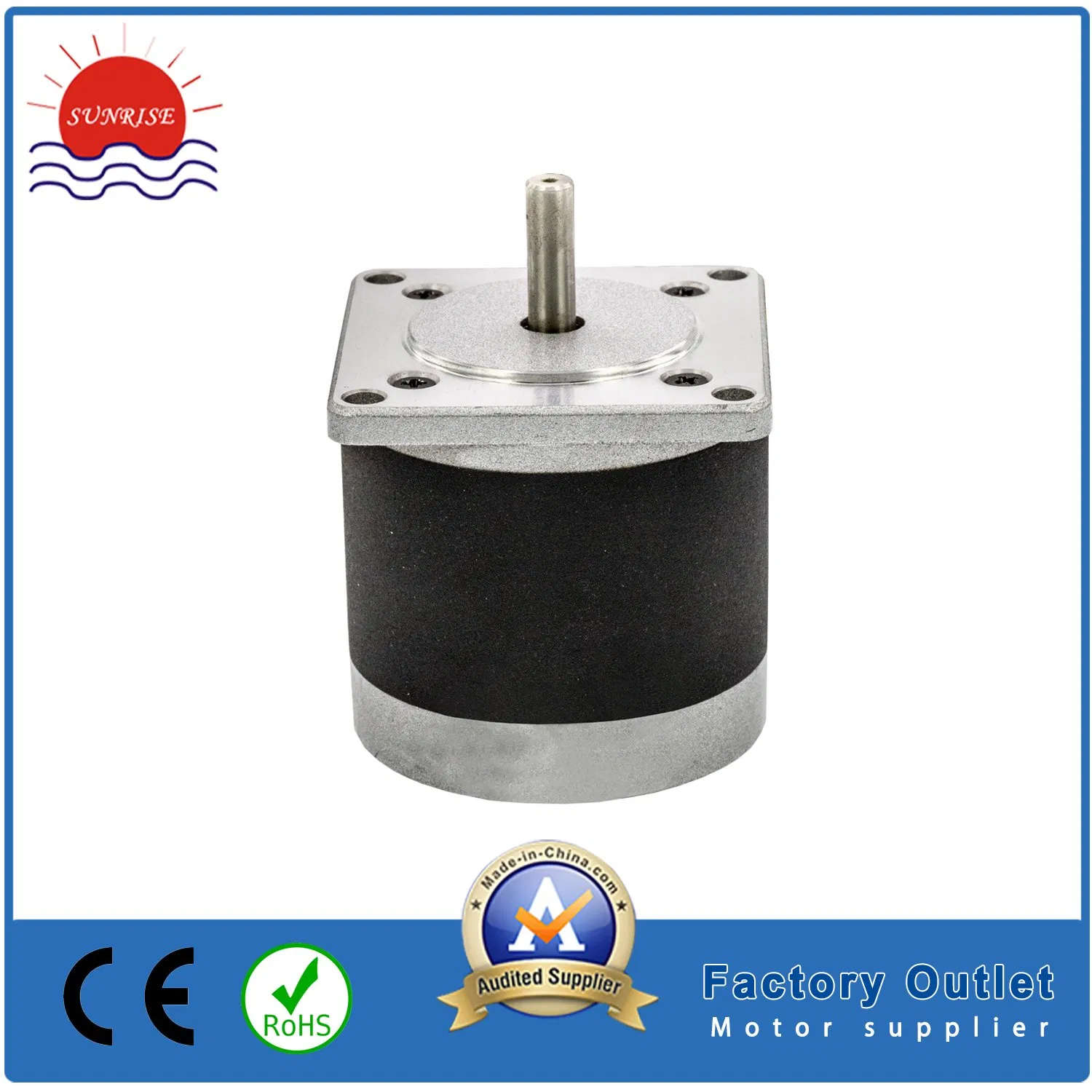

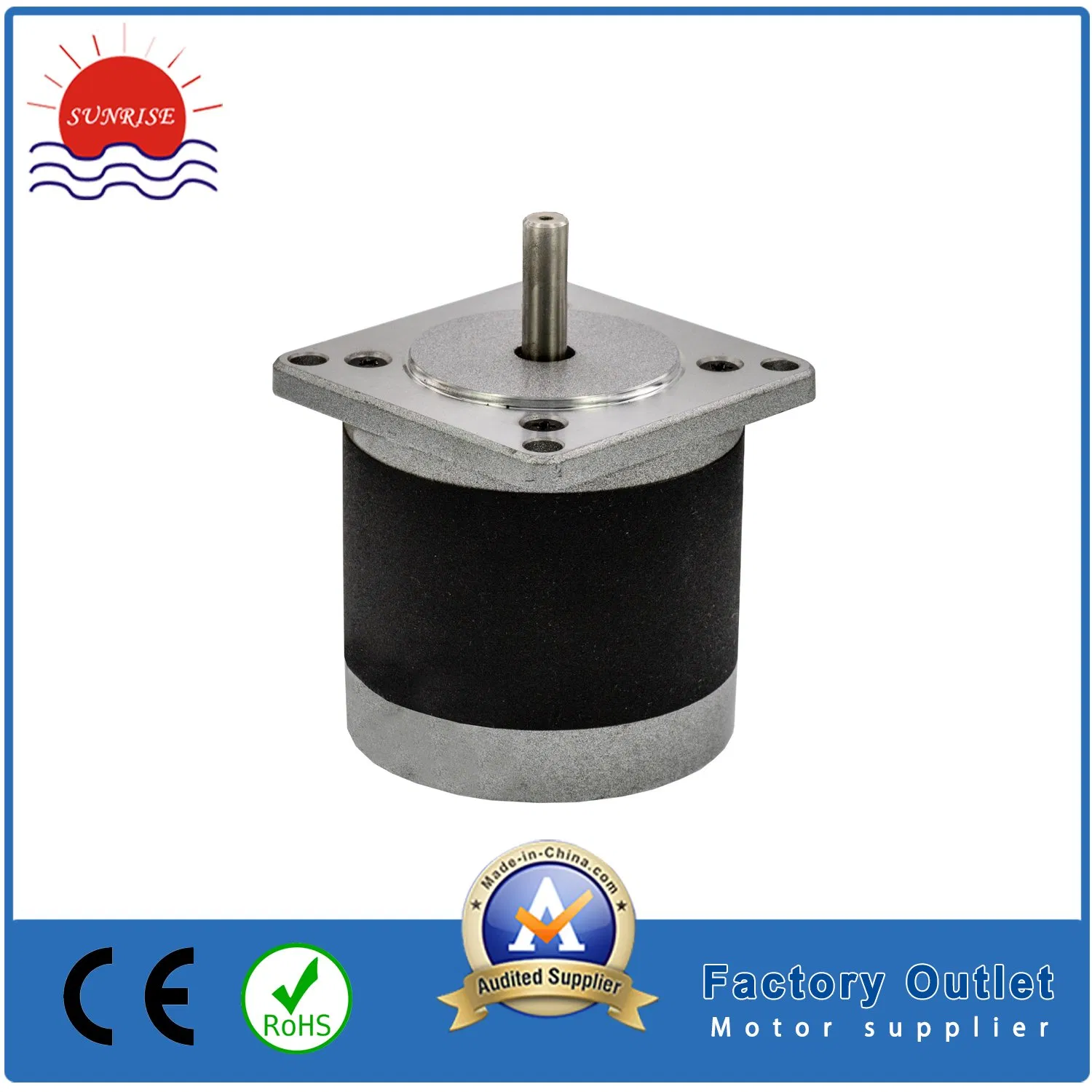

57BLY3A90 36V 8poles 3000rpm 185W Electric Brushless DC BLDC Motor

1 / 5

57BLY3A90 36V 8poles 3000rpm 185W Electric Brushless DC BLDC Motor

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information Overview

Model NO.

57BL3A90

Excitation Mode

Shunt

Function

Driving

Casing Protection

Closed Type

Number of Poles

Structure Principle

Brushless

Type

BLDC

Voltage

36VDC/48VDC

Speed

3000 RPM

Rated Torque

0.6Nm

Winding Class

Motor Weight

1.4kg

Product Description

Electric Brushless DC BLDC Motor:
The BLDC motor offers exceptional torque and speed, higher efficiency, and compact package sizes suited for stringent application requirements. These motors are electronically commutated and available in sensored or sensorless 3-phase winding versions.

Winding Type: Star
Hall effect angle: 120° Electrical angle
Insulation Class: B
Ambient Temperature: -20ºC to +50ºC
Insulation Resistance: 100MΩ Min. at 500V DC
Dielectric Strength: 600VAC for 1 minute
Max Radial Force: 75N (10mm from front flange)
Max Axial Force: 15N

Technical Parameters (Series 57BL NEMA 23)

Specification	Unit	57BL3A50-A	57BL3A50-B	57BL3A70-B	57BL3A70-C	57BL3A90-B	57BL3A90-C
Rated Voltage	V	24	36	36	48	36	48
Rated Output Power	W	62	62	125	125	185	185
Rated Speed	rpm	3000	3000	3000	3000	3000	3000
Rated Torque	N.m	0.2	0.2	0.4	0.4	0.6	0.6
Rated Current	A	3.3	2.2	4.4	3.2	6.5	4.8
Peak Torque	N.m	0.58	0.6	1.29	1.31	1.9	2
Number of Poles	-	8	8	8	8	8	8
Motor Weight	kg	0.65	0.65	1	1	1.4	1.4

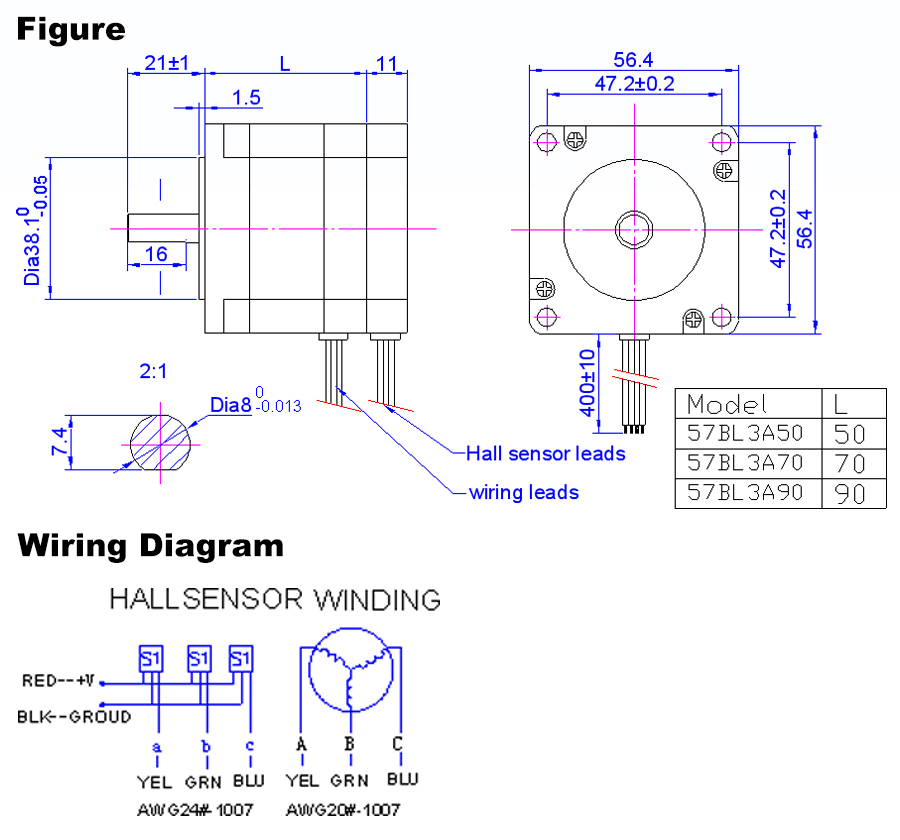

Wiring Diagram & Electrical Connection

FUNCTION	COLOR	WIRE GAGE
+5V	RED	UL1007 26AWG
HALL A	YELLOW
HALL B	GREEN
HALL C	BLUE
GND	BLACK
PHASE A	YELLOW	UL1015 20AWG
PHASE B	GREEN
PHASE C	BLUE

Recommended Products

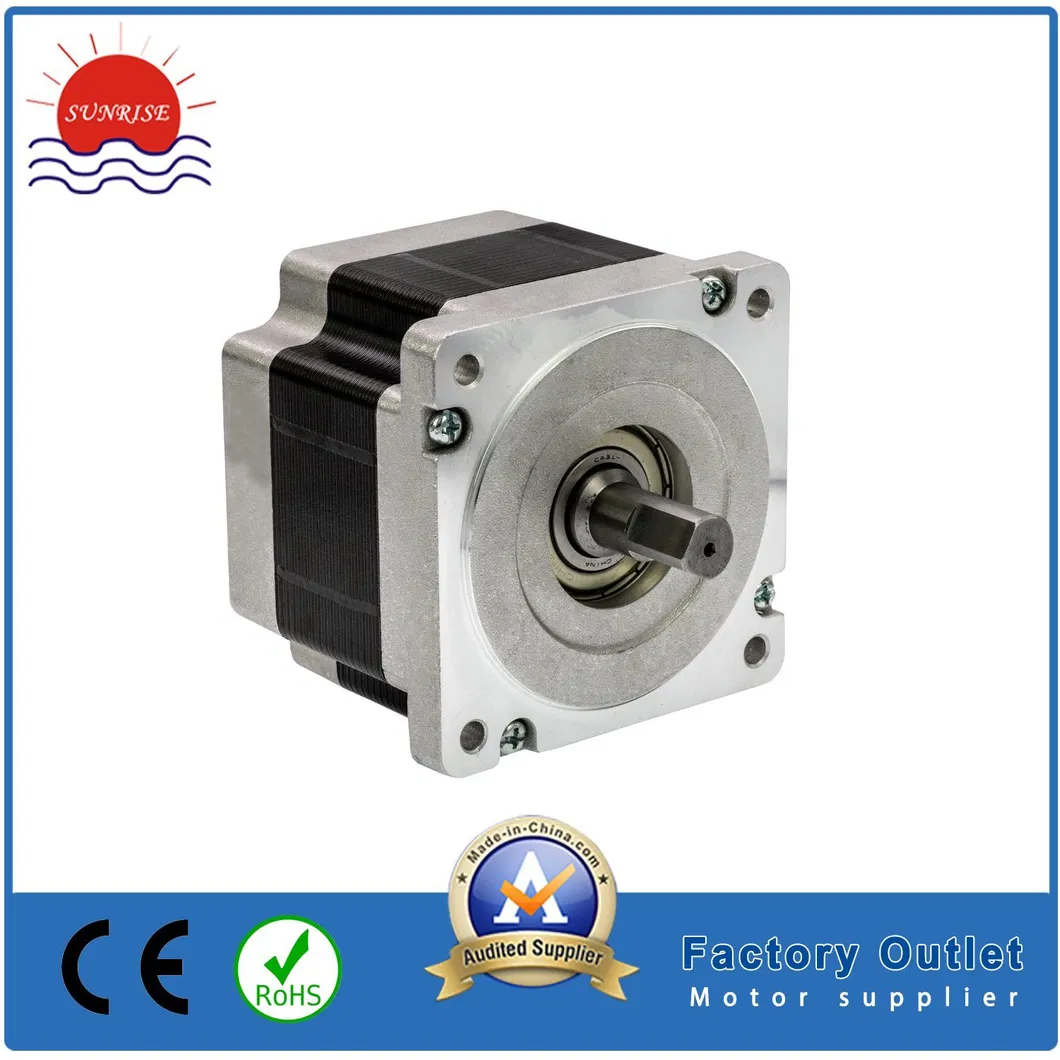

86bls3a125 Brushless Servo

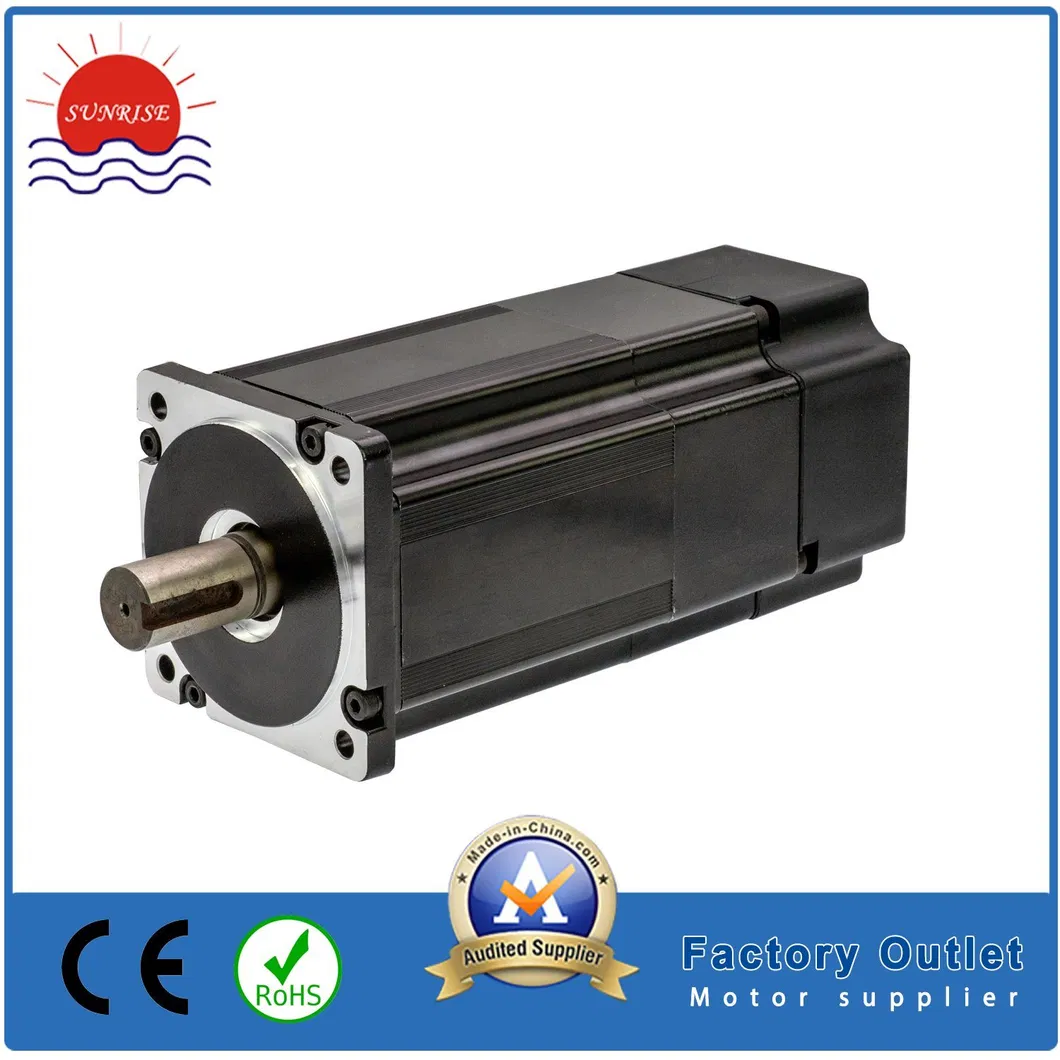

Es6004A Brushless Servo

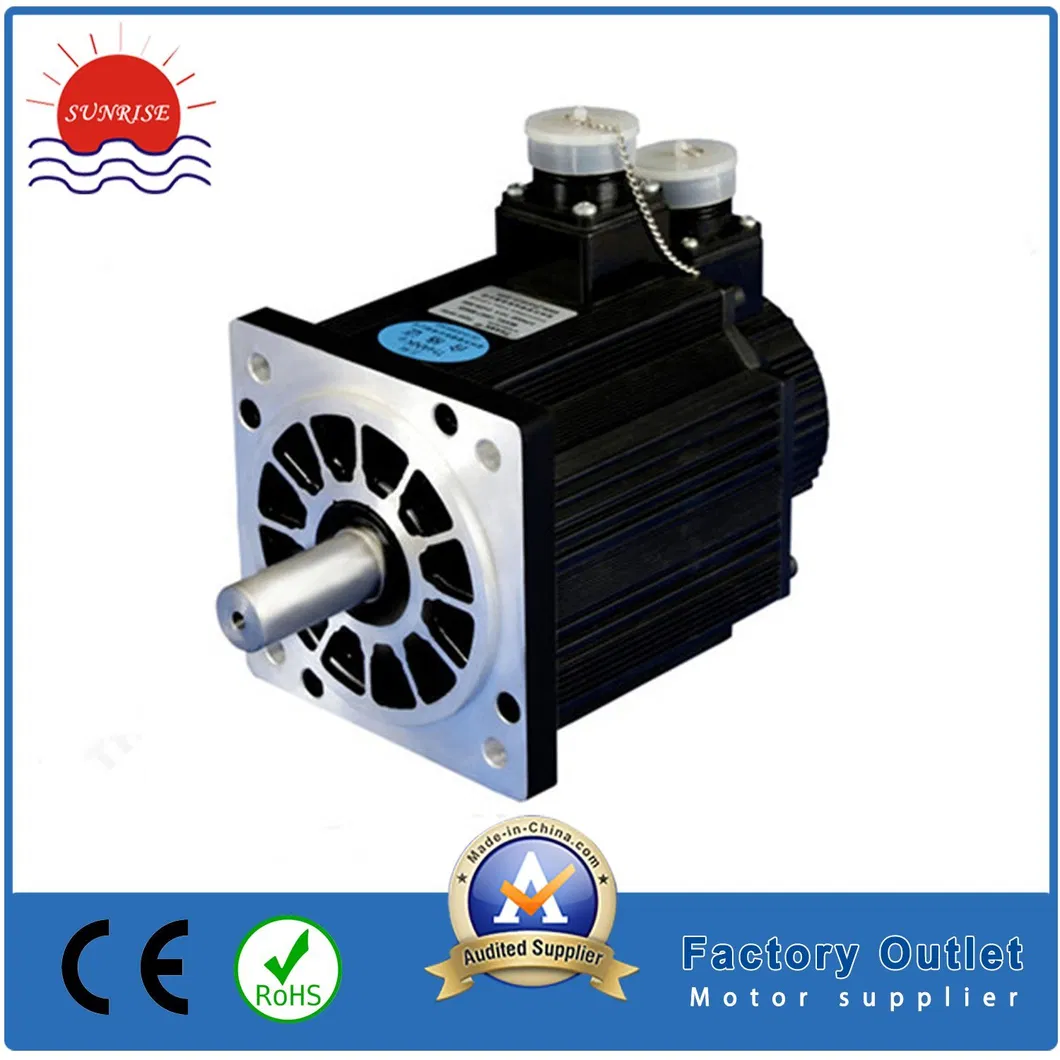

130st-M5025 AC Motor

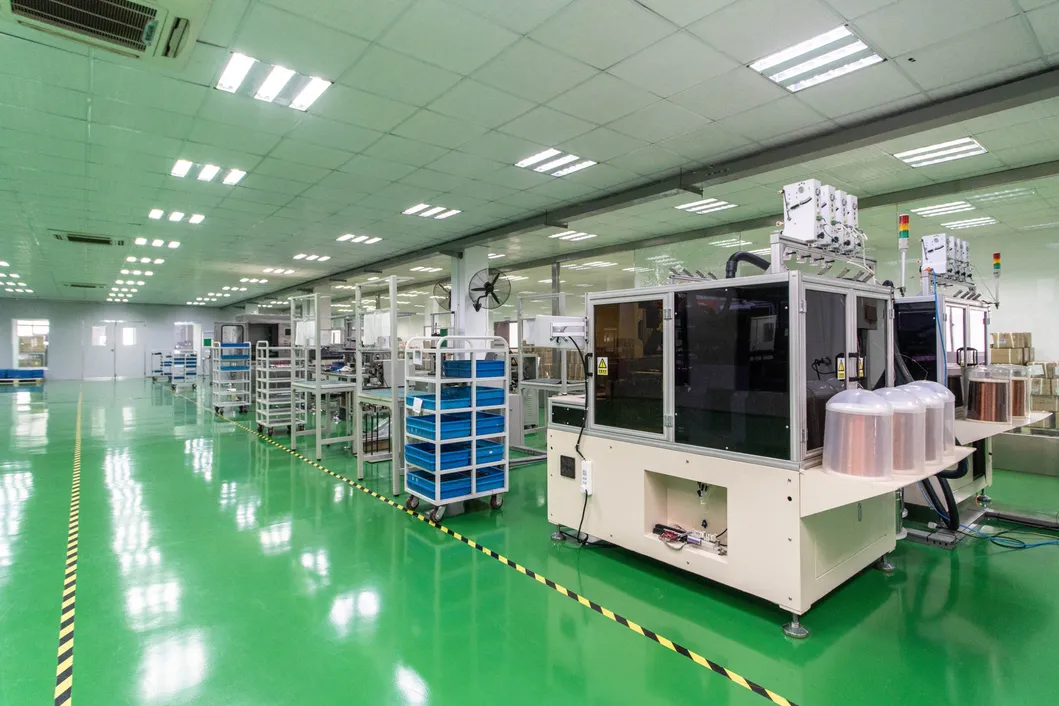

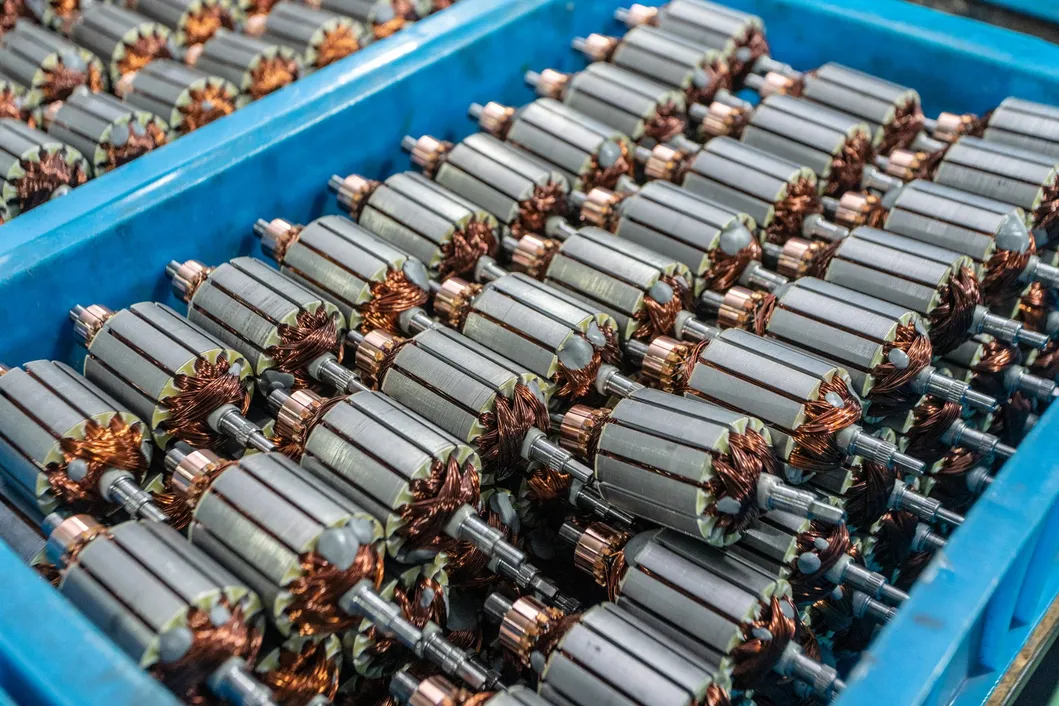

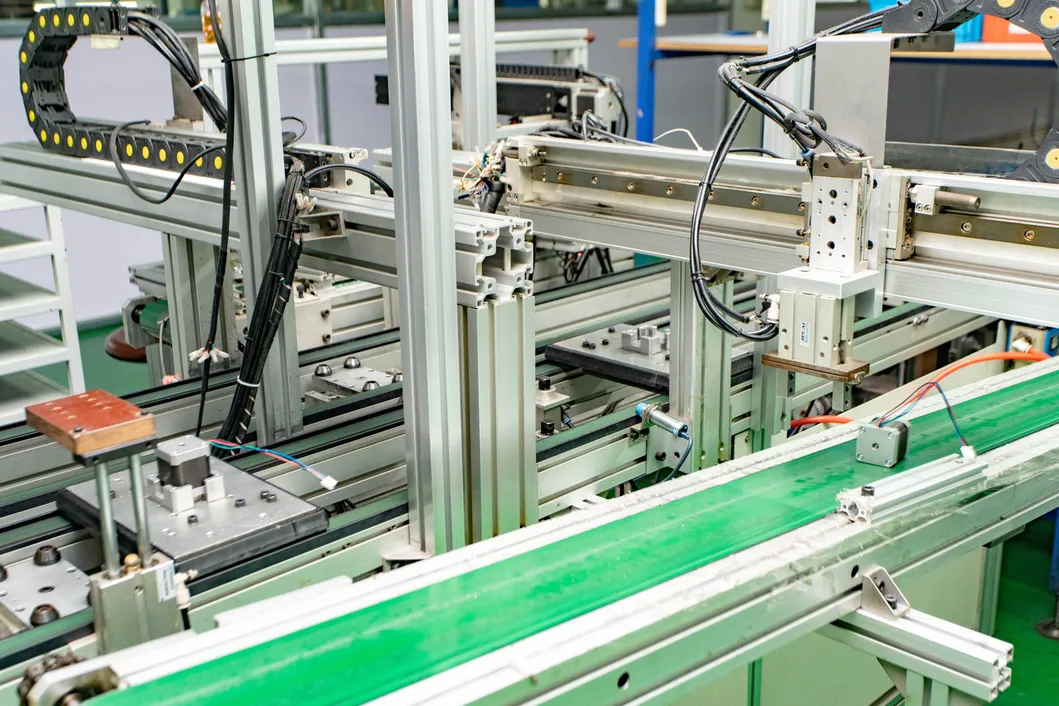

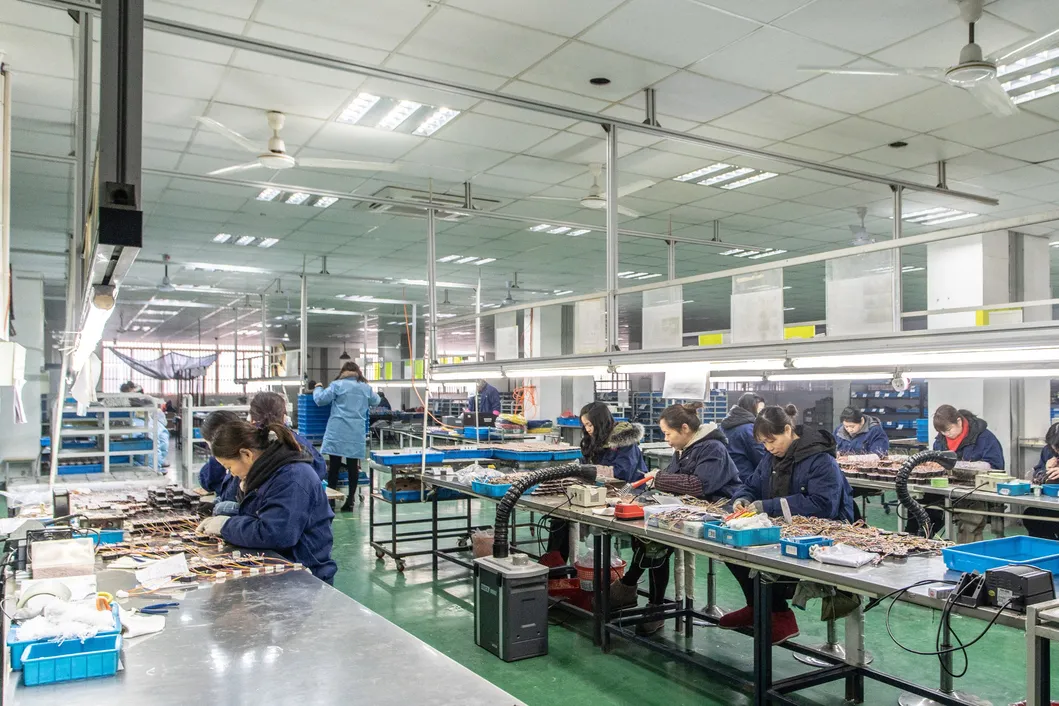

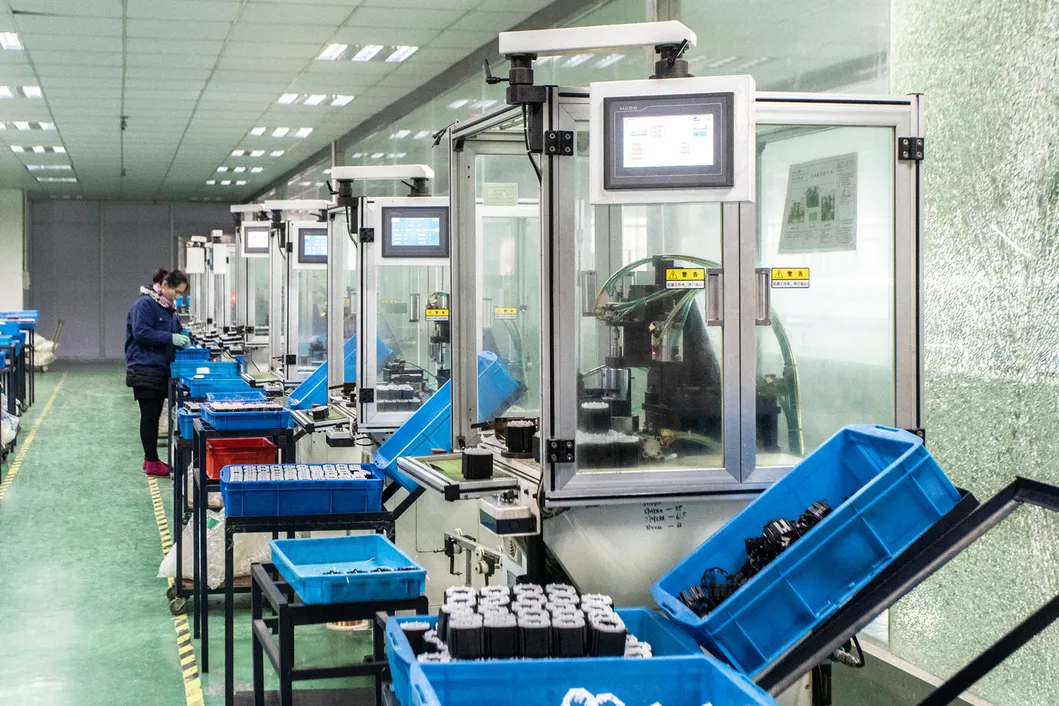

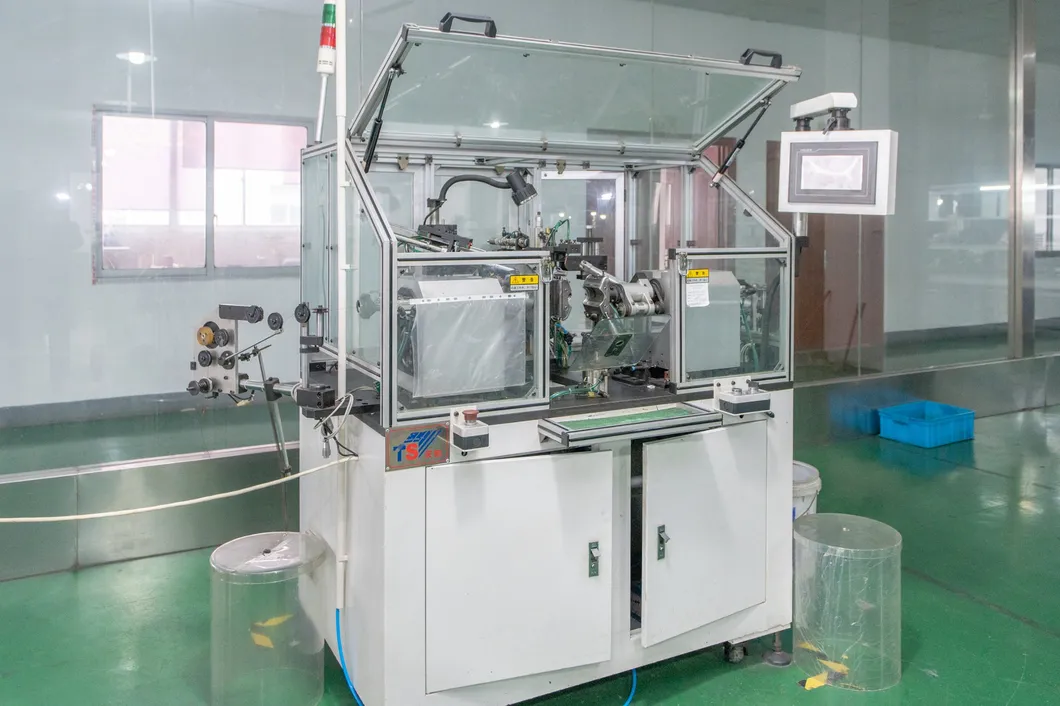

Production & Quality Control

Frequently Asked Questions

How can I place an order?

Submit an inquiry to receive our quotation. We will then negotiate technical details, confirm samples, and proceed with the contract and mass production upon deposit.

Are samples available for testing?

Yes, samples are available. Please contact our team with your specific requirements to arrange a sample order.

What shipping methods are supported?

We support a variety of shipping options including DHL, UPS, FedEx, TNT, EMS, and Sea freight to meet your logistics needs.

What is the typical delivery timeframe?

Delivery time depends on the order quantity. Typically, mass production takes between 15 to 25 working days.

What are the accepted payment terms?

We accept T/T and PayPal. Generally, a 30-50% deposit is required, with the remaining balance due before shipping.

Can the motors be customized?

Yes, motors can be customized with different windings, mechanical modifications, encoders, brakes, or gearheads to meet specific application requirements.
