Basic Information
Certification
ISO9001, CCC
Speed
2200rpm or Customized
Product Description

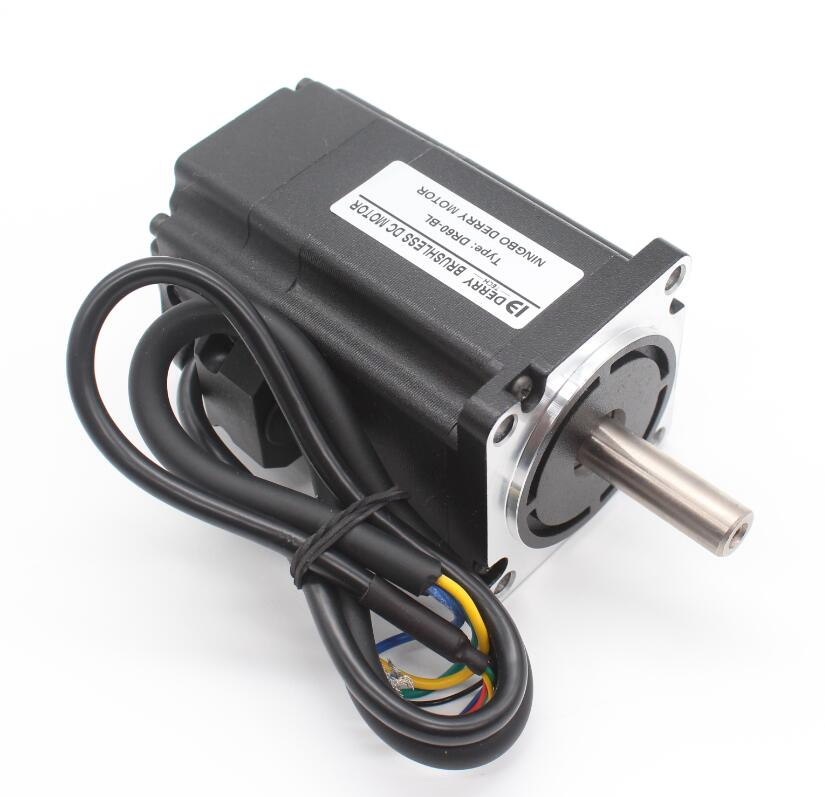

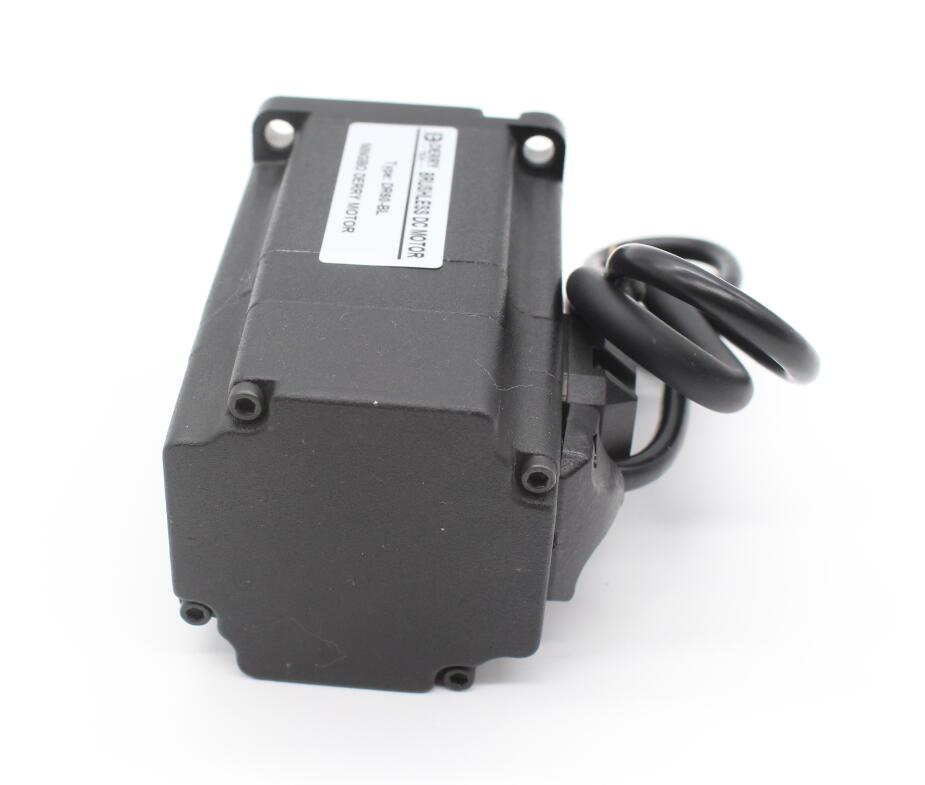

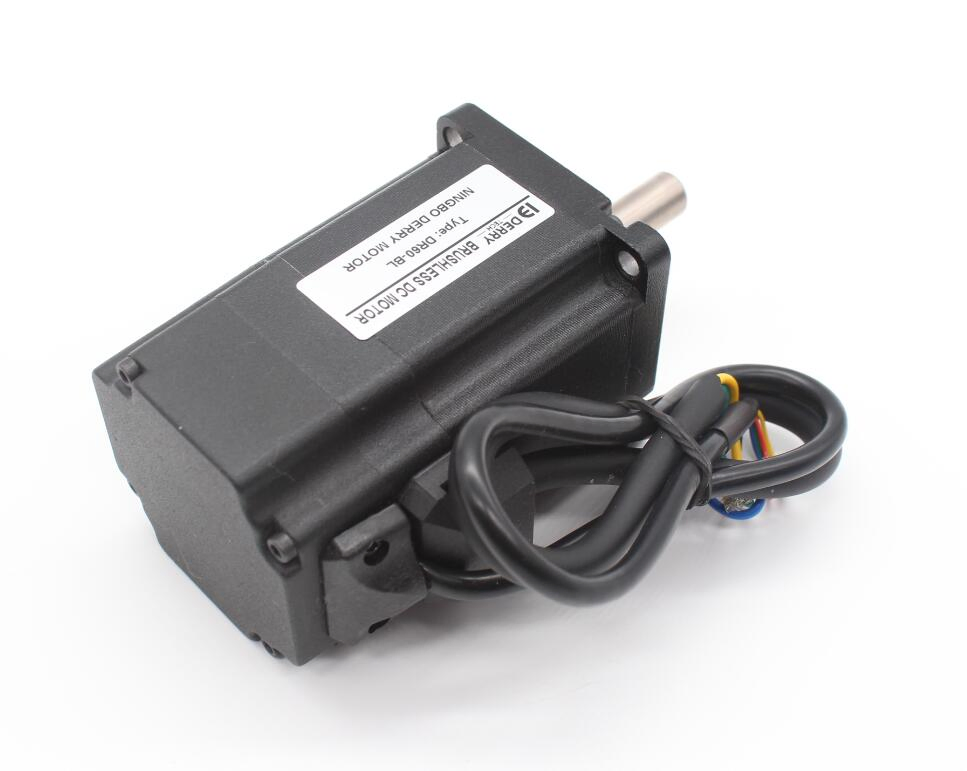

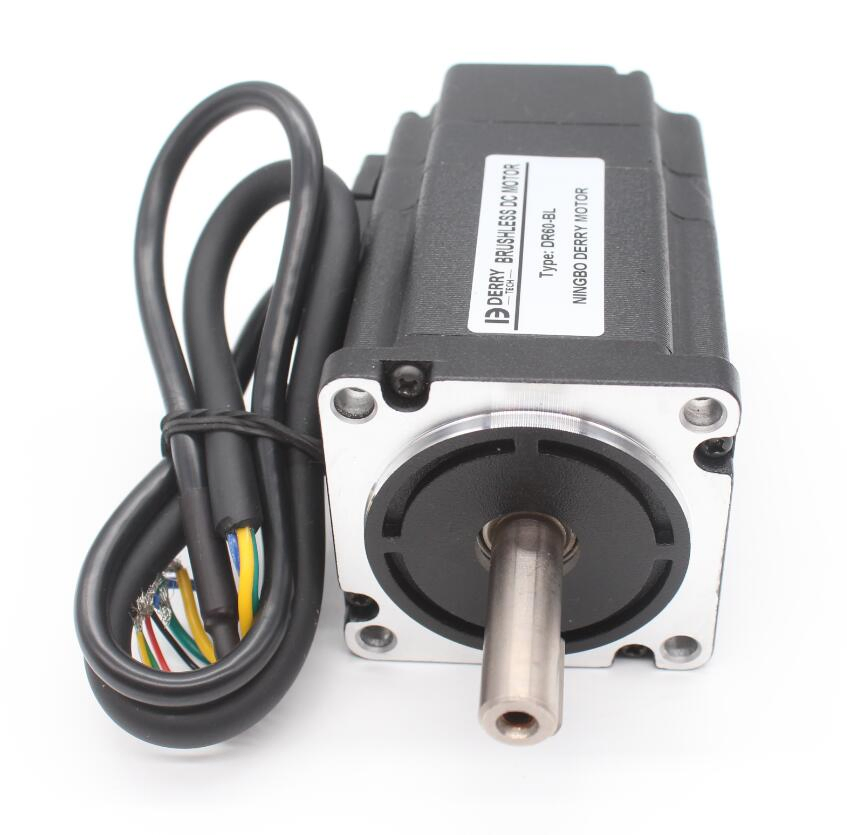

Brushless 24V 172W Servo Motor High Speed 2200rpm
Key Features
- Balanced performance between 57mm and 80mm models
- High torque density in a compact size
- Smooth operation with low vibration
- Suitable for precision transmission with medium load
- Typical applications: packaging machines, small CNC machines, AGV drive systems
Technical Specifications
| Rated voltage | 24VDC |
| Rated power | 172W |
| Rated speed | 2200RPM |
| Rated current | 9.6A |
| Rated torque | 0.75N.m |
| Peak torque | 2.25N.m |
| Number of poles | 8 |
| Net Weight | 800g |

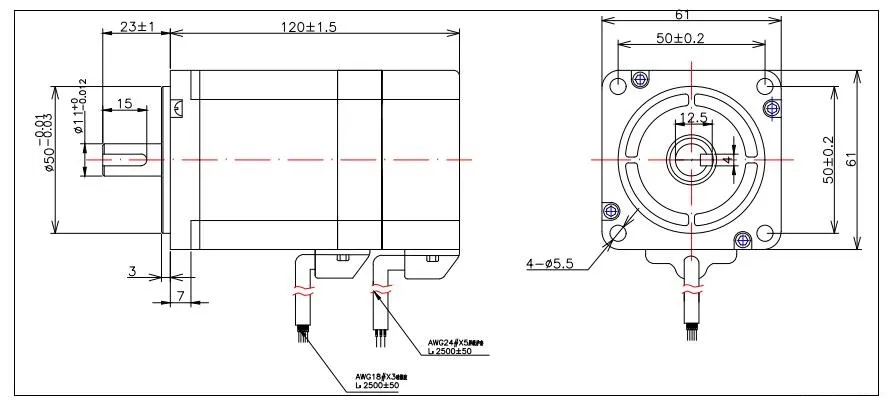

Technical Drawing & Dimensions

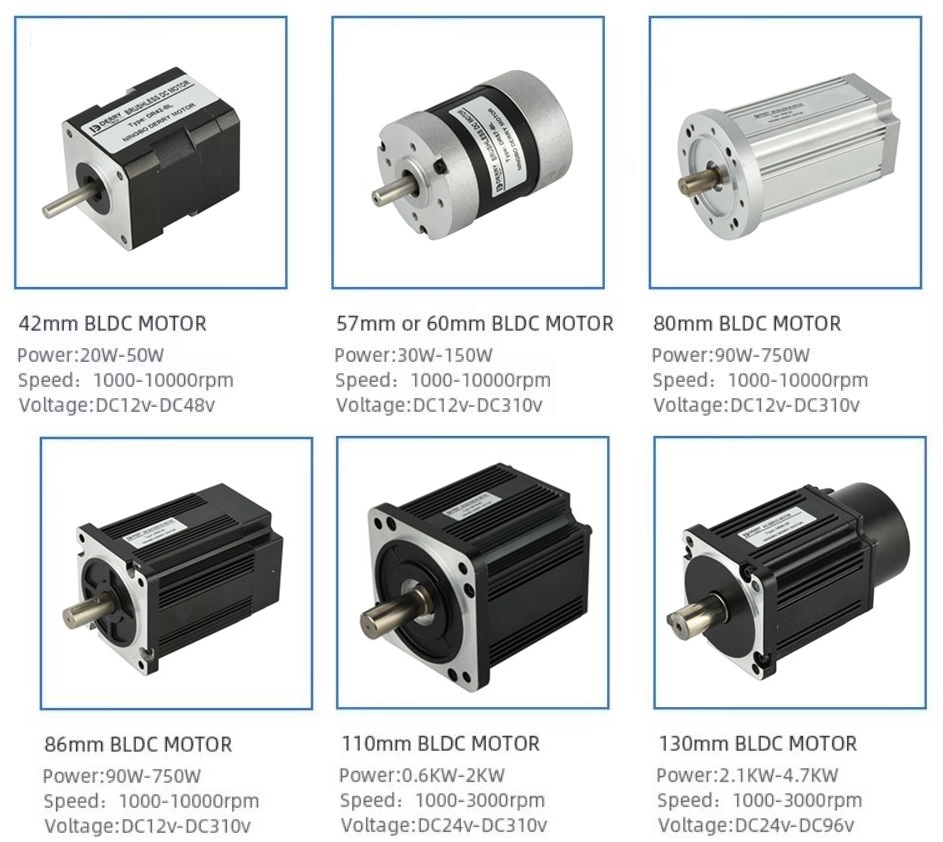

Related Brushless DC Motor Series

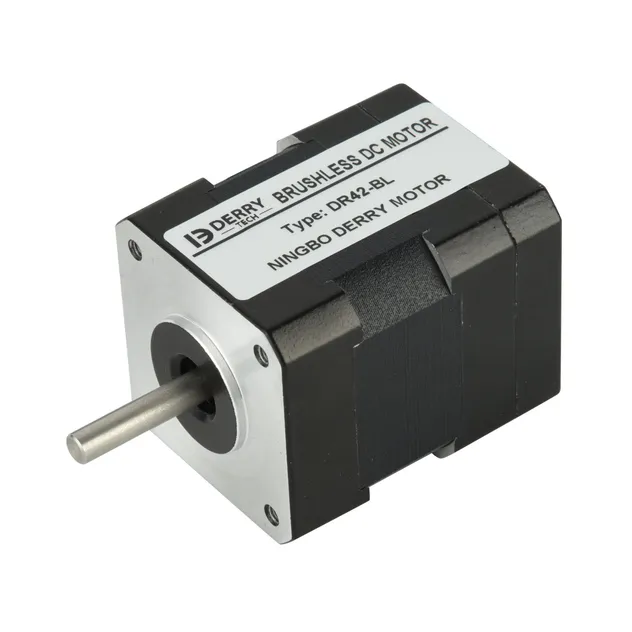

Dia42mm BLDC Motor
Compact structure, low inertia, fast dynamic response. Suitable for 3D printers and small robots.

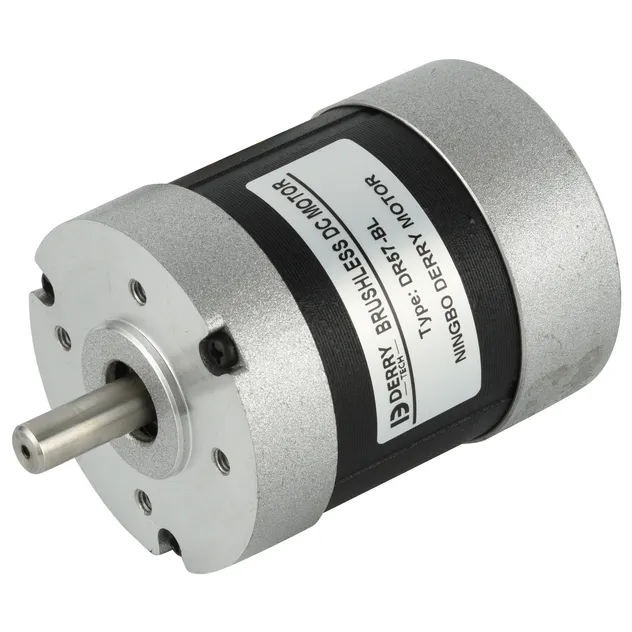

Dia57mm Round Flange BLDC
General-purpose standard size, medium torque. Ideal for conveyors and medical devices.

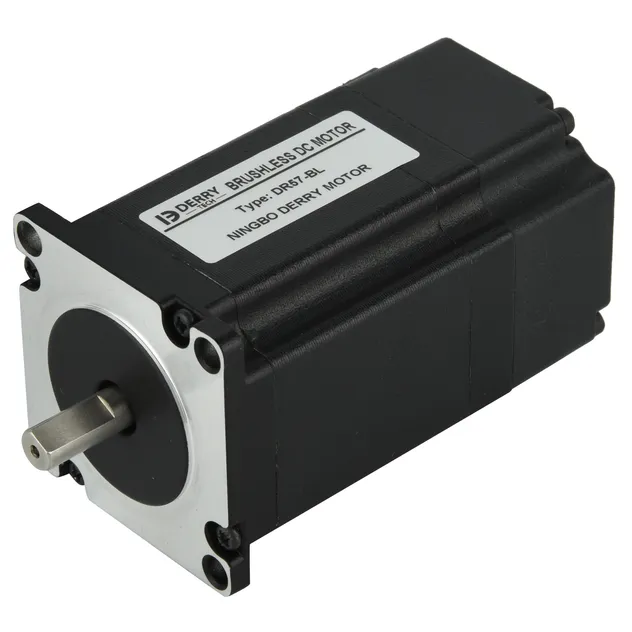

Dia57 Square Flange BLDC
High cost-performance, stable controllability for automation equipment.

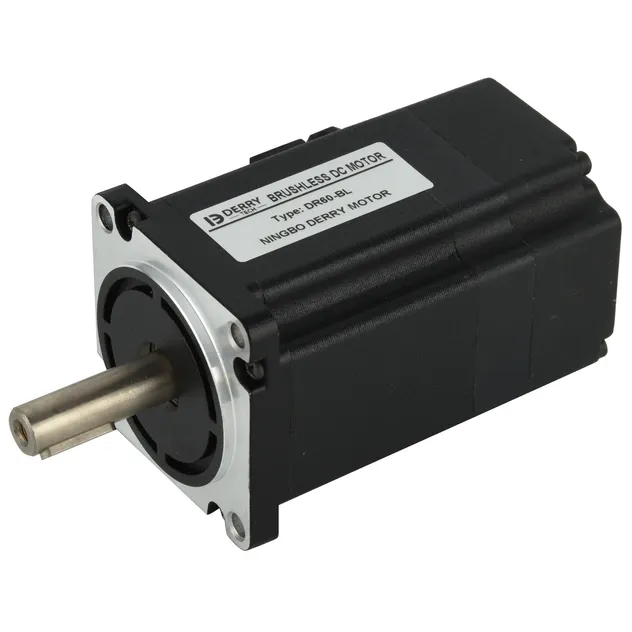

Dia60mm BLDC Motor
High torque density, smooth operation for packaging and AGV systems.

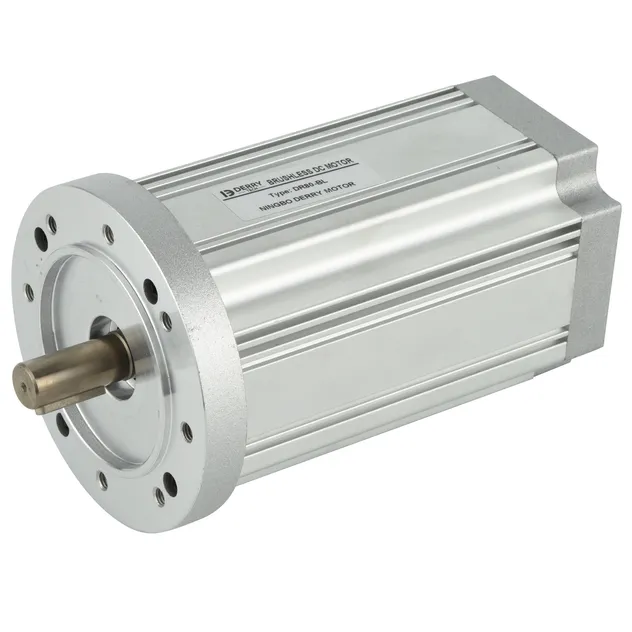

Dia80mm Round Flange BLDC
Excellent heat dissipation and strong overload capacity for industrial automation.

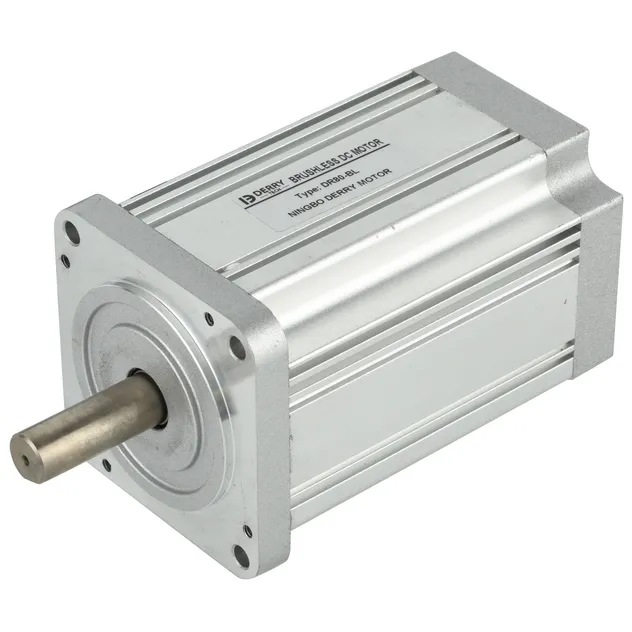

Dia80mm Square Flange BLDC
Stable performance under continuous operation for machine tools.
Packaging & Standards
Export Standard Cartons or Pallets

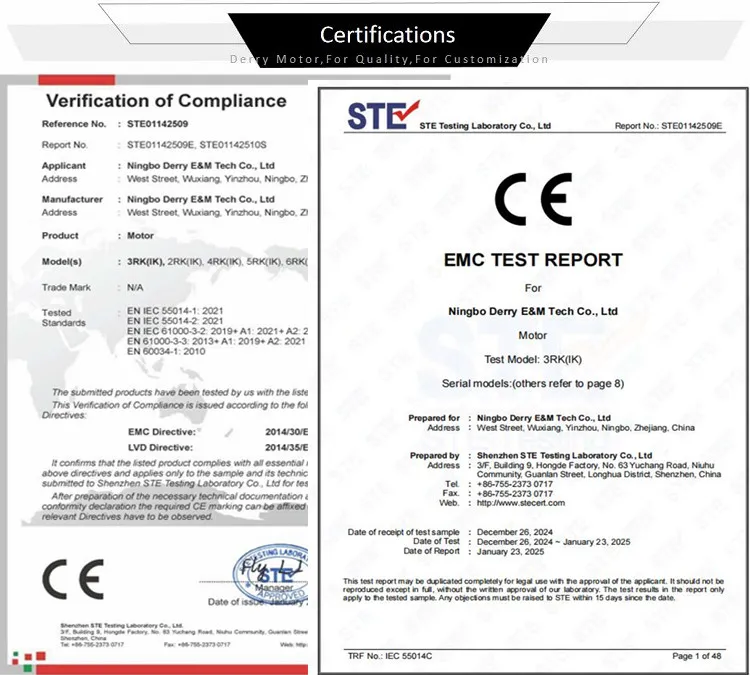

CCC, CE, RoHS Certifications
Frequently Asked Questions
What is the standard voltage range for these brushless motors?
The standard voltage options include 12V, 24V, 48V, and 220V. Other specific voltage requirements can be customized upon request.
What kind of speed and torque performance can I expect?
Depending on the model, speed ranges from 1000 to 15000rpm, and torque ranges from 0.05 to 30N·m.
What is the typical service life and protection rating?
The motors are rated at IP54 (IP65 optional) and offer a service life between 3000 to 8000 hours under rated operating conditions.
Do you have a Minimum Order Quantity (MOQ)?
We support small orders for samples (1-10pcs). For bulk orders, the MOQ is negotiable based on the project requirements.
What are the lead times for delivery?
Sample orders generally take 3-7 working days. For bulk production orders, the lead time is typically 15-30 working days.
What certifications do your motors carry?
Most of our products are fully compliant with CCC, CE, and RoHS certifications, ensuring international quality and safety standards.
