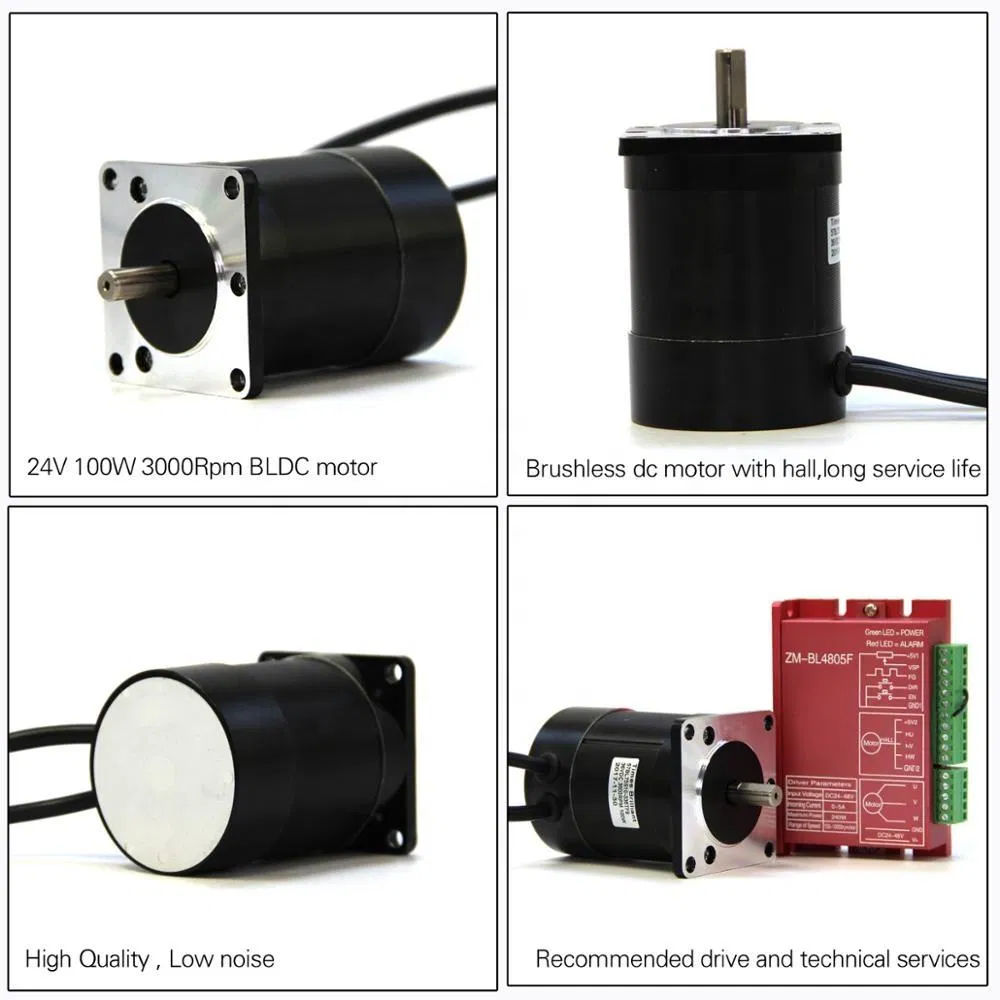

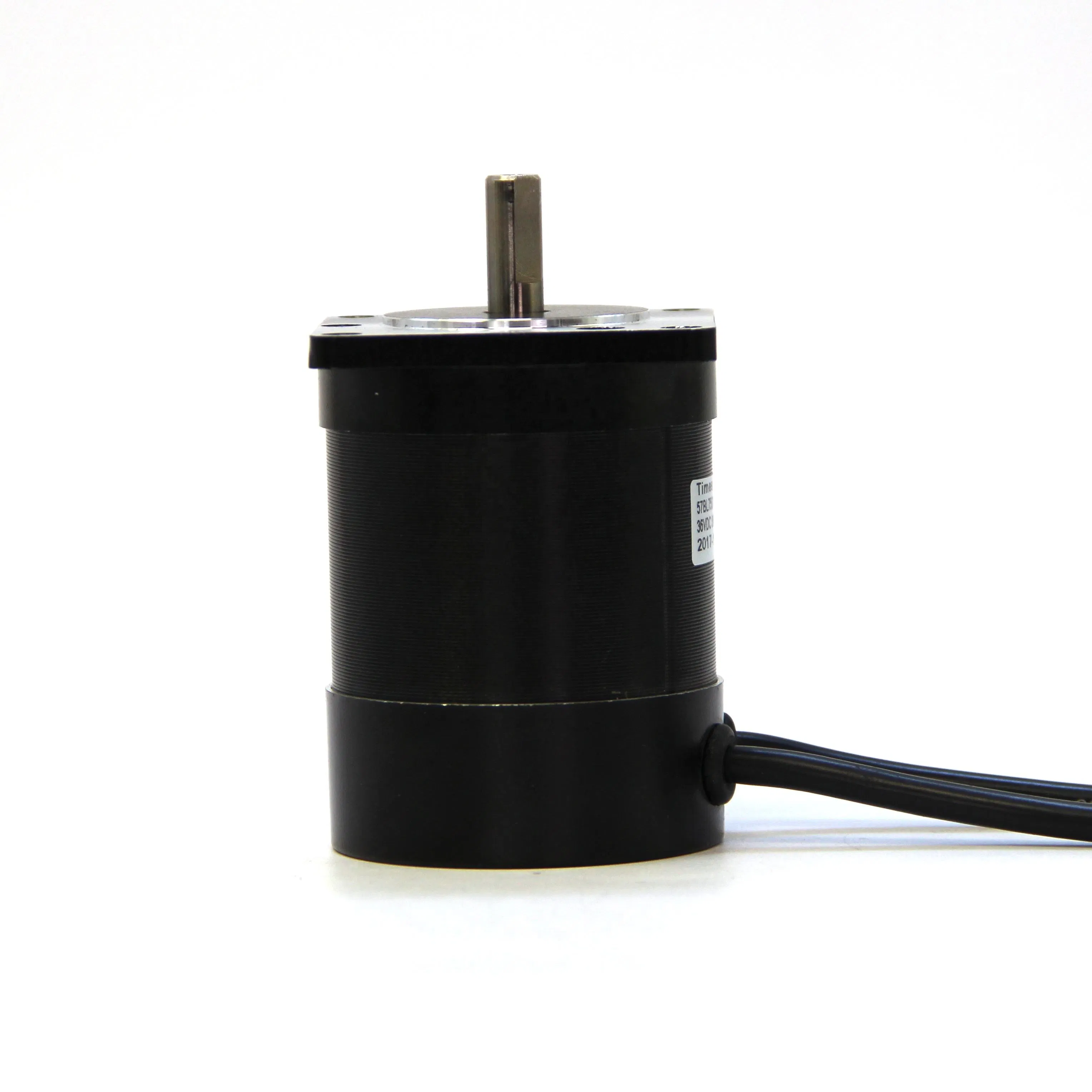

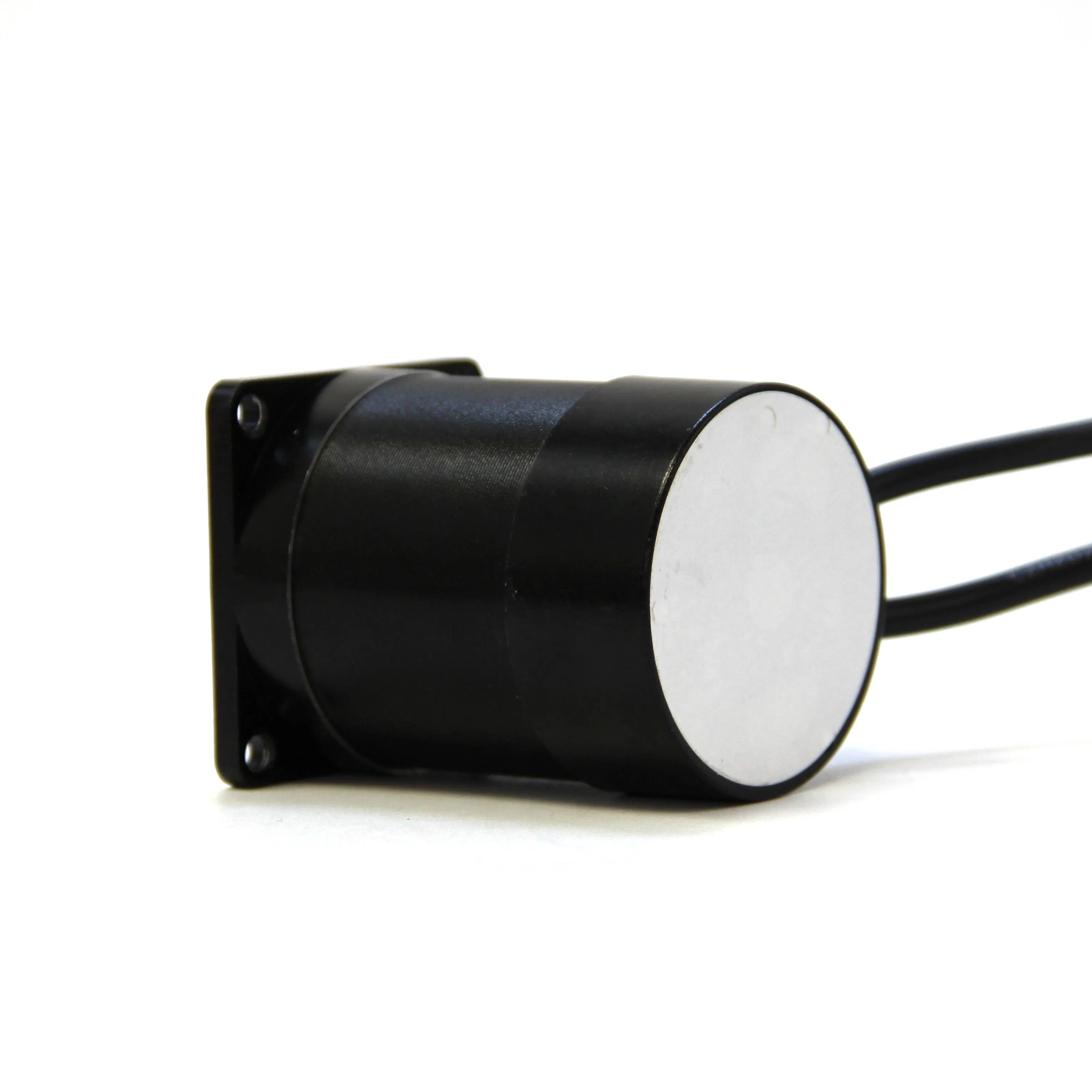

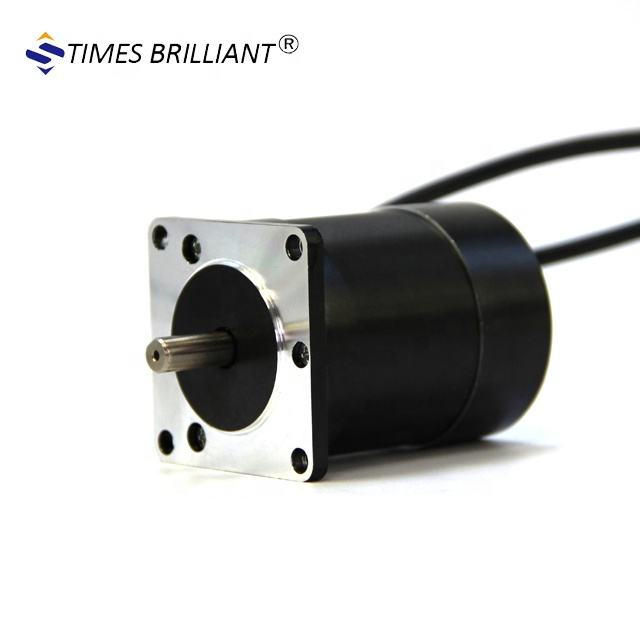

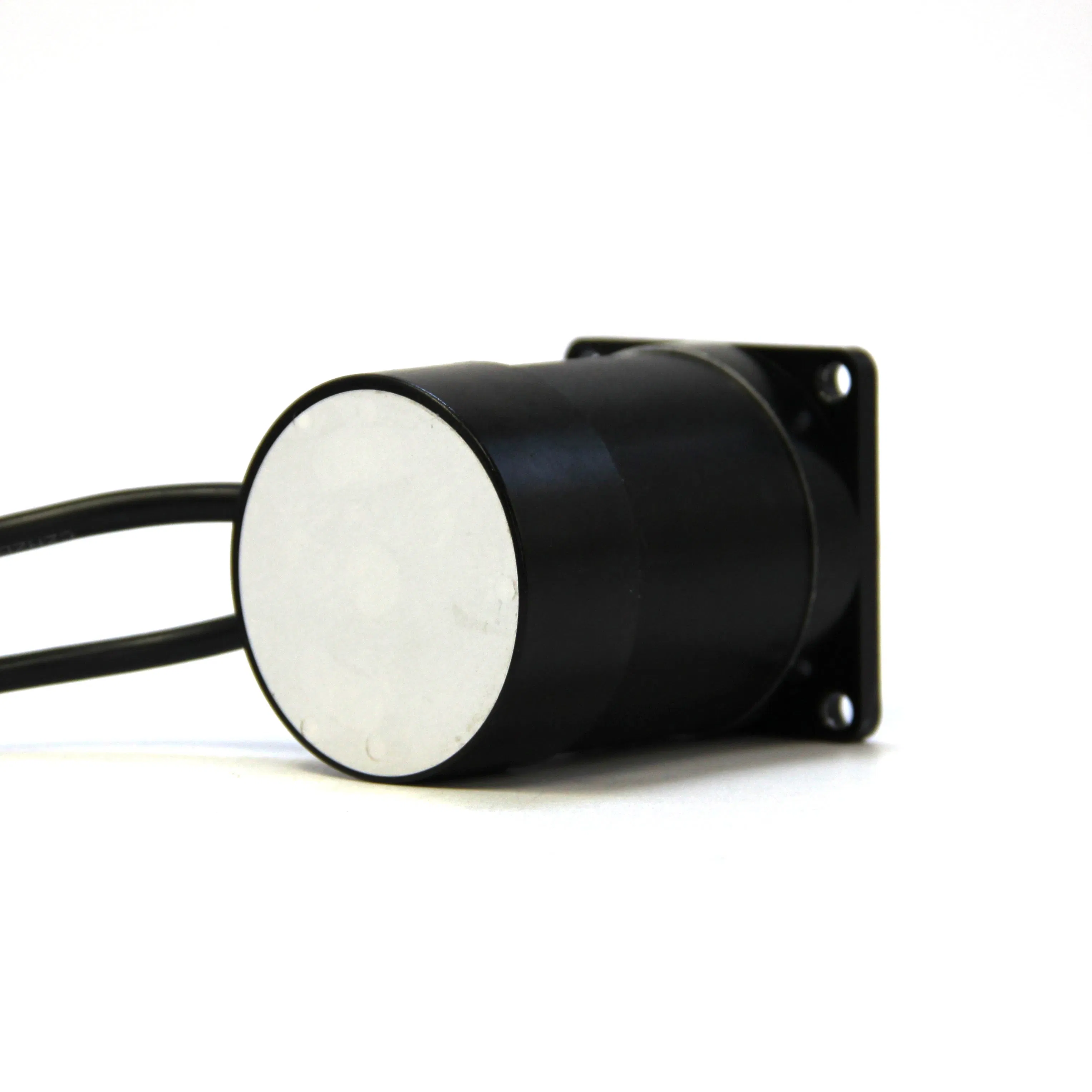

DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
1 / 5
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)

DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)

Customization: Available
Application: Industrial
Operating Speed: High Speed
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
57BL75S10-230TF9
Type
Micro Motor
Function
Driving
Rated Voltage
24V
Rated Power
100W
Rated Speed
3000rpm
Rated Torque
0.32nm
Commutation
Brushless
Certification
CE
Construction
Permanent Magnet
No Load Speed
4500rpm
Number of Poles
4
📦 Packaging & Delivery
Package Size
15.00cm * 15.00cm * 20.00cm
Gross Weight
5.000kg
Transport Package
Polyfoam, Cardboard Carton
⚙️ Product Description
3000RPM High speed Low Noise 100W BLDC Brushless DC Motor 24V
BLDC Motor Overview

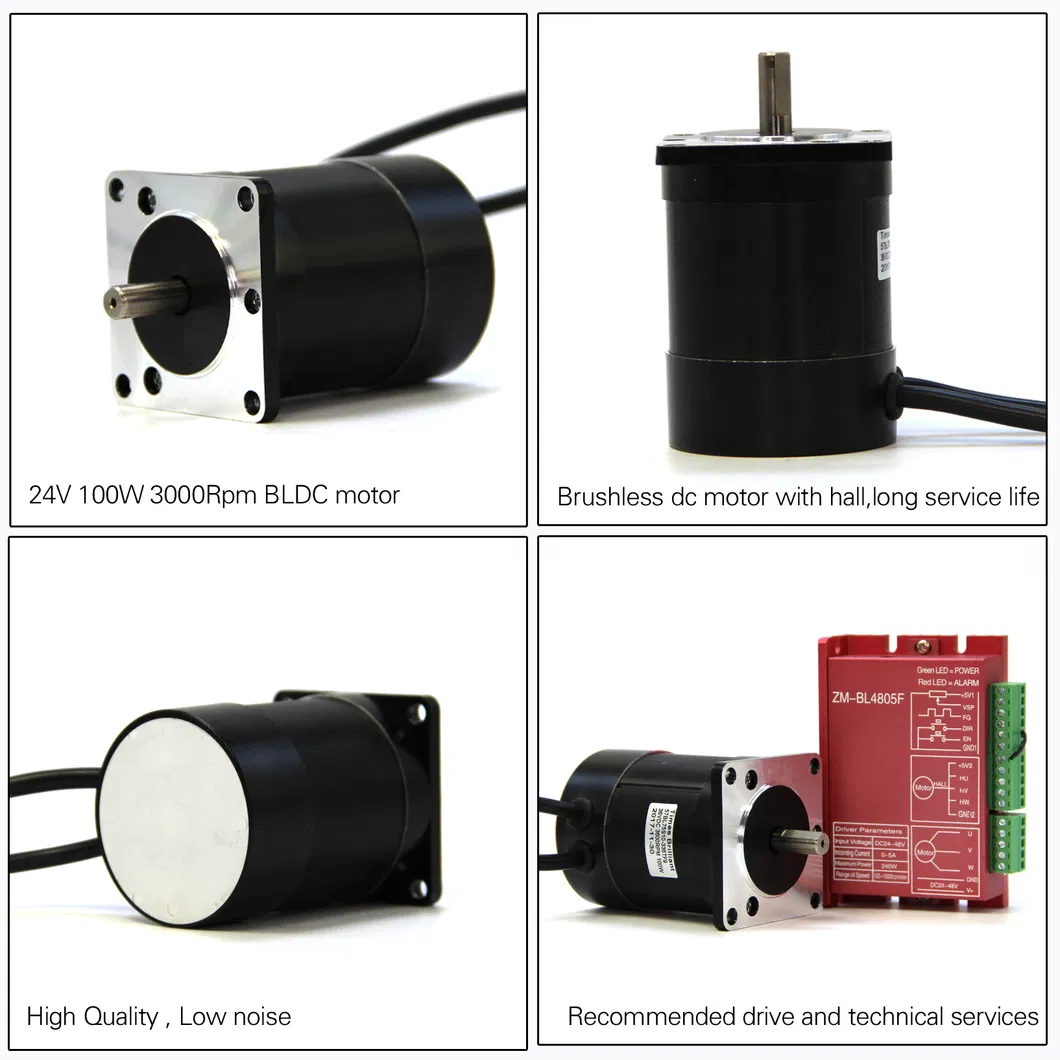

DC Motor Close Up
⚠️ Note: This motor contains magnetic components; inspection fees may apply during specific transportation modes. Large quantities may waive this requirement.
Motor Technical Details
Key WordsBrushless DC Motor
Model57BL75S10-230TF9
Phase3
Rotor Poles8
Rated Voltage24V
Resistance @25°C0.42±10%Ω
Inductance1.12±20%mH
No Load Speed4500±10% rpm
Rated Torque0.32 NM
Rated Power100W
Insulation ClassB
IP ClassIP40
Quality Guarantee1 Year
Technical Info
Dimension Drawing 1

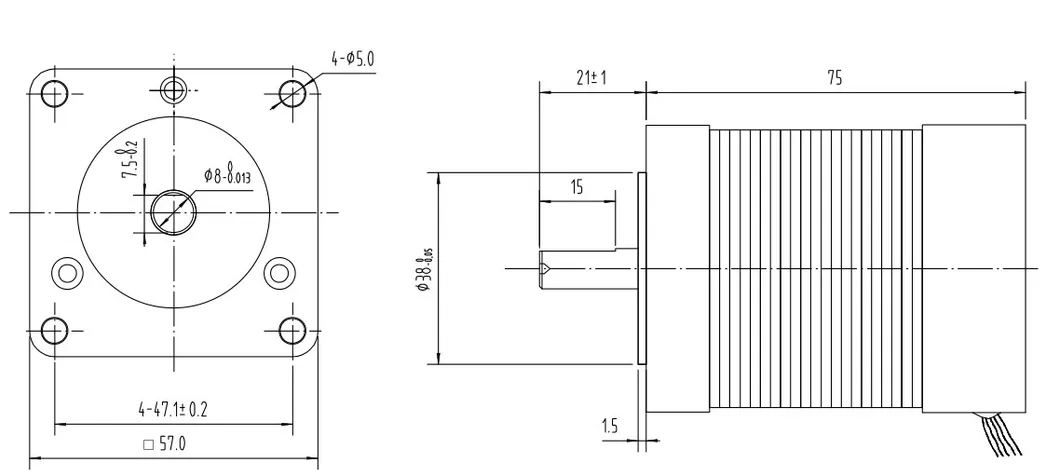

Dimension Drawing 2

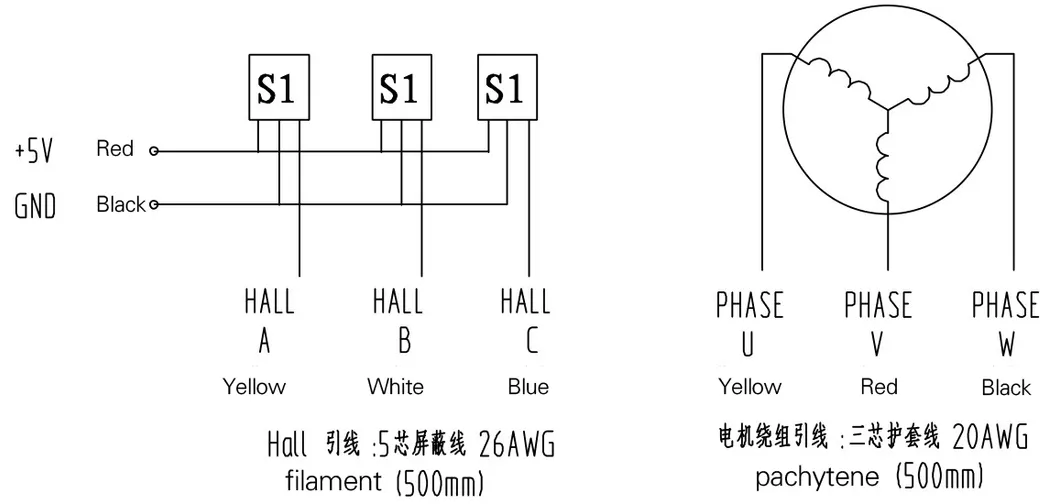

Dimension Drawing 3
🛠️ Services & Production
Our Services
Production Process
📜 Certificates
Certification Showcase
❓ Frequently Asked Questions
🔹 What is the operating voltage of this motor?
This BLDC motor is designed to operate at a rated voltage of 24V DC.
🔹 Can the speed be controlled?
Yes, as a brushless DC motor, the speed can be accurately controlled using a compatible BLDC driver, with a rated speed of 3000rpm.
🔹 What are the primary applications for this motor?
Due to its low noise and high efficiency, it is ideal for home appliances, medical equipment, and automation machinery.
🔹 Does the motor come with a warranty?
Yes, we provide a 1-year quality guarantee for this model under normal usage conditions.
🔹 Is this motor water-proof?
This motor features a Drip-Proof protection design with an IP40 rating, making it suitable for protected environments.
🔹 What is the maximum no-load speed?
The maximum no-load speed for this 100W brushless motor is approximately 4500 rpm.
