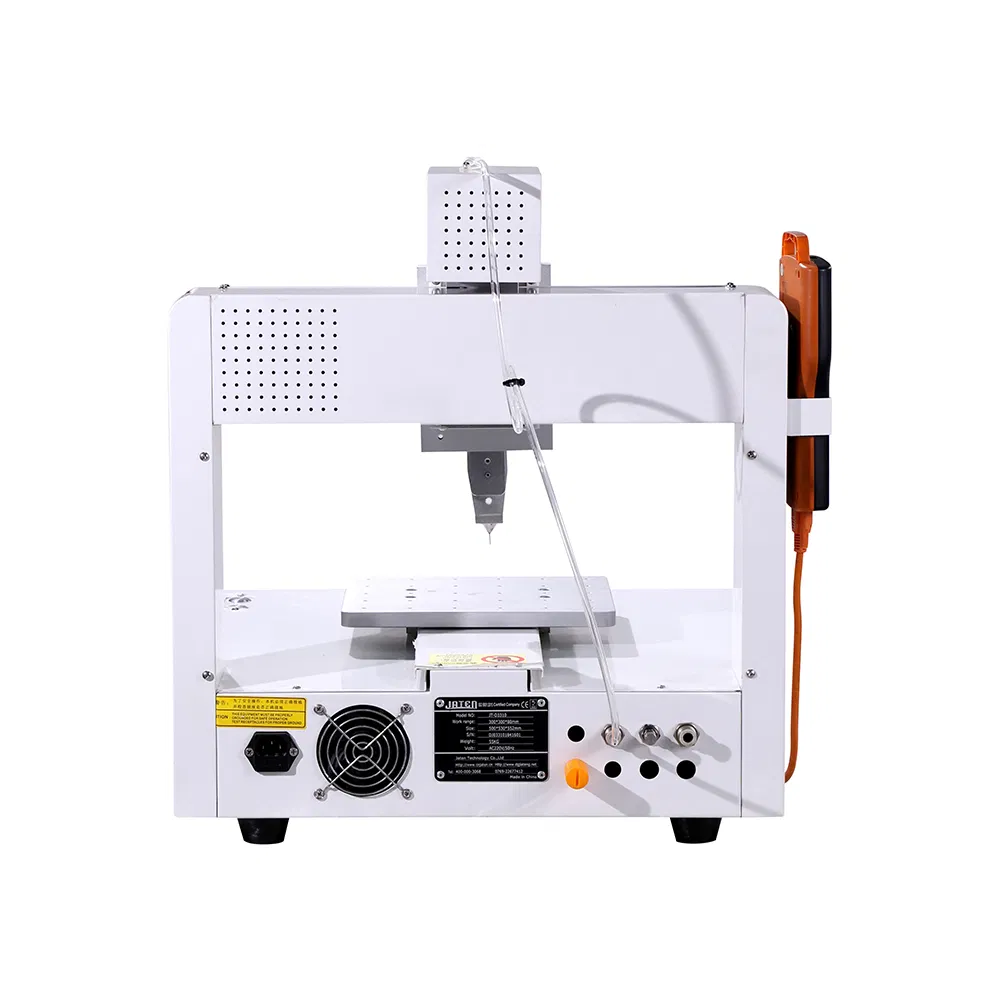

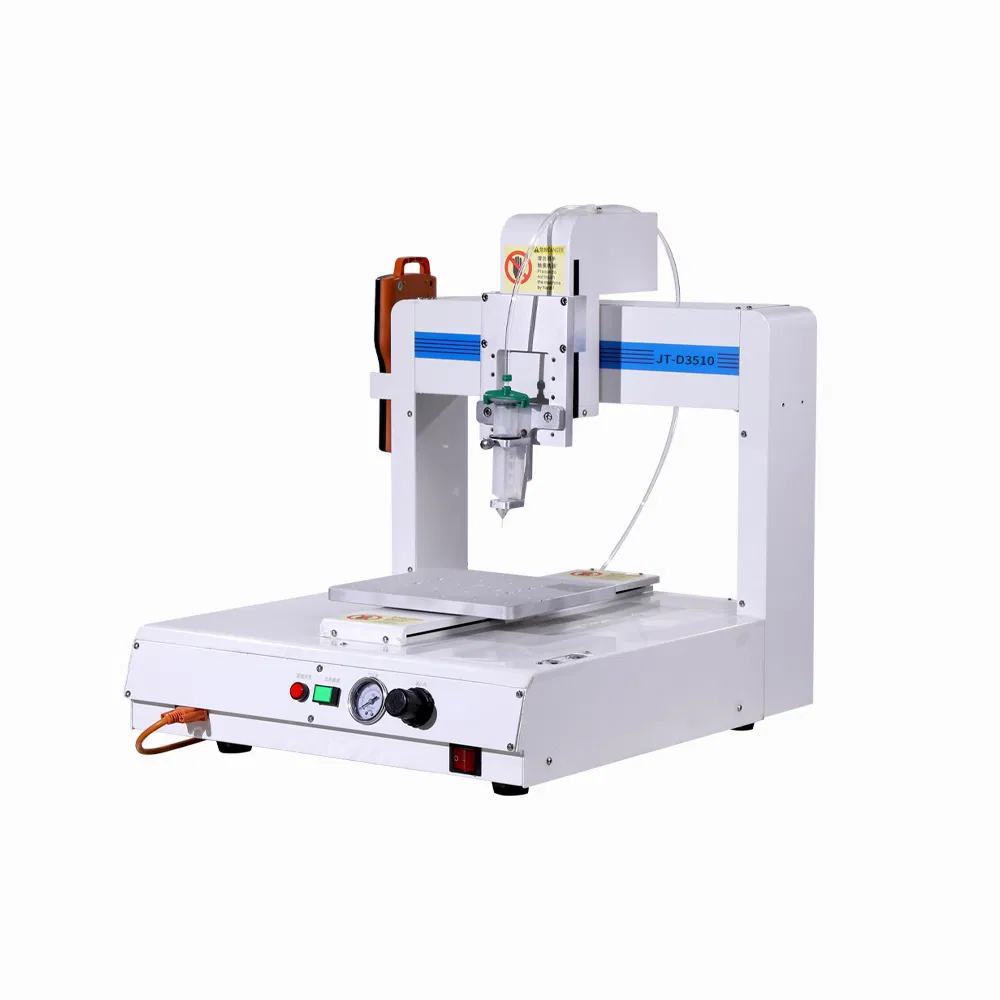

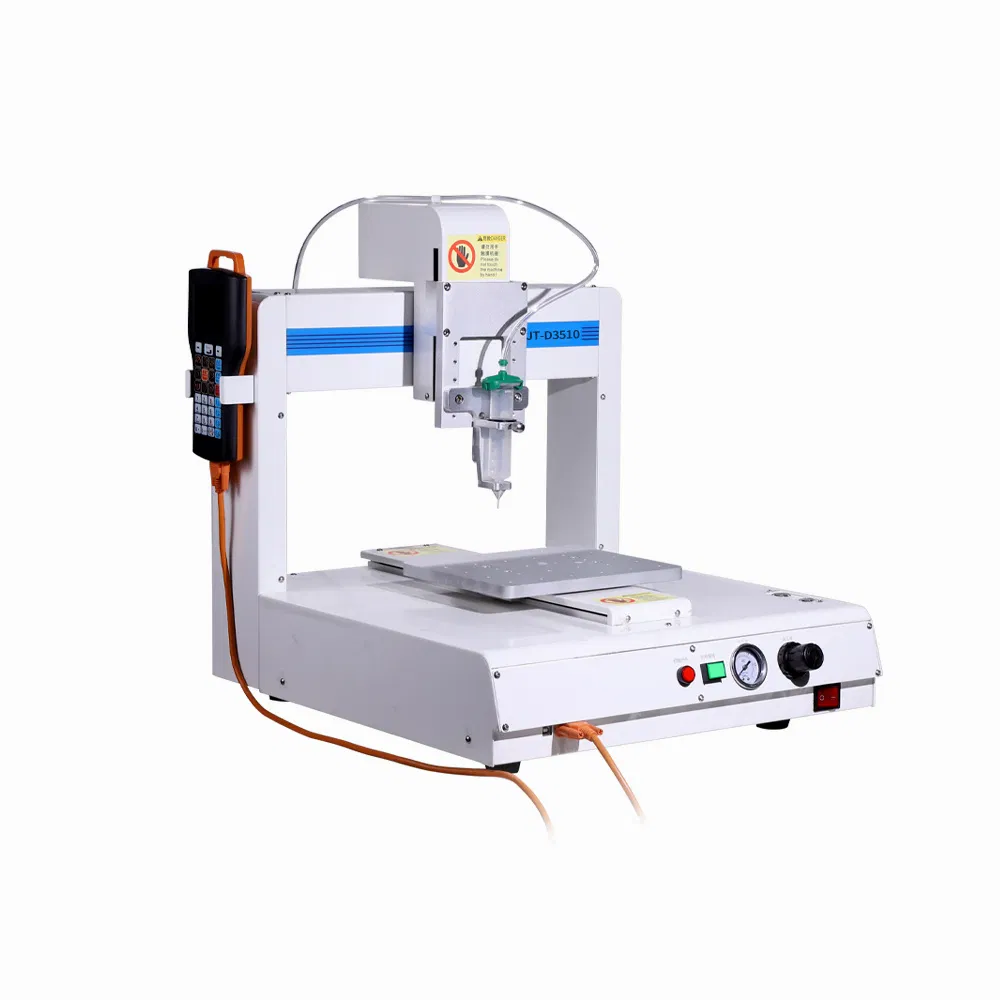

Heavy-Duty Hot Melt Glue Applicator for Quick Bonding Solutions Jtd-D3510

Customization:	Available
After-sales Service:	Installation and Operation Training
Precision:	High Precision

Basic Information

Model NO.	JTD-D3510	Condition	New
Certification	CCC, PSE, RoHS, ISO, CE	Warranty	18 Months
Automatic Grade	Automatic	Installation	Desktop
Driven Type	Electric	Working Range X/Y/Z-Axis	500500120 mm
Max Load Y/Z-Axis	10kg/5kg	Movement Speed	0.1-800mm/Sec
Resolution	0.01mm/Axis	Positioning Accuracy	+/-0.01mm/Axis
Heating Range	0-350℃	Motor System	Servo Micro-Step Motor
Driving Method	Conveyor & Belt	External Interface	USB
Power Source	AC220V 50/60Hz	HS Code	8479896900

Product Description

Ultimate Glue Applicator for Quick and Easy Adhesive Application JTD-D3510

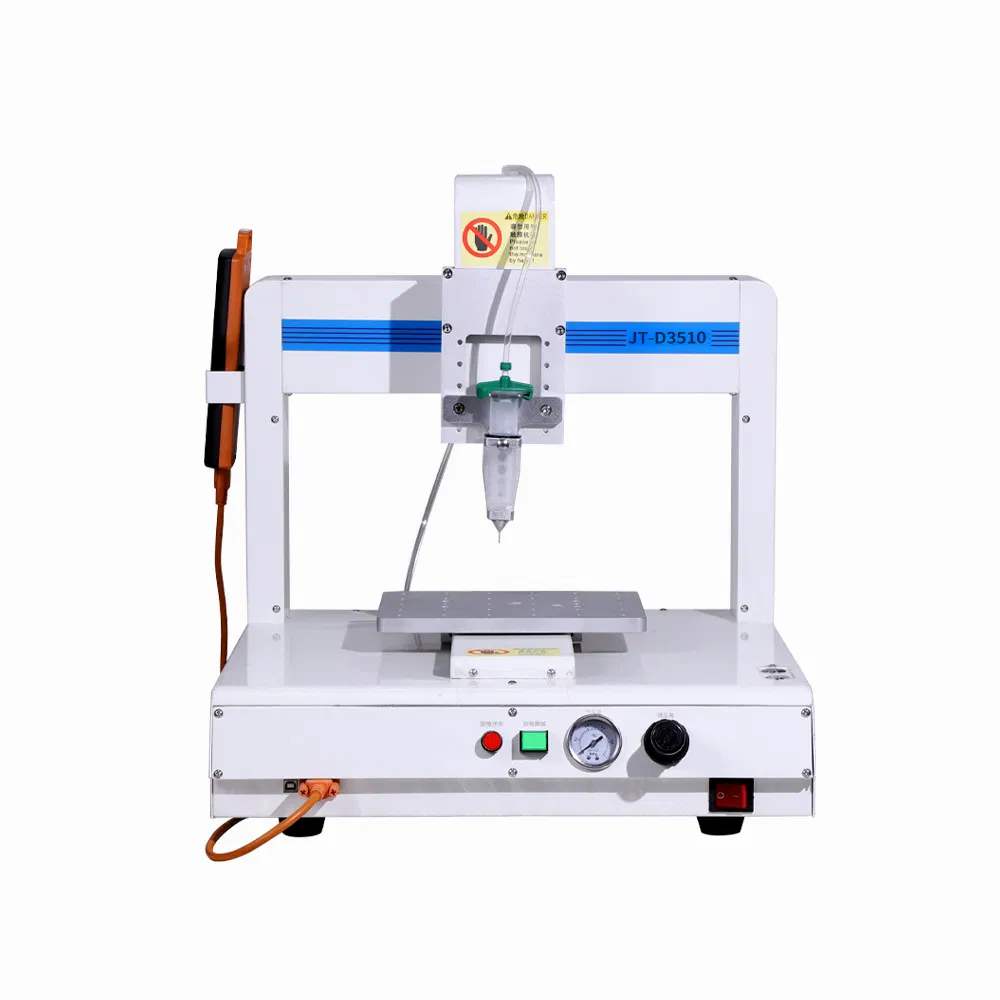

INTRODUCTION

Replaces manual dispensing operations for automated production.
Simple operation, high speed, and precise dispensing.
Files uploaded/downloaded via USB for easy data management.
Equipped with needle control buttons for convenient setup.
English user interface with clear display of parameters.

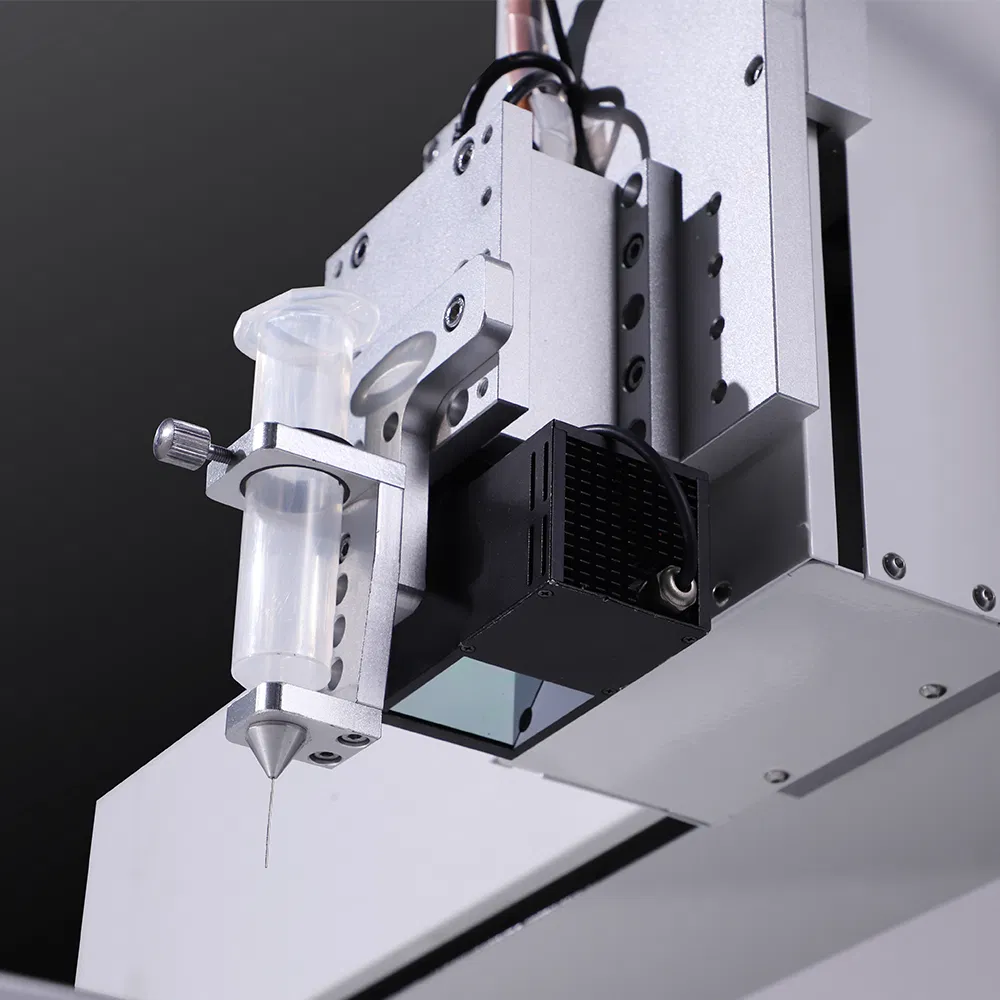

HIGH-STRENGTH BODY

One-piece casting structure and integrated CNC processing workbench ensuring X/Y/Z axis perpendicularity and stability, significantly improving the overall processing accuracy.

STANDALONE OPERATION

Operates independently without the need for an external computer. Installation and setup are incredibly easy, making it accessible for quick deployment.

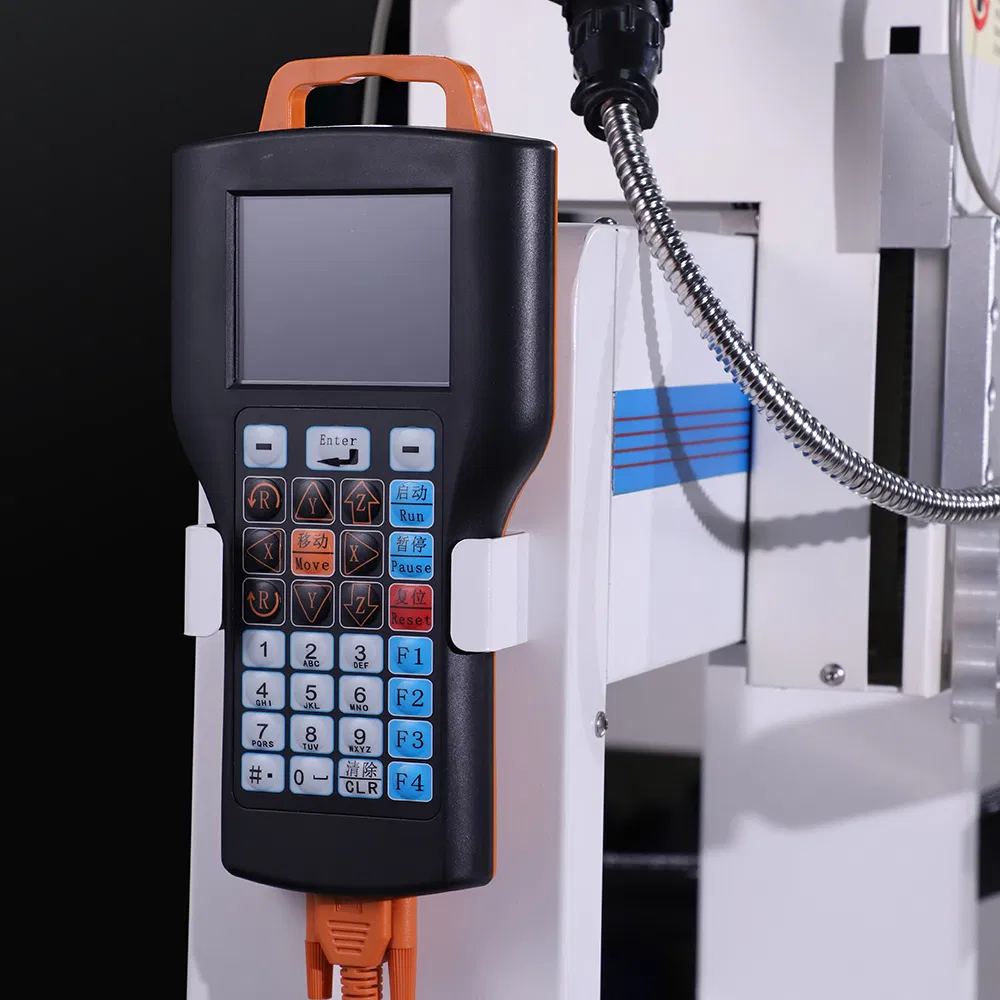

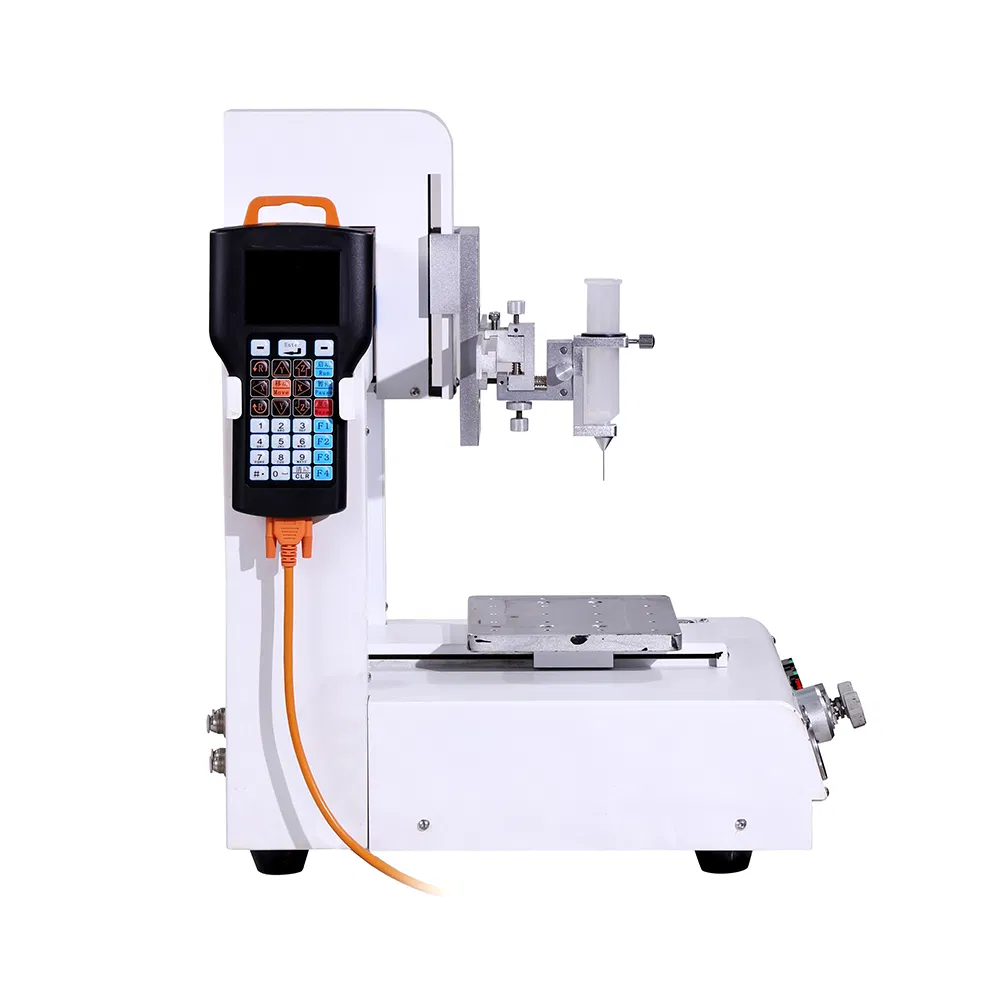

USER-FRIENDLY PENDANT

Intuitive, icon-based design allowing quick programming of paths. Supports matrix copying, offset adjustments, and calibration point settings.

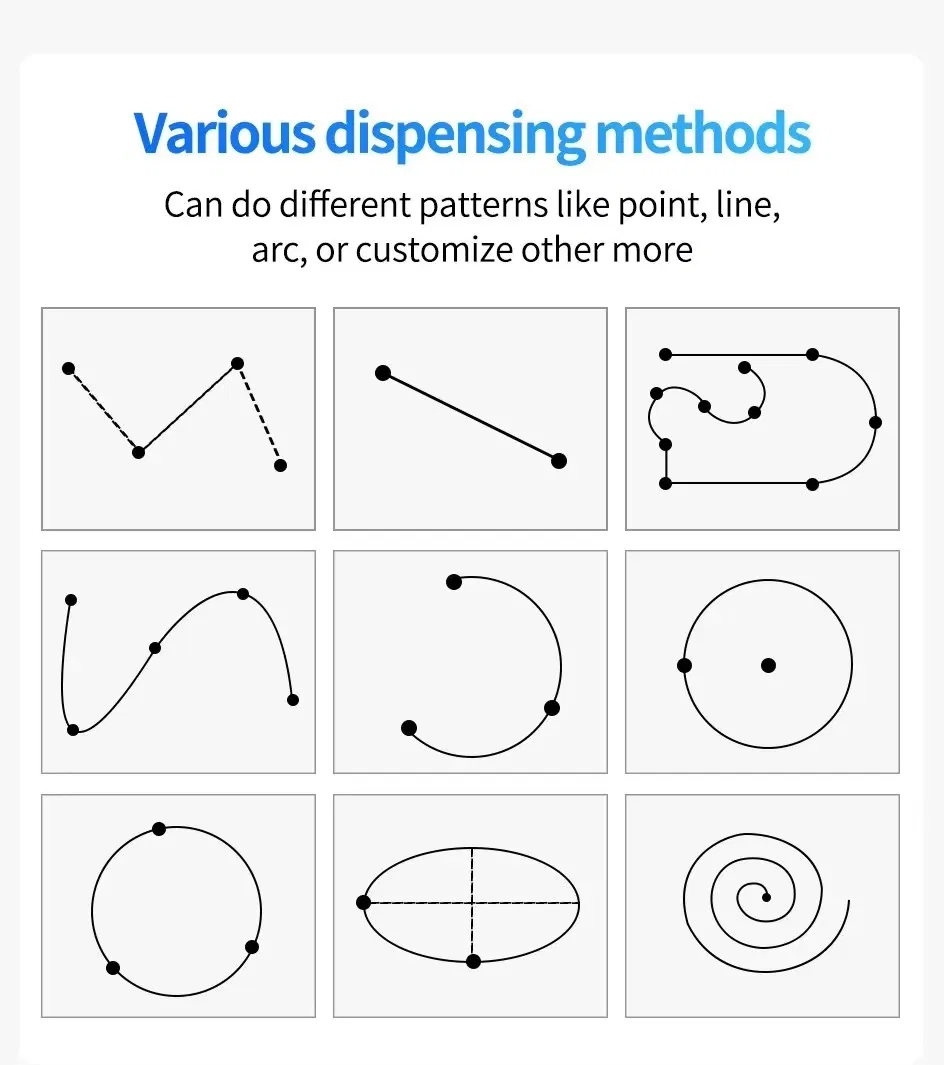

3D ARC INTERPOLATION

Equipped with a specially developed control card enabling true PTP and CP three-axis arc interpolation, ideal for 3D paths on non-flat surfaces.

Application Fields

Broad Industry Application:

Semiconductor packaging & PCB electronic component fixing.
LCD glass panel bonding and sealing.
Mobile phone circuit board coating or keypad dispensing.
Speaker adhesive dispensing & Battery case sealing.
Automotive and Hardware parts coating.
Precision gas and liquid filling & Chip bonding.

Detailed Product Parameters

Model	JT-D3210	JT-D3310	JT-D3410	JT-D3510
X-axis (mm)	200	300	400	500
Y-axis (mm)	200	300	400	500
Z-axis (mm)	80	80	120	100
Max Load Y/Z	10kg / 5kg
Resolution	0.01mm/axis
Dimensions (mm)	430360550	550460560	635575600	850560660
Weight (kg)	40KG	55KG	80KG	90KG

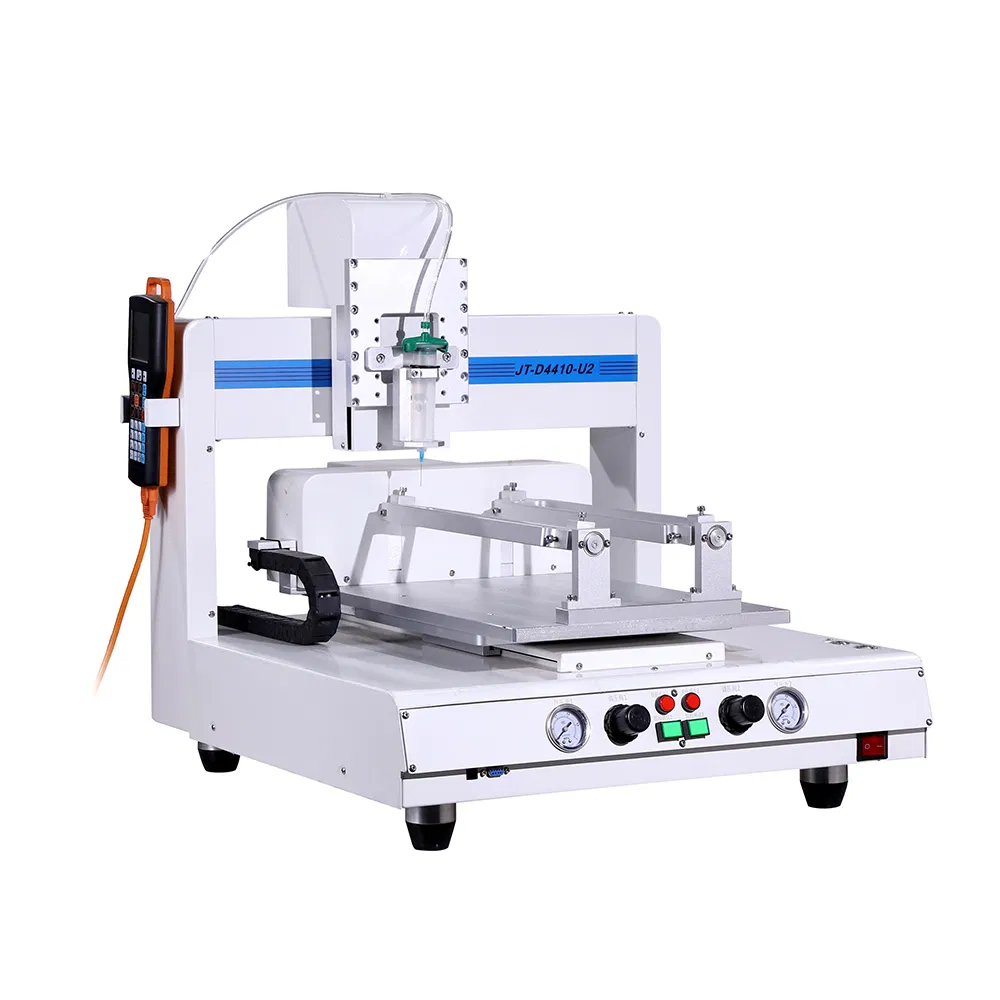

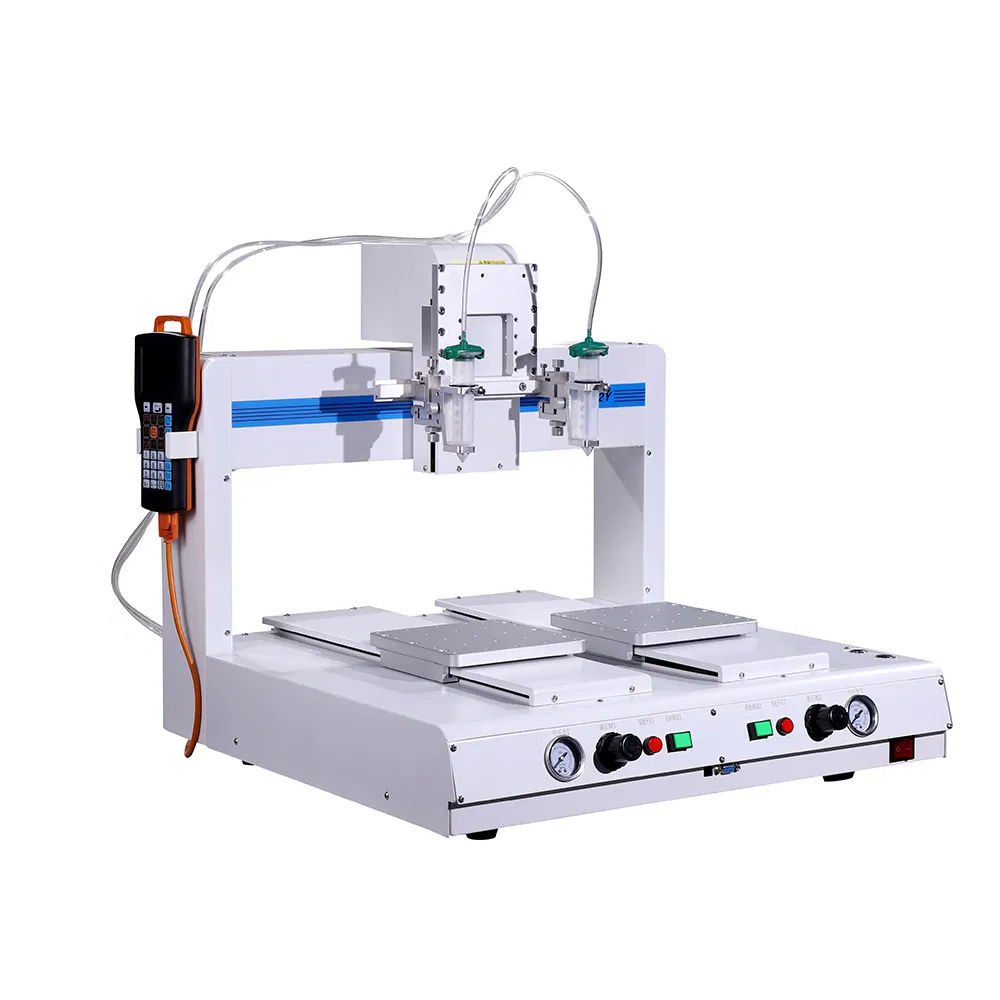

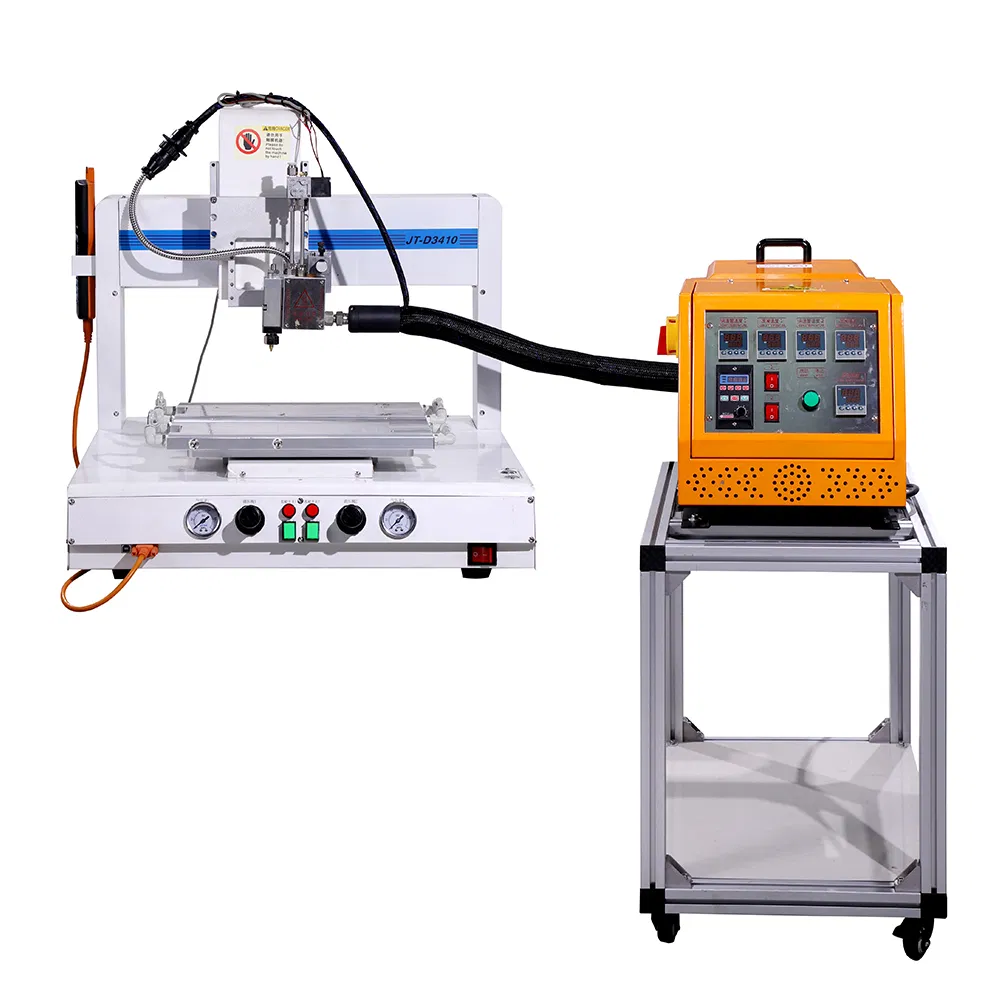

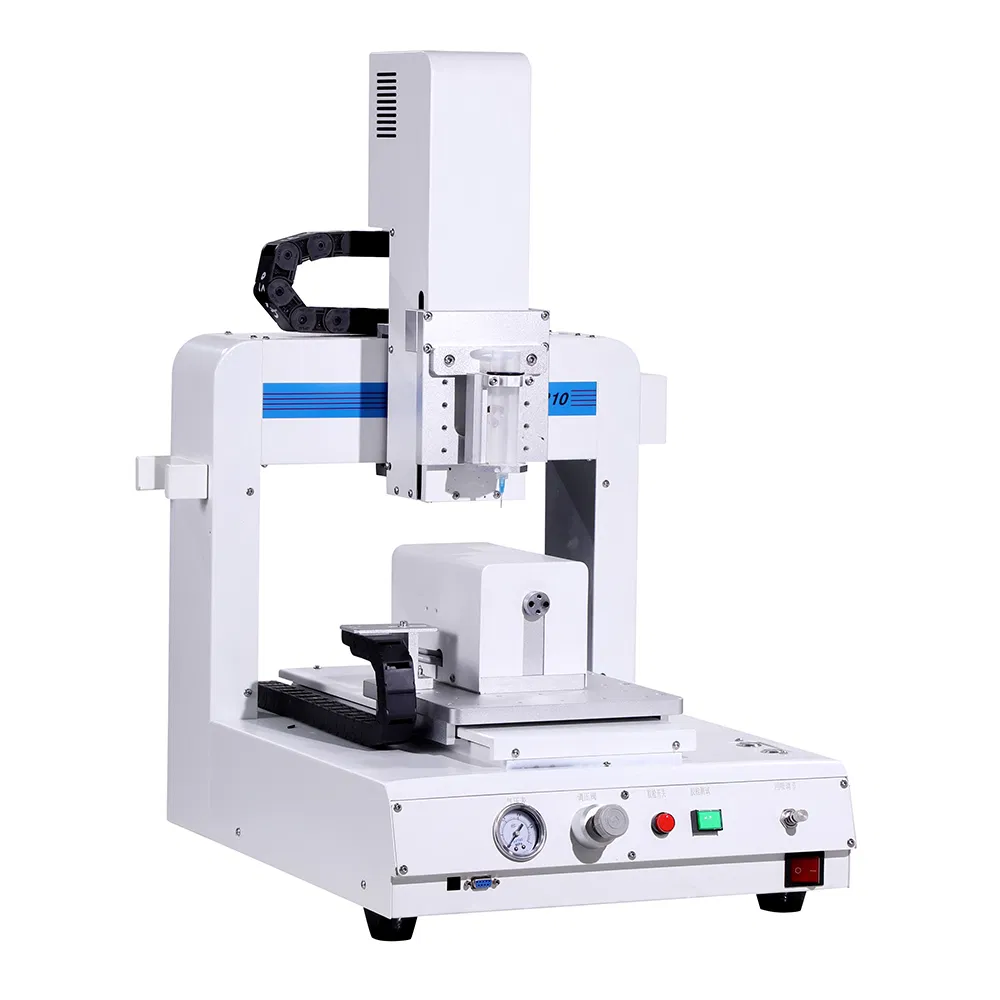

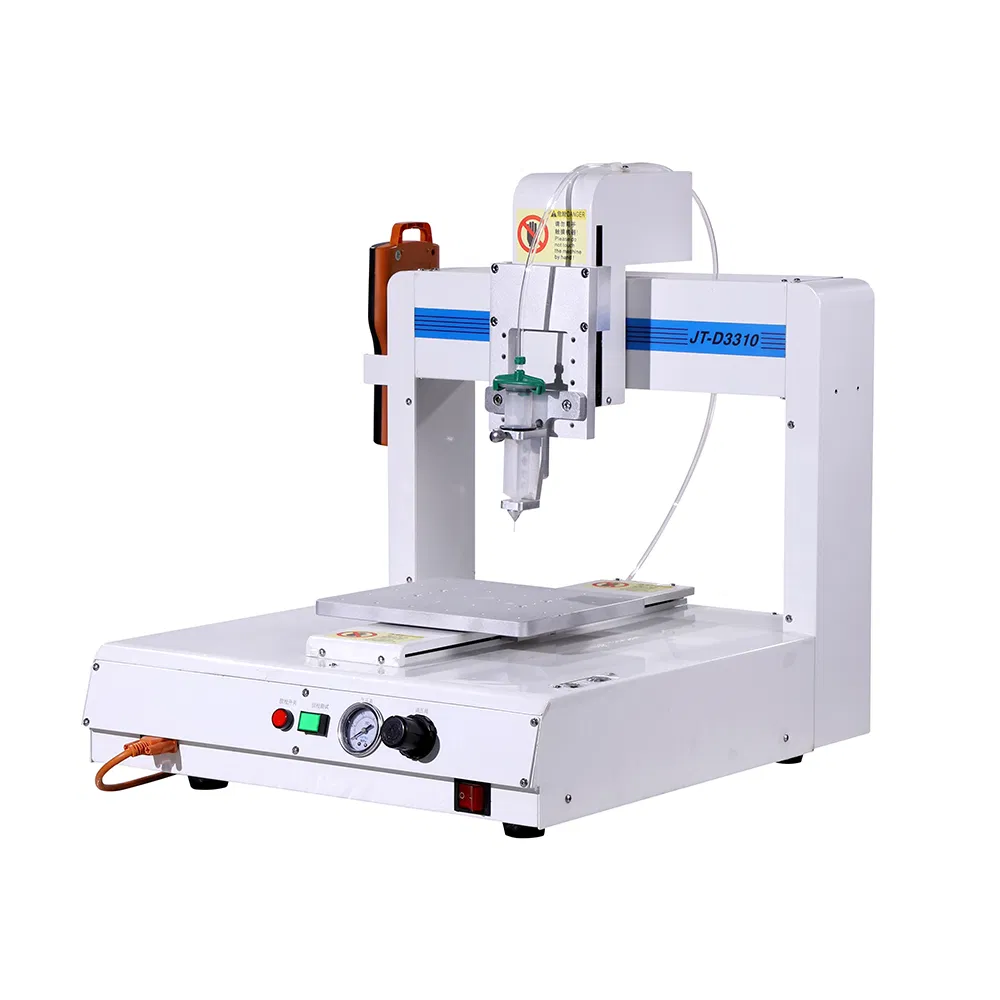

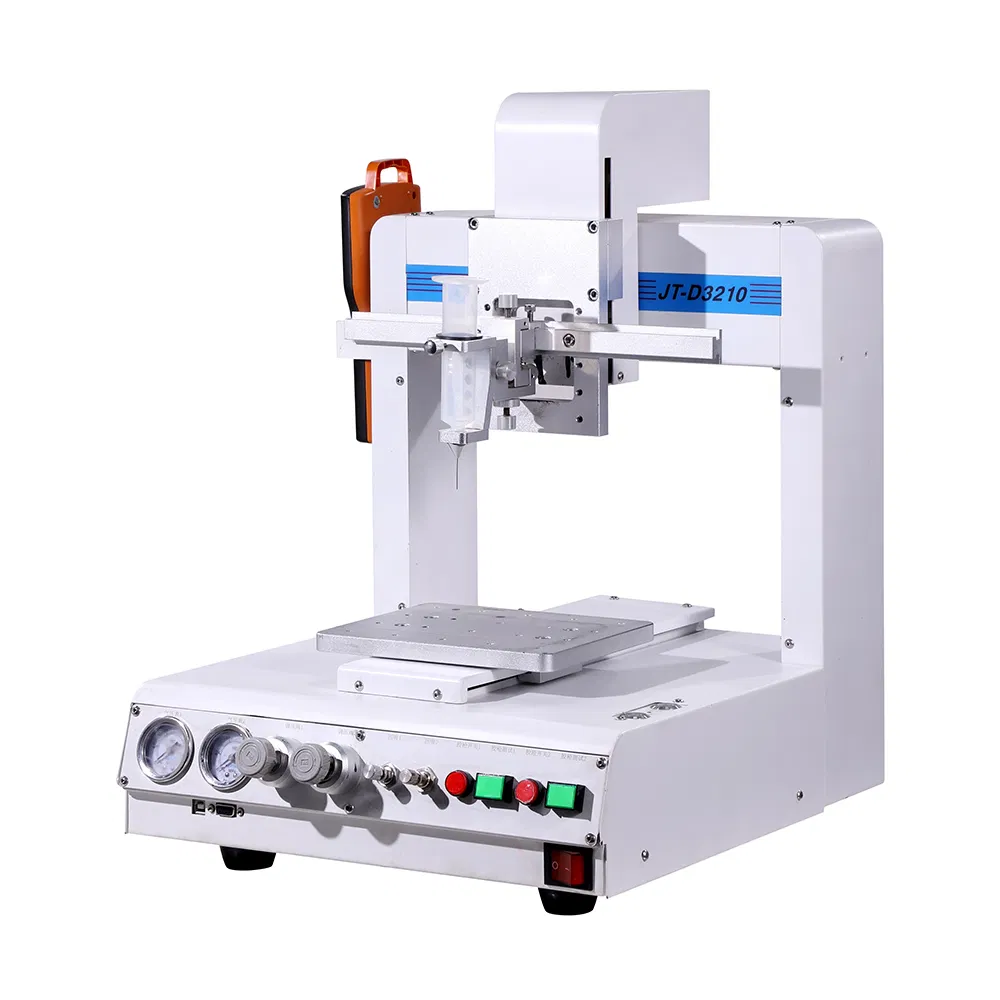

Related Products

Packaging & Shipping

Packing: Each machine is provided with a free fumigated wooden case and vacuum package to ensure safety.

Transportation: We typically ship through reliable international carriers like DHL, UPS, or FEDEX. Lead time is usually 3-5 days upon payment.

Certifications

Frequently Asked Questions

What is the standard order process?

The process involves: Inquiry, Quotation, Communication, Confirmation, Deposit Payment, Production & Delivery, and finally After-sale Service.

Are you a factory or a trading company?

We are a source factory with 20 years of experience focusing on measurement, test instruments, and automation control systems.

How do I choose the correct machine model?

Our professional team will analyze your requirements and provide the best solutions through catalogs, specifications, and demonstration videos.

What are the delivery terms and lead times?

Standard products are often in stock. If not, delivery typically takes 15-20 working days after deposit. Urgent arrangements can be made if necessary.

Is the machine packaging safe for long-distance transport?

Yes, we provide high-quality wooden packing to ensure machines are delivered without any damage during transportation.

Do you provide installation and training services?

We provide comprehensive English operating instructions and videos. For certain regions, spot service or engineer site visits can be arranged.
