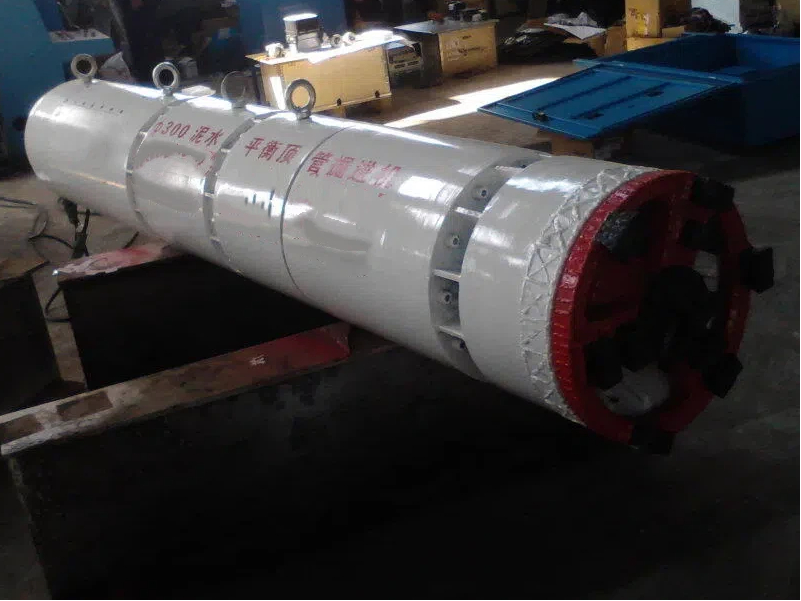

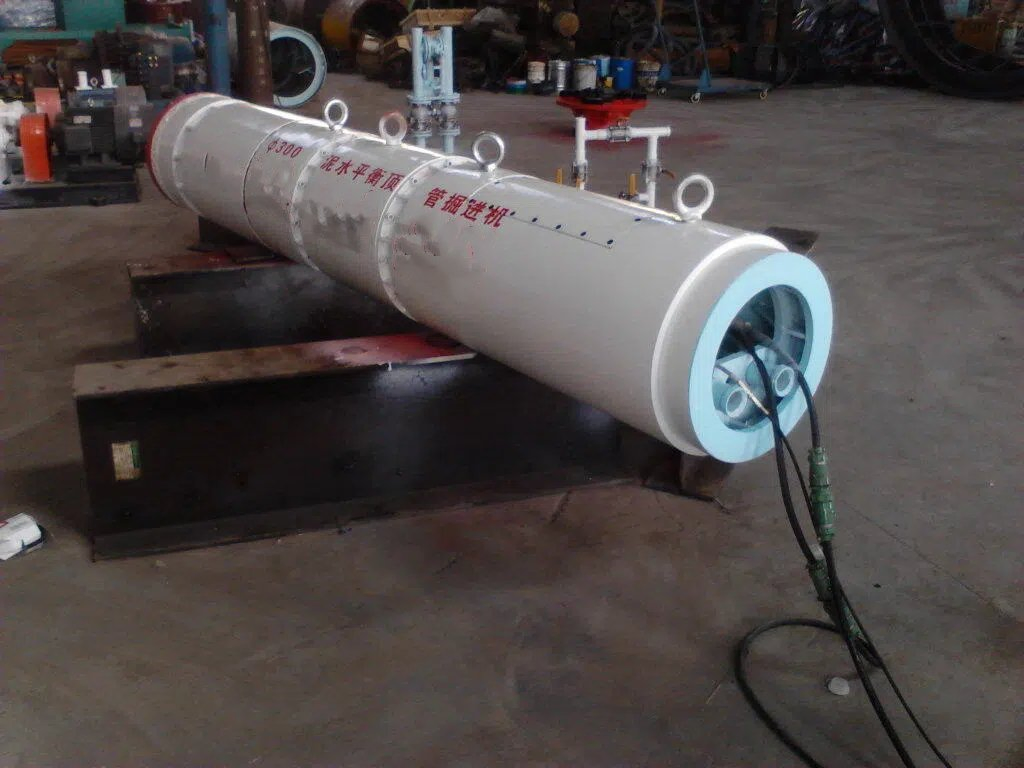

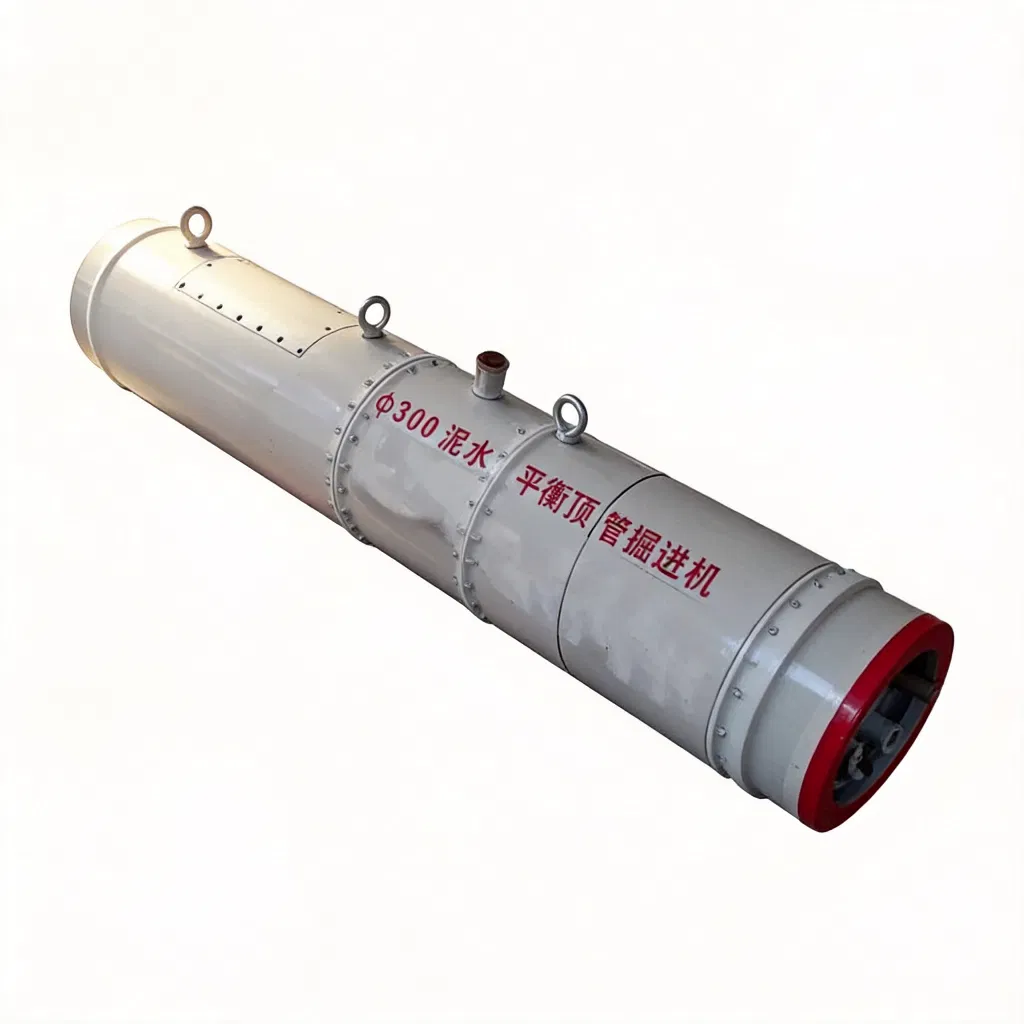

Micro Slurry Balance Pipe Jacking Machine (Φ250 - Φ600)

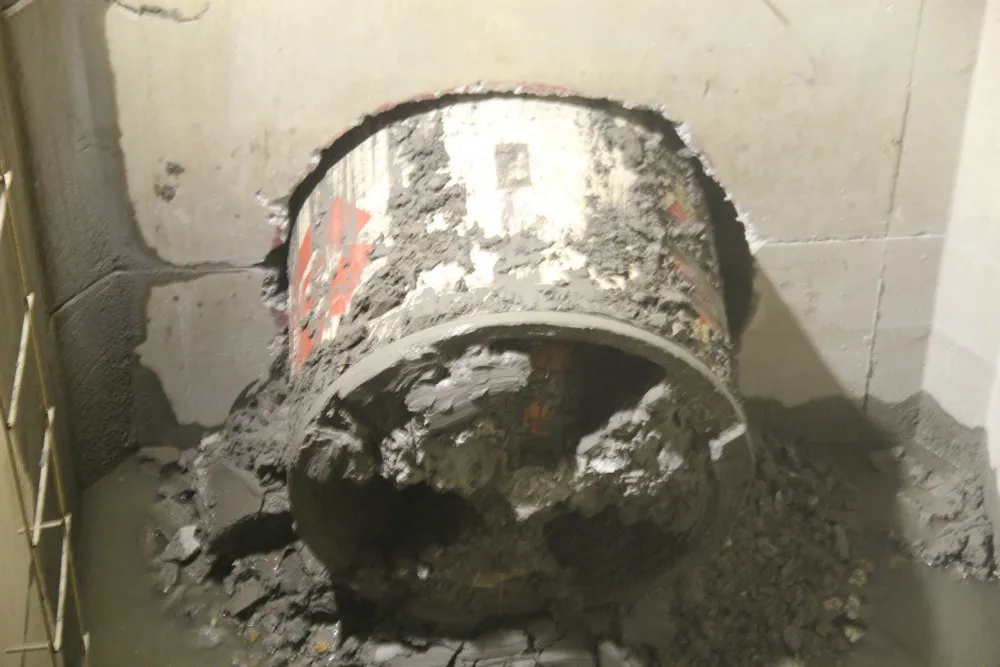

The micro slurry balance pipe jacking machine is applied to the construction of municipal micro pipelines including sewage, water supply, power cable, and natural gas pipes. It is compatible with concrete, steel, and ceramic pipes. Suitable for various geological conditions such as soil, sand, pebbles, and gravel, it excels in straight-line jacking distances up to 200m. This system integrates soil cutting, propulsion, and continuous slag discharge, ensuring safe, efficient, and high-quality trenchless laying while strictly controlling land subsidence.

Project Requirements Confirmation

To design the most suitable equipment, please confirm the following details:

• Pipe material (concrete, steel, etc.) and specific dimensions.
• Total project length and the longest single jacking distance.
• Soil composition details (e.g., percentage of gravel, sand, and clay).
• Project depth and intended application (sewage or other utility).

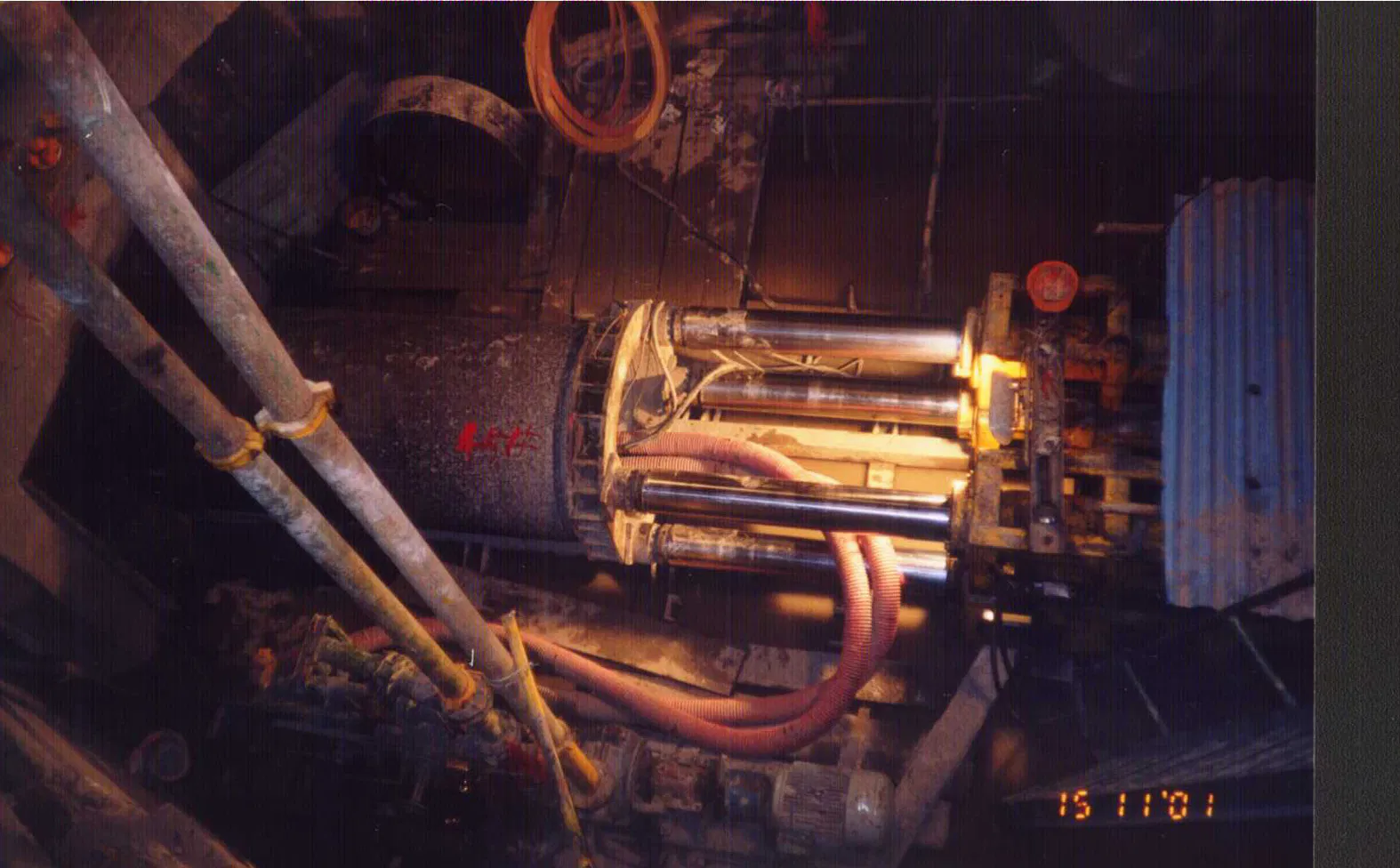

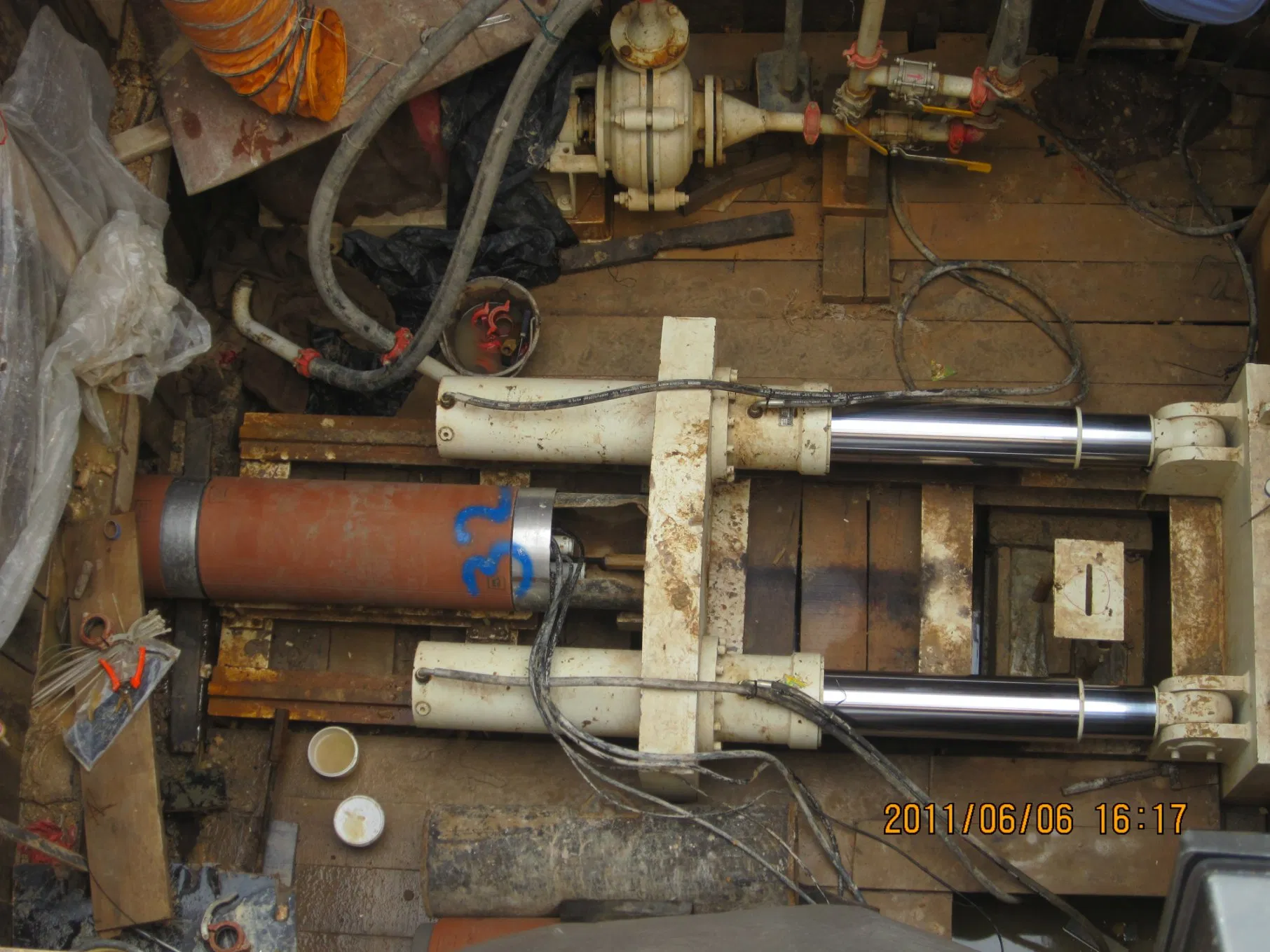

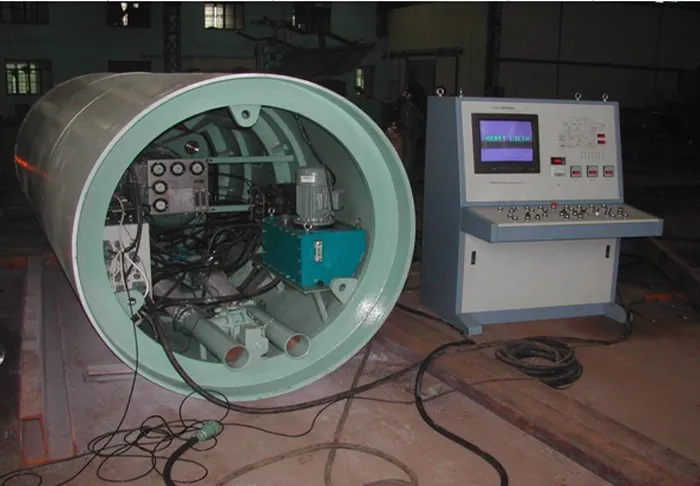

Our remote-controlled Slurry Balance Pipe-Jacking Machine represents the pinnacle of trenchless technology. It features a robust hydraulic system, PLC electric controller, and high-accuracy laser system. This eco-friendly solution minimizes surface traffic disruption and significantly reduces construction costs.

Technical Features

• Adaptable to a broad spectrum of conditions from soft rock to gravel soil.
• Immense breakage capability for varying particle sizes.
• Independent water and slurry injection system with specialized cutter cleaning.
• Theoretical maximum jacking speeds of 120 mm per minute.
• Directional adjustment precision with a maximum corrective angle of 2.5 degrees.

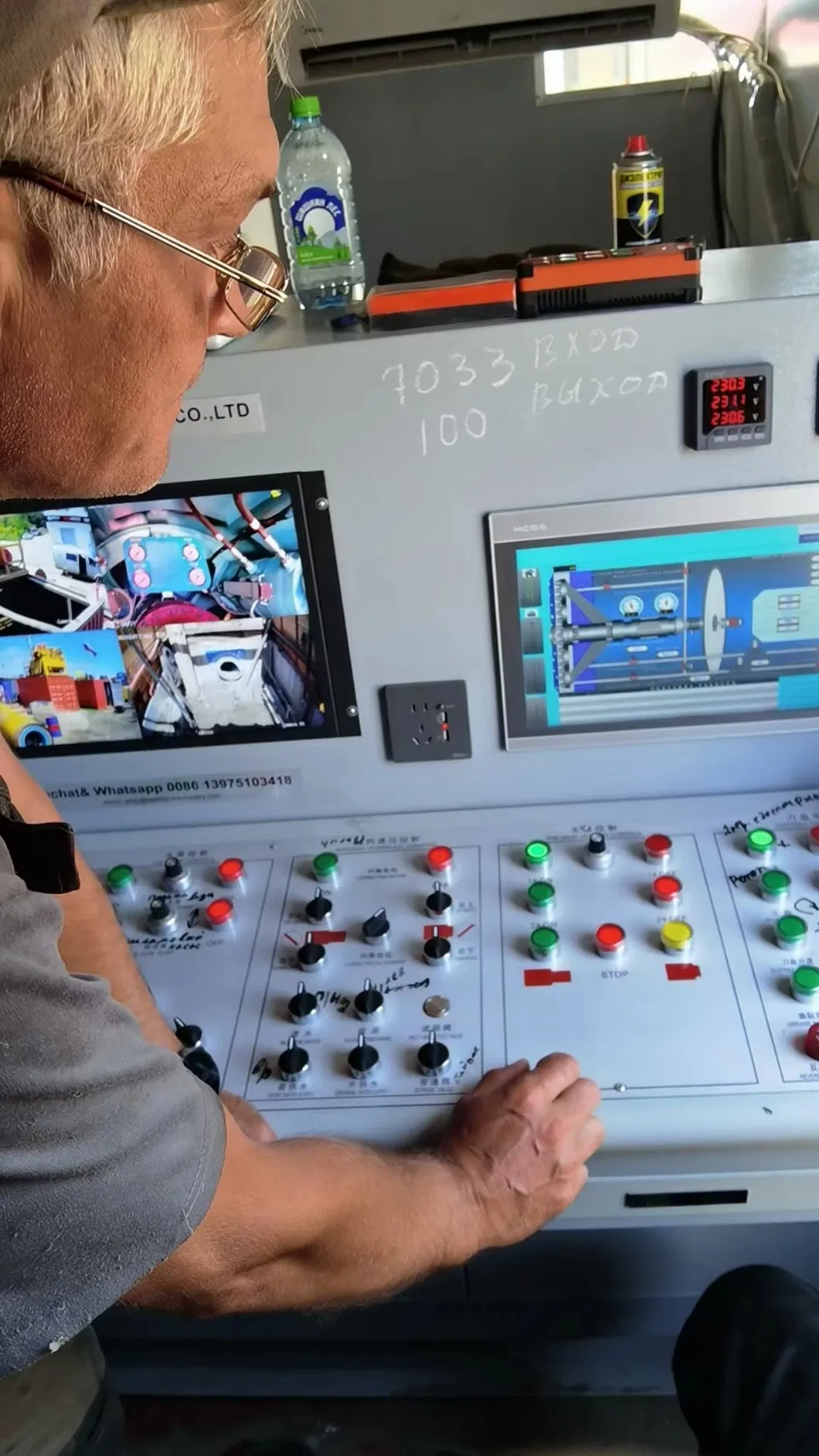

• Secure, intuitive ground operation system for ease of use.

Specializing in sophisticated trenchless pipe jacking systems, we are at the forefront of manufacturing shield and TBM full-face tunneling equipment. We merge R&D prowess with cutting-edge manufacturing to deliver premier infrastructure solutions across the globe. Our range includes diameters from Φ250mm to Φ4000mm, including specialized earth pressure balance series for complex geological conditions.

Core Advantages

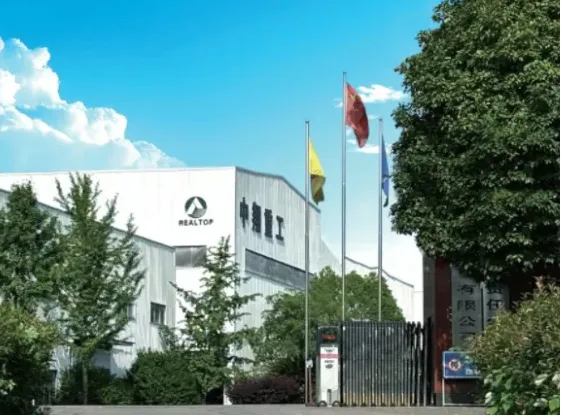

• Over 40 years of manufacturing legacy and 15 years of international export expertise.
• Comprehensive range of machines for soil, sand, pebble, gravel, and rock.
• Minimal environmental footprint and disruption to urban life.
• Versatile diameter ranges: Micro (250-600mm), Medium (700-2200mm), and Large (2400-4000mm).

Pre-sale Service

• Expert consulting support to assess unique project needs.
• Rigorous testing support to ensure optimal performance.
• Factory visit opportunities to witness advanced manufacturing.

After-Sales Service

• Deployment of technicians to project sites for equipment operation and training.
• Comprehensive hands-on training for local operators.
• Online and on-site technical support throughout the warranty period.
