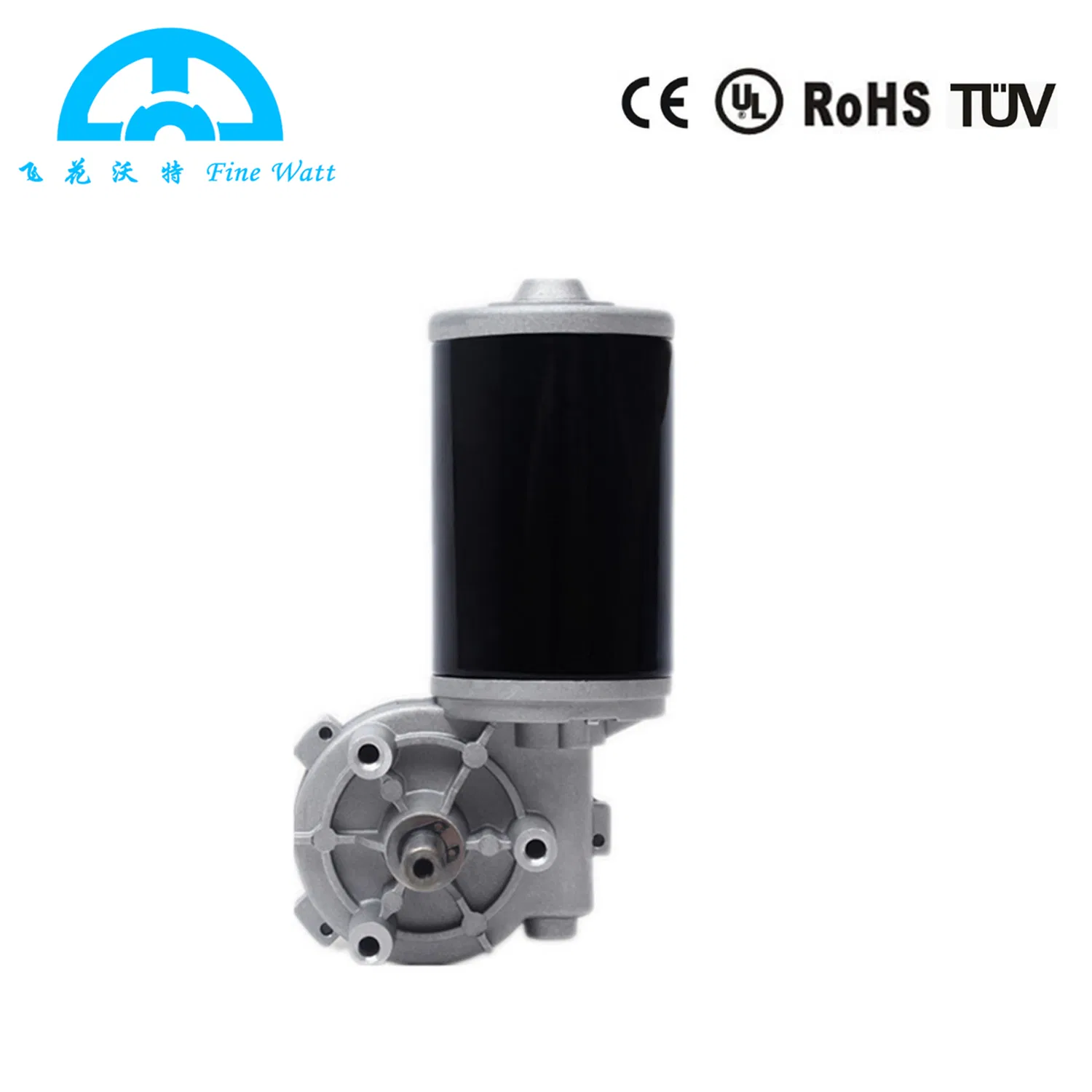

D59 Micro DC Motor Overview
Applications: Ideal for household appliances, office supplies, electric tools, industrial equipment, and food processing machinery.
| Product Code | Voltage(V) | Power(W) | No Load | Load | Gear Ratio | Length(mm) | |||
|---|---|---|---|---|---|---|---|---|---|
| Speed(RPM) | Current(A) | Speed(RPM) | Current(A) | Torque(N.M) | |||||
| D59L/R-1230-15 | 12 | 30 | 15±5 | ≤1.2 | 12±2 | ≤4.5 | ≥4.0 | 1:70 | 80 |
| D59L/R-2430-15 | 24 | 30 | 15±5 | ≤1.2 | 12±2 | ≤4.5 | ≥4.0 | 1:70 | 80 |
| D59L/R-2450-36 | 24 | 30 | 36±5 | ≤1.2 | 32±2 | ≤6.5 | ≥8.0 | 1:70 | 80 |
| D59L/R-1230-65 | 12 | 30 | 65±3 | ≤1.2 | 60±3 | ≤5.5 | ≥6.0 | 1:56 | 80 |
| D59L/R-2430-65 | 24 | 30 | 65±3 | ≤1.2 | 60±3 | ≤5.5 | ≥6.0 | 1:56 | 80 |
| D59L/R-4830-65 | 48 | 30 | 65±3 | ≤1.2 | 60±3 | ≤5.5 | ≥6.0 | 1:56 | 80 |
| D59L/R-4230-130 | 42 | 30 | 130±5 | ≤1.5 | 100±5 | ≤6.5 | ≥4.0 | 1:28 | 80 |
| D59L/R-2430-150 | 24 | 30 | 150±5 | ≤1.0 | 130±5 | ≤6.5 | ≥4.0 | 1:28 | 80 |
| D59L/R-2430-180 | 24 | 30 | 180±5 | ≤1.2 | 150±5 | ≤6.5 | ≥4.0 | 1:28 | 80 |
| D59L/R-2430-210 | 24 | 30 | 210±5 | ≤1.5 | 180±5 | ≤6.5 | ≥4.2 | 1:28 | 80 |
