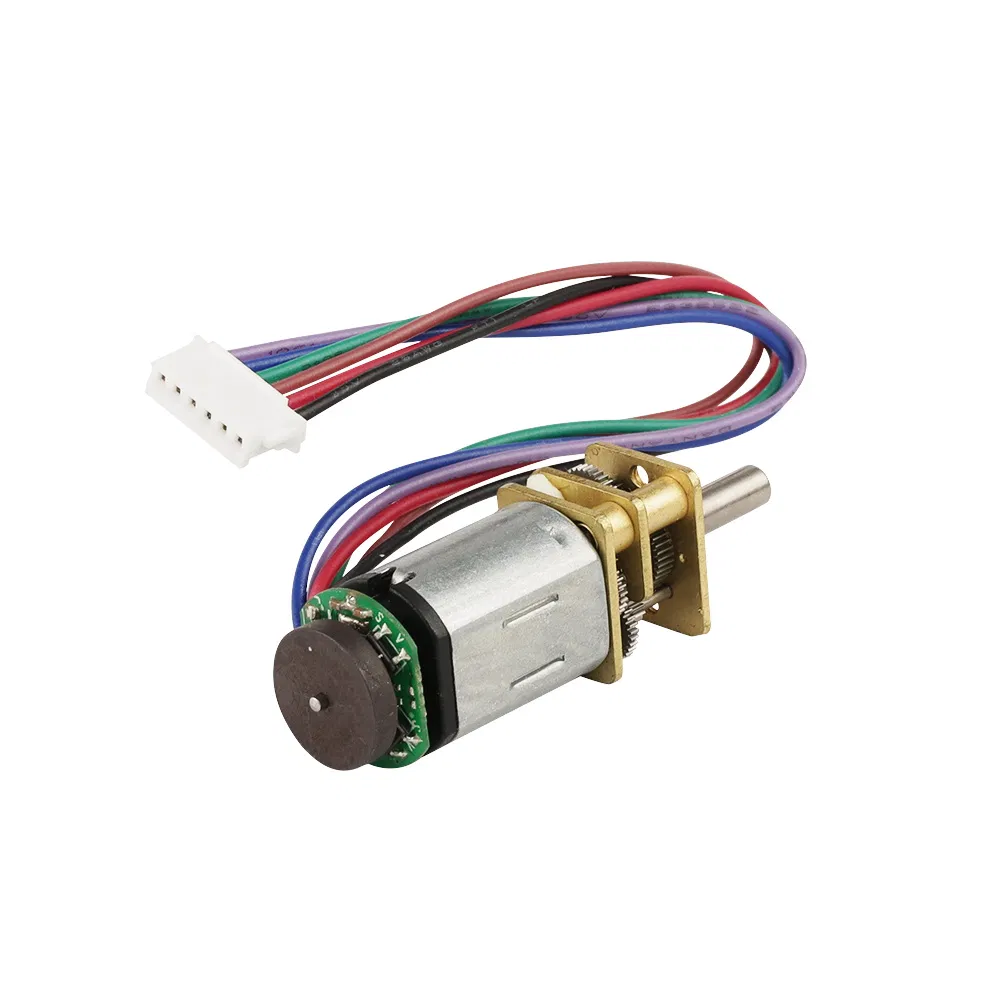

Small Mini Motor N20 Micro Electric Gear DC Motor for RC Toy Car
Small Mini Motor N20 Micro Electric Gear DC Motor for RC Toy Car
Small Mini Motor N20 Micro Electric Gear DC Motor for RC Toy Car
Small Mini Motor N20 Micro Electric Gear DC Motor for RC Toy Car
Small Mini Motor N20 Micro Electric Gear DC Motor for RC Toy Car
1 / 5
Small Mini Motor N20 Micro Electric Gear DC Motor for RC Toy Car
Small Mini Motor N20 Micro Electric Gear DC Motor for RC Toy Car
Small Mini Motor N20 Micro Electric Gear DC Motor for RC Toy Car
Small Mini Motor N20 Micro Electric Gear DC Motor for RC Toy Car
Small Mini Motor N20 Micro Electric Gear DC Motor for RC Toy Car

Small Mini Motor N20 Micro Electric Gear DC Motor for RC Toy Car

Customization: Available
Application: DC Gear Motor
Operating Speed: Low Speed
Send Inquiry

Product Description

i

Basic Information

Model NO.
N20
Excitation Mode
Excited
Function
Driving
Casing Protection
Open Type
Number of Poles
2
Structure
Brush
Type
Z2
Certification
RoHS, CE
Gear Type
Spur Gear Motor
Diameter
12mm
Voltage
3V~12V
Speed
10~3000rpm
Power
0.2~1W
Ratio
10:1~1000:1
Noise
Less Than 35dB
Encoder
12PPR
Weight
0.1kg
Origin
China
★

Product Description

High Power Version Features:

  • 1.6A stall current
  • Options with or without 12CPR encoder
  • Optional back shaft configuration
  • Metal brush or carbon brush availability
Model Voltage (VDC) No load speed (rpm) Noload current (mA) Stall torque (kg.cm) Gear ratio
N20H56V/12V6000120/600.15:1
N20H106V/12V3000120/600.210:1
N20H206V/12V1500120/600.420:1
N20H306V/12V1000120/600.630:1
N20H506V/12V625120/601.050:1
N20H756V/12V400120/601.575:1
N20H1006V/12V320120/602.0100:1
N20H1506V/12V200120/603.0150:1
N20H2106V/12V140120/603.6210:1
N20H2506V/12V120120/604.2250:1
N20H2986V/12V100120/605.0298:1
N20H3806V/12V78120/606.3380:1
N20H10006V/12V32120/609.01000:1
P

Detailed Photos

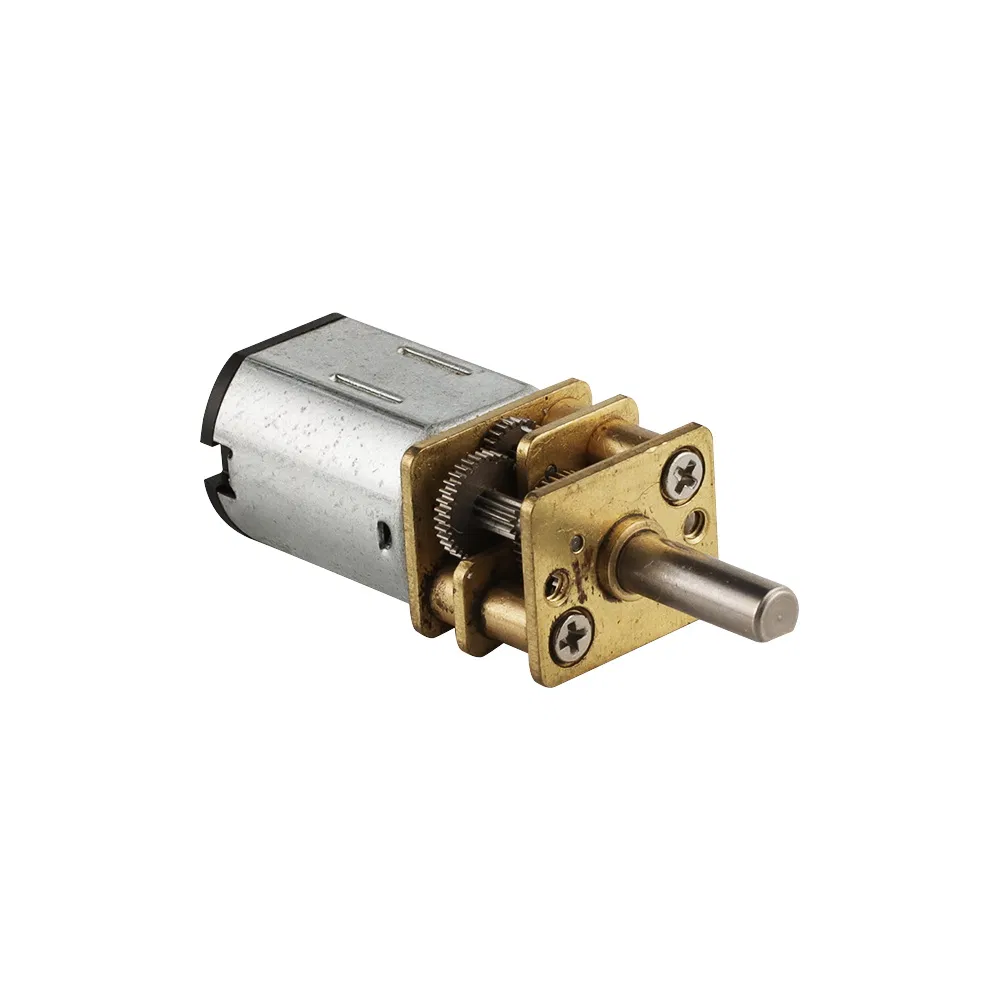

N20 Micro Gear Motor

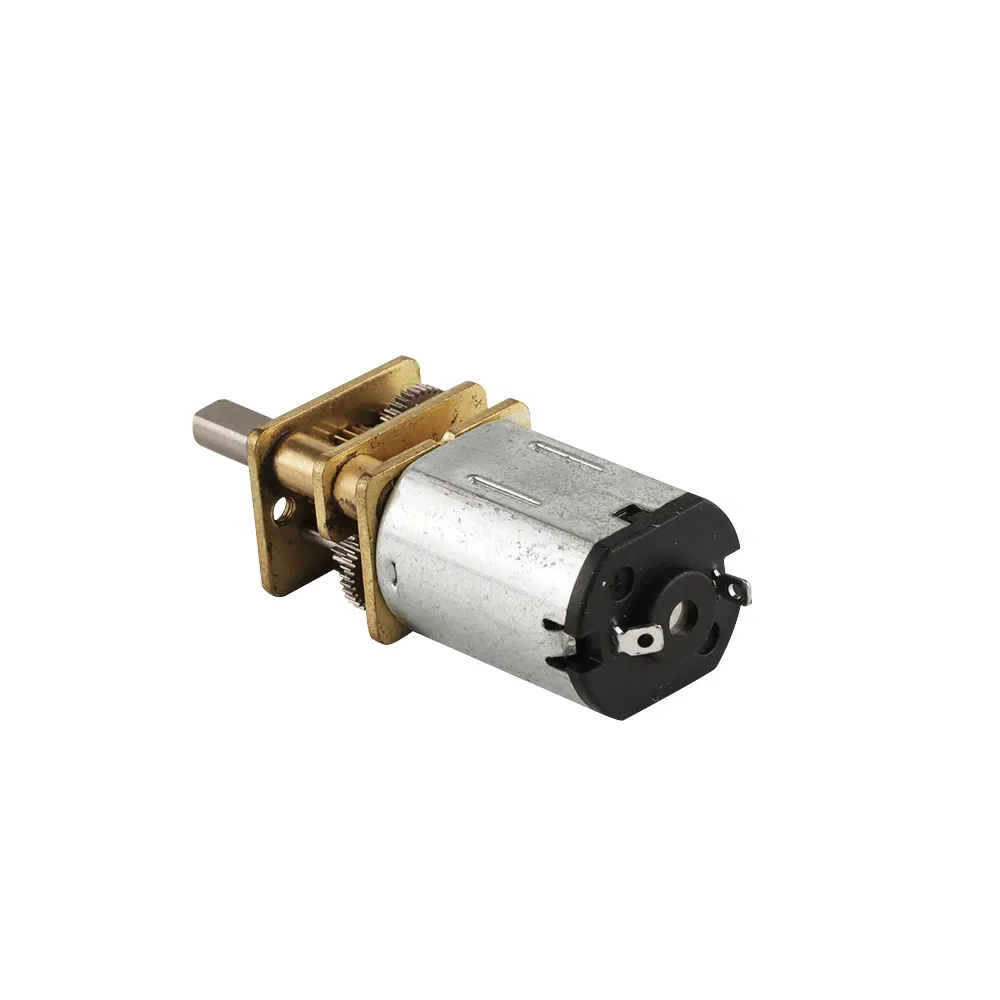

DC Motor for RC Toy
Small Mini Motor N20

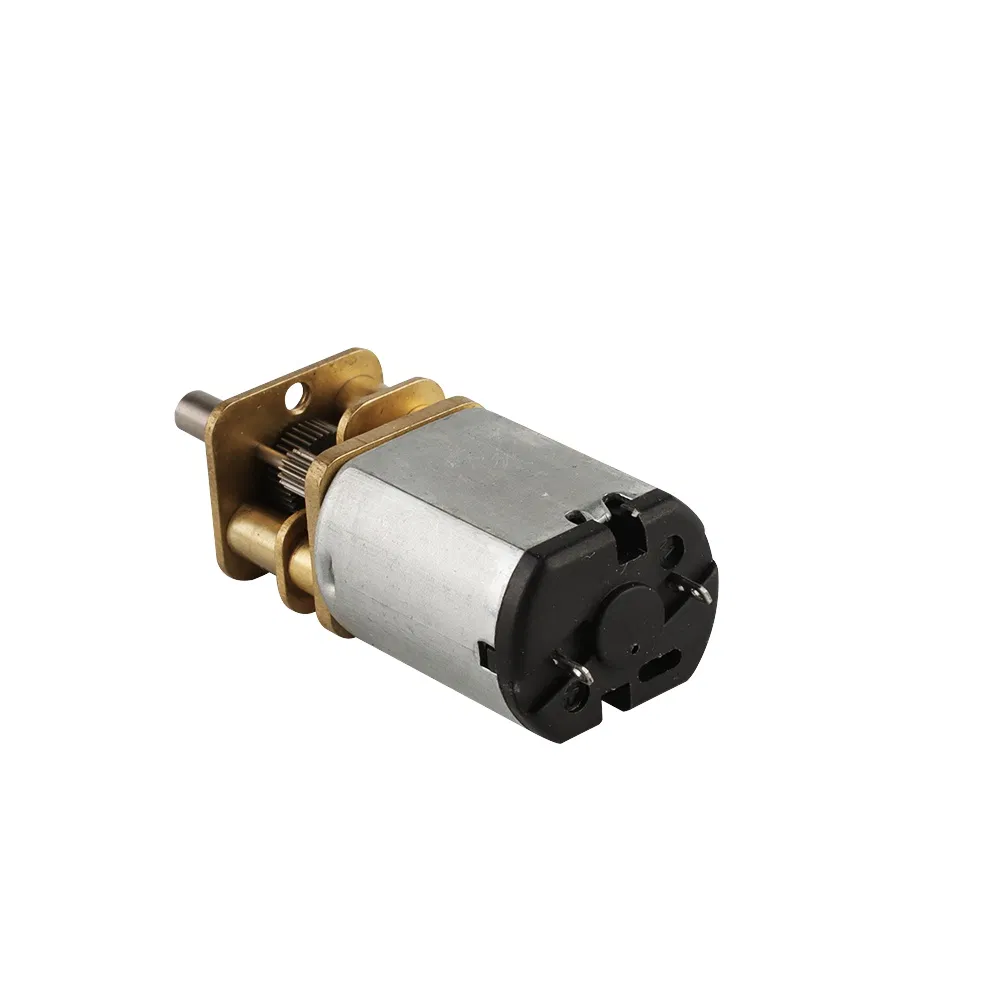

Electric Gear DC Motor

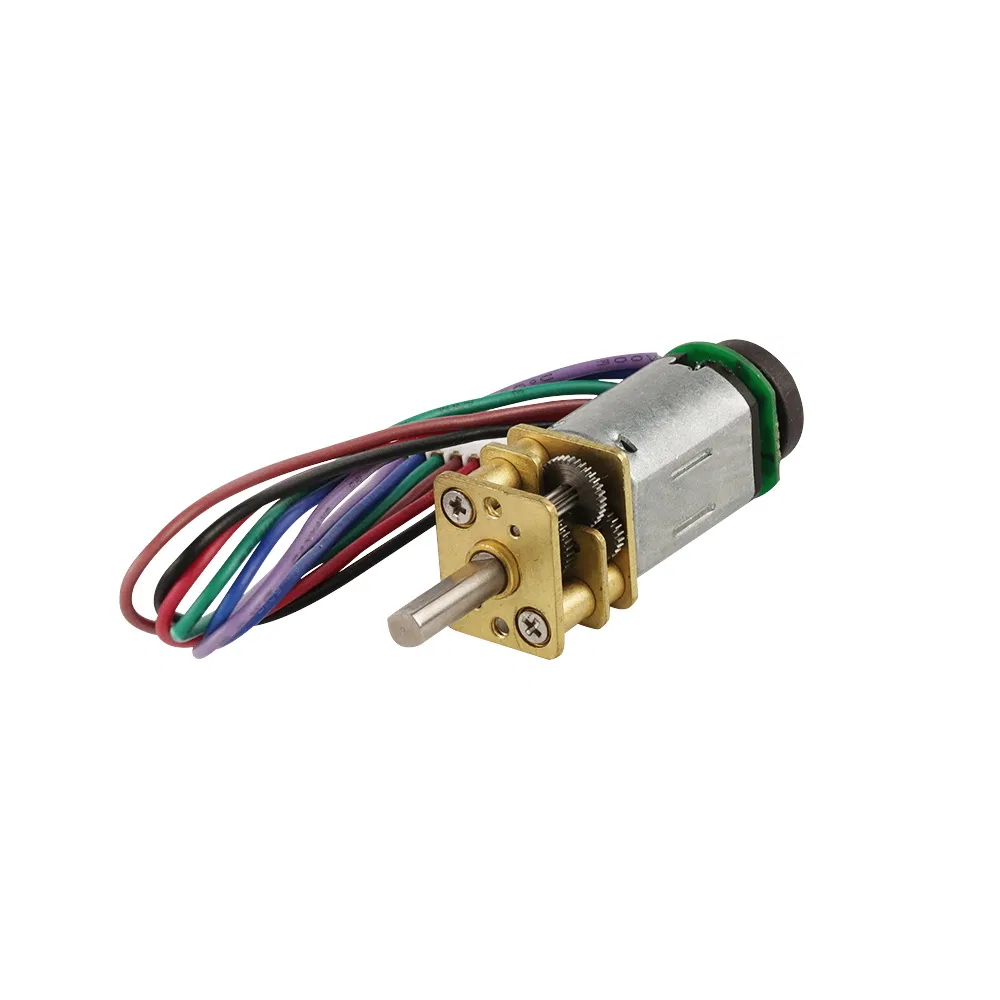

Micro Gear Motor Detail
N20 Motor View
M

Technical Parameters & Drawings

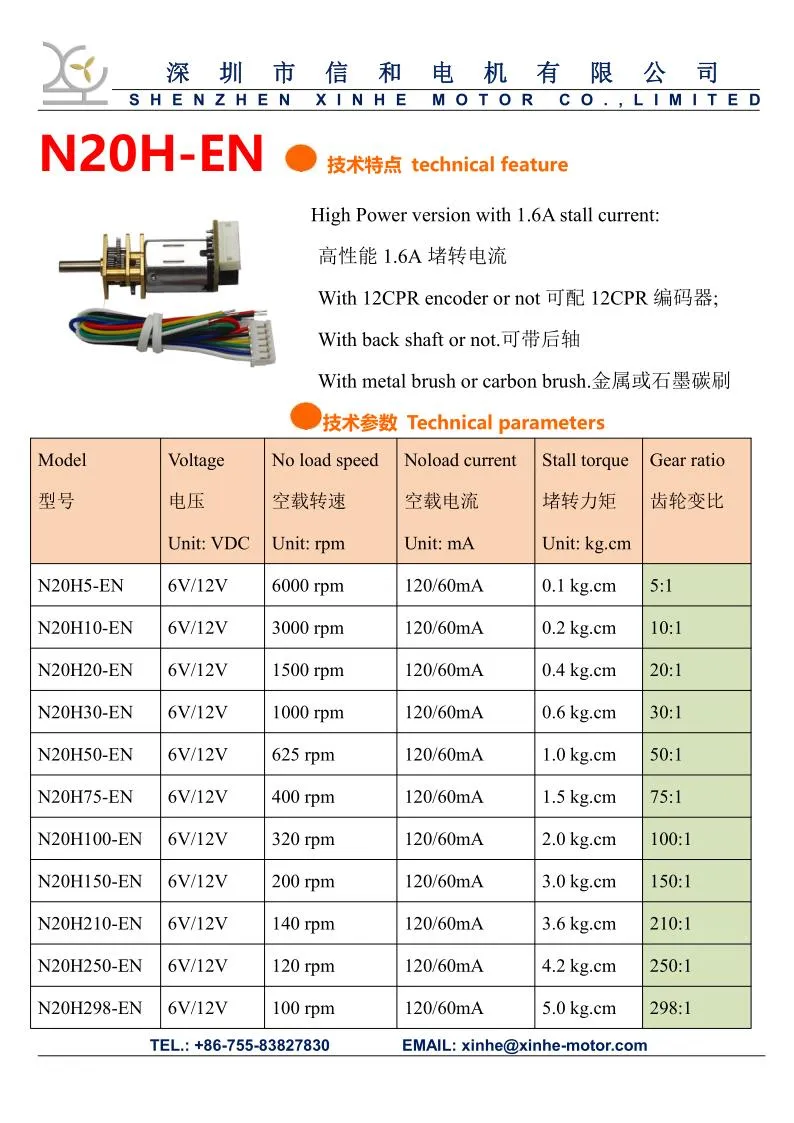

Drawing 1

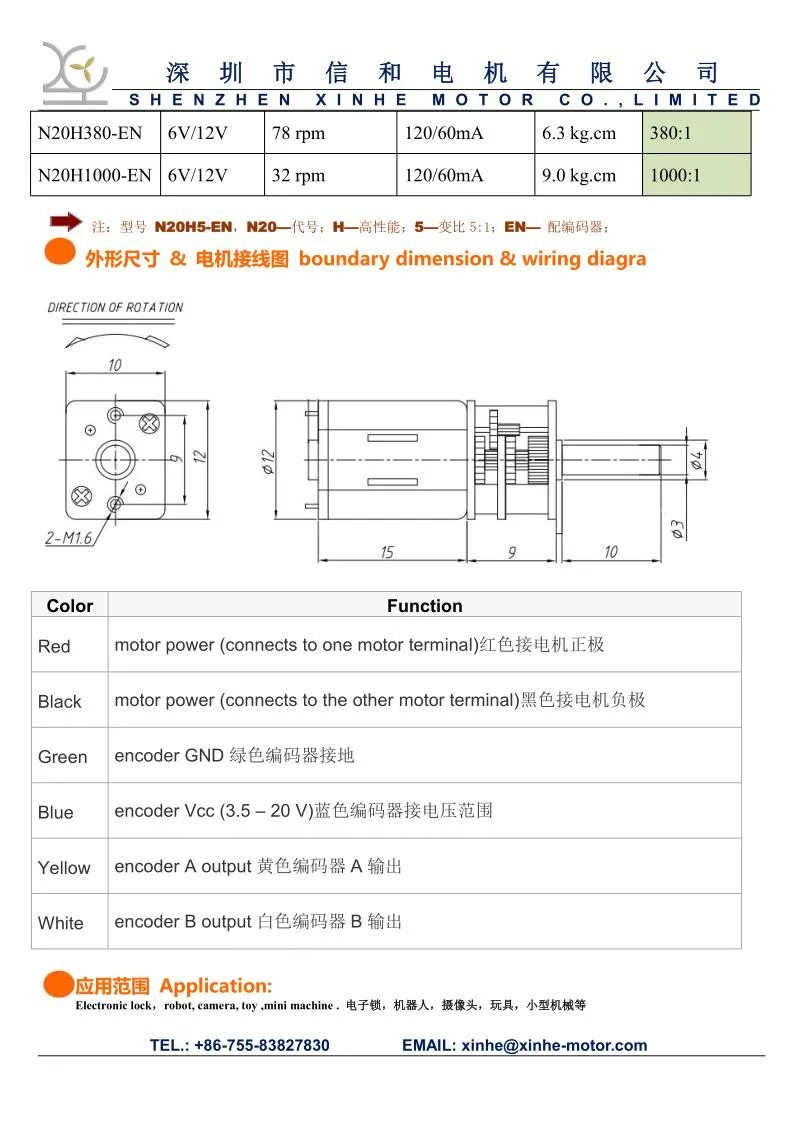

Drawing 2

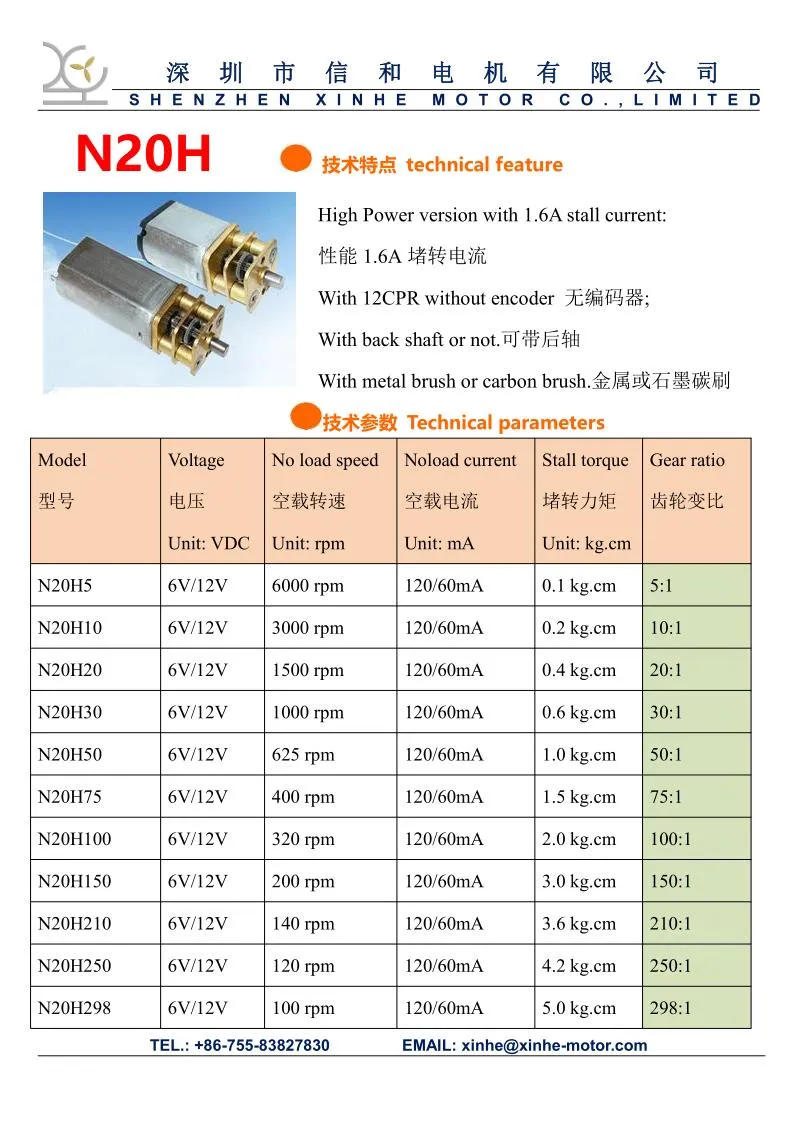

Drawing 3

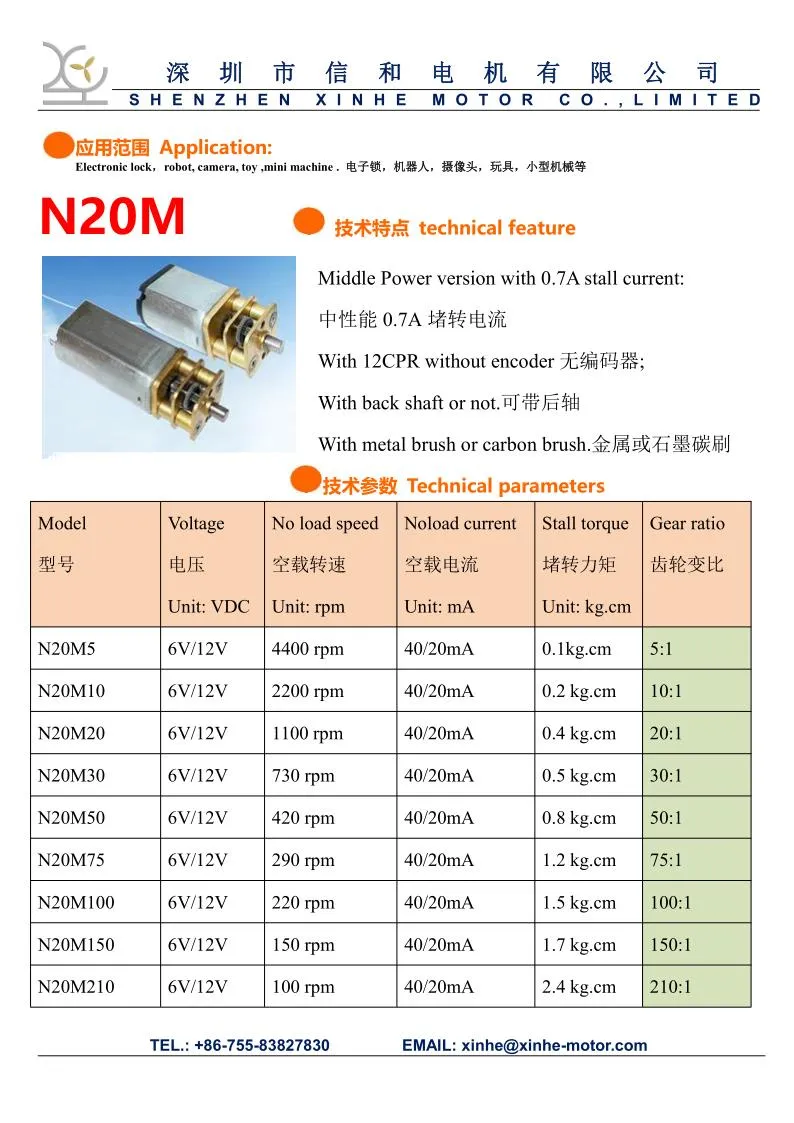

Drawing 4

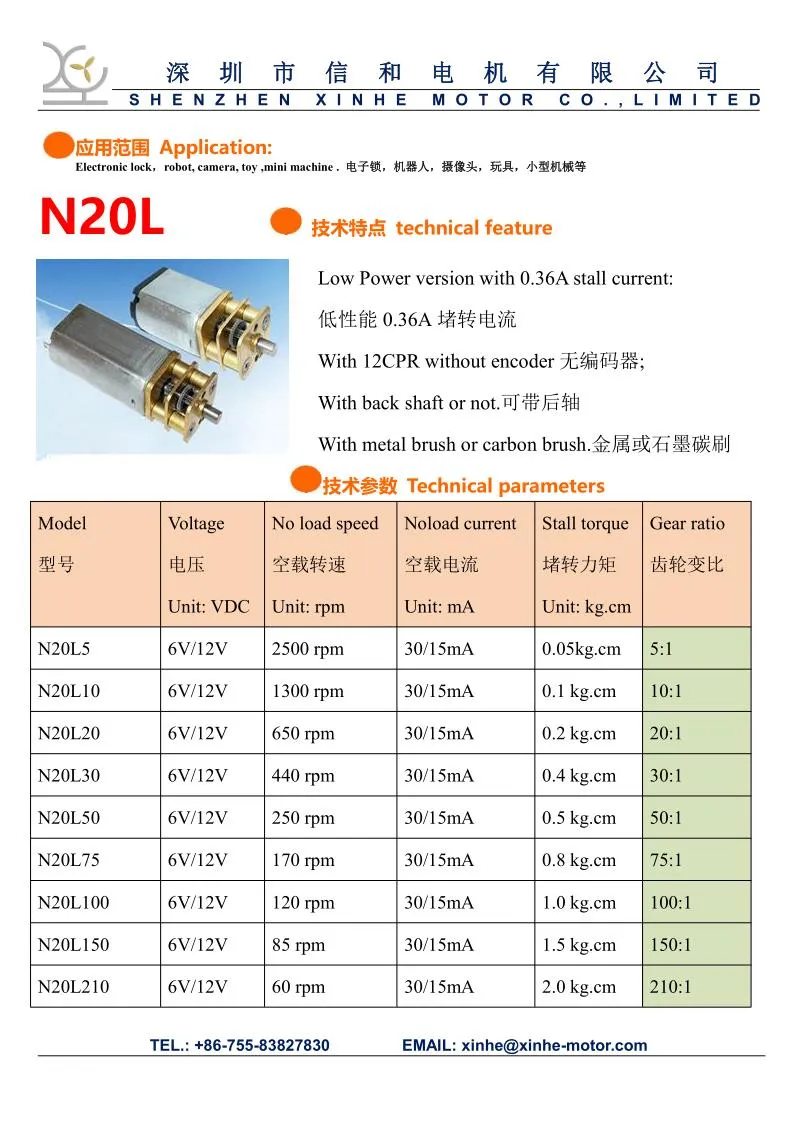

Drawing 5

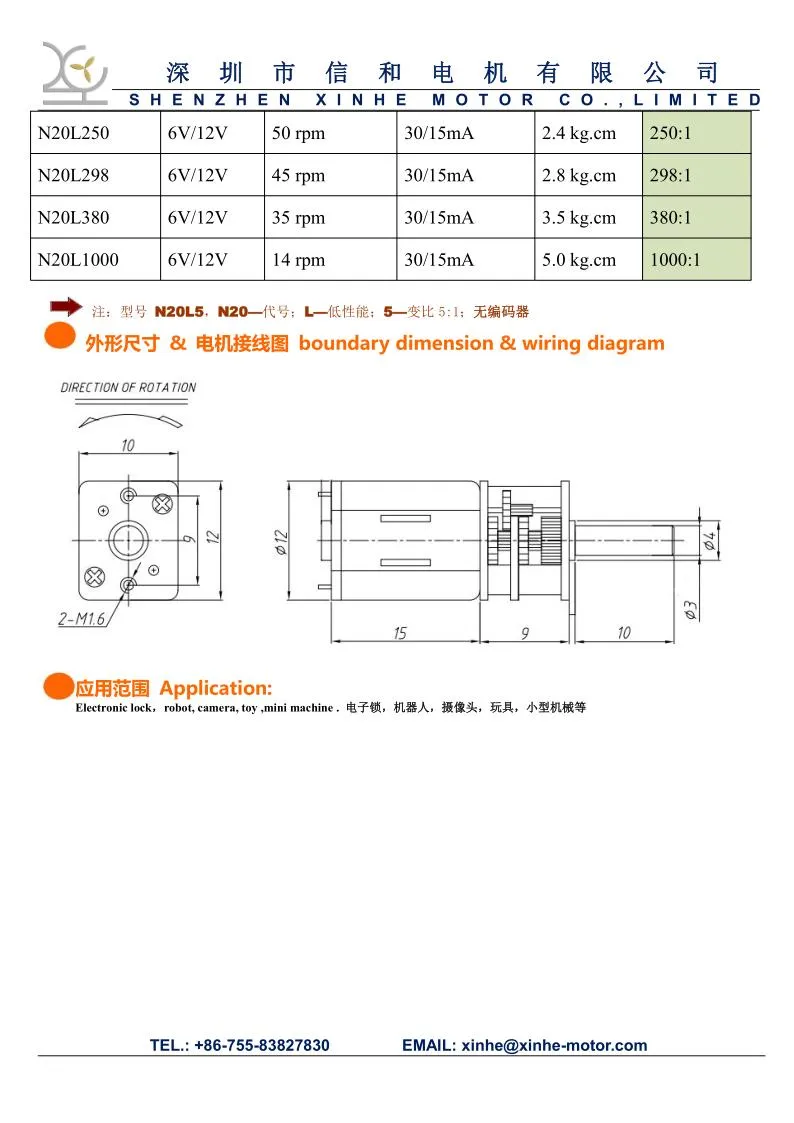

Drawing 6
C

Certifications

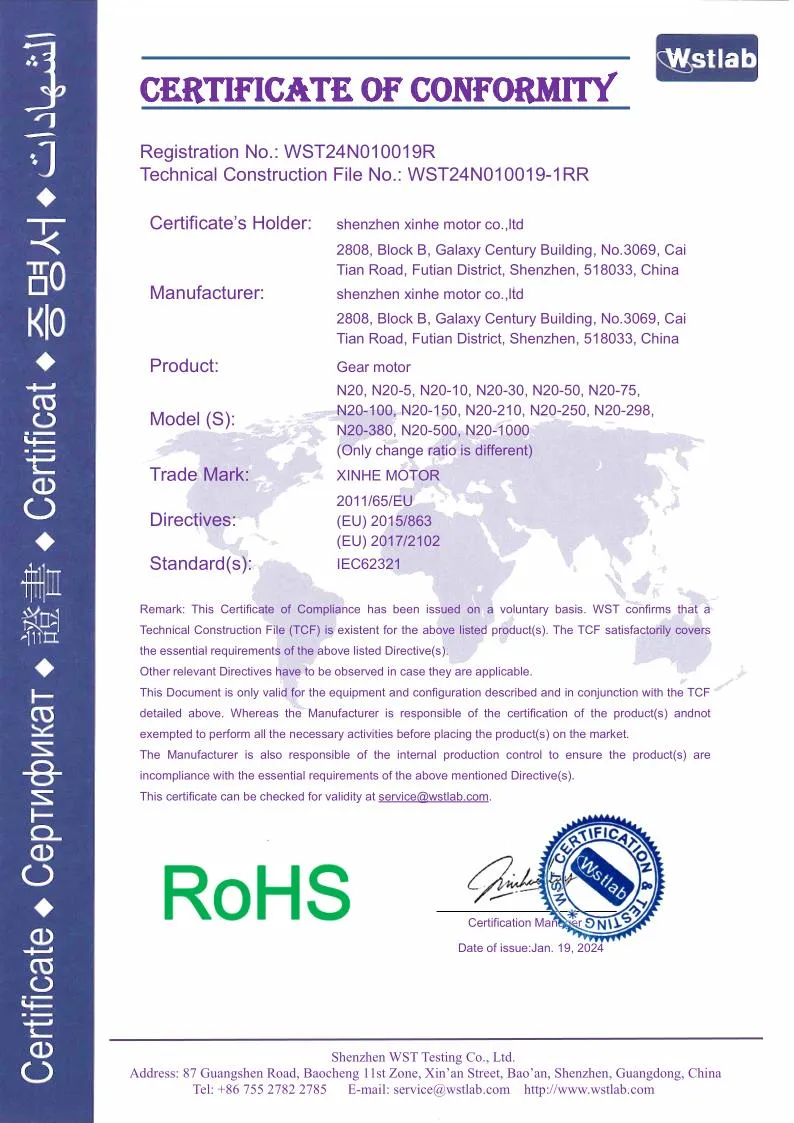

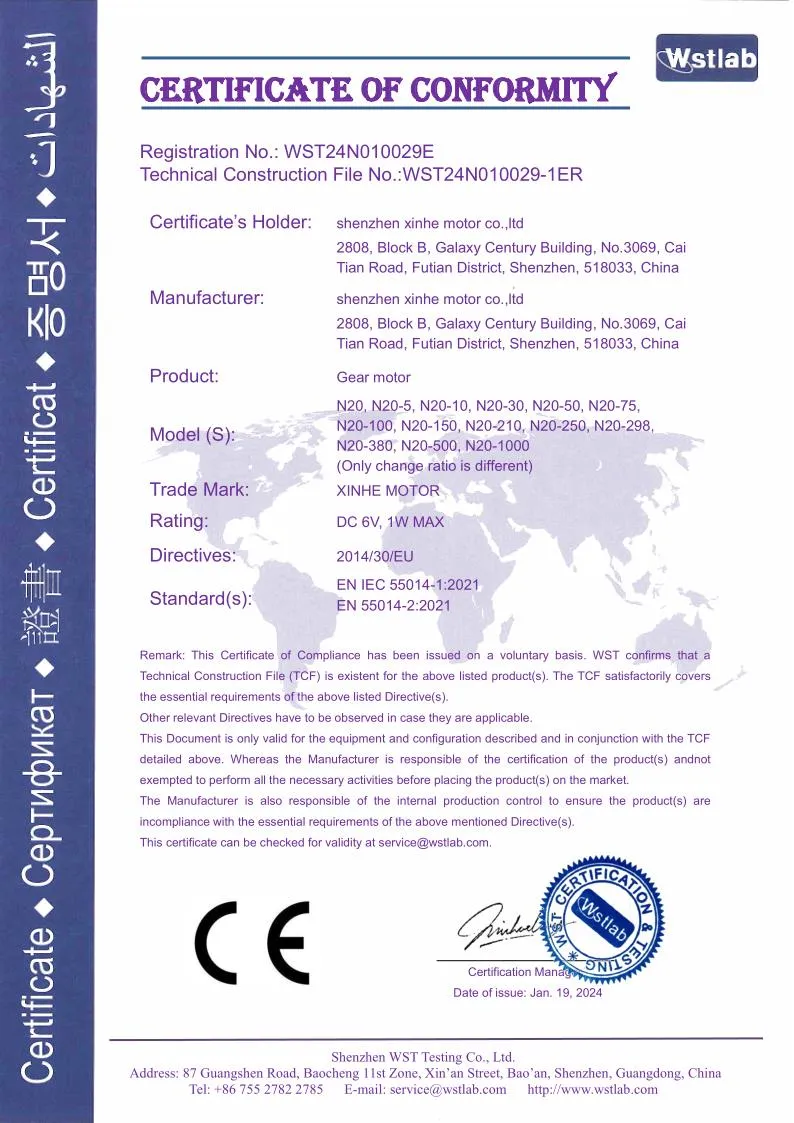

Cert 1

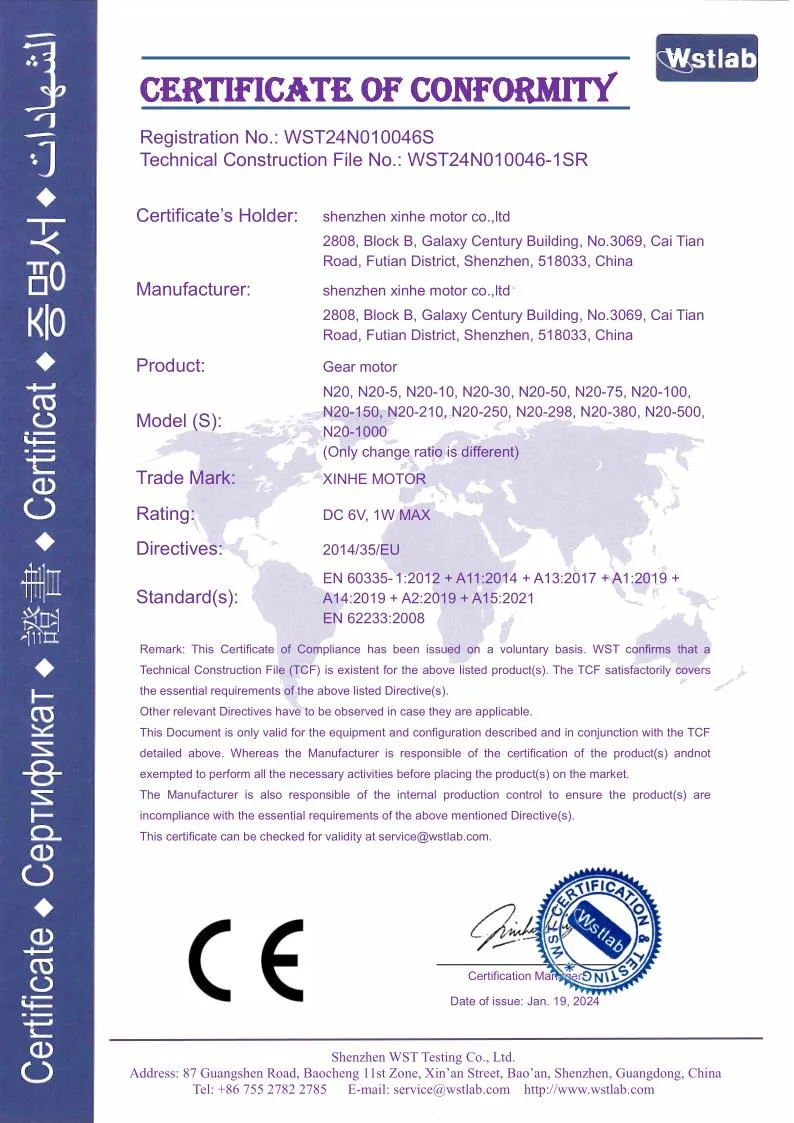

Cert 2
Cert 3
Certification Overview
A

Assembly Details

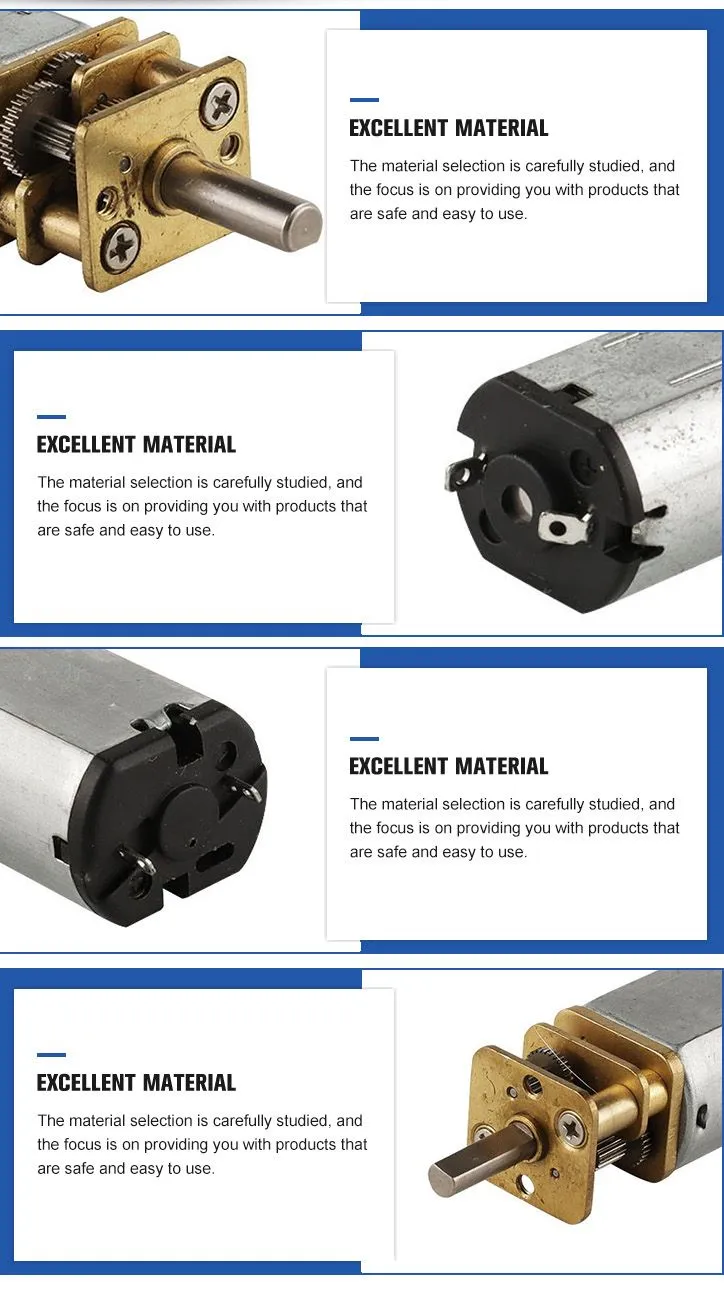

Product details assembly
F

Facility & Profile

Company Facility
Q

Frequently Asked Questions

What is the main application for the N20 micro gear motor?
The N20 motor is widely used in RC toy cars, electronic locks, robotics, DIY projects, and small medical equipment due to its compact size and high torque output.
What is the difference between metal brushes and carbon brushes?
Metal brushes are typically used for low-current, shorter-duty applications, while carbon brushes offer better durability and performance for high-power or continuous operation requirements.
Can the output shaft be customized?
Yes, the motor can be supplied with a standard shaft, a back shaft, or customized lengths and shapes depending on your specific design needs.
Is this motor compliant with international standards?
Yes, this product is RoHS and CE certified, ensuring it meets environmental and safety standards for global distribution.
What is the noise level of the motor during operation?
The N20 gear motor is designed for quiet operation, producing less than 35dB, which is ideal for applications where noise sensitivity is important.
What is the typical lead time for production?
The standard lead time is approximately 25 days, depending on the order volume and customization requirements.
