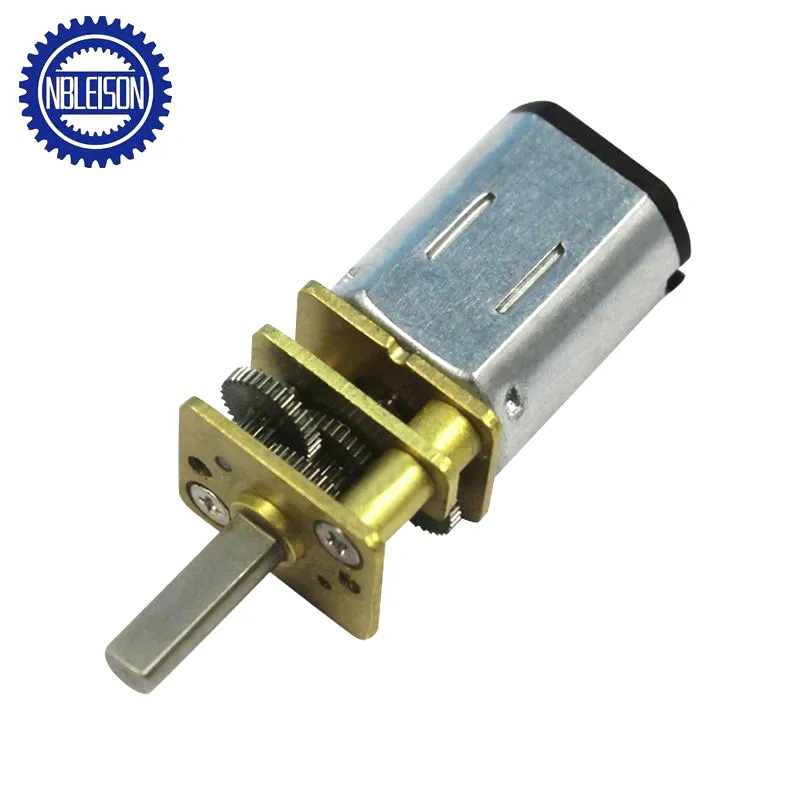

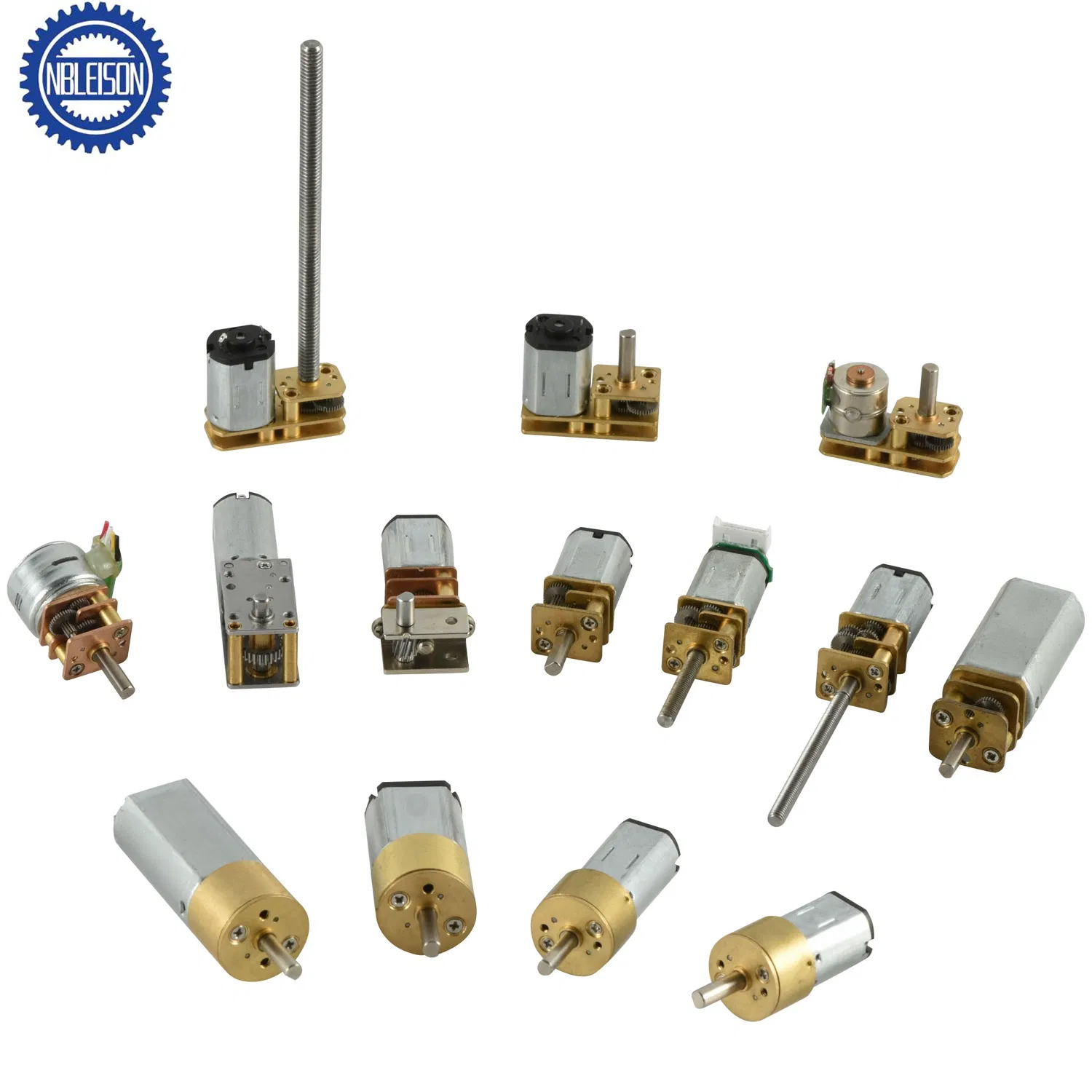

12mm 3V 4.5V 6V 12V DC Mini Gear Motor Specifications
Motor Descriptions
●
Voltage: 1.5V, 3V, 4.5V, 5V, 6V, 7V, 9V, 12V
●
Speed Range: 10rpm to 3000rpm (Customizable special speeds available)
●
Reduction Ratio: 1:10 to 1:1000
●
Stall Torque: High torque performance from 0.1-5.5kg.cm
●
Dimensions: 12mm dia gearbox, 15mm motor body, 3mm shaft diameter
●
Applications: Robots, Automatic Door Locks, Cameras, Monitors, Hair Curlers

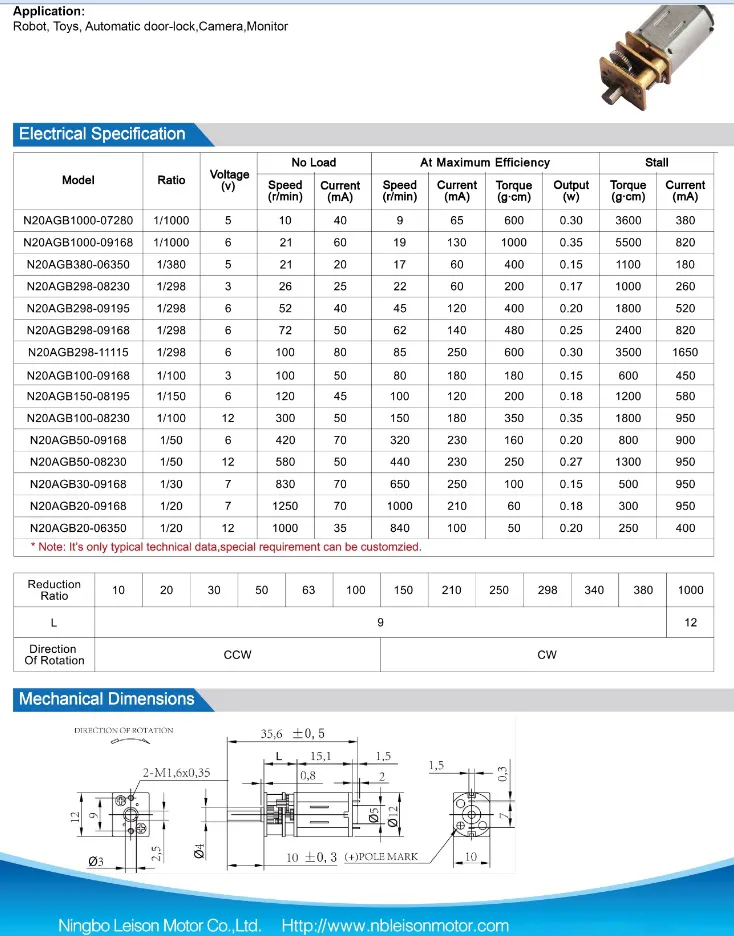

Note: The data sheet and price range are for reference. Final pricing depends on torque requirements and reduction ratios.

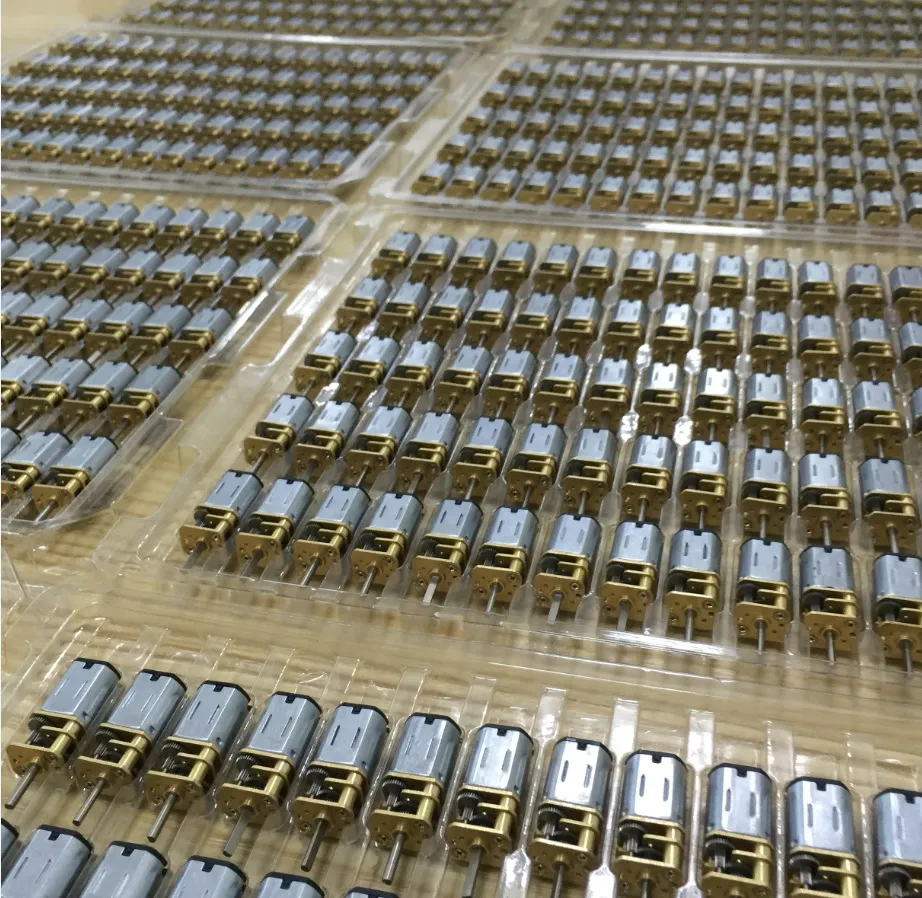

Production Capacity

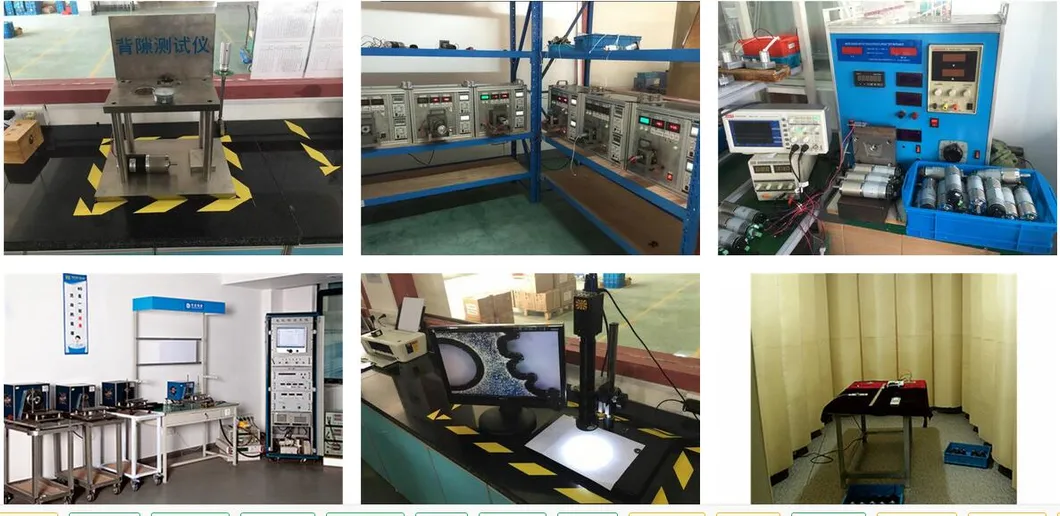

Test Equipment
Certificates
Exhibitions and Customer Visits
Frequently Asked Questions
What are your main products?

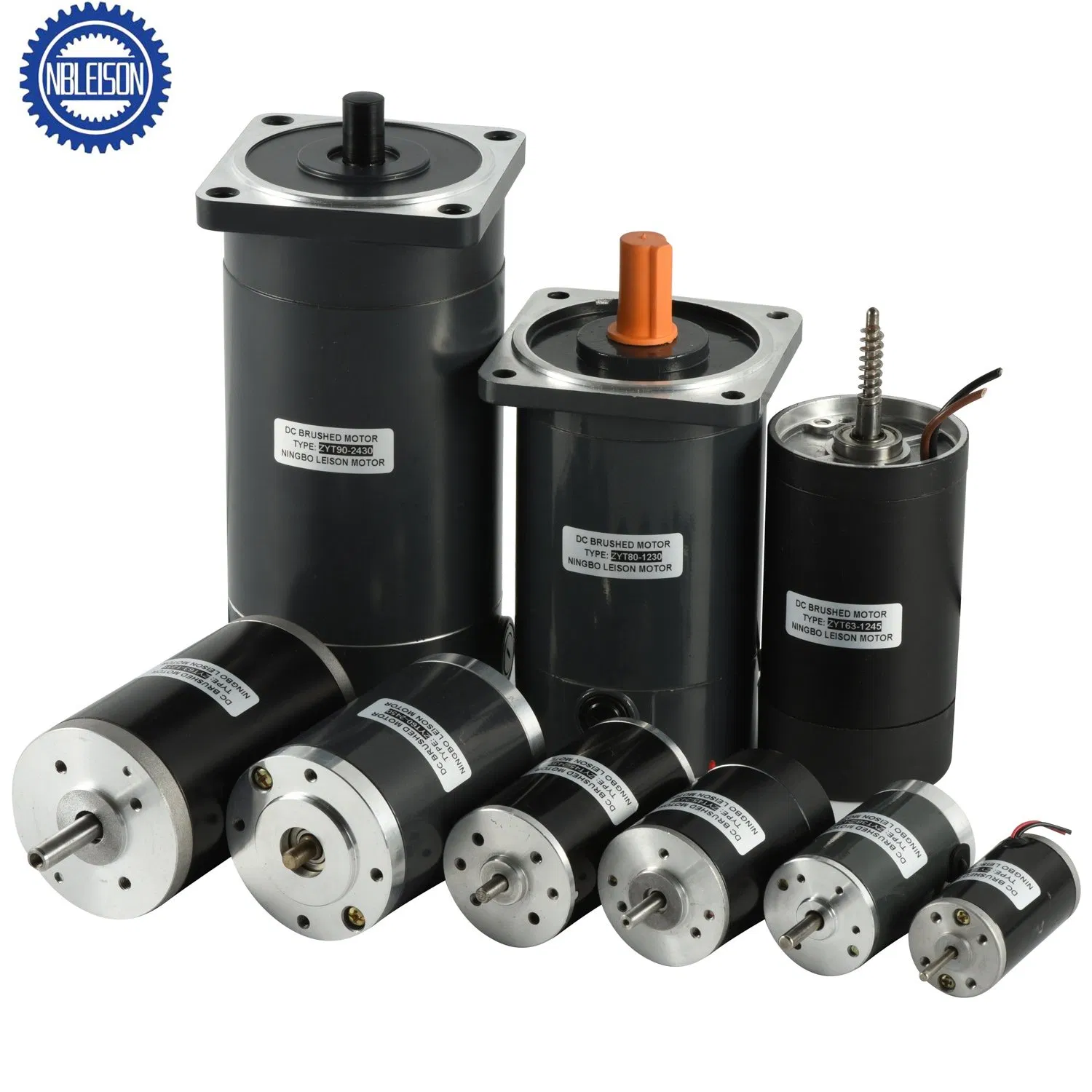

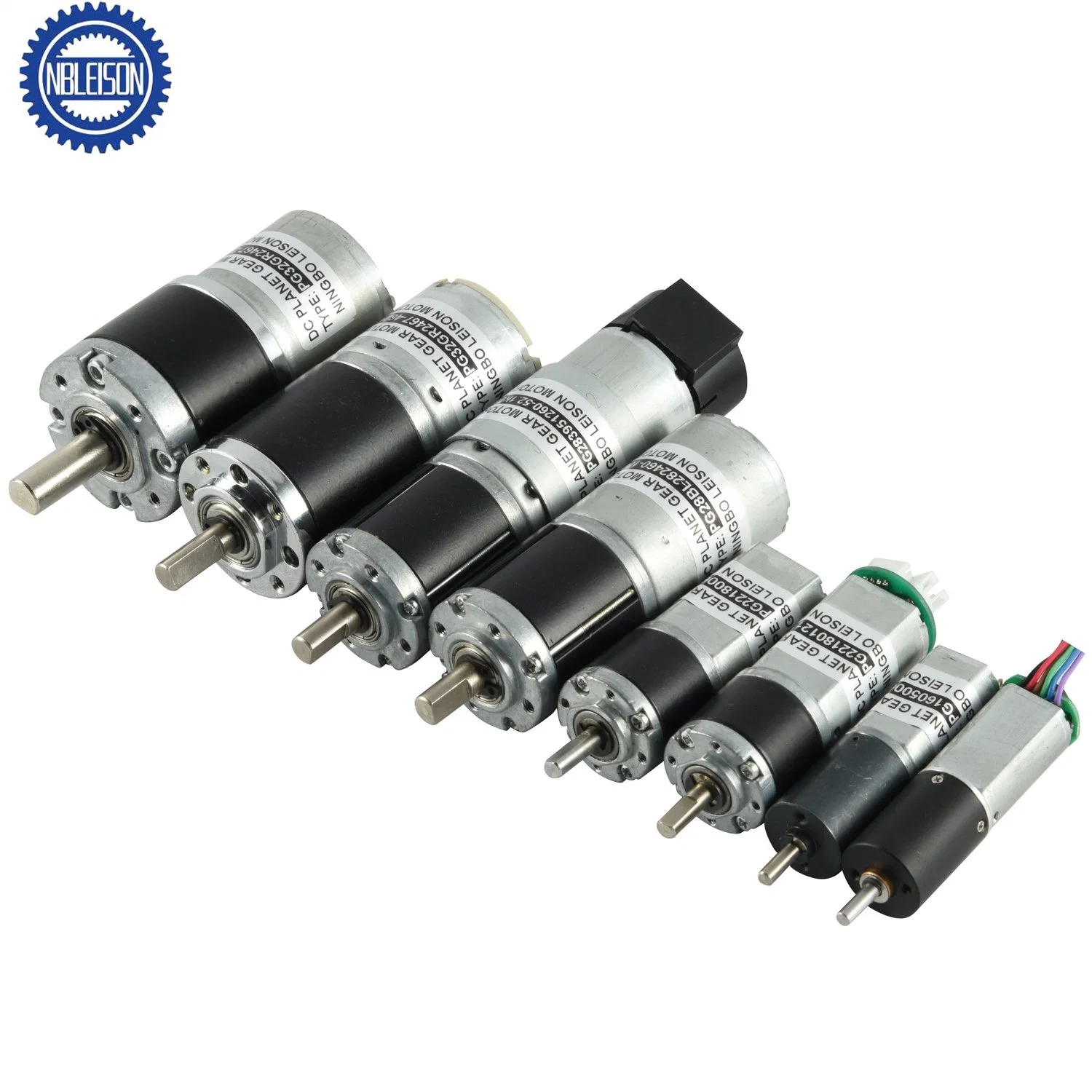

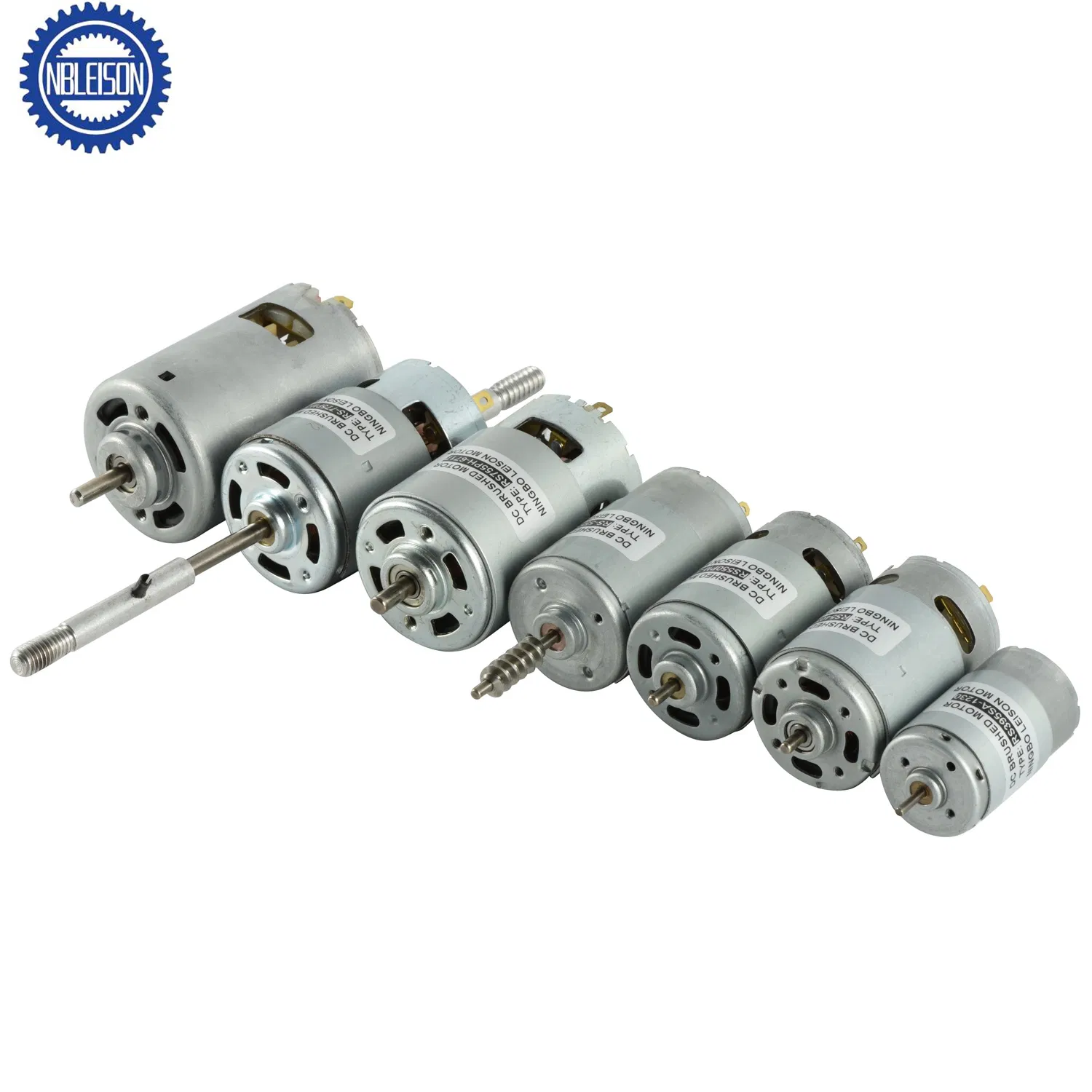

We currently produce Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper motors, and AC Motors.
How to select a suitable motor?
If you have drawings or detailed specs like voltage, speed, torque, motor size, and working mode, please let us know so we can recommend the suitable motor for your request.
Do you offer customized services?
Yes, we can customize voltage, speed, torque, and shaft size/shape. We can also provide customized cables, connectors, capacitors, or EMC solutions.
Can I have samples for testing first?
Yes, definitely. Once the motor specifications are confirmed, we will provide a proforma invoice for samples to proceed with testing.
How do you ensure motor quality?
We have strict inspection procedures: incoming material inspection based on drawings, tour inspections during production, and final inspections before shipping.
What is your lead time for orders?
Generally, regular standard products require 25-30 days. Customized products may take longer, but we are flexible depending on specific order requirements.
