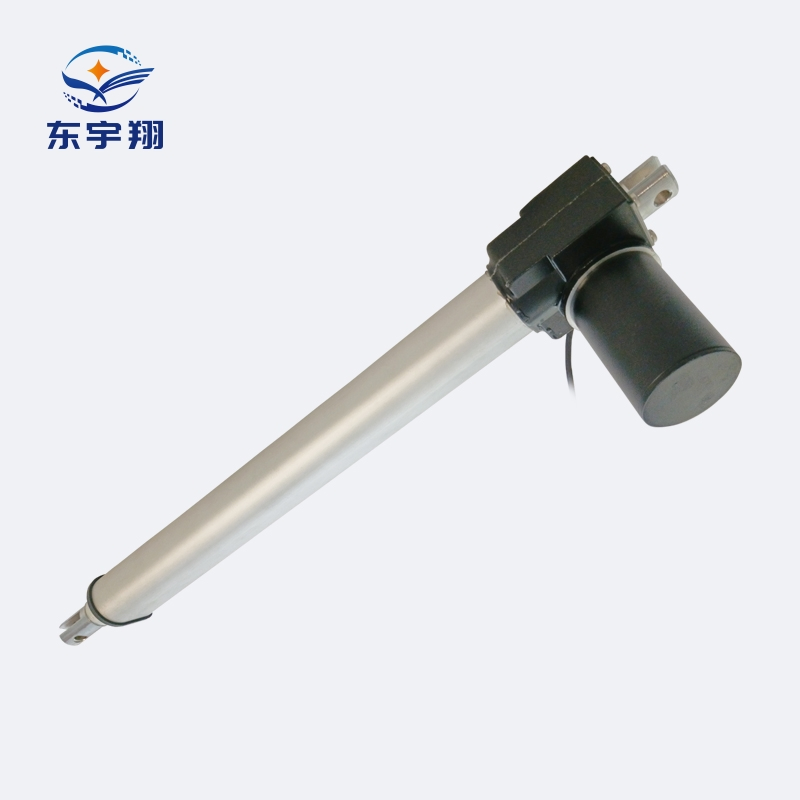

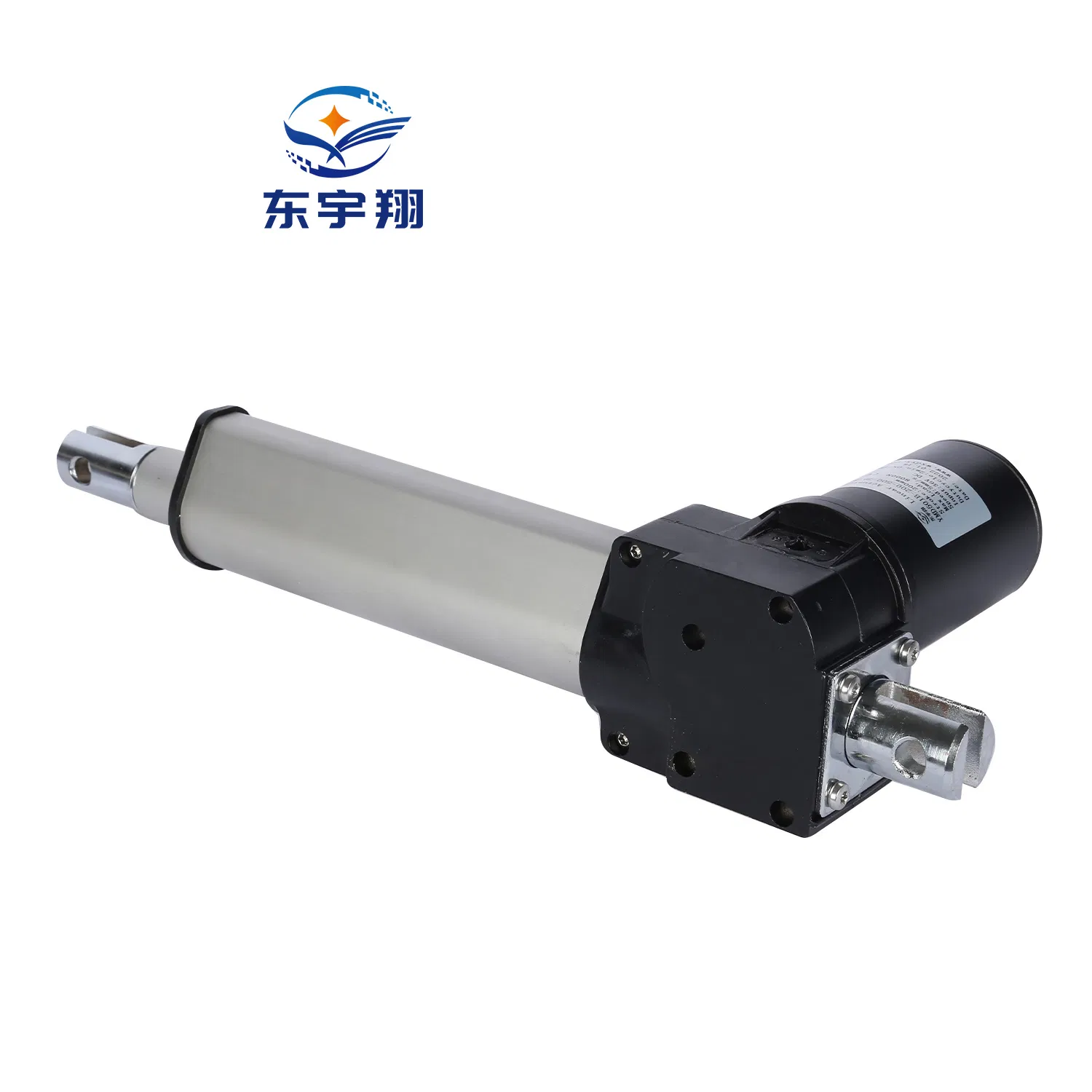

Electric Actuator 12V 24V Linear Actuator Miniature Motor 6000n
Electric Actuator 12V 24V Linear Actuator Miniature Motor 6000n
Electric Actuator 12V 24V Linear Actuator Miniature Motor 6000n
Electric Actuator 12V 24V Linear Actuator Miniature Motor 6000n
Electric Actuator 12V 24V Linear Actuator Miniature Motor 6000n
1 / 5
Electric Actuator 12V 24V Linear Actuator Miniature Motor 6000n
Electric Actuator 12V 24V Linear Actuator Miniature Motor 6000n
Electric Actuator 12V 24V Linear Actuator Miniature Motor 6000n
Electric Actuator 12V 24V Linear Actuator Miniature Motor 6000n
Electric Actuator 12V 24V Linear Actuator Miniature Motor 6000n

Electric Actuator 12V 24V Linear Actuator Miniature Motor 6000n

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Limit Switch
Built-in
Max Thrust
6000N
Standard Stroke
50mm
Voltage
24VDC
Noise Decibel
<50dB
Position Feedback
Hall Sensors / Reed Switches
Motor Type
Brushed DC Motor
Operation Temp
-40℃ ~ +65℃
Transport Package
Carton Box/Pallet
Specification
50-600mm
Origin
China
HS Code
85013100
Capacity
50,000 pieces/Year
Product Description

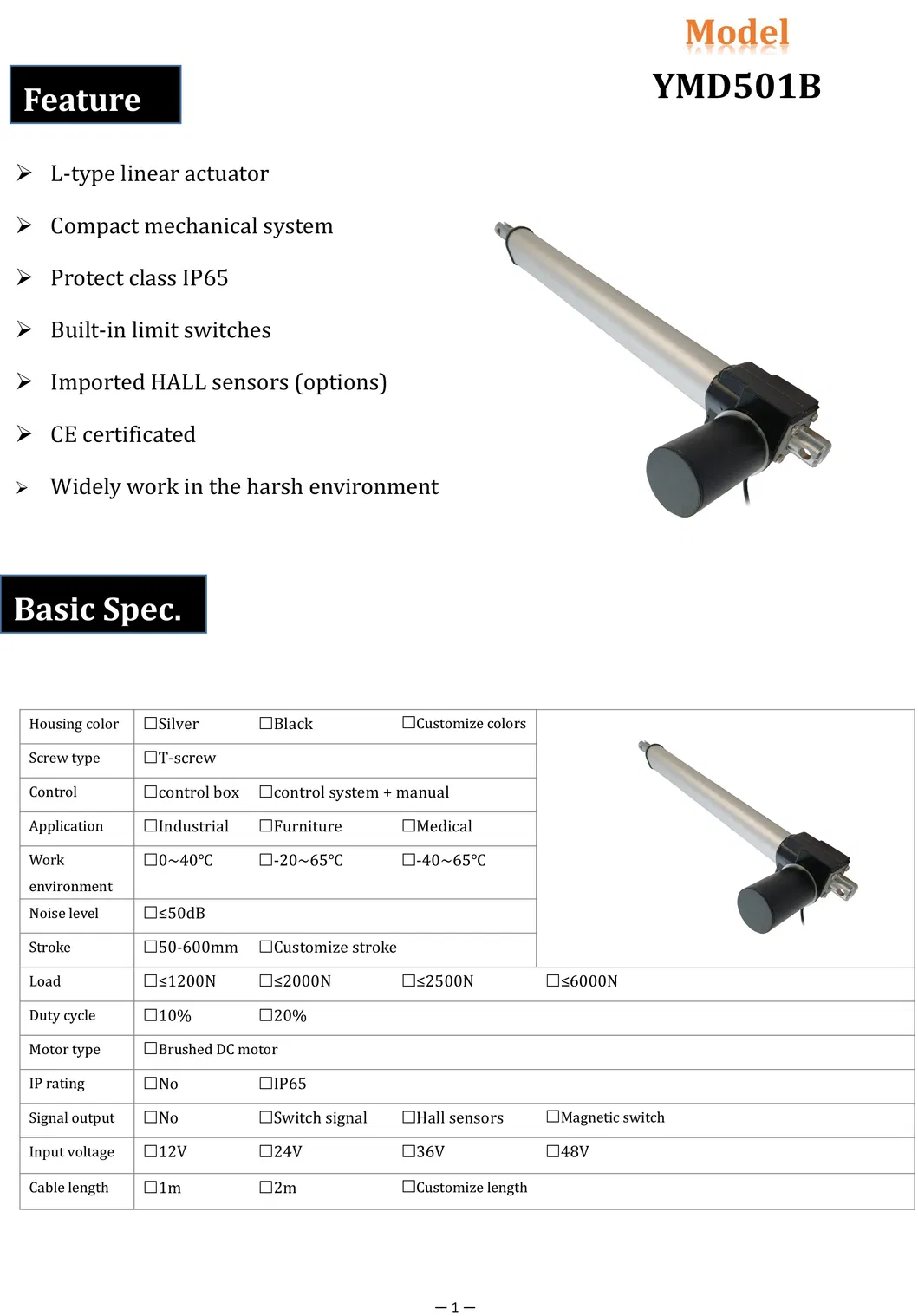

Electric Actuator 12V 24V Linear Actuator

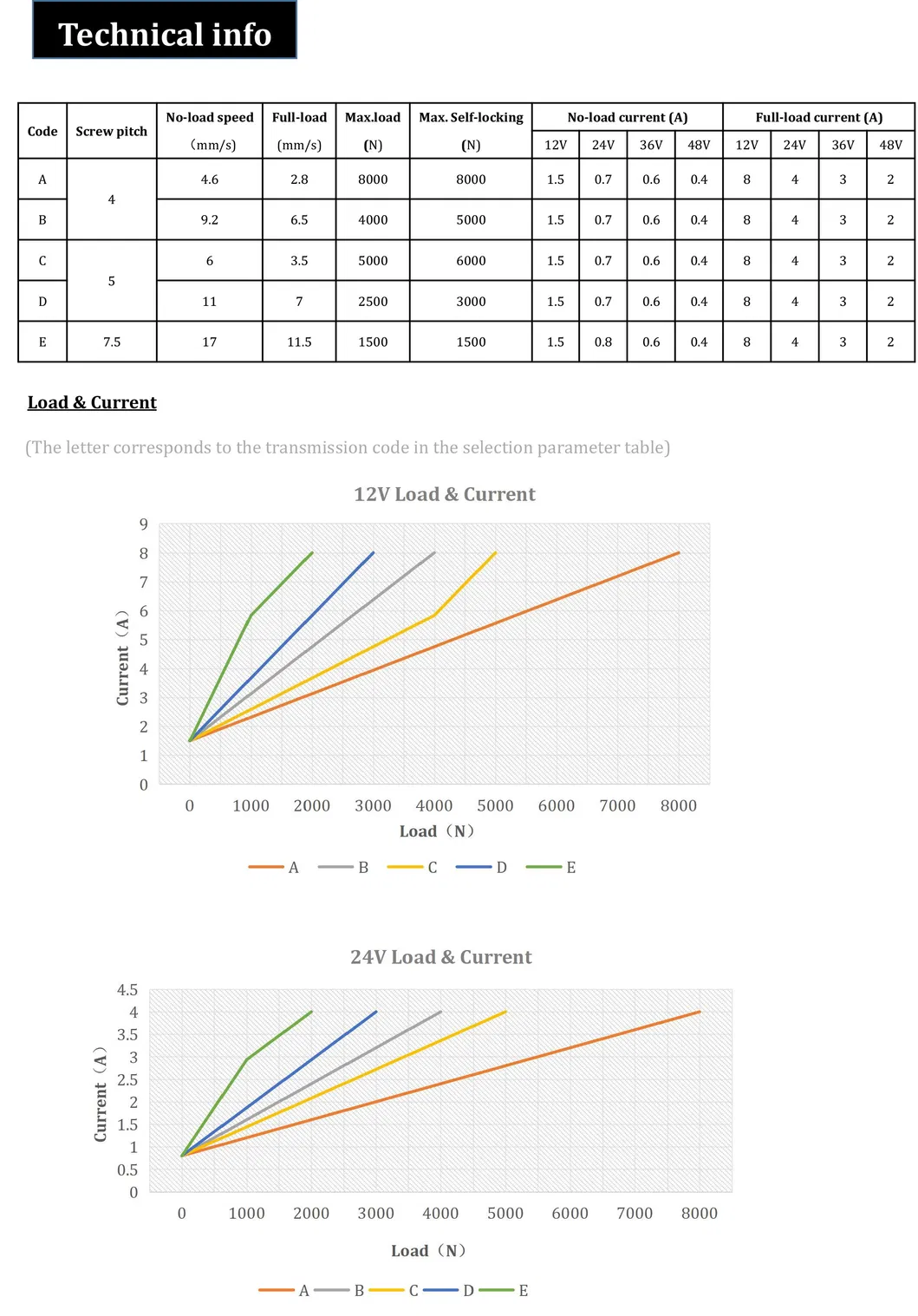

6000n Linear Actuator Miniature Motor

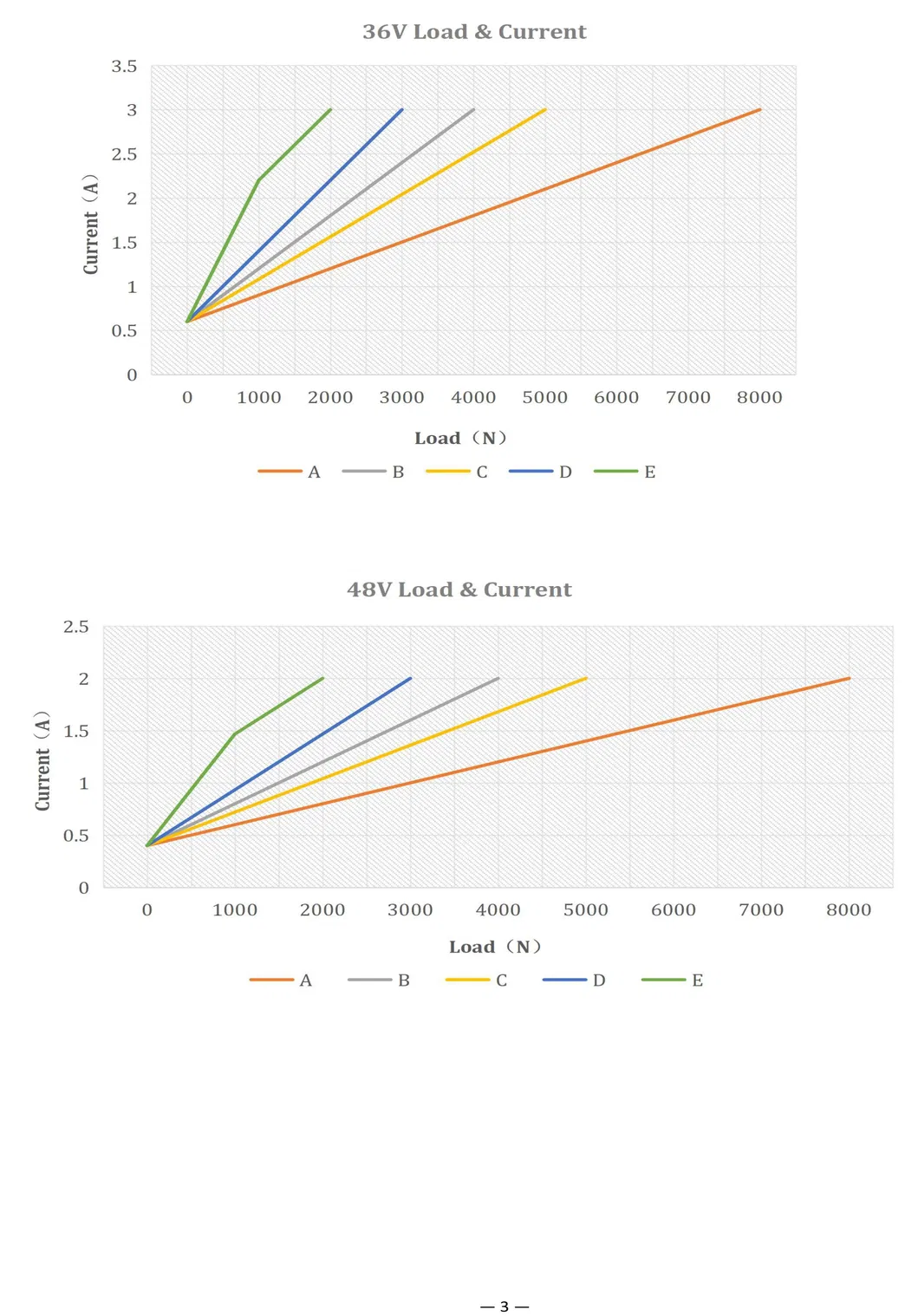

Linear Actuator Components

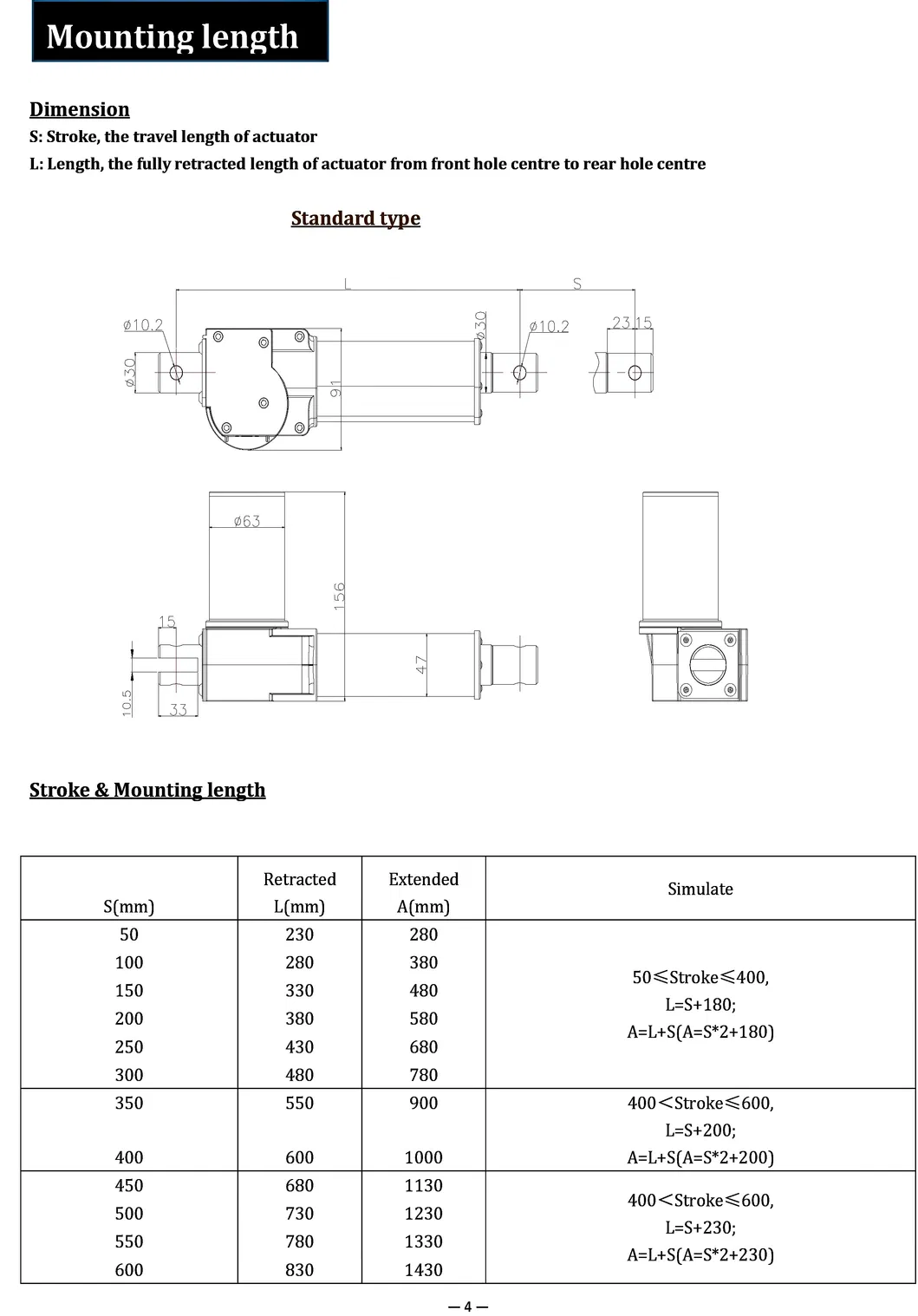

Electric Actuator Dimensional Drawing

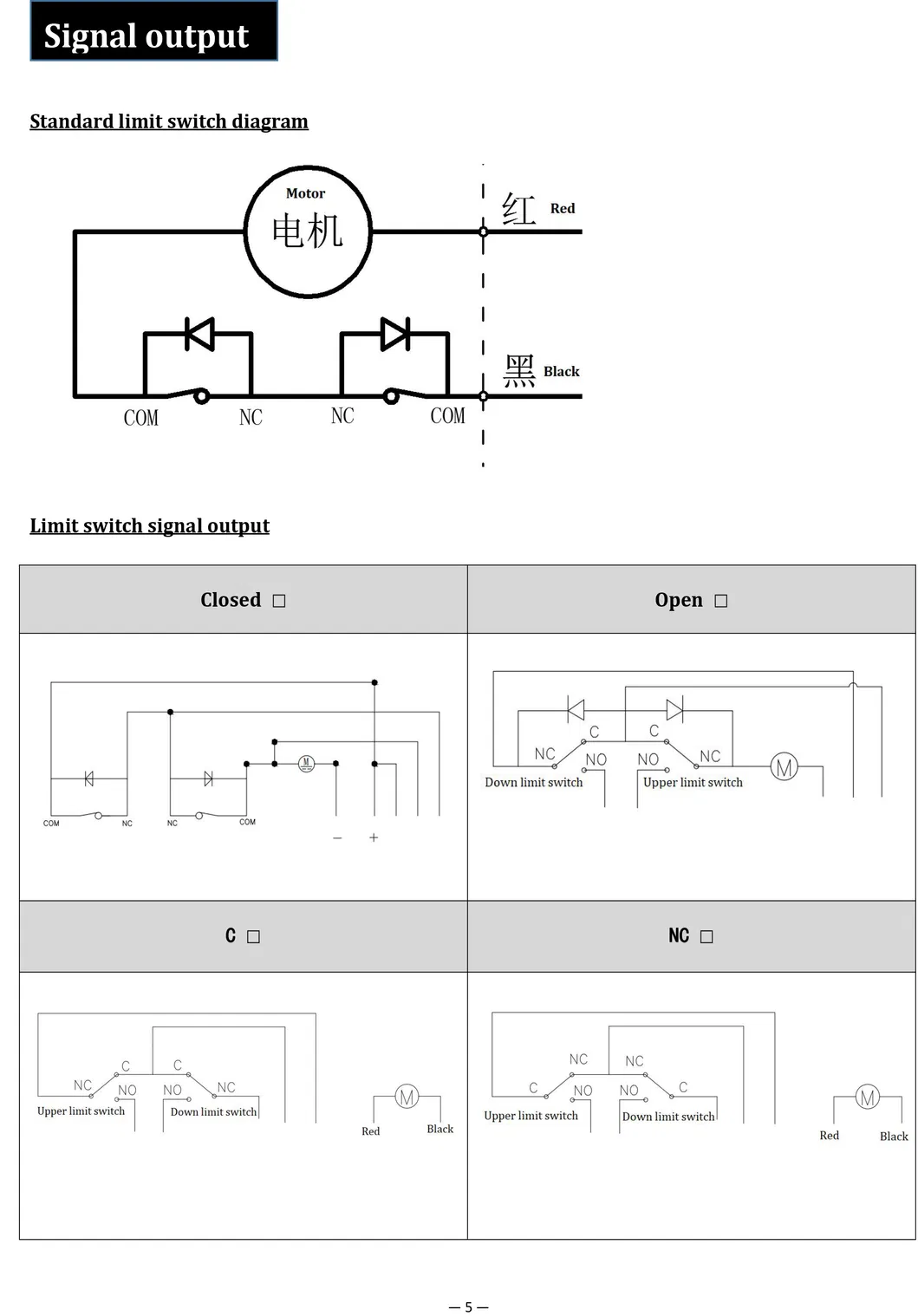

Industrial Linear Motion Device

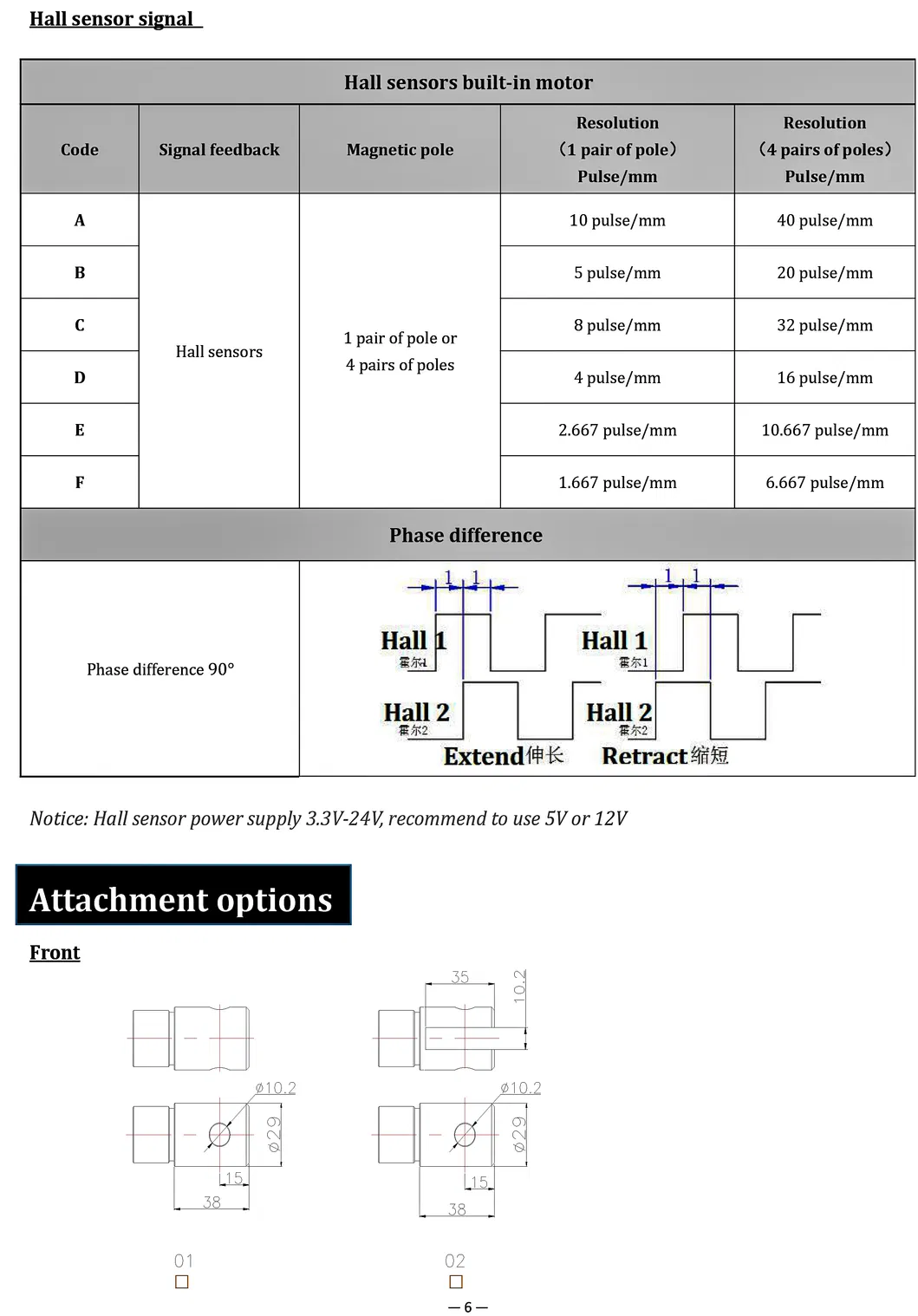

24VDC Miniature Motor Actuator

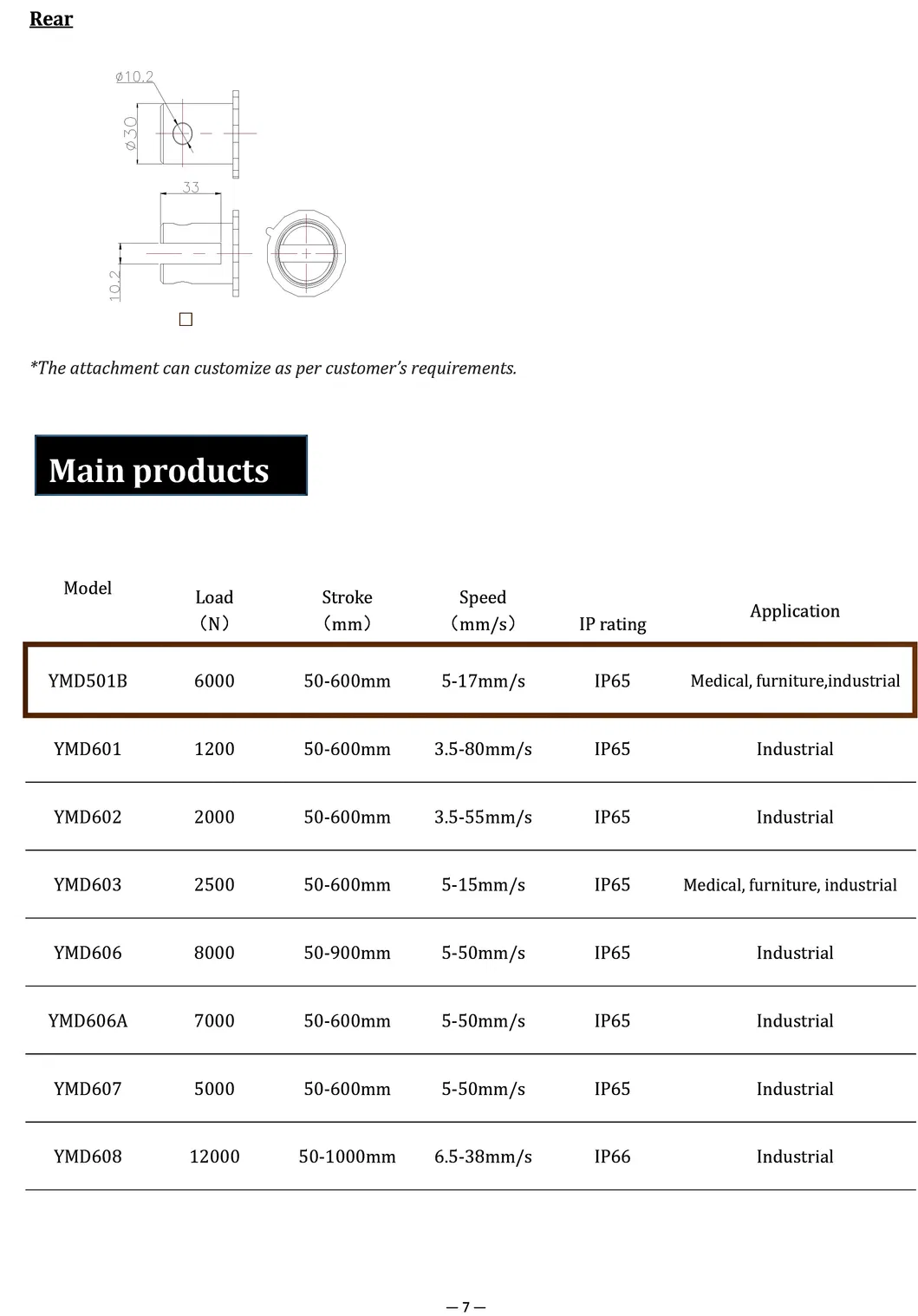

High Thrust Electric Cylinder

The involvement in the most different industrial fields shows the ability of our linear motion devices (linear actuator, electric cylinder) to be suitable and reliable for a lot of applications.

Frequently Asked Questions
What is the maximum load capacity of this linear actuator?
The maximum thrust for this device is 6000N, making it suitable for heavy-duty industrial applications.
Does the actuator have safety mechanisms to prevent over-extension?
Yes, it comes with a built-in limit switch to automatically stop the motor at the end of the stroke.
What are the options for position feedback?
This model supports both Hall Sensors and Reed Switches for precise position monitoring and control.
Can this actuator operate in extreme weather conditions?
Absolutely. It is designed to operate reliably in temperatures ranging from -40℃ to +65℃.
How loud is the motor during operation?
The device operates quietly with a noise level of less than 50dB, which is ideal for noise-sensitive environments.
What power supply is required for this model?
This specific model is designed to work with a 24VDC power supply.
