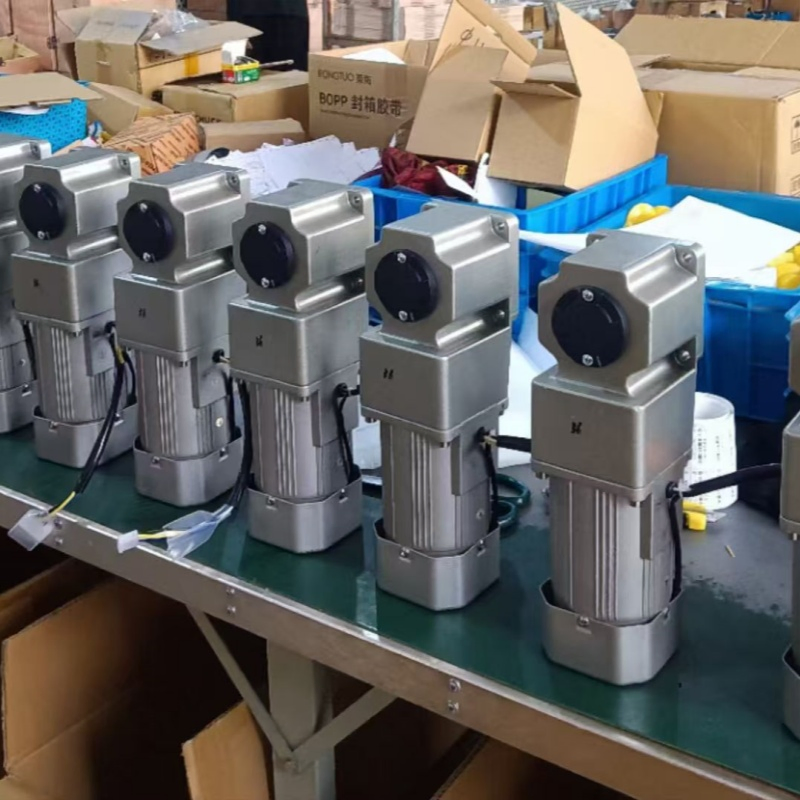

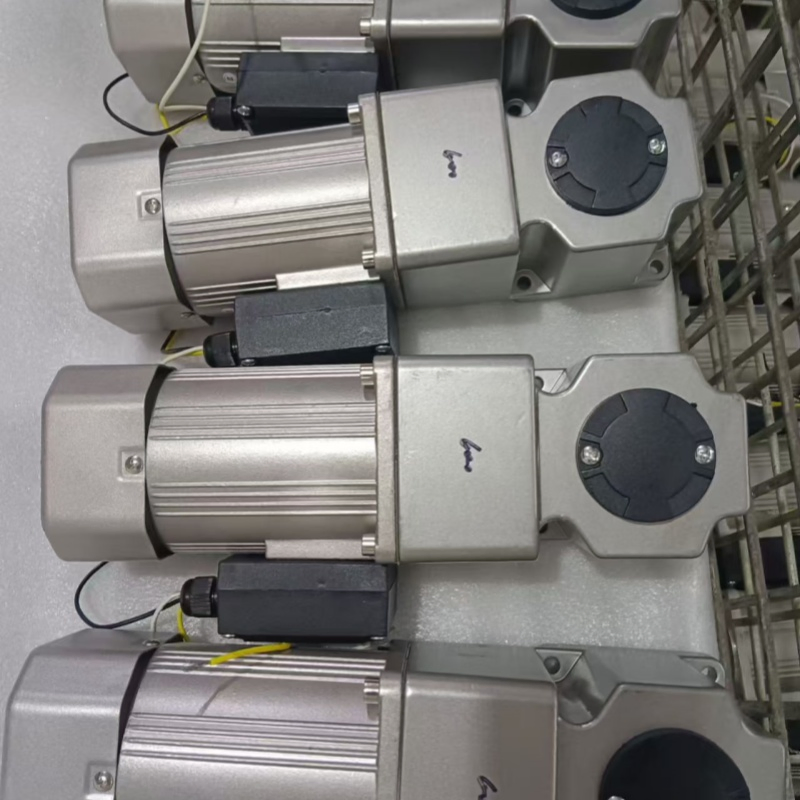

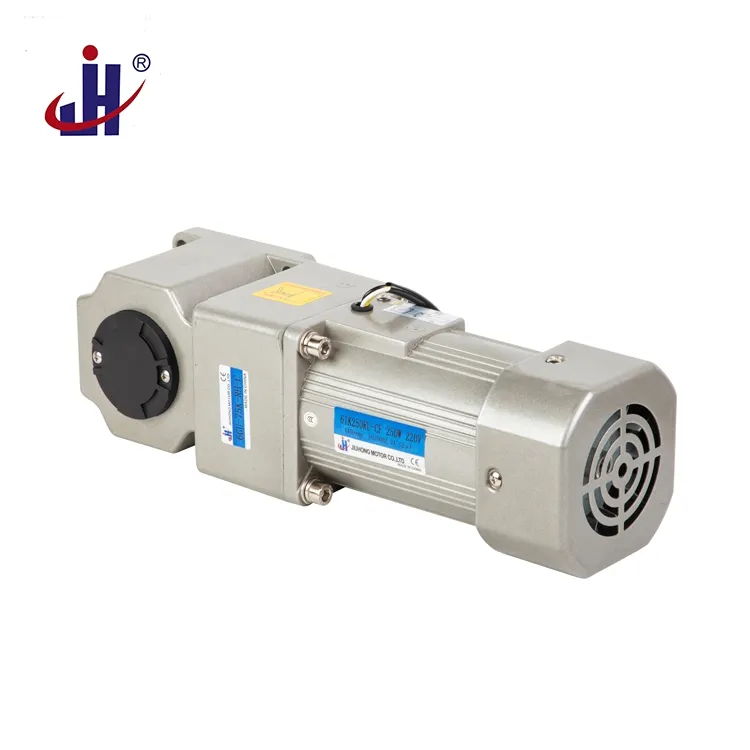

Miniature Belt Conveyor Flexible Installation Right Angle Small AC Gear Motor Motors

ℹ Product Description

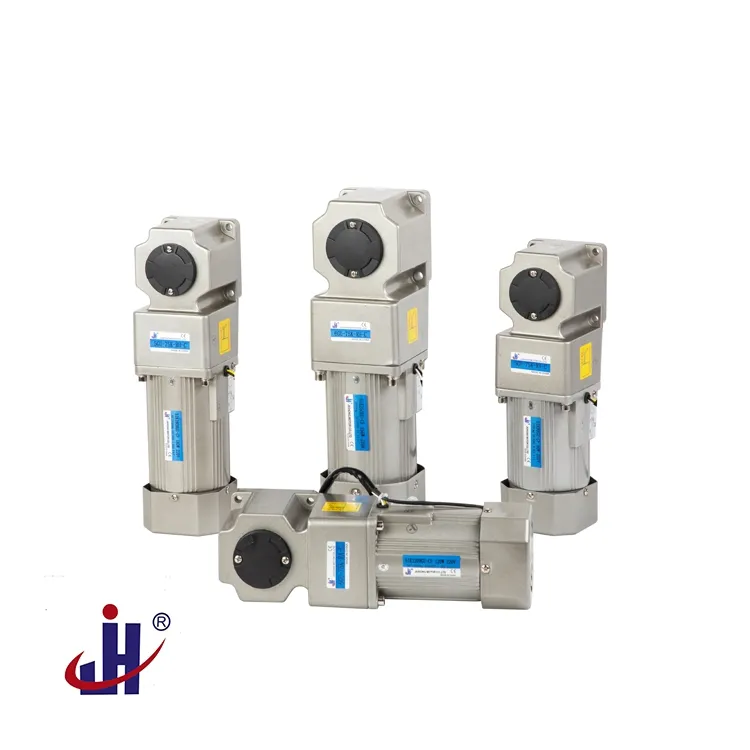

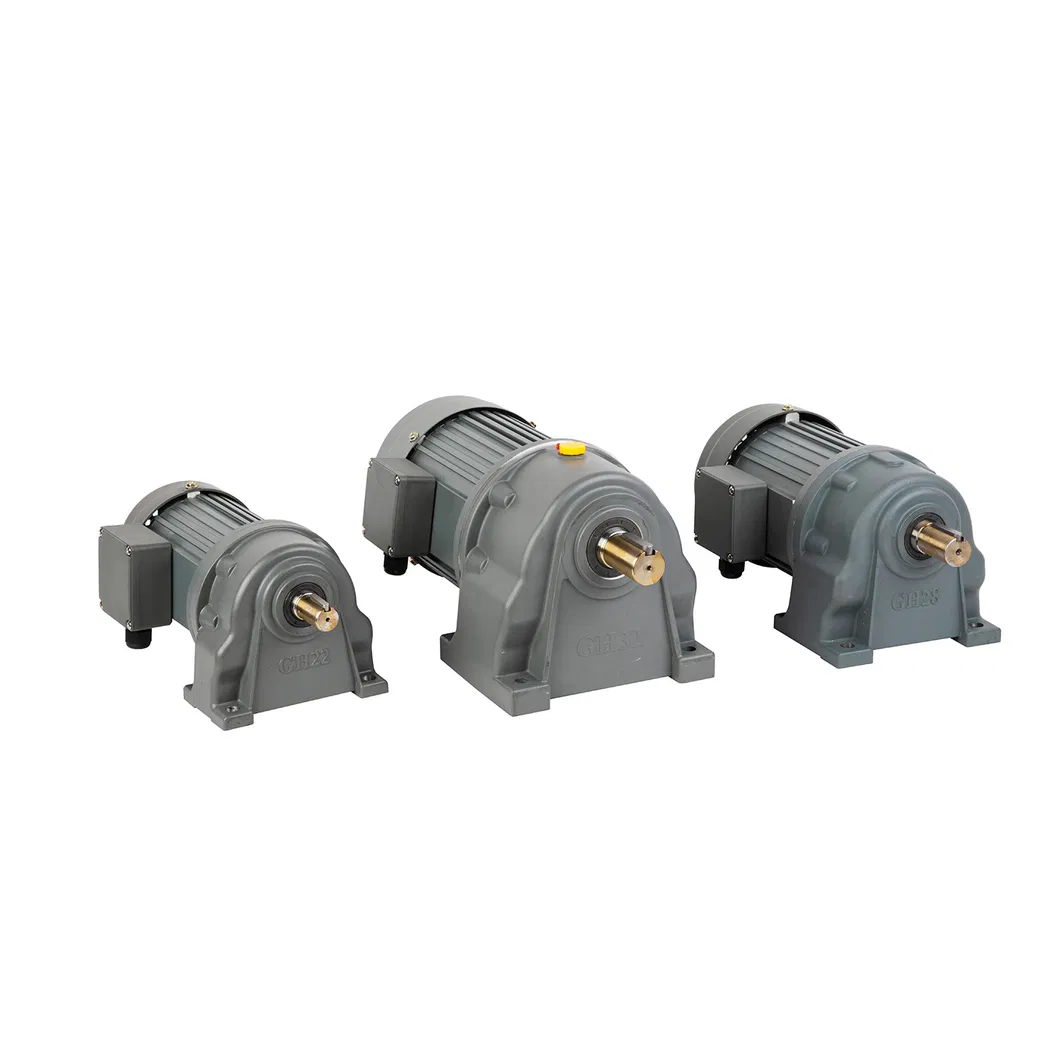

These Right Angle Gear reduction motors promise extended longevity and consistent performance across a wide array of applications. With a variety of torque outputs available, they are meticulously engineered to cater to diverse load requirements, offering unparalleled performance.

⚙ Product Parameters

Right angle gearbox model description:

Optimized design, small size, flexible installation, saving space
High efficiency, large output torque, stable startup, long service life
Can be equipped with AC/DC motor, continuous/reversible motor, torque motor
Optional parts: speed controller, fan, electromagnetic brake, etc.
Gearbox flange size: 70mm, 80mm, 90mm, 104mm, 120mm
Gearbox Ratio: 1/6 - 1/2250
Motor Power: 15w ~ 2.2kw

5GU	-	30K	RH	C
1	-	2	3	4

1	3GN: 7070mm (15w~25w) 4GN: 8080mm (25w~40w) 5GU: 9090mm (40w~180w) 6GU: 104104mm (180w~300w) 7GU: 120*120mm (400w~2.2kw)
2	30K: Ratio 1:30 \| XK: Ratio 1:X

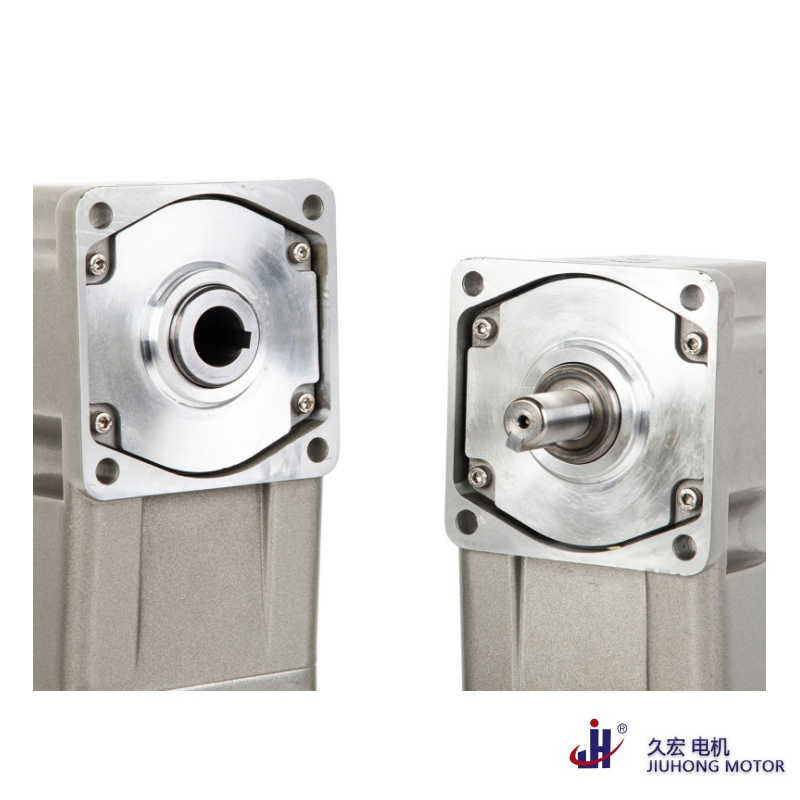

3	RH: Right angle hollow gear reducer \| RA: Right angle solid gear reducer
4	E: Eccentric shaft/hollow \| C: Center shaft/hollow
5	Power: 15w-2.2kw \| Supports AC (1-phase/3-phase/Torque) & DC Motors

📋 Technical Specifications

General Condition: Insulation resistance: ≥20MΩ
Insulation strength: 1500V/1min
Temperature rise limit: 75K
Wire: CQC certified, 105ºC, 600v

Work Condition: Work system: continuous (S1)
Cooling method: IC 40
Operating Temp: -10 ~ +40ºC
Relative humidity: 15% ~ 90%

🔗 Related Products

🚀 Application Areas

Widely used in industrial assembly lines, intelligent equipment, animal husbandry machinery, printing machinery, textile machinery, instrumentation, food machinery, power transmission, medical equipment, logistics, security inspection, and industrial robots.

🏢 Production Capability

We are an enterprise engaged in R&D, production, and sales of AC gear motors, water pumps, deceleration motors, and accessory parts. Our factory specializes in:

Micro AC Gear Motor (6W~1500W) & Small AC Gear Motor (0.1KW~7.5KW)
Hollow/Solid Right Angle Gear Motor (25W~1500W)
Linear Gear Motor (6W~750W) & Torque Gear Motor (3W~400W)
DC Gear Motor (6W~750W) & Precision Planetary Gearbox
Stepper Motors, RV Worm Gear Reducers, and Servo Motors
Speed Controllers & AC Frequency Inverters (0.2KW~400KW)

📦 Packaging & Shipping

❓ Frequently Asked Questions

What is the standard delivery time?

Usually 3-5 working days for small orders and 10-15 days for bulk orders.

What are the available payment terms?

We accept various payment methods including T/T, L/C, Western Union, and Cash.

What is the warranty period for your motors?

We provide a comprehensive 24-month warranty on our products.

Are the products available in stock?

Standard models are kept in stock. Special specifications or large quantities are newly produced per order requirements.

Can different power models be mixed in one container?

Yes, we support mixing different models and power specifications within a single container or order.

How do you ensure product quality?

Quality is our priority. Every product is fully assembled and undergoes rigorous testing before packing and shipment.

1	3GN: 7070mm (15w~25w) 4GN: 8080mm (25w~40w) 5GU: 9090mm (40w~180w) 6GU: 104104mm (180w~300w) 7GU: 120*120mm (400w~2.2kw)
2	30K: Ratio 1:30 \| XK: Ratio 1:X
3	RH: Right angle hollow gear reducer \| RA: Right angle solid gear reducer
4	E: Eccentric shaft/hollow \| C: Center shaft/hollow
5	Power: 15w-2.2kw \| Supports AC (1-phase/3-phase/Torque) & DC Motors
