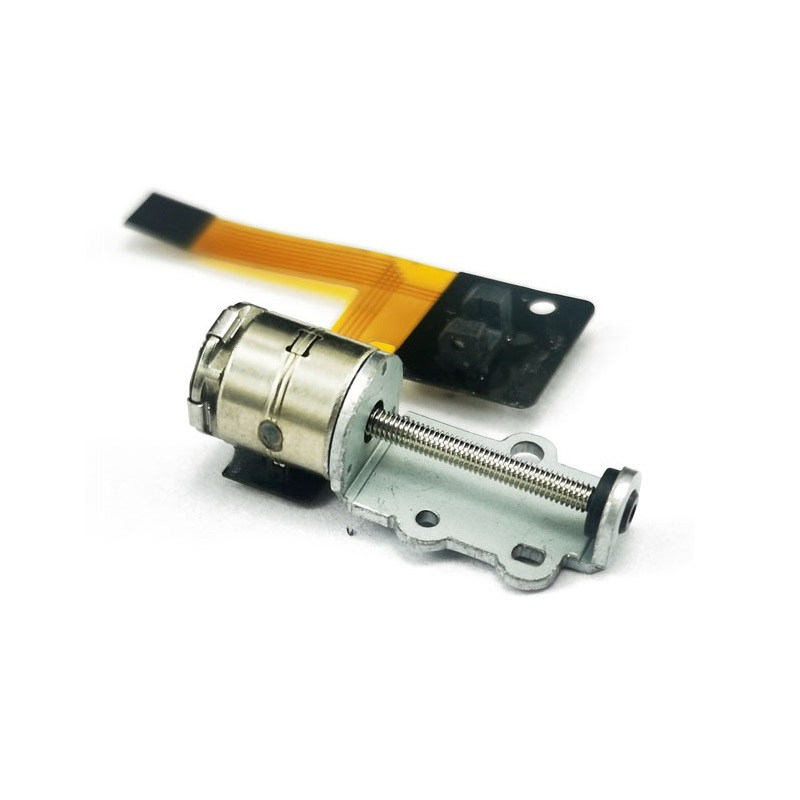

High Precision 8mm 5V Miniature Stepper Motor for Robotics

1 / 5

High Precision 8mm 5V Miniature Stepper Motor for Robotics

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📘 Basic Specification

Model NO.

07-005-034

Number of Stator

Two-Phase

Excitation Mode

2-2 Phase Exciting

Function

Driving

Number of Poles

Operate Mode

Bi-Polar Drive

Type

Linear

Certification

ISO9001

Package

Carton

Specification

Φ 8mm

HS Code

8501109990

Capacity

20000/Month

🖼️ Product Gallery

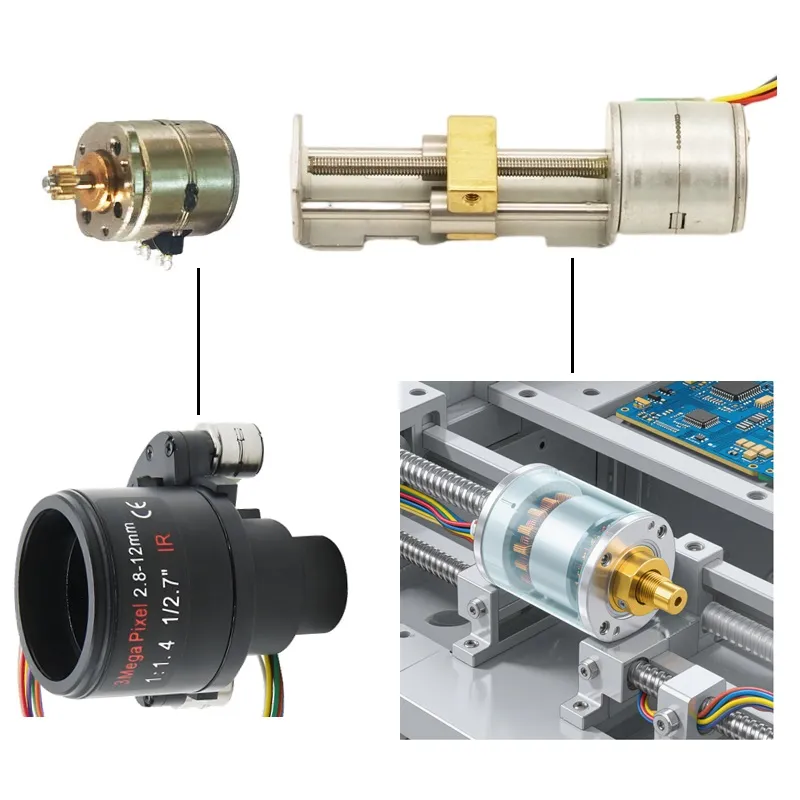

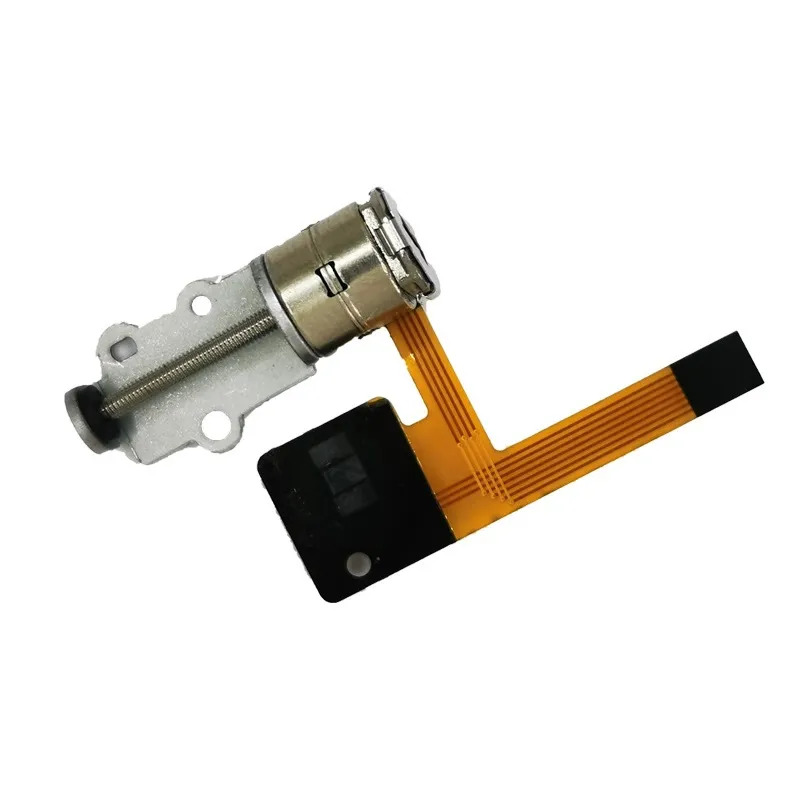

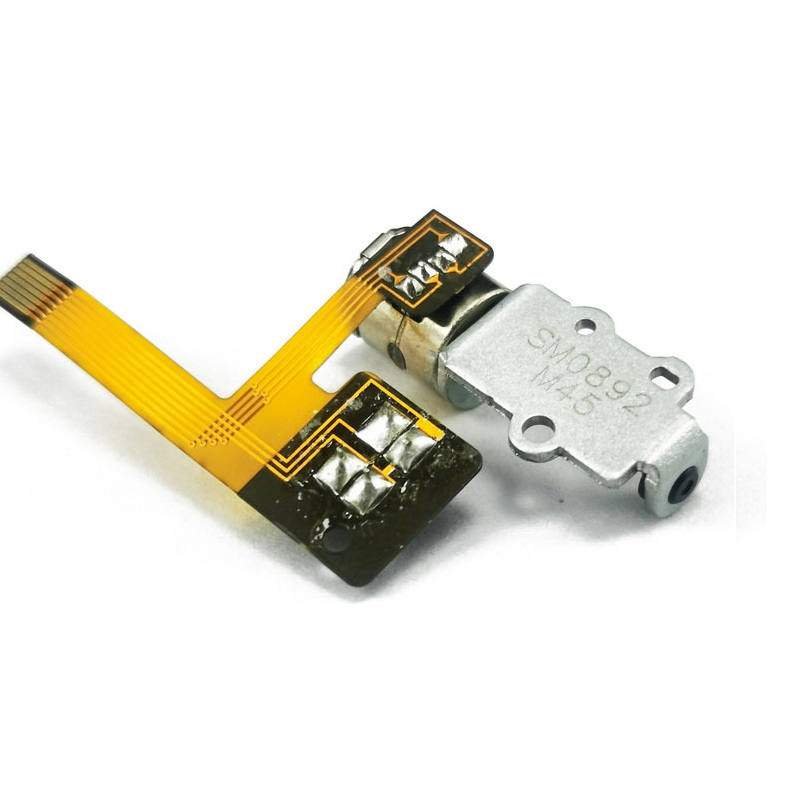

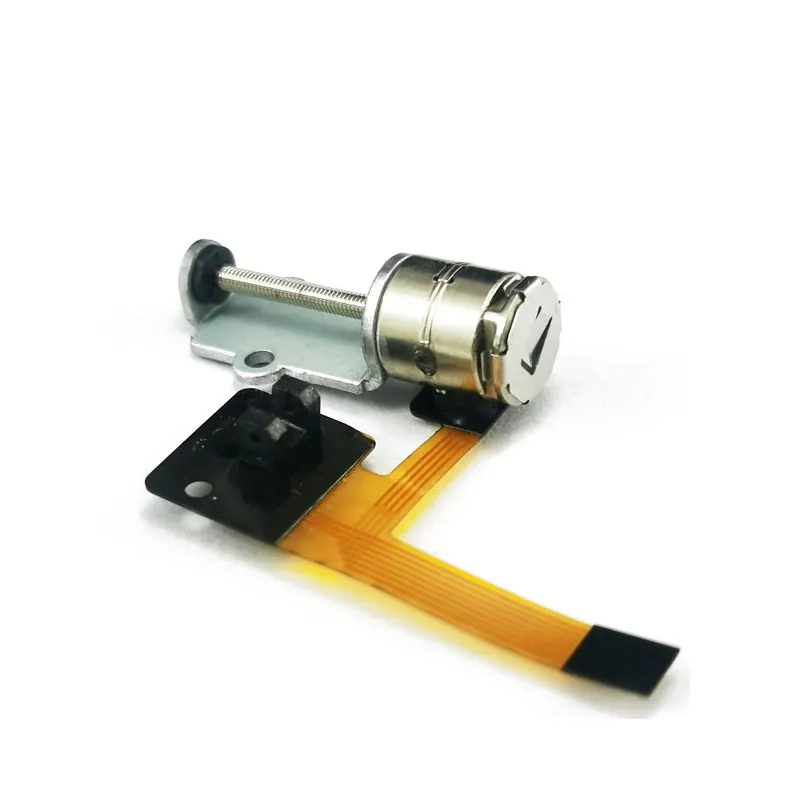

High Precision 8mm 5V Miniature Stepper Motor

📊 Technical Parameters

No.	Model No.	Dimensions(mm)	Stroke(mm)	Slider Material	Voltage(V)	Current(mA)	Resistance(Ω)	Output Torque(gf.cm)
1	07-005-002	Φ6x(5.9+3.95)	/	/	3.3	165	20	/
2	07-005-003	Φ6x(5.9+3.95)	/	/	3.3	165	17.5	/
3	07-005-004	Φ6x(5.9+3.95)	/	/	3.3	275	12	2.00
4	07-005-005	Φ6x(9.1+11.4)	6.8	Plastic	3.3	110	30	0.06
5	07-005-006	Φ6xL(8+4.8)	/	/	4.8	180	26.5	1.60
6	07-005-007	Φ6x(7.7+5.1)	/	/	4.8	180	26.5	1.60
7	07-005-011	Φ6x(4.3+2.9)	/	/	3.3	110	30	0.06
8	08-005-001	Φ6x(7.8+4.5)	10.7	/	5.0	300	15	1.00
9	07-005-027	Φ8x(8.82+23)	16	Plastic	3.3	160	20	80.00
10	07-005-032	Φ8x(8.5+4.2)	/	/	3.3	165	20	1.50
11	07-005-033	Φ8x(8.82+18.6)	17	/	3.3	160	20	0.25
12	07-005-034	Φ8x(8.82+15.75)	13.35	/	5.0	100	50	0.23
13	07-005-035	Φ8x(8.5+4.1)	/	/	3.3	165	20	1.50
14	08-005-011	Φ8.3x(10.1+22.5)	19.4	Copper	3.0	500	6	20.00
15	08-005-012	Φ8x(+)	/	/	3.0	500	6	20.00
16	08-005-013	Φ8.3x(9+5.7)	/	/	4.8	220	23	3.00
17	08-005-014	Φ8.3x(9+14)	11.5	/	5.0	300	16.3	30.00
18	08-005-015	Φ8.3x(9+4)	/	/	3.3	500	6	2.50
19	07-005-041	Φ10x(10.62+37.6)	36.6	/	5.0	90	55	0.30
20	07-005-042	Φ10x(10.62+37.6)	34.4	Copper	5.0	90	55	0.30
21	07-005-043	Φ10x(+)	/	/	5.0	160	31	5.00
22	07-005-044	Φ10x(+)	/	/	5.0	160	31	7.00
23	07-005-045	Φ10x(9.62+38.6)	33.8	Copper	5.0	300	15	6.50
24	07-005-046	Φ10x(9.3+19)	/	/	5.0	250	20	15.00
25	07-005-047	Φ10x(9.8+2.4)	/	/	3.3	66	15	4.00
26	07-005-048	Φ10x(8.8+5.1)	/	/	5.0	300	15	5.00
27	07-005-049	Φ10x(9.3+2.9)	/	/	3.3	66	15	4.00
28	08-005-021	Φ10x(10+56.5)	50.5	Copper	5.0	270	18	6.00
29	08-005-022	Φ10x(10+70)	65	Copper	5.0	270	18	6.00
30	08-005-024	Φ10x(9+14.5)	/	/	5.0	200	25	150.00
31	08-005-025	Φ10x(10.5+9)	/	/	5.0	128	20	500.00
32	08-005-026	Φ10x(10.8+31)	23.9	Plastic	5.0	330	15	5.00
33	08-005-031	Φ10.2x(10.75+11.4)	5.4	Plastic	5.0	330	15	9.00
34	08-005-032	Φ10.2x(10.75+11.4)	5.4	Plastic	5.0	330	15	9.00
35	08-005-033	Φ10x(10.6+38.6)	35.1	Copper	5.0	330	15	7.00
36	08-005-035	Φ10.72x18.55	15.5	Copper	5.0	128	39	4.00
37	08-005-036	Φ10.75x18.6	11.8	Plastic	5.0	330	15	9.00
38	08-005-037	Φ10.75x14.7	7	Plastic	5.0	400	15	9.00
39	08-005-038	Φ10.75x18.6	11.8	Plastic	5.0	330	15	9.00
40	08-005-039	Φ10.75x12.6	5.4	Plastic	5.0	330	15	9.00
41	07-005-060	Φ15x(10.8+59)	/	/	12.0	400	31	180.00
42	07-005-061	Φ15x(12.9+36.5)	26.7	Copper	6.0	300	15	200.00
43	07-005-062	Φ15x(12.9+46.5)	12.9	Copper	6.0	300	15	200.00
44	07-005-063	Φ15x(10.8+12)	/	/	12.0	760	31	720.00
45	07-005-064	Φ15x(12.9+46.5)	37.5	Copper	12.0	760	31	720.00
46	07-005-079	Φ15x(10.8+12)	/	/	12.0	760	31	720.00
47	08-005-041	Φ15x(11+16.5)	/	/	3.0	200	15	6.00
48	08-005-042	Φ15x(10.9+30)	19.7	Copper	6.0	400	15	200.00
49	08-005-043	Φ15x(10.9+30)	20	Plastic	6.0	400	15	200.00
50	08-005-046	Φ15x(21+13)	/	/	12.0	200	118	1700.00
51	08-005-047	Φ15x(10.9+25)	11.8	Copper	6.0	400	15	200.00
52	08-005-048	Φ15x(11.3+30)	17.5	Copper	12.0	200	31	700.00
53	07-005-082	Φ20x(21+46.1)	34.2	Copper	12.0	800	15	1800.00
54	07-005-083	Φ20x(21+66.9)	55.9	Copper	12.0	800	15	1800.00
55	07-005-084	Φ20x(18.4+4)	/	/	12.0	300	40	20.00
56	08-005-061	Φ20x(20.1+34.9)	22	Copper	12.0	770	15.6	1200.00
57	08-005-062	Φ20x(20.1+34.9)	22	Copper	12.0	770	15.6	1200.00
58	08-005-063	Φ20x(20.1+47.9)	35	Copper	12.0	600	20	1000.00
59	08-005-064	Φ20x(18.4+4.3)	/	/	12.0	600	20	32.00
60	08-005-065	Φ20x(37.4+10.5)	/	/	12.0	600	20	2000.00
61	08-005-066	Φ20x(35.9+10.5)	/	/	12.0	200	60	500.00
62	08-005-101	Φ20x(15.5+19)	/	/	12.0	200	60	1000.00

❓ Frequently Asked Questions

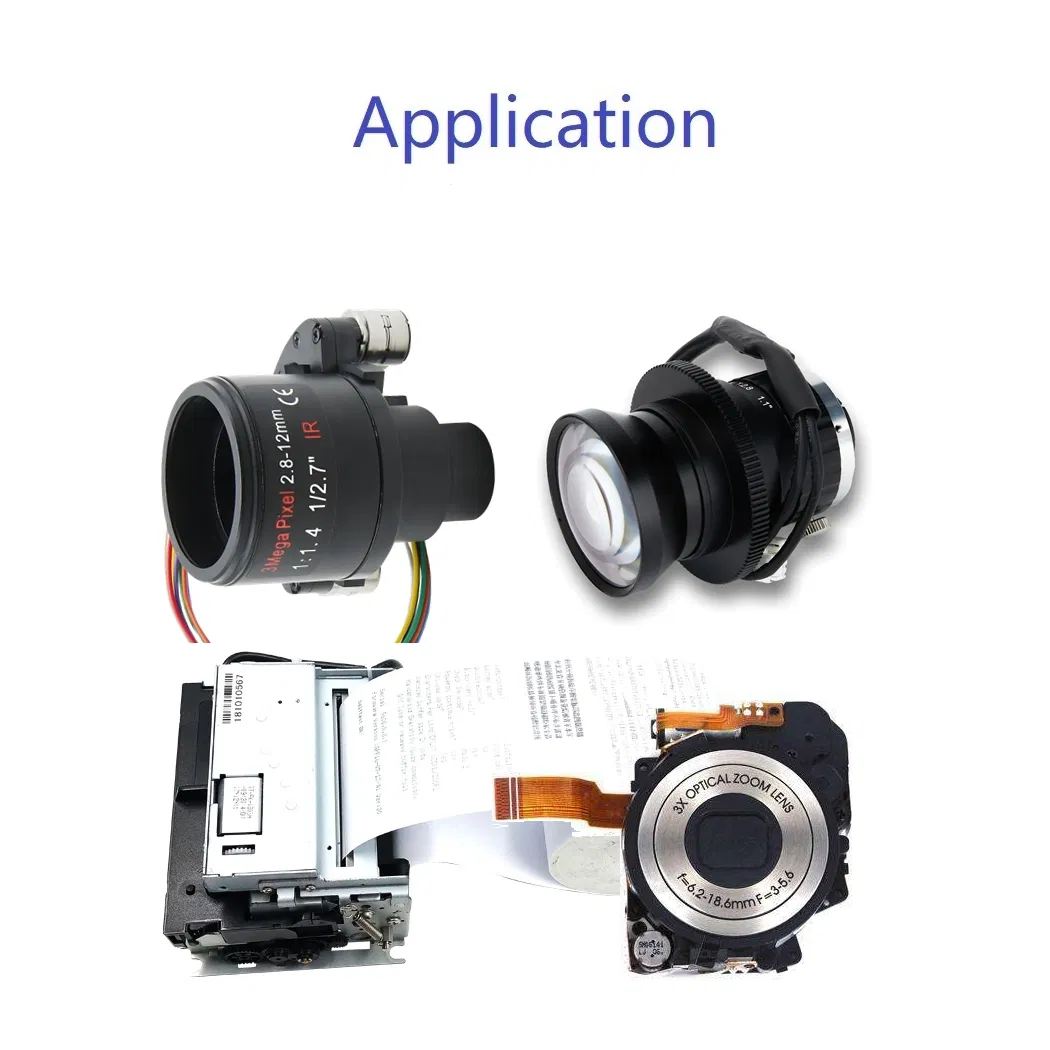

What is the main application for this 8mm miniature stepper motor?

This high-precision motor is primarily designed for robotics, precision medical instruments, and micro-linear drive systems where space is extremely limited.

Is this motor compatible with bi-polar drive?

Yes, it operates in bi-polar drive mode with a 2-2 phase exciting excitation mode, providing reliable and stable movement control.

What certifications does the product meet?

The motor is produced under strict quality control and holds ISO9001 certification to ensure long-term performance and reliability.

What is the material of the slider used in these motors?

Depending on the specific model selected from the technical table, the sliders are available in either Plastic or high-durability Copper materials.

What is the monthly production capacity for these micro motors?

We maintain a steady production capacity of approximately 20,000 units per month to support both small-scale and large-scale industrial requirements.
