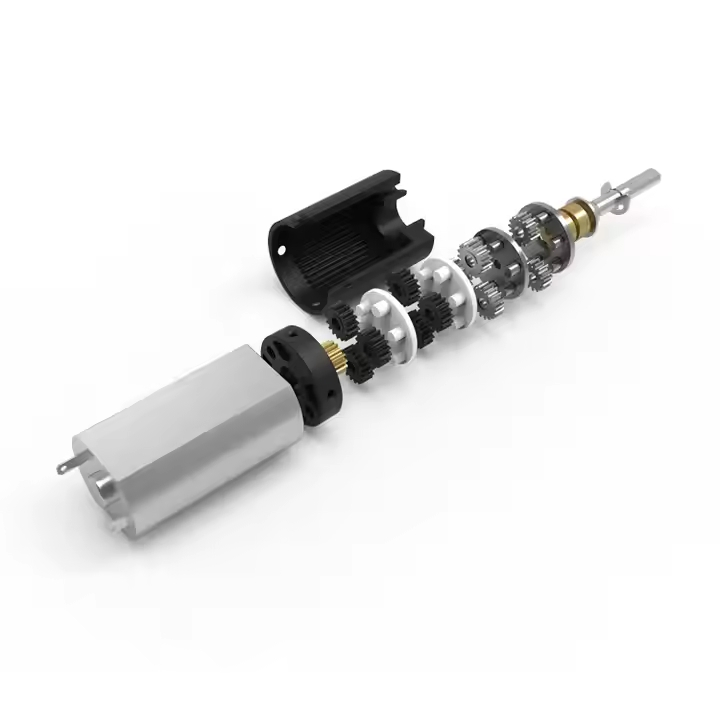

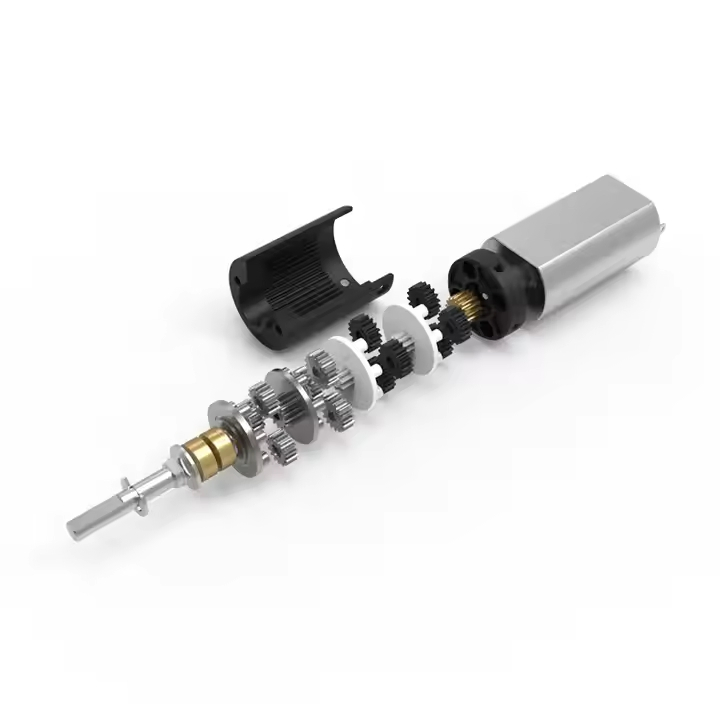

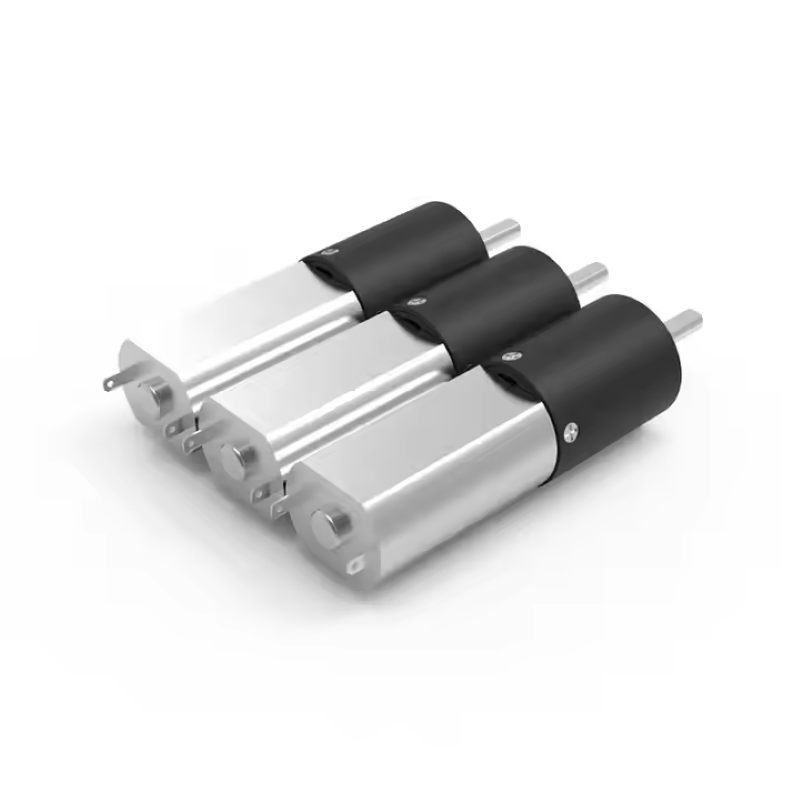

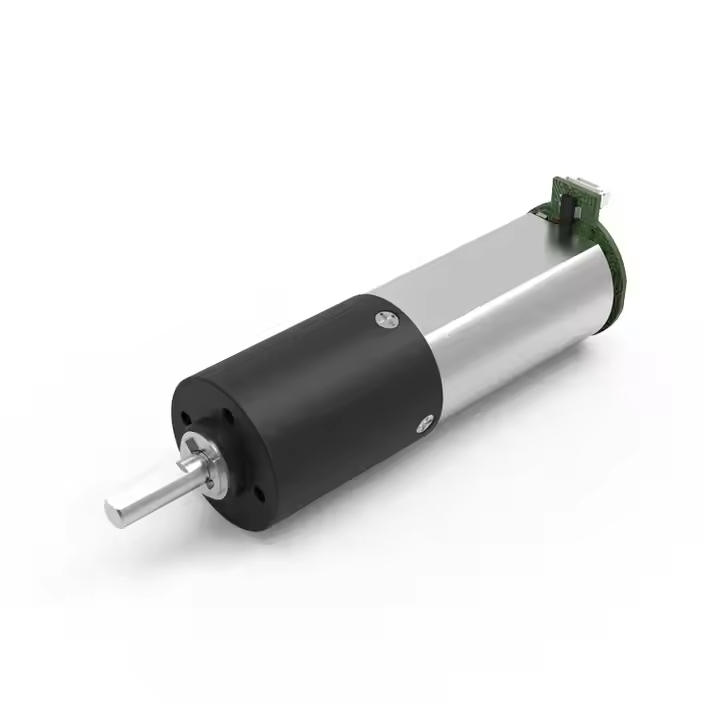

Mini Low Rpm 16mm DC Planetary Gear Brushless Motor for Smart Lock

1 / 5

Mini Low Rpm 16mm DC Planetary Gear Brushless Motor for Smart Lock

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

16PG216

Type

BLDC Gear Motor

Excitation Mode

Excited

Function

Control, Driving

Number of Poles

Structure

Brushless

Rotation Speed

21rpm

Rated Voltage

5V DC

Rated Torque

456GF.Cm

Rated Power

0.01-100W

Rated Current

300mA

Specification

Dia16mm

Certification

ISO9001, CCC, VDE, RoHS

HS Code

8501310000

Packaging & Delivery

Package Size

10.00cm * 15.00cm * 20.00cm

Gross Weight

0.600kg

Transport Package

Carton Box

Product Description

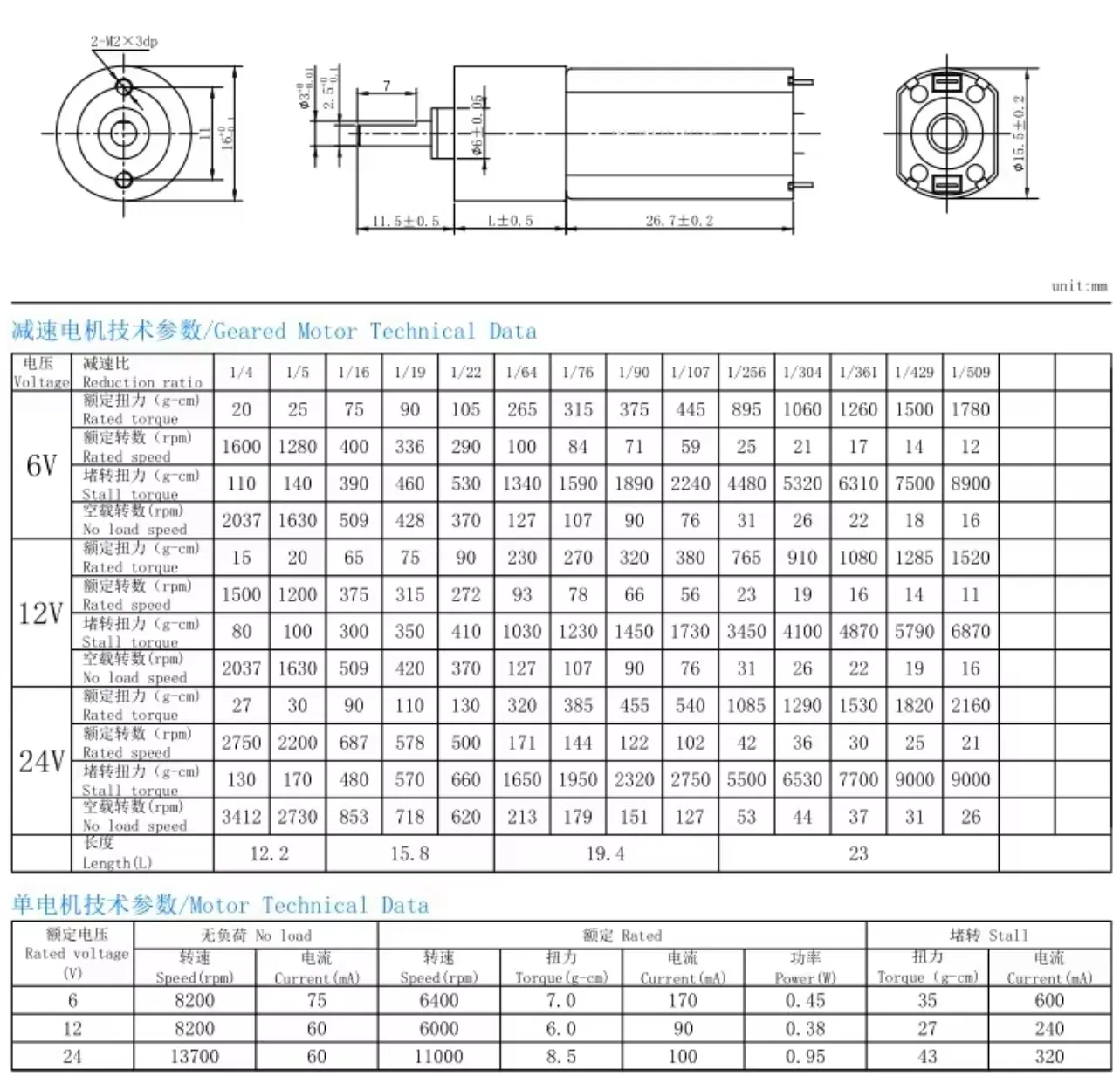

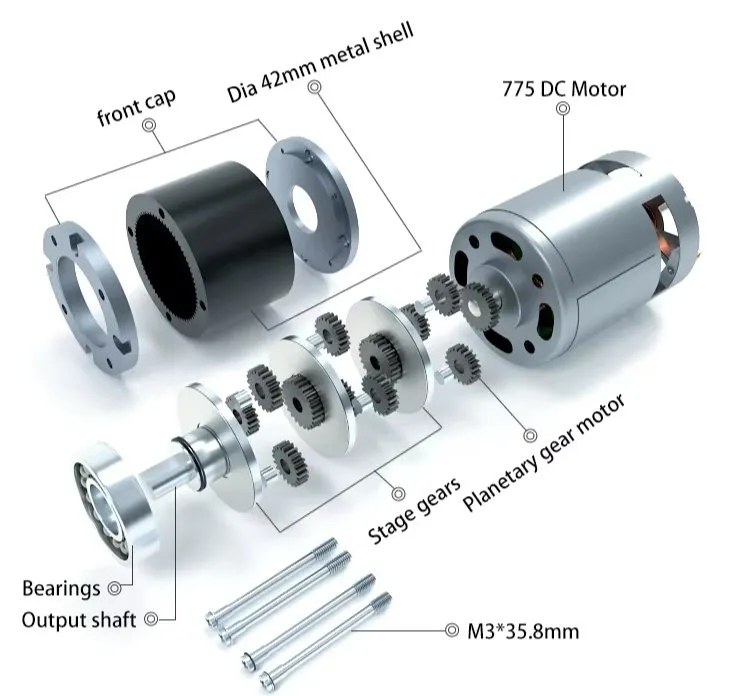

Product Drawing

We can customize various shafts, speed, torque, wire, lead, etc. according to your requirements. Please tell us your choice of voltage, rotation speed and torque to get quick quotation.

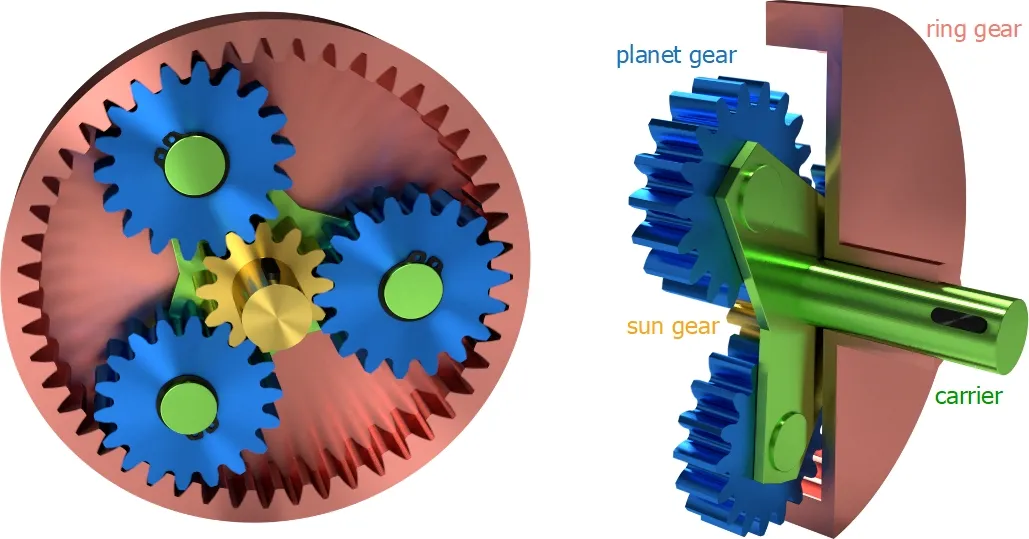

What is Planetary Gear Box?

A planetary gear box includes a sun gear, planetary gears, an inner ring gear and a planetary carrier. The sun gear acts as the central gear, receiving rotation from the input shaft. It exerts force on the planetary gears, causing them to rotate. The inner ring gear is fixed, and planetary gears revolve along its trajectory. Through the planetary carrier, rotational force is transmitted to the output shaft, achieving deceleration and increasing torque.

Advantages of Planetary Gear Box

High Torque Density: Compact design allows maximum torque transfer in limited space.
Precise and Stable: Central loading concentration prevents lateral pressure on gear teeth.
Long Service Life: Distributed load among gears decreases individual strain.

According to application and technical requirements, you can choose between Brushed DC Motor and BLDC Motor to drive the Planetary Gear Box.

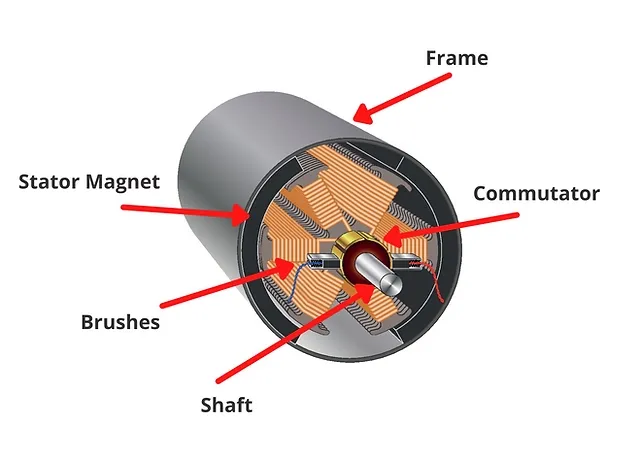

Brushed DC Motor

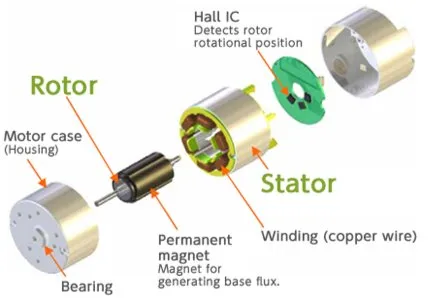

BLDC Motor

Details & Features

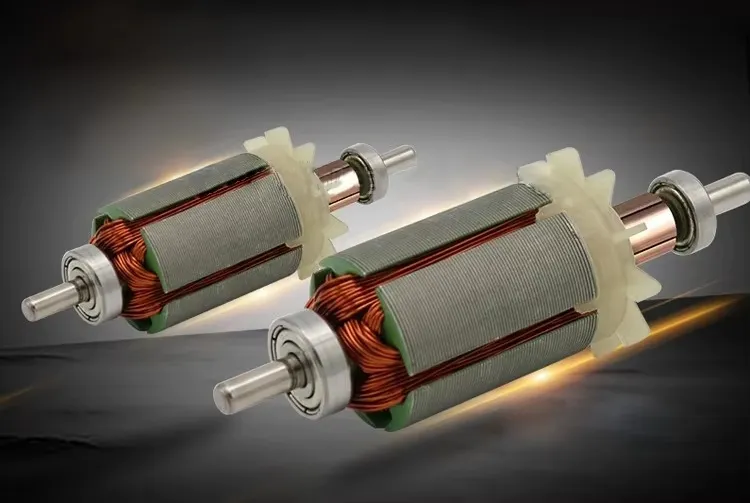

Pure Cu Coils
Stable Performance & Durable Torque

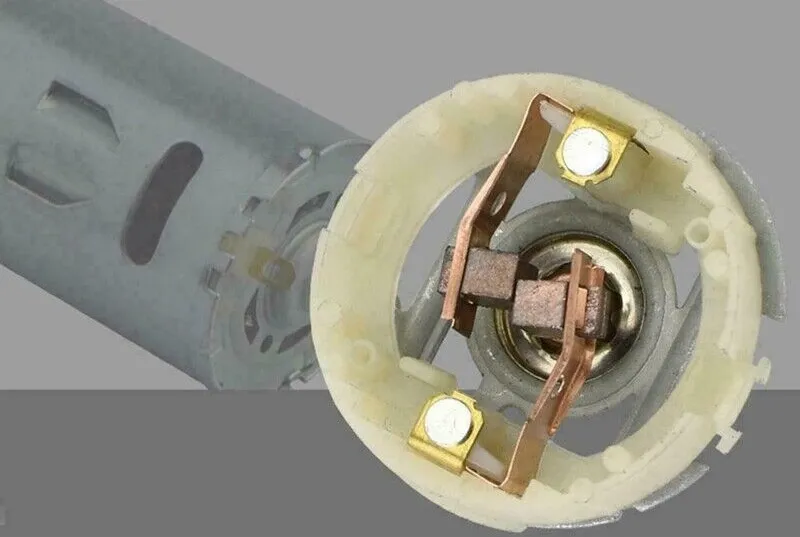

Carbon Brush
Fast Response & High Durability

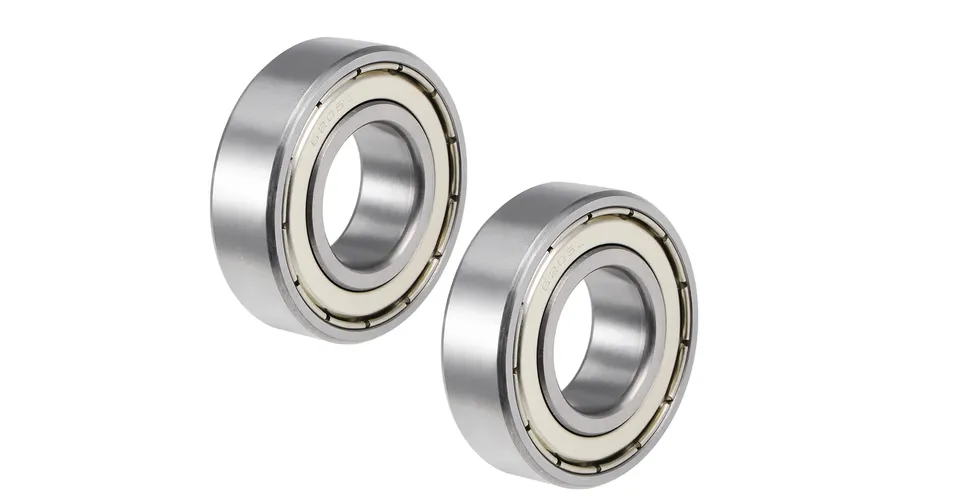

High Quality Ball Bearing
Low Noise & Long Service Life

High Grade Magnetic Arc
High Efficiency & Low Dynamic Loss

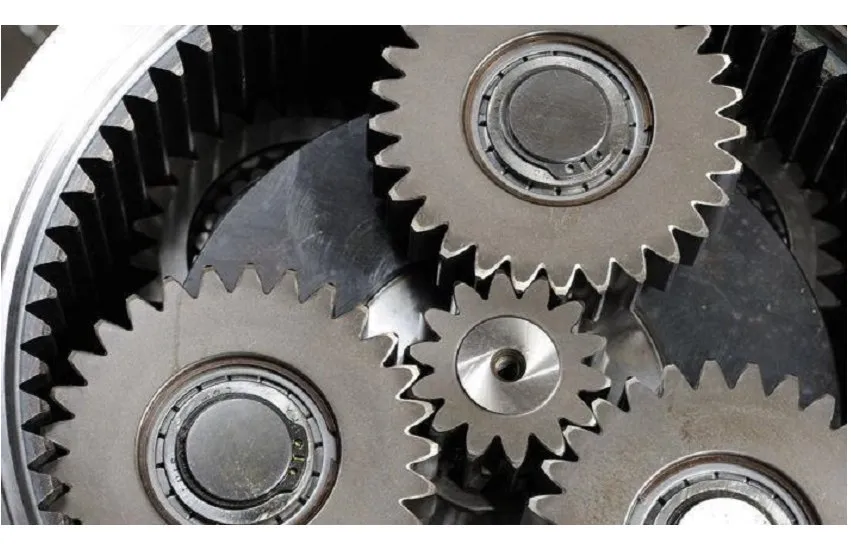

High Strength Precise Gear
Durable and Stable Performance

Hall Effect Sensor
Precise Speed Control

Product Showcase

Technical Specifications

Main Products	Synchronous Motor, DC Gear Motor, BLDC Motor and Water Pump
Certifications	CCC, VDE, CB, RoHS and ISO9001-2015
OEM	Accepted
Philosophy	Customer First, Honesty and Win-Win Cooperation

Frequently Asked Questions

What are the main advantages of a 16mm planetary gear motor?

The 16mm planetary gear motor offers a compact size with high torque density, making it ideal for precision applications where space is limited but power is required.

Can the motor specifications be customized?

Yes, we can customize the shaft length, rotation speed, rated voltage, and torque characteristics to meet your specific project requirements.

What is the difference between BLDC and brushed motors for gearboxes?

BLDC (Brushless) motors offer higher efficiency, longer service life, and lower noise, while brushed motors are often chosen for simpler control systems and cost-effectiveness.

Are these motors suitable for smart locks?

Absolutely. The high torque and stable performance of our 16mm planetary gear motors make them an excellent choice for smart lock mechanisms.

What certifications do your motors hold?

Our products are manufactured under ISO9001 standards and hold CCC, VDE, RoHS, and CB certifications, ensuring global compliance and quality.

How does the planetary gear system ensure a long service life?

By distributing the load across multiple planetary gears, the internal strain on individual gear teeth is reduced, significantly increasing the durability and lifespan of the motor assembly.
