Basic Information
Casing Protection
Closed Type
Number of Poles
Can Be Chosen
Product Name

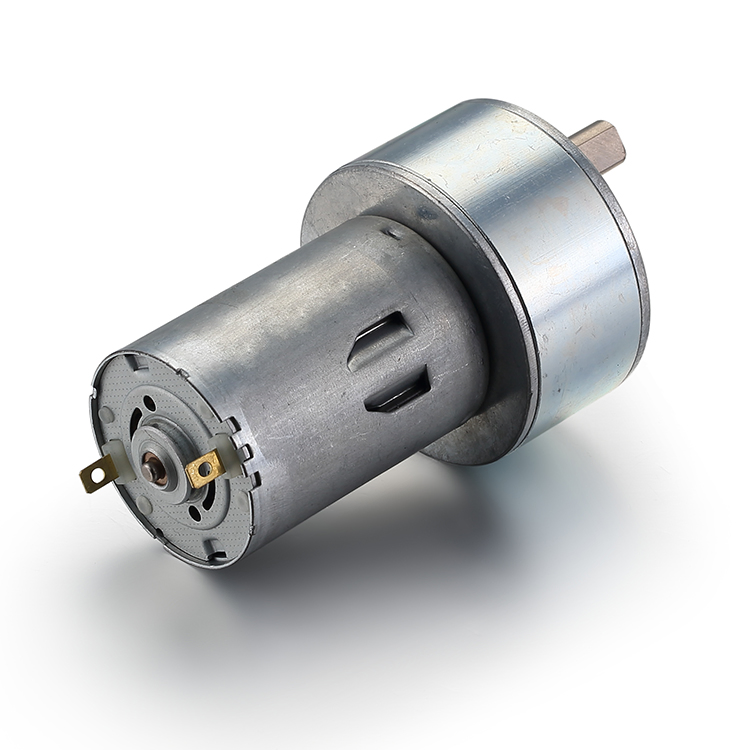

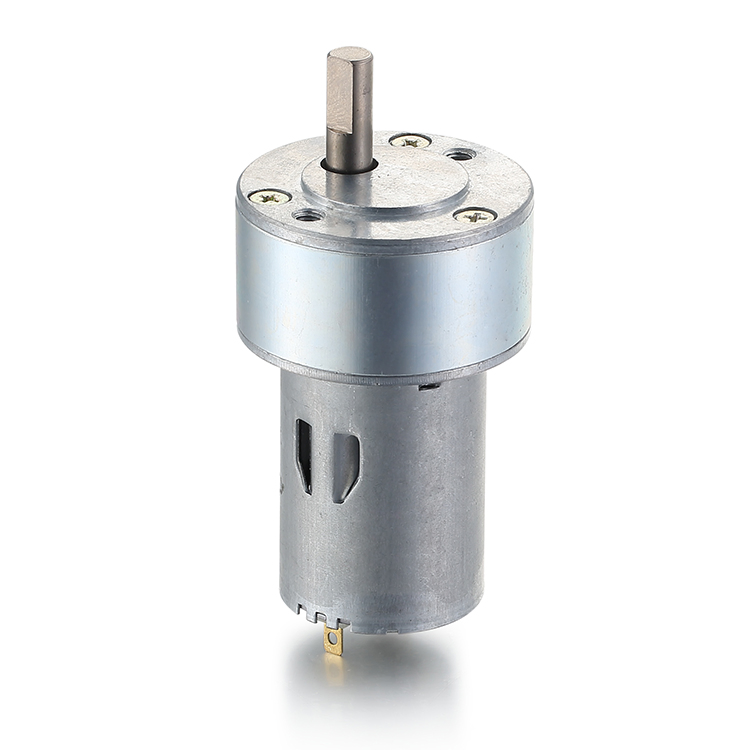

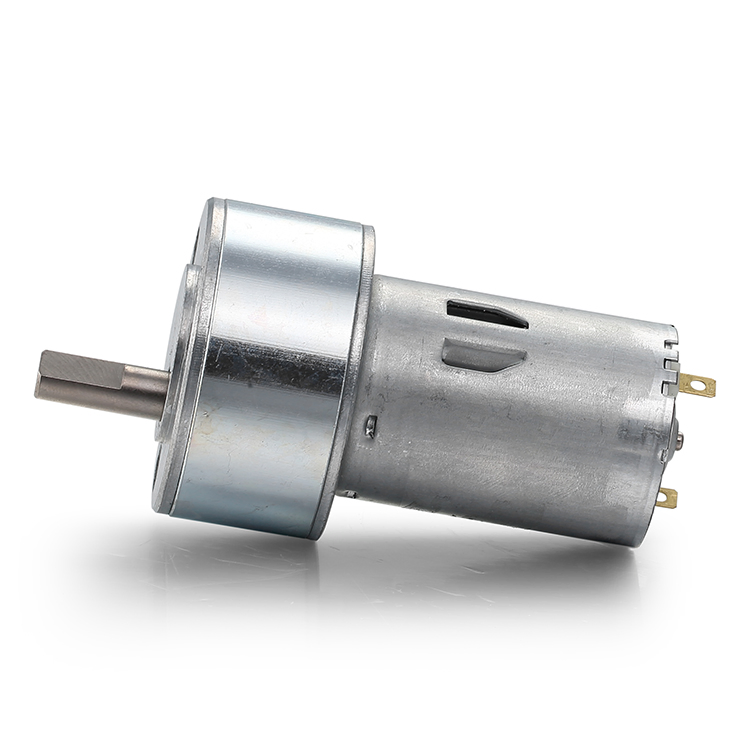

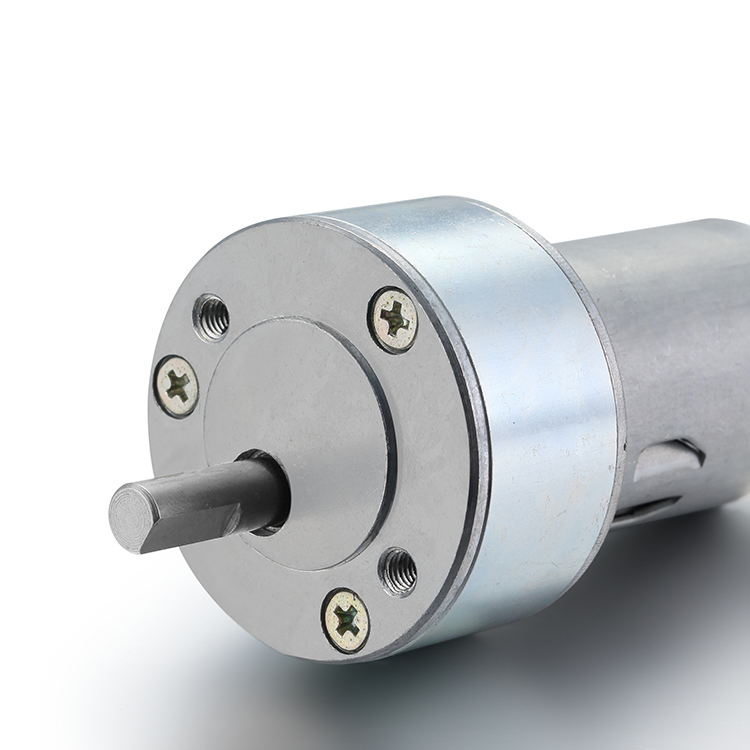

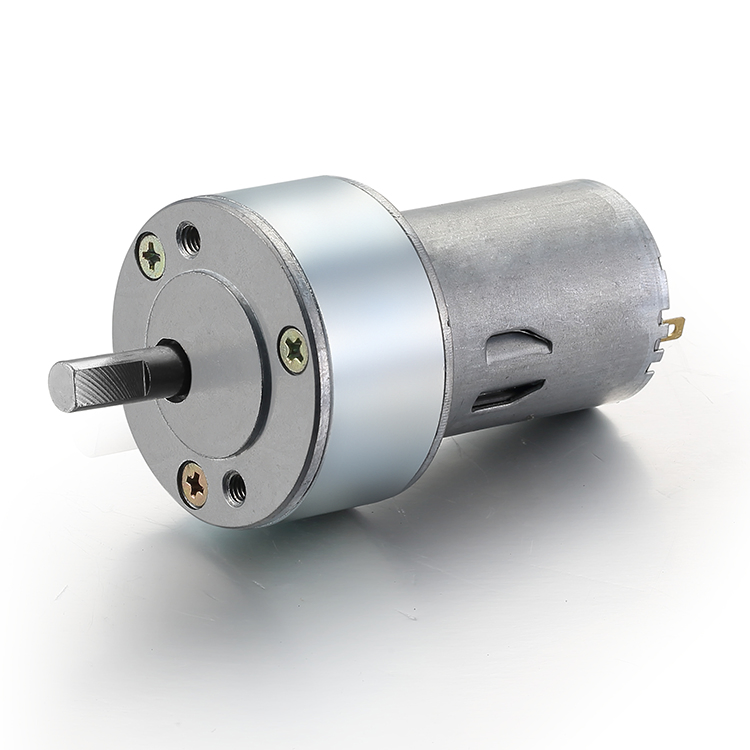

36mm Brushed DC Motor
Product Description
| BG 36ZYT DC Brushed Motor Specifications |
| Environmental Conditions | -20ºC~50ºC |
| Insulation Class | B |
| Protection Class | IP40 |
| Noise | ≤65dB |
| Number of Phases | Single |
| Lifespan | >1000h |
| Electrical Specifications |
| Model |
RATED LOAD |
NO LOAD |
STALL |
| Voltage (V) |
Power (W) |
Speed (rpm) |
Torque (N.m) |
Current (A) |
Speed (rpm) |
Current (A) |
Torque (N.m) |
Current (A) |
| BG 36555-1 |
12 |
4.5 |
2500 |
0.18 |
0.54 |
3000 |
0.14 |
0.12 |
3.1 |
| BG 36555-2 |
24 |
7.8 |
3980 |
0.19 |
0.45 |
4500 |
0.14 |
0.17 |
3.4 |
💡 We can customize products according to customer requirements.
| Planetary Gear Motor Technical Data-BG |
| Ratio | 3.7 | 5.2 | 50.9 | 99.5 | 137 | 669 | 997 | 2672 |
| NO-load speed | 810 | 576 | 59 | 30 | 22 | 4.4 | 5 | 1.1 |
| Rated speed(rpm) | 675 | 480 | 49 | 25 | 18 | 3.7 | 2.5 | 0.9 |
| Rated torque | 0.06 | 0.08 | 0.78 | 1.52 | 1.85 | 3 | 3 | 3 |
Frequently Asked Questions
What is the lifespan of the 36mm Brushed DC Motor?
The motor is designed for a durable performance lifespan of over 1000 hours under standard operating conditions.
Can the shaft type and poles be customized for specific projects?
Yes, both the shaft type and the number of poles can be chosen and customized to meet your specific technical requirements.
What is the noise level during operation?
The motor operates efficiently with a low noise level of ≤65dB, making it suitable for noise-sensitive applications.
What safety certifications does this motor hold?
This product is certified by CCC and FCC, ensuring it meets international safety and quality standards.
What kind of protection does the motor casing provide?
The motor features a closed-type casing with an IP40 protection class rating, protecting it against solid objects larger than 1mm.
What are the typical environmental operating conditions?
The motor is designed to function reliably in temperature environments ranging from -20ºC to 50ºC.
