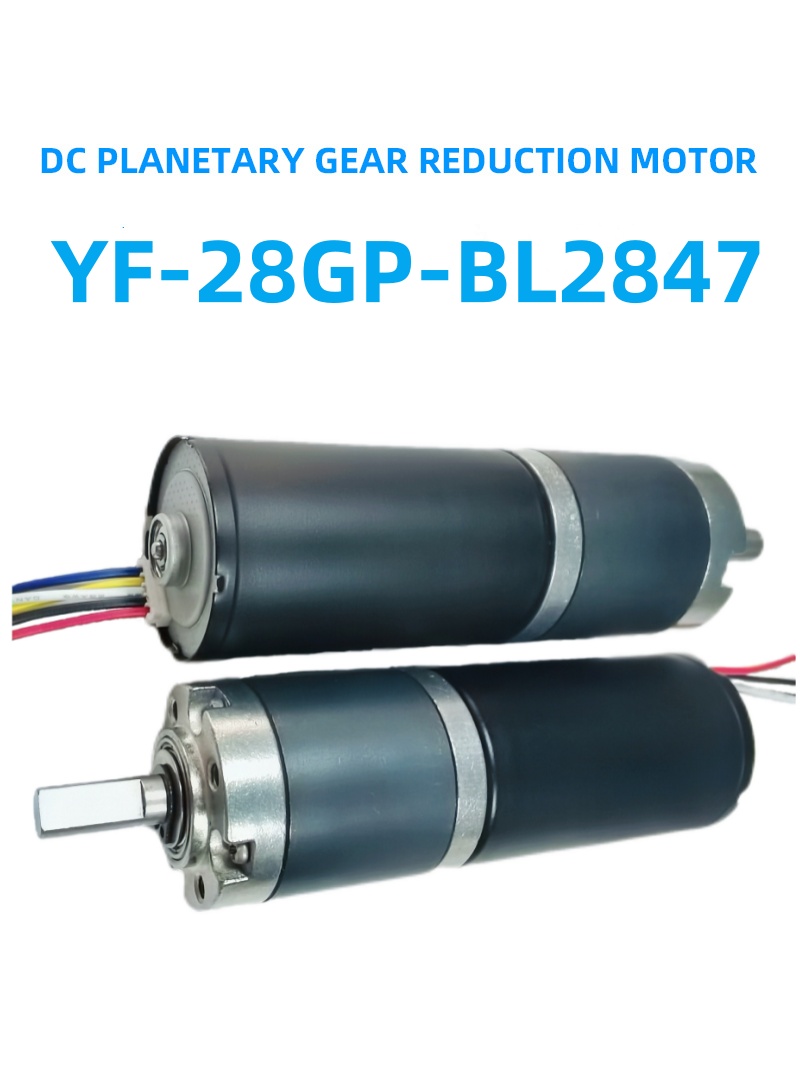

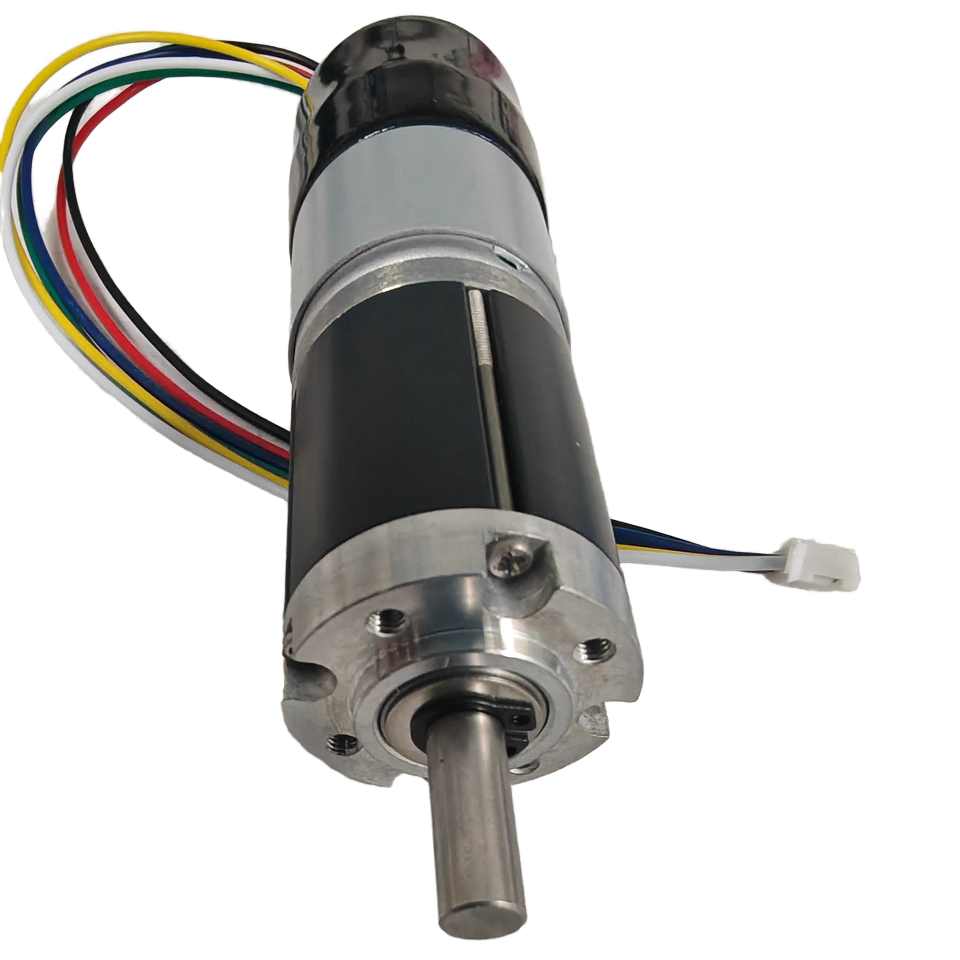

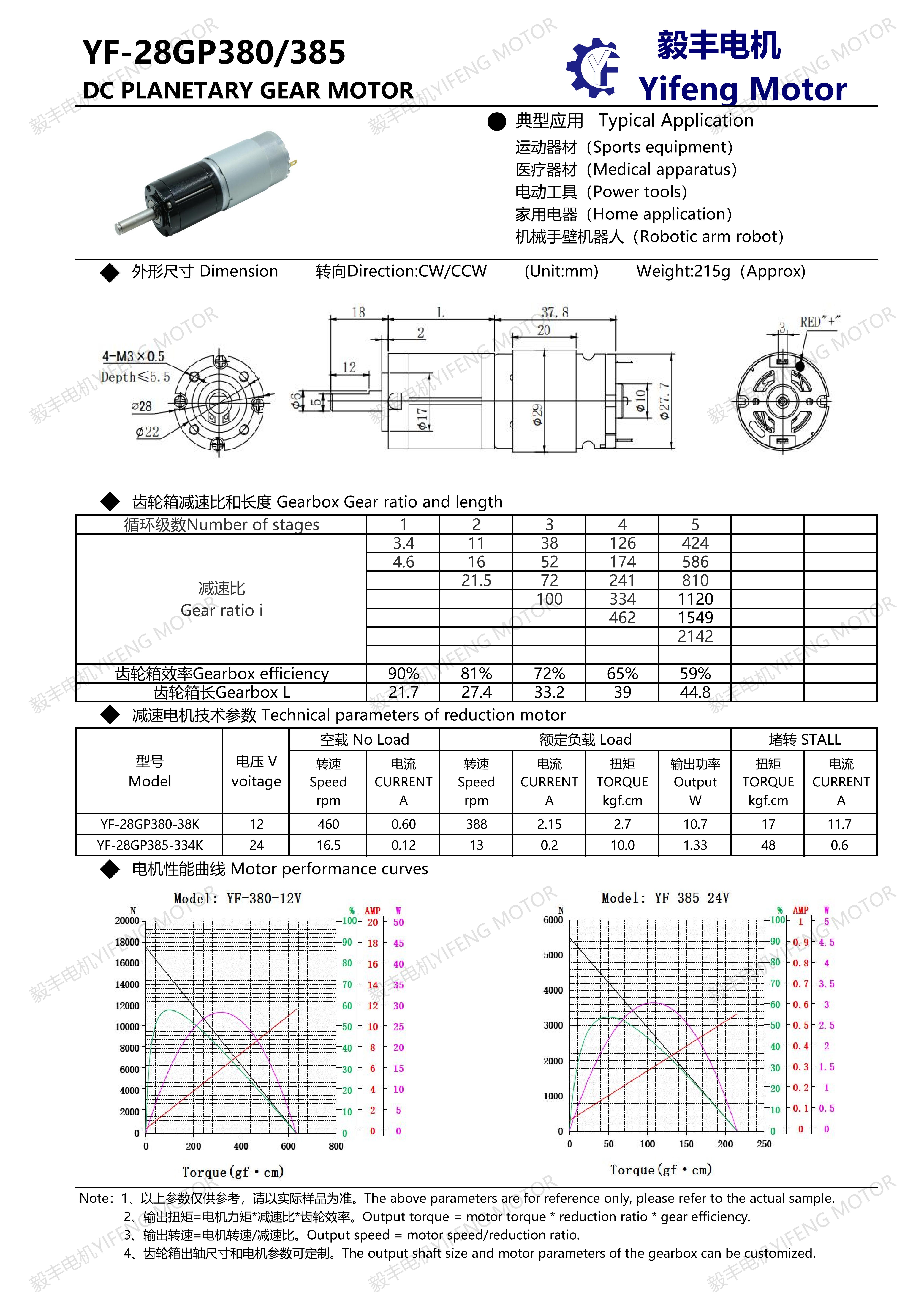

Product Specifications

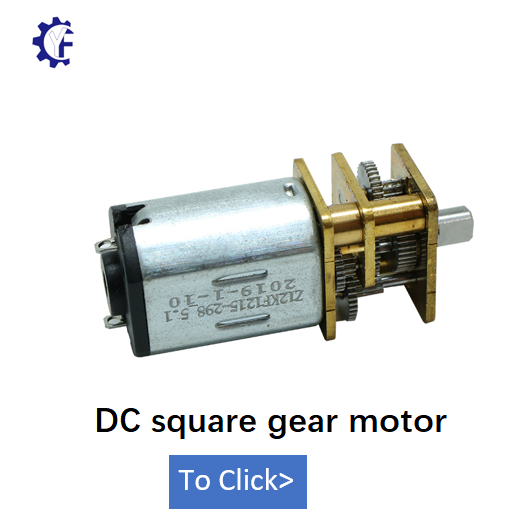

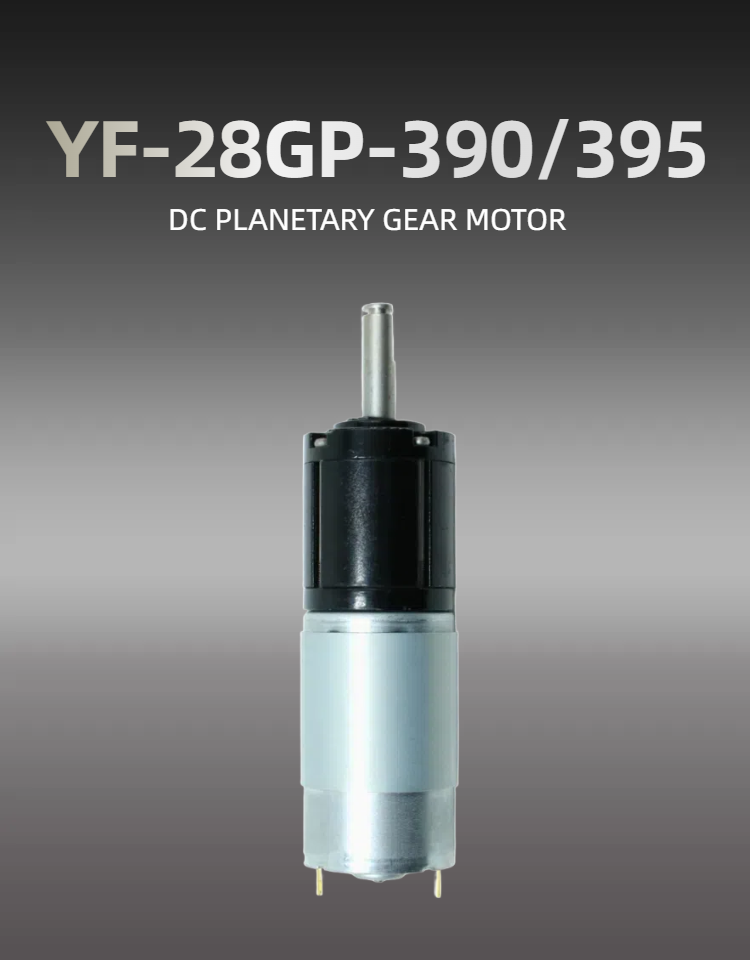

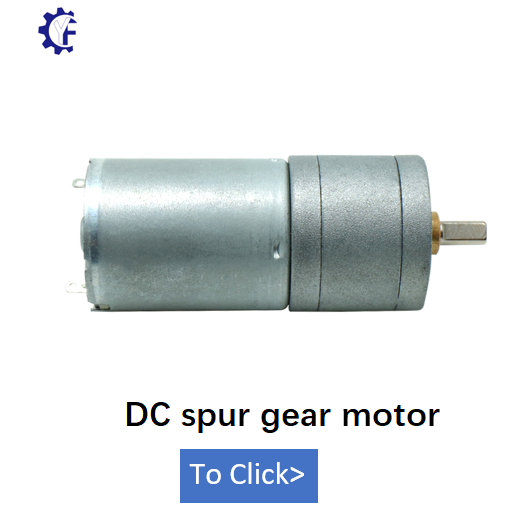

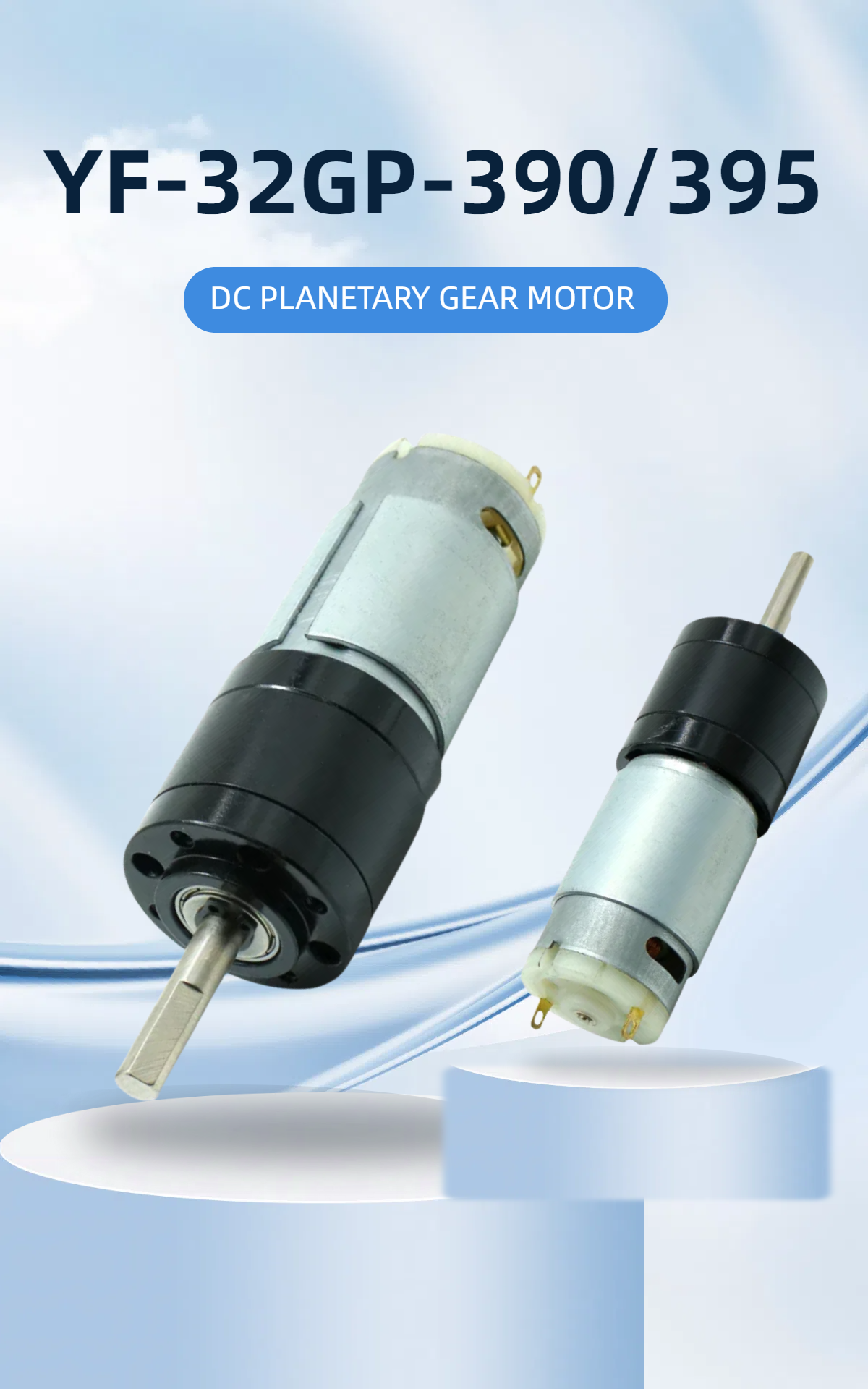

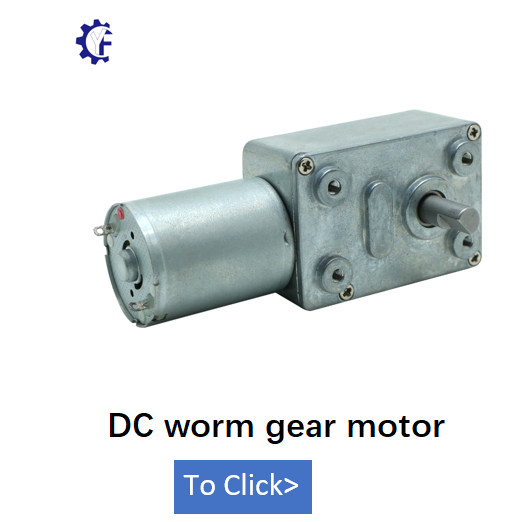

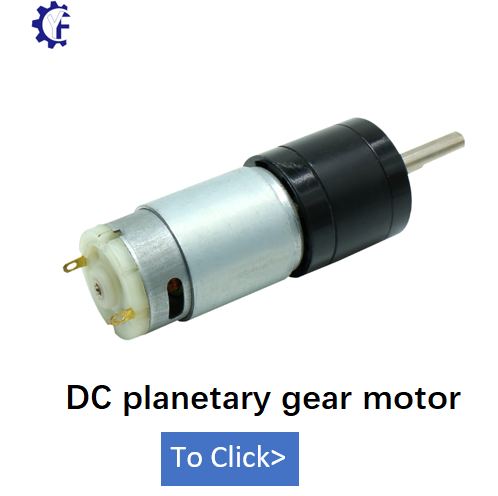

| Product type: | dc planetary gear motor/dc spur gear motor/dc worm gear motor/ dc square gear motor/BLDC gear motor |
| Dimension: | 8mm, 10mm, 12mm, 16mm, 20mm, 22mm, 24mm, 25mm, 27mm, 28mm, 32mm, 36mm, 37mm, 42mm, 48mm, 50mm, 60mm |
| Gear ratio: | 4.2 ~ 3736 |
| Power: | 0.1 W ~ 150 W |
| Torque: | 0.05 kg.cm ~ 150kg.cm |
| Current: | 0.1A ~ 30A |
| Voltage: | 1.5v, 3v, 3.7v, 5v, 6v, 7.4v, 12v, 24v, 36v |
| Shaft size: | 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 10mm |
| Gearbox material: | steel, brass, plastic, powder metallurgy, zinc alloy |
| Bearing Type: | Ball Bearing, Oil bearing |
| Shape of Motor Shaft: | circular shaft, D shaft, Slotted shaft, Knurled shaft, Square shaft, hexagon shaft, threaded shaft, Shaft with hole |
| Comments: | Specific performance parameters and shaft size can be customized according to customer requirements |

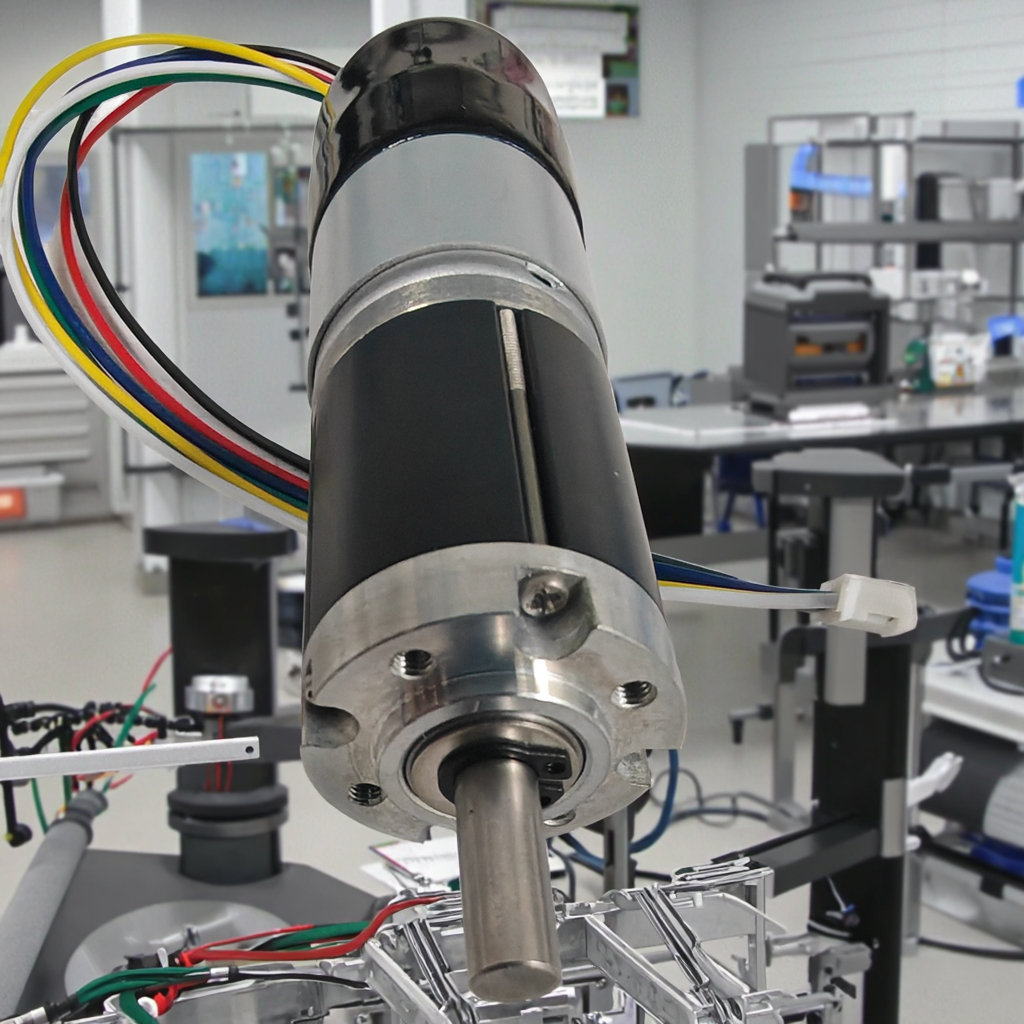

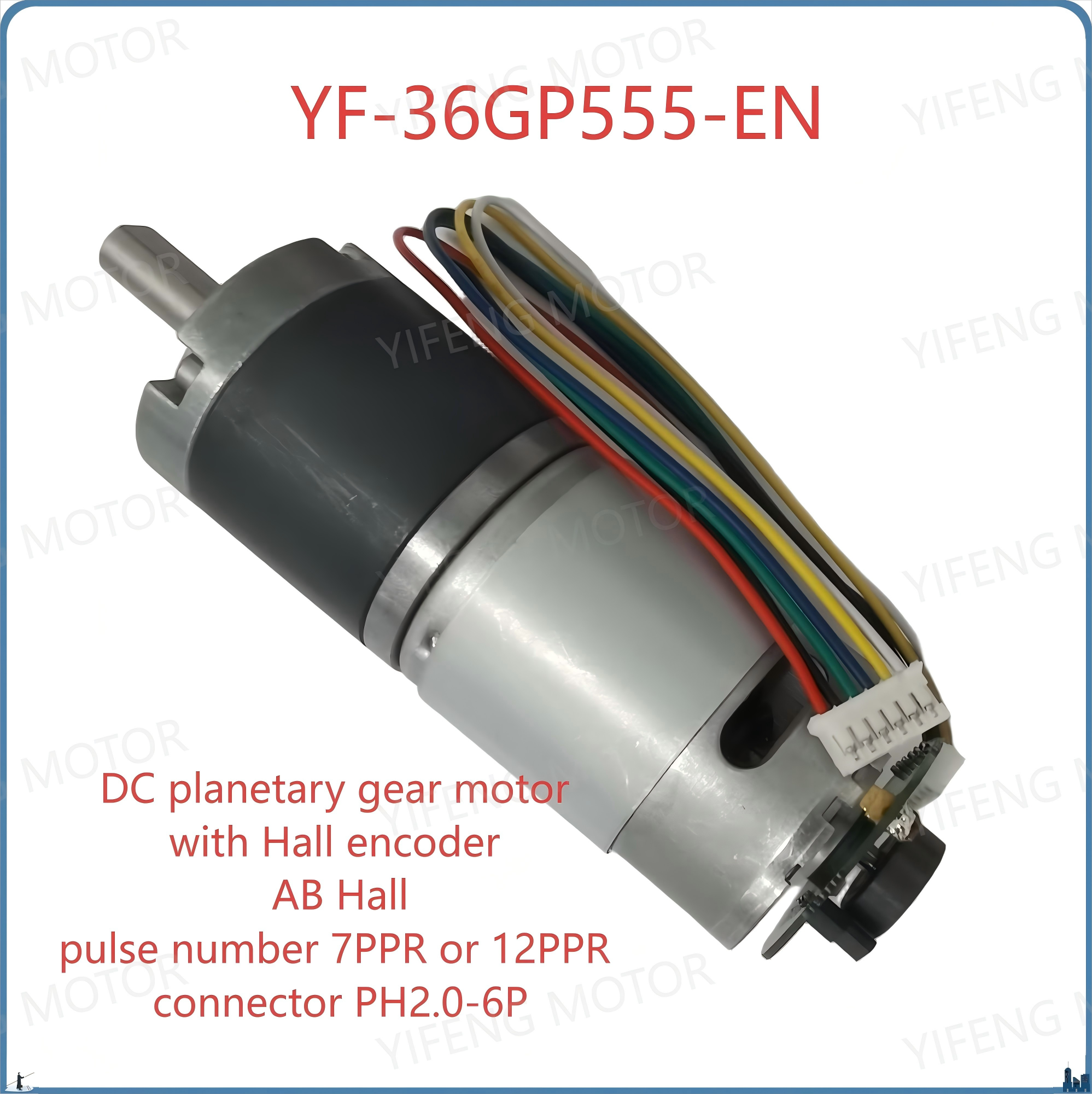

Details Images
Packing & Delivery
| Single net weight: | 85.5 g |
| Packing qty per carton: | 156 pcs |
| Carton size & G.W.: | 36×25×18.5, 14kg |

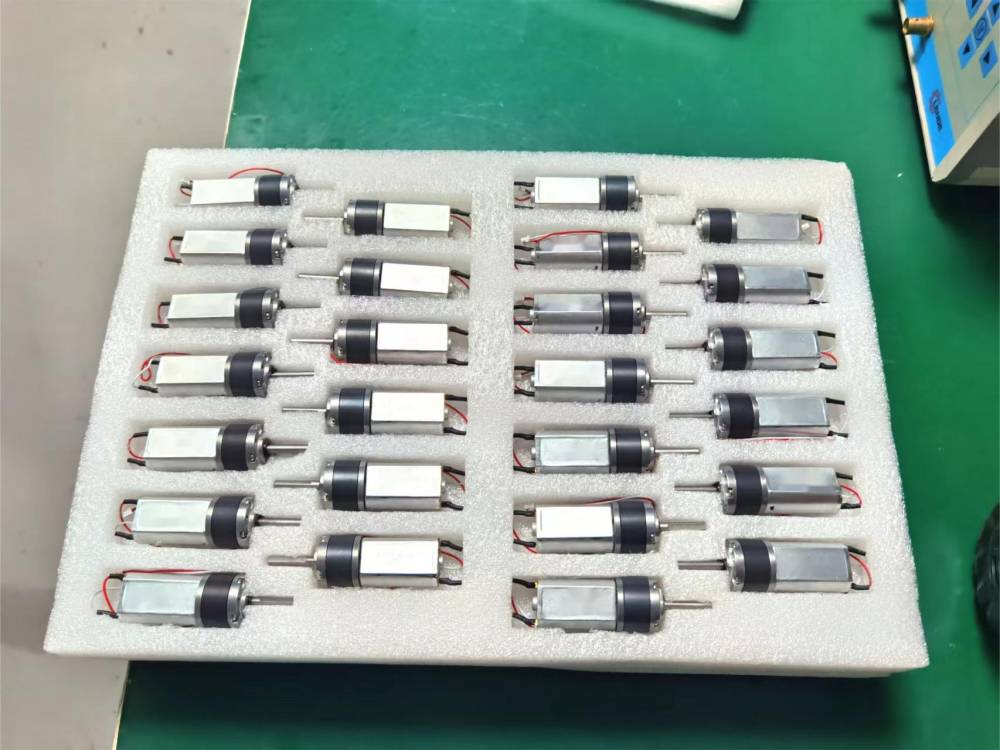

| Package type: | Pearl cotton Inside, strong export carton box outside, with pallet, or as the customer's requirements |
| Lead time: | 1000 pcs: 15-20 days / 10000 pcs: 25-30 days |
| Comments: | The weight and package size are for reference. The actual package shall prevail |

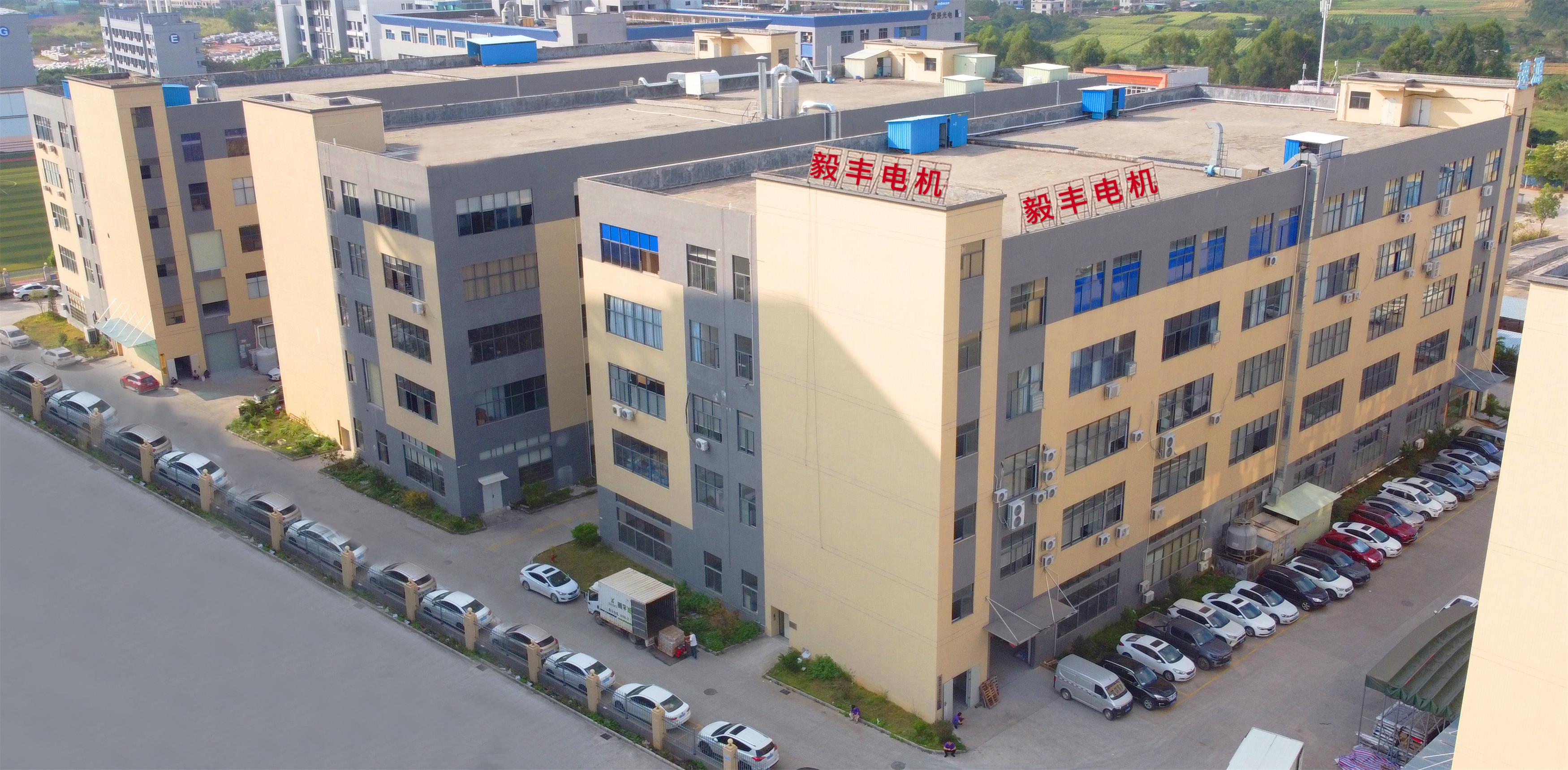

Company Profile
We are a professional enterprise engaged in the research, development and production of miniature DC reduction motor. At present, the products are widely used in office equipment, intelligent home appliances, power tools, automatic umbrella, automatic curtain, automatic stir-fry machine, sweeper, intelligent lock, medical equipment, shared bikes, financial equipment, communication equipment, security monitoring, toys, beauty instruments, robot transmission and control and many other industries. And we can design special performance products according to customer requirements.
We have a group of talents who have decades of experience in designing and manufacturing various miniature deceleration motors. We take it as our duty to meet customers' needs, provide customers with solutions and technical support and consultation at any time.

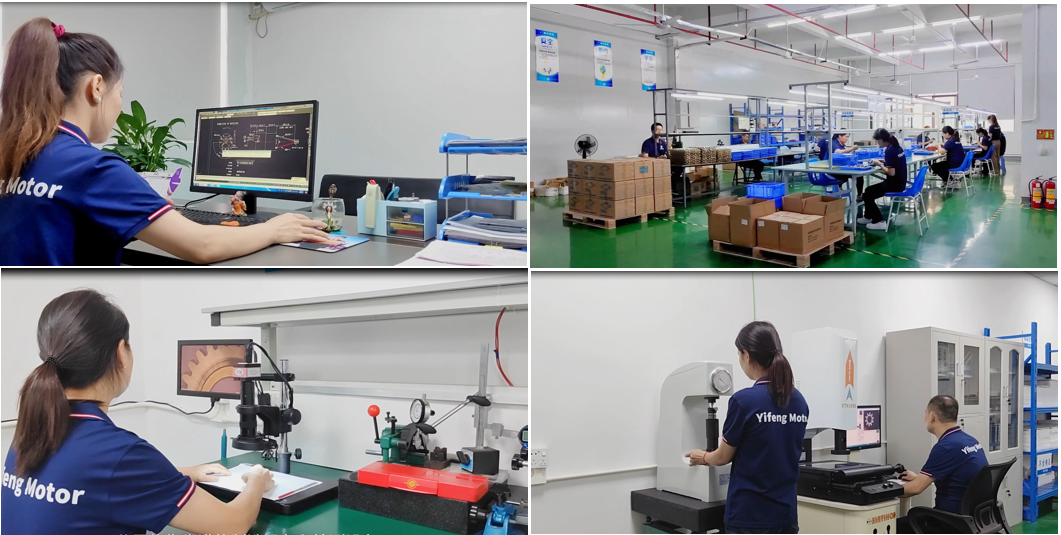

Machine Center & Quality Test

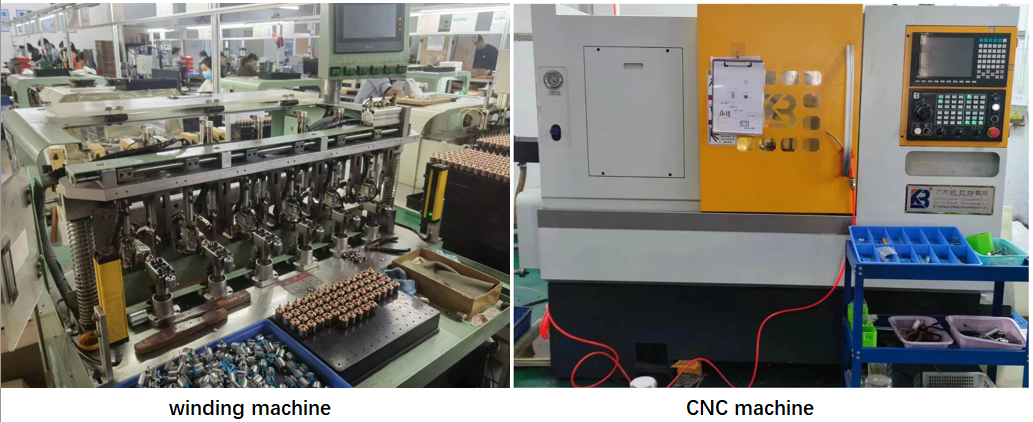

Factory manufacturers, with precision CNC machine tools, hobbing machine, winding machine and other advanced manufacturing equipment, according to customers demand, processing customized production of different types of gear motor, there is sufficient capacity and the ability to deliver on time!

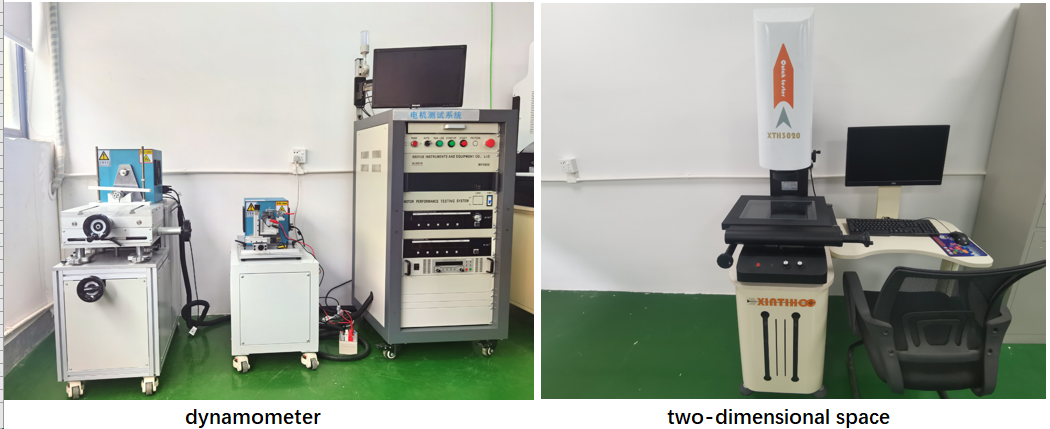

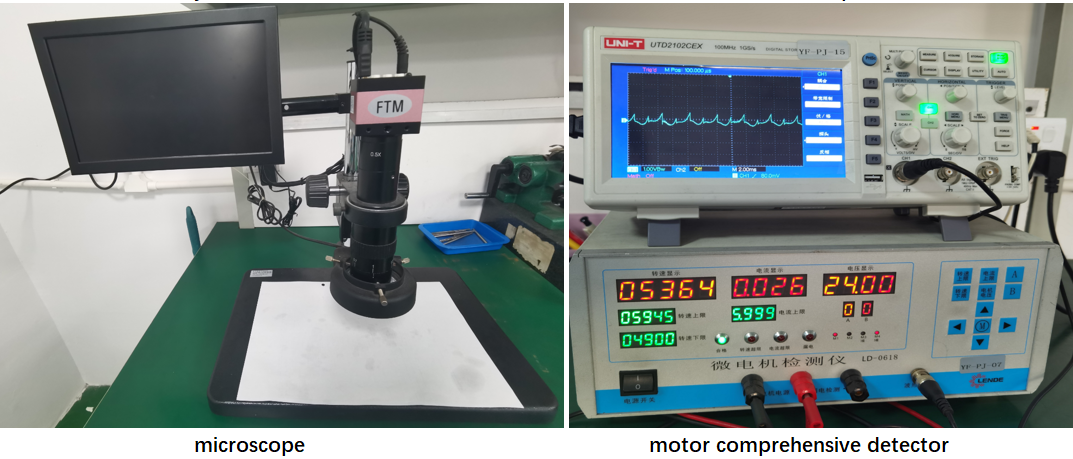

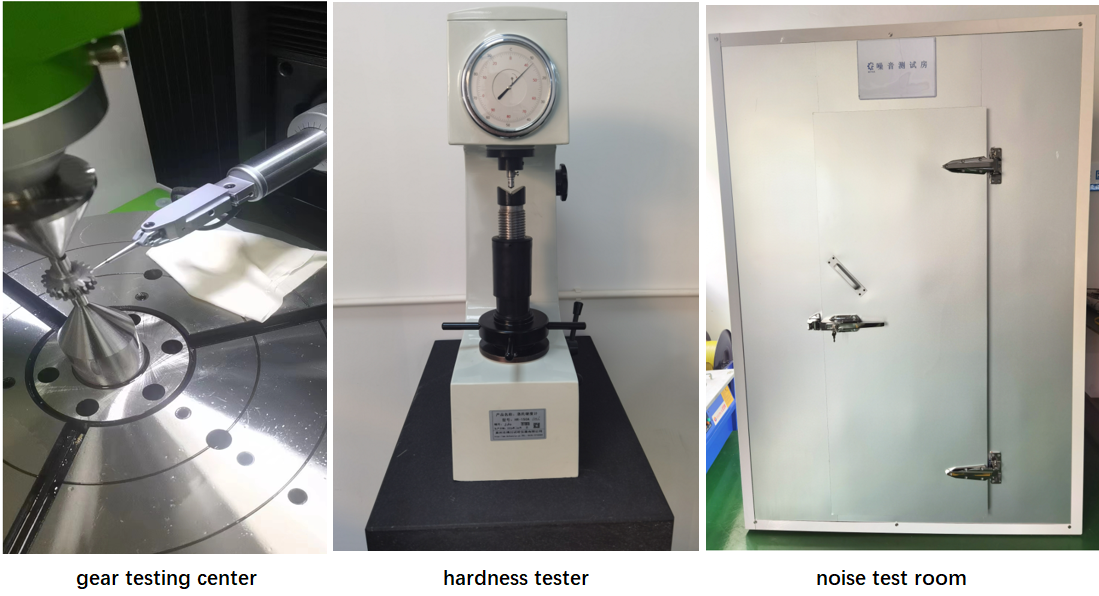

Quality for survival, quality for development! Our facility has precision dynamometer, two-dimensional space, microscope, motor comprehensive detector, gear testing center, hardness tester, noise test room and other perfect experimental testing equipment, can analyze, evaluate, verify and improve the reliability of the motor comprehensive performance, in order to ensure the quality of products.
Wide Applications
Cooperative Partners
Frequently Asked Questions
