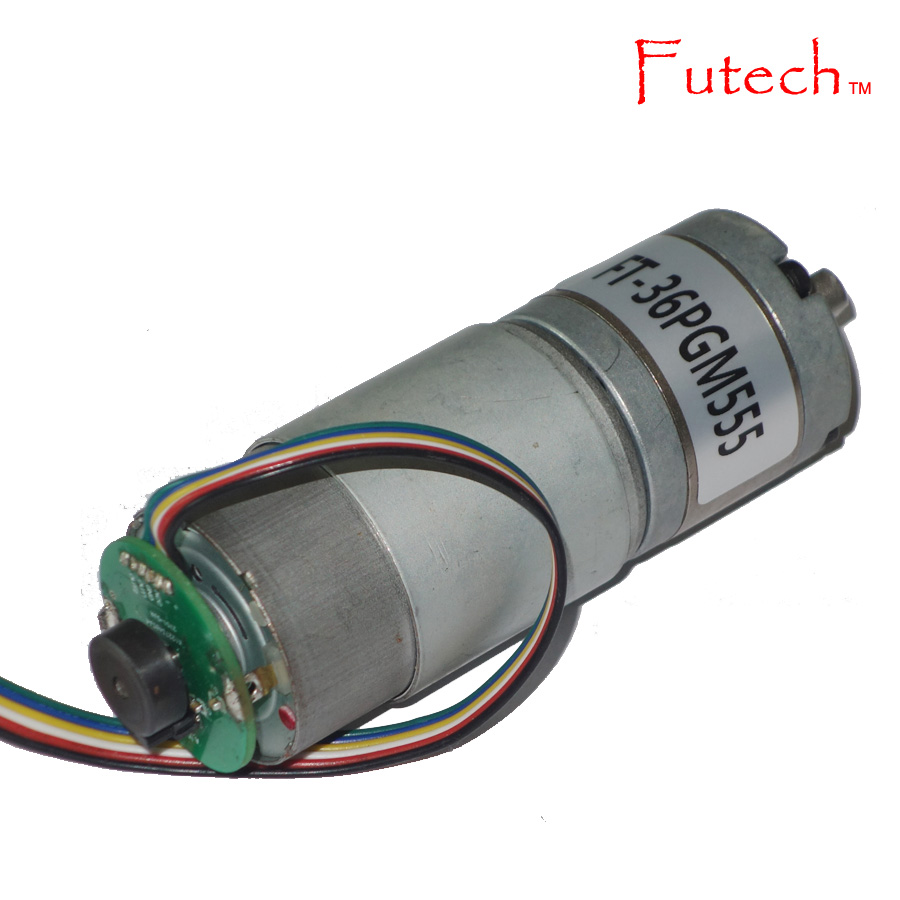

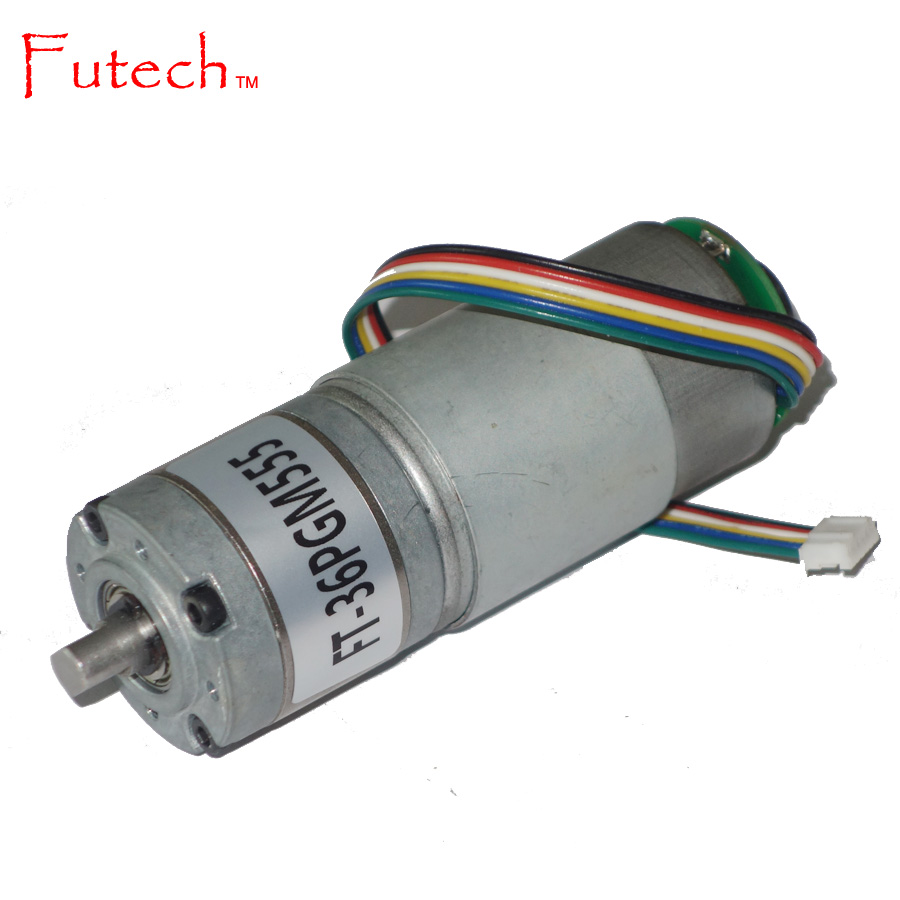

FT-36PGM555 36mm 12V DC Planetary Gearmotor with 12PPR Encoder

1 / 4

FT-36PGM555 36mm 12V DC Planetary Gearmotor with 12PPR Encoder

Send Inquiry

Product Description

FT-36PGM555 36mm 12V DC Planetary Gearmotor with Encoder

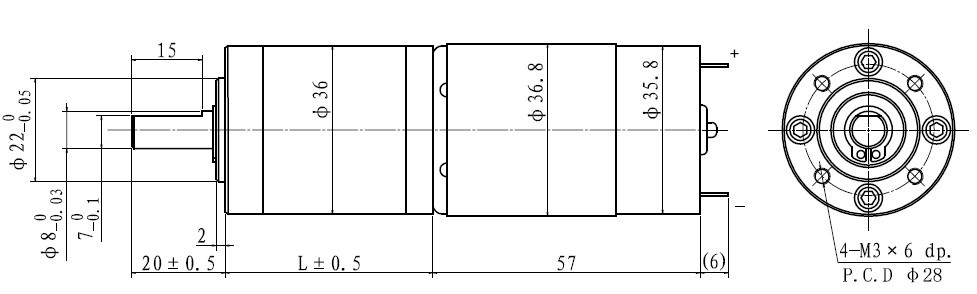

📐 DRAWING (mm)

Remark: find the dimension "L" in the GEARBOX DATA below.

📋 SPECIFICATIONS

The specifications are for reference only. Contact us for customized data.

Model number	Rated volt.	No load		Load				Stall
		Speed	Current	Speed	Current	Torque	Power	Current	Torque
		rpm	mA(max)	rpm	mA(max)	Kgf.cm	W	mA(min)	Kgf.cm
FT-36PGM5550126000-5.2K	12V	1153	650	960	3000	1.2	11.8	10620	6.3
FT-36PGM5550128000-14K	12V	571	900	465	3500	4	19.1	11550	19
FT-36PGM5550126000-27K	12V	223	400	175	1600	4.2	7.5	5350	20
FT-36PGM5550126000-51K	12V	117	680	85	2680	13	11.3	8350	60
FT-36PGM5550126000-71K	12V	84	500	70	2400	14	10.1	8380	71
FT-36PGM5550126000-100K	12V	60	450	48	2000	16	7.9	6300	78
FT-36PGM5550124500-264K	12V	17	400	12	1500	28	3.4	2800	104
FT-36PGM5550126000-721K	12V	8	400	6	3200	160	9.9	9000	630
FT-36PGM5550246000-3.7K	24V	1621	500	1216	2000	1.5	18.7	8000	7.5
FT-36PGM5550246000-5.2K	24V	1153	400	1016	1600	1.25	13.0	5380	8
FT-36PGM5550124500-27K	24V	167	550	147	2000	6	9.1	6500	30
FT-36PGM5550244500-71K	24V	63	220	48	1100	10	4.9	3700	50
FT-36PGM5550243000-100K	24V	30	150	22	550	12	2.7	1180	55
FT-36PGM5550246000-189K	24V	31	360	26	1800	41	10.9	4730	204
FT-36PGM5550244500-264K	24V	17	220	14	1000	43	6.2	2700	221
FT-36PGM5550244500-369K	24V	12	250	9	850	70	6.5	2500	280
FT-36PGM5550246000-1367K	24V	4.3	450	3.2	2000	250	8.2	6500	1200

Remark: 1 Kgf.cm ≈ 0.098 N.m ≈ 14 oz.in | 1 mm ≈ 0.039 in

📤 GEARBOX DATA

Reduction stage	1-stage	2-stage	3-stage	4-stage	5-stage
Reduction ratio	3.7, 5.2	14, 19, 27	51, 71, 100, 139	189, 264, 369, 515, 721	977, 1367, 1910, 2671, 3736
Gearbox length (L) mm	26.5	34.5	42.5	50.5	58.5
Max rated torque Kgf.cm	1	4	18	35	45
Max momentary torque Kgf.cm	6	10	38	60	60
Gearbox efficiency	90%	81%	73%	65%	59%

⚙ MOTOR DATA

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Power	Torque	Current
	V	mA	rpm	mA	rpm	gf.cm	W	gf.cm	mA
FT-555	6	≤858	6000	≤2250	4680	150	7.35	≥700	≥10000
FT-555	12	≤171	3000	≤561	2400	126	3.16	≥630	≥2390
FT-555	12	≤350	6000	≤2300	4500	280	13.19	≥1200	≥10230
FT-555	12	≤638	8500	≤2800	6450	300	20.3	≥1400	≥11900
FT-555	24	≤120	3000	≤336	2400	198	4.98	≥990	≥1430
FT-555	24	≤174	4500	≤620	3600	309	11.65	≥1500	≥3630
FT-555	24	≤270	6000	≤800	5370	420	23.6	≥2000	≥5820

🎖 CERTIFICATES: CE & ROHS

❓ FAQ

Can you make a motor with custom specifications?

Yes, actually this is what we are good at.

Can you change the output shaft of the motor?

Yes, no problem.

Does the motor rotate in both directions (CW and CCW)?

Yes, it does.

What is the major difference between a spur gear motor and a planetary gear motor?

Generally speaking, the planetary gearing structure is much stronger than a spur one. Therefore, a planetary gear motor endures much higher torque than a spur gear motor in equivalent size.

Do you have quality control?

Yes, it is a must. We do 100% inspection on all motors.

Do you have warranty?

Yes, one year.
