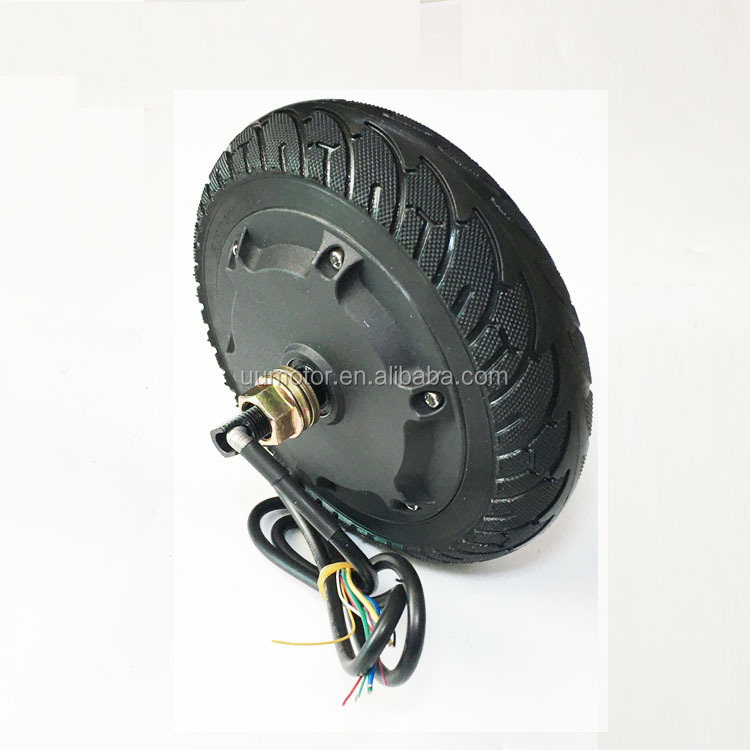

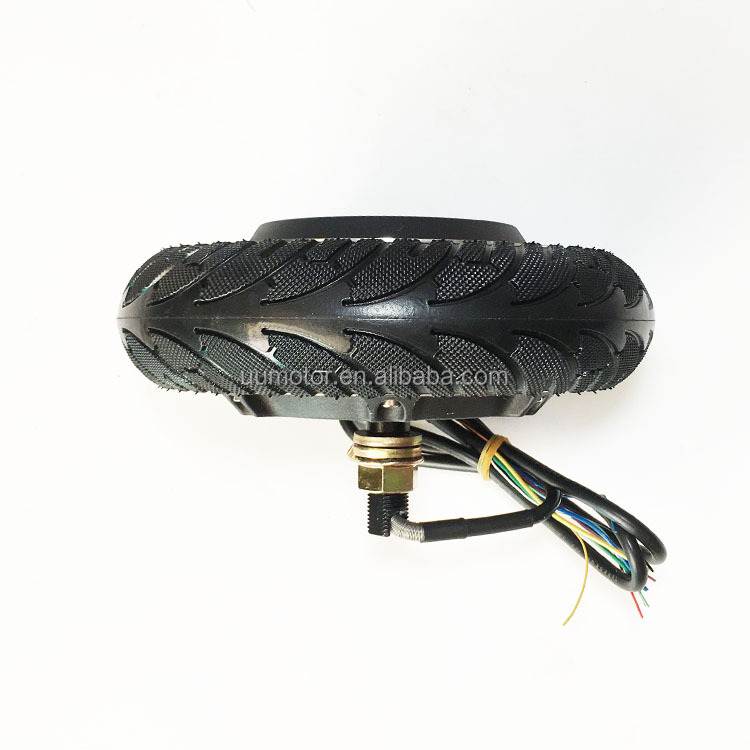

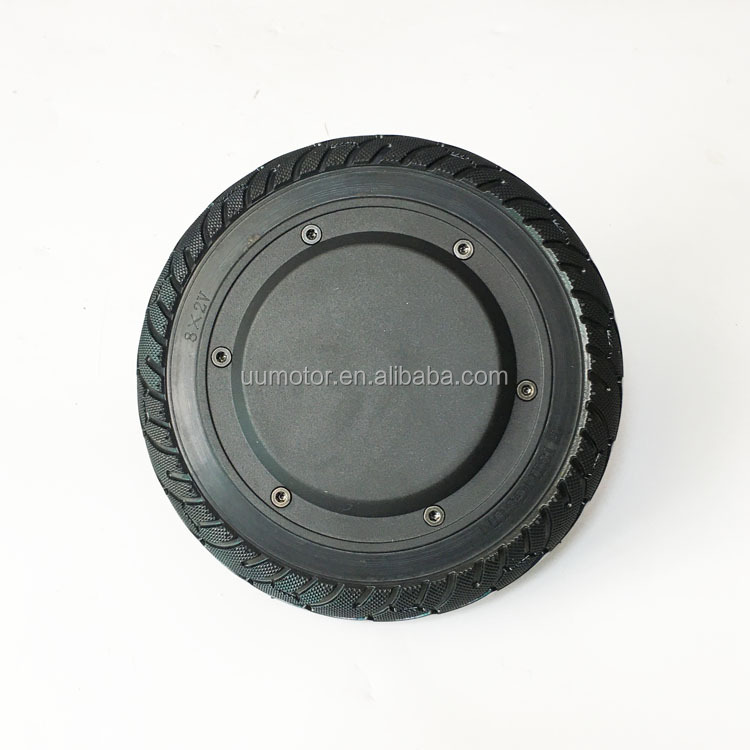

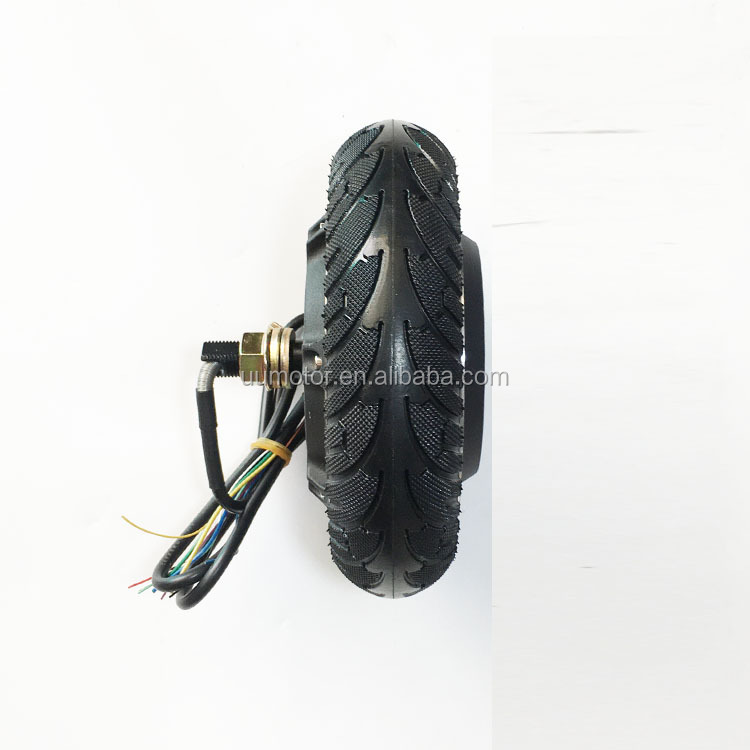

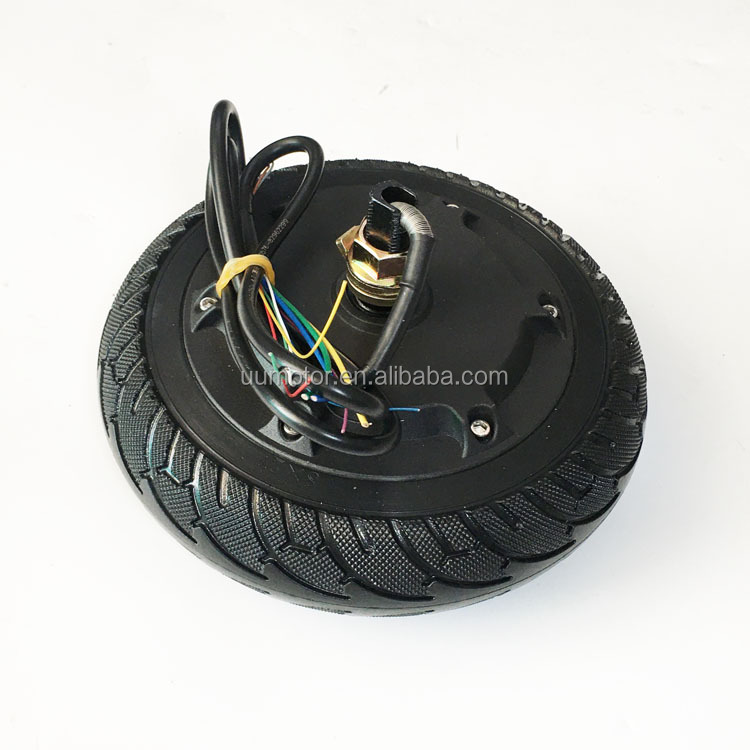

48V 500W Max Load 180kg 8 Inch Single Shaft Robot Wheel Servo Brushless Hub Motor with Encoder
48V 500W Max Load 180kg 8 Inch Single Shaft Robot Wheel Servo Brushless Hub Motor with Encoder
48V 500W Max Load 180kg 8 Inch Single Shaft Robot Wheel Servo Brushless Hub Motor with Encoder
48V 500W Max Load 180kg 8 Inch Single Shaft Robot Wheel Servo Brushless Hub Motor with Encoder
48V 500W Max Load 180kg 8 Inch Single Shaft Robot Wheel Servo Brushless Hub Motor with Encoder
1 / 5
48V 500W Max Load 180kg 8 Inch Single Shaft Robot Wheel Servo Brushless Hub Motor with Encoder
48V 500W Max Load 180kg 8 Inch Single Shaft Robot Wheel Servo Brushless Hub Motor with Encoder
48V 500W Max Load 180kg 8 Inch Single Shaft Robot Wheel Servo Brushless Hub Motor with Encoder
48V 500W Max Load 180kg 8 Inch Single Shaft Robot Wheel Servo Brushless Hub Motor with Encoder
48V 500W Max Load 180kg 8 Inch Single Shaft Robot Wheel Servo Brushless Hub Motor with Encoder

48V 500W Max Load 180kg 8 Inch Single Shaft Robot Wheel Servo Brushless Hub Motor with Encoder

Send Inquiry

Product Description

Product Overview

We provide a comprehensive range of servo motors including 4 inch, 4.5 inch, 5 inch, 6 inch, 6.5 inch, and 8 inch hub servo motors. These units are equipped with high-precision encoders specifically designed for Robots, AGV, and RGV applications. Available in both dual shaft and mono shaft versions, supporting a maximum load range of 35kg to 200kg. Powerful larger wheel servo hub motors are also available for heavy-duty requirements.

Rated Voltage48V
Motor Weight4.5kg
Rated Power500W
Rated Speed400-500 RPM
Rated Torque20N.m (Peak: 40N.m)
Rated Current5-20A (Peak: 45A)
Max Load180kg
Encoder Type1024ppr Optical Incremental Encoder
Pole Pairs10 Pairs
Product Showcase

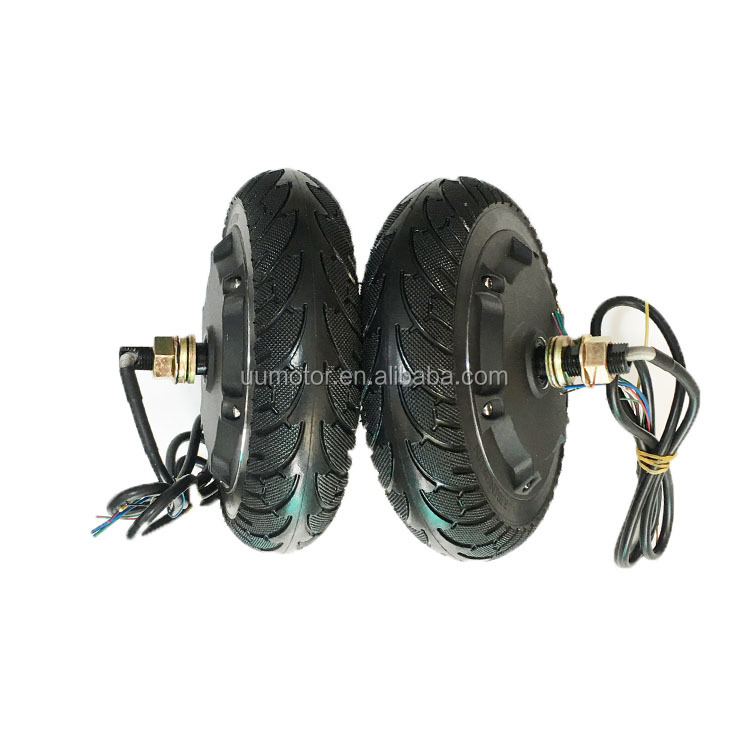

Servo Hub Motor View 1

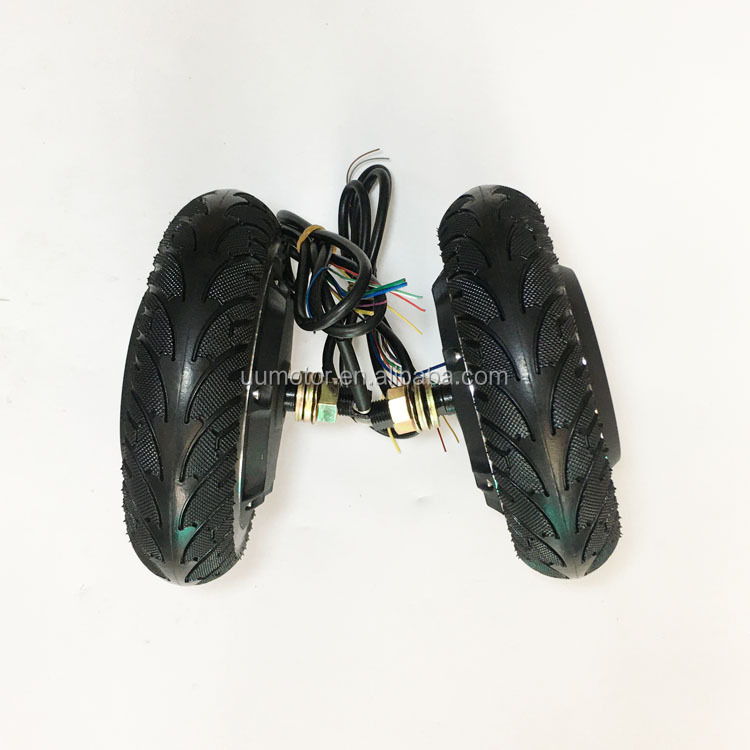

Servo Hub Motor View 2

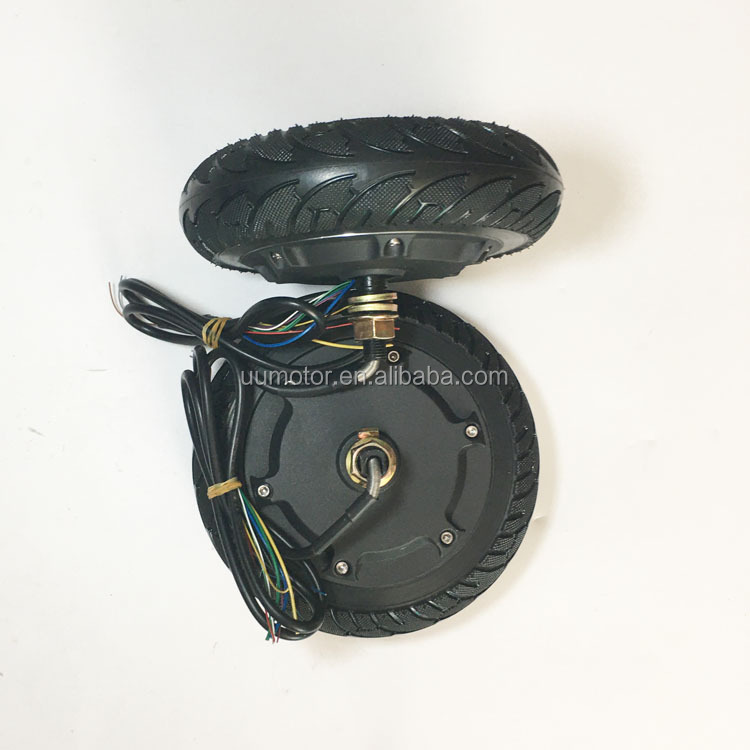

Servo Hub Motor View 3

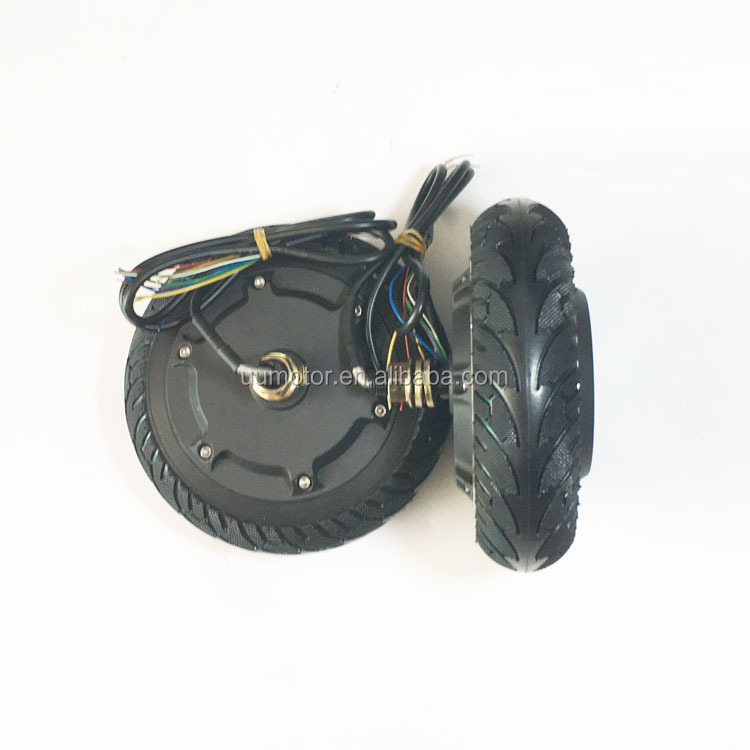

Servo Hub Motor View 4

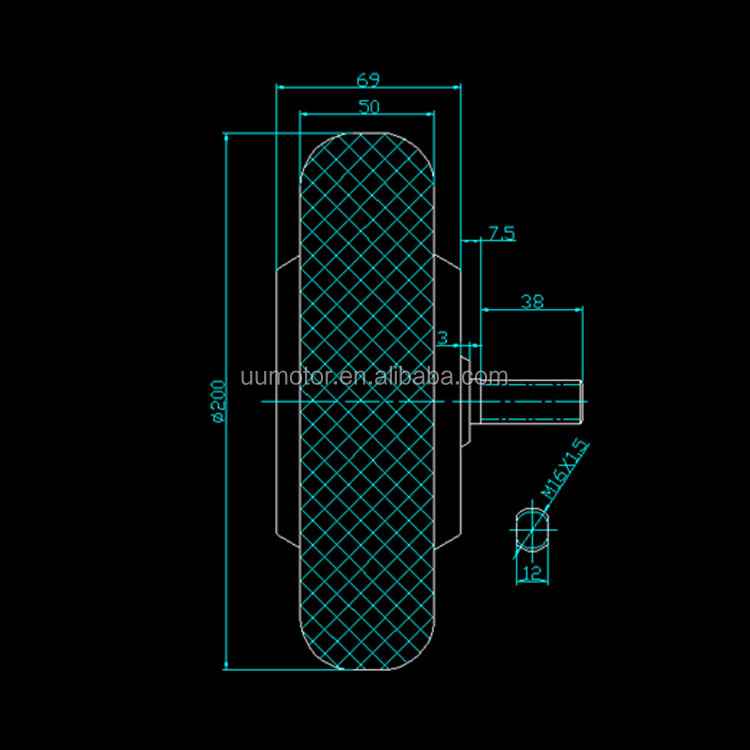

Servo Hub Motor View 5
Frequently Asked Questions
Is it possible to customize a sample?
Yes. We can customize a motor sample according to your specific requirements or based on your own design specifications.
Can I request a sample before a bulk order?
Yes. We maintain a variety of standard products ready for shipment to facilitate initial testing and evaluation.
What is the estimated delivery time?
Standard delivery takes approximately 10 to 15 days following advance payment. For bulk orders under 500 units, the lead time is generally 20 working days.
What are the terms of payment?
Sample or small orders require a 100% deposit. For bulk orders, a 30%-50% deposit is required, with the remaining balance due before shipping.
How are the goods shipped?
Samples and small orders are typically shipped via air express (FedEx, TNT, DHL, UPS) with door-to-door service. Air express is also a popular choice for bulk orders.
What is the warranty and return policy?
We provide replacement parts or new products for any defective units. In certain cases, refunds for defective products are available. We are committed to protecting our customers' interests.
