| Encoder type | Incremental encoder |

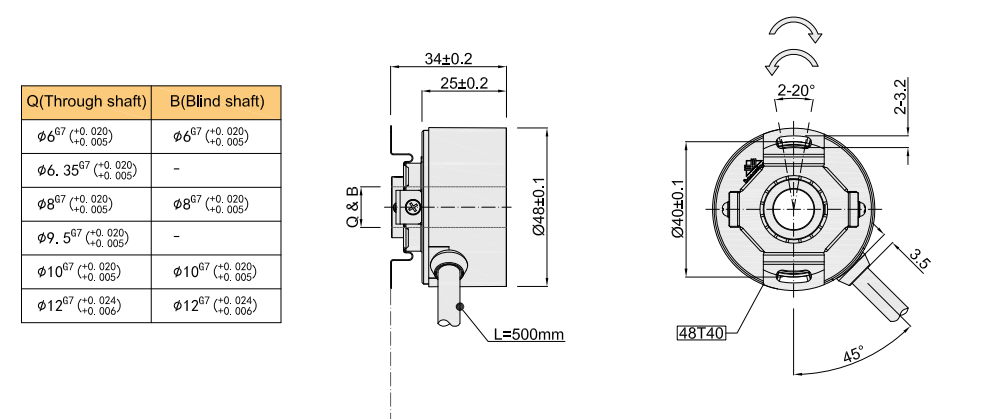

| External diameter | 48mm |
| Thickness | 34mm |
| Installation dimension | 40mm (spring plate 48T40) |
| Hollow shaft type | Through straight hole |
| Hollow shaft diameter | 6mm; 8mm; 10mm; 12mm |
| Resolution (PPR) | 50; 60; 100; 200; 256; 300; 360; 500; 512; 600; 720; 1000; 1024; 1200; 2000; 2048; 2500; 3600; 4096; 5000; 8192; 10000 |
| Output phase | Phase A+, B+, Z+, A-, B-, Z-, U+, V+, W+, U-, V-, W- |
| Circuit Protection | Reverse polarity protection & Short circuit protection |
| Supply voltage | DC5V ; DC8-30V |
| Outlet type | Radial cable (500mm) |
| Output mode | NPN/PNP Open Collector, Voltage, Push-pull, Line drive (26LS31) TTL, Line drive HTL |
| Protection grade | IP40 |
| Top Response Frequency | 100KHZ |
| Starting Torque | Less than 9.8 x 10^-3 N.m |
| Max Speed | 5000 RPM |
| Operating Temperature | -20℃ to +85℃ |
| Material | Die cast aluminium and PVC |
