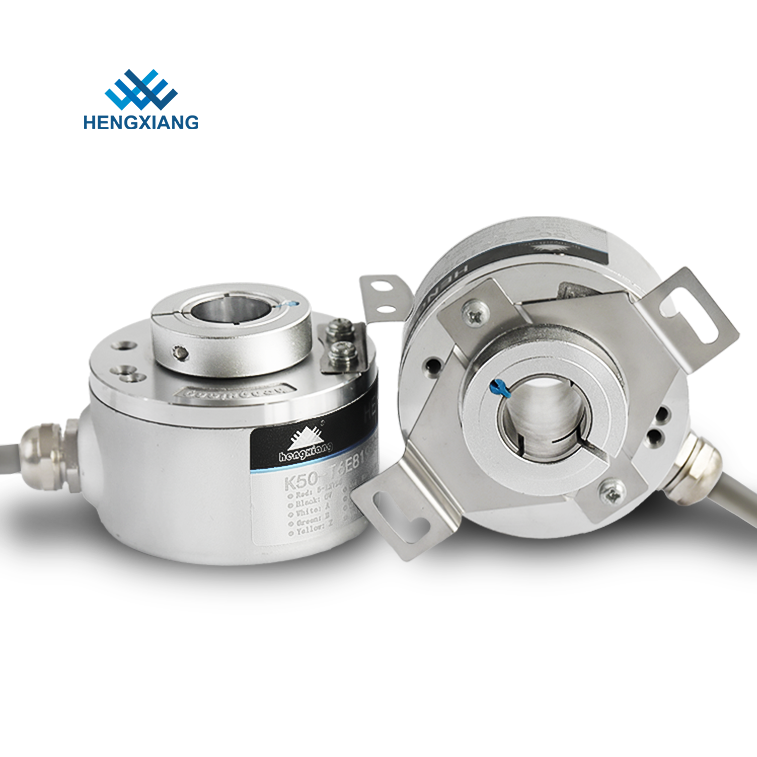

K50 Incremental Hollow Shaft Encoder Motor DC 12V-24V High Resolution 23040P/R IP50/IP65 Spring Plate Type

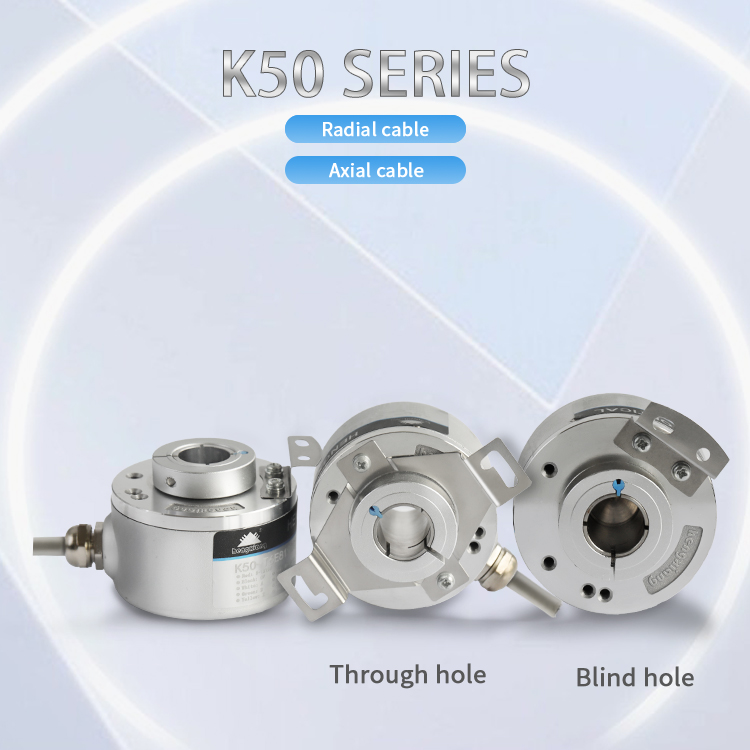

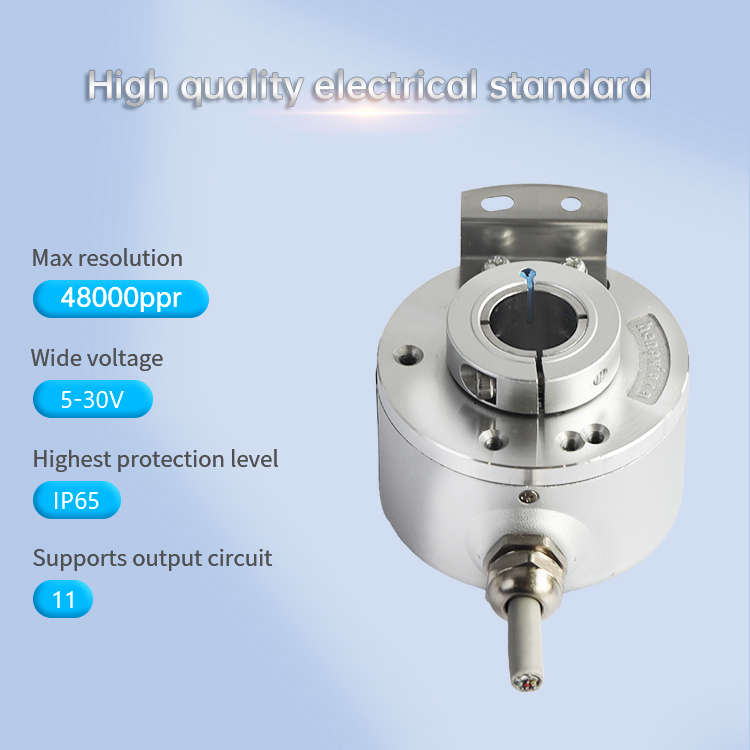

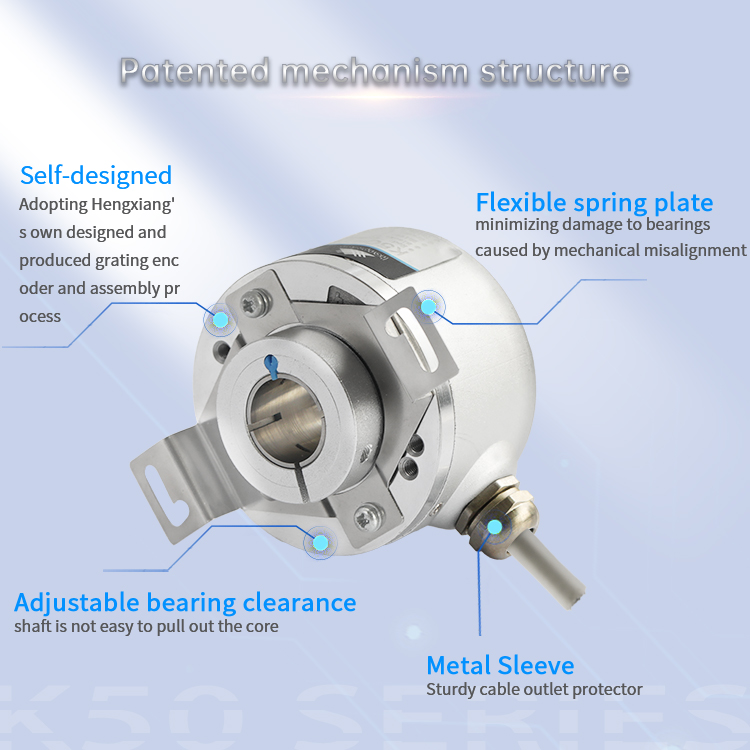

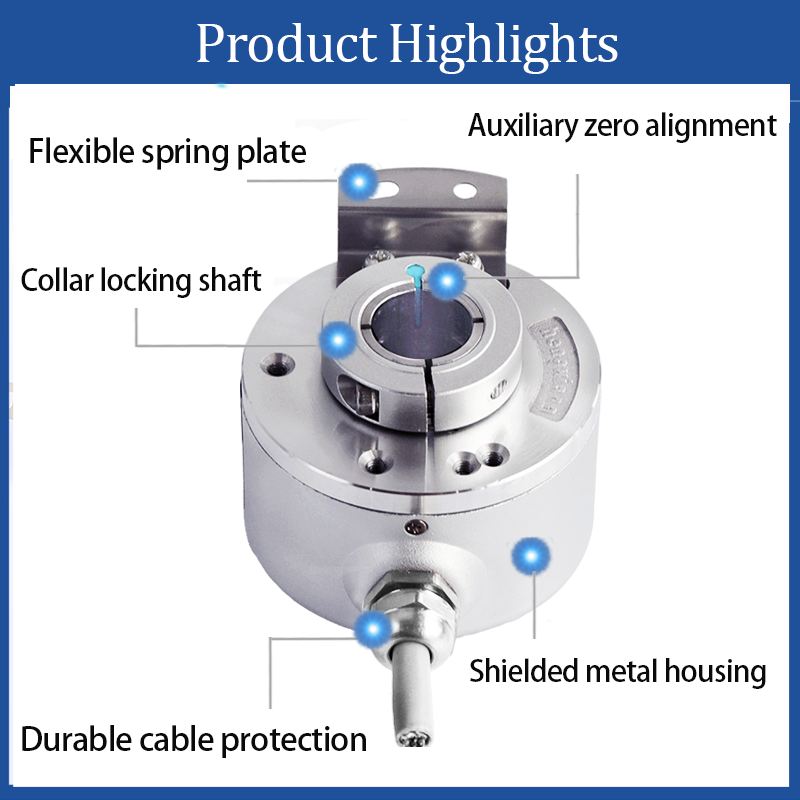

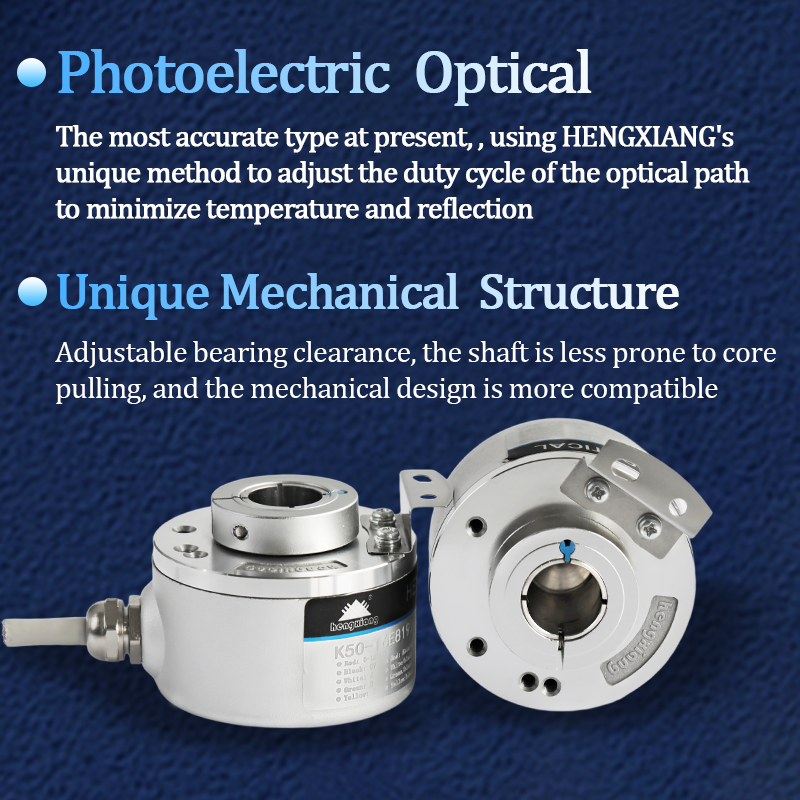

● Highlights of K50 Encoder

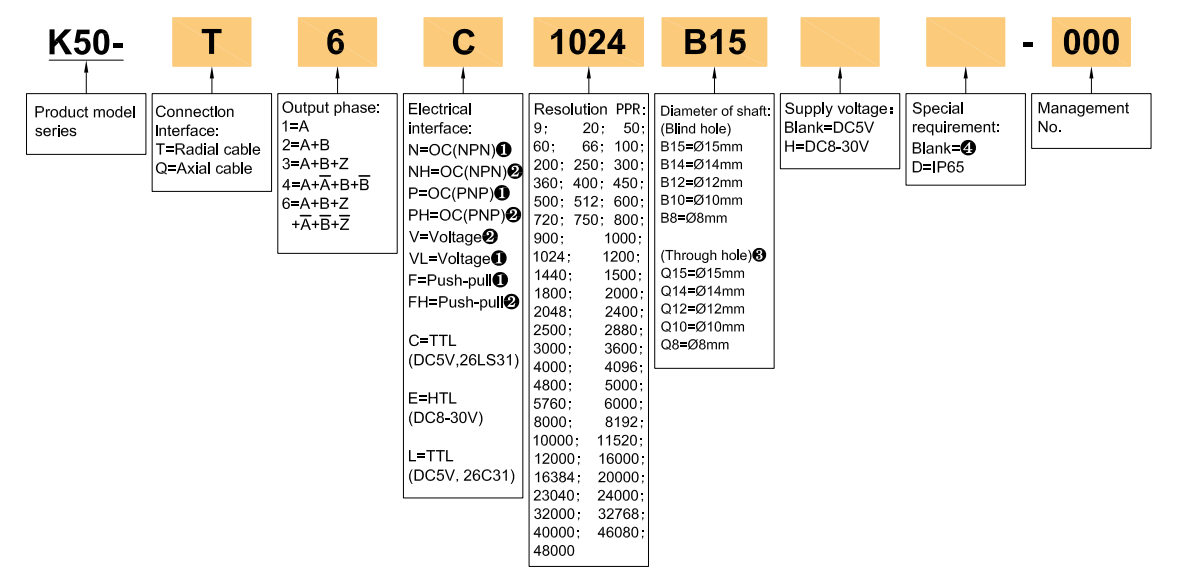

● Model Selection Guide

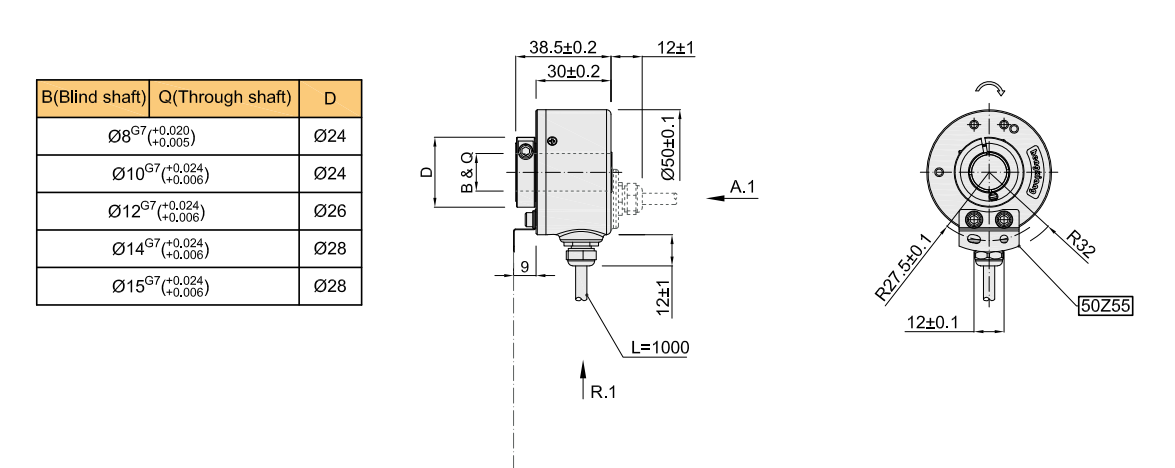

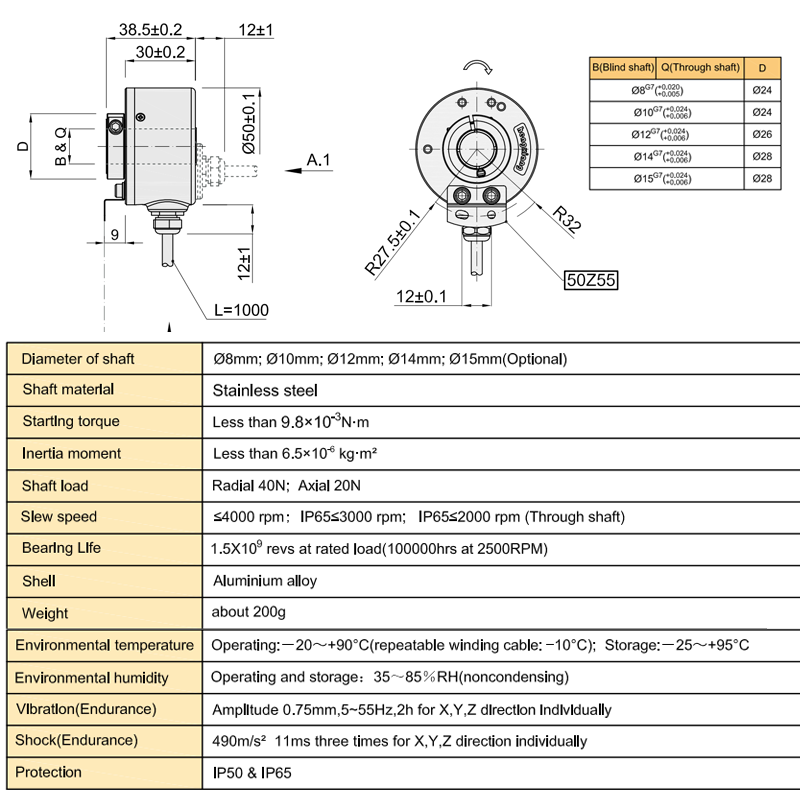

● Dimension Details

● Electrical Parameters

Encoder Type	Incremental encoder
External Diameter	50mm
Thickness	39mm
Installation Dimension	R27.5mm, R30mm, R34.5mm
Hollow Shaft Type	Blind hole; Through hole
Hollow Shaft Diameter	8mm, 10mm, 12mm, 14mm, 15mm
Resolution	Up to 48,000 PPR (Multiple options from 9 to 48,000)
Output Phase	Phase A, B, Z, A-, B-, Z-
Supply Voltage	DC 5V; DC 8-30V
Output Mode	NPN/PNP, Voltage, Push-pull, TTL (26LS31/26C31), HTL
Operating Temperature	-20°C to +90°C
Shell Material	Aluminium alloy
Shaft Load	Radial: 40N; Axial: 20N
Protection Grade	IP50; IP65
Starting Torque	Less than 9.8 x 10^-3 N.m
Certification	CE

● Why Choose Our Solutions

● Frequently Asked Questions

What is the maximum resolution of the K50 encoder?

The K50 incremental encoder offers a wide range of resolutions, reaching up to 48,000 pulses per revolution (PPR) for high-precision applications.

What are the available shaft options for this model?

It supports both blind hole and through-hole hollow shaft types with diameters including 8mm, 10mm, 12mm, 14mm, and 15mm.

Does the encoder support different voltage inputs?

Yes, the encoder is compatible with DC 5V or a wide voltage range of DC 8-30V, depending on your specific requirements.

What is the environmental protection rating?

The K50 encoder comes with IP50 or IP65 protection grades, making it suitable for various industrial environments with dust or moisture.

What output modes are supported?

It supports multiple output modes including NPN/PNP open collector, voltage output, push-pull, TTL, and HTL signals.

What is the operating temperature range?

The device is designed to operate reliably in temperatures ranging from -20°C to +90°C.

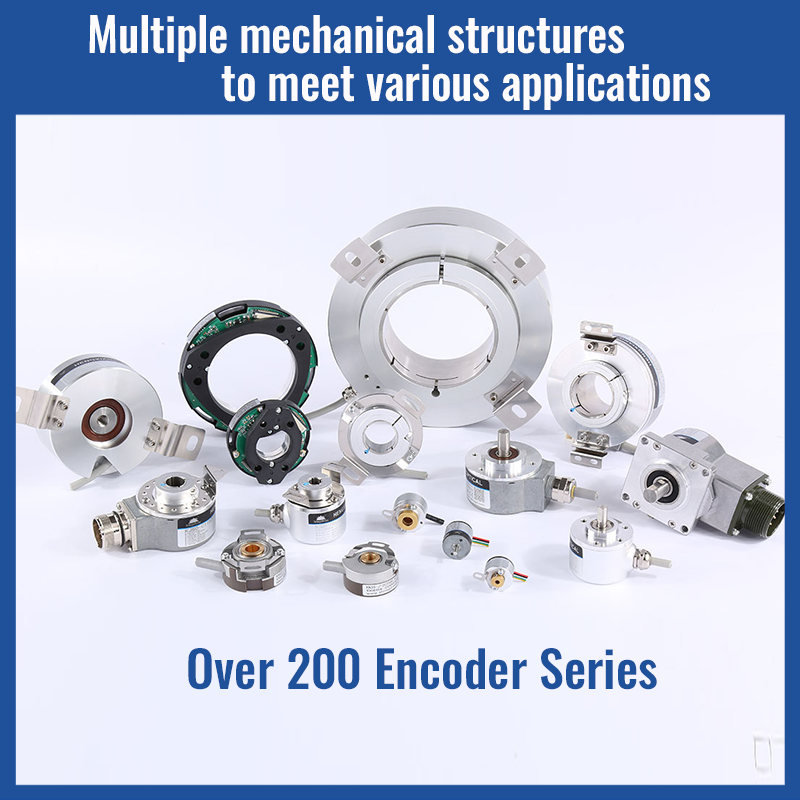

● Recommended Products
