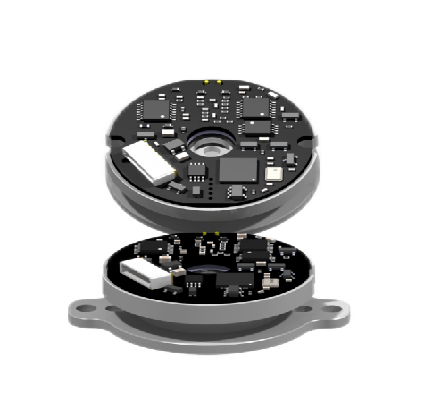

Roundss DVC48V9-5000 High-Precision Incremental Encoder 5000ppr Shaft-Mounted 5V Servo Motor Encoder with Wide Temp Range
Roundss DVC48V9-5000 High-Precision Incremental Encoder 5000ppr Shaft-Mounted 5V Servo Motor Encoder with Wide Temp Range
Roundss DVC48V9-5000 High-Precision Incremental Encoder 5000ppr Shaft-Mounted 5V Servo Motor Encoder with Wide Temp Range
Roundss DVC48V9-5000 High-Precision Incremental Encoder 5000ppr Shaft-Mounted 5V Servo Motor Encoder with Wide Temp Range
Roundss DVC48V9-5000 High-Precision Incremental Encoder 5000ppr Shaft-Mounted 5V Servo Motor Encoder with Wide Temp Range
1 / 5
Roundss DVC48V9-5000 High-Precision Incremental Encoder 5000ppr Shaft-Mounted 5V Servo Motor Encoder with Wide Temp Range
Roundss DVC48V9-5000 High-Precision Incremental Encoder 5000ppr Shaft-Mounted 5V Servo Motor Encoder with Wide Temp Range
Roundss DVC48V9-5000 High-Precision Incremental Encoder 5000ppr Shaft-Mounted 5V Servo Motor Encoder with Wide Temp Range
Roundss DVC48V9-5000 High-Precision Incremental Encoder 5000ppr Shaft-Mounted 5V Servo Motor Encoder with Wide Temp Range
Roundss DVC48V9-5000 High-Precision Incremental Encoder 5000ppr Shaft-Mounted 5V Servo Motor Encoder with Wide Temp Range

Roundss DVC48V9-5000 High-Precision Incremental Encoder 5000ppr Shaft-Mounted 5V Servo Motor Encoder with Wide Temp Range

Send Inquiry

Product Description

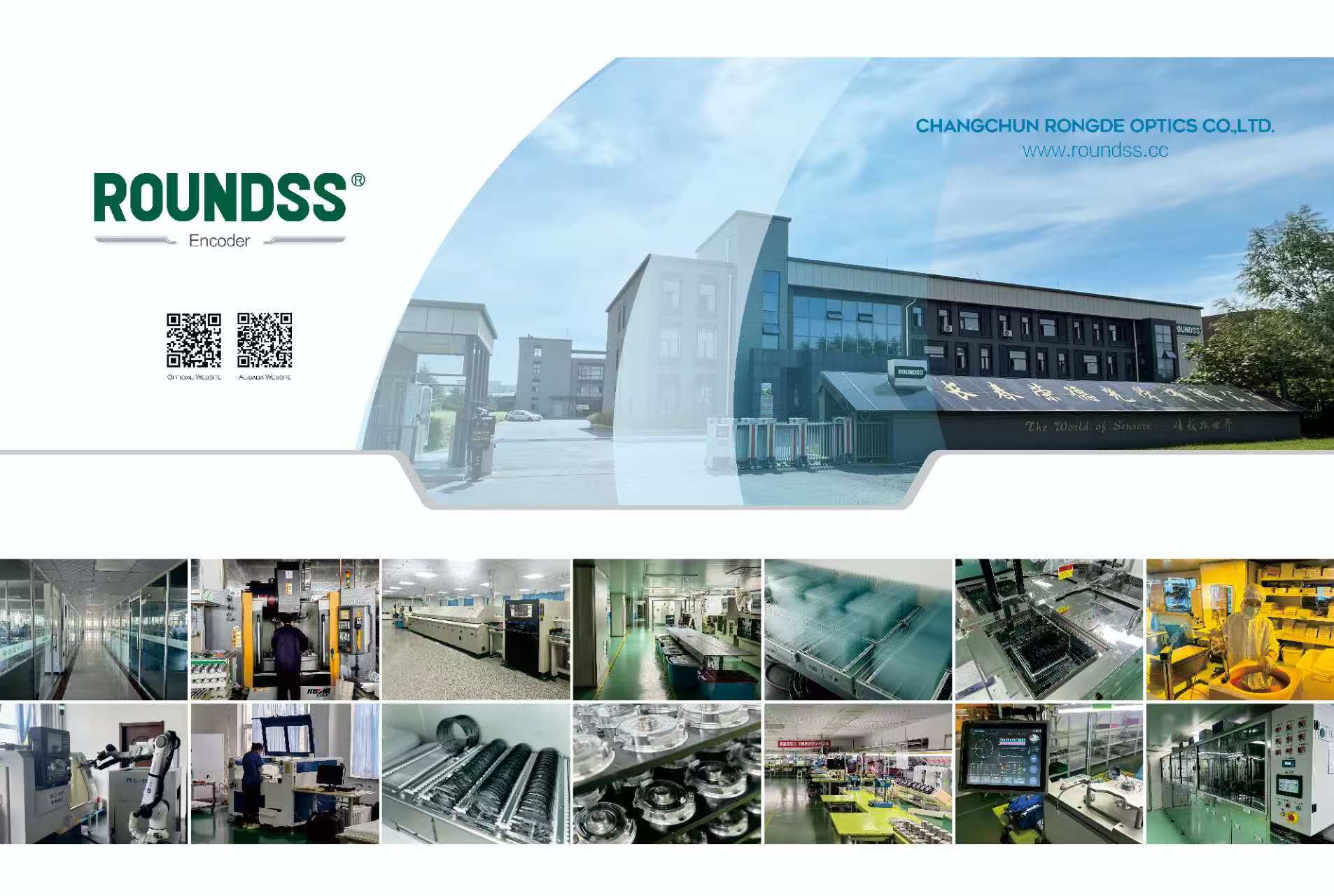

Product Display 1
Product Display 2
Product Display 3

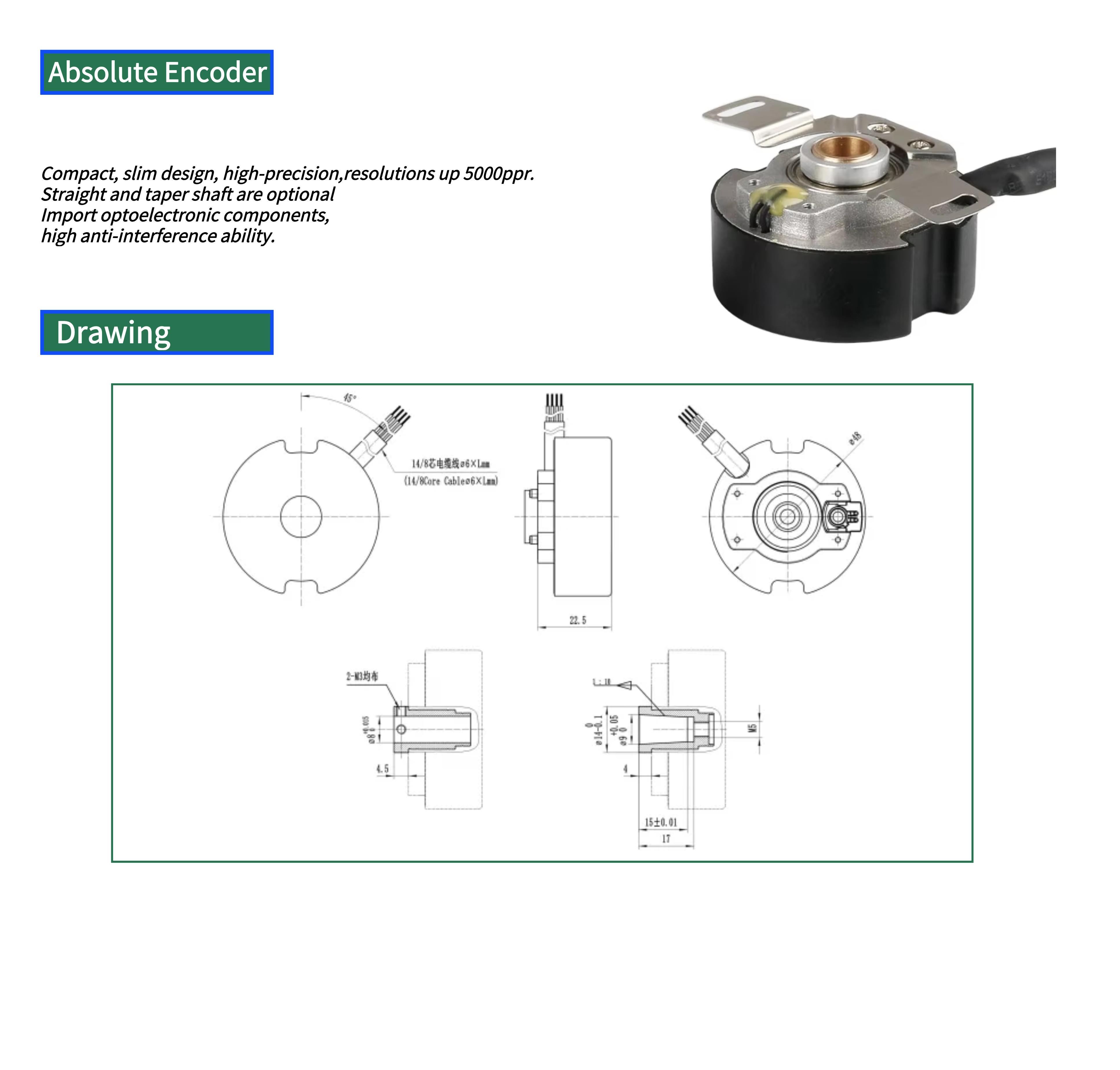

Technical Drawing
📊 Technical Specifications
Model DVC48V9
Outer Diameter ø48mm
Shaft Diameter Φ8mm / Φ9mm (Taper and Straight types are optional)
Supply Voltage 5V ± 0.25
Plate Spring Models A, B, C, D Available
Electrical Output Type Line Drive Output
Resolution 1000/1024/2048/2500/5000 ppr
Output Signals A: Phase Single-Channel Output
B: Two-Channel Output with 90° Phase Difference
M: Zero Position Signal
Pole Number 4 poles
Universal Rotating Speed 8000 rpm
Max Rotating Speed 15000 rpm
Breaking Strength Shaft and Bearing ≥ 650N
Max Response Frequency 300 kHz
Operating Temperature -20°C to +85°C
Protection Class IP50
📐 Dimensions & Performance
Dimensions 1
Dimensions 2
Output Chart
Frequently Asked Questions (FAQ)
Q1: What are the shaft options for the DVC48V9 model? A: The DVC48V9 offers both Φ8mm and Φ9mm shaft diameters, with options for either Taper or Straight types to suit different installation requirements.
Q2: What is the maximum response frequency of this encoder? A: This model supports a maximum response frequency of up to 300kHz, ensuring high-speed data transmission and accuracy.
Q3: Can this encoder operate in high-speed environments? A: Yes, it is designed for high performance with a universal rotating speed of 8000rpm and a maximum rotating speed of 15000rpm.
Q4: What output signals does the DVC48V9 provide? A: It provides Line Drive Output including A-phase single-channel, B-phase two-channel (90° phase difference), and an M-signal for zero position.
Q5: What is the environmental protection rating? A: The encoder features an IP50 protection class and can operate in temperatures ranging from -20°C to +85°C.
Q6: What resolutions are available for this series? A: We offer multiple resolution options including 1000, 1024, 2048, 2500, and 5000 ppr (pulses per revolution).
