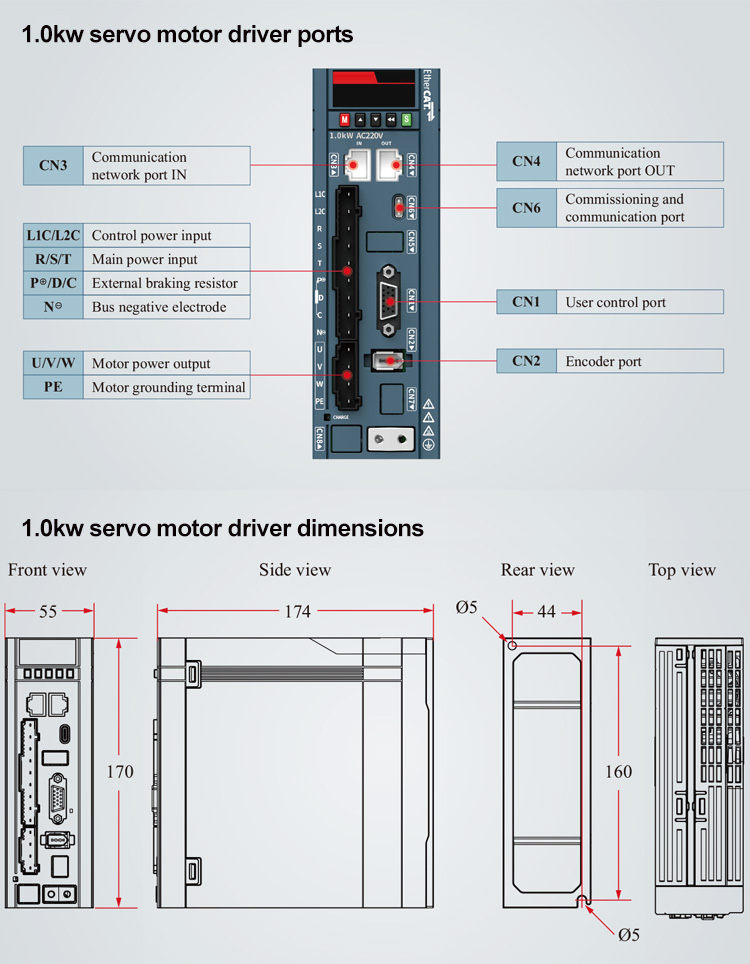

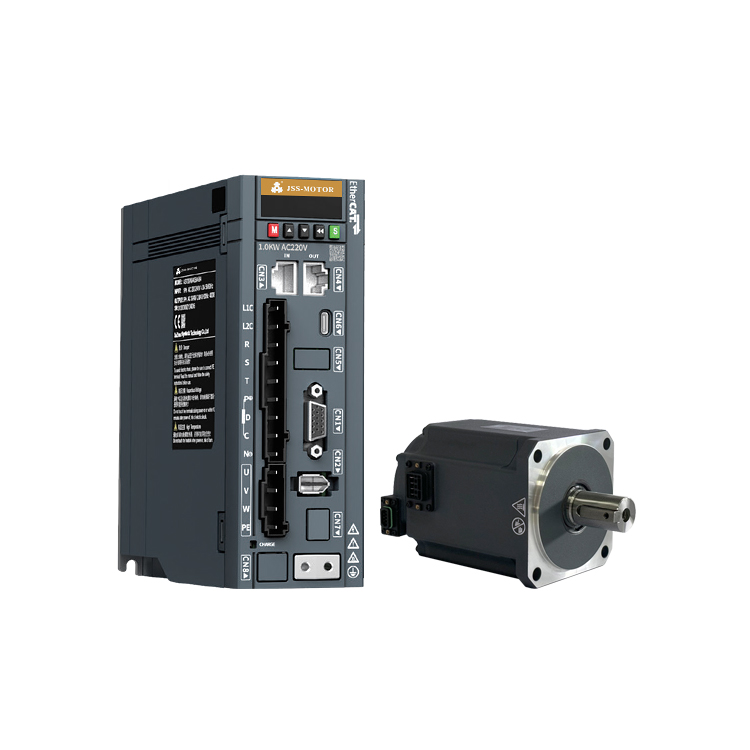

3000rpm High-Performance EtherCAT Servo Drive for Automation Industry

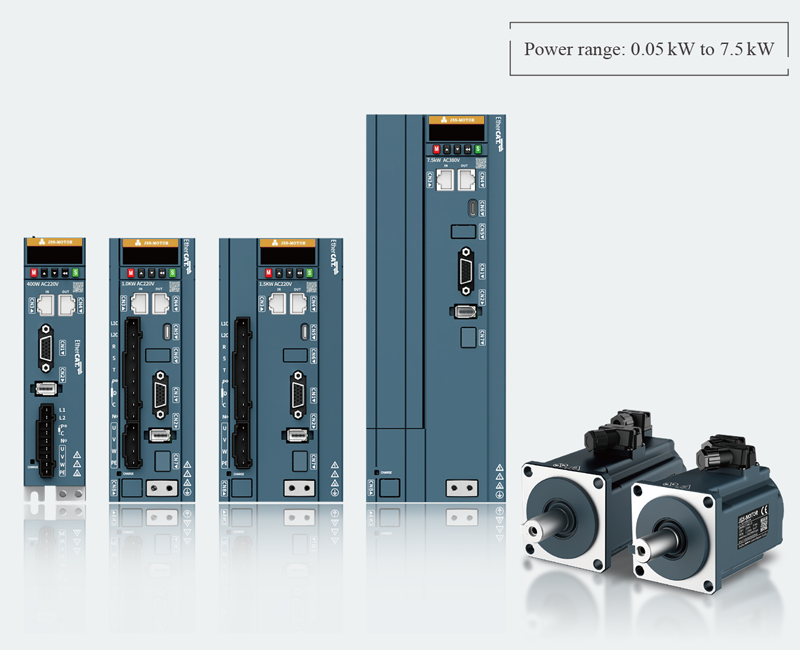

The JSS715N series is a fast, reliable, and accurate positioning platform servo drive covering the most common power range of 0.05 kW to 7.5 kW for general automation. It supports both single-phase and three-phase power supply systems. It features a space-saving design and excellent servo control performance. Working together with the servo motor, the JSS715N series servo drive can optimize the performance and the ease of use. Compatible with mainstream PLCs from brands such as Beckhoff and Omron, it provides efficient and convenient motion control solutions.

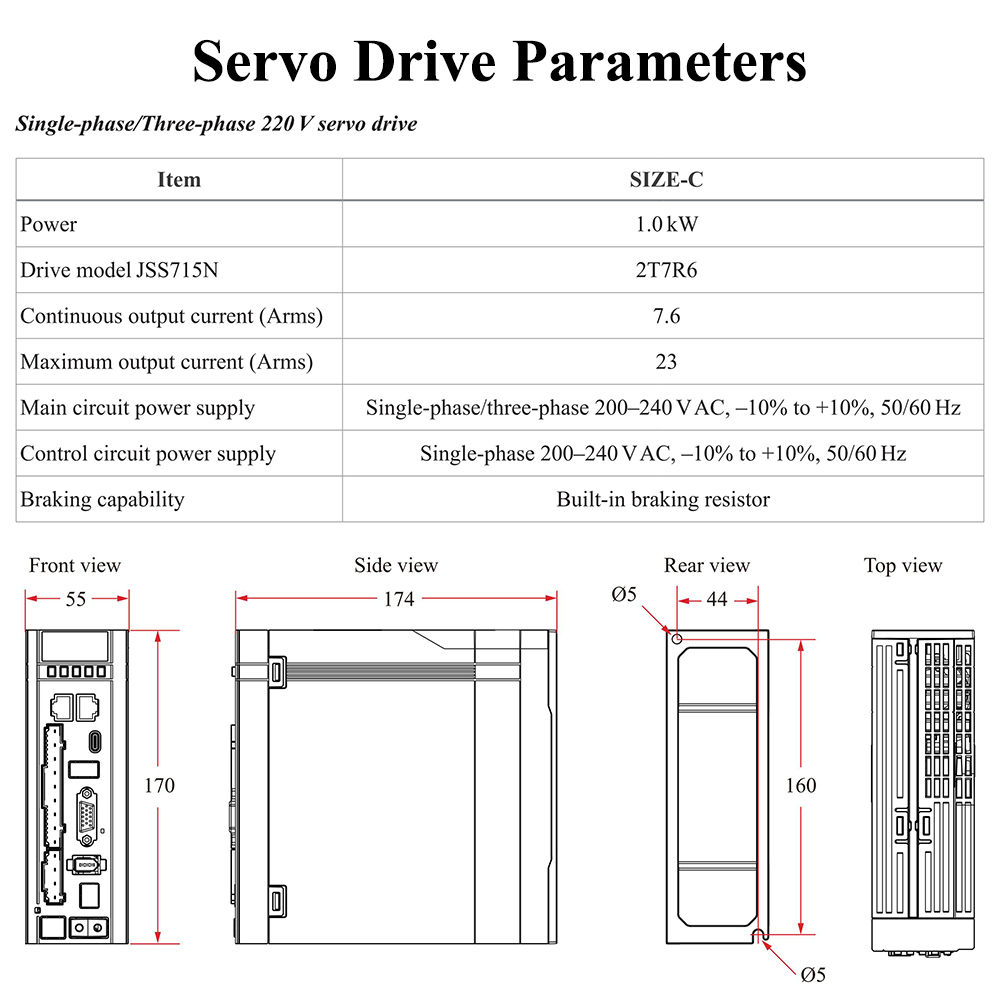

| Power | 1 kW |
|---|---|
| Drive Model | JSS715N 2T7R6 |
| Continuous output current (Arms) | 7.6 |
| Maximum output current (Arms) | 23 |
| Main circuit power supply | Single-phase/three-phase 200–240 VAC, -10% to +10%, 50/60 Hz |
| Control circuit power supply | Single-phase 200–240 VAC, -10% to +10%, 50/60 Hz |
| Braking capability | Built-in braking resistor |

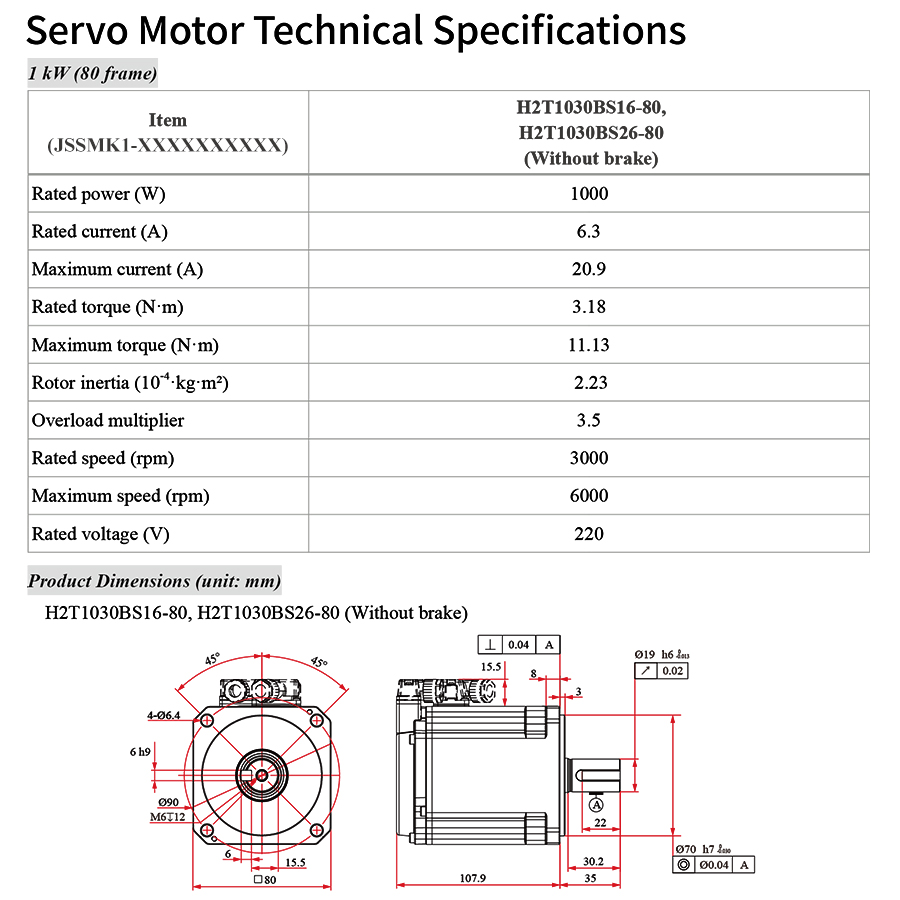

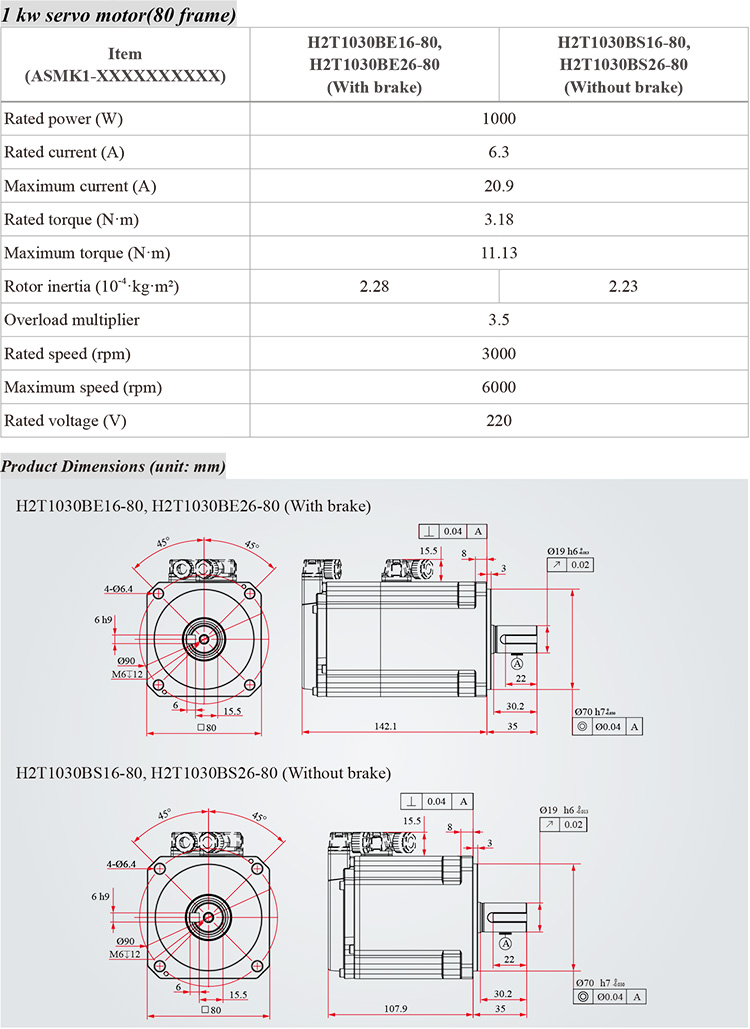

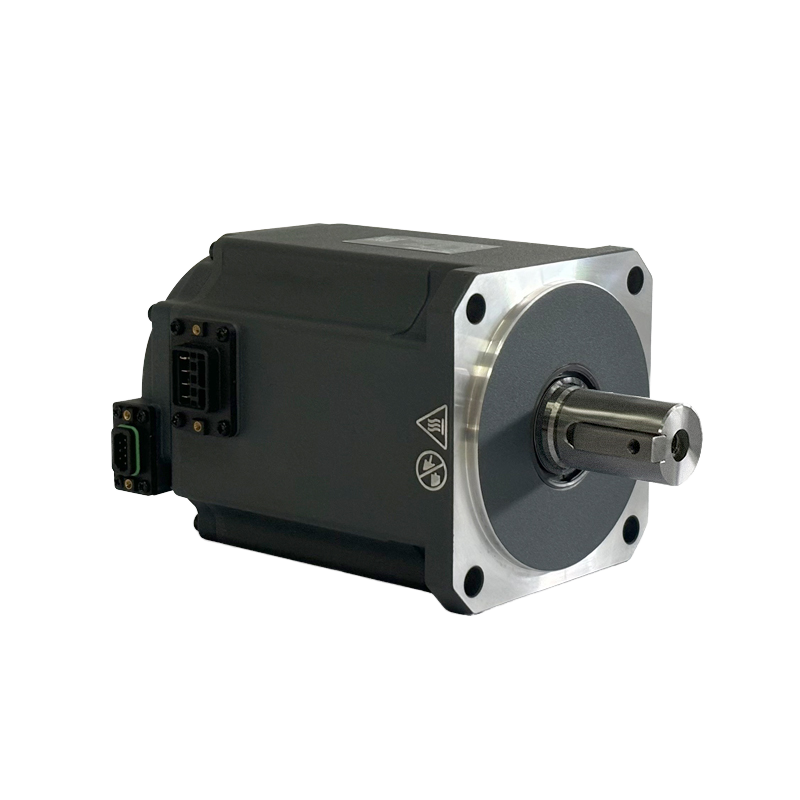

| Item (80 Frame) | With Brake | Without Brake |
|---|---|---|
| Rated power (W) | 1000 | |
| Rated current (A) | 6.3 | |
| Maximum current (A) | 20.9 | |
| Rated torque (N·m) | 3.18 | |
| Maximum torque (N·m) | 11.13 | |
| Rotor inertia (10^-4·kg·m^2) | 2.28 | 2.23 |
| Rated speed (rpm) | 3000 | |
| Maximum speed (rpm) | 6000 | |
| Rated voltage (V) | 220 | |
