| Model NO. | LPM28-395 | Excitation Mode | Shunt |
|---|---|---|---|
| Function | Control, Driving | Casing Protection | Protection Type |
| Number of Poles | 2 | Structure | Brush |
| Type | PMDC Motor | Certification | ISO9001, CE, RoHS |

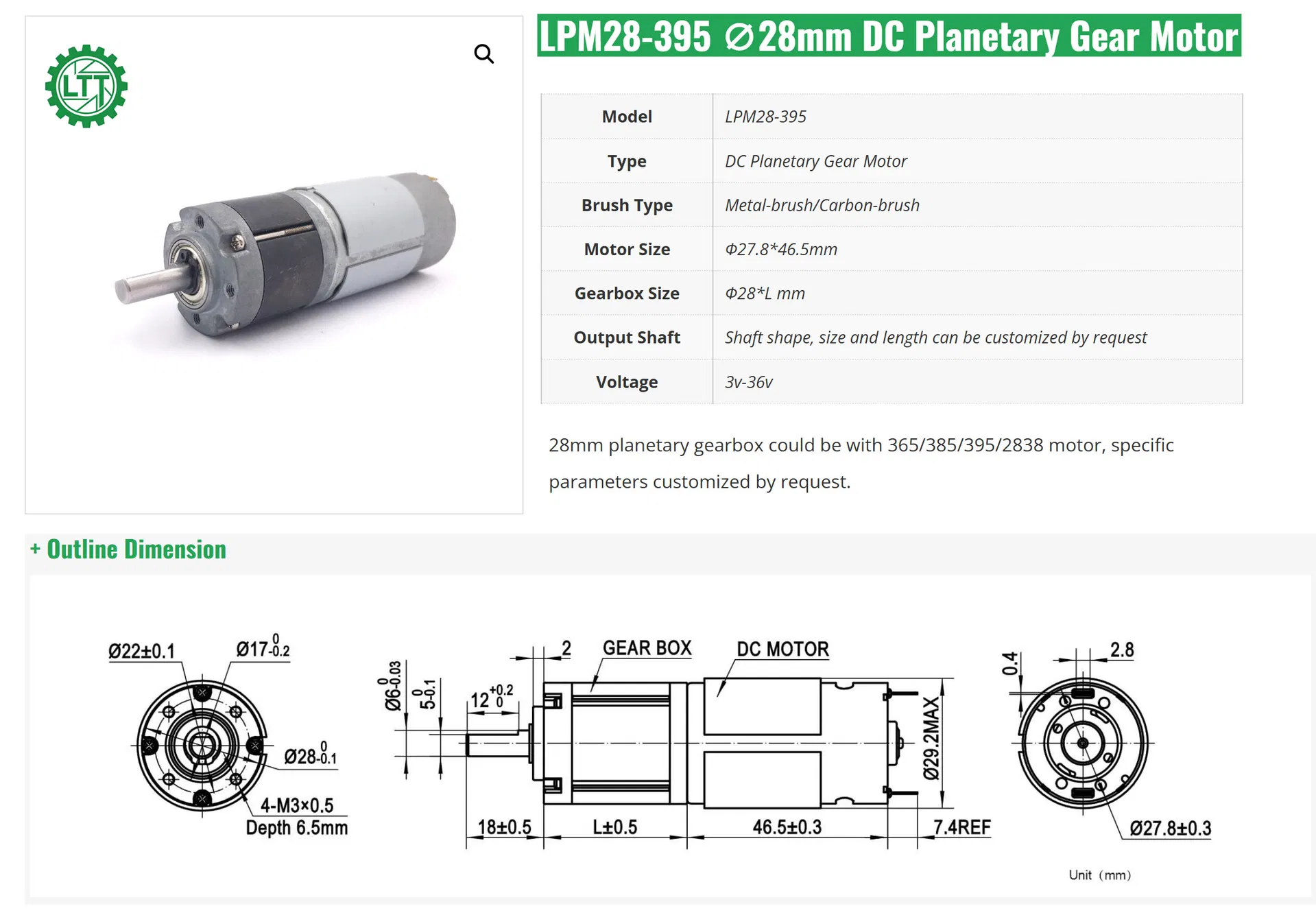

| Gearbox Size | φ28*L mm | Motor Size | φ27.8*46.5mm |
| Applications | Medical Device, Robot | Commutation | Brush |
| Construction | Permanent Magnet | Rated Voltage | 3V 6V 12V 24VDC |
| Shaft Diameter | 6mm | Brush Type | Metal-Brush/Carbon-Brush |

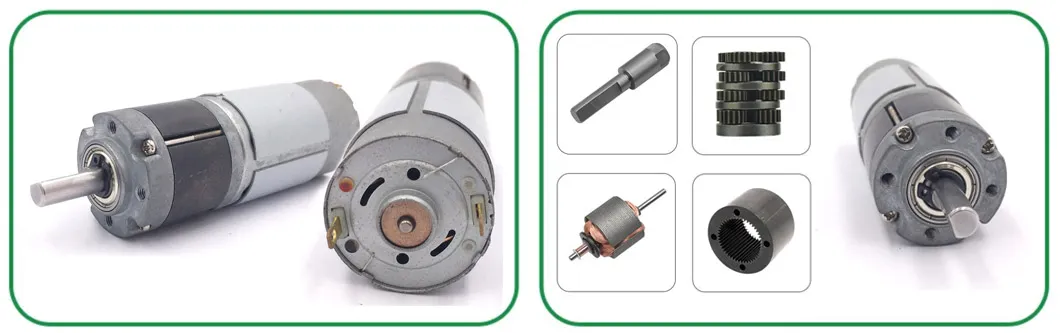

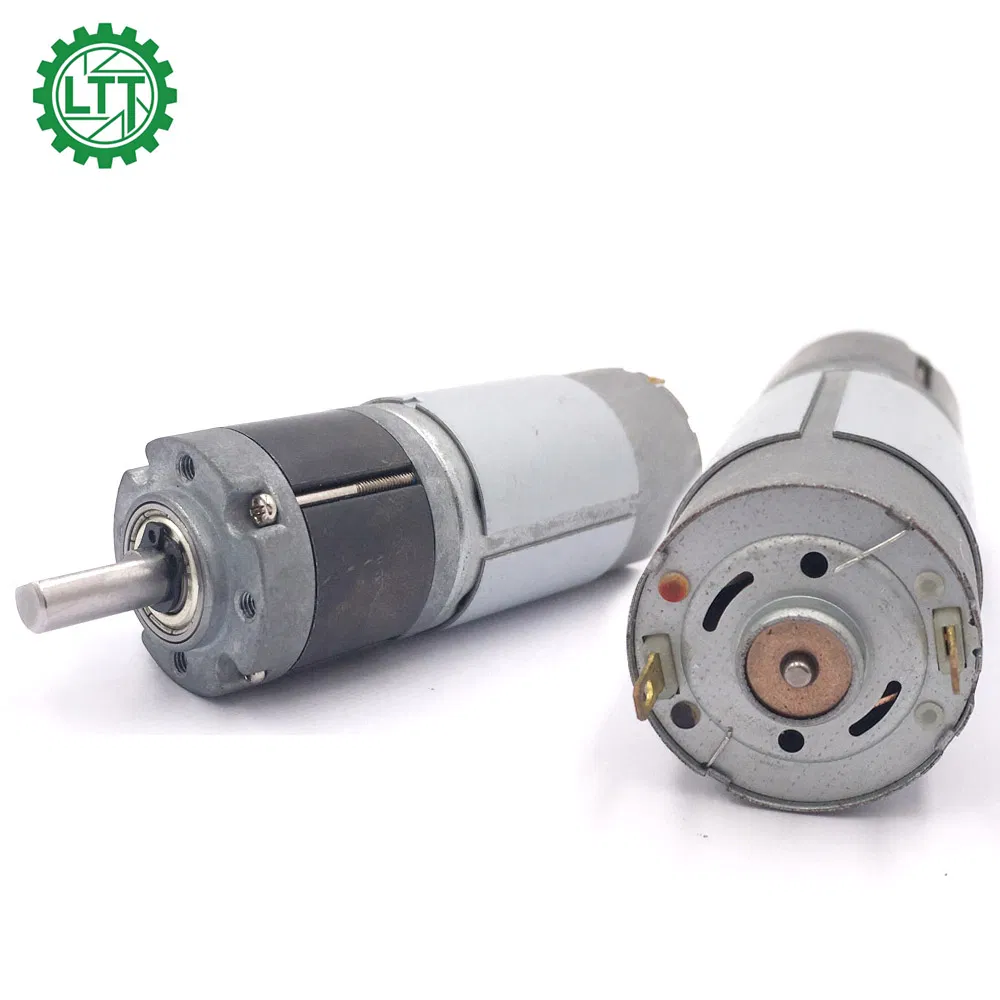

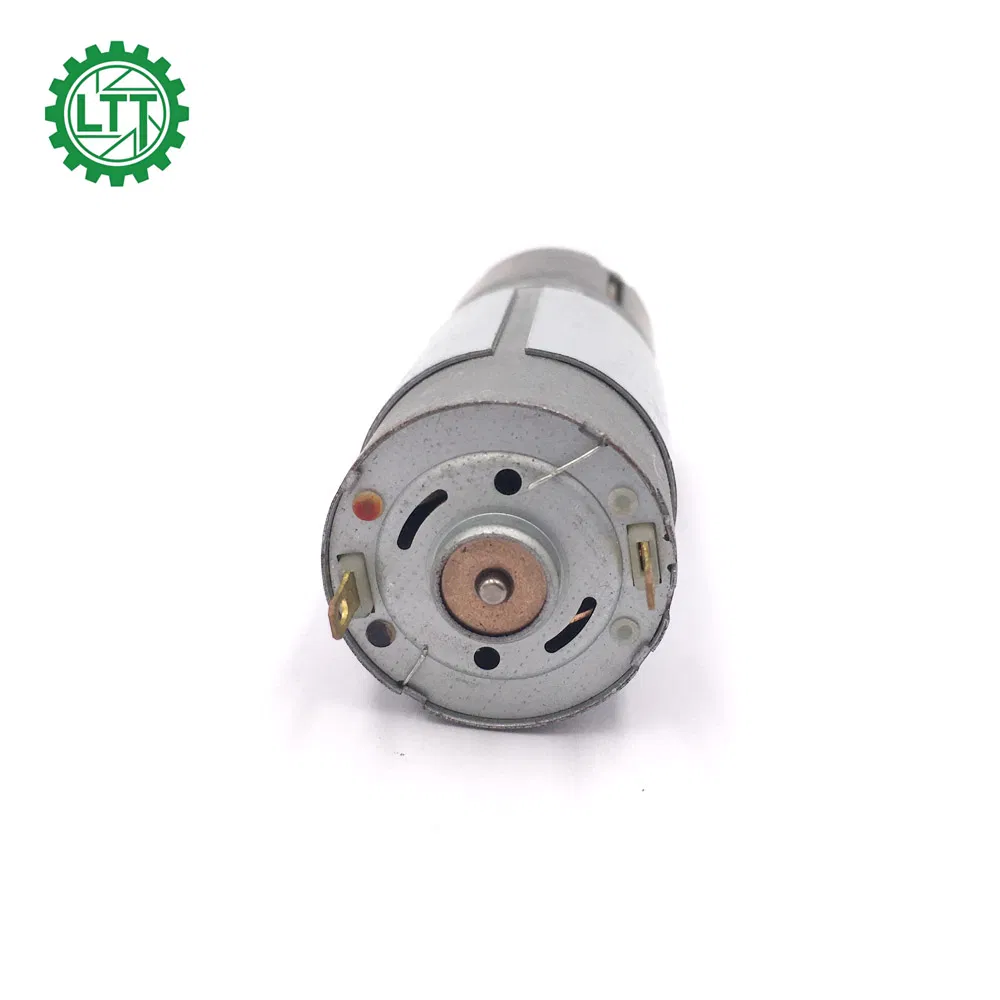

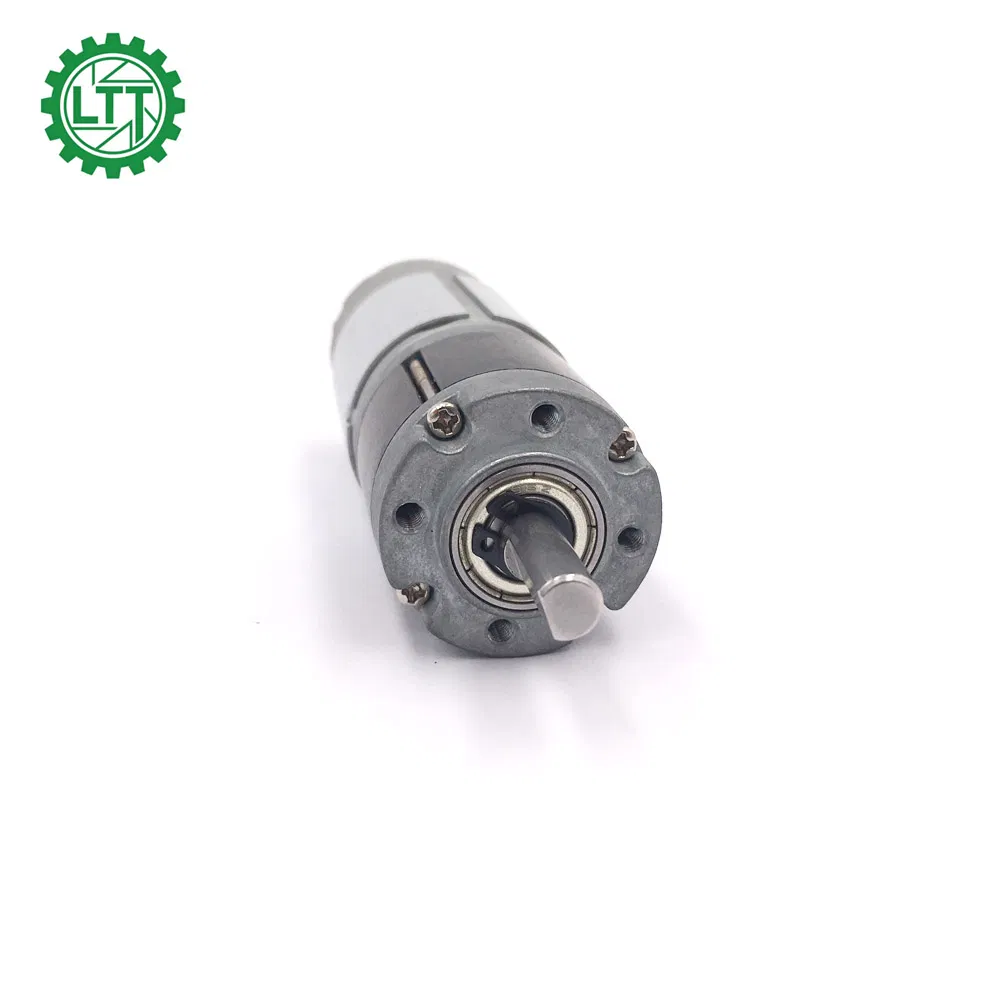

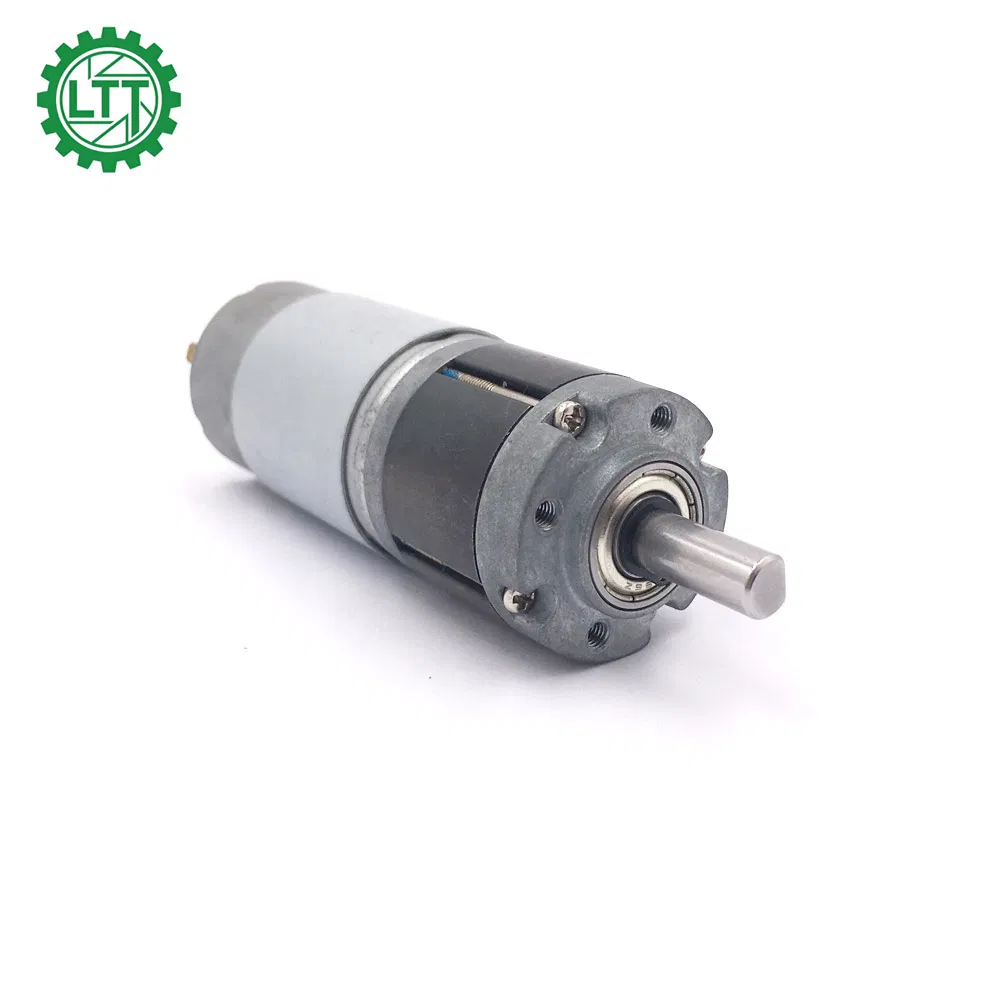

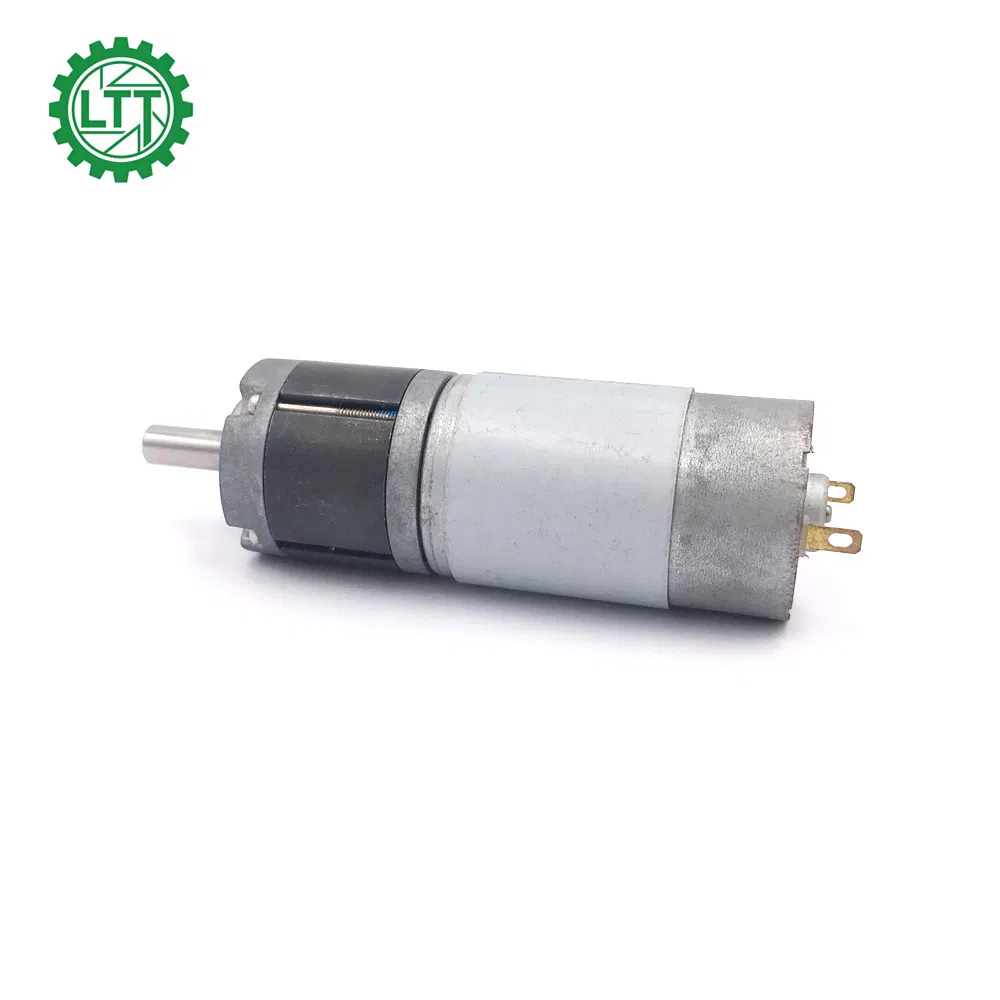

| 28mm Diameter Micro DC Planetary Gear Motor | |||
|---|---|---|---|

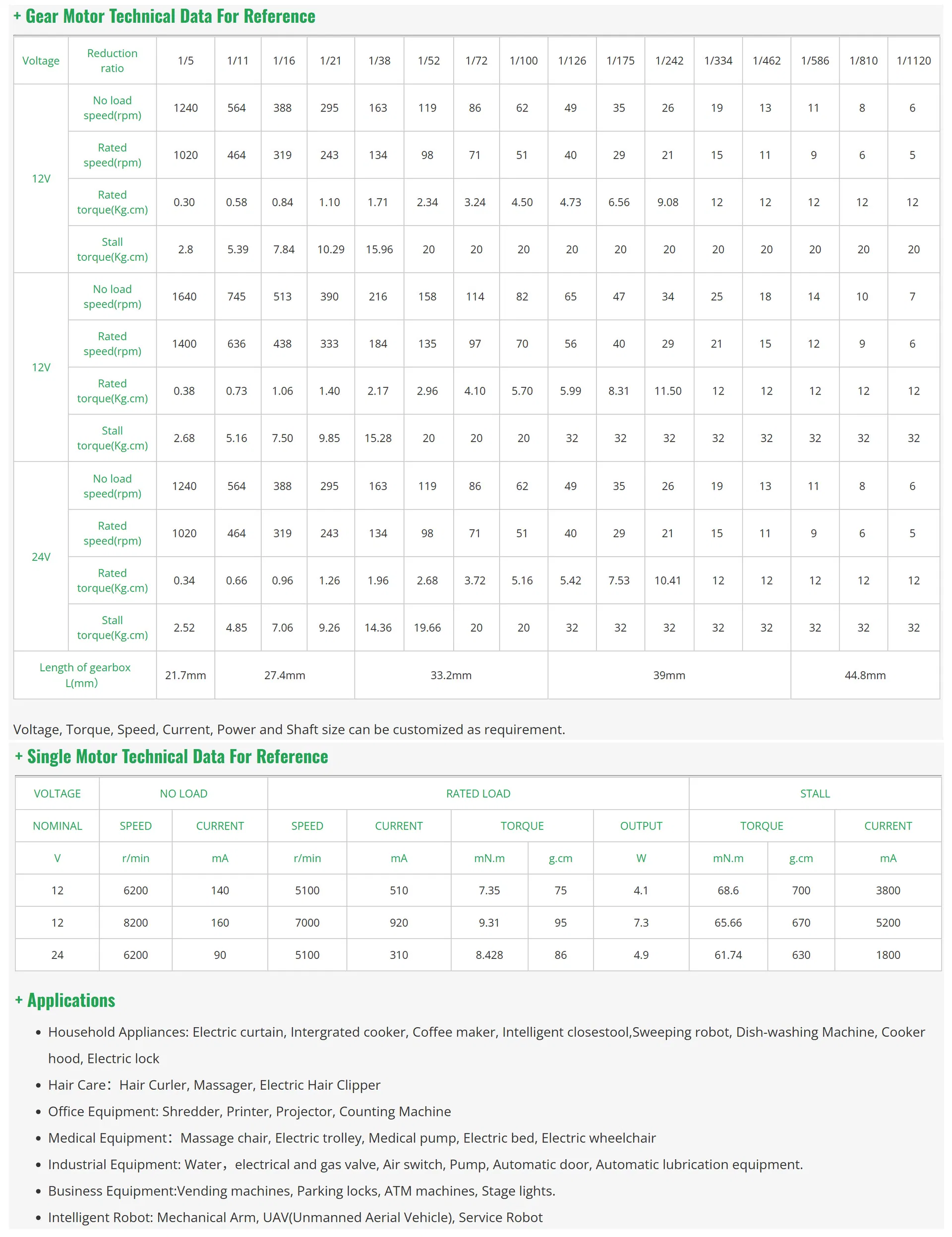

| Model: | LPM28-395 | Type: | DC Planetary Gear Motor |
| Voltage: | 3v-36v | Speed: | 1rpm-3300rpm |
| Continuous Current: | ≤7A | Stall Torque: | ≤32kg.cm |
| Typical Application: | Household Appliances, Hair Care, Office Equipment, Medical Equipment, Industrial Equipment, Business Equipment, Intelligent Robot, etc. | ||
| Gearbox Material: | Steel, Brass, Plastic, Powder Metallurgy, Zinc Alloy | ||
| Bearing Type: | Ball Bearing, Oil Bearing | ||
| Shape of Shaft: | Circular, D-shape, Slotted, Knurled, Square, Hexagon, Threaded, Shaft with hole | ||
Shipping Method: Packing by crate, carton, or pallet; Shipping by air, sea, or express delivery.
