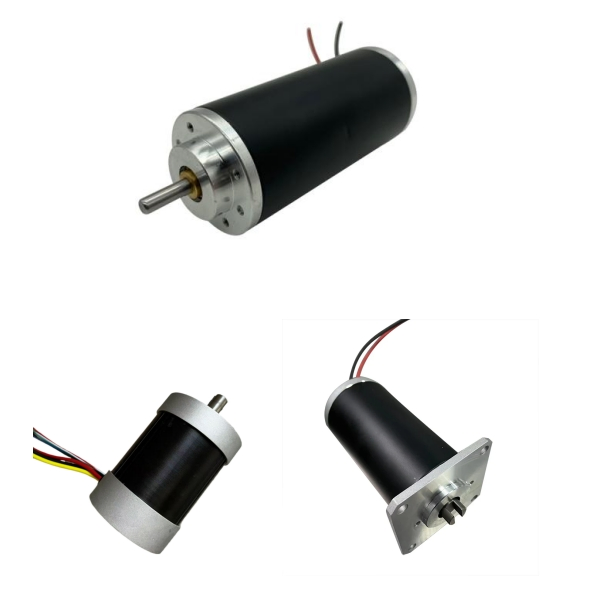

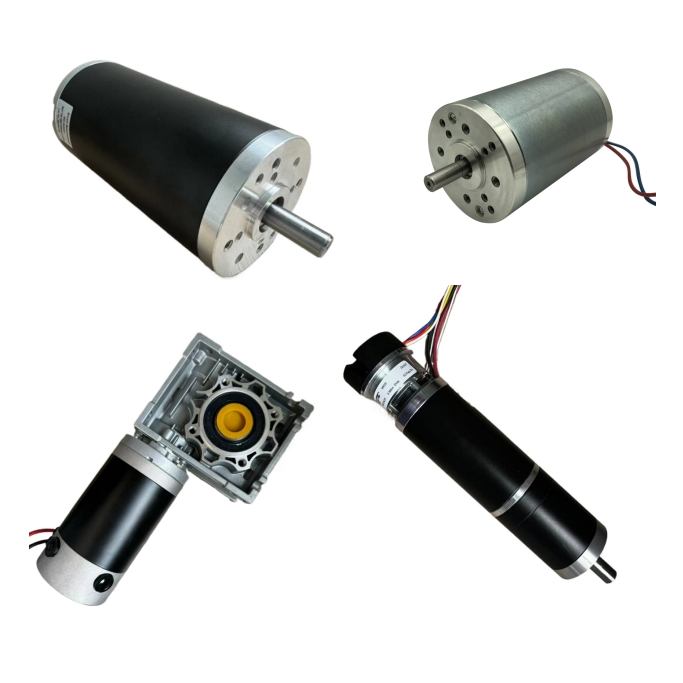

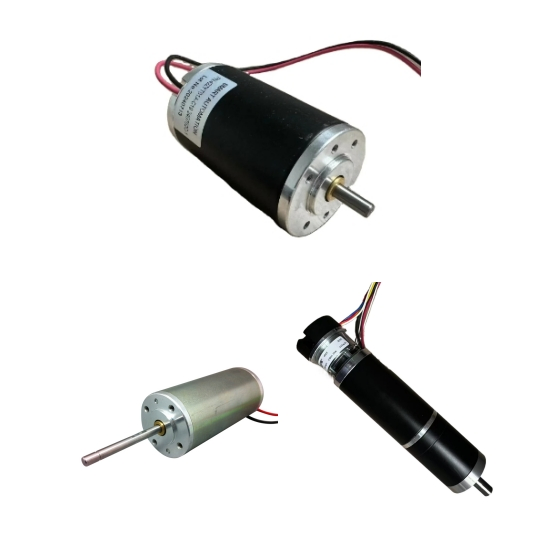

Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
1 / 5
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors

Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors

Customization: Available
Application: Universal, Industrial, Household Appliances, Car, Power Tools, Machine, Robot
Operating Speed: Constant Speed
Send Inquiry

Product Description

Basic Specifications

Model NO.
Zyt series
Excitation Mode
Pm
Function
Control, Driving
Casing Protection
Closed Type
Number of Poles
2
Principle
Brushless
Type
ZSN
Certification
ISO9001, CE, RoHS
Power Range
10W Upto 2000W
Voltage
12V 24V Upto 380VDC
Capacity
10000 PCS Per Month
HS Code
8501310000

Product Description

Customized Brushed Dc Motors / DC Gearmotor

We provide customizable options for voltage, dimension, performance, shaft, and mounting to meet specific application requirements. Our solutions include integrated encoders, gearboxes, and brakes.

Please Send Inquiry for the Best and Most Cost Effective Solution/Proposal.

Diameter30mm to 130mm options
Rated voltage10V, 12V, 18V, 24V, 36V, 48V up to 380VDC
Rated torqueUp to 10Nm (with gearbox up to 120Nm)
Rated speed1rpm up to 15000rpm
Rated power10W up to 2000W
Protection classIP00, IP40, IP50, IP54, IP56, IP66, IP67
EMI SuppressionAvailable upon request
Thermal ProtectionAvailable upon request
Gearbox OptionsPlanetary or Worm gearbox assembly
Brake OptionsElectric brake assembly
Encoder OptionsOptical or Magnetic encoders
ControllerIntegrated controller for BLDC motors

Typical Models Showcase

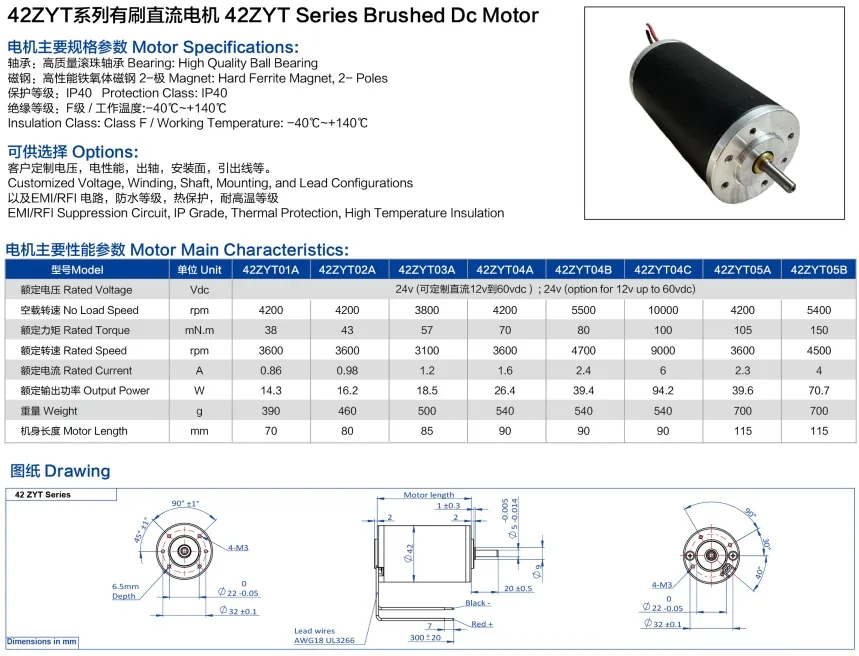

DC Motor Model

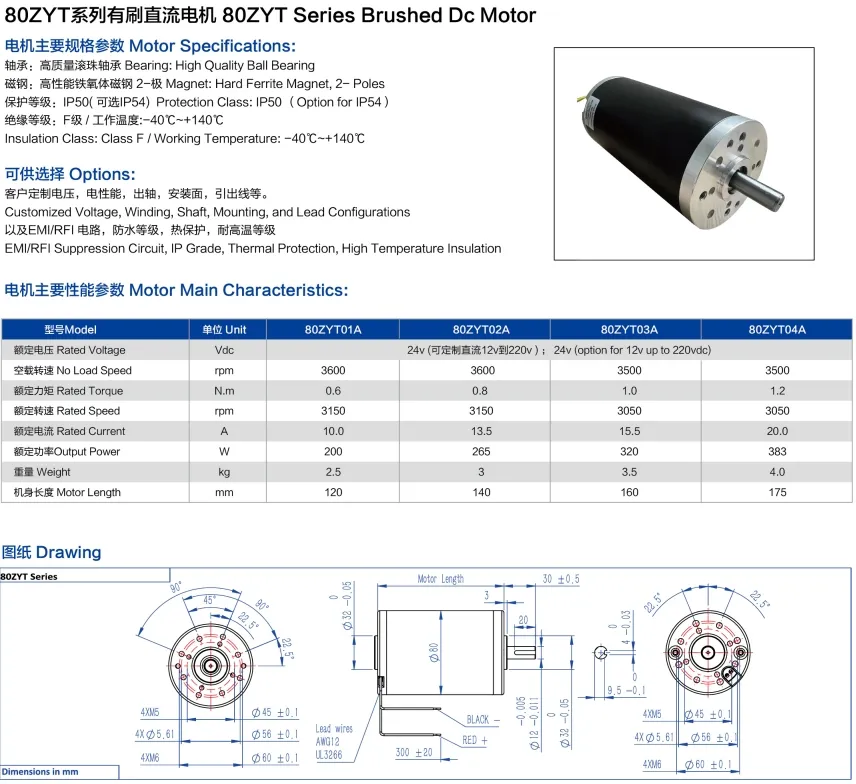

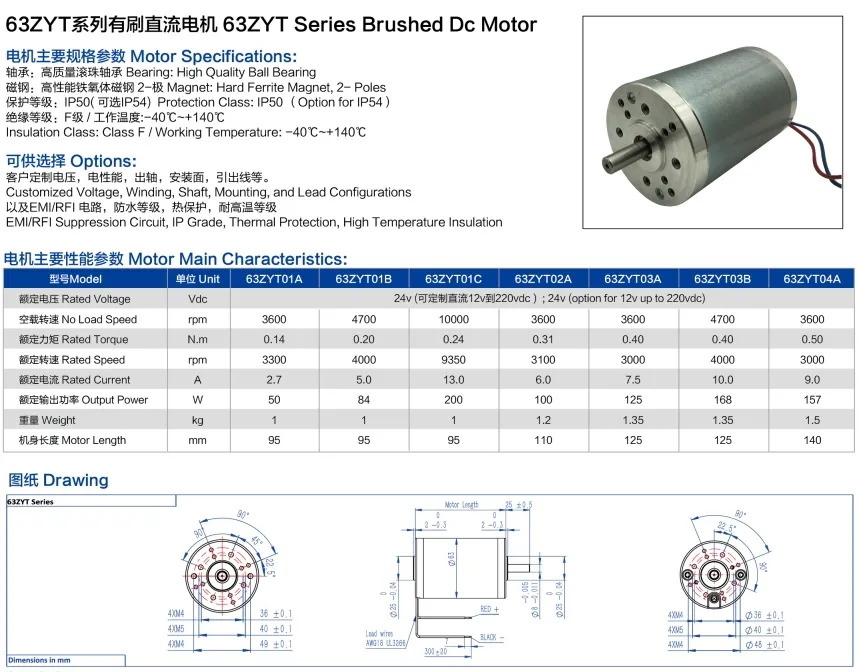

DC Motor Detail 1 DC Motor Detail 2

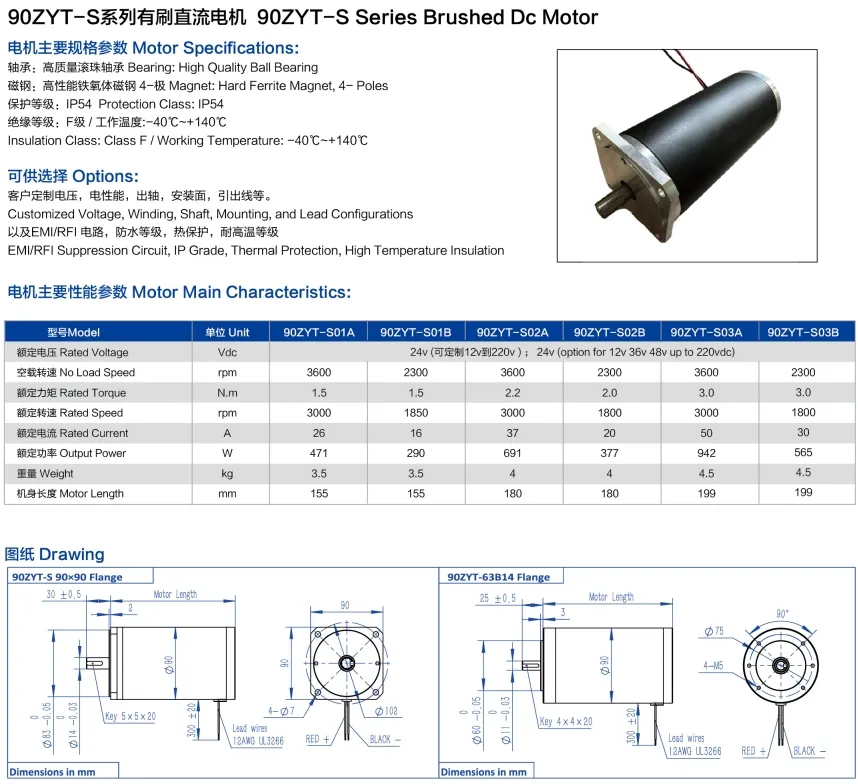

Planetary Gear Motor

Typical Planetary Gear Motors

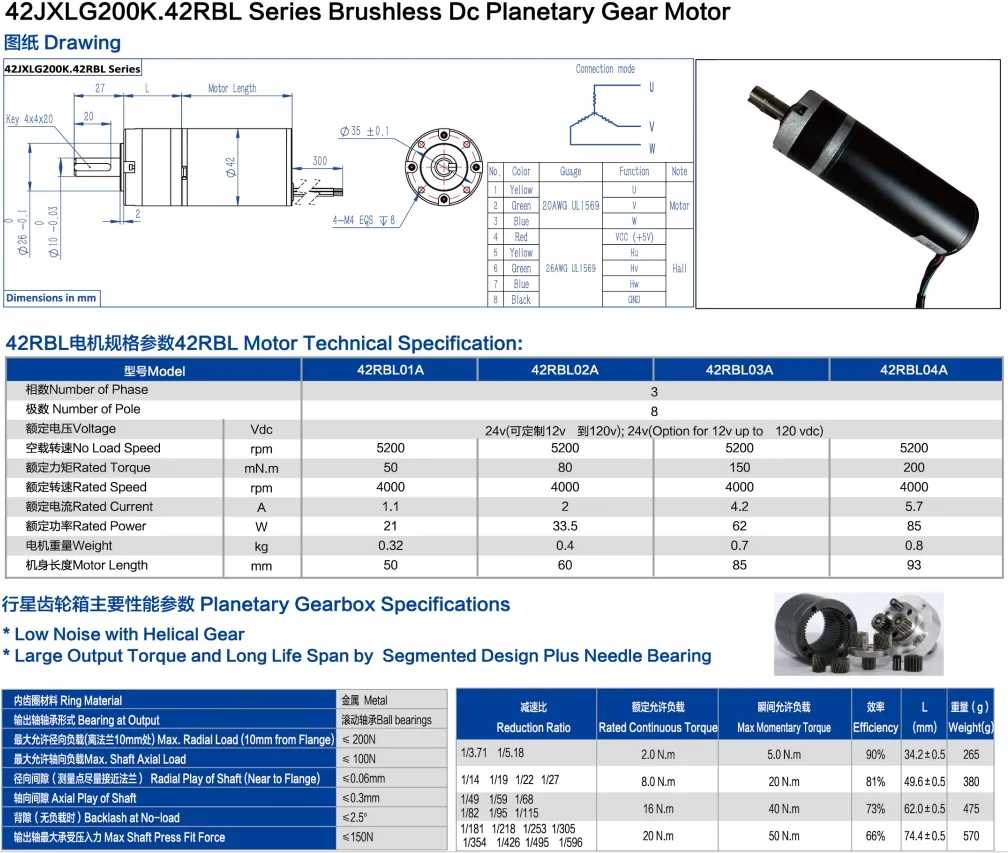

Planetary Gear Motor Unit

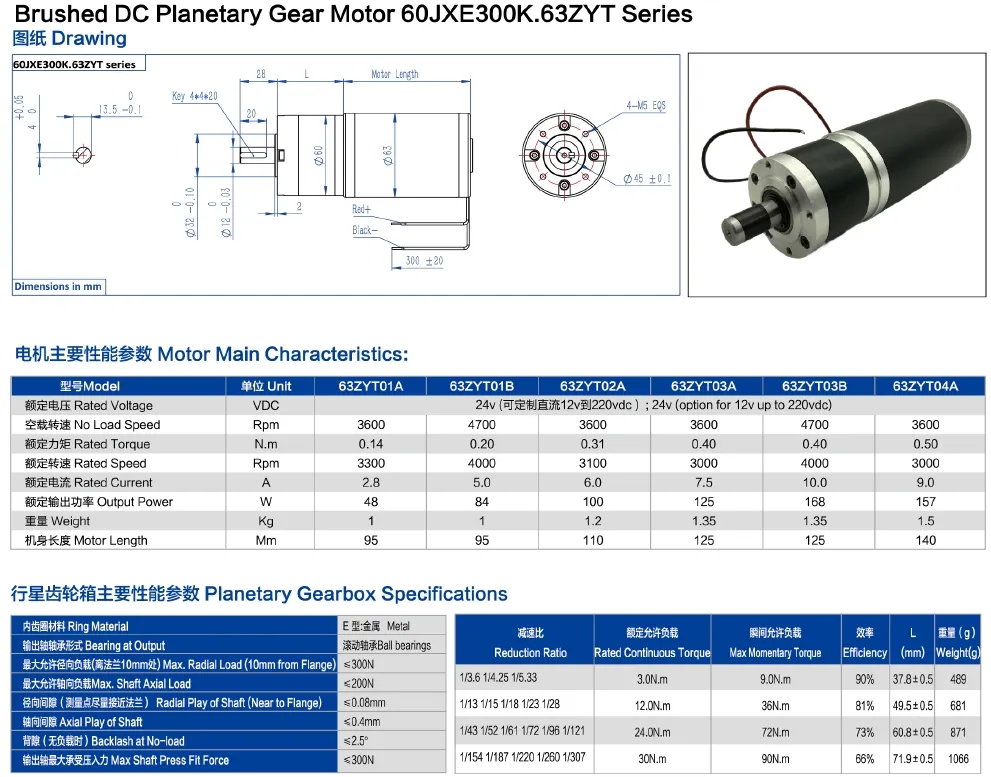

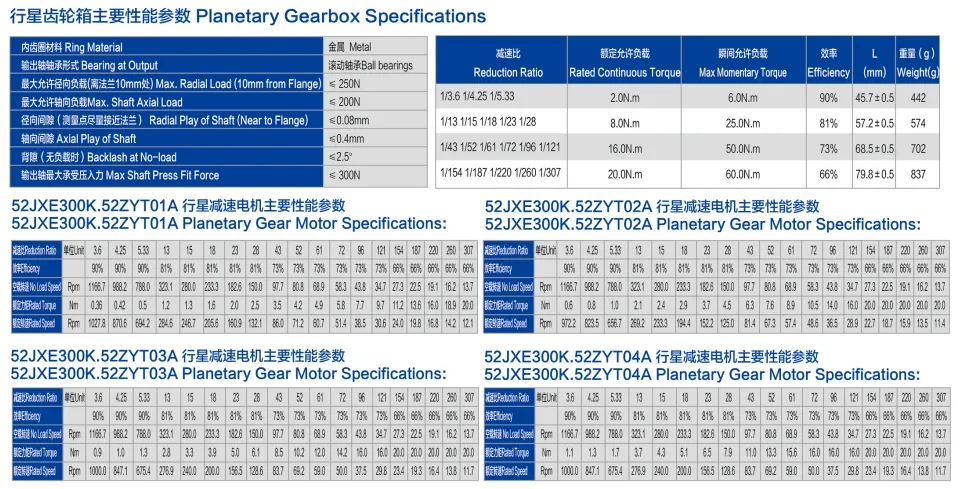

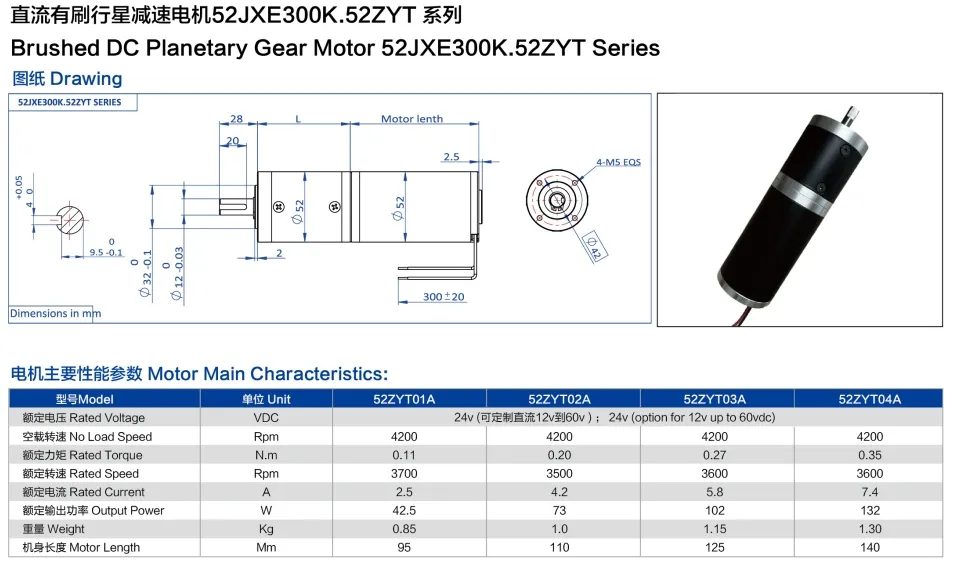

Gear Motor 1 Gear Motor 2 Gear Motor 3

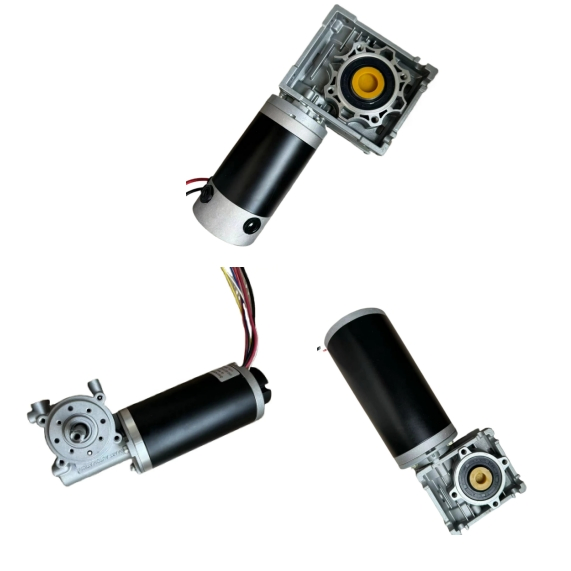

Typical Worm Gear Motors

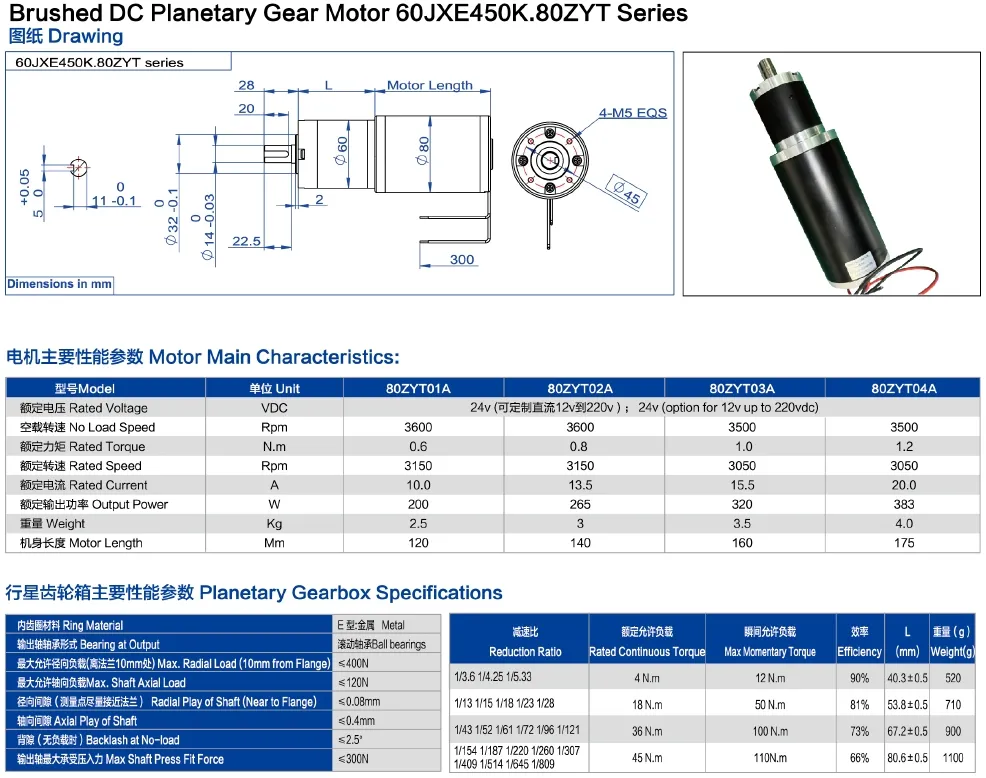

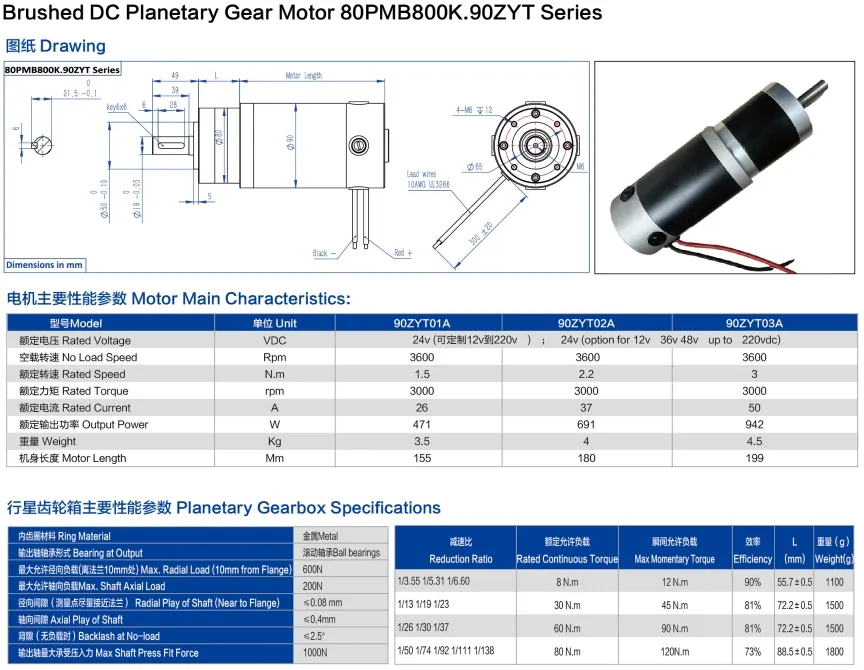

Worm Gear Motor 1 Worm Gear Motor 2

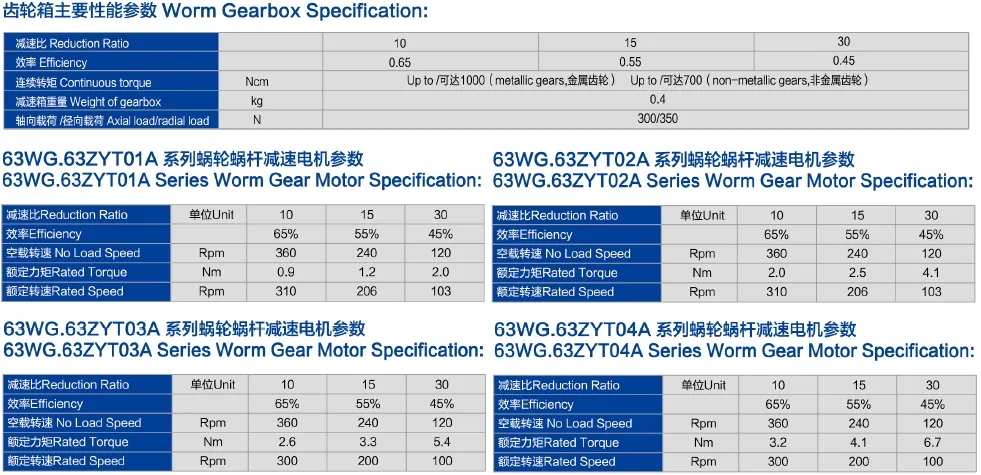

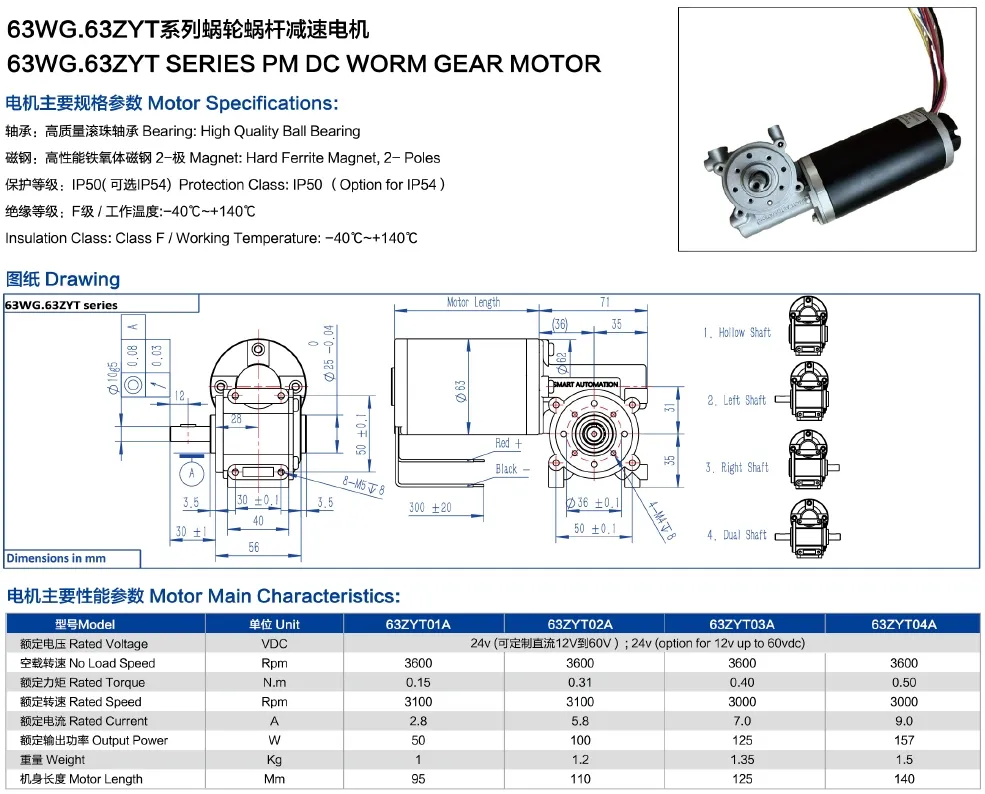

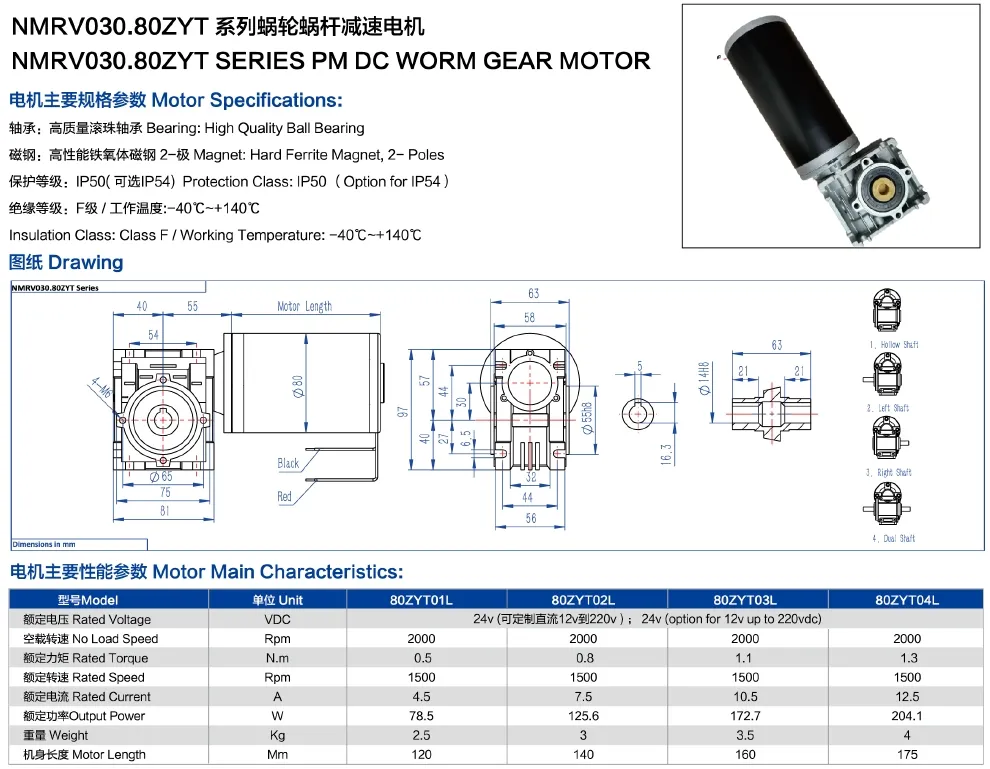

Worm Gear Unit 1 Worm Gear Unit 2 Worm Gear Unit 3

Frequently Asked Questions

What is the power range for these DC motors?
Our brushed DC motors cover a wide power range from 10W up to 2000W to suit various industrial and commercial needs.
Can the motor specifications be customized?
Yes, we offer extensive customization for voltage, dimensions, performance parameters, shaft types, and mounting configurations.
What types of gearboxes can be integrated?
We provide options for both planetary gearboxes and worm gearboxes, depending on your torque and speed requirements.
Are there different protection classes available?
Yes, we offer various protection levels ranging from IP00 up to IP67, making them suitable for different environmental conditions.
Do you provide additional accessories like encoders or brakes?
Absolutely. We can assemble optical or magnetic encoders, as well as electric brakes, directly onto the motor units.
What voltages are supported for these motors?
Our motors support a variety of DC voltages, including 12V, 24V, 36V, 48V, and up to 380VDC.
