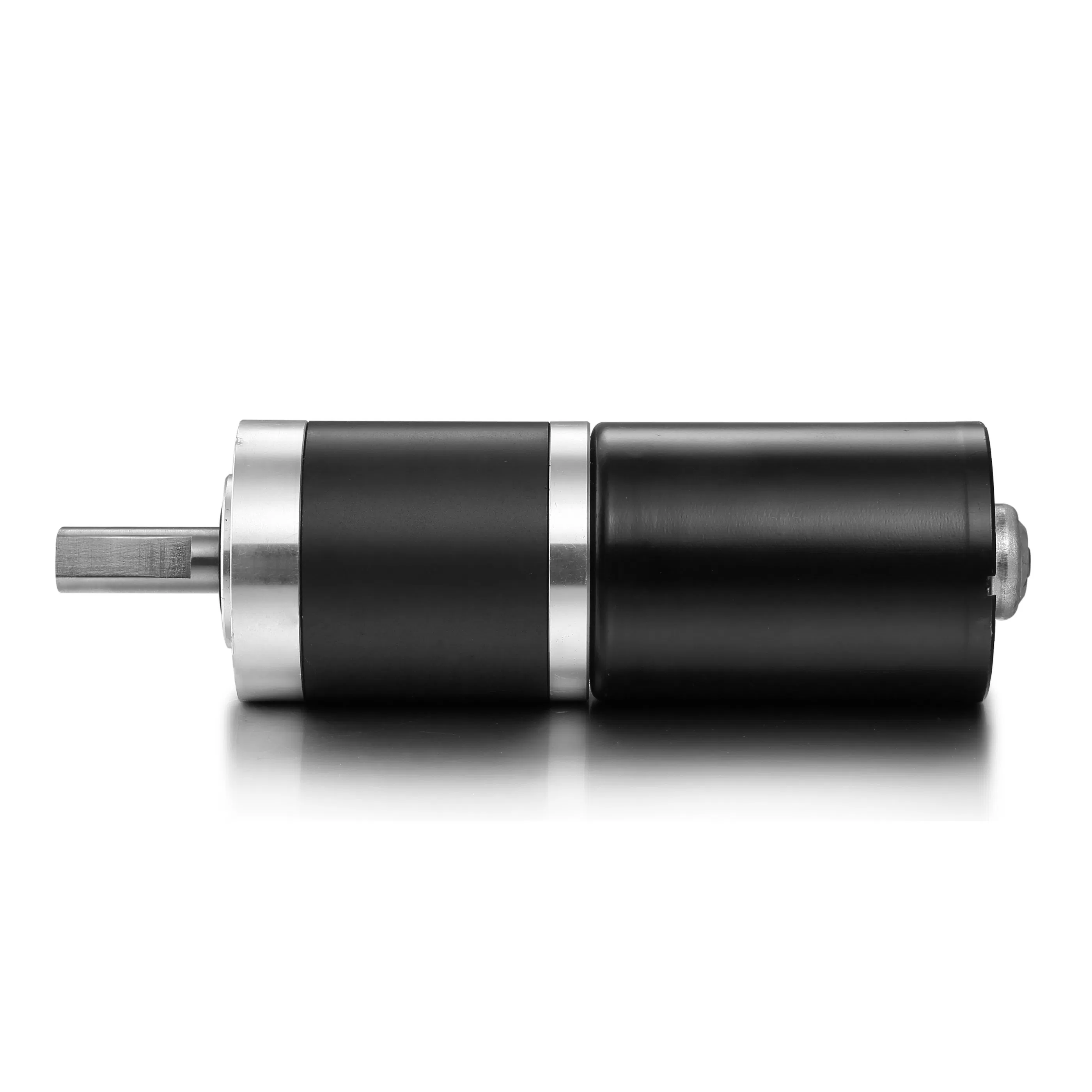

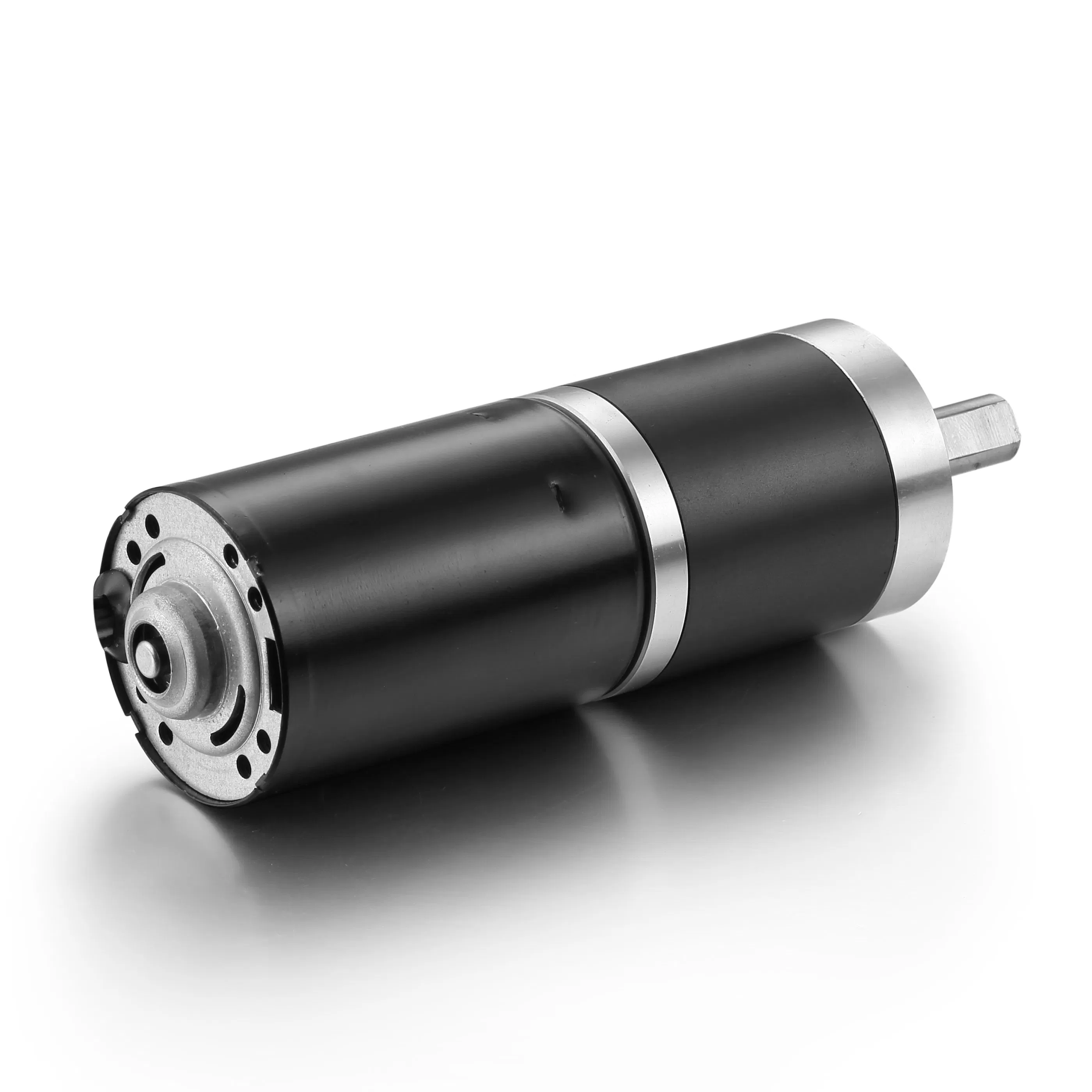

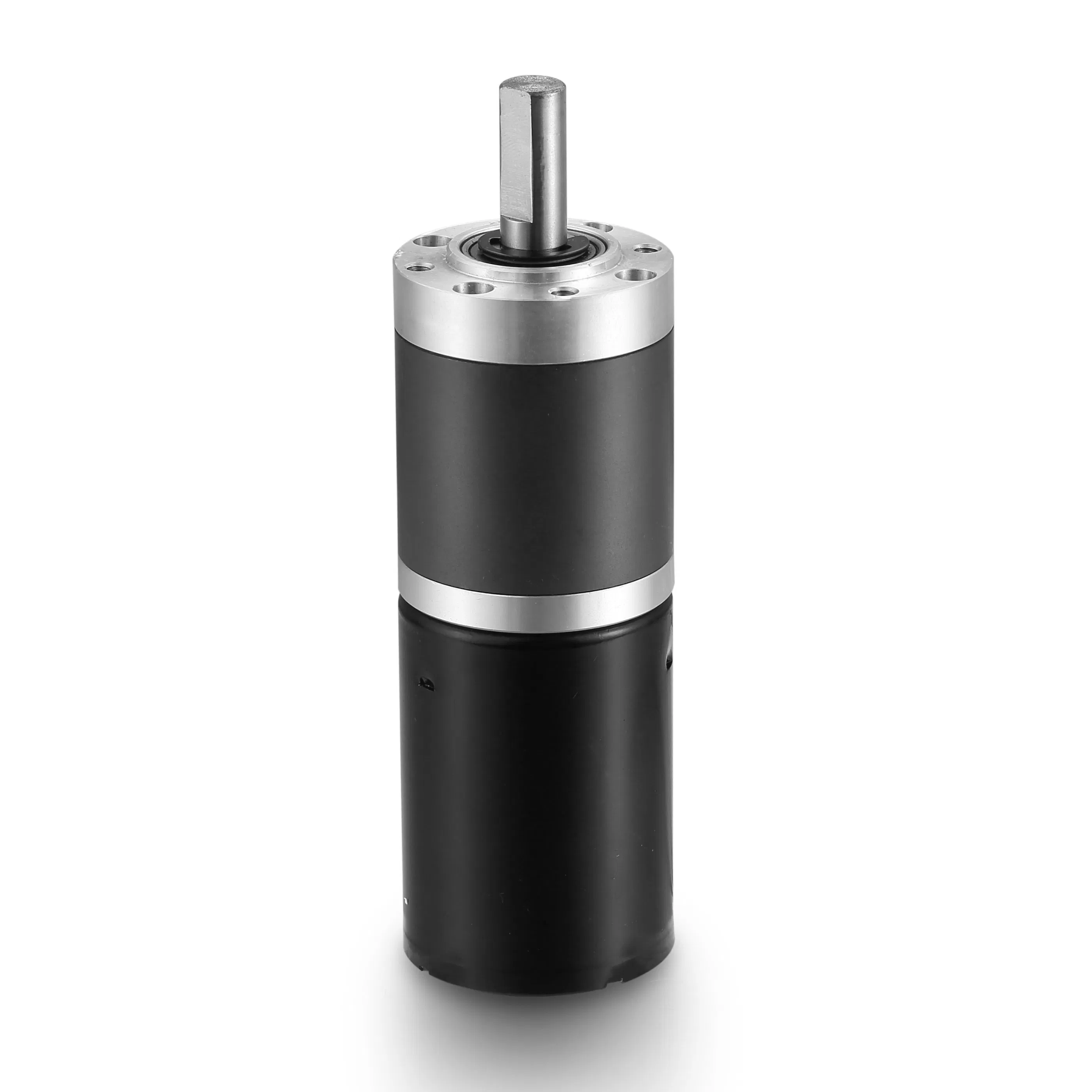

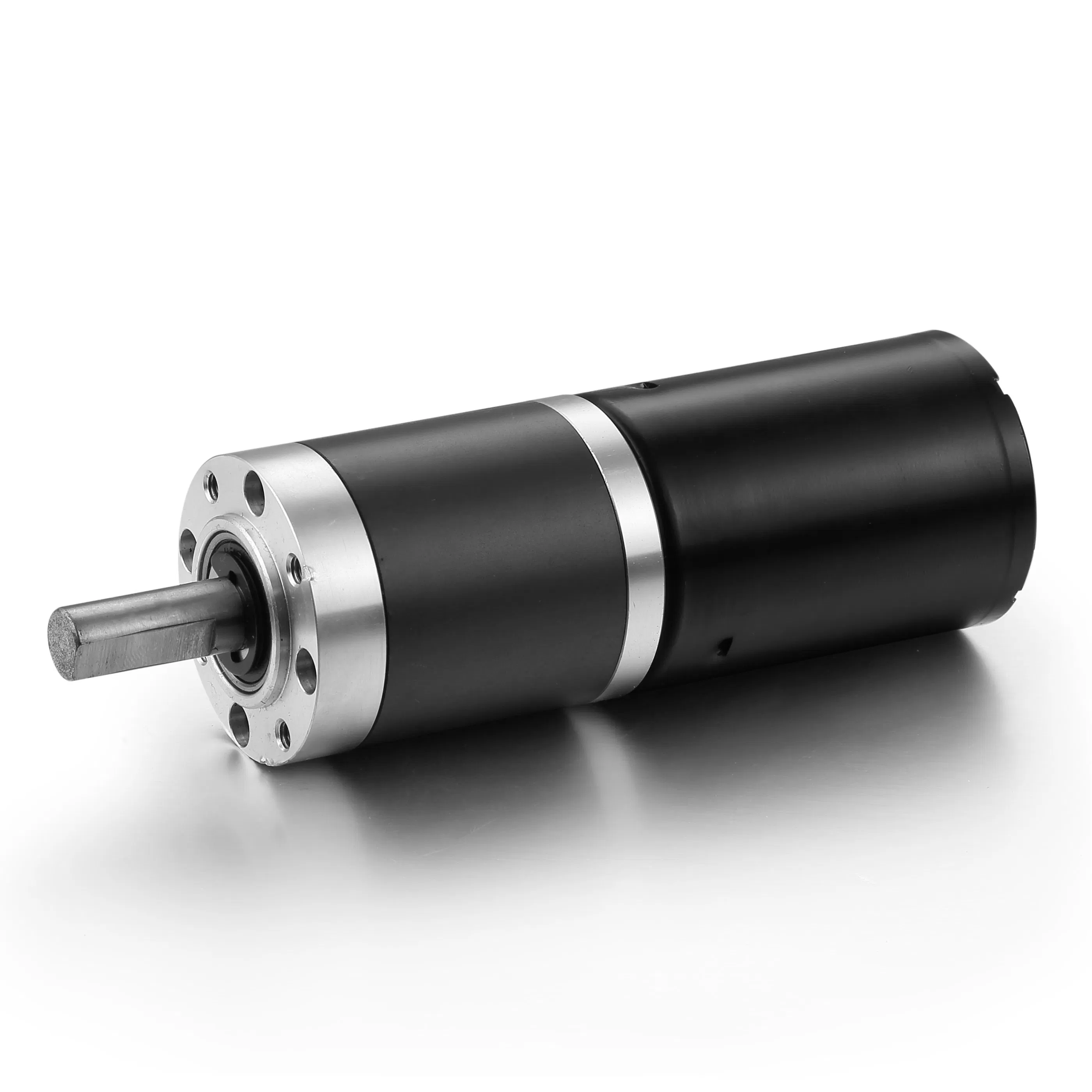

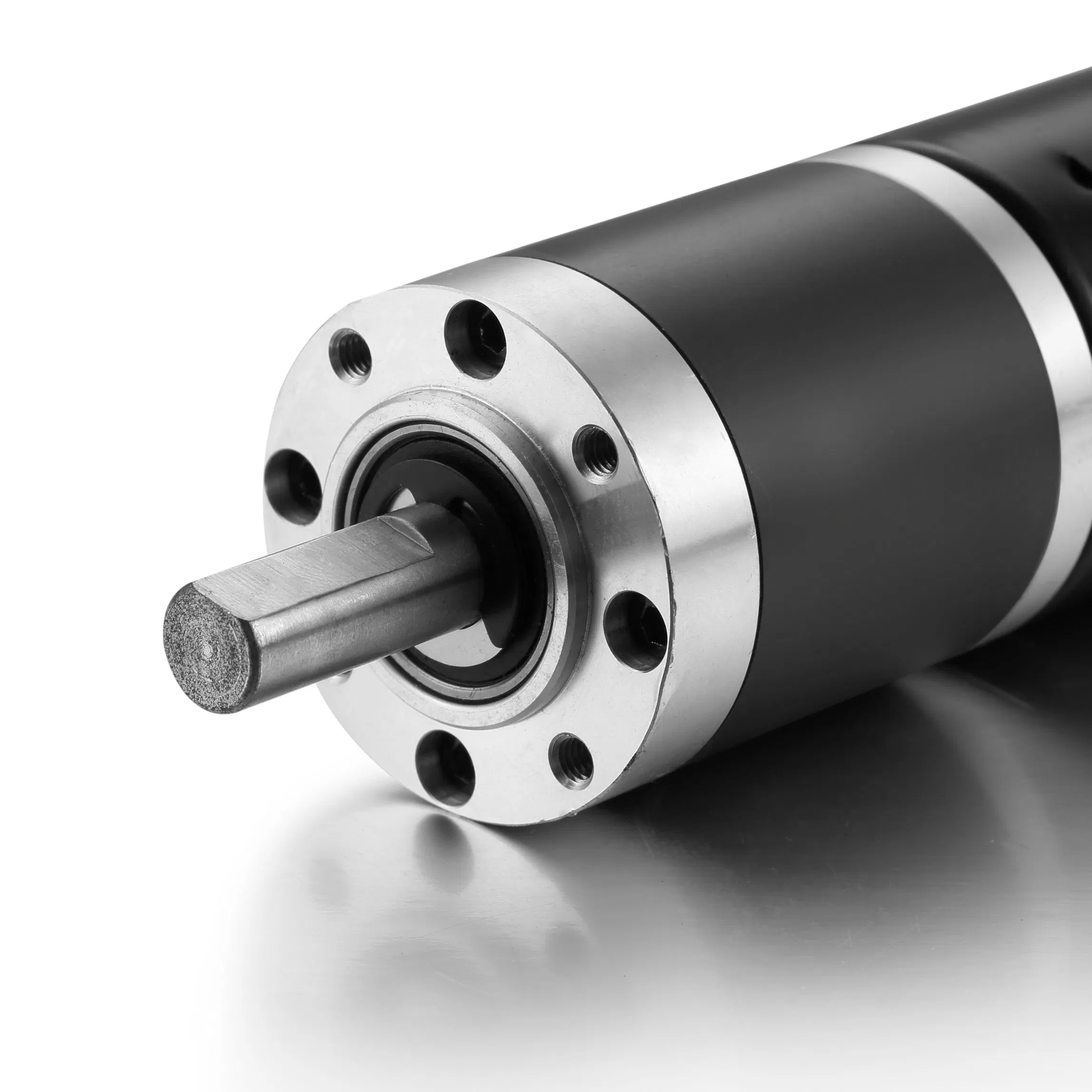

65rpm Low Speed 42mm Gearbox 12 V Permanent Magnet Geared 24V DC Planetary Gear Brushless Motor High Torque 0.5kg-Cm

Still deciding? Get samples of $ !
Request Sample

Product Description

⚙️ Basic Specifications
Model NO.
BG42BL2450-19-5
Excitation Mode
DC
Function
Driving
Casing Protection
Closed Type
Certification
CCC, FCC
Product Name
42mm Brushless DC Motor
Rated Voltage
24V
Motor Diameter
42mm
Power
17/18W
Efficiency
IE2
Noise
65dB
Bearing
Ball

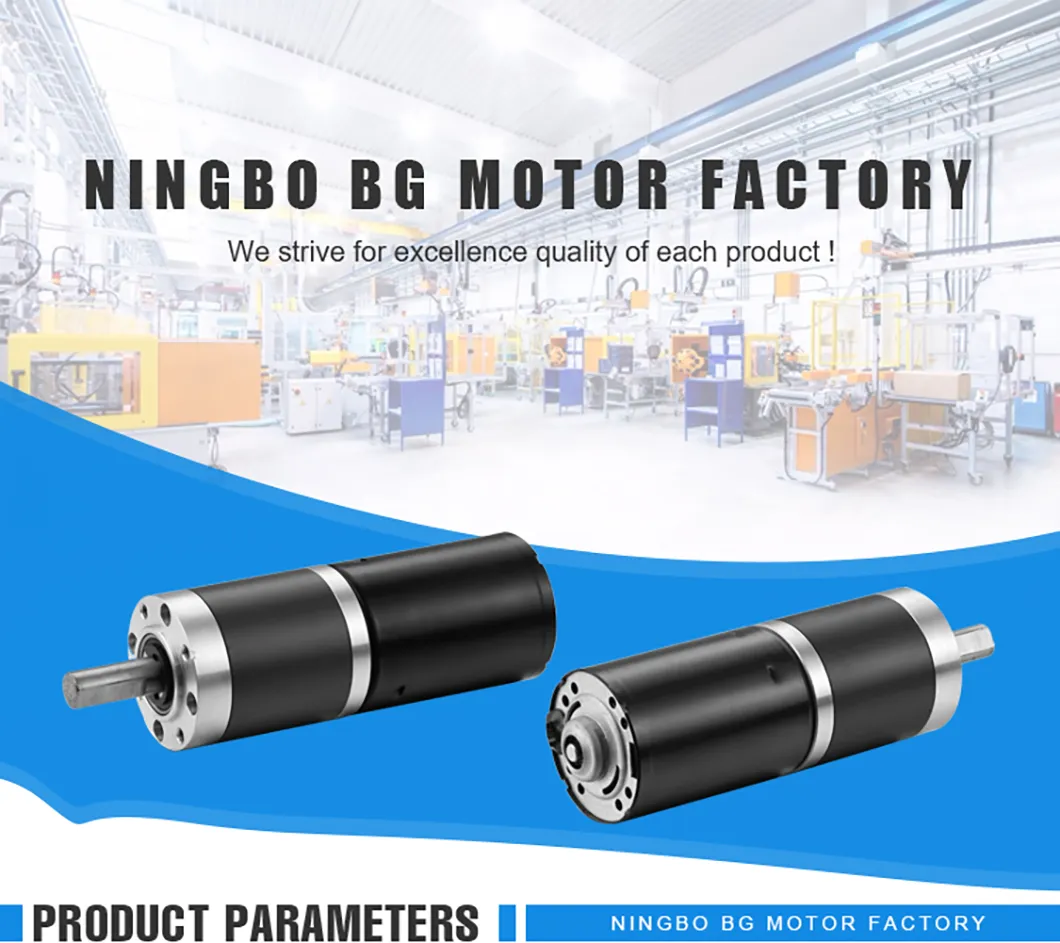

42mm Gearbox Motor
📊 Technical Data
BGBL42 DC Brushless Motor Details
Environmental Conditions-20ºC~50ºC
Insulation ClassB
Protection ClassIP44
Noise Level≤65dB
Number of Poles/Phases8/3
Lifespan>5000h
Model Voltage (V) Power (W) Speed (rpm) Torque (N.m) Current (A)
BG42BL01121734000.052.5
BG42BL02241835500.051.3

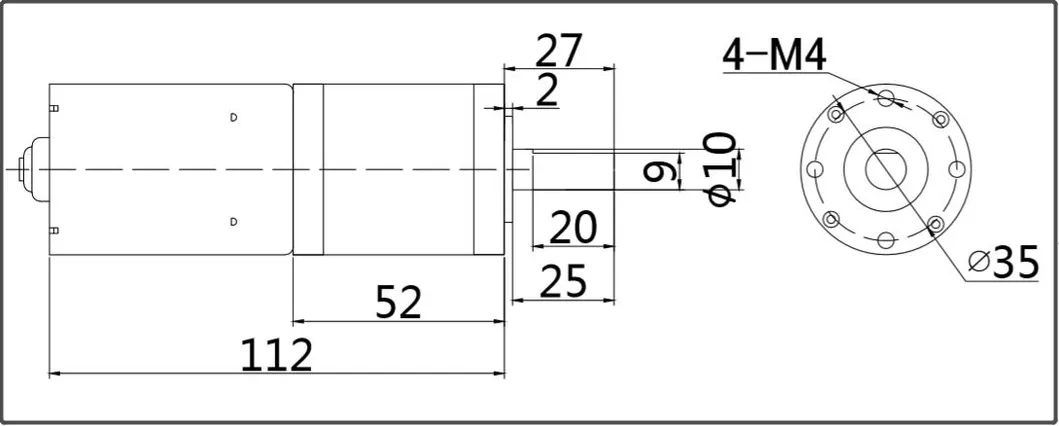

Planetary Gear Motor Technical Drawing
Motor Dimensions

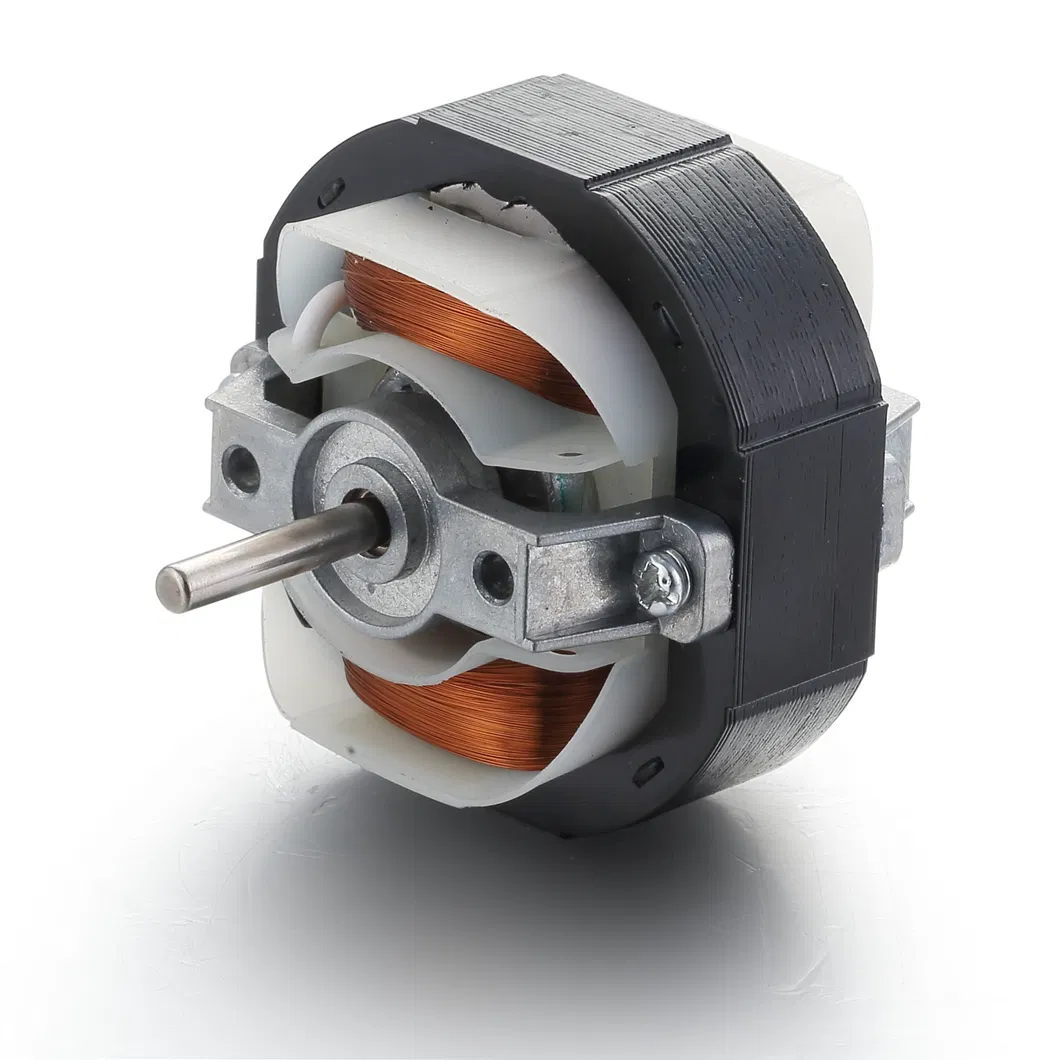

Product View 1

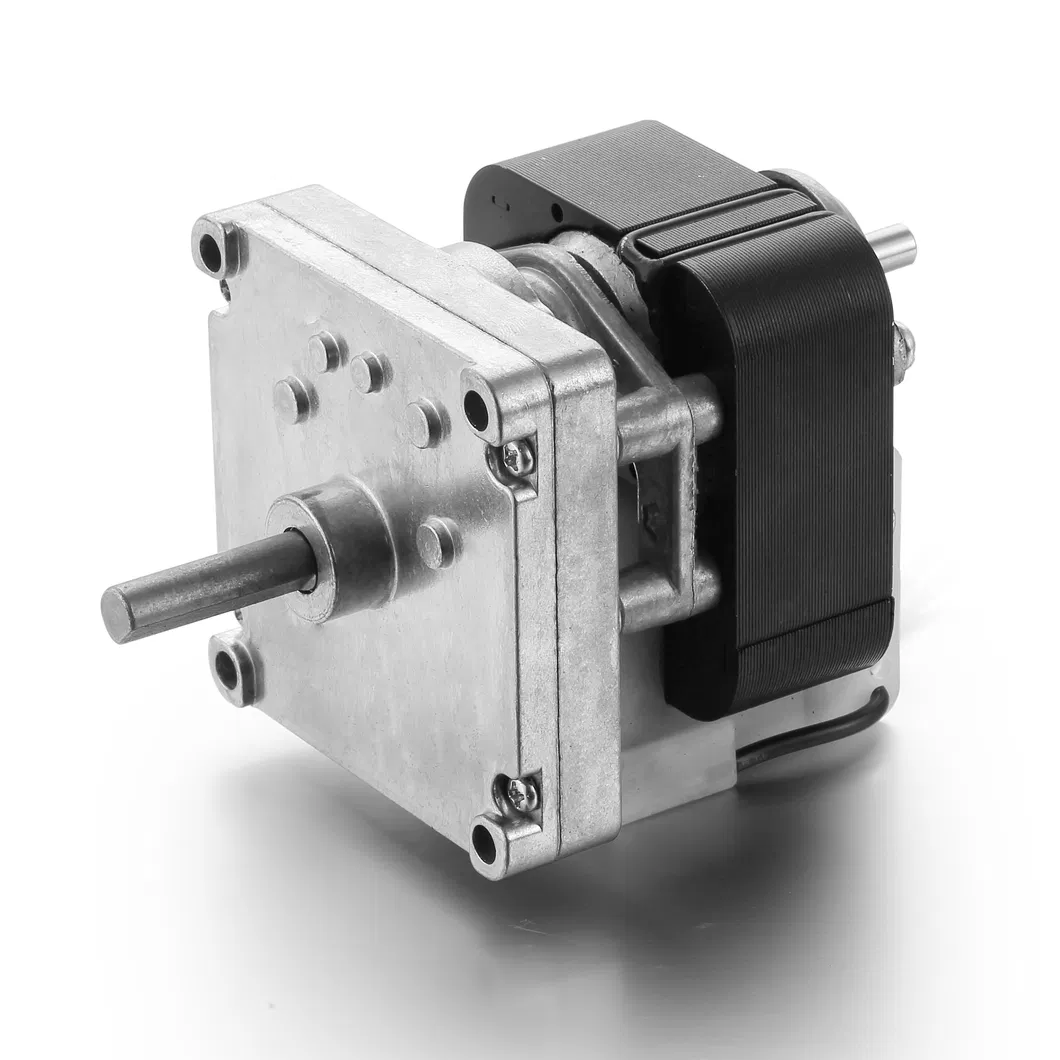

Product View 2

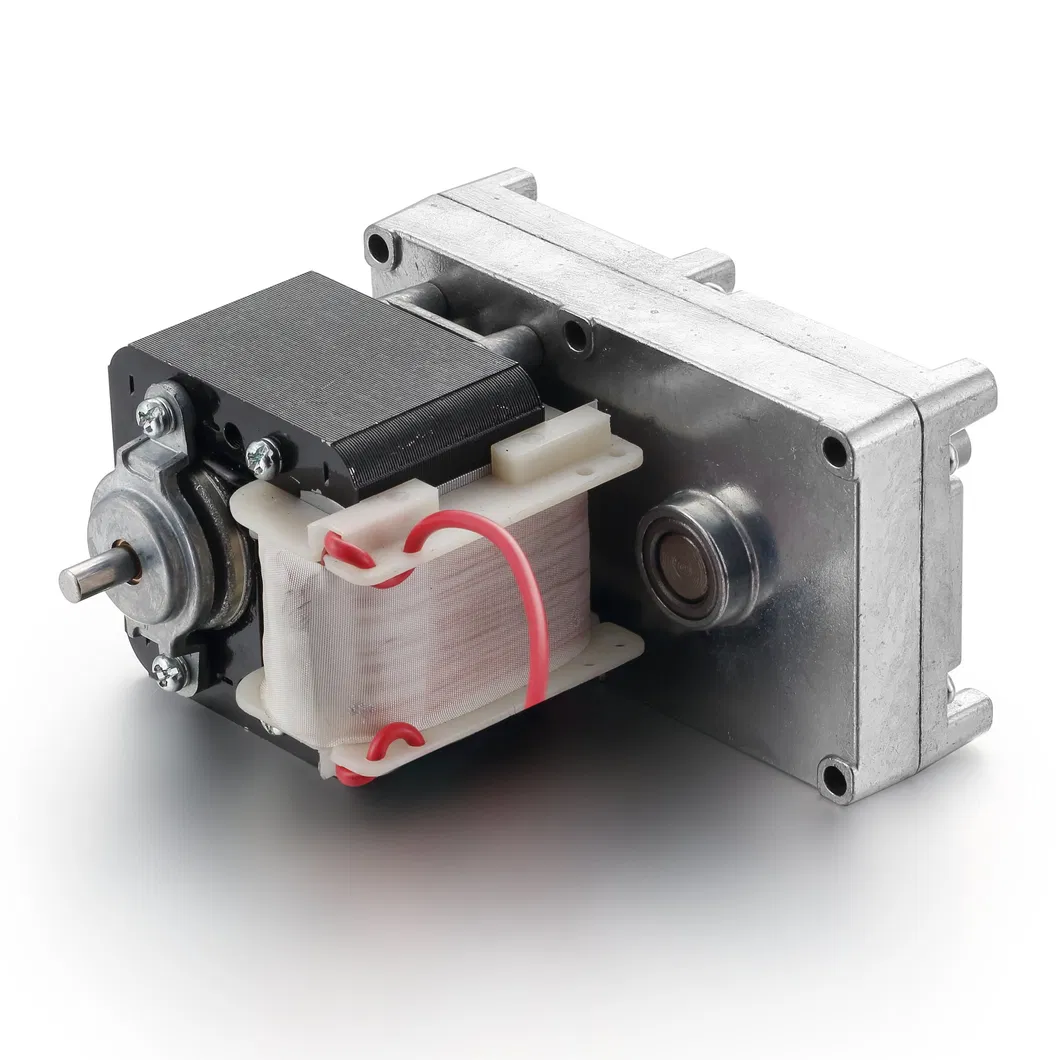

Product View 3

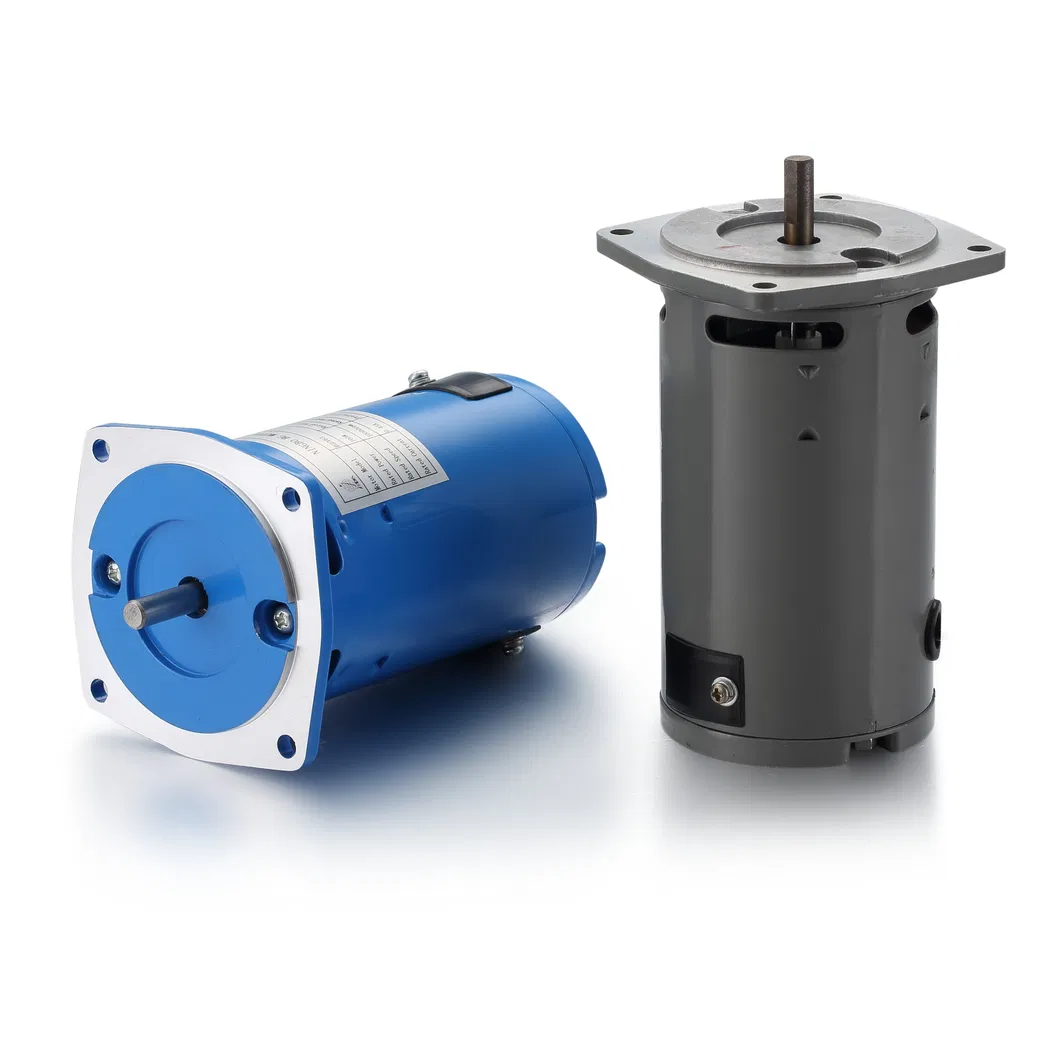

Product View 4

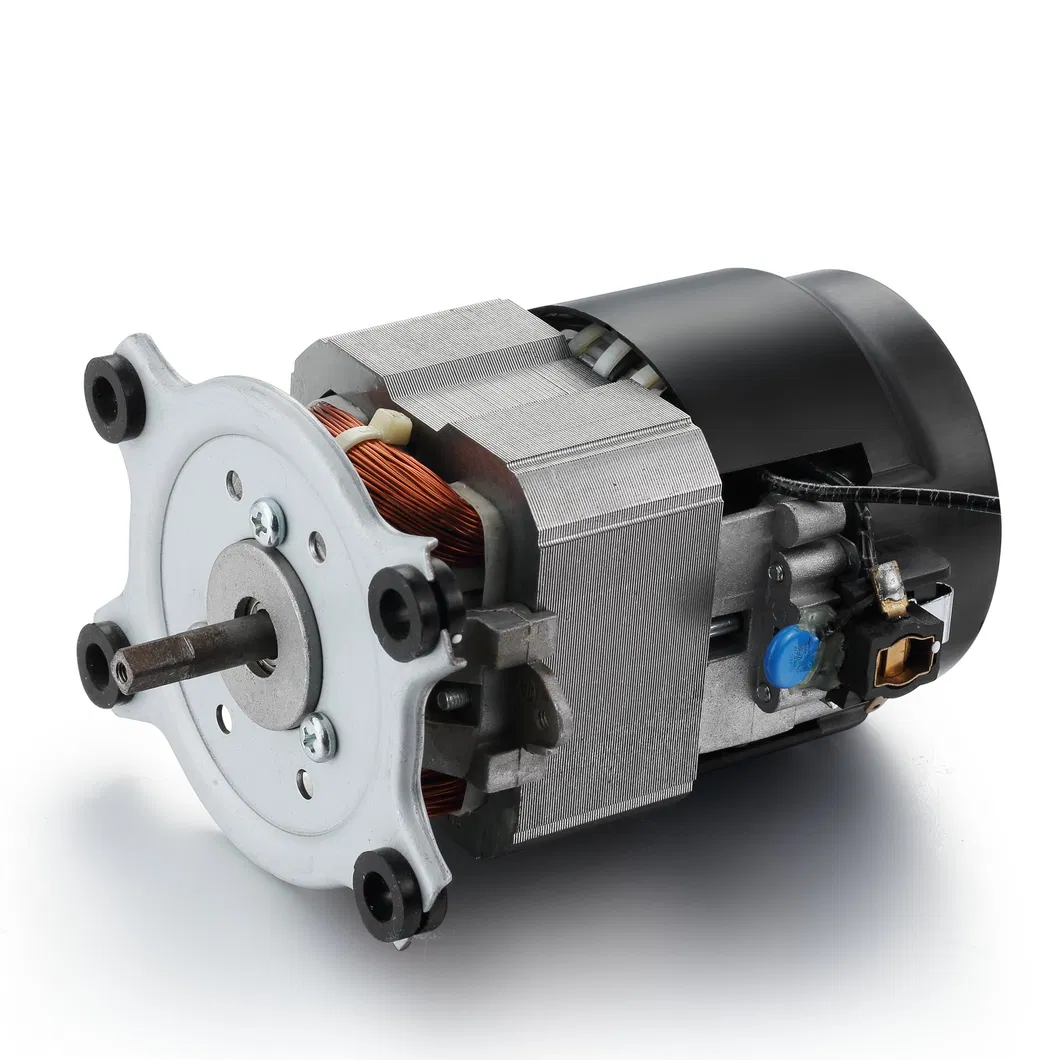

Product View 5

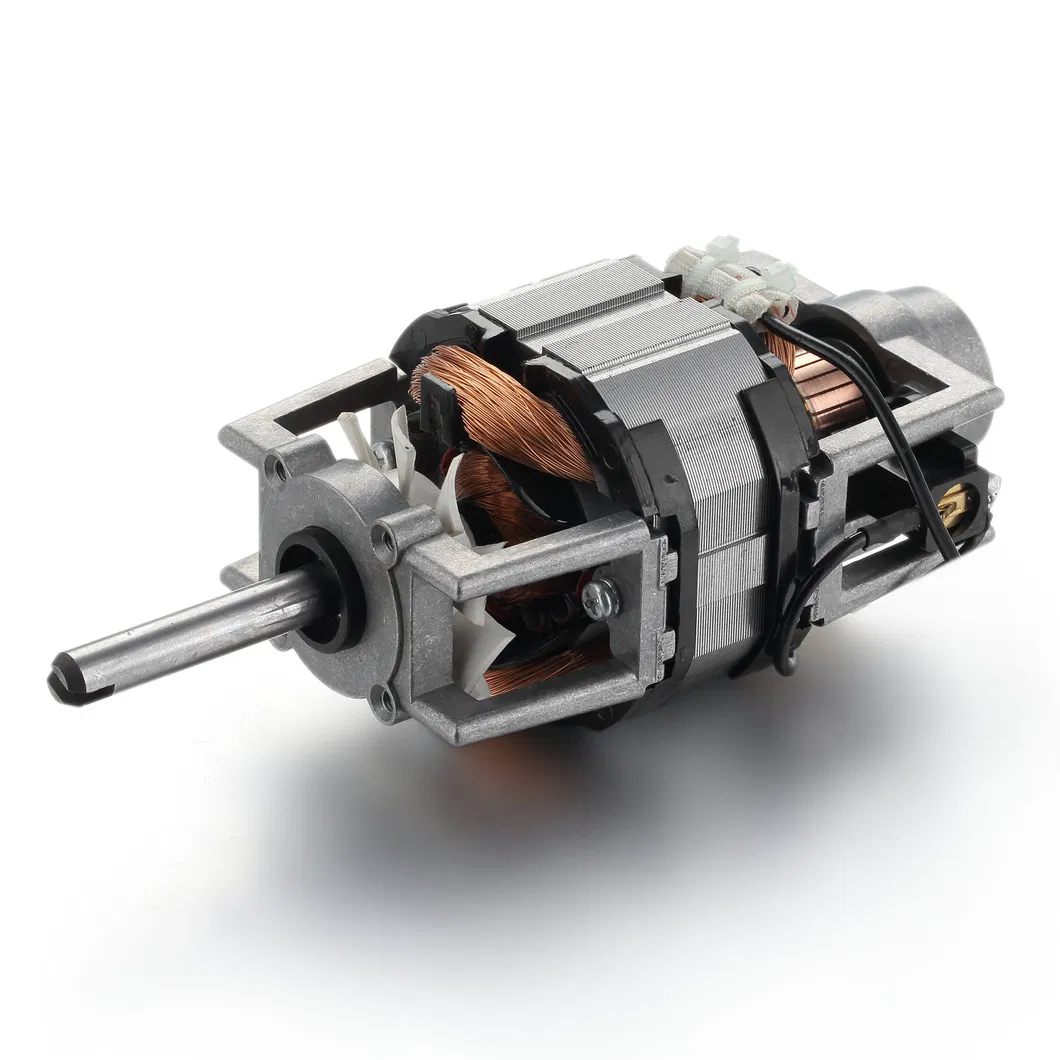

Product View 6
Motor Application

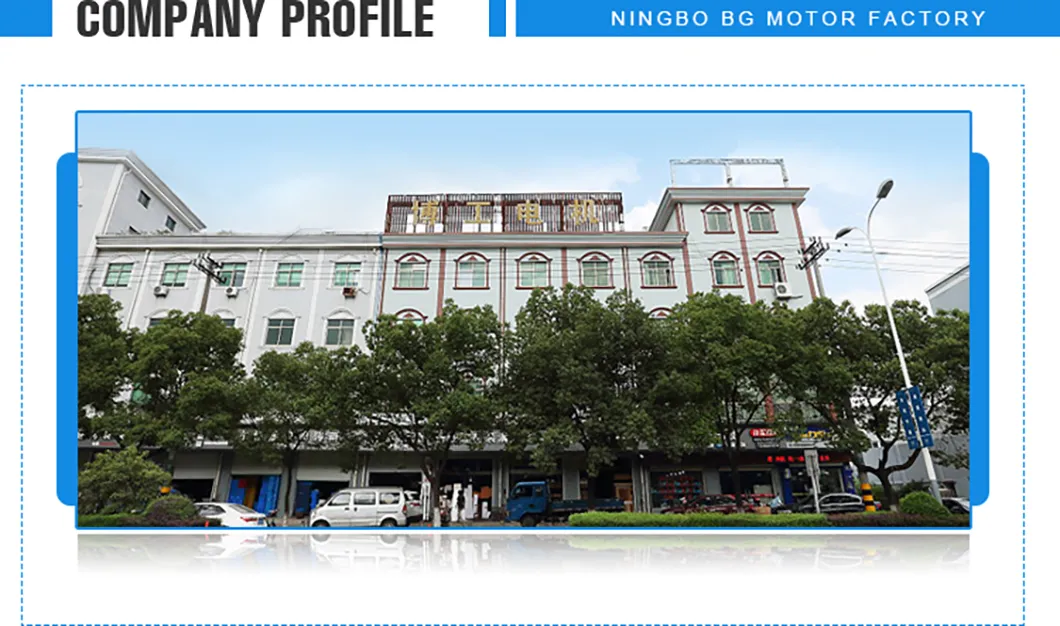

🏢 Professional Manufacturing

Established in 1994, we are a professional manufacturer of brushless DC motors, brushed DC motors, planetary gear motors, worm gear motors, universal motors, and AC motors. Our facilities include a plant area of 6,000 square meters, multiple patent certificates, and independent design and development capabilities. With a strong technical force, our annual output exceeds 1 million units.

Our engineering team brings extensive expertise, with lead engineers having over 40 years of experience in motor technology. We focus on providing comprehensive motor solutions and professional customized services to meet specific customer needs across 20 countries.

Our applications cover a wide range of industries including AGVs, underwater robots, sewing machines, automobiles, medical equipment, automatic doors, lifting equipment, and industrial machinery.

Production Process
❓ FAQ
Q1: What kind of motors can you provide?
We mainly produce brushless DC motors, brush DC motors, AC motors, and Universal Motors. Our motor power range is typically under 5000W with diameters up to 200mm.
Q2: Can you provide a standard price list?
Since our motors are customized based on requirements like lifetime, noise, voltage, and shaft specifications, prices vary. Please share your detailed requirements for a specific quote.
Q3: Are samples available for testing?
Yes, we provide samples for testing before official orders, provided the MOQ and terms are acceptable. Since motors are custom-made, we generally do not hold stock for personal use.
Q4: Do you offer OEM or ODM services?
Yes, both OEM and ODM services are available. Our professional R&D department can provide customized solutions tailored to your needs.
Q5: What is the typical lead time for an order?
For regular orders, the standard lead time is 15-20 days. This may vary depending on the specific model, production period, and order quantity.
Q6: Can we visit the factory?
You are welcome to visit our factory. We appreciate the opportunity to demonstrate our manufacturing capabilities and discuss your requirements in person.
